In-flight performance of the MXT Camera
Pith reviewed 2026-05-08 01:51 UTC · model grok-4.3
The pith
In-flight tuning allows the X-ray camera to provide accurate spectroscopy for gamma-ray burst afterglows.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The central claim is that the intensive tuning of the detector parameters and calibration method during the initial orbital phase has successfully prepared the camera to deliver both rapid source localization via photon positions and accurate spectral information for modeling gamma-ray burst properties, confirming the overall design for the mission's scientific goals.
What carries the argument
The camera subsystem that records photon positions and energies from focused X-rays, with tuning of its detector parameters and calibration method to achieve imaging and spectroscopy over a 58 by 58 arcmin field.
Load-bearing premise
That the combination of ground testing and early in-flight tuning will sustain the camera's performance and spectral accuracy without major unmodeled changes over the full mission.
What would settle it
Detection of spectral response changes that significantly exceed the expected evolution during the mission would challenge the claim of maintained accuracy.
Figures

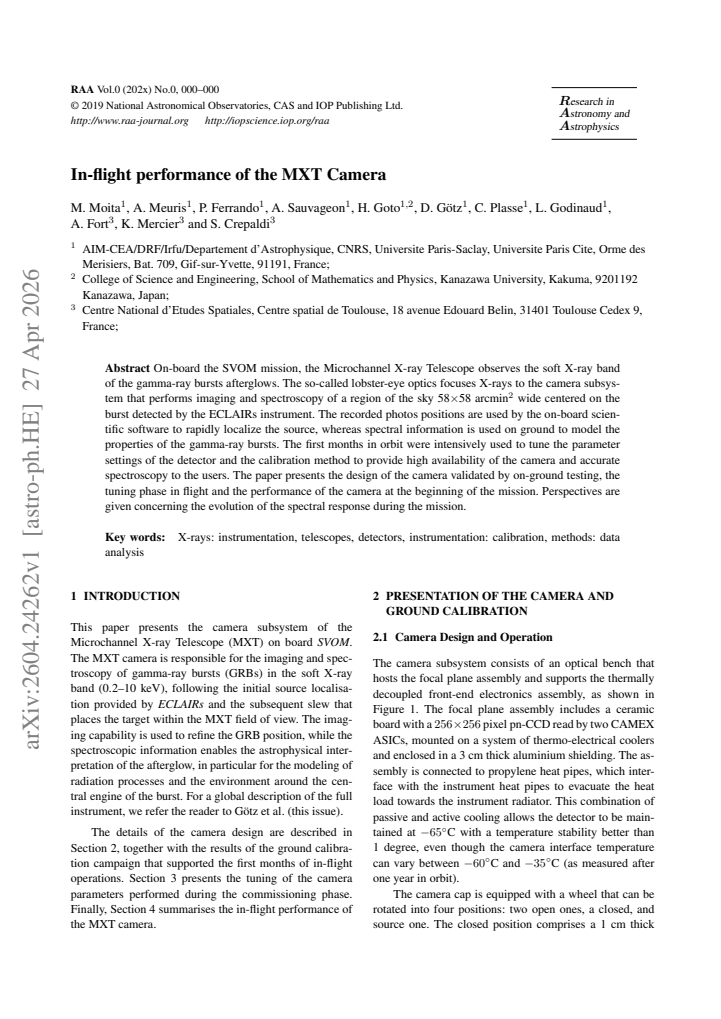

read the original abstract
On-board the SVOM mission, the Microchannel X-ray Telescope observes the soft X-ray band of the gamma-ray bursts afterglows. The so-called lobster-eye optics focuses X-rays to the camera subsystem that performs imaging and spectroscopy of a region of the sky 58x58 arcmin2 wide centered on the burst detected by the ECLAIRs instrument. The recorded photon positions are used by the on-board scientific software to rapidly localize the source, whereas spectral information is used on ground to model the properties of the gamma-ray bursts. The first months in orbit were intensively used to tune the parameter settings of the detector and the calibration method to provide high availability of the camera and accurate spectroscopy to the users. The paper presents the design of the camera validated by on-ground testing, the tuning phase in flight and the performance of the camera at the beginning of the mission. Perspectives are given concerning the evolution of the spectral response during the mission.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper describes the Microchannel X-ray Telescope (MXT) camera aboard the SVOM mission, including its lobster-eye optics and detector design validated by ground testing, the intensive in-flight tuning of detector parameters and calibration methods during the first months in orbit, the resulting initial performance for rapid localization and spectroscopy of gamma-ray burst afterglows, and qualitative perspectives on the evolution of the spectral response over the mission.
Significance. If the tuning process indeed delivers the claimed high availability and spectral accuracy, the work provides a valuable engineering case study for operating microchannel-plate detectors with lobster-eye optics in low-Earth orbit, directly supporting SVOM's GRB science goals and offering practical lessons for future soft X-ray missions. The explicit discussion of the tuning phase and early performance data strengthens its utility as a reference for instrument teams.
major comments (2)
- [in-flight tuning and performance at the beginning of the mission] The central claims of 'high availability of the camera and accurate spectroscopy' (abstract and in-flight tuning section) are not supported by any quantitative metrics, error bars, data tables, or comparisons to ground-test results or mission requirements; this absence makes it impossible to evaluate whether the tuning has achieved the stated performance levels.
- [perspectives on the evolution of the spectral response] The perspectives section on spectral response evolution remains entirely qualitative and offers no degradation models, radiation exposure estimates, gain-drift projections, or multi-epoch data comparisons that would address the assumption of long-term calibration stability.
minor comments (1)
- [performance section] Consider adding example spectra or images with overlaid models and residuals to concretely illustrate the achieved spectroscopic performance.
Simulated Author's Rebuttal
We thank the referee for the thorough review and constructive comments on our manuscript. We address each major comment below and indicate the revisions we will make to strengthen the paper.
read point-by-point responses
-
Referee: [in-flight tuning and performance at the beginning of the mission] The central claims of 'high availability of the camera and accurate spectroscopy' (abstract and in-flight tuning section) are not supported by any quantitative metrics, error bars, data tables, or comparisons to ground-test results or mission requirements; this absence makes it impossible to evaluate whether the tuning has achieved the stated performance levels.
Authors: We agree that the submitted manuscript presents the tuning process and initial performance primarily through description rather than explicit quantitative metrics. To address this, we will add a dedicated subsection with tables summarizing key performance indicators (e.g., camera availability percentages, spectral resolution and fit statistics with uncertainties), direct comparisons to ground-test results, and reference to mission requirements. These additions will allow readers to assess the achieved levels objectively. revision: yes
-
Referee: [perspectives on the evolution of the spectral response] The perspectives section on spectral response evolution remains entirely qualitative and offers no degradation models, radiation exposure estimates, gain-drift projections, or multi-epoch data comparisons that would address the assumption of long-term calibration stability.
Authors: The perspectives section is based on the limited early-mission data available at submission. We will revise it to incorporate preliminary quantitative elements, including radiation exposure estimates from the SVOM orbit, observed gain trends from the first epochs, and initial spectral response comparisons. Full degradation models and long-term projections will be framed as ongoing work, as multi-epoch datasets sufficient for robust modeling are still accumulating. This provides a more balanced view while reflecting the current data constraints. revision: partial
Circularity Check
No significant circularity: purely descriptive engineering report with no derivations or models
full rationale
The paper presents the design of the MXT camera, validated by on-ground testing, the in-flight tuning phase, and initial performance metrics. It is a factual engineering summary without any equations, predictive models, or derivation chains. No steps reduce by construction to fitted inputs, self-citations, or ansatzes. The reader's assessment of score 0.0 is confirmed: claims rest on reported observations and tuning results rather than any self-referential logic.
Axiom & Free-Parameter Ledger
Reference graph
Works this paper leans on
-
[1]
Ceraudo, F., Meuris, A., Doumayrou, E., et al. 2020, Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and 11 0 2 4 6 8 10 Energy (keV) 20 0 20 40 60 Eline Erec (eV) PANTER (All) PANTER (Singles) In-flight (All) In-flight (Singles) 0 2 4 6 8 10 Energy (keV) 50 75 100 125 150 175 200 225FWHM (eV) PANTER (...
2020
-
[2]
2020, in Space Telescopes and Instrumentation 2020: Ultraviolet to Gamma Ray, ed
Chen, Y ., Cui, W., Han, D., et al. 2020, in Space Telescopes and Instrumentation 2020: Ultraviolet to Gamma Ray, ed. J.-W. A. den Herder, S. Nikzad, & K. Nakazawa, 2000 4000 6000 8000 10000 12000 Energy (eV) 0.0 0.5 1.0 1.5 2.0Counts eV ¹ s ¹ cm ² 1e 5 1 2 3 4 5 6 7 Fig. 12Non X-ray background obtained after 30 hour ex- posure time with the wheel in clos...
2020
-
[3]
2016, Nuclear Instruments and Methods in Physics Research, Section A: Accelerators,
Maier, D., & Limousin, O. 2016, Nuclear Instruments and Methods in Physics Research, Section A: Accelerators,
2016
-
[4]
2020, EPJ Web of Conferences, 225, 01003
Maier, D., Limousin, O., & Daniel, G. 2020, EPJ Web of Conferences, 225, 01003
2020
-
[5]
2004, in High-Energy Detectors in Astronomy, ed
Meidinger, N., Bonerz, S., Englhauser, J., et al. 2004, in High-Energy Detectors in Astronomy, ed. A. D
2004
-
[6]
2006, Nuclear Instruments and Methods in Physics Research A, 568, 141
Meidinger, N., Andritschke, R., H ¨alker, O., et al. 2006, Nuclear Instruments and Methods in Physics Research A, 568, 141
2006
-
[7]
2025, Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, 1080, 170717
Plasse, C., G ¨otz, D., Meuris, A., et al. 2025, Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, 1080, 170717
2025
-
[8]
2025, Publications of the Astronomical Society of Japan, 77, S171–S187
Plucinsky, P., Agarwal, M., Gu, L., et al. 2025, Publications of the Astronomical Society of Japan, 77, S171–S187
2025
-
[9]
2023, Experimental Astronomy, 56, 77
Schneider, B., Renault-Tinacci, N., G ¨otz, D., et al. 2023, Experimental Astronomy, 56, 77
2023
