arxiv: 2604.24266 · v1 · submitted 2026-04-27 · 🌌 astro-ph.HE · astro-ph.IM

SVOM/VT: Overview of data processing and GRB identifications with X-band data

Hua-Li Li , Yu-Lei Qiu , Li-Ping Xin , Chao Wu , Zhu-Heng Yao , Yi-Nuo Ma , Yang Xu , Pin-pin Zhang
show 11 more authors
Xu-Hui Han Jing Wang Hong-Bo Cai Da-Wei Xu Jesse T. Palmerio Mao-Hai Huang Jia-Li Zhu Mo Zhang Jin-Song Deng Bertrand Cordier Jian-Yan Wei
This is my paper

Pith reviewed 2026-05-08 01:46 UTC · model grok-4.3

classification 🌌 astro-ph.HE astro-ph.IM
keywords gamma-ray burstsoptical afterglowsSVOMVisible Telescopedata processing pipelinedetection rateX-band datatransient follow-up
0
0 comments X

The pith

The Visible Telescope on SVOM detects optical counterparts in roughly 75 percent of the 111 gamma-ray bursts it has followed up.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents the ground processing pipeline for images from the Visible Telescope on the SVOM satellite and reports the results of its first GRB follow-up campaign. The pipeline takes X-band downlink data through preprocessing, astrometric calibration, and photometry to locate and measure optical afterglows. Across 111 events observed either autonomously or via rapid Target of Opportunity requests, counterparts were found in about three-quarters of cases, rising to 77 percent for SVOM-triggered bursts seen within 30 minutes and 81 percent for external triggers observed within three hours. A reader would care because these numbers show how a dedicated space instrument with fast response can capture the early light from cosmic explosions that ground telescopes often miss.

Core claim

The paper establishes that the VT X-band data pipeline, which performs preprocessing, astrometric calibration, and photometry on science images transmitted from orbit, enables reliable identification of GRB optical afterglows. Up to December 2025 the instrument had followed 111 bursts and recovered optical counterparts in approximately 75 percent of them, with the rate reaching 77 percent when VT observed SVOM/ECLAIRs triggers within 30 minutes and 81 percent for external-mission triggers observed via ToO with a mid-time under three hours.

What carries the argument

The ground-based preprocessing, astrometric calibration, and photometry pipeline applied to VT X-band downlink images, which extracts source positions and fluxes to confirm afterglow candidates.

If this is right

  • Rapid autonomous slewing or ToO observations combined with the pipeline allow optical data to be obtained while the afterglow is still bright.
  • The two-channel simultaneous imaging supports color measurements that help identify high-redshift candidates.
  • The reported detection rates demonstrate that space-based optical follow-up can routinely supplement gamma-ray triggers from SVOM or other missions.
  • X-band transmission of full images permits detailed ground analysis shortly after each burst.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • These detection rates imply that dedicated space optical telescopes can raise the fraction of GRBs with measured redshifts compared with ground-only networks.
  • The approach may scale to future wide-field transient missions that need quick optical confirmation to trigger deeper spectroscopy.
  • If the pipeline continues to perform at this level, the mission could contribute a statistically useful sample of early afterglow light curves for population studies.
  • The results leave open how well the same methods would work for fainter or more dust-obscured events not represented in the current 111-burst sample.

Load-bearing premise

The pipeline steps correctly separate real GRB afterglows from noise, cosmic rays, and unrelated sources without substantial false detections or missed events.

What would settle it

A re-reduction of the same VT images by an independent team or a cross-check against contemporaneous observations from other telescopes that finds a detection rate below 50 percent would undermine the reported success.

Figures

Figures reproduced from arXiv: 2604.24266 by Bertrand Cordier, Chao Wu, Da-Wei Xu, Hong-Bo Cai, Hua-Li Li, Jesse T. Palmerio, Jia-Li Zhu, Jian-Yan Wei, Jing Wang, Jin-Song Deng, Li-Ping Xin, Mao-Hai Huang, Mo Zhang, Pin-pin Zhang, Xu-Hui Han, Yang Xu, Yi-Nuo Ma, Yu-Lei Qiu, Zhu-Heng Yao.

Figure 2
Figure 2. Figure 2: The comparison for the overscan correction. view at source ↗
Figure 1

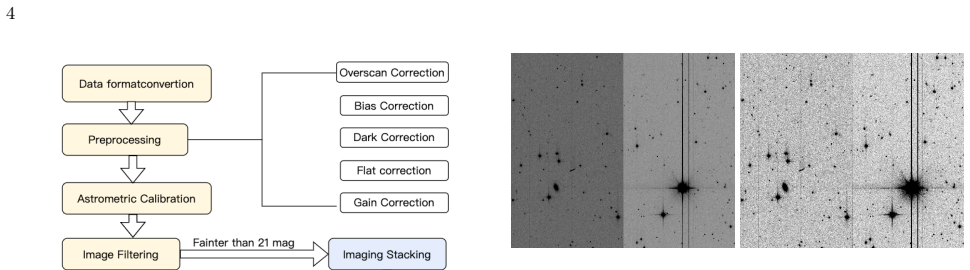

Figure 1. Figure 1: Flow-chart of VT X-band data processing for view at source ↗
Figure 3

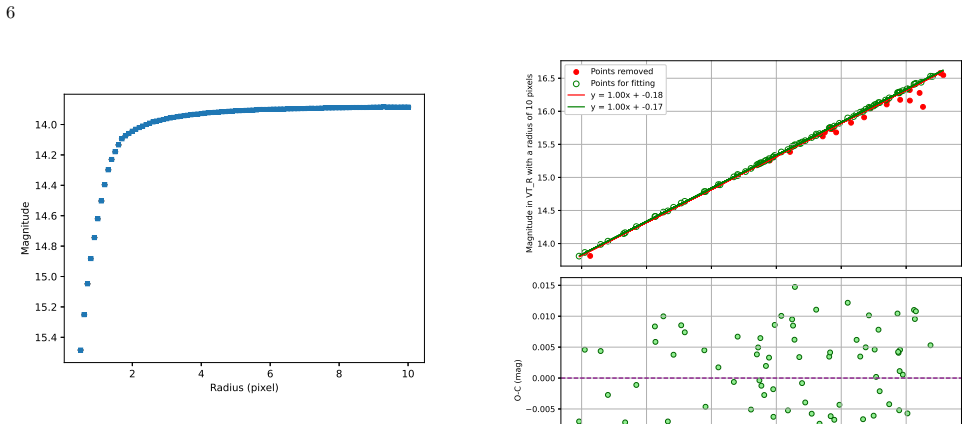

Figure 3. Figure 3: Growing curve in magnitude with radius for a view at source ↗
Figure 5

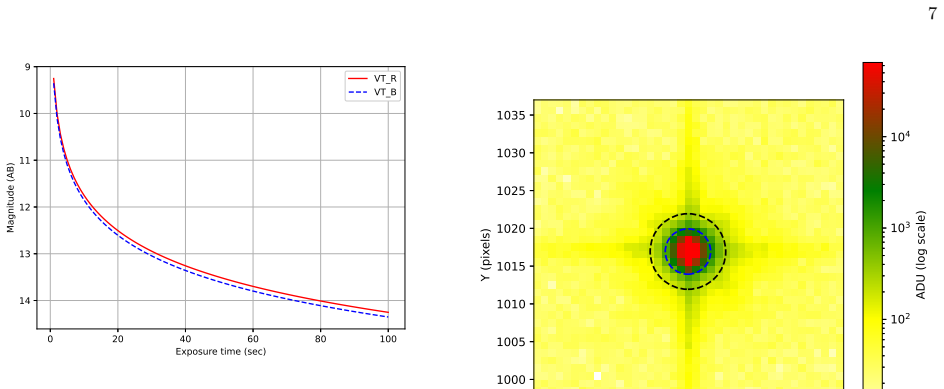

Figure 5. Figure 5: Saturated magnitude curves for SVOM/VT with different exposure times. of the magnitude for a saturated target is then given by the Equation 3, MagS = MagC − 2.5 × log F luxS F luxC (3) where M agC denotes to the magnitude of the un￾saturated bright star measured in VT images, and M agS denotes the magnitude derived for the satu￾rated star. FluxC and FluxS refer to the fluxes in the annuli for the bright st… view at source ↗
Figure 7

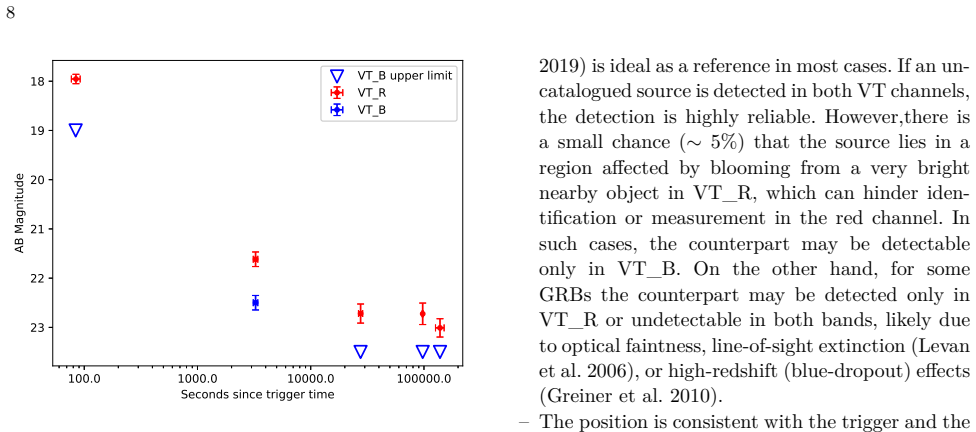

Figure 7. Figure 7: Optical afterglow light curve of GRB 241209B view at source ↗
Figure 8

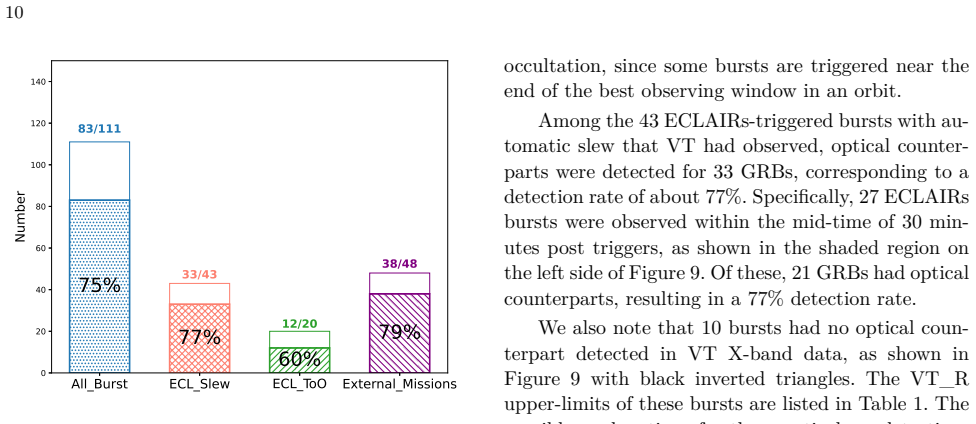

Figure 8. Figure 8: The detection rate in the VT X-band im￾ages for all the 111 GRBs observed by VT up to 2025 December 3, including ECLAIRs bursts with automatic slew (ECL_Slew, see also view at source ↗
Figure 9
Figure 9. Figure 9: The earliest VT_R magnitudes of the opti view at source ↗
Figure 10
Figure 10. Figure 10: The earliest VT_R magnitudes of the opti view at source ↗
Figure 11
Figure 11. Figure 11: The earliest VT_R magnitudes of the opti view at source ↗
read the original abstract

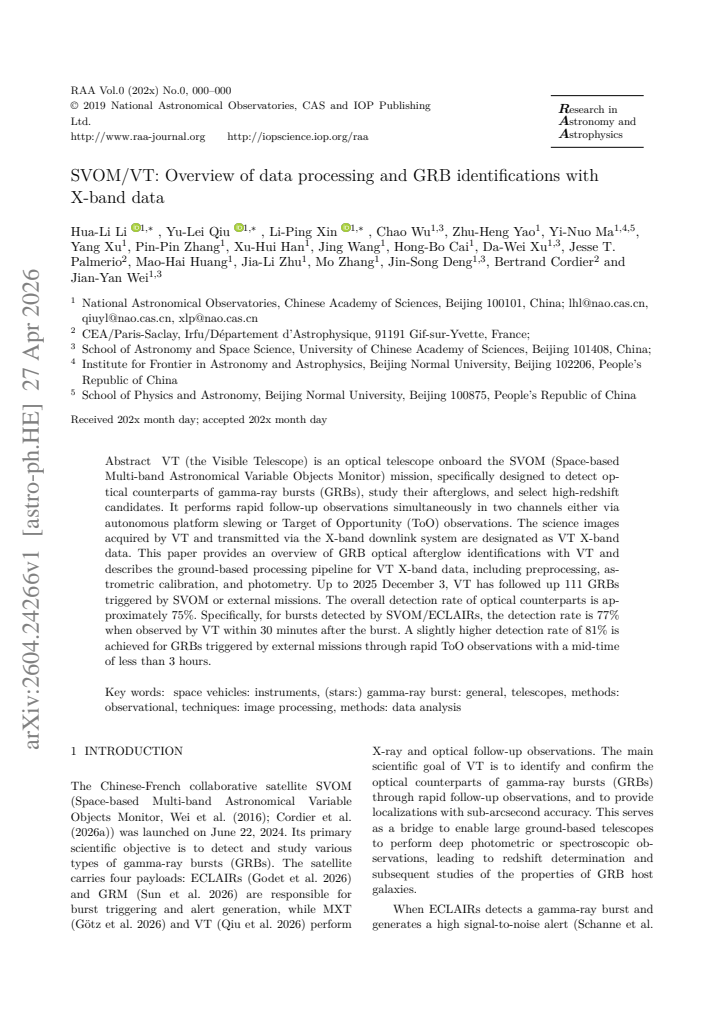

VT (the Visible Telescope) is an optical telescope onboard the SVOM (Space-based Multi-band Astronomical Variable Objects Monitor) mission, specifically designed to detect optical counterparts of gamma-ray bursts (GRBs), study their afterglows, and select high-redshift candidates. It performs rapid follow-up observations simultaneously in two channels either via autonomous platform slewing or Target of Opportunity (ToO) observations. The science images acquired by VT and transmitted via the X-band downlink system are designated as VT X-band data. This paper provides an overview of GRB optical afterglow identifications with VT and describes the ground-based processing pipeline for VT X-band data, including preprocessing, astrometric calibration, and photometry. Up to 2025 December 3, VT has followed up 111 GRBs triggered by SVOM or external missions. The overall detection rate of optical counterparts is approximately 75%. Specifically, for bursts detected by SVOM/ECLAIRs, the detection rate is 77% when observed by VT within 30 minutes after the burst. A slightly higher detection rate of 81% is achieved for GRBs triggered by external missions through rapid ToO observations with a mid-time of less than 3 hours.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript provides an overview of the ground-based processing pipeline for SVOM/VT X-band data, including preprocessing, astrometric calibration, and photometry steps. It reports empirical GRB follow-up statistics from 111 observations up to 2025 December 3, claiming an overall optical counterpart detection rate of approximately 75%, with 77% for SVOM/ECLAIRs-triggered bursts observed within 30 minutes and 81% for external-mission triggers via rapid ToO observations with mid-times under 3 hours.

Significance. If the pipeline identifications are reliable, the reported detection rates supply useful empirical benchmarks for the efficiency of rapid optical follow-up on GRBs, highlighting differences between autonomous SVOM slewing and external ToO scheduling. The work is grounded in real observational data with no free parameters or circular derivations, which strengthens its value for mission planning and GRB population studies.

major comments (1)
  1. [Abstract and pipeline description] Abstract and pipeline description: The quoted detection rates (75% overall, 77% for SVOM/ECLAIRs within 30 min, 81% for external ToO <3 h) are load-bearing for the paper's central claim but rest on the assumption that the preprocessing, astrometric calibration, and photometry pipeline reliably separates true afterglows from noise or contaminants. No quantitative validation is supplied, such as false-positive rates from blank-field tests, recovery fractions from injected-source simulations, or cross-matches with independent optical datasets, leaving the percentages vulnerable to systematic misidentification.
minor comments (2)
  1. [Abstract] The detection rates are presented without associated uncertainties, error bars, or discussion of selection criteria and potential biases in the identification process.
  2. Notation for observation timing (e.g., 'mid-time of less than 3 hours') could be clarified with explicit definitions of start/mid/end times for the ToO windows.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their positive evaluation of the manuscript's significance and for the constructive comment on validating the reported detection rates. We address the point below and will revise the manuscript to incorporate additional quantitative assessments of the pipeline.

read point-by-point responses

  1. Referee: The quoted detection rates (75% overall, 77% for SVOM/ECLAIRs within 30 min, 81% for external ToO <3 h) are load-bearing for the paper's central claim but rest on the assumption that the preprocessing, astrometric calibration, and photometry pipeline reliably separates true afterglows from noise or contaminants. No quantitative validation is supplied, such as false-positive rates from blank-field tests, recovery fractions from injected-source simulations, or cross-matches with independent optical datasets, leaving the percentages vulnerable to systematic misidentification.

    Authors: We agree that explicit quantitative validation strengthens the interpretation of the empirical detection rates. The manuscript (Sections 2–4) details the preprocessing, astrometric calibration, and photometry pipeline, which follows standard astronomical reduction practices tailored to VT X-band data. GRB identifications are made using multiple independent criteria: positional coincidence with the GRB error box, simultaneous detection in both VT channels, and consistency with expected afterglow temporal and color properties. While the submitted version does not contain dedicated validation metrics, we acknowledge the referee's point that such metrics would reduce vulnerability to misidentification concerns. In the revised manuscript we will add a dedicated subsection (likely in Section 4 or a new Section 5) that reports (i) false-positive rates estimated from processing of blank-field VT observations, (ii) source recovery fractions from end-to-end injection simulations, and (iii) cross-matches with independent optical datasets from other facilities where contemporaneous data exist. These additions will directly support the reliability of the quoted 75 %, 77 %, and 81 % rates without altering the core empirical results. revision: yes

Circularity Check

0 steps flagged

No significant circularity: empirical detection rates from direct observations

full rationale

The paper reports observational results: VT followed up 111 GRBs and achieved ~75% optical counterpart detection (77% for SVOM/ECLAIRs within 30 min; 81% for external ToO <3 h). These are direct counts from processed X-band data after describing the preprocessing, astrometric calibration, and photometry pipeline. No mathematical derivations, model predictions, fitted parameters renamed as predictions, or self-citation chains appear. The detection fractions are not outputs of any equation or ansatz that reduces to the paper's own inputs; they are empirical tallies. The pipeline description is procedural but does not create a self-referential loop for the quoted rates. This is a standard observational astronomy report with no load-bearing circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an empirical instrument performance report with no new free parameters, axioms, or invented entities; it relies on standard astronomical data reduction practices.
