Scheduling and Routing in the Flexible Job Shop with Heterogeneous Transbots and Zoning: A Constraint Programming Approach

Arnovi Moinuddin , El Mehdi Er Raqabi , Pascal Van Hentenryck

Authors on Pith no claims yet

Pith reviewed 2026-05-08 02:30 UTC · model grok-4.3

classification 🧮 math.OC

keywords flexible job shoptransbot routingconstraint programmingzoning constraintsheterogeneous robotshandoff coordinationscheduling and routingmaterial handling

0 comments

The pith

Two constraint programming formulations integrate flexible job shop scheduling with heterogeneous transbot routing under zoning.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops two constraint programming models that combine production scheduling with the routing of mobile transfer robots in a zoned flexible job shop. Each robot is restricted to its assigned zone and uses designated handoff points to move parts between zones. One formulation models transfers via explicit arcs between machines while the other embeds those decisions inside the operation scheduling variables. A book-and-release coordination method avoids rigid routes. Tests on adapted benchmarks show that the models produce high-quality feasible schedules with good run times, which is useful for factories that must keep parts moving without collisions or zone violations.

Core claim

The paper establishes that an arc-based formulation explicitly modeling machine-to-machine transfers and an operation-embedded formulation that integrates transfer decisions directly into operation scheduling can both capture machine flexibility, zoning restrictions, handoff coordination, and collision-free path planning. A book-and-release strategy coordinates transbot movements without enforcing fixed routing patterns. Computational experiments on case study-adapted benchmarks demonstrate that the proposed formulations generate high-quality solutions with strong computational performance.

What carries the argument

The arc-based and operation-embedded constraint programming formulations that embed routing decisions into the scheduling model while enforcing zoning and handoff rules, together with a book-and-release strategy for transbot coordination.

Load-bearing premise

The zoning constraints, transbot heterogeneity, inter-zone handoffs, and adapted benchmarks accurately represent the complexities and scale of real manufacturing systems.

What would settle it

Applying the models to a physical or simulated shop floor with measured travel times and actual robot kinematics and checking whether any produced schedule causes a collision or zone violation.

Figures

Figures reproduced from arXiv: 2604.24483 by Arnovi Moinuddin, El Mehdi Er Raqabi, Pascal Van Hentenryck.

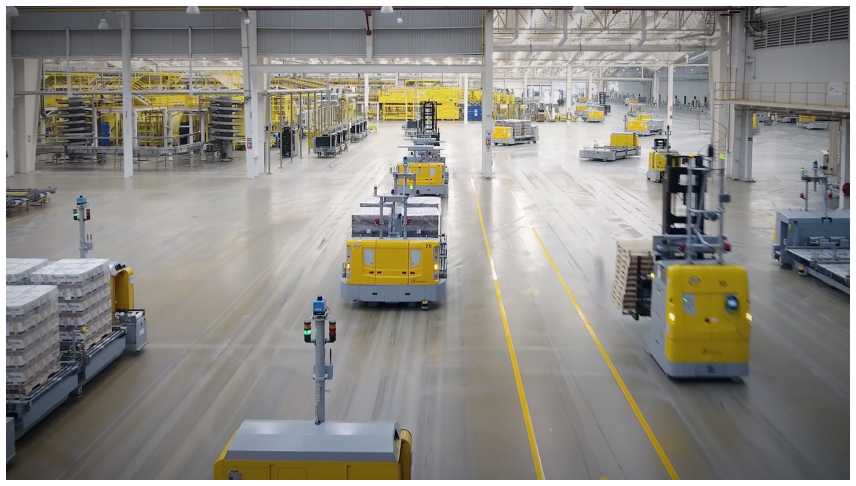

**Figure 1.** Figure 1: Transbots on a Manufacturing Floor tomated guided vehicles (AGVs) and autonomous mobile robots, which navigate using markers or sensors such as light detecting and ranging (LiDAR), as well as collaborative robots that operate alongside human workers (Jenkins, 2025). In fulfillment centers, inventory is typically organized into designated areas, and AGVs follow predetermined paths to transport items while m… view at source ↗

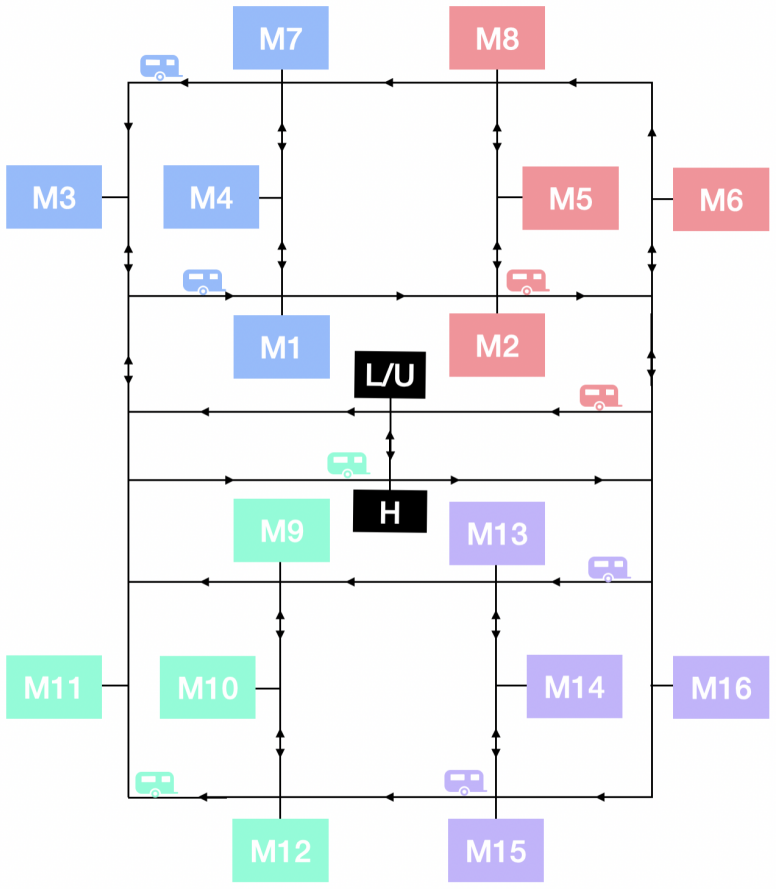

**Figure 2.** Figure 2: Layout of a shop floor with a stocker, a handoff point, and four zones, each with four view at source ↗

**Figure 3.** Figure 3: Visual comparison between the two formulations. view at source ↗

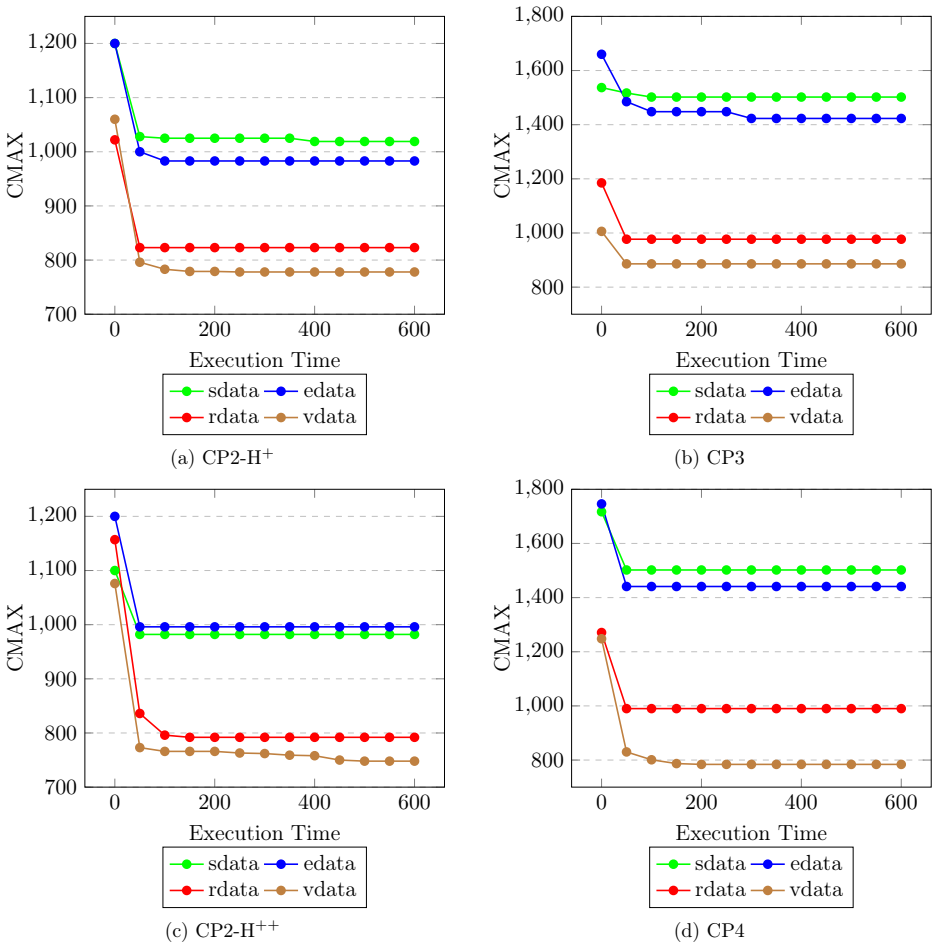

**Figure 4.** Figure 4: Evolution of CMAX with Execution Time for Instances la01 view at source ↗

read the original abstract

Coordinating production and material transfers is increasingly important in modern manufacturing systems equipped with mobile transfer robots, known as transbots. This study considers a flexible job shop environment in which heterogeneous transbots transport parts between machines. The shop floor is partitioned into zones, with each transbot assigned to a specific zone, and inter-zone movements are facilitated through designated handoff points. These zoning constraints, transbot heterogeneity, and inter-zone handoffs give rise to a challenging variant of the flexible job shop problem with embedded transbot-routing features, resulting in substantial computational complexity. Motivated by a real manufacturing setting, two constraint programming formulations that integrate production scheduling with transbot routing are proposed: an arc-based formulation that explicitly models machine-to-machine transfers, and an operation-embedded formulation that embeds transfer decisions directly within the operation scheduling structure, leading to tighter synchronization between production and transportation decisions. Both formulations capture machine flexibility, zoning restrictions, handoff coordination, and collision-free path planning. To efficiently solve the resulting problem, a book-and-release strategy is proposed. It coordinates transbot movements without enforcing rigid routing patterns. Computational experiments on case study-adapted benchmark-based demonstrate that the proposed formulations generate high-quality solutions with strong computational performance. The generation of instances is described in detail to support future work in this emerging area.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Two CP formulations integrate zoned heterogeneous transbot routing into flexible job shop scheduling, with a book-and-release coordination step, but the performance claims rest on adapted benchmarks whose details need verification.

read the letter

The main takeaway is that this paper builds two constraint programming models that fold transbot routing, zone assignments, and handoff points directly into flexible job shop scheduling rather than solving them sequentially. The arc-based version tracks explicit machine-to-machine transfers, while the operation-embedded version ties transfer choices more tightly to the operation schedule. Both add collision-free path planning and a book-and-release strategy to coordinate movements without locking robots into fixed routes. The instance generation process is described clearly enough that others could replicate or extend the test set from the motivating case study. These choices address a practical gap where zoning and robot heterogeneity matter in automated shops. The modeling follows standard CP patterns for integrated problems and avoids obvious inconsistencies in how constraints are stated. The formulations capture machine flexibility, transbot differences, and inter-zone handoffs without inflating the model beyond what a modern solver can handle on the reported instances. The soft spot is the experimental section. The abstract claims high-quality solutions and strong performance on adapted benchmarks, yet the summary provides no runtimes, optimality gaps, baseline comparisons, or checks against post-hoc fixes. If the full paper shows those numbers and they hold against reasonable alternatives, the work strengthens; otherwise the central claim stays hard to judge. Adapted benchmarks are a reasonable start, but they may understate variability in real floors. This paper is aimed at researchers who already use CP for manufacturing scheduling and want concrete ways to add mobile robot constraints. A reader looking for modeling templates or instance data in this niche will find usable material. It has enough structure and a clear problem variant to merit peer review, mainly to confirm the computational results and see how the two formulations compare in practice. I would send it to referees with a note to examine the experimental tables closely.

Referee Report

0 major / 1 minor

Summary. The paper introduces two constraint programming formulations for the flexible job shop problem with heterogeneous transbots and zoning: an arc-based formulation that models machine-to-machine transfers explicitly and an operation-embedded formulation that integrates transfer decisions into the scheduling structure. A book-and-release strategy is proposed to coordinate transbot movements. The work claims that both formulations capture key features like machine flexibility, zoning restrictions, handoff coordination, and collision-free path planning, and that computational experiments on case study-adapted benchmarks show high-quality solutions with strong computational performance. Instance generation is detailed for future research.

Significance. If the results hold, this paper contributes to the field of integrated scheduling and routing problems in manufacturing by providing CP models that handle practical constraints from zoned environments and heterogeneous robots. The book-and-release strategy offers a flexible way to manage transbot coordination without rigid patterns. The detailed benchmark adaptation and instance generation support reproducibility, which is a strength for advancing research in this area.

minor comments (1)

There is a likely typographical error in the sentence 'Computational experiments on case study-adapted benchmark-based demonstrate'; it should be 'Computational experiments on case study-adapted benchmarks demonstrate'.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary of our work, the recognition of its significance in integrated scheduling and routing, and the recommendation for minor revision. The referee's description accurately captures the two CP formulations, the book-and-release strategy, and the benchmark adaptation. No major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper proposes two new constraint programming formulations (arc-based and operation-embedded) for an integrated scheduling-routing problem. These are constructed from standard CP modeling primitives applied to the described constraints on zoning, heterogeneity, handoffs, and collision avoidance. No equations or derivations reduce to fitted parameters, self-definitions, or prior self-citations as load-bearing steps. Computational performance claims rest on external adapted benchmarks rather than internal redefinitions. The derivation chain is self-contained modeling work with no detected circular reductions.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper applies standard constraint programming techniques to a novel problem variant. It introduces no new free parameters, no invented physical entities, and relies only on domain assumptions about CP solver capability.

axioms (1)

domain assumption Constraint programming solvers can effectively model and solve the integrated scheduling and routing problem with zoning, heterogeneity, and handoff constraints.
This assumption underpins the proposal and claimed performance of both formulations.
