Step- and terrace-resolved crystal truncation rod scattering from vicinal surfaces under coherent heteroepitaxy

Junlin Wu , Erqi Xu , Qihui Lin , Jiaqing Yue , Jiale Wang , Zihao Xu , Guangxu Ju This is my paper

Pith reviewed 2026-05-08 03:05 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords crystal truncation rod scatteringvicinal surfacesheteroepitaxycoherent strainelastic deformationtriclinic distortionterrace orderingInGaN/GaN
0
0 comments X

The pith

An elasticity-based model for coherently strained films on vicinal surfaces adds a shear-induced triclinic deformation that selectively alters non-specular crystal truncation rods.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a unified theory of crystal truncation rod scattering from vicinal surfaces that includes a coherently strained heteroepitaxial film. The formalism combines film-induced interference fringes, complete elastic lattice distortion, terrace ordering, surface reconstruction, and real-time growth evolution. Direct comparison of the Nagai model with an elasticity-based model finds nearly identical lattice tilt in both, but the elasticity approach introduces an extra triclinic deformation caused by shear strain. This added deformation barely changes specular rods yet strongly modifies non-specular rods, turning the latter into a direct probe of the film's full elastic state. The same framework preserves its original sensitivity to step and terrace details, as illustrated by representative calculations for InGaN/GaN that support quantitative analysis of both static and dynamic measurements.

Core claim

We develop a general theory of crystal truncation rod (CTR) scattering from vicinal surfaces with a coherently strained heteroepitaxial film. The formalism incorporates film-induced interference fringes, full elastic lattice distortion, terrace ordering, surface reconstruction, and real-time growth evolution within a unified description. Comparison between Nagai model and elasticity-based model shows that the lattice tilt is nearly identical in the two approaches, whereas the elasticity-based model predicts an additional triclinic deformation arising from shear strain. This deformation has little effect on specular CTRs but strongly modifies non-specular rods, making them a sensitive probe.

What carries the argument

The elasticity-based model of full lattice distortion in a coherently strained heteroepitaxial film on a vicinal surface, which introduces a triclinic deformation from shear strain in addition to the lattice tilt shared with the Nagai model.

Load-bearing premise

The heteroepitaxial film remains fully coherent with no plastic relaxation or defects, allowing direct comparison of Nagai and elasticity models without additional relaxation mechanisms.

What would settle it

Non-specular CTR intensity profiles measured on a confirmed-coherent InGaN/GaN film that match Nagai-model predictions but deviate from the elasticity-based predictions of triclinic deformation effects.

Figures

Figures reproduced from arXiv: 2604.24604 by Erqi Xu, Guangxu Ju, Jiale Wang, Jiaqing Yue, Junlin Wu, Qihui Lin, Zihao Xu.

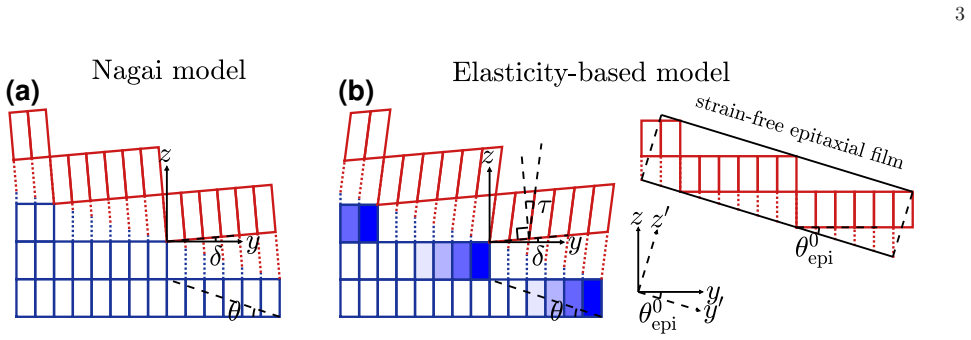

Figure 1
Figure 1. Figure 1: FIG. 1. Sketch of (a) the Nagai model and (b) the elasticity-b view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Lattice tilt angle view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Typical CTRs from a vicinal surface with a het view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Calculated reflectivities for the (00 view at source ↗

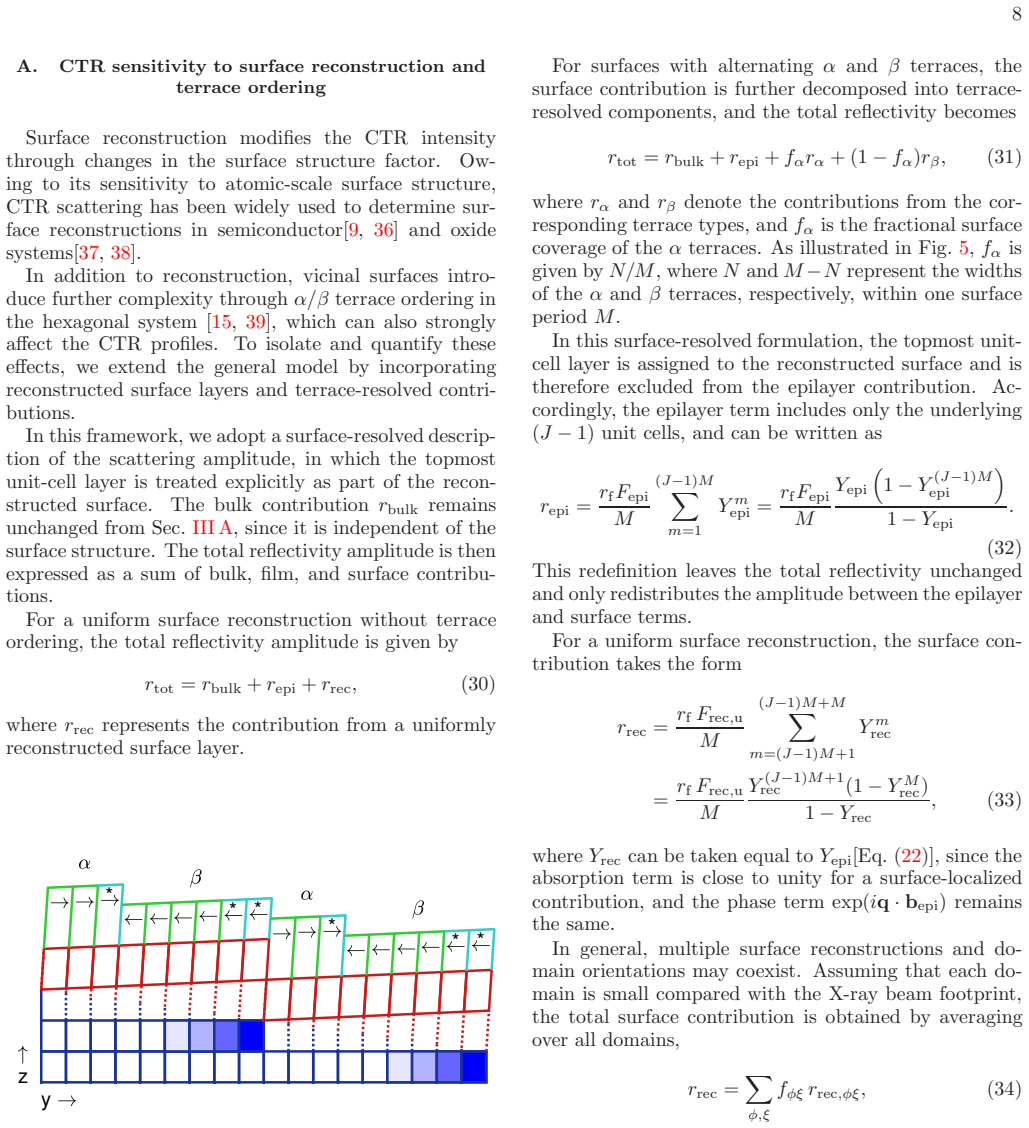

Figure 5
Figure 5. Figure 5: FIG. 5. Schematic illustration of the unit-cell configurati view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Calculated reflectivities for the (00 view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. Calculated CTR reflectivities for a vicinal GaN(0001 view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. Calculated reflectivities for the (00 view at source ↗

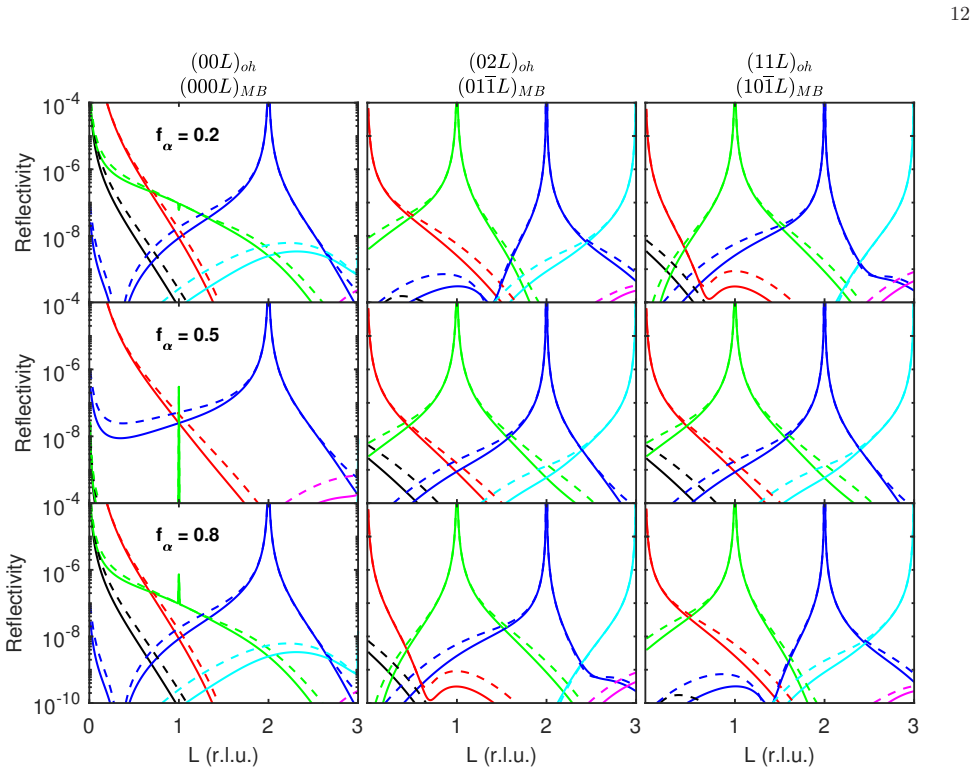

Figure 9
Figure 9. Figure 9: FIG. 9. Calculated reflectivities for the (00 view at source ↗

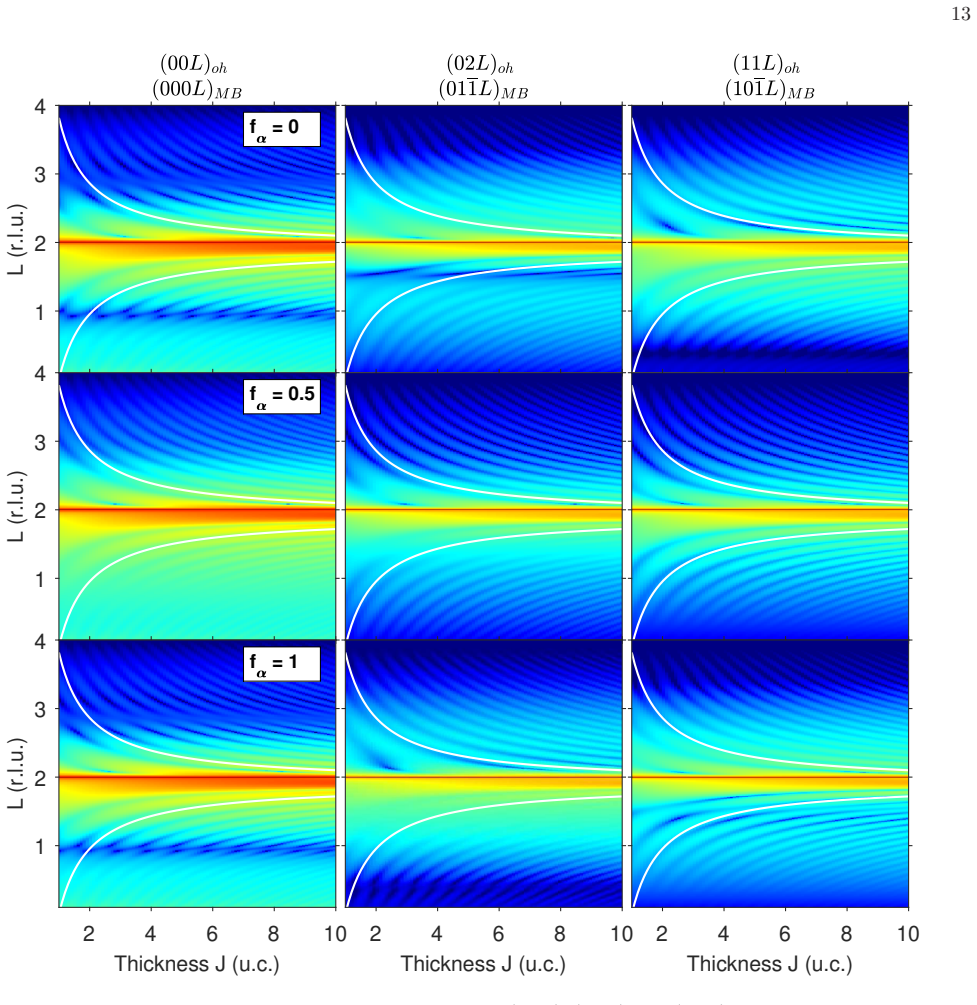

Figure 10
Figure 10. Figure 10: FIG. 10. Color map of the logarithm of the CTR reflectivity for view at source ↗

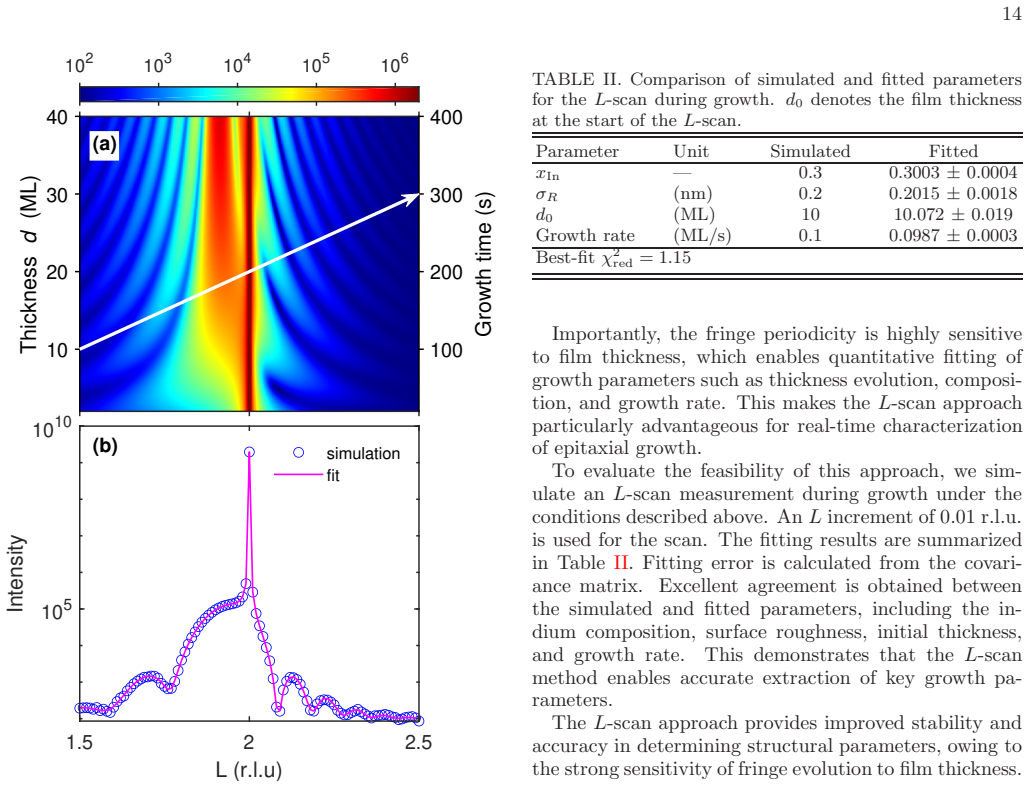

Figure 11
Figure 11. Figure 11: FIG. 11. Simulated CTR intensity during growth in the ( view at source ↗

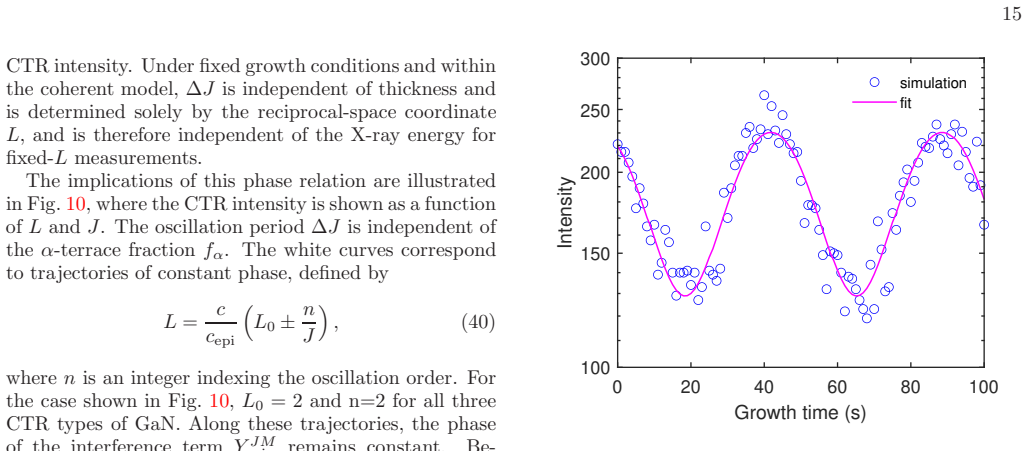

Figure 12
Figure 12. Figure 12: FIG. 12. Simulated time evolution of CTR intensity at fixed view at source ↗
Figure 13
Figure 13. Figure 13: FIG. 13. Complex-plane trajectory of (a) view at source ↗
Figure 14
Figure 14. Figure 14: FIG. 14. Complex-plane trajectories of the bulk structure fa view at source ↗
Figure 15
Figure 15. Figure 15: FIG. 15. Calculated amplitude and phase of the bulk and epilay view at source ↗
Figure 16
Figure 16. Figure 16: FIG. 16. Complex-plane trajectories of view at source ↗
read the original abstract

We develop a general theory of crystal truncation rod (CTR) scattering from vicinal surfaces with a coherently strained heteroepitaxial film. The formalism incorporates film-induced interference fringes, full elastic lattice distortion, terrace ordering, surface reconstruction, and real-time growth evolution within a unified description. Comparison between Nagai model and elasticity-based model shows that the lattice tilt is nearly identical in the two approaches, whereas the elasticitybased model predicts an additional triclinic deformation arising from shear strain. This deformation has little effect on specular CTRs but strongly modifies non-specular rods, making them a sensitive probe of the full elastic state of coherent epitaxial films. We further show that the characteristic sensitivity of vicinal CTRs to terrace ordering, surface reconstruction, and terrace-resolved compositional modification remains robust in the presence of a coherent film. Representative calculations for InGaN/GaN demonstrate that the framework enables quantitative interpretation of both static and real-time CTR measurements and provides access to step- and terrace-resolved structural and kinetic information during heteroepitaxial growth.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper develops a general theory of crystal truncation rod (CTR) scattering from vicinal surfaces with a coherently strained heteroepitaxial film. The formalism unifies film-induced interference fringes, full elastic lattice distortion, terrace ordering, surface reconstruction, and real-time growth evolution. Comparison between the Nagai model and an elasticity-based model shows nearly identical lattice tilts, but the elasticity model introduces an additional triclinic deformation from shear strain. This has little effect on specular CTRs but strongly modifies non-specular rods, making them a sensitive probe of the full elastic state. Representative calculations for InGaN/GaN demonstrate utility for quantitative interpretation of static and real-time CTR measurements, providing step- and terrace-resolved structural and kinetic information.

Significance. If the derivations hold, this work is significant for advancing quantitative CTR analysis in heteroepitaxy on vicinal surfaces by providing a unified framework that incorporates multiple effects. The key insight that non-specular rods probe the full elastic state (including triclinic shear) is valuable for coherent films. Strengths include explicit derivations of the distorted lattice and CTR intensity formulas, incorporation of established formalisms for terraces and reconstruction, and representative InGaN/GaN calculations that support reproducibility.

minor comments (3)
  1. The abstract is information-dense; consider separating the description of the unified formalism from the model comparison results for improved readability.
  2. In the InGaN/GaN example calculations, figure captions or the text should explicitly list the input parameters (e.g., film thickness, misfit strain, terrace width) to facilitate reproduction of the shown CTR profiles.
  3. Ensure consistent notation for strain components and lattice distortions when contrasting the Nagai and elasticity models; a side-by-side table of key parameters would aid clarity.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment of our manuscript, recognition of its significance for quantitative CTR analysis in heteroepitaxy, and recommendation for minor revision. We are pleased that the unified framework, the insight regarding non-specular rods as probes of the full elastic state, and the representative InGaN/GaN calculations were viewed favorably.

Circularity Check

0 steps flagged

Derivation chain is self-contained; no circular reductions identified

full rationale

The paper develops an explicit formalism for CTR scattering from vicinal surfaces with coherent heteroepitaxial films, incorporating elastic lattice distortion, terrace ordering, and growth evolution. The central comparison between the Nagai tilt model and the elasticity-based model derives the additional triclinic shear deformation directly from continuum elasticity under the stated full-coherence assumption, with explicit statements that this deformation has negligible effect on specular CTRs but modifies non-specular rods. No equations reduce by construction to fitted parameters or prior self-citations; the InGaN/GaN calculations are presented as representative applications of the derived intensities. The coherence premise is declared as the modeling scope rather than smuggled in. This satisfies the criteria for an independent derivation without load-bearing self-references or ansatz smuggling.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard elasticity theory applied to coherent films and conventional CTR scattering principles; no new entities or fitted parameters are introduced in the abstract.

axioms (1)
  • domain assumption Elasticity theory fully describes the lattice distortion in coherently strained heteroepitaxial films without relaxation.
    Invoked when comparing Nagai and elasticity-based models and when claiming sensitivity of non-specular rods to the full elastic state.
