arxiv: 2604.24653 · v1 · submitted 2026-04-27 · ❄️ cond-mat.mtrl-sci

A step-by-step workflow to extract the genuine circular dichroism of thin films

Franziska Sch\"olzel , Arina Narudin , Aleksandra Ciesielska , Alexander Ehm , Dietrich R.T. Zahn , Wouter van Gompel , Simon Kahmann , Georgeta Salvan This is my paper

Pith reviewed 2026-05-08 02:53 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords circular dichroismthin filmsoptical anisotropychiral materialsperovskitessample stageartifact removal
0
0 comments X

The pith

A workflow using rotation and flipping isolates the true circular dichroism of anisotropic thin films.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how to separate the genuine, orientation-independent circular dichroism signal from artifacts caused by optical anisotropy in thin films. Researchers often measure CD in chiral materials like perovskites or surface-bound molecules, but anisotropy from the film structure or substrate mixes in unwanted signals that depend on how the sample is oriented. By rotating the sample around its normal axis and then flipping it over, followed by averaging or subtracting the measurements, the workflow removes those orientation-dependent effects. A custom sample stage makes these precise movements possible in standard CD instruments, and the authors supply a Python script to process the data. This matters because it lets scientists trust CD data from solid thin films without guessing which part is real chirality.

Core claim

The central claim is that combining azimuthal sample rotation with sample flipping in a home-built stage reliably extracts the orientation-invariant CD response from anisotropic thin films, as demonstrated on chiral molecules attached to metallic surfaces and on metal halide perovskites with chiral spacers.

What carries the argument

The two-step workflow of azimuthal rotation combined with sample flipping using a home-built stage that allows systematic measurements in a commercial CD spectrophotometer.

If this is right

  • Measurements on different sample orientations can be combined to cancel anisotropy artifacts.
  • The method applies to both surface-attached chiral molecules and bulk-like perovskite films.
  • Open Python code processes the data from the multi-measurement protocol.
  • Reduces the need for sample-specific tuning or assumptions about the film's symmetry.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar rotation and flipping protocols might help isolate true signals in other optical spectroscopies affected by anisotropy, such as linear dichroism or ellipsometry.
  • Adopting this workflow could improve reproducibility when comparing CD data across different labs studying chiral thin films for optoelectronics.
  • Testing the method on films with known varying degrees of anisotropy would quantify how much artifact suppression is achieved.

Load-bearing premise

The assumption that azimuthal rotation, sample flipping, and the home-built stage together remove all significant anisotropy-induced artifacts without adding new errors or needing adjustments for each sample type.

What would settle it

Apply the workflow to an anisotropic thin film sample whose genuine CD response is independently known from solution measurements or theory; if the extracted signal matches the known value while single-orientation measurements do not, the claim holds.

Figures

Figures reproduced from arXiv: 2604.24653 by Aleksandra Ciesielska, Alexander Ehm, Arina Narudin, Dietrich R.T. Zahn, Franziska Sch\"olzel, Georgeta Salvan, Simon Kahmann, Wouter van Gompel.

Figure 1
Figure 1. Figure 1: FIG. 1. (a, b) Energy-level diagrams illustrating the microscopic origin of CD. Optical activity arises from view at source ↗
Figure 2

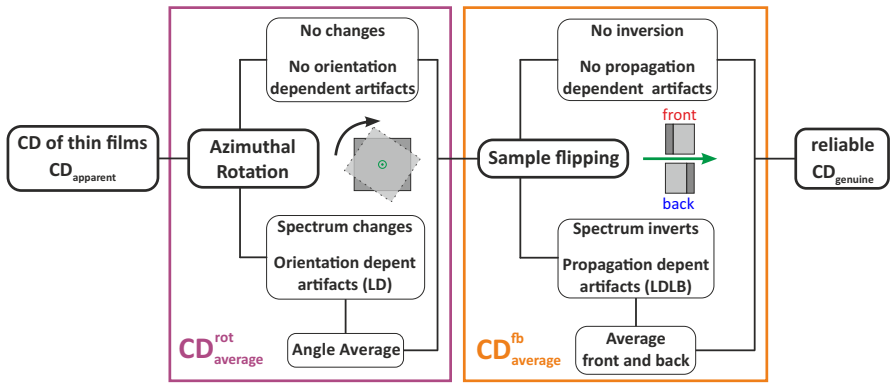

Figure 2. Figure 2: FIG. 2. Flow chart of the two-step workflow for diagnosing and reducing artifacts in CD measurements. view at source ↗
Figure 3

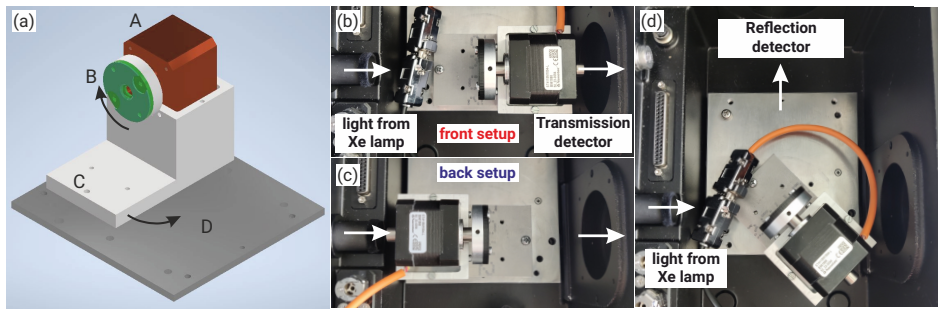

Figure 3. Figure 3: FIG. 3. (a) Technical drawing of the designed rotation mount with the components (A) step motor, (B) view at source ↗
Figure 4

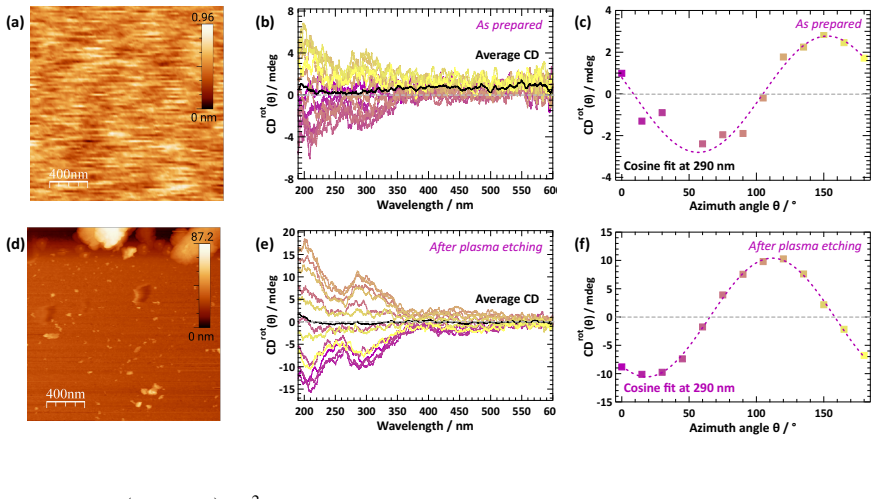

Figure 4. Figure 4: FIG. 4. (a)/(d) view at source ↗
Figure 5

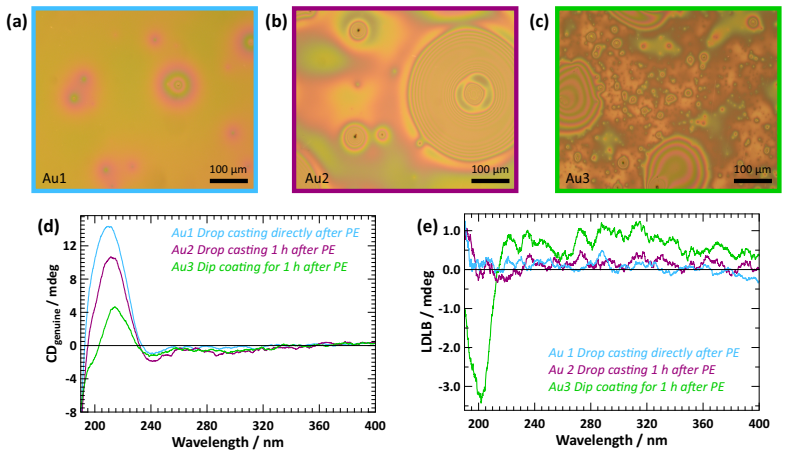

Figure 5. Figure 5: FIG. 5. Optical Microscopy images with 20 view at source ↗
Figure 6

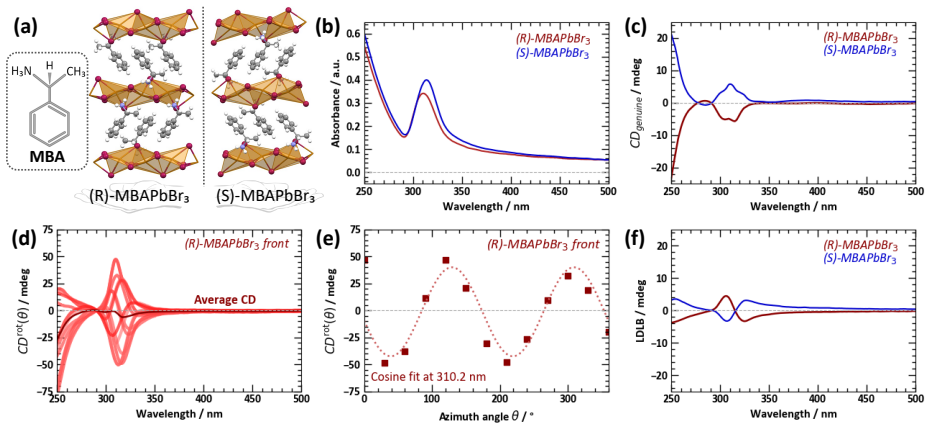

Figure 6. Figure 6: FIG. 6. 1D chiral perovskites thin films. (a) Crystal structures of (R)- and (S)-MBAPbBr view at source ↗
read the original abstract

Circular Dichroism (CD) spectroscopy has evolved from a purely solution based method towards a powerful tool in the analysis of chiral thin films. Although a straightforward technique, the genuine CD signal is often accompanied by artifacts arising from optical anisotropy and instrumental imperfections. This tutorial presents a two-step workflow that reliably isolates the orientation invariant CD response for anisotropic thin films by combining azimuthal sample rotation with sample flipping. For this purpose, a home-built sample stage was developed, which enables systematic suppression of many anisotropy-induced artifacts in commercial CD spectrophotometers. Both a detailed description of the setup itself as well as the needed python script are provided. The reliability of the workflow is demonstrated on two selected samples from different research fields: chiral molecules attached to metallic surfaces as well as metal halide perovskites incorporating chiral spacer molecules

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The manuscript presents a two-step experimental workflow to isolate the orientation-invariant (genuine) circular dichroism (CD) signal from anisotropic thin films. The procedure combines azimuthal sample rotation with sample flipping using a custom home-built stage compatible with commercial CD spectrophotometers; a Python script for data processing is supplied. Reliability is demonstrated empirically on two sample classes: chiral molecules adsorbed on metallic surfaces and metal-halide perovskites incorporating chiral spacer molecules.

Significance. If the workflow proves robust, it would provide a practical, accessible method for suppressing anisotropy-induced artifacts (LD/LB) in thin-film CD measurements, a persistent issue in materials and surface science. Strengths include the detailed stage description, open Python script for reproducibility, and cross-field demonstrations; these lower the barrier for adoption compared to purely theoretical corrections.

major comments (3)
  1. [Workflow description (§2–3)] Workflow description (likely §2–3): the central claim that azimuthal rotation plus flipping systematically cancels all relevant anisotropy-induced artifacts for arbitrary films rests on empirical demonstration alone. No general derivation or Mueller-matrix simulation is given showing cancellation for a general anisotropy tensor; the two chosen material classes may not cover the full range of birefringence/dichroism strengths encountered in the literature.
  2. [Home-built stage (§2.1)] Home-built stage and error analysis (likely §2.1): no quantitative error budget or tolerance analysis is supplied for stage-induced systematics (e.g., angular misalignment during rotation/flip, mounting-induced strain, or reproducibility across multiple mountings). Independent verification of residual LD/LB (via separate linear-polarization measurements) before versus after the workflow is absent.
  3. [Results (§4)] Results and validation (likely §4): while spectra are shown for the two sample types, the manuscript reports no quantitative artifact-suppression metrics (e.g., reduction factor in apparent CD amplitude, comparison against known isotropic references, or statistical reproducibility across multiple samples/stages). This leaves the reliability claim difficult to assess beyond the specific cases presented.
minor comments (3)
  1. [Figures] Figure captions and axis labels could more explicitly indicate which curves correspond to raw data, post-rotation averages, and post-flip averages to aid readers reproducing the workflow.
  2. [Methods / script description] The Python script is a clear asset, but the manuscript should include a short pseudocode outline or key function descriptions in the main text so readers can follow the logic without immediately consulting the repository.
  3. [Introduction] A brief comparison table or paragraph contrasting the proposed workflow with existing artifact-correction approaches (e.g., those using only rotation or only flipping) would help situate the contribution.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the positive evaluation of the manuscript's significance and for the detailed, constructive comments. We address each major point below. Where the comments identify areas for strengthening, we have revised the manuscript accordingly to incorporate additional theoretical support, quantitative error analysis, and validation metrics while preserving the tutorial focus of the work.

read point-by-point responses

  1. Referee: Workflow description (§2–3): the central claim that azimuthal rotation plus flipping systematically cancels all relevant anisotropy-induced artifacts for arbitrary films rests on empirical demonstration alone. No general derivation or Mueller-matrix simulation is given showing cancellation for a general anisotropy tensor; the two chosen material classes may not cover the full range of birefringence/dichroism strengths encountered in the literature.

    Authors: We agree that the original manuscript relies primarily on empirical validation for the two material classes. Although the workflow is grounded in established principles of artifact suppression, we did not provide an explicit general derivation. In the revised manuscript we add a new subsection to §2 that derives the cancellation using the Mueller matrix formalism for the combined rotation-plus-flip operations. We also include numerical simulations across a representative range of linear birefringence and dichroism magnitudes to demonstrate that the suppression holds for anisotropy strengths beyond those of the experimental examples. revision: yes

  2. Referee: Home-built stage and error analysis (likely §2.1): no quantitative error budget or tolerance analysis is supplied for stage-induced systematics (e.g., angular misalignment during rotation/flip, mounting-induced strain, or reproducibility across multiple mountings). Independent verification of residual LD/LB (via separate linear-polarization measurements) before versus after the workflow is absent.

    Authors: The referee correctly identifies the missing quantitative error analysis. We have expanded §2.1 to include a dedicated error-budget subsection. This provides (i) measured angular tolerances of the rotation and flip mechanisms, (ii) estimates of mounting-induced strain based on repeated mounting/dismounting tests, and (iii) reproducibility statistics across multiple independent mountings. In addition, we now report separate linear-polarization (LD/LB) spectra acquired before and after the workflow on the same samples to quantify residual artifact levels. revision: yes

  3. Referee: Results and validation (likely §4): while spectra are shown for the two sample types, the manuscript reports no quantitative artifact-suppression metrics (e.g., reduction factor in apparent CD amplitude, comparison against known isotropic references, or statistical reproducibility across multiple samples/stages). This leaves the reliability claim difficult to assess beyond the specific cases presented.

    Authors: We acknowledge that the original §4 presented only qualitative spectral comparisons. The revised section now includes quantitative metrics: the reduction in azimuthal CD variance (standard deviation before versus after the workflow), the artifact-suppression factor for each sample class, and direct comparison with isotropic reference films where available. We also report statistical reproducibility obtained from multiple samples and independent stage mountings, allowing readers to evaluate reliability more rigorously. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental workflow with no derivation or fitted predictions

full rationale

The manuscript describes a practical two-step experimental procedure (azimuthal rotation + sample flipping) using a custom stage and Python script to isolate orientation-invariant CD in anisotropic films. It demonstrates the method on two specific sample classes but contains no equations, first-principles derivations, parameter fitting, or predictions that could reduce to inputs by construction. No self-citations are invoked as load-bearing uniqueness theorems or ansatzes. The central claim is empirical and procedural rather than deductive, so none of the enumerated circularity patterns apply. This is the expected non-finding for a methods/tutorial paper.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper introduces no free parameters, new physical axioms, or invented entities; it relies on standard optical measurement principles and established CD instrumentation.
