arxiv: 2604.25666 · v1 · submitted 2026-04-28 · ⚛️ physics.optics

Intensity-guided pose-free multiview fusion for single photon sensing

Jinyi Liu , Lijun Liu , Shuming Cheng , Xiaomin Hu , Yiguang Hong , Weiping Zhang This is my paper

Pith reviewed 2026-05-07 15:29 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords single-photon LiDARmulti-view registrationpose-free fusionpoint cloud alignmentintensity-guided registrationsparse sensing
0
0 comments X

The pith

Photon intensity stabilizes pose-free multi-view registration for single-photon LiDAR point clouds.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents GIC-Reg, a framework that registers multiple single-photon LiDAR views without known sensor poses by coupling geometry with intensity data. It applies physical-aware preprocessing, aggregates features in a joint geometry-intensity grid, performs global matching, and resolves local ambiguities to recover rigid transformations. This matters for single-photon sensing because its measurements are typically sparse, non-uniform, and noisy, making alignment difficult in long-range or low-visibility settings. If the method works, it produces lower registration errors than baselines on synthetic data across noise and dropout levels and more consistent alignments on real 80-meter captures.

Core claim

The geometry-intensity coupled registration framework estimates inter-view rigid transformations for single-photon point clouds by combining physical-aware preprocessing, joint geometry-intensity grid feature aggregation, global matching, and local ambiguity disambiguation, yielding lower relative rotation error, relative translation error, and root mean square error than baselines on synthetic benchmarks and improved global and local alignment on real multi-view data.

What carries the argument

Joint geometry-intensity grid feature aggregation that treats photon intensity as a physical cue to complement spatial geometry during matching and disambiguation.

If this is right

  • Lowest relative rotation, translation, and root mean square errors across all tested background-noise and dropout rates on the synthetic benchmark.
  • Reduction of relative rotation error from 13.167 degrees to 8.459 degrees under the highest dropout compared with the learning-based baseline.
  • More reliable global orientation and local point-cloud alignment on real multi-view captures collected at about 80 meters.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same intensity cue could be tested on other sparse photon-counting modalities such as fluorescence microscopy or quantum imaging to see if registration improves without pose hardware.
  • If intensity guidance generalizes, it may allow single-photon LiDAR systems to operate with lower-cost or less accurate inertial sensors for outdoor mapping.
  • Controlled experiments that vary only reflectance properties while holding geometry fixed would isolate whether intensity truly disambiguates geometry or merely correlates with it.
  • Real-time implementations could be checked on moving platforms to determine whether the grid aggregation step supports dynamic scene reconstruction.

Load-bearing premise

Intensity values remain a reliable and generalizable cue for registration across real-world single-photon scenes without requiring scene-specific tuning or introducing systematic biases from sensor artifacts.

What would settle it

A real multi-view single-photon dataset at comparable range and noise levels on which GIC-Reg produces relative rotation errors equal to or larger than those of the learning-based baseline would falsify the improvement claim.

Figures

Figures reproduced from arXiv: 2604.25666 by Jinyi Liu, Lijun Liu, Shuming Cheng, Weiping Zhang, Xiaomin Hu, Yiguang Hong.

Figure 1
Figure 1. Figure 1: Illustration of the single-photon imaging system. view at source ↗
Figure 2
Figure 2. Figure 2: The working pipeline of the geometry-intensity coupled registration framework view at source ↗
Figure 3
Figure 3. Figure 3: The Joint Geometry-Intensity Grid Feature Aggregation module: All input points view at source ↗
Figure 4

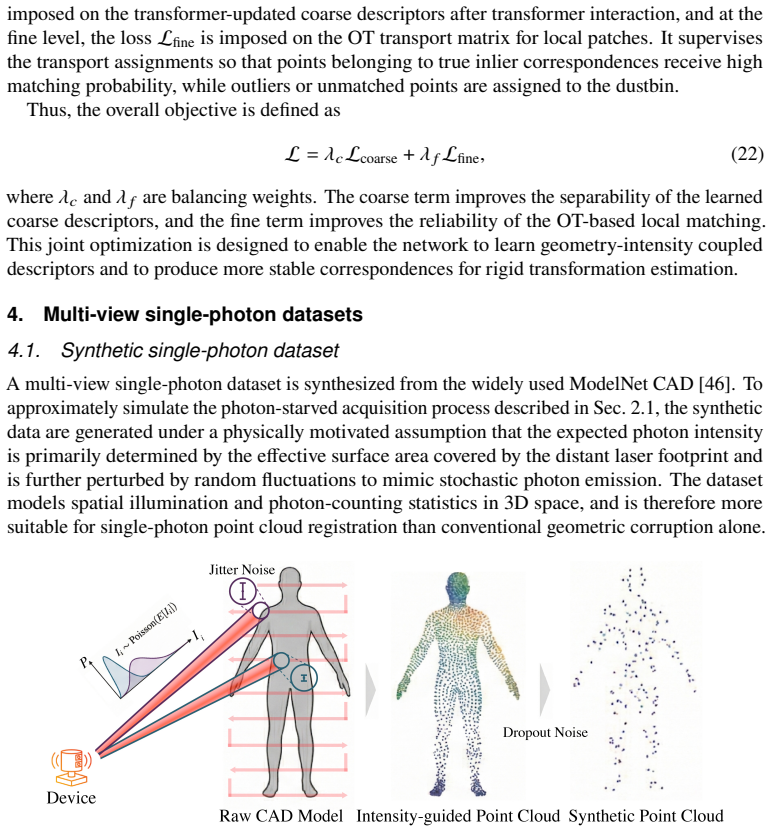

Figure 4. Figure 4: Synthetic single-photon multi-view dataset generation. The synthetic process view at source ↗
Figure 5

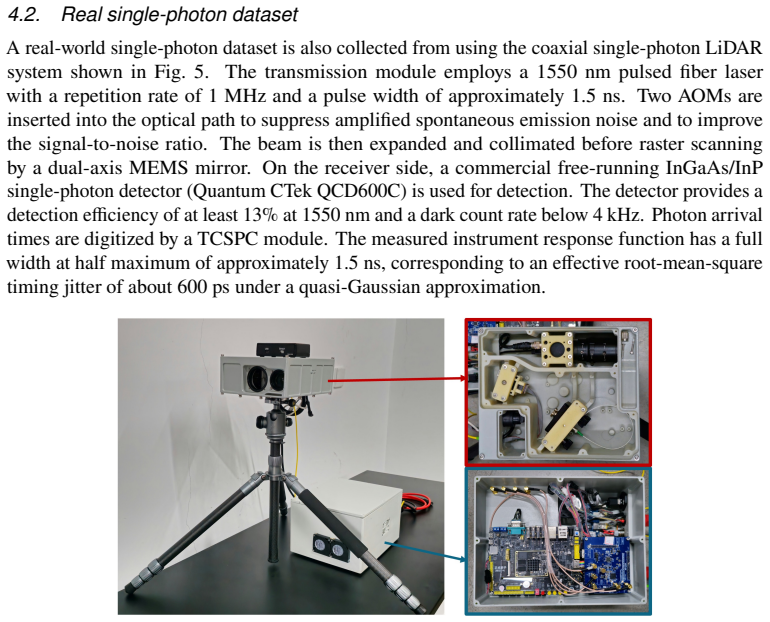

Figure 5. Figure 5: Schematic diagram and photograph of the coaxial single-photon LiDAR system. view at source ↗
Figure 6

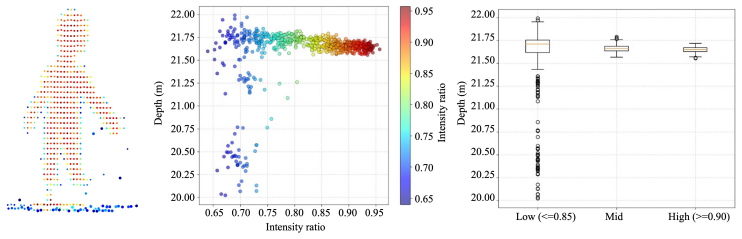

Figure 6. Figure 6: Intensity-dependent depth uncertainty in the real single-photon dataset. Left: view at source ↗
Figure 7

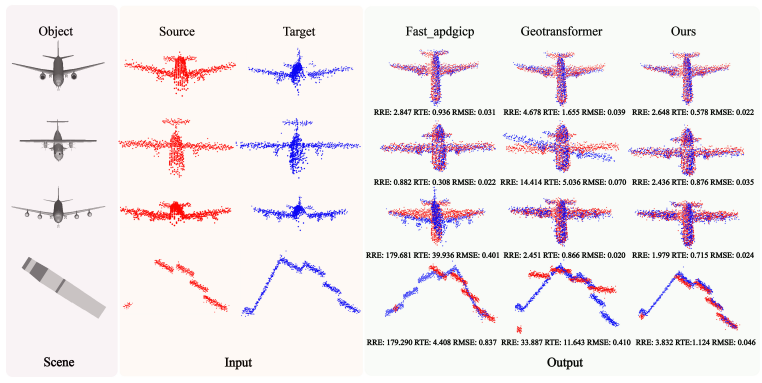

Figure 7. Figure 7: The registration performance on the synthetic datasets. It shows that Fast view at source ↗
Figure 8

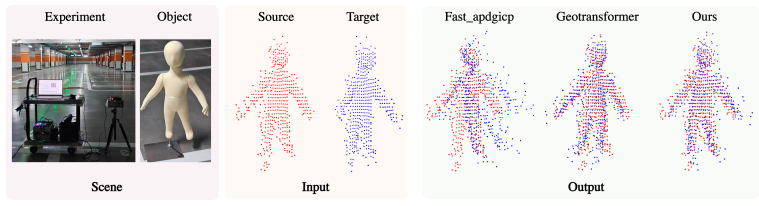

Figure 8. Figure 8: The registration comparison on real single-photon data acquired at a stand-off view at source ↗
read the original abstract

Single-photon light detection and ranging (LiDAR) extends active three-dimensional sensing at the fundamental level and has found applications in extreme environments involving long-range operation, low-reflectance targets, and adverse visibility. However, the acquired measurements often give rise to single-photon point clouds that are sparse, spatially non-uniform, and corrupted by outliers and depth distortions, making multi-view registration challenging especially when sensor poses are not accurately known. In this work, we present a geometry-intensity coupled registration framework (GIC-Reg) of pose-free multi-view fusion for single-photon sensing. It is established by combining physical-aware preprocessing, joint geometry-intensity grid feature aggregation, global matching, and local ambiguity disambiguation to estimate inter-view rigid transformations and hence to construct a globally consistent reconstruction. On the synthetic benchmark, it admits the lowest relative rotation error (RRE), relative translation error, and root mean square error across all background-noise and dropout rates, in comparison to baselines. Notably, under the most degraded dropout, it reduces the RRE from $13.167^\circ$ to $8.459^\circ$ compared with the learning-based baseline. Furthermore, experimental results on real multi-view data acquired at about 80~m show that it achieves more reliable global orientation and local alignment. Our results show that photon intensity provides an effective physical cue for stabilizing multiview registration in single-photon point cloud, and thus our work aids significant progress in exploring practical utility of single-photon sensing.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper presents GIC-Reg, a geometry-intensity coupled registration framework for pose-free multiview fusion of single-photon LiDAR point clouds. It combines physical-aware preprocessing, joint geometry-intensity grid feature aggregation, global matching, and local ambiguity disambiguation to recover inter-view rigid transformations. On synthetic benchmarks with controlled background noise and dropout, the method reports the lowest RRE, RTE, and RMSE across all tested rates, including a reduction in RRE from 13.167° to 8.459° under the heaviest dropout relative to a learning-based baseline. On real 80 m captures, it claims more reliable global orientation and local alignment.

Significance. If the central claims hold, the work would be significant for practical single-photon sensing by demonstrating that photon intensity supplies a usable physical cue for stabilizing registration in sparse, non-uniform, and outlier-corrupted point clouds. The quantitative synthetic results, with explicit error reductions under degradation, constitute a clear empirical strength and support the utility claim for extreme environments.

major comments (1)
  1. [Real-data experiments] Real-data experiments section: only qualitative descriptions of improved global orientation and local alignment are provided for the 80 m captures, with no numerical metrics (RRE, RTE, or RMSE), no baseline comparisons, and no description of how ground-truth poses were obtained or whether scene-specific tuning was avoided. This leaves the generalization of the joint geometry-intensity grid features and local disambiguation steps unquantified, which is load-bearing for the practical-utility claim.
minor comments (2)
  1. [Abstract and §4] The abstract and method sections use 'about 80~m' and similar phrasing; adopt consistent notation (e.g., 80 m) throughout.
  2. [Method] A diagram or pseudocode for the 'joint geometry-intensity grid feature aggregation' step would improve clarity of the pipeline.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We sincerely thank the referee for the constructive and detailed feedback. We address the major comment on the real-data experiments below, with a commitment to improving the manuscript accordingly.

read point-by-point responses

  1. Referee: Real-data experiments section: only qualitative descriptions of improved global orientation and local alignment are provided for the 80 m captures, with no numerical metrics (RRE, RTE, or RMSE), no baseline comparisons, and no description of how ground-truth poses were obtained or whether scene-specific tuning was avoided. This leaves the generalization of the joint geometry-intensity grid features and local disambiguation steps unquantified, which is load-bearing for the practical-utility claim.

    Authors: We agree that the current presentation of the real-data results is limited and would benefit from greater detail to support the practical-utility claim. Obtaining accurate ground-truth poses for outdoor multi-view captures at 80 m is extremely challenging in practice, as it requires external high-precision tracking systems (e.g., total stations or motion-capture setups) that were unavailable during field data collection; consequently, no numerical RRE/RTE/RMSE values or direct baseline comparisons using GT are reported. Evaluation instead relied on visual assessment of global orientation consistency (e.g., alignment of distant scene structures across views) and local alignment quality (e.g., sharpness of edges and absence of ghosting in fused regions). No scene-specific tuning was performed; all parameters were fixed from the synthetic experiments. In the revised manuscript we will (i) expand the real-data section with an explicit description of the acquisition setup, evaluation protocol, and rationale for the qualitative approach, (ii) add side-by-side visual comparisons against the baselines to illustrate the claimed improvements, and (iii) clarify the absence of quantitative GT metrics. These changes will better quantify the generalization of the geometry-intensity features and disambiguation steps while remaining faithful to the experimental constraints. revision: partial

Circularity Check

0 steps flagged

No circularity: empirical method with independent benchmarks

full rationale

The paper presents GIC-Reg as a composite registration pipeline (physical-aware preprocessing + joint geometry-intensity grid features + global matching + local disambiguation) whose performance is measured by direct comparison against baselines on synthetic data with controlled dropout/noise and by qualitative inspection on real 80 m captures. No equations appear that define a quantity in terms of itself, no fitted parameters are relabeled as predictions, and no central claim is justified solely by self-citation. The reported RRE reduction (13.167° to 8.459°) is an observed numerical outcome, not a definitional identity. The framework therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Only the abstract is available, so the ledger is necessarily incomplete. The method implicitly relies on standard assumptions about rigid transformations and feature matching but introduces no new invented entities.

axioms (1)
  • domain assumption Rigid transformations between views can be recovered from aggregated geometry-intensity features
    Invoked when the framework estimates inter-view transformations from global matching and local disambiguation.
