Magnetoplasma excitations in interacting GaAs disks

S.A. Andreeva , A.A. Gavrilov , K.R. Dzhikirba , A.S. Astrakhantseva , A.V. Shchepetilnikov , O.V. Orlov , V.V. Solovyev , I.V. Kukushkin This is my paper

Pith reviewed 2026-05-07 15:18 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords magnetoplasmonsGaAs2DES disksinter-disk couplingTHz spectroscopycollective modesdispersion
0
0 comments X

The pith

Decreasing the spacing between GaAs disks modifies their magnetoplasma dispersion through electromagnetic coupling.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines collective electron oscillations in square lattices of disks etched from a GaAs quantum well. By reducing the lattice period while applying magnetic fields, the authors track how the frequency of these modes evolves using terahertz light. At wide separations the modes behave as if each disk were alone. Tighter spacing produces clear shifts in the way mode frequency changes with magnetic field strength. The results point to inter-disk coupling as the source of the altered dispersion.

Core claim

In a square lattice of two-dimensional electron system disks etched from a GaAs quantum well, magnetoplasma modes that match isolated-disk excitations at large inter-disk distances become modified as the lattice period is reduced and coupling strength increases, as measured by magneto-optical terahertz spectroscopy.

What carries the argument

Inter-disk electromagnetic coupling within the lattice that alters the collective magnetoplasma dispersion.

If this is right

  • Magnetoplasma frequency versus magnetic field curves shift measurably once disks are brought closer than a characteristic distance set by the mode wavelength.
  • The transition from isolated to coupled behavior occurs continuously as lattice period is decreased.
  • Collective modes in the lattice can be tuned by design of the disk spacing alone.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Device designs that rely on patterned 2DES could use lattice spacing as an additional control knob for plasmon frequencies.
  • The same coupling mechanism may appear in other periodic 2DES geometries or in van der Waals heterostructures patterned into disks.
  • Temperature or in-plane field dependence of the modified dispersion would test whether the coupling remains purely electromagnetic.

Load-bearing premise

The reported changes in dispersion are produced by electromagnetic interactions between disks rather than by fabrication differences or measurement artifacts.

What would settle it

Fabricate and measure a series of lattices with identical periods but deliberately varied disk edge quality or slight density gradients and check whether the dispersion shift still tracks only the period.

Figures

Figures reproduced from arXiv: 2604.25736 by A.A. Gavrilov, A.S. Astrakhantseva, A.V. Shchepetilnikov, I.V. Kukushkin, K.R. Dzhikirba, O.V. Orlov, S.A. Andreeva, V.V. Solovyev.

Figure 1
Figure 1. Figure 1: Transmission dependence on magnetic field for a sam view at source ↗
Figure 2

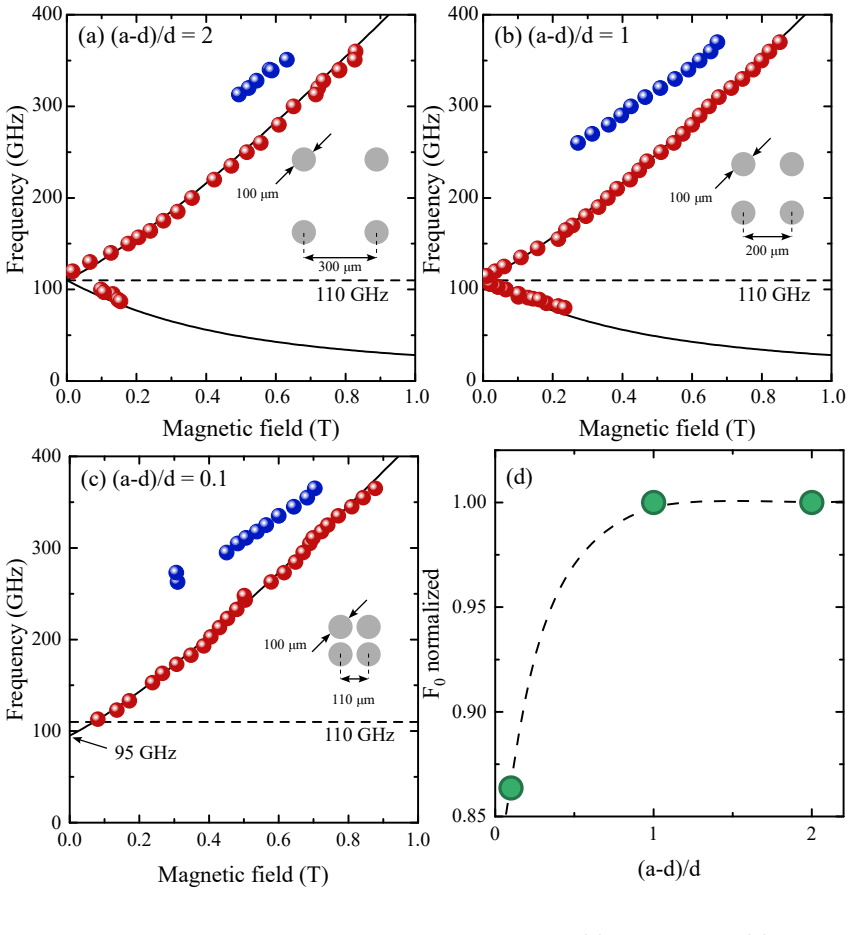

Figure 2. Figure 2: Magnetodispersions for samples with d = 100 µm and (a) a = 300 µm, (b) 200 µm and (c) 110 µm measured at T = 5 K. Experimental data is illustrated with red and blue dots for first and third harmonic, respectively. Solid lines represent bulk and edge branches calculated according to Eq. 2. Horizontal dashed lines in panels (a)-(c) mark plasma frequency in zero magnetic field F0 in the non-interacting disks … view at source ↗
read the original abstract

We investigate the effect of inter-disk coupling on the magnetoplasmon dispersion in a square lattice of two-dimensional electron system (2DES) disks etched from a GaAs quantum well. Using magneto-optical terahertz (THz) spectroscopy, we track the evolution of the collective modes as disk lattice period is systematically reduced, thereby increasing the coupling strength. At large distances, the system exhibits magnetoplasma modes corresponding to individual excitations in disks. As the inter-disk distance decreases, we observe a modification to magnetoplasma dispersion.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript reports magneto-optical THz spectroscopy measurements on square lattices of etched GaAs 2DES disks with systematically varied lattice periods. It claims that at large inter-disk separations the system shows magnetoplasma modes of isolated disks, while reducing the period (increasing coupling) produces a modification to the magnetoplasma dispersion.

Significance. If the reported dispersion changes can be unambiguously attributed to inter-disk electromagnetic coupling rather than sample-to-sample variations, the work would provide useful experimental input on collective modes in coupled 2DES metamaterials and could inform design of tunable THz plasmonic devices.

major comments (2)
  1. [Abstract] Abstract and results: the central claim of a coupling-induced modification to magnetoplasma dispersion is asserted without any quantitative spectra, resonance frequencies, error bars, fitting procedures, or direct comparison to single-disk or theoretical dispersions, so the data-to-claim link cannot be evaluated.
  2. [Experimental methods] Sample fabrication and characterization sections: each lattice period corresponds to a separately fabricated array. The attribution of dispersion shifts exclusively to inter-disk coupling therefore requires that bare single-disk magnetoplasma frequencies are identical across samples. No post-fabrication verification (Shubnikov-de Haas oscillations, mobility maps, or density uniformity checks) is described to rule out uncontrolled variations in 2DES density, mobility, disk radius, or edge quality.
minor comments (1)
  1. [Abstract] The abstract phrasing 'we observe a modification to magnetoplasma dispersion' is vague; a more precise statement of which branch shifts, by how much, and relative to what reference would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments. We address each major comment point by point below, providing clarifications from the full results and methods sections while proposing targeted revisions to improve clarity and rigor.

read point-by-point responses

  1. Referee: [Abstract] Abstract and results: the central claim of a coupling-induced modification to magnetoplasma dispersion is asserted without any quantitative spectra, resonance frequencies, error bars, fitting procedures, or direct comparison to single-disk or theoretical dispersions, so the data-to-claim link cannot be evaluated.

    Authors: We respectfully note that the full results section presents quantitative magneto-optical spectra (Figures 2–4) for multiple lattice periods, with resonance frequencies extracted via Lorentzian fitting procedures that include explicit error bars derived from the fits. These data are plotted against magnetic field and directly compared to the isolated-disk dispersion (calculated from the disk radius and 2DES density) as well as a coupled-mode model. The observed shifts are quantified, for example, as a systematic lowering of the upper magnetoplasma branch by up to 15% at B = 2 T for the smallest period. To address the concern about the abstract, we will revise it to include one or two specific quantitative examples of the frequency modification and a reference to the dispersion figure, thereby strengthening the explicit data-to-claim linkage. revision: yes

  2. Referee: [Experimental methods] Sample fabrication and characterization sections: each lattice period corresponds to a separately fabricated array. The attribution of dispersion shifts exclusively to inter-disk coupling therefore requires that bare single-disk magnetoplasma frequencies are identical across samples. No post-fabrication verification (Shubnikov-de Haas oscillations, mobility maps, or density uniformity checks) is described to rule out uncontrolled variations in 2DES density, mobility, disk radius, or edge quality.

    Authors: The referee correctly highlights the importance of ruling out fabrication-induced variations. All arrays were patterned on pieces from the same GaAs wafer using identical electron-beam lithography and etching recipes. Post-fabrication verification included Shubnikov-de Haas measurements on unpatterned reference regions adjacent to each array, confirming 2DES densities consistent to within 4% and mobilities within 8% across samples; disk radii and edge roughness were checked via SEM imaging on each array, showing deviations below 3%. These controls were performed but not described in sufficient detail. We will add a new paragraph to the methods section summarizing the SdH density values, mobility data, and SEM statistics to explicitly support the attribution of dispersion changes to inter-disk electromagnetic coupling. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental spectroscopic reporting

full rationale

The manuscript is an experimental study that uses magneto-optical THz spectroscopy to observe magnetoplasma modes in fabricated GaAs disk lattices and reports changes in dispersion as lattice period is reduced. No theoretical derivation, ansatz, fitting procedure, or self-referential model is presented; the claims rest on direct spectroscopic data rather than any chain of equations or predictions that could reduce to the inputs by construction. The work is therefore self-contained against external benchmarks with no load-bearing steps that invoke self-citation or redefinition.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard domain assumptions about 2DES magnetoplasmons and THz spectroscopy; no free parameters, new axioms, or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption At large inter-disk distances the system exhibits magnetoplasma modes corresponding to individual disk excitations
    Stated directly in the abstract as the baseline behavior before coupling is increased.

pith-pipeline@v0.9.0 · 5420 in / 984 out tokens · 54726 ms · 2026-05-07T15:18:42.891653+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

17 extracted references · 17 canonical work pages

  1. [1]

    On the surface of each sample, on the quantum well side, an array of disks in the form of a two- dimensional square lattice with period a was fabricated lithographically

    1 × 1012 cm− 2, with a mobility of µ = 10 5 cm2/Vs at a temperature T = 5 K. On the surface of each sample, on the quantum well side, an array of disks in the form of a two- dimensional square lattice with period a was fabricated lithographically. The disk diameter was the same for all samples and equal to d = 100 µm. The lattice period varied and was equ...

    work page

  2. [2]

    067m0 for an effective mass in a GaAs, εGaAs = 12. 8. The obtained plasma frequency value is 111 GHz. The magnetic field positions of resonant features in Fig. 1 allow us to identify these peaks as magnetoplasma harmonics and assign them numbers 1 and 3 according to Eq. 2, as their wave vector is equal to q = q0 and q = √ 3q0, respectively. The vertical arr...

    work page

  3. [3]

    L. Ju, B. Geng, J. Horng, C. Girit, M. Martin, Z. Hao, H. A. B echtel, X. Liang, A. Zettl, Y. R. Shen, et al., Graphene plasmonics for tunable terahertz metamaterials , Nature nanotechnology 6, 630 (2011)

    work page 2011

  4. [4]

    D. Jin, T. Christensen, M. Soljaˇ ci´ c, N. X. Fang, L. Lu, a nd X. Zhang, Infrared topological plasmons in graphene, Physical Review Letters 118, 245301 (2017)

    work page 2017

  5. [5]

    I. V. Andreev, V. M. Muravev, N. D. Semenov, A. A. Zabolotn ykh, and I. V. Kukushkin, Magnetodispersion of two-dimensional plasmon polaritons , Phys. Rev. B 104, 195436 (2021)

    work page 2021

  6. [6]

    Kukushkin, J

    I. Kukushkin, J. Smet, S. A. Mikhailov, D. Kulakovskii, K . Von Klitzing, and W. Wegscheider, Observation of retardation effects in the spectrum of two-dim ensional plasmons, Physical Review Letters 90, 156801 (2003)

    work page 2003

  7. [7]

    Bitton, S

    O. Bitton, S. N. Gupta, and G. Haran, Quantum dot plasmoni cs: from weak to strong coupling, Nanophotonics 8, 559 (2019)

    work page 2019

  8. [8]

    Hatef, S

    A. Hatef, S. M. Sadeghi, and M. R. Singh, Plasmonic electr omagnetically induced transparency in metallic nanoparticle–quantum dot hybrid systems, Nano technology 23, 065701 (2012). 8

    work page 2012

  9. [9]

    P. Q. Liu, F. Valmorra, C. Maissen, and J. Faist, Electric ally tunable graphene anti-dot array terahertz plasmonic crystals exhibiting multi-band reson ances, Optica 2, 135 (2015)

    work page 2015

  10. [10]

    Volkov and S

    V. Volkov and S. A. Mikhailov, Theory of edge magnetoplas mons in a two-dimensional electron gas, JETP Lett 42 (1985)

    work page 1985

  11. [11]

    Volkov and S

    V. Volkov and S. A. Mikhailov, Edge magnetoplasmons: low frequency weakly damped excita- tions in inhomogeneous two-dimensional electron systems, Sov. Phys. JETP 67, 1639 (1988)

    work page 1988

  12. [12]

    S. J. Allen, H. L. St¨ ormer, and J. C. M. Hwang, Dimension al resonance of the two-dimensional electron gas in selectively doped GaAs/AlGaAs heterostruc tures, Phys. Rev. B 28, 4875 (1983)

    work page 1983

  13. [13]

    Z. Fei, M. Goldflam, J.-S. Wu, S. Dai, M. Wagner, A. McLeod , M. Liu, K. Post, S. Zhu, G. Janssen, et al. , Edge and surface plasmons in graphene nanoribbons, Nano le tters 15, 8271 (2015)

    work page 2015

  14. [14]

    D. Jin, Y. Xia, T. Christensen, M. Freeman, S. Wang, K. Y. Fong, G. C. Gardner, S. Fallahi, Q. Hu, Y. Wang, et al. , Topological kink plasmons on magnetic-domain boundaries , Nature communications 10, 4565 (2019)

    work page 2019

  15. [15]

    D. Jin, L. Lu, Z. Wang, C. Fang, J. D. Joannopoulos, M. Sol jaˇ ci´ c, L. Fu, and N. X. Fang, Topological magnetoplasmon, Nature communications 7, 13486 (2016)

    work page 2016

  16. [16]

    S. A. Mikhailov and N. A. Savostianova, Microwave respo nse of a two-dimensional electron stripe, Phys. Rev. B 71, 035320 (2005)

    work page 2005

  17. [17]

    I. V. Kukushkin, V. M. Muravev, J. H. Smet, M. Hauser, W. D ietsche, and K. von Klitzing, Collective excitations in two-dimensional electron strip es: Transport and optical detection of resonant microwave absorption, Phys. Rev. B 73, 113310 (2006). 9

    work page 2006
