Optimized thermal control of a dual-wavelength-resonant nonlinear cavity

Fabian Meylahn , Henning Vahlbruch , Benno Willke

Authors on Pith no claims yet

Pith reviewed 2026-05-07 15:17 UTC · model grok-4.3

classification ⚛️ physics.optics quant-ph

keywords dispersion controlnonlinear optical cavitytemperature gradientbimetallic heat sinkdual-wavelength resonancesecond harmonic generationsqueezed lightoptical parametric oscillation

0 comments

The pith

A monolithic bimetallic heat sink applies a shallow temperature gradient to a nonlinear crystal to control resonator dispersion and enable simultaneous resonance of two wavelengths.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes a method to make an optical cavity resonate at two different wavelengths at the same time inside a nonlinear crystal. Normally the crystal's dispersion prevents both wavelengths from building up high intensity together, which limits processes like second-harmonic generation or squeezed-light production. The approach uses a single-piece bimetallic heat sink to impose a small temperature difference across only a section of the crystal, adjusting its refractive index without large mechanical forces. If successful this yields higher conversion efficiency while avoiding crystal damage from stress or uneven heating. The design targets demanding uses such as gravitational-wave detectors, quantum optics experiments, and frequency conversion systems.

Core claim

The central claim is that a monolithic bimetallic heat sink can impose a controlled shallow temperature gradient directly on a section of the nonlinear crystal, thereby tuning the resonator's dispersion to allow dual-wavelength resonance while minimizing mechanical and thermal stresses in the crystal.

What carries the argument

The monolithic bimetallic heat sink that creates a shallow temperature gradient across a portion of the nonlinear crystal to adjust its refractive index dispersion.

If this is right

Simultaneous resonance of two wavelengths becomes achievable inside a single cavity without additional dispersive elements.
Conversion efficiency rises in second-harmonic generation, optical parametric oscillation, and squeezed-light sources.
Mechanical and thermal stresses on the nonlinear crystal stay low, reducing risk of damage or performance drift.
The technique supplies a practical alternative for dispersion management in precision nonlinear devices.
Reliability improves for long-term operation in gravitational-wave detectors and quantum-optics setups.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same heat-sink geometry could be adapted to control dispersion for three or more wavelengths in one cavity.
Integrating the bimetallic element directly into monolithic cavity designs might reduce the need for external temperature control hardware.
In high-power applications the method may allow tighter focus or higher circulating powers before thermal effects appear.
Comparative tests with different crystal lengths or doping levels could quantify how much dispersion range the gradient can provide.

Load-bearing premise

The shallow temperature gradient created by the bimetallic heat sink will produce enough change in dispersion to achieve co-resonance without causing significant thermal lensing, stress birefringence, or other degrading effects.

What would settle it

Measurements showing that the two target wavelengths cannot be brought into simultaneous resonance even after optimizing the applied temperature gradient, or detection of increased optical losses or reduced nonlinear output attributable to thermal lensing or birefringence.

Figures

Figures reproduced from arXiv: 2604.25883 by Benno Willke, Fabian Meylahn, Henning Vahlbruch.

**Figure 1.** Figure 1: Configuration of the bow-tie cavity, for dispersion-control enabled co-resonance view at source ↗

**Figure 2.** Figure 2: Finite element simulations of temperature distributions in the heat sink and the view at source ↗

**Figure 3.** Figure 3: Measured temperature distribution along the beam propagation axis for different view at source ↗

**Figure 4.** Figure 4: Plot showing the distance between the fundamental resonances of the TEM view at source ↗

**Figure 5.** Figure 5: Detailed mapping of double-resonance conditions across phase-matching view at source ↗

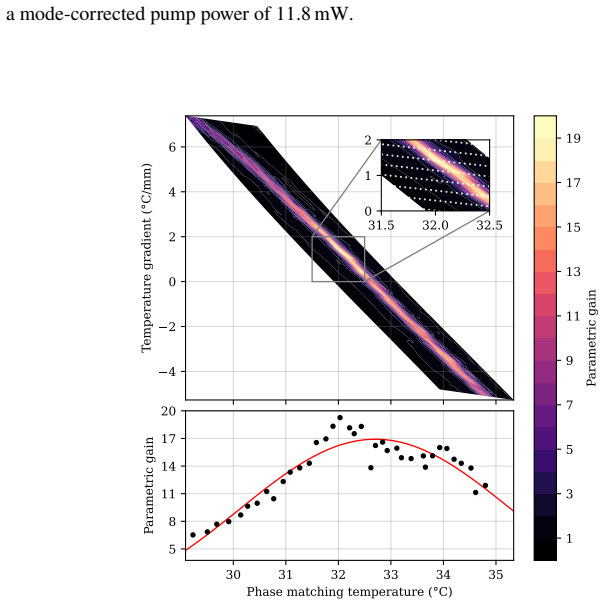

**Figure 6.** Figure 6: Upper: Parametric gain color coded versus phase-matching temperature and temperature gradient. The inset displays the measurement step size (white points). Lower: Parametric gain values per phase-matching temperature. The fitted model yields a peak gain of 16.91 at an optimal temperature of 32.7 ◦C with a full width at half maximum of 6.3 ◦C The measured optical parametric gain 𝐺 refers to the pump paramet… view at source ↗

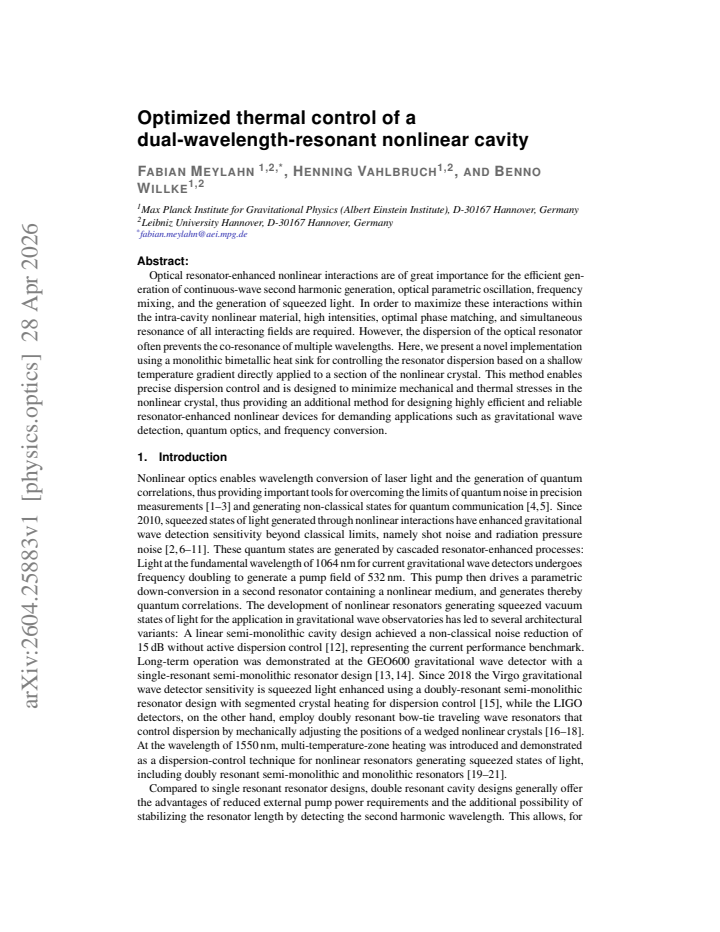

read the original abstract

Optical resonator-enhanced nonlinear interactions are of great importance for the efficient generation of continuous-wave second harmonic generation, optical parametric oscillation, frequency mixing, and the generation of squeezed light. In order to maximize these interactions within the intra-cavity nonlinear material, high intensities, optimal phase matching, and simultaneous resonance of all interacting fields are required. However, the dispersion of the optical resonator often prevents the co-resonance of multiple wavelengths. Here, we present a novel implementation using a monolithic bimetallic heat sink for controlling the resonator dispersion based on a shallow temperature gradient directly applied to a section of the nonlinear crystal. This method enables precise dispersion control and is designed to minimize mechanical and thermal stresses in the nonlinear crystal, thus providing an additional method for designing highly efficient and reliable resonator-enhanced nonlinear devices for demanding applications such as gravitational wave detection, quantum optics, and frequency conversion.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper gives a practical bimetallic heat-sink design for dispersion control in nonlinear cavities, supported by consistent thermal simulations but no experiments yet.

read the letter

The main point is that the authors lay out a monolithic bimetallic heat sink to impose a shallow axial temperature gradient on the nonlinear crystal. This shifts the dispersion enough to get simultaneous resonance for two wavelengths while trying to limit stress and thermal lensing in the crystal itself. They back the idea with a concrete mechanical layout, finite-element thermal maps, and analytic estimates of the dispersion change and side effects. Those estimates show the thermal lens focal length stays more than ten times the cavity length for the 0.1–0.5 K gradients they consider, which keeps the perturbation small relative to typical cavity parameters. The monolithic construction also helps with uniform stress distribution compared to separate heaters or clamps. This is a useful engineering tweak for people who already use thermal tuning in high-finesse nonlinear resonators for squeezed light or frequency conversion. The calculations are internally consistent and directly address the usual worries about lensing and birefringence. The main limitation is that the work stays at the simulation and design stage. There are no measured cavity spectra, finesse values, or actual resonance-locking results with the heat sink in place, so we cannot yet judge how well the gradient can be controlled in practice or whether mounting details introduce other effects. That keeps the paper more as a methods contribution than a fully demonstrated solution. Readers building or optimizing resonator-enhanced nonlinear devices for quantum optics or gravitational-wave instrumentation will find the layout and modeling approach directly usable. It is worth sending to peer review because the thermal analysis holds together and the problem it targets is common in the field. Referees can usefully push for some experimental validation or clearer comparison to existing tuning methods.

Referee Report

0 major / 3 minor

Summary. The manuscript proposes a monolithic bimetallic heat sink that imposes a shallow axial temperature gradient on a section of the nonlinear crystal inside an optical resonator. The design is intended to provide tunable dispersion control that enables simultaneous resonance of two wavelengths while keeping mechanical and thermal stresses low. Supporting elements include a concrete mechanical layout, finite-element thermal maps, and analytic estimates showing that the resulting thermal lens focal length exceeds ten times the cavity length for 0.1–0.5 K gradients.

Significance. If the modeled thermal and optical performance is realized, the approach supplies a practical, low-stress method for dispersion engineering in high-finesse dual-wavelength cavities. This could improve efficiency and reliability in applications such as gravitational-wave detection, quantum optics, and continuous-wave frequency conversion, where existing temperature-uniform or mechanically stressed solutions are limiting.

minor comments (3)

Abstract: the claim of 'precise dispersion control' is not accompanied by a numerical value for the differential optical path length or the resulting resonance shift achieved by the 0.1–0.5 K gradient; adding this figure would make the abstract self-contained.
Thermal modeling section: the analytic dispersion estimate assumes a perfectly linear axial gradient, yet the FEM maps exhibit edge non-uniformities; a short paragraph comparing the integrated optical-path difference from the FEM data to the analytic prediction would confirm consistency.
Figure captions for the thermal maps should explicitly state the boundary conditions, the crystal length used, and the exact temperature values at the bimetallic interface.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their careful review of our manuscript and for recommending minor revision. We appreciate the positive assessment of the proposed bimetallic heat sink approach for dispersion control in dual-wavelength resonators. No specific major comments were raised in the report, so we have no individual points to address. We will incorporate any minor editorial or clarification changes in the revised version.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The manuscript presents a physical design proposal for dispersion control via a monolithic bimetallic heat sink imposing a shallow axial temperature gradient on a nonlinear crystal. It supplies concrete mechanical layouts, finite-element thermal maps, and analytic estimates of dispersion shift and thermal lensing. These calculations rest on standard heat-transfer and optical-path-length physics rather than any self-referential derivation, fitted parameter renamed as prediction, or load-bearing self-citation. No equation or claim reduces by construction to its own inputs; the work is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based solely on the abstract, no explicit free parameters, axioms, or invented entities are stated. The method implicitly relies on standard thermal-expansion and thermo-optic coefficients of common nonlinear crystals and metals, which are treated as known from prior literature.
