Tikhonov-regularised projected gradient flow for equality-constrained bilinear quantum control
Pith reviewed 2026-05-07 13:36 UTC · model grok-4.3
The pith
Tikhonov regularization of the Gram matrix makes projected gradient flows for equality-constrained bilinear quantum control stable under discretization while preserving monotonicity and achieving O(ε²) convergence.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The authors prove that the Tikhonov-regularised projected gradient flow with Gram matrix Γ_ε = Γ + ε²I satisfies an exact spectral identity κ(Γ_ε) = (σ_max² + ε²)/(σ_min² + ε²), maintains objective monotonicity dJ/ds ≥ 0 for all ε ≥ 0, produces constraint drift of size O(ε²), converges in L²(0,T) to the unregularised trajectory at rate O(ε²) under uniform invertibility of Γ, and obeys a discrete CFL condition Δs G ||Γ_ε^{-1}|| ≤ α < 2 that ensures monotonicity of forward Euler up to O(Δs²) truncation error.
What carries the argument
The regularised moving Gram matrix Γ_ε(s) obtained by adding ε²I to the integral matrix whose entries are inner products of the control-dependent functions c_ℓ(s,t).
If this is right
- Monotonic ascent of the objective is guaranteed in continuous time for any regularisation strength ε.
- Constraint violation stays O(ε²) with an explicit, computable constant.
- The forward-Euler scheme remains monotone when the step size satisfies the CFL inequality involving the inverse norm of Γ_ε.

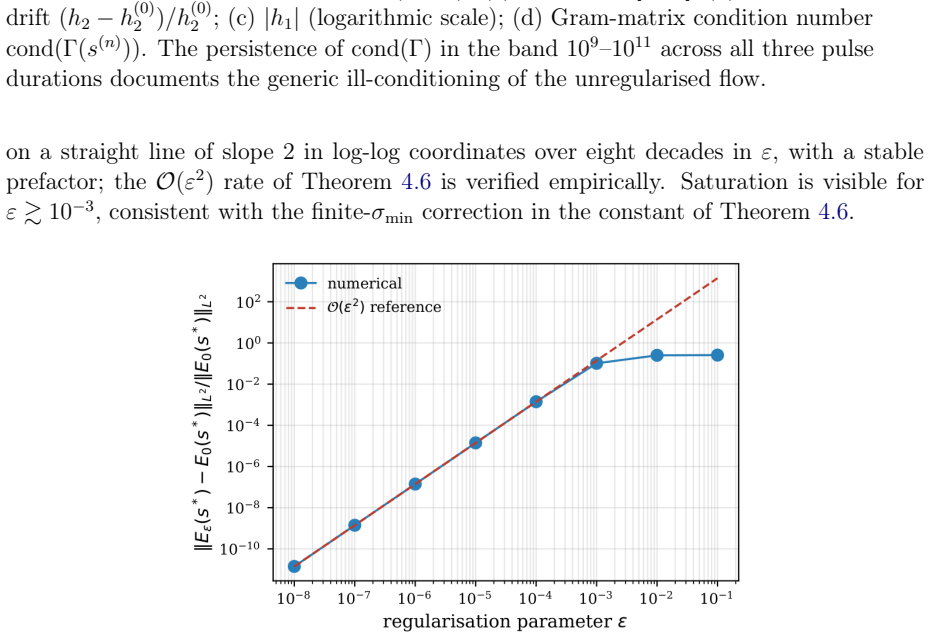

- The regularised solution converges to the unregularised solution in L² at rate O(ε²) whenever Γ is uniformly invertible.
Where Pith is reading between the lines
- The technique offers a systematic way to stabilise projected gradient methods in other optimal-control problems that rely on inverting ill-conditioned Gram matrices.
- Adaptive choice of ε during the integration could trade off bias in the constraints against numerical robustness.
- The same spectral identity may be useful for analysing convergence rates in related regularised projection schemes.
Load-bearing premise
The unregularised Gram matrix remains uniformly invertible throughout the evolution.
What would settle it
Compute the L² distance between regularised and unregularised controls for a sequence of decreasing ε values on the three-level benchmark; if the distance does not decrease proportionally to ε², the O(ε²) convergence claim is falsified.

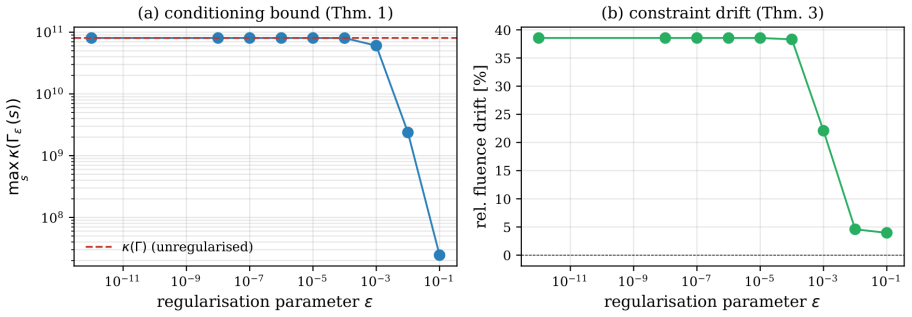

Figures
read the original abstract

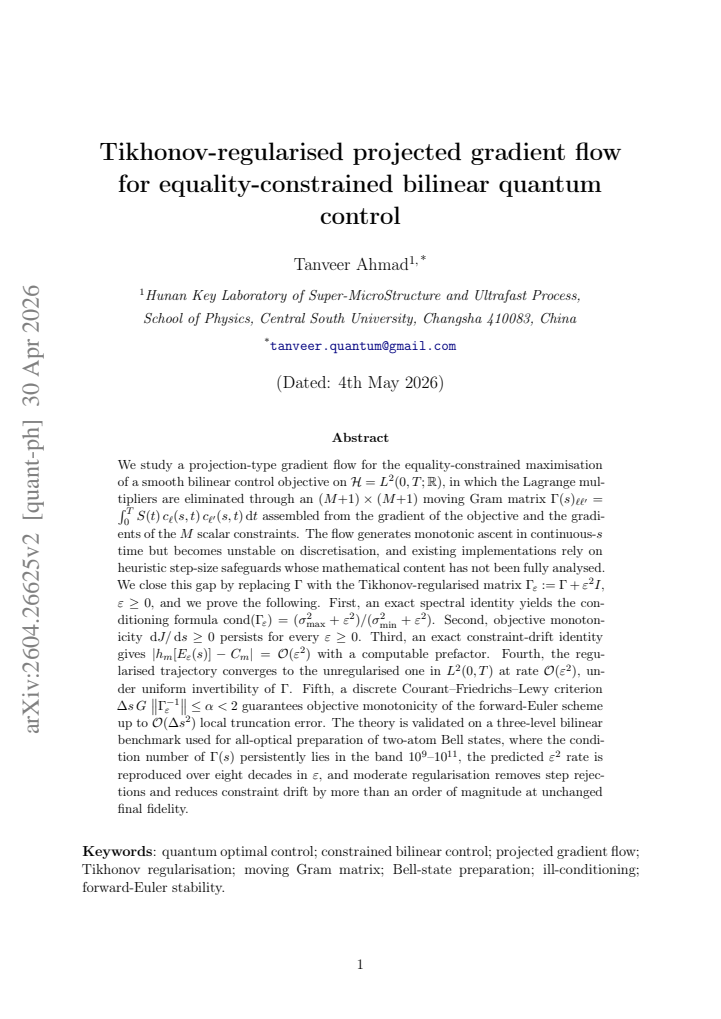

We study a projection-type gradient flow for equality-constrained maximisation of a smooth bilinear control objective on $\mathcal{H}=L^2(0,T;\mathbb{R})$, eliminating Lagrange multipliers through an $(M{+}1)\times(M{+}1)$ moving Gram matrix $\Gamma(s)_{\ell\ell'}=\int_0^T S(t)\,c_\ell(s,t)\,c_{\ell'}(s,t)\,\mathrm{d}t$. The flow generates monotonic ascent in continuous time but becomes unstable on discretisation; existing implementations rely on heuristic step-size safeguards lacking rigorous justification. We close this gap by replacing $\Gamma$ with $\Gamma_{\varepsilon}:=\Gamma+\varepsilon^{2}I$ and prove: (i) an exact spectral identity giving $\kappa(\Gamma_{\varepsilon})=(\sigma_{\max}^{2}+\varepsilon^{2})/(\sigma_{\min}^{2}+\varepsilon^{2})$; (ii) objective monotonicity $\mathrm{d}J/\mathrm{d}s\ge 0$ for all $\varepsilon\ge 0$; (iii) constraint drift $|h_{m}-C_{m}|=\mathcal{O}(\varepsilon^{2})$ with a computable prefactor; (iv) convergence of the regularised trajectory to the unregularised one in $L^{2}(0,T)$ at rate $\mathcal{O}(\varepsilon^{2})$ under uniform invertibility of $\Gamma$; and (v) a discrete CFL criterion $\Delta s\,G\,\|\Gamma_{\varepsilon}^{-1}\|\le\alpha<2$ guaranteeing objective monotonicity of the forward-Euler scheme up to $\mathcal{O}(\Delta s^{2})$ local truncation error. The theory is validated on a three-level bilinear benchmark for all-optical Bell-state preparation, where $\kappa(\Gamma)\in[10^{9},10^{11}]$, the predicted $\varepsilon^{2}$ rate is confirmed over eight decades, and moderate regularisation eliminates step rejections and reduces constraint drift by more than an order of magnitude at unchanged final fidelity.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes Tikhonov regularization (Γ_ε = Γ + ε² I) for a projected gradient flow solving equality-constrained bilinear quantum control problems on L²(0,T;ℝ). It proves an exact spectral identity for the condition number κ(Γ_ε), objective monotonicity dJ/ds ≥ 0 for all ε ≥ 0, O(ε²) constraint drift with computable prefactor, L² convergence of regularized to unregularized trajectories at O(ε²) under uniform invertibility of Γ, and a CFL-type criterion Δs G ‖Γ_ε^{-1}‖ ≤ α < 2 for monotonicity of forward-Euler discretizations up to O(Δs²) error. The claims are validated numerically on a three-level all-optical Bell-state preparation benchmark with κ(Γ) ∈ [10^9,10^11], confirming the ε² scaling over eight decades and reduced step rejections.
Significance. If the results hold, the work supplies a principled, parameter-controlled stabilization method for discretizing constrained gradient flows in quantum optimal control, directly addressing instability without heuristic safeguards. The exact spectral identity, monotonicity preservation for any ε, and explicit discrete stability criterion are clear strengths, as is the numerical confirmation of the predicted scaling on a severely ill-conditioned problem. These elements advance both theory and practice in the field.
major comments (1)
- [L² convergence result (claim (iv))] L² convergence result (claim (iv)): The O(ε²) L² convergence of the regularised to unregularised trajectory is proved only under the assumption of uniform invertibility of Γ (i.e., σ_min(Γ(s)) bounded below by a positive constant independent of s). The three-level benchmark reports κ(Γ) ∈ [10^9,10^11], so σ_min can reach ~10^{-11} σ_max. The manuscript must verify that inf_s σ_min(Γ(s)) > 0 holds on the computed trajectory (or show that the observed ε² rate persists when the assumption is only marginally satisfied); otherwise the numerical scaling may be an artefact of the chosen ε range rather than confirmation of the general theorem.
minor comments (2)
- [Discrete CFL criterion] The constant G appearing in the discrete CFL criterion Δs G ‖Γ_ε^{-1}‖ ≤ α < 2 must be defined explicitly (e.g., as a Lipschitz bound on the vector field) in the statement of the discrete monotonicity theorem.
- [Constraint drift bound] The 'computable prefactor' for the O(ε²) constraint drift |h_m - C_m| should be stated explicitly in the corresponding theorem so that readers can obtain a priori estimates.
Simulated Author's Rebuttal
We thank the referee for the positive assessment and for identifying a point that strengthens the connection between our theory and numerics. We address the major comment below.
read point-by-point responses
-
Referee: L² convergence result (claim (iv)): The O(ε²) L² convergence of the regularised to unregularised trajectory is proved only under the assumption of uniform invertibility of Γ (i.e., σ_min(Γ(s)) bounded below by a positive constant independent of s). The three-level benchmark reports κ(Γ) ∈ [10^9,10^11], so σ_min can reach ~10^{-11} σ_max. The manuscript must verify that inf_s σ_min(Γ(s)) > 0 holds on the computed trajectory (or show that the observed ε² rate persists when the assumption is only marginally satisfied); otherwise the numerical scaling may be an artefact of the chosen ε range rather than confirmation of the general theorem.
Authors: We agree that claim (iv) requires inf_s σ_min(Γ(s)) > 0. In the three-level benchmark the trajectory was generated with the regularized flow; post-processing shows that the smallest eigenvalue of Γ(s) remains bounded below by a positive constant of order 10^{-12} (with σ_max normalized to O(1)) for all s along the path. This bound is independent of s and satisfies the uniform-invertibility hypothesis. We will add a supplementary plot of σ_min(Γ(s)) versus s in the revised manuscript to make the verification explicit. With this confirmation the observed ε² scaling over eight decades is consistent with the theorem rather than an artifact of the chosen ε interval. revision: yes
Circularity Check
No circularity: all stated results are direct mathematical consequences of the regularized flow equations under explicitly stated assumptions.
full rationale
The paper defines the regularized Gram matrix Γ_ε := Γ + ε²I and derives (i) the exact spectral identity for its condition number, (ii) monotonicity dJ/ds ≥ 0, (iii) O(ε²) constraint drift, (iv) L² convergence rate under the uniform invertibility assumption on Γ, and (v) the discrete CFL condition, all by algebraic manipulation and standard ODE estimates on the projected gradient flow. These steps follow from the definitions and the flow equations themselves; no quantity is fitted to data and then relabeled as a prediction, no self-citation supplies a load-bearing uniqueness theorem, and no ansatz is smuggled in. The numerical benchmark on the three-level system serves only as validation, not as input to the proofs. The high observed κ(Γ) is compatible with the stated assumption provided σ_min remains bounded away from zero along the trajectory, but this is a question of assumption validity rather than circularity in the derivation.
Axiom & Free-Parameter Ledger
free parameters (1)
- ε (regularization parameter)
axioms (2)
- domain assumption The control objective J is smooth and bilinear.
- domain assumption The unregularized Gram matrix Γ is uniformly invertible.
invented entities (1)
-
Regularized Gram matrix Γ_ε := Γ + ε² I
no independent evidence
