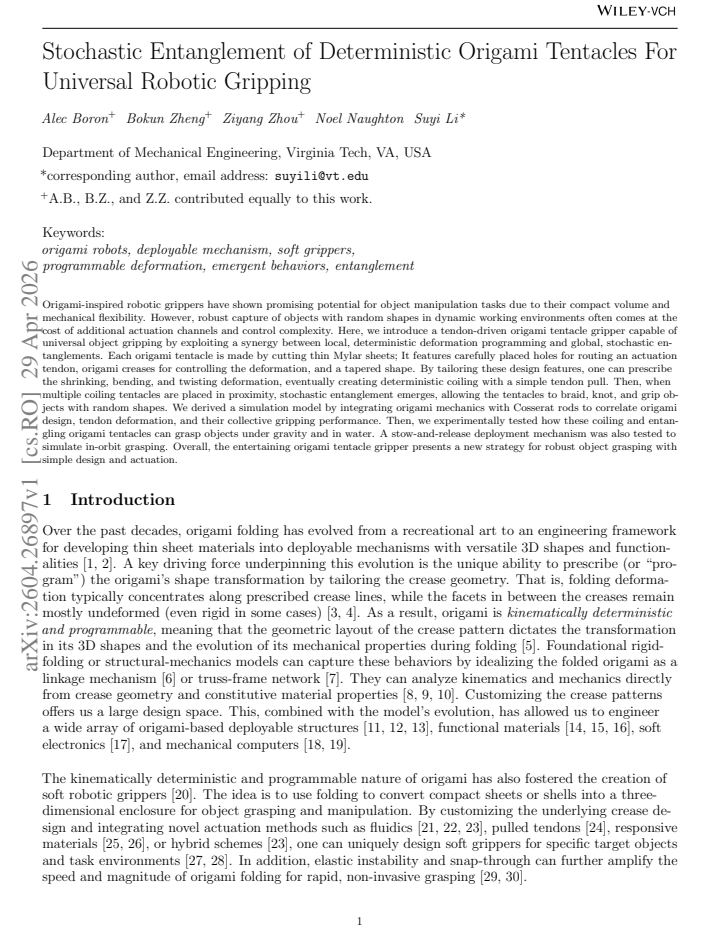

Stochastic Entanglement of Deterministic Origami Tentacles For Universal Robotic Gripping

Alec Boron , Bokun Zheng , Ziyang Zhou , Noel Naughton , Suyi Li This is my paper

Pith reviewed 2026-05-07 10:57 UTC · model grok-4.3

classification 💻 cs.RO cs.SYeess.SY
keywords origami grippertendon-driven actuationstochastic entanglementuniversal robotic graspingcosserat rod simulationdeployable mechanismsoft robotics
0
0 comments X

The pith

Origami tentacles programmed to coil deterministically entangle stochastically to grip objects of random shapes with one tendon pull.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper shows how to build a robotic gripper from multiple origami tentacles that each coil in a predictable way when pulled by a tendon. When several such tentacles act together, their coils form unpredictable knots and braids that securely hold objects regardless of shape. The design uses simple cuts and creases on flat Mylar sheets, avoiding the need for many motors or sensors. A computer model combines origami folding rules with rod mechanics to predict how the tentacles will behave collectively. Tests confirm the gripper works on objects in air, underwater, and even for space deployment with a stow mechanism.

Core claim

The central claim is that a synergy between local deterministic deformation programming in each origami tentacle and global stochastic entanglements among multiple tentacles enables universal object gripping with simple tendon actuation. By tailoring holes, creases, and taper on Mylar sheets, each tentacle achieves prescribed shrinking, bending, and twisting to coil reliably. Multiple coiling tentacles then braid, knot, and grip random shapes without extra control.

What carries the argument

Tendon-driven origami tentacle with placed holes and creases for deterministic coiling, enabling stochastic entanglements in groups.

If this is right

  • The gripper can capture objects under gravity and in water without additional actuation.
  • A stow-and-release mechanism allows simulation of in-orbit grasping.
  • Simulation model integrates origami mechanics with Cosserat rods to predict gripping performance from design parameters.
  • Universal gripping is achieved for random shapes in dynamic environments with reduced control complexity.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This deterministic-stochastic combination might extend to other soft robotic tasks like locomotion or assembly by scaling the number of tentacles.
  • Varying tentacle counts or material stiffness could be tested to optimize for specific object sizes or environments.
  • The stow-and-release feature suggests potential use in confined or remote settings beyond space, such as underwater salvage.
  • Adding minimal sensing could improve consistency, though the paper demonstrates success without it.

Load-bearing premise

Stochastic entanglements between coiling tentacles will consistently and robustly secure objects with arbitrary shapes and in changing conditions without needing extra actuation or feedback control.

What would settle it

An experiment in which the tentacles are pulled but fail to form sufficient entanglements to hold a variety of test objects under gravity or in fluid, such as smooth spheres or irregular items in turbulent conditions.

Figures

Figures reproduced from arXiv: 2604.26897 by Alec Boron, Bokun Zheng, Noel Naughton, Suyi Li, Ziyang Zhou.

Figure 1

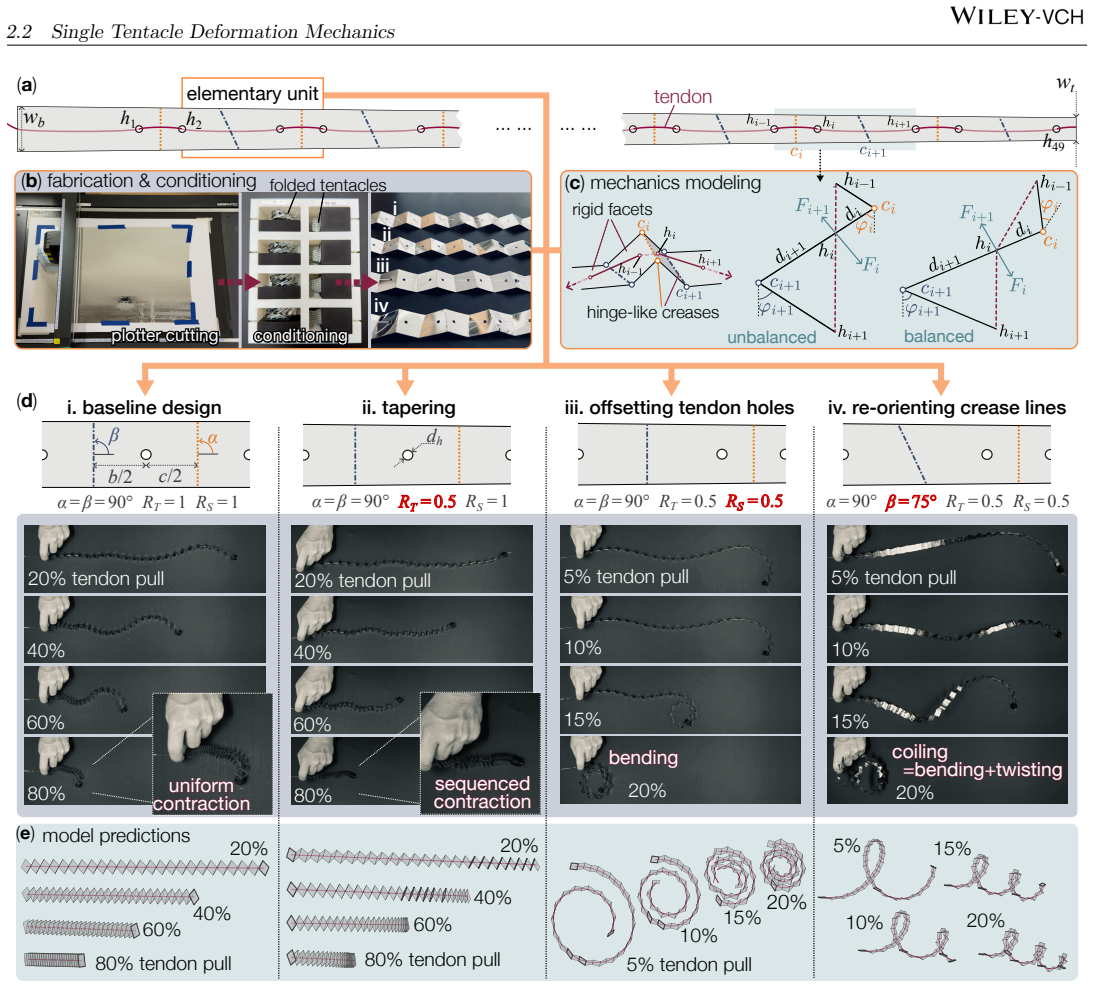

Figure 1. Figure 1: Design, modeling, and experimental characterization of a single origami tentacle. (a) The design of an origami tentacle. The actuation tendon weaves through the holes h1 to h49 and is fixed to the tentacle at the tip. An elementary unit, which contains three holes and two creases, is highlighted. (b) Fabrication includes accurate tentacle cutting from a plotter and a pre-conditioning step, where fully fold… view at source ↗
Figure 2

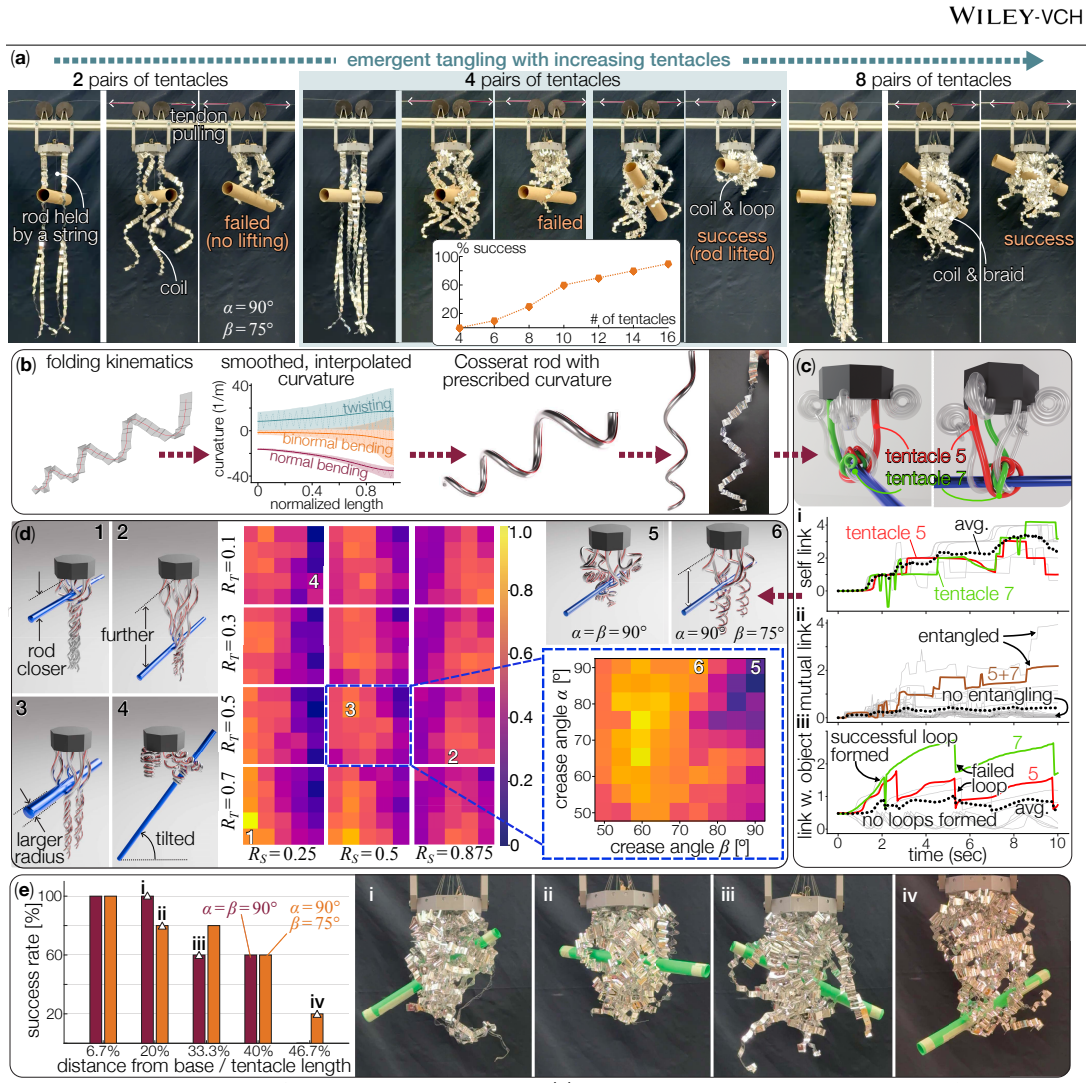

Figure 2. Figure 2: Emergent tangling of multiple origami tentacles. (a) Tangling behavior emerges as the number of tentacles in￾creases. As a result, 2 pairs of tentacles cannot grip the target tube, 4 pairs have a moderate chance of success in gripping (here we show a failed and a successful test), and 8 pairs have close to 100% of success (Movie S3). (b) Modeling pipeline to connect the origami folding model to the dynamic… view at source ↗
Figure 3

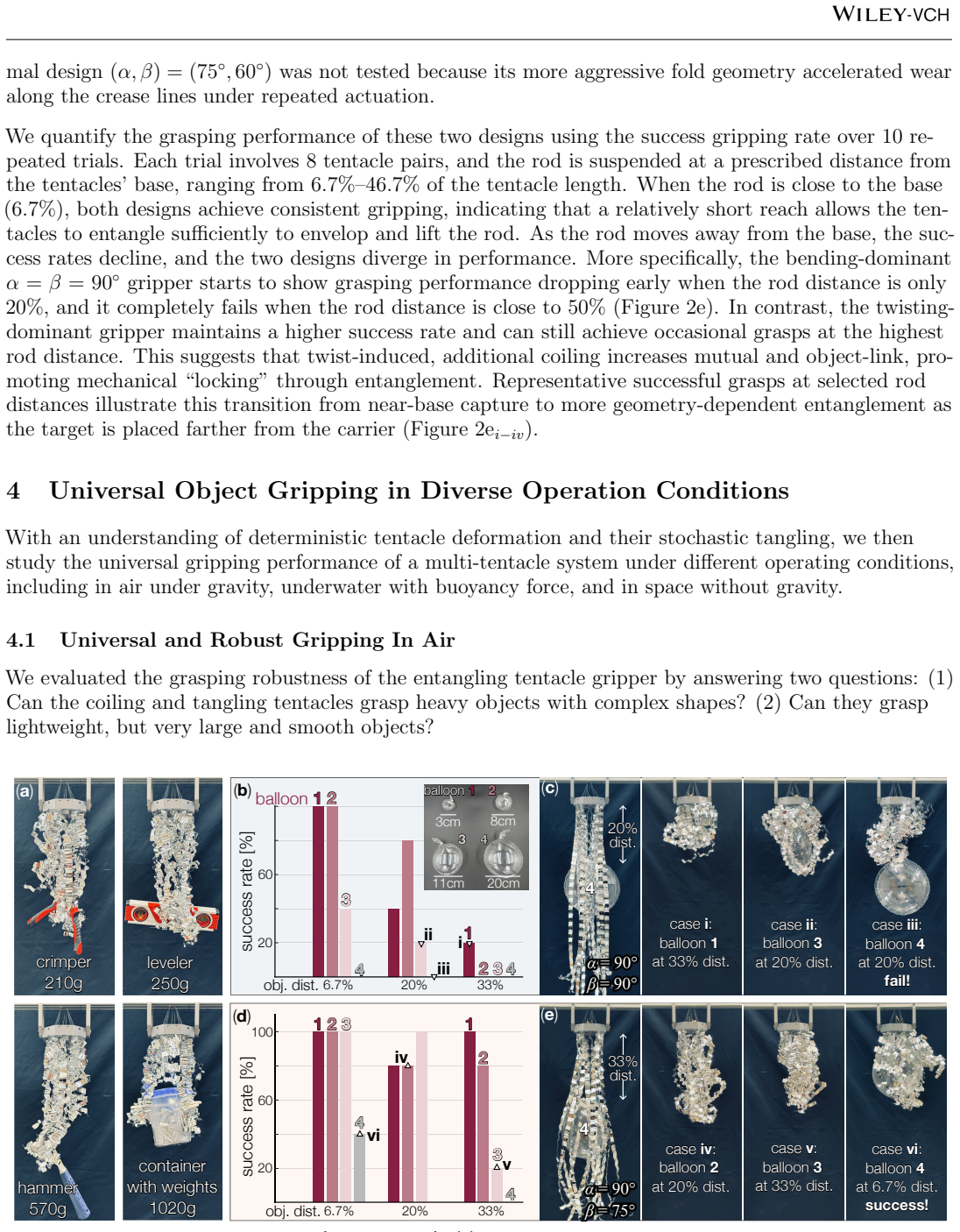

Figure 3. Figure 3: Robust object grasping in air (under gravity). (a) Heavy object grasping with sixteen, α = 90◦ β = 75◦ , tentacles to evaluate their collective, maximum payload capacity. (b,c) Balloon-grasping tests with bending-dominant β = 90◦ tentacles, with a few successful examples. (d,e) Balloon-grasping tests with twisting β = 75◦ tentacles (Movie S5). 9 view at source ↗
Figure 4

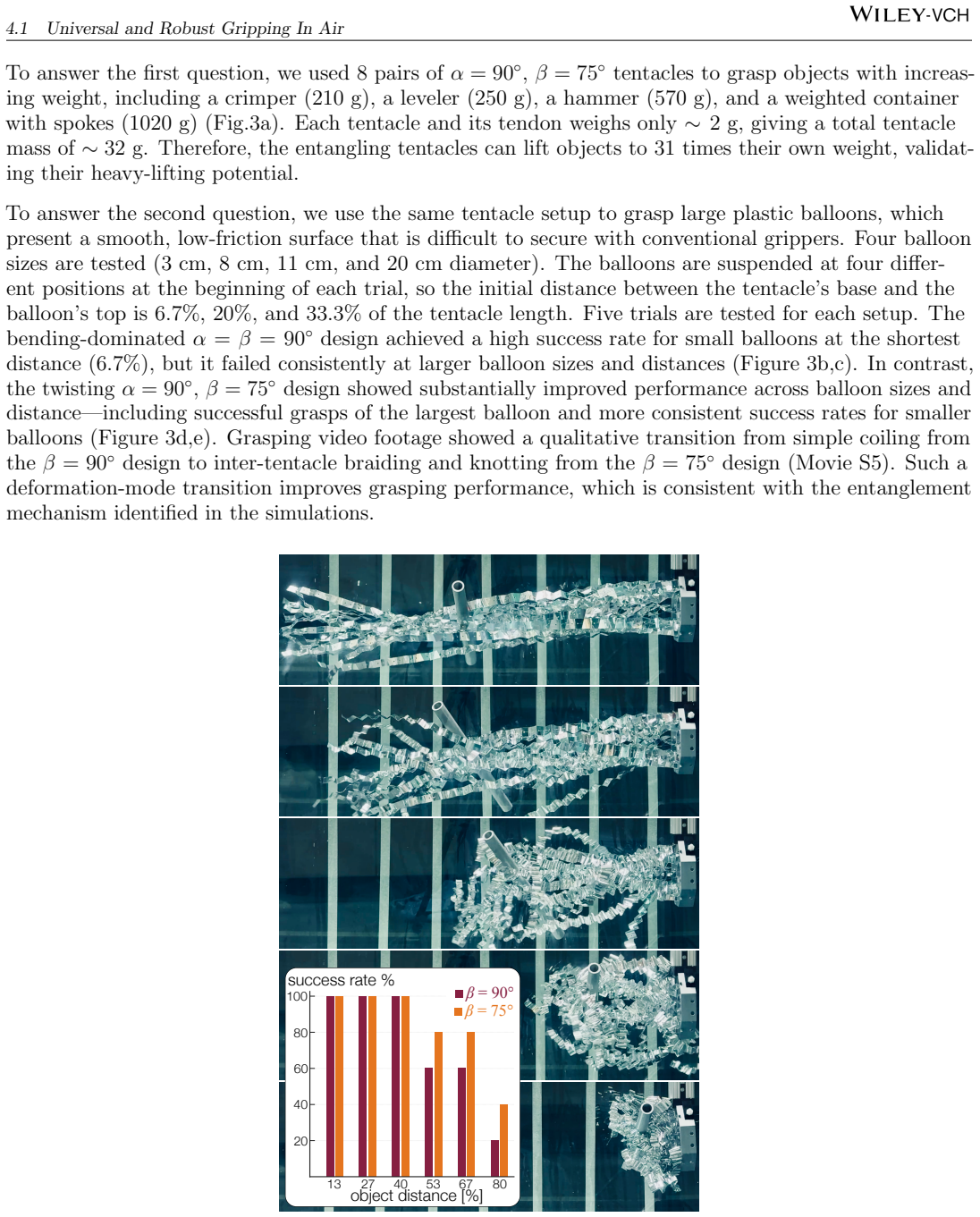

Figure 4. Figure 4: Object grasping underwater. The snapshot photos show the sequence of a representative grasp, while the insert figure summarizes the grasping success rate of the β = 90◦ and β = 75◦ tentacles (Movie S6). 10 view at source ↗
Figure 5

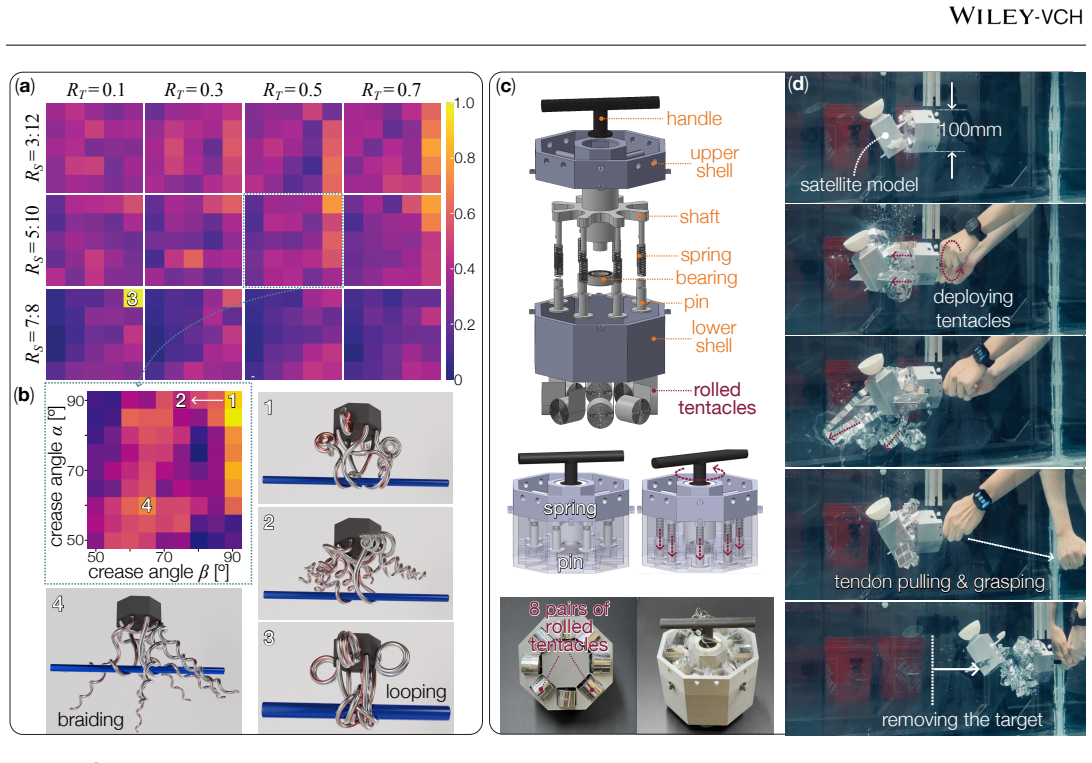

Figure 5. Figure 5: Simulation-guided design sweep without gravity and simulated underwater demonstration of in-space cap￾ture. (a) Coarse parameter sweep showing the entanglement score over folding angles (α, β) for multiple spacing ratios and taper ratios. (b) Refined map at the selected spacing/taper condition, with representative configurations illustrating two dom￾inant interaction modes (looping and braiding) at marked … view at source ↗
read the original abstract

Origami-inspired robotic grippers have shown promising potential for object manipulation tasks due to their compact volume and mechanical flexibility. However, robust capture of objects with random shapes in dynamic working environments often comes at the cost of additional actuation channels and control complexity. Here, we introduce a tendon-driven origami tentacle gripper capable of universal object gripping by exploiting a synergy between local, deterministic deformation programming and global, stochastic entanglements. Each origami tentacle is made by cutting thin Mylar sheets; It features carefully placed holes for routing an actuation tendon, origami creases for controlling the deformation, and a tapered shape. By tailoring these design features, one can prescribe the shrinking, bending, and twisting deformation, eventually creating deterministic coiling with a simple tendon pull. Then, when multiple coiling tentacles are placed in proximity, stochastic entanglement emerges, allowing the tentacles to braid, knot, and grip objects with random shapes. We derived a simulation model by integrating origami mechanics with Cosserat rods to correlate origami design, tendon deformation, and their collective gripping performance. Then, we experimentally tested how these coiling and entangling origami tentacles can grasp objects under gravity and in water. A stow-and-release deployment mechanism was also tested to simulate in-orbit grasping. Overall, the entertaining origami tentacle gripper presents a new strategy for robust object grasping with simple design and actuation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces a tendon-driven origami tentacle gripper for universal object grasping. Each tentacle is fabricated from cut Mylar sheets with tailored creases, holes for tendon routing, and a tapered shape to produce deterministic shrinking, bending, and twisting that results in coiling upon single-tendon actuation. When multiple such tentacles operate in proximity, stochastic entanglements (braiding and knotting) are claimed to emerge and enable shape-agnostic gripping. A simulation framework integrating origami mechanics with Cosserat rod models is derived to link design parameters to collective performance, and experiments are reported under gravity, in water, and with a stow-and-release mechanism for in-orbit scenarios.

Significance. If the deterministic-stochastic synergy is quantitatively validated, the work would offer a low-actuation, mechanically simple alternative to multi-DOF or sensor-heavy grippers in soft robotics. The hybrid strategy and the origami-Cosserat simulation could provide a reusable design tool for continuum manipulators, with potential impact on applications requiring robust, passive adaptation such as underwater or space grasping.

major comments (2)
  1. [Abstract / Experimental Validation] Abstract and Experimental section: the manuscript states that gripping performance was tested 'under gravity and in water' and that a simulation correlates design to 'collective gripping performance,' yet reports no success rates, holding-force values, failure-mode statistics, error bars, or comparison against non-entangling controls. These metrics are load-bearing for the central claim that stochastic entanglements deliver reliable, shape-agnostic holding without additional actuation or control.
  2. [Simulation Model] Simulation Model section: the integration of origami mechanics with Cosserat rods is asserted to 'correlate origami design, tendon deformation, and their collective gripping performance,' but no governing equations, constitutive assumptions, boundary conditions, or quantitative validation (e.g., simulated vs. measured coil radii or entanglement probabilities) are supplied, preventing assessment of whether the model actually predicts the claimed stochastic behavior.
minor comments (2)
  1. [Abstract] The abstract would be strengthened by inclusion of at least one key quantitative result (e.g., success rate or force range) to allow readers to gauge the strength of the experimental claims immediately.
  2. [Design Description] Notation for the tapered shape parameters and crease angles should be defined explicitly when first introduced, rather than left implicit in the fabrication description.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which highlight important gaps in quantitative validation. We address each major comment below and commit to revisions that strengthen the manuscript without altering its core claims.

read point-by-point responses

  1. Referee: [Abstract / Experimental Validation] Abstract and Experimental section: the manuscript states that gripping performance was tested 'under gravity and in water' and that a simulation correlates design to 'collective gripping performance,' yet reports no success rates, holding-force values, failure-mode statistics, error bars, or comparison against non-entangling controls. These metrics are load-bearing for the central claim that stochastic entanglements deliver reliable, shape-agnostic holding without additional actuation or control.

    Authors: We agree that the absence of explicit quantitative metrics weakens the experimental claims. The current manuscript emphasizes the deterministic-stochastic design principle and qualitative demonstrations, but does not report success rates, force values, statistics, or control comparisons. In the revised manuscript we will add these data from our existing experimental trials (including error bars, failure modes, and direct comparisons to non-entangling tentacle configurations) to substantiate the reliability of stochastic entanglement for shape-agnostic gripping. revision: yes

  2. Referee: [Simulation Model] Simulation Model section: the integration of origami mechanics with Cosserat rods is asserted to 'correlate origami design, tendon deformation, and their collective gripping performance,' but no governing equations, constitutive assumptions, boundary conditions, or quantitative validation (e.g., simulated vs. measured coil radii or entanglement probabilities) are supplied, preventing assessment of whether the model actually predicts the claimed stochastic behavior.

    Authors: We acknowledge that the Simulation Model section currently lacks the detailed governing equations, constitutive assumptions, boundary conditions, and quantitative validation needed for independent assessment. The manuscript states that such a model was derived, yet does not present the equations or validation results. In revision we will expand this section to include the full mathematical formulation of the origami-Cosserat integration, all assumptions, boundary conditions, and direct comparisons of simulated versus measured coil radii and entanglement statistics. revision: yes

Circularity Check

0 steps flagged

No circularity: conceptual design claims rest on experimental description without equations or self-referential derivations

full rationale

The provided abstract and manuscript excerpt contain no equations, fitted parameters, uniqueness theorems, or derivation chains. The central claim of synergy between deterministic coiling (via tailored creases and tendon routing) and stochastic entanglement is presented as an empirical observation from design choices and tests under gravity/water, supported by a simulation integrating known origami mechanics with Cosserat rods. No step reduces a prediction to its own input by construction, no self-citation is load-bearing for a mathematical result, and no ansatz is smuggled. The work is self-contained as a design-and-test paper; absence of quantitative success rates or force data is a validation gap, not circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract contains no explicit free parameters, axioms, or invented entities; full text would be needed to audit any implicit modeling assumptions in the origami-Cosserat simulation.
