pith. sign in

arxiv: 2604.27005 · v1 · submitted 2026-04-29 · ⚛️ physics.optics · cond-mat.mtrl-sci

Phase-Transition-Driven Hyperbolic Optical Response and Directional Polaritons in Epitaxial VO2 Thin Films

Maria Chiara Paolozzi , Annalisa D Arco , Ilaria Martinelli , Lorenzo Mosesso , Jacopo Sera , Alessandro D Elia , Augusto Marcelli , Yingxue Chen
show 5 more authors
Chongwen Zou Maria Cristina Larciprete Marco Centini Stefano Lupi Salvatore Macis
This is my paper

Pith reviewed 2026-05-07 13:14 UTC · model grok-4.3

classification ⚛️ physics.optics cond-mat.mtrl-sci
keywords vanadium dioxidehyperbolic dispersionmetal-insulator transitionoptical anisotropythin filmsphase transitionpolaritonsrutile phase
0
0 comments X

The pith

Epitaxial VO2 thin films develop hyperbolic optical response in the metallic rutile phase.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Vanadium dioxide undergoes a metal-insulator transition near 67 degrees Celsius that changes its crystal structure and electronic properties. Epitaxial thin films grown on MgF2 substrates were measured with polarized light from infrared to ultraviolet to extract the dielectric tensor in both phases. In the metallic rutile phase the real parts of the dielectric function along the two principal axes take opposite signs inside a narrow near-infrared window. This sign difference produces a type-II hyperbolic dispersion that can be switched by temperature. The work evaluates the strength of this response through quality factor and anisotropy metrics.

Core claim

Within a narrow near-infrared spectral window in the rutile metallic phase, the real parts of the dielectric tensor components along the two principal axes acquire opposite signs, indicating the emergence of a hyperbolic type-II dispersion. This is extracted from broadband polarized spectroscopic measurements on two epitaxial VO2 thin films of different thicknesses.

What carries the argument

Anisotropic dielectric tensor in the rutile phase, where opposite signs in the real parts along the principal axes create hyperbolic isofrequency contours for light propagation.

If this is right

  • The hyperbolic response appears only above the transition temperature and disappears in the monoclinic insulator phase, providing thermal on/off control.
  • Enhanced free-carrier response along the rutile c-axis drives the anisotropy that produces the hyperbolic window.
  • Quality factor and dielectric anisotropy values offer quantitative benchmarks for comparing VO2 to other candidate hyperbolic media.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Device designs could use local heating to create reconfigurable hyperbolic regions inside a single film for on-chip polariton routing.
  • The same anisotropy-driven mechanism may appear in other epitaxial phase-change oxides when their metallic phases are sufficiently anisotropic.
  • Growth on alternative substrates or use of thicker films would test whether the observed sign reversal survives changes in strain or interface conditions.

Load-bearing premise

Polarized spectroscopic measurements accurately isolate the intrinsic dielectric tensor of the VO2 film without substantial substrate interference or model-dependent fitting artifacts.

What would settle it

Independent ellipsometry or reflectivity data on the same films or on thicker samples showing that the real parts of the dielectric function along the principal axes do not acquire opposite signs inside the reported near-infrared window.

read the original abstract

Optical anisotropy in crystalline solids enables direction-dependent light-matter interactions and underpins a variety of advanced photonic functionalities. In this context, Vanadium dioxide (VO2) represents a prototypical material that undergoes a reversible MIT near 67{\deg}C, accompanied by pronounced electronic, structural, and optical modifications. The MIT not only dramatically modifies the VO2 electrical conductivity but also reshapes its anisotropic optical response, making VO2 an exceptional platform for dynamically tunable photonic and optoelectronic devices. In this work, we investigate how the intrinsic crystalline anisotropy of VO2 induces a hyperbolic optical behavior in the metallic rutile phase. We study two epitaxial VO2 thin films of different thicknesses grown on (110) oriented MgF2 substrates. Broadband polarized spectroscopic measurements, spanning the infrared to UV spectral range, are employed to independently investigate the optical response in both the monoclinic and rutile phases. From these measurements, we extract the optical conductivity and the dielectric function, revealing a pronounced anisotropy in the rutile metallic phase, with an enhanced free-carrier response along the rutile c axis. Our data show that, within a narrow near-infrared spectral window, the real parts of the dielectric tensor components along the two principal axes acquire opposite signs, indicating the emergence of a hyperbolic type-II dispersion. The hyperbolic response is quantitatively evaluated through the quality factor and the degree of dielectric anisotropy, enabling a systematic assessment of VO2 as a thermally switchable, hyperbolic optical medium. These findings expand the understanding of anisotropy-driven optical phenomena in phase-change materials and highlight VO2 thin films as a promising platform for tunable and reconfigurable photonic applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports experimental measurements on epitaxial VO2 thin films grown on MgF2(110) substrates. Broadband polarized spectroscopy from IR to UV is used to extract the anisotropic dielectric tensor and optical conductivity in both monoclinic and rutile phases. The central claim is that, in the metallic rutile phase, the real parts of the dielectric tensor components along the two principal axes acquire opposite signs within a narrow near-infrared window, establishing type-II hyperbolic dispersion. The hyperbolic response is quantified via quality factor and dielectric anisotropy, with discussion of thermally switchable photonic applications and directional polaritons.

Significance. If the dielectric extraction is robust against substrate effects, the result would be significant for demonstrating a phase-transition-tunable hyperbolic medium in a canonical material, leveraging intrinsic crystalline anisotropy via epitaxial growth. Strengths include the use of two film thicknesses, polarized measurements spanning IR-UV, and quantitative metrics for hyperbolicity. This could support reconfigurable nanophotonics, though the narrow spectral window limits immediate device impact.

major comments (2)
  1. [dielectric extraction section] Section describing dielectric tensor extraction (likely §3 or §4): The inversion from polarized spectra to the anisotropic ε tensor for the VO2 film on birefringent MgF2 is not accompanied by a full multi-layer model description, sensitivity analysis to substrate parameters, or cross-checks such as transmission spectra or thickness-series consistency. This is load-bearing for the sign-change claim, as incomplete decoupling of substrate contributions could produce an apparent opposition in Re(ε) that is not intrinsic to VO2.
  2. [rutile-phase results figure] Figure showing Re(ε) components in the rutile phase (likely Fig. 4 or 5): The plotted curves indicate opposite signs in the NIR window, but no error bars, uncertainty bands from fitting, or multiple-sample statistics are provided. Without these, it is not possible to determine whether the sign opposition is statistically robust or sensitive to model assumptions in the Drude-like response.
minor comments (2)
  1. [discussion section] The title references 'directional polaritons' but the main text provides limited explicit calculation or observation of polariton dispersion; a brief dispersion plot or discussion would clarify this aspect.
  2. [methods] Notation for the principal dielectric axes (e.g., consistent labeling relative to rutile c-axis) should be defined once in the methods and used uniformly.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and valuable suggestions. We have carefully considered the major comments and provide the following point-by-point responses. Revisions have been made to the manuscript to address these points.

read point-by-point responses

  1. Referee: [dielectric extraction section] Section describing dielectric tensor extraction (likely §3 or §4): The inversion from polarized spectra to the anisotropic ε tensor for the VO2 film on birefringent MgF2 is not accompanied by a full multi-layer model description, sensitivity analysis to substrate parameters, or cross-checks such as transmission spectra or thickness-series consistency. This is load-bearing for the sign-change claim, as incomplete decoupling of substrate contributions could produce an apparent opposition in Re(ε) that is not intrinsic to VO2.

    Authors: We thank the referee for highlighting this critical aspect. While the manuscript outlines the use of broadband polarized spectroscopic measurements to extract the dielectric tensor, we agree that additional details on the modeling are warranted. In the revised manuscript, we have expanded the relevant section to provide a full description of the multi-layer transfer-matrix model employed, which incorporates the birefringence of the MgF2 substrate. We have included a sensitivity analysis to variations in substrate parameters and demonstrated the robustness of the Re(ε) sign change. We also emphasize the cross-checks provided by the two different film thicknesses and consistency with expected behavior from the phase transition. revision: yes

  2. Referee: [rutile-phase results figure] Figure showing Re(ε) components in the rutile phase (likely Fig. 4 or 5): The plotted curves indicate opposite signs in the NIR window, but no error bars, uncertainty bands from fitting, or multiple-sample statistics are provided. Without these, it is not possible to determine whether the sign opposition is statistically robust or sensitive to model assumptions in the Drude-like response.

    Authors: We agree that uncertainty quantification is important for establishing the robustness of the observed sign change. In the revised manuscript, we have included error bars on the Re(ε) curves in the rutile phase figure, calculated from the standard errors of the fitted Drude-Lorentz parameters. We also added a paragraph discussing the fitting procedure and the sensitivity to model assumptions, such as the number of oscillators used. Regarding multiple-sample statistics, our study includes two films of different thicknesses, both showing the same qualitative behavior in the NIR window, providing some cross-validation. However, we acknowledge that a larger number of samples would be ideal but was constrained by the epitaxial growth process; the thickness variation serves as a partial check. revision: partial

Circularity Check

0 steps flagged

No circularity: result is direct observation from experimental data inversion

full rationale

The paper performs broadband polarized spectroscopy on epitaxial VO2 films, extracts the anisotropic dielectric tensor via standard inversion of measured spectra, and reports that Re(ε) components acquire opposite signs in a narrow NIR window. This sign change is the direct output of the data reduction step and is not obtained by renaming a fitted parameter, self-defining a quantity, or invoking a self-citation chain. No mathematical derivation exists that reduces the hyperbolic claim to its own inputs by construction; the work is self-contained experimental measurement and analysis.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The claim rests on the standard assumption that the optical response of an anisotropic crystal is captured by a dielectric tensor whose principal components can be extracted from polarized measurements, plus the validity of the thin-film approximation for the epitaxial layers.

axioms (1)
  • domain assumption The optical response of crystalline VO2 can be described by a dielectric tensor with principal axes aligned to the rutile crystal directions.
    Invoked when interpreting polarized spectra as independent responses along two principal axes in the rutile phase.

pith-pipeline@v0.9.0 · 5653 in / 1285 out tokens · 73221 ms · 2026-05-07T13:14:14.102102+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

11 extracted references · 11 canonical work pages

  1. [1]

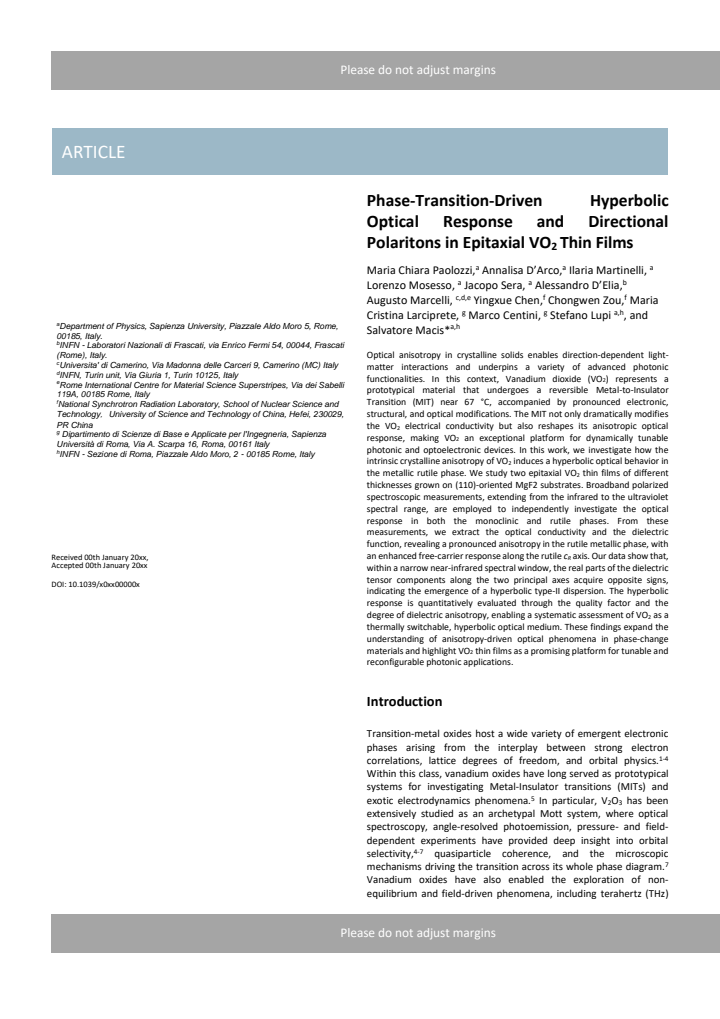

    ARTICLE Please do not adjust margins Please do not adjust margins Received 00th January 20xx, Accepted 00th January 20xx DOI: 10.1039/x0xx00000x Phase-Transition-Driven Hyperbolic Optical Response and Directional Polaritons in Epitaxial VO2 Thin Films Maria Chiara Paolozzi,a Annalisa D’Arco,a Ilaria Martinelli, a Lorenzo Mosesso, a Jacopo Sera, a Alessand...

    work page doi:10.1039/x0xx00000x 2012

  2. [2]

    Indeed, across the MIT, the band structure undergoes an abrupt reorganization: the band gap decreases sharply, dropping from approximately 0.67 eV in the monoclinic phase to 0 eV in the tetragonal phase. At the same time, the Fermi level crosses the d // and antibonding π* bands .2,9,11,12,16-19 These bands are oriented along the c axis and in the ab plan...

    work page 2013

  3. [3]

    Interestingly, the SW ratio , defined as SWc/SWa, approaches a constant value of approximately 1.3 for each specific thickness

    As already pointed out , the quantity is larger along the cR axis, and for a given polarization, it increases with film thickness. Interestingly, the SW ratio , defined as SWc/SWa, approaches a constant value of approximately 1.3 for each specific thickness. σ0, aR (S/cm) σ0, cR (S/cm) SWa (cm-2) SWc (cm-2) 14 nm 1270 1600 5.5 · 107 7.2 · 107 55 nm 1800 2...

    work page 2000

  4. [4]

    There are no conflicts to declare

    Given its crystalline structure, the VO2 optical response in the Rutile phase along the crystallographic axes aR and bR is the same. T his means that, in the hyperbolic region, VO2 has two elements of the dielectric tensor with a positive real part (𝜖1,𝑎𝑅 and 𝜖1,𝑏𝑅) and one with a negative real part (𝜖1,𝑐𝑅), making it a type-I hyperbolic material. Fig. 2 ...

    work page 2013

  5. [5]

    Giorgianni, J

    10 F. Giorgianni, J. Sakai and S. Lupi, Nat Commun, 2019, 10,

    work page 2019

  6. [6]

    Name., 2012, 00, 1-3 This journal is © The Royal Society of Chemistry 20xx Please do not adjust margins Please do not adjust margins 11 E

    ARTICLE Journal Name 8 | J. Name., 2012, 00, 1-3 This journal is © The Royal Society of Chemistry 20xx Please do not adjust margins Please do not adjust margins 11 E. Arcangeletti, L. Baldassarre, D. Di Castro, S. Lupi, L. Malavasi, C. Marini, A. Perucchi and P. Postorino, Phys. Rev. Lett., 2007, 98, 196406. 12 F. J. Morin, Phys. Rev. Lett., 1959, 3, 34-3...

    work page 2012

  7. [7]

    Haddad, R

    18 E. Haddad, R. V. Kruzelecky, P. Murzionak, W. Jamroz, K. Tagziria, M. Chaker and B. Ledrogoff, Front. Mater., DOI:10.3389/fmats.2022.1013848. 19 Y. Liu, A. Liu, X. Chai, Y. Yang, M. Lu, X. Bai, Y. Chen and Y. Zhang, Advanced Electronic Materials, 2024, 10, 2300699. 20 Z. Shao, X. Cao, H. Luo and P. Jin, NPG Asia Mater, 2018, 10, 581-605. 21 N. B. Aetuk...

    work page doi:10.3389/fmats.2022.1013848 2022

  8. [8]

    Grandi, A

    22 F. Grandi, A. Amaricci and M. Fabrizio, Phys. Rev. Res., 2020, 2, 013298. 23 A. D’Elia, C. Grazioli, A. Cossaro, B. W. Li, C. W. Zou, S. J. Rezvani, N. Pinto, A. Marcelli and M. Coreno, Applied Surface Science, 2021, 540, 148341. 24 L. L. Fan, S. Chen, G. M. Liao, Y. L. Chen, H. Ren and C. W. Zou, J. Phys.: Condens. Matter, 2016, 28, 255002. 25 J. Nara...

    work page 2020

  9. [9]

    32 L. L. Fan, S. Chen, Z. L. Luo, Q. H. Liu, Y. F. Wu, L. Song, D. X. Ji, P. Wang, W. S. Chu, C. Gao, C. W. Zou and Z. Y. Wu, Nano Lett, 2014, 14, 4036-4043. 33 A. D’Elia, S. J. Rezvani, A. Cossaro, M. Stredansky, C. Grazioli, B. W. Li, C. W. Zou, M. Coreno and A. Marcelli, J Supercond Nov Magn, 2020, 33, 2383-2388. 34 N. F. Quackenbush, H. Paik, M. J. Wa...

    work page 2014

  10. [10]

    38 Z. Tao, F. Zhou, T.-R. T. Han, D. Torres, T. Wang, N. Sepulveda, K. Chang, M. Young, R. R. Lunt and C.-Y. Ruan, Sci Rep, 2016, 6, 38514. 39 L. Fan, X. Wang, F. Wang, Q. Zhang, L. Zhu, Q. Meng, B. Wang, Z. Zhang and C. Zou, RSC Adv., 2018, 8, 19151-19156. 40 L. L. Fan, S. Chen, G. M. Liao, Y. L. Chen, H. Ren and C. W. Zou, J. Phys.: Condens. Matter, 201...

    work page 2016

  11. [11]

    48 M. M. Qazilbash, A. A. Schafgans, K. S. Burch, S. J. Yun, B. G. Chae, B. J. Kim, H. T. Kim and D. N. Basov, Phys. Rev. B, 2008, 77, 115121. 49 J. M. Tomczak and S. Biermann, EPL, 2009, 86, 37004. 50 J. John, A. Slassi, J. Sun, Y. Sun, R. Bachelet, J. Pénuelas, G. Saint-Girons, R. Orobtchouk, S. Ramanathan, A. Calzolari and S. Cueff, Nanophotonics, 2022...

    work page 2008
