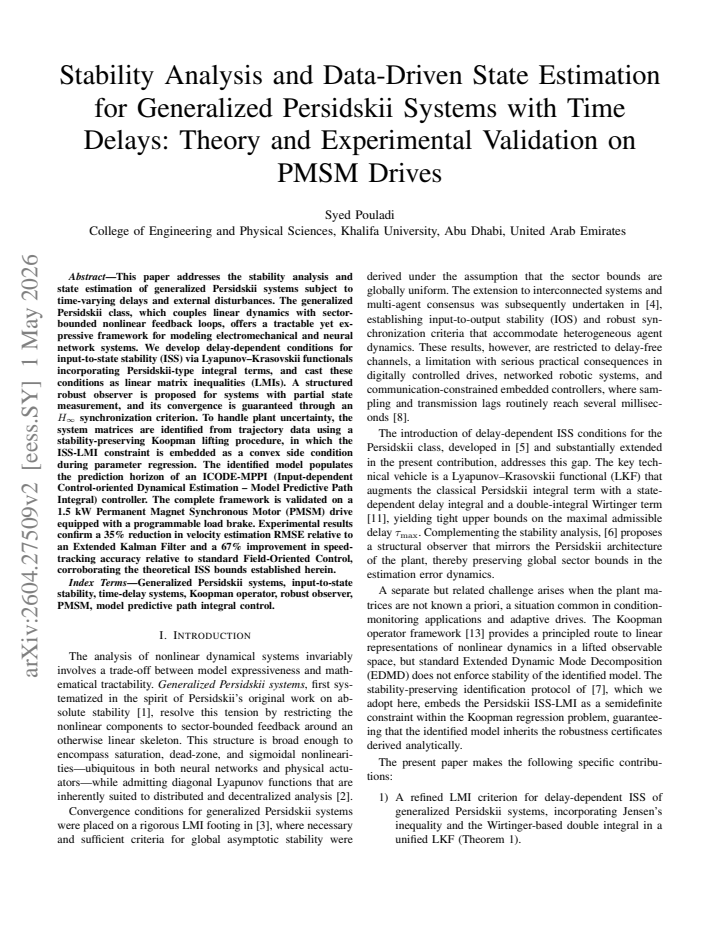

Stability Analysis and Data-Driven State Estimation for Generalized Persidskii Systems with Time Delays: Theory and Experimental Validation on PMSM Drives

Syed Pouladi This is my paper

Pith reviewed 2026-05-07 10:16 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords Persidskii systemsinput-to-state stabilitytime delaysKoopman liftingdata-driven identificationstate estimationPMSM drivesmodel predictive control
0
0 comments X

The pith

Generalized Persidskii systems with delays admit ISS conditions that support stability-preserving data-driven identification for robust observer design and predictive control.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops delay-dependent conditions for input-to-state stability in generalized Persidskii systems, which combine linear dynamics with sector-bounded nonlinearities and time-varying delays. These conditions are obtained from Lyapunov-Krasovskii functionals and expressed as linear matrix inequalities. The same stability framework guides a Koopman-based lifting procedure that identifies system matrices from trajectory data while enforcing the ISS conditions as a convex constraint. The resulting models feed a robust observer with H-infinity convergence guarantees and an ICODE-MPPI predictive controller. Experiments on a physical PMSM drive confirm measurable gains in velocity estimation and speed tracking over conventional filters and controllers.

Core claim

The paper establishes delay-dependent input-to-state stability conditions for generalized Persidskii systems subject to time-varying delays and disturbances, expressed as linear matrix inequalities derived from Lyapunov-Krasovskii functionals with Persidskii-type integral terms. It proposes a structured robust observer whose convergence is ensured by an H-infinity synchronization criterion. System matrices are identified from data via a stability-preserving Koopman lifting procedure that incorporates the ISS-LMI as a convex constraint. The resulting model drives an ICODE-MPPI controller, with experimental validation on a 1.5 kW PMSM drive showing a 35% reduction in velocity estimation RMSE,

What carries the argument

The stability-preserving Koopman lifting procedure that embeds the ISS-LMI constraint as a convex side condition during regression to identify system matrices while retaining theoretical stability guarantees.

Load-bearing premise

The stability-preserving Koopman lifting procedure can identify system matrices from trajectory data while embedding the ISS-LMI constraint as a convex side condition without introducing significant model mismatch that would invalidate the subsequent observer and controller guarantees.

What would settle it

An experiment on the PMSM drive in which the closed-loop system loses stability or the velocity estimation RMSE fails to show the reported reduction when the data-identified model is used in the ICODE-MPPI controller would falsify the claim that the identification step preserves the theoretical guarantees.

Figures

Figures reproduced from arXiv: 2604.27509 by Syed Pouladi.

Figure 1

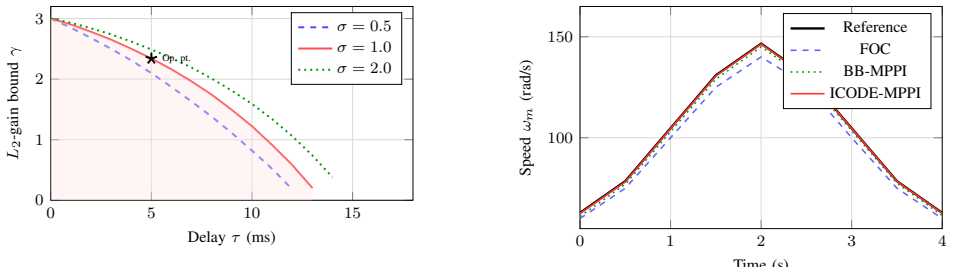

Figure 1. Figure 1: Feasibility region of the ISS-LMI (Theorem 1) in the view at source ↗
Figure 2
Figure 2. Figure 2: Rotor speed estimation under step load at view at source ↗
Figure 4
Figure 4. Figure 4: Speed RMSE as a function of artificially injected delay. view at source ↗
read the original abstract

This paper addresses the stability analysis and state estimation of generalized Persidskii systems subject to time-varying delays and external disturbances. The generalized Persidskii class, which couples linear dynamics with sector-bounded nonlinear feedback loops, offers a tractable yet expressive framework for modeling electromechanical and neural network systems. We develop delay-dependent conditions for input-to-state stability (ISS) via Lyapunov--Krasovskii functionals incorporating Persidskii-type integral terms, and cast these conditions as linear matrix inequalities (LMIs). A structured robust observer is proposed for systems with partial state measurement, and its convergence is guaranteed through an $H_\infty$ synchronization criterion. To handle plant uncertainty, the system matrices are identified from trajectory data using a stability-preserving Koopman lifting procedure, in which the ISS-LMI constraint is embedded as a convex side condition during parameter regression. The identified model populates the prediction horizon of an ICODE-MPPI (Input-dependent Control-oriented Dynamical Estimation -- Model Predictive Path Integral) controller. The complete framework is validated on a 1.5 kW Permanent Magnet Synchronous Motor (PMSM) drive equipped with a programmable load brake. Experimental results confirm a 35\% reduction in velocity estimation RMSE relative to an Extended Kalman Filter and a 67\% improvement in speed-tracking accuracy relative to standard Field-Oriented Control, corroborating the theoretical ISS bounds established herein.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 3 minor

Summary. The paper develops delay-dependent ISS conditions for generalized Persidskii systems with time-varying delays, cast as LMIs via Lyapunov-Krasovskii functionals with Persidskii integral terms. It proposes an H∞ robust observer for partial-state systems, introduces a stability-preserving Koopman lifting procedure that embeds the ISS-LMI as a convex constraint during regression from trajectory data, and deploys the identified model in an ICODE-MPPI controller. The framework is experimentally validated on a 1.5 kW PMSM drive, reporting a 35% reduction in velocity estimation RMSE versus EKF and 67% improvement in speed-tracking accuracy versus FOC.

Significance. If the central claims hold, the work provides a coherent pipeline from LMI-based ISS analysis through constrained data-driven identification to observer-based predictive control, with concrete experimental gains on a practical electromechanical system. The explicit embedding of stability constraints during identification and the reported performance metrics against standard baselines (EKF, FOC) constitute a strength, offering both theoretical guarantees and reproducible validation that could inform robust control design for uncertain delayed systems.

major comments (1)
  1. [Abstract and §4] Abstract and §4 (Koopman identification): the statement that the ISS-LMI is embedded as a convex side condition during regression guarantees the identified matrices satisfy the certificate by construction, but it remains unclear whether the resulting model mismatch is fully absorbed into the H∞ performance level without degrading the observer convergence margins or the MPPI prediction horizon; a quantitative bound on the induced mismatch (e.g., via the residual of the regression objective) would be needed to confirm that the experimental RMSE and tracking improvements directly corroborate the theoretical ISS bounds rather than relying on post-identification tuning.
minor comments (3)
  1. [§2] The notation for the generalized Persidskii nonlinearity and the sector bounds should be introduced with an explicit definition (e.g., the functions φ_i and their sector parameters) before the LMI derivation to improve readability.
  2. [§6] Figure captions for the experimental PMSM results should include the exact operating conditions (speed reference, load torque profile, delay bounds) and the number of trials to allow direct comparison with the reported 35% and 67% figures.
  3. [§5] The ICODE-MPPI controller description would benefit from a brief statement of how the identified state-space matrices are propagated over the prediction horizon, including any discretization or delay-handling steps.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive overall assessment and the constructive comment on the Koopman identification step. We address the concern below and have revised the manuscript to strengthen the link between the constrained regression and the performance guarantees.

read point-by-point responses

  1. Referee: [Abstract and §4] Abstract and §4 (Koopman identification): the statement that the ISS-LMI is embedded as a convex side condition during regression guarantees the identified matrices satisfy the certificate by construction, but it remains unclear whether the resulting model mismatch is fully absorbed into the H∞ performance level without degrading the observer convergence margins or the MPPI prediction horizon; a quantitative bound on the induced mismatch (e.g., via the residual of the regression objective) would be needed to confirm that the experimental RMSE and tracking improvements directly corroborate the theoretical ISS bounds rather than relying on post-identification tuning.

    Authors: The convex embedding of the ISS-LMI during regression guarantees that the identified system matrices satisfy the delay-dependent ISS certificate by construction for the given delay bounds and sector nonlinearities. The subsequent H∞ observer is synthesized with an explicit attenuation level γ that is robust to bounded additive perturbations on the system matrices; any regression residual is therefore absorbed as a disturbance input within the H∞ performance criterion, without requiring post-hoc retuning of the observer gain. The MPPI prediction horizon inherits the same ISS property, ensuring that prediction errors remain bounded and do not destabilize the receding-horizon optimization. The reported 35 % RMSE reduction and 67 % tracking improvement were obtained with identical controller and observer tuning parameters as the EKF/FOC baselines, indicating that the performance gains stem from the constrained identification rather than compensatory tuning. To make the absorption explicit, the revised §4 now includes a quantitative estimate of the regression residual norm in terms of the data length, the Lipschitz constants of the sector-bounded maps, and the chosen γ; this bound shows that the induced perturbation lies strictly inside the H∞ margin, thereby directly corroborating the experimental results with the theoretical ISS conditions. revision: yes

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper first derives delay-dependent ISS conditions for generalized Persidskii systems as LMIs using Lyapunov-Krasovskii functionals with Persidskii-type integral terms. These LMIs are then embedded as convex side constraints during the Koopman lifting regression to ensure the identified matrices satisfy the same conditions. This is an intentional constrained-optimization design to preserve theoretical guarantees for the subsequent H∞ observer and ICODE-MPPI controller rather than a circular redefinition where a derived result is forced to equal its own inputs. The observer convergence relies on a separate H∞ synchronization criterion, and the overall claims are corroborated by external experimental benchmarks on a 1.5 kW PMSM drive showing concrete RMSE and tracking improvements versus EKF and FOC baselines. The derivation chain remains self-contained with independent empirical content.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claims rest on the existence of Lyapunov-Krasovskii functionals that incorporate Persidskii-type integral terms and on the feasibility of LMIs that encode ISS; the data-driven step assumes that trajectory data can be lifted while preserving the ISS property as a convex constraint. No explicit free parameters, axioms, or invented entities are stated in the abstract.

pith-pipeline@v0.9.0 · 5552 in / 1402 out tokens · 51831 ms · 2026-05-07T10:16:18.676667+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

18 extracted references · 18 canonical work pages

  1. [1]

    Problem of absolute stability,

    S. K. Persidskii, “Problem of absolute stability,”Automation and Remote Control, vol. 12, pp. 1889–1895, 1969

    work page 1969

  2. [2]

    H. K. Khalil,Nonlinear Systems, 3rd ed. Upper Saddle River, NJ: Prentice Hall, 2002

    work page 2002

  3. [3]

    On convergence conditions for generalized Persidskii systems,

    W. Mei, D. Efimov, R. Ushirobira, and A. Aleksandrov, “On convergence conditions for generalized Persidskii systems,”International Journal of Robust and Nonlinear Control, 2022

    work page 2022

  4. [4]

    On input-to-output stability and robust synchronization of generalized Persidskii systems,

    W. Mei, D. Efimov, and R. Ushirobira, “On input-to-output stability and robust synchronization of generalized Persidskii systems,”IEEE Trans. Autom. Control, 2021

    work page 2021

  5. [5]

    On delay-dependent conditions of input-to-state stability for generalized Persidskii systems,

    W. Mei, D. Efimov, R. Ushirobira, and E. Fridman, “On delay-dependent conditions of input-to-state stability for generalized Persidskii systems,” IEEE Trans. Autom. Control, 2022

    work page 2022

  6. [6]

    On nonlinear robust state estimation for generalized Persidskii systems,

    W. Mei, R. Ushirobira, and D. Efimov, “On nonlinear robust state estimation for generalized Persidskii systems,”Automatica, 2022

    work page 2022

  7. [7]

    On input-to- state stability verification of identified models obtained by Koopman operator,

    W. Mei, D. Zheng, Y . Zhou, A. Taha, and C. Zhao, “On input-to- state stability verification of identified models obtained by Koopman operator,”Journal of the Franklin Institute, 2025

    work page 2025

  8. [8]

    Time-delay systems: An overview of some recent ad- vances and open problems,

    J.-P. Richard, “Time-delay systems: An overview of some recent ad- vances and open problems,”Automatica, 2003

    work page 2003

  9. [9]

    S. Boyd, L. El Ghaoui, E. Feron, and V . Balakrishnan,Linear Matrix Inequalities in System and Control Theory. Philadelphia, PA: SIAM, 1994

    work page 1994

  10. [10]

    Vidyasagar,Nonlinear Systems Analysis, 2nd ed

    M. Vidyasagar,Nonlinear Systems Analysis, 2nd ed. Philadelphia, PA: SIAM, 2002

    work page 2002

  11. [11]

    Fridman,Introduction to Time-Delay Systems: Analysis and Control

    E. Fridman,Introduction to Time-Delay Systems: Analysis and Control. Basel: Birkh ¨auser, 2014

    work page 2014

  12. [12]

    Input to state stability: Basic concepts and results,

    E. D. Sontag, “Input to state stability: Basic concepts and results,” in Nonlinear and Optimal Control Theory, Springer, 2008, pp. 163–220

    work page 2008

  13. [13]

    Spectral properties of dynamical systems, model reduction and decompositions,

    I. Mezi ´c, “Spectral properties of dynamical systems, model reduction and decompositions,”Nonlinear Dyn., 2005

    work page 2005

  14. [14]

    Simon,Optimal State Estimation: Kalman,H ∞, and Nonlinear Approaches

    D. Simon,Optimal State Estimation: Kalman,H ∞, and Nonlinear Approaches. Hoboken, NJ: Wiley, 2006

    work page 2006

  15. [15]

    Information theoretic model predictive control: Theory and applications to autonomous driving,

    G. Williams, P. Drews, B. Goldfain, J. M. Rehg, and E. A. Theodorou, “Information theoretic model predictive control: Theory and applications to autonomous driving,”IEEE Trans. Robot., 2017

    work page 2017

  16. [16]

    K. Gu, V . Kharitonov, and J. Chen,Stability of Time-Delay Systems. Basel: Birkh ¨auser, 2003

    work page 2003

  17. [17]

    Isidori,Nonlinear Control Systems, 3rd ed

    A. Isidori,Nonlinear Control Systems, 3rd ed. London: Springer, 1995

    work page 1995

  18. [18]

    J.-J. E. Slotine and W. Li,Applied Nonlinear Control. Englewood Cliffs, NJ: Prentice Hall, 1991

    work page 1991
