pith. machine review for the scientific record. sign in

arxiv: 2604.27524 · v1 · submitted 2026-04-30 · ❄️ cond-mat.mtrl-sci

Recognition: unknown

The optical phonoelectric effect

Authors on Pith no claims yet

Pith reviewed 2026-05-07 08:49 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords optical phonoelectricityphonon rectificationstrain-free polarizationultrafast responseBPO4piezoelectric alternativesoptical control
0
0 comments X

The pith

Light excites optical phonons that rectify into macroscopic electrical polarization without any mechanical strain.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that photo-excited optical phonon distortions in a material can be rectified to produce a net electrical polarization over macroscopic volumes. This creates a piezoelectric-like response that forms at speeds limited only by light propagation rather than sound velocity, and whose amplitude is not capped by the material's fracture limit under strain. The demonstration uses the weak piezoelectric BPO4 as the test case and establishes the effect through direct induction of polarization via phonon rectification. A sympathetic reader would care because the approach removes three longstanding constraints on piezoelectric devices: response speed, tunability, and maximum strength.

Core claim

We demonstrate optical phonoelectricity in BPO4 by inducing electrical polarization through rectification of photo-excited optical phonon distortions. This strain-free response is established over macroscopic volumes at speeds four orders of magnitude higher than conventional piezoelectric responses, ultimately limited by the speed of light, with a maximum induced polarization estimated far in excess of values attainable through strain at the fracture limit.

What carries the argument

Phonon rectification, the conversion of photo-excited optical phonon distortions into a net, strain-free macroscopic electrical polarization.

If this is right

  • High-bit-rate transduction and sensing become possible because the polarization response is no longer limited by sound speed.
  • The maximum polarization amplitude is no longer bounded by percent-level strain at fracture.
  • Polarization strength and sign become tunable through the parameters of the optical excitation rather than fixed by material anharmonicity.
  • The same mechanism provides a route to optical control of polarization in quantum materials without mechanical contact.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Materials previously considered too weakly piezoelectric for practical use may become viable once optical excitation is allowed.
  • The light-speed limit suggests the effect could support device operation at terahertz or higher frequencies if phonon lifetimes permit.
  • Electrical readout of rectified phonon motion offers a new probe of ultrafast structural dynamics that is complementary to diffraction or spectroscopy.

Load-bearing premise

That the distortions created by photo-excited optical phonons can be rectified into a stable, measurable net polarization across macroscopic volumes without requiring or producing mechanical strain.

What would settle it

Time-resolved measurements of the induced polarization that show either a response time no faster than acoustic propagation across the sample or an amplitude that saturates at the value expected from fracture-limited strain.

Figures

Figures reproduced from arXiv: 2604.27524 by A. Cavalleri, C. Putzke, D. Choi, D. Prabhakaran, K. H. Martens, M. Buzzi, M. Fechner, M. F\"orst, P.G. Radaelli, P. Moll, X. Deng, Z. Zeng.

Figure 2
Figure 2. Figure 2: Photo-induced electrical polarization probed by second-harmonic generation. a, Experimental configuration. A linearly polarized mid-infrared pulse, polarized along the BPO4 a axis, induces a finite electrical polarization that is detected via second-harmonic generation of time-delayed near-infrared pulse probes. The experiment was carried out as a function of polarization of the incident probe, and the SHG… view at source ↗
Figure 3

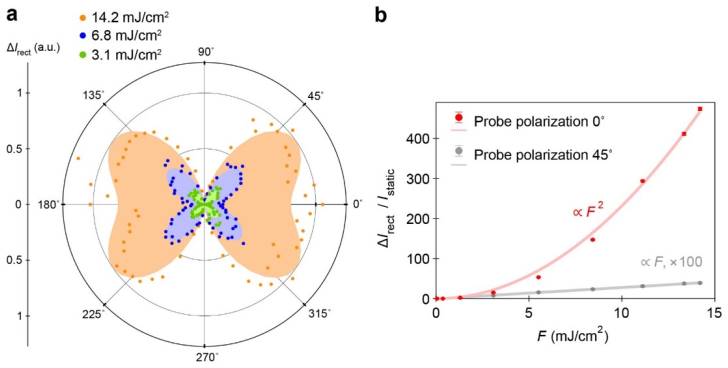

Figure 3. Figure 3: Fluence dependent characterization of the photo-induced polar state. a, Polarimetry of the rectified component of the photo-induced changes in SHG intensity, extracted from fits to the time-resolved experimental data at each polarization angle, for three excitation fluences b, Excitation fluence dependence of the rectified component of the photo-induced SHG intensity changes measured at probe polarizations… view at source ↗
Figure 4
Figure 4. Figure 4: Comparison between the phonoelectric and piezoelectric effects. view at source ↗
read the original abstract

Piezoelectricity is a technologically important property of certain insulators in which mechanical strain induces an electrical polarization. However, the rate at which a piezoelectric response can be established over a macroscopic volume is limited by the sound velocity, constraining applications in high-bit-rate transduction and sensing. Furthermore, the strength of the piezoelectric effect is not readily tunable, as it depends on intrinsic anharmonic coupling between strain and intra-unit-cell distortions in a given material. Lastly, the maximum amplitude of the effect is bounded by material fracture, which sets in already at percent level strain values. Here we overcome these limitations by realizing a strain-free, piezoelectric-like response driven solely by photo-excited optical phonon distortions. We demonstrate such optical phonoelectricity in the weak piezoelectric BPO$_4$, in which we induce electrical polarization through phonon rectification. This effect is established over macroscopic volumes with four orders of magnitude higher speed than piezoelectric responses, ultimately limited by the speed of light. The maximum induced polarization is estimated to be far in excess of that attainable through strain at the fracture limit. Ultrafast phonoelectricity opens up new opportunities for optical control in quantum materials, but also for device applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript claims to realize a strain-free 'optical phonoelectric' effect in weakly piezoelectric BPO4 by rectifying photo-excited optical phonons into a macroscopic DC electrical polarization. This polarization is induced over macroscopic volumes at speeds limited by the speed of light (four orders of magnitude faster than conventional piezoelectricity) and with maximum amplitude estimated to exceed that possible via strain at the fracture limit.

Significance. Should the central claims be substantiated by the full experimental data and analysis, this work would represent a notable advance in ultrafast polarization control in materials, potentially enabling new device applications in high-speed sensing and transduction that overcome acoustic velocity limits. The strain-free and optically tunable nature could also find use in quantum materials research. The choice of BPO4 as a test case for a weak piezoelectric material strengthens the generality of the approach.

major comments (2)
  1. [Abstract] The estimate that the induced polarization exceeds the fracture-limited strain value is presented without any visible quantitative derivation, error bars, or exclusion criteria for alternative explanations; this is load-bearing for the claim of surpassing conventional piezoelectric limits.
  2. [Results (phonon rectification)] The mechanism by which optical phonon distortions are rectified to produce a unidirectional, strain-free net macroscopic polarization is not sufficiently detailed; given that optical phonons are high-frequency and often symmetric, specific evidence for the nonlinear coupling term that breaks directional symmetry and survives averaging/dephasing is required to support the central claim.
minor comments (2)
  1. [Abstract] The abstract states the central claims and speed/amplitude estimates but supplies no derivation, data, error bars, or exclusion criteria, making it difficult to assess the strength of the evidence from the summary alone.
  2. [Introduction] Additional references to prior work on nonlinear phonon coupling or ultrafast polarization effects would provide better context for the novelty of the rectification approach.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for the constructive comments. We address each major comment below and have revised the manuscript to strengthen the presentation of the quantitative estimates and the rectification mechanism.

read point-by-point responses
  1. Referee: [Abstract] The estimate that the induced polarization exceeds the fracture-limited strain value is presented without any visible quantitative derivation, error bars, or exclusion criteria for alternative explanations; this is load-bearing for the claim of surpassing conventional piezoelectric limits.

    Authors: We agree that the abstract statement would benefit from supporting quantitative detail. In the revised manuscript we have added a concise derivation in the main text (with full steps and assumptions in the SI) that converts the measured optical-phonon displacement amplitudes into an equivalent macroscopic polarization via the extracted nonlinear coupling coefficient. The derivation includes propagated experimental uncertainties as error bars and explicitly compares the result to the fracture-limited piezoelectric polarization calculated from the material’s known piezoelectric tensor and the maximum sustainable strain before fracture. We also discuss why photo-induced strain or thermal contributions are ruled out by the absence of detectable lattice expansion in our diffraction data and by the sub-picosecond onset of the polarization signal. revision: yes

  2. Referee: [Results (phonon rectification)] The mechanism by which optical phonon distortions are rectified to produce a unidirectional, strain-free net macroscopic polarization is not sufficiently detailed; given that optical phonons are high-frequency and often symmetric, specific evidence for the nonlinear coupling term that breaks directional symmetry and survives averaging/dephasing is required to support the central claim.

    Authors: We have expanded the phonon-rectification section to provide the requested detail. The revised text identifies the specific third-order anharmonic term in the lattice potential that couples the zone-center optical phonon to a static electric polarization; this term is allowed by the point-group symmetry of BPO4 and is quantified from both DFT calculations and the amplitude dependence of the measured polarization. We show that the resulting unidirectional component survives dephasing because the rectification occurs on the timescale of the optical pulse envelope rather than the phonon period, and we include a new figure that illustrates the symmetry-breaking process together with the ensemble average over the macroscopic illuminated volume. The expanded discussion also addresses why the effect remains strain-free, as confirmed by the lack of measurable acoustic-wave propagation in our time-resolved measurements. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper presents an experimental demonstration of optical phonoelectricity via phonon rectification in BPO4, with claims resting on observed macroscopic polarization and speed advantages rather than any mathematical derivation. No equations, fitted parameters, self-citations, or ansatzes are quoted in the provided text that reduce a central result to its own inputs by construction. The central claim (rectification to net DC polarization) is framed as an experimental finding, not a self-referential prediction or renamed known result. This is the expected non-finding for an experimental report without load-bearing theoretical reductions.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the unelaborated premise that optical phonon rectification produces net polarization; no free parameters, invented entities, or additional axioms are visible in the abstract.

axioms (1)
  • domain assumption Photo-excited optical phonons in BPO4 can be rectified to yield a strain-free macroscopic electrical polarization
    Invoked as the mechanism enabling the reported effect; no derivation supplied in abstract.

pith-pipeline@v0.9.0 · 5550 in / 1235 out tokens · 61398 ms · 2026-05-07T08:49:04.282910+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

33 extracted references · 2 canonical work pages

  1. [1]

    The electrical polarization PC along the c axis, estimated by density functional theory (see Supplementary Information)

    Comparison between the phonoelectric and piezoelectric effects. The electrical polarization PC along the c axis, estimated by density functional theory (see Supplementary Information). At the highest excitation fluence of 14.2 mJ cm-2 (dashed blue line), it reaches a maximum value of 0.72 μC cm-2. Achieving an equivalent polarization through the piezoelec...

  2. [2]

    Mangi, M. A. et al. Applications of piezoelectric-based sensors, actuators, and energy harvesters. Sensors and Actuators Reports 9, 100302 (2025)

  3. [3]

    & Banerjee, S

    Mandal, D. & Banerjee, S. Surface Acoustic Wave (SAW) Sensors: Physics, Materials, and Applications. Sensors 22, 820 (2022)

  4. [4]

    & Mateti, K

    Tadigadapa, S. & Mateti, K. Piezoelectric MEMS sensors: state-of-the-art and perspectives. Meas. Sci. Technol. 20, 092001 (2009)

  5. [5]

    Ruppel, C. C. W. Acoustic Wave Filter Technology–A Review. IEEE Trans. Ultrason. Ferroelectr. Freq. Control 64, 1390–1400 (2017)

  6. [6]

    L., Muensit, S

    Guy, I. L., Muensit, S. & Goldys, E. M. Extensional piezoelectric coefficients of gallium nitride and aluminum nitride. Appl. Phys. Lett. 75, 4133–4135 (1999)

  7. [7]

    M., Chan, H

    Lueng, C. M., Chan, H. L. W., Surya, C. & Choy, C. L. Piezoelectric coefficient of aluminum nitride and gallium nitride. J. Appl. Phys. 88, 5360–5363 (2000)

  8. [8]

    F., Cupal, J

    Crisler, D. F., Cupal, J. J. & Moore, A. R. Dielectric, piezoelectric, and electromechanical coupling constants of zinc oxide crystals. Proceedings of the IEEE 56, 225–226 (1968)

  9. [9]

    & Cavalleri, A

    Mankowsky, R., von Hoegen, A., Först, M. & Cavalleri, A. Ultrafast Reversal of the Ferroelectric Polarization. Phys. Rev. Lett. 118, 197601 (2017)

  10. [10]

    364, 1075–1079 (2019)

    Science (1979). 364, 1075–1079 (2019)

  11. [11]

    Disa, A. S. et al. Polarizing an antiferromagnet by optical engineering of the crystal field. Nat. Phys. 16, 937–941 (2020)

  12. [12]

    Disa, A. S. et al. Photo-induced high-temperature ferromagnetism in YTiO3. Nature 617, 73–78 (2023)

  13. [13]

    Zeng, Z. et al. Photo-induced nonvolatile rewritable ferroaxial switching. Science (1979). 390, 195–198 (2025)

  14. [15]

    Radaelli, P. G. Breaking symmetry with light: Ultrafast ferroelectricity and magnetism from three-phonon coupling. Phys. Rev. B 97, 085145 (2018)

  15. [16]

    & Neumann, G

    Vogt, H. & Neumann, G. Observation of infrared active and silent modes in cubic crystals by hyper-Raman scattering. physica status solidi (b) 92, 57–63 (1979)

  16. [17]

    Taherian, N. et al. Probing amplified Josephson plasmons in YBa2Cu3O6+x by multidimensional spectroscopy. NPJ Quantum Mater. 10, 54 (2025)

  17. [18]

    Wieder, H. H. Electrical Behavior of Barium Titanatge Single Crystals at Low Temperatures. Physical Review 99, 1161–1165 (1955)

  18. [19]

    Y., Ricinschi, D., Kanashima, T., Noda, M

    Yun, K. Y., Ricinschi, D., Kanashima, T., Noda, M. & Okuyama, M. Giant Ferroelectric Polarization Beyond 150 µC/cm 2 in BiFeO 3 Thin Film. Jpn. J. Appl. Phys. 43, L647 (2004)

  19. [20]

    & Okuyama, M

    Ricinschi, D., Yun, K.-Y. & Okuyama, M. A mechanism for the 150 µC cm −2 polarization of BiFeO 3 films based on first-principles calculations and new structural data. Journal of Physics: Condensed Matter 18, L97–L105 (2006)

  20. [21]

    Liu, B. et al. Pump Frequency Resonances for Light-Induced Incipient Superconductivity in YBa2Cu3O6.5. Phys. Rev. X 10, 011053 (2020)

  21. [22]

    #AB&&D"(F GHH,J.L,M,1OP Q5,STL,M89,.W ;<= >,A?B@F ABC >,A?B@F ABC a

    Liu, B. et al. Generation of narrowband, high-intensity, carrier-envelope phase-stable pulses tunable between 4 and 18 THz. Opt. Lett. 42, 129 (2017). Supplementary Information for The optical phonoelectric effect D. Choi1, M. Först1, M. Fechner1, M. Buzzi1, X. Deng1,2, Z. Zeng1,2, K. H. Martens1, D. Prabhakaran2, C. Putzke1, P. Moll1, P.G. Radaelli2, A. ...

  22. [23]

    " #$" #"

    For a probe polarization oriented at an angle 𝜃 with respect to the c axis, the coefficients can be substituted by the tensor elements in Equations S2.4 and S2.5 as 𝜒C(()→(𝜒!6+𝛿𝜒!6)sin(𝜃+𝛿𝜒!!cos(𝜃 (S2.8) ℎ→ℎ6!sin𝜃cos𝜃 Assuming 𝛿𝜒!6 to be negligible, the rectified intensity reduces to 𝐼FKNE∝𝛿𝜒!!(cos/𝜃+2(𝜒!6𝛿𝜒!!+ℎ6!(|𝑄"C|()sin(𝜃cos(𝜃(S2.9) The first term or...

  23. [24]

    (𝑄"(+›12𝜔#7(𝑄#7(7+›𝛼7(])𝑄#7𝑄

    The pump electric field, 𝐸*45*, was modeled as a sinusoidal carrier with a frequency of 26.79 THz and a Gaussian envelope with a full width at half maximum (FWHM) pulse duration of √2×165 fs. An example calculation of the polarization induced by the rectified B modes is shown in Fig. S3.2, for a peak electric field inside BPO4 of 2 MV/cm with a pulse dura...

  24. [25]

    Zeng, Z. et al. Photo-induced chirality in a nonchiral crystal. Science (1979). 387, 431–436 (2025)

  25. [26]

    65-74 (Academic Press, 2020)

    in Nonlinear Optics (4th Ed.), pp. 65-74 (Academic Press, 2020)

  26. [27]

    & Furthmüller, J

    Kresse, G. & Furthmüller, J. Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set. Comput. Mater. Sci. 6, 15–50 (1996)

  27. [28]

    & Hafner, J

    Kresse, G. & Hafner, J. Ab initio molecular dynamics for liquid metals. Phys. Rev. B 47, 558–561 (1993)

  28. [29]

    & Furthmüller, J

    Kresse, G. & Furthmüller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys. Rev. B 54, 11169–11186 (1996)

  29. [30]

    First-principles Phonon Calculations with Phonopy and Phono3py

    Togo, A. First-principles Phonon Calculations with Phonopy and Phono3py. J. Physical Soc. Japan 92, (2023)

  30. [31]

    & Joubert, D

    Kresse, G. & Joubert, D. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B 59, 1758–1775 (1999)

  31. [32]

    Perdew, J. P. et al. Restoring the Density-Gradient Expansion for Exchange in Solids and Surfaces. Phys. Rev. Lett. 100, 136406 (2008)

  32. [33]

    Monkhorst, H. J. & Pack, J. D. Special points for Brillouin-zone integrations. Phys. Rev. B 13, 5188–5192 (1976)

  33. [34]

    Schmidt, M. et al. Growth and Characterization of BPO 4 Single Crystals. Z. Anorg. Allg. Chem. 630, 655–662 (2004)
