Spin-orbit interaction in core-shell semiconductor-metal nanowires

Andrei Manolescu; Anna Sitek; Gunnar Thorgilsson; Sigurdur I. Erlingsson; Tudor-Gabriel Dumitru

arxiv: 2604.27769 · v1 · submitted 2026-04-30 · ❄️ cond-mat.mes-hall

Spin-orbit interaction in core-shell semiconductor-metal nanowires

Tudor-Gabriel Dumitru , Anna Sitek , Gunnar Thorgilsson , Sigurdur I. Erlingsson , Andrei Manolescu This is my paper

Pith reviewed 2026-05-07 05:05 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall

keywords spin-orbit interactioncore-shell nanowiressemiconductor-metal interfacek-dot-p methodhexagonal geometrywave function localizationband offset potentialinterface potentials

0 comments

The pith

Interface potentials in hexagonal core-shell semiconductor-metal nanowires determine spin-orbit coupling strength and wave function localization in the semiconductor shell.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper investigates the spin-orbit interaction for electrons confined in a tubular semiconductor nanowire with an inner semiconductor core and an outer metallic shell, where the cross section is hexagonal. It employs a model derived from the k-dot-p method that includes a band offset potential at the inner semiconductor-semiconductor interface and a more complex potential barrier at the outer metal-semiconductor contact. The analysis focuses on how these interface potentials alter both the magnitude of the spin-orbit coupling and the spatial localization of the electron wave functions inside the semiconductor shell. A reader would care because these effects could allow engineering of spin properties through interface design in nanoscale structures.

Core claim

The authors establish that in a core-shell nanowire with hexagonal geometry, featuring an inner semiconductor core, a semiconductor tubular shell, and an outer metallic shell, the band offset potential at the inner semiconductor-semiconductor interface and the more complex potential barrier at the outer metal-semiconductor contact play a key role in setting the strength of the spin-orbit coupling and in localizing the electronic wave functions within the semiconductor shell, as shown through the k-dot-p derived model.

What carries the argument

The k-dot-p method-derived model incorporating the band offset potential at the inner semiconductor-semiconductor interface and the complex potential barrier at the outer metal-semiconductor contact, which determines the spin-orbit coupling strength and the localization of wave functions in the semiconductor shell.

If this is right

Adjusting the band offset or contact barrier changes the effective spin-orbit coupling experienced by electrons in the shell.
Wave functions localize preferentially near the inner or outer boundary of the semiconductor shell depending on the potential profiles.
The hexagonal geometry imposes symmetry constraints that shape the form of the spin-orbit terms in the Hamiltonian.
These interface-driven changes modify the overall electronic spectrum and localization properties of the confined electrons.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If interface potentials can be tuned during growth, this model suggests a route to optimize spin-orbit effects for spintronic nanowire devices without altering material composition.
Comparing results to cylindrical core-shell nanowires would isolate the role of hexagonal symmetry in localization patterns.
Linking the predicted localization to measurable quantities like spin relaxation times could provide experimental tests beyond the paper's theoretical scope.

Load-bearing premise

The k-dot-p model accurately captures the band structure and the specific forms of the band offset potential at the inner semiconductor-semiconductor interface and the complex potential barrier at the outer metal-semiconductor contact for the hexagonal geometry.

What would settle it

Fabrication of core-shell nanowires with controlled variations in interface potential profiles followed by direct measurement of spin-orbit coupling strength through transport experiments such as weak antilocalization, compared against the model's quantitative predictions for different potential strengths and shell thicknesses.

Figures

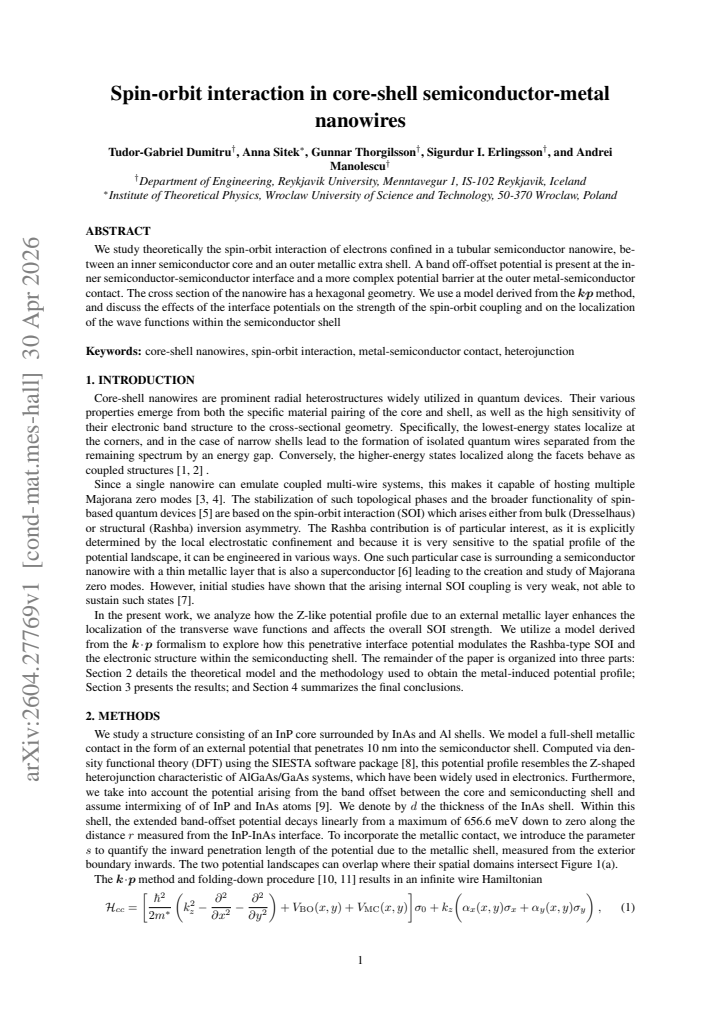

Figures reproduced from arXiv: 2604.27769 by Andrei Manolescu, Anna Sitek, Gunnar Thorgilsson, Sigurdur I. Erlingsson, Tudor-Gabriel Dumitru.
