pith. sign in

arxiv: 2604.28120 · v1 · submitted 2026-04-30 · ❄️ cond-mat.mtrl-sci

Polar Topologies in a Ferroelastic Metal Membrane

Rahil Haria , Noah Schnitzer , T. Ben Britton , Yaqi Li , Tom J. P. Irons , Sophia Linssen Pitsaros , Ella Banyas , Geri Topore
show 5 more authors
Annabel Hoyes Mariana Palos Sinead M. Griffin Katherine Inzani Michele Shelly Conroy
This is my paper

Pith reviewed 2026-05-07 04:59 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords SrRuO3ferroelastic domainspolar texturesantiphase boundariesfreestanding membranedomain refinementrotostriction
0
0 comments X

The pith

Releasing epitaxial SrRuO3 films from substrates refines ferroelastic domains to the nanoscale and generates two classes of polar textures.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that detaching SrRuO3 films from their growth substrates initiates a progressive refinement of ferroelastic domains, shrinking them from micrometre sizes down to nanometres. This structural change spontaneously produces polar textures at two types of boundaries in the free-standing membrane. One type occurs at antiphase boundaries where the oxygen tilt patterns interpolate in a specific way that creates net polarization, and the other at ninety-degree domain walls forming small polarized clusters. A reader would care because this provides a physical route to combine electric polarization with metallic conductivity in a single material by using mechanical release rather than complex chemistry.

Core claim

Releasing the epitaxial films drives a hierarchy of ferroelastic domain refinement from micrometre to nanometre length scales. This reorganisation spontaneously generates two distinct classes of emergent polar texture ubiquitous across the freestanding membrane. Polarisation emerges selectively at translation-inequivalent antiphase boundaries through Neel-like interpolation of the multicomponent tilt field that preserves the in-phase component and amplifies rotroflexoelectric coupling. Translation-equivalent boundaries remain nonpolar. Embedded 90 ferroelastic walls provide an additional source of polarisation resulting in polar nanoclusters approximately 4 nm in size through elastic accomod

What carries the argument

Ferroelastic domain refinement upon substrate release, inducing tilt-field interpolation at antiphase boundaries and strain accommodation at 90 walls.

If this is right

  • Polarisation appears selectively at translation-inequivalent antiphase boundaries through Neel-like tilt interpolation, while translation-equivalent boundaries stay nonpolar.
  • Polar nanoclusters of 4 nm size form at 90 ferroelastic walls via elastic strain accommodation and rotostriction.
  • The freestanding membrane hosts these nanoscale ferroelastic domains and their associated polar textures throughout.
  • Ab initio calculations confirm the distinct interpolation behaviours at hard and easy antiphase boundaries.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This boundary-polarisation route could be extended to other metallic perovskites with similar tilt patterns to engineer polar metals.
  • External mechanical strain applied to the membrane might reconfigure the domain patterns and thus switch the polar textures on or off.
  • Correlative ECCI-STEM mapping of tilt fields and polarisation could be applied to test the same mechanism in related oxide systems.
  • The approach offers a substrate-independent way to create nanoscale polar features in conducting films for potential magnetoelectric devices.

Load-bearing premise

The observed polar textures result purely from the intrinsic ferroelastic reorganisation and tilt-field interpolation upon substrate release, without significant contributions from surface reconstruction, residual strain gradients, or preparation-induced defects.

What would settle it

High-resolution STEM images or ab initio calculations on released membranes that show no correlation between specific boundary tilt interpolations and measured polarisation signals would falsify the claim that substrate release and domain refinement drive the polar textures.

Figures

Figures reproduced from arXiv: 2604.28120 by Annabel Hoyes, Ella Banyas, Geri Topore, Katherine Inzani, Mariana Palos, Michele Shelly Conroy, Noah Schnitzer, Rahil Haria, Sinead M. Griffin, Sophia Linssen Pitsaros, T. Ben Britton, Tom J. P. Irons, Yaqi Li.

Figure 1
Figure 1. Figure 1: Ferroelastic domain mapping in epitaxial and freestanding SrRuO3. (a) Six symmetry￾equivalent orientation variants of SrRuO3 (X/X∗ , Y/Y∗ , Z/Z∗ ) with crystallographic axes labelled (a red, b green, c blue). Schematic of release from SrRuO3/Sr3Al2O6//SrTiO3 to a freestanding membrane after H2O etching, illustrating the transition from micrometre-scale X/X∗ and Y/Y∗ domains in the epitaxial film to a refin… view at source ↗
Figure 2
Figure 2. Figure 2: Ferroelastic nanodomain structure and antiphase boundary character in freestanding SrRuO3. (a) Sr displacement map from PLD analysis with X/X∗ (blue) and Y/Y∗ (red) Fourier amplitudes overlaid. Purple and green arrows mark translation-equivalent (easy) and translation-inequivalent (hard) antiphase boundaries respectively. (b) Fourier phase map of the (11¯1) reflection showing discrete 180◦ phase reversals … view at source ↗
Figure 3
Figure 3. Figure 3: First-principles structures and order-parameter profiles at easy and hard antiphase bound￾aries in SrRuO3. (a) DFT-relaxed supercell of the easy antiphase boundary. Upper panel: atomic structure with arrows indicating Sr displacements relative to their parent cubic positions, coloured by displacement direction. Lower panels: spatially resolved Ru off-centring displacement and octahedral tilt angle about th… view at source ↗
Figure 4
Figure 4. Figure 4: Polar nanoclusters and embedded 90◦ ferroelastic walls in a nominally single-domain region of freestanding SrRuO3. (a) ADF-STEM image of a region isolating a nominally single Y/Y∗ ferroelastic domain. (b) Sr displacement map of the same region, revealing significant short-range structural complexity within the nominally uniform Y/Y∗ variant. (c) Polar displacement map, defined by Ru displacement within the… view at source ↗
read the original abstract

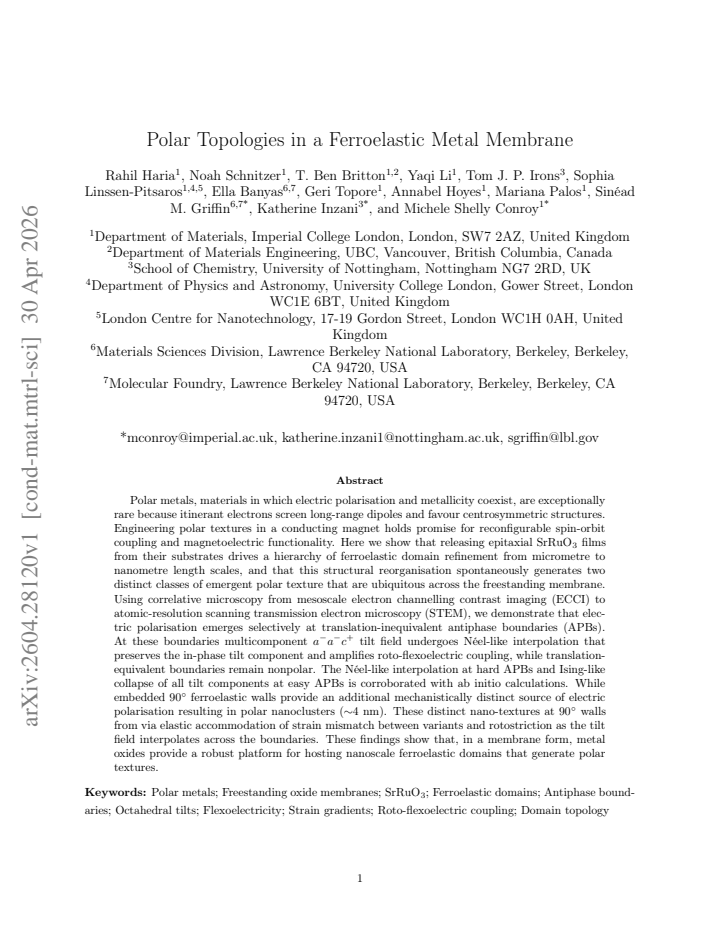

Polar metals, materials in which electric polarisation and metallicity coexist, are exceptionally rare because itinerant electrons screen long-range dipoles and favour centrosymmetric structures. Engineering polar textures in a conducting magnet holds promise for reconfigurable spin orbit coupling and magnetoelectric functionality. Here we show that releasing epitaxial SrRuO3 films from their substrates drives a hierarchy of ferroelastic domain refinement from micrometre to nanometre length scales, and that this structural reorganisation spontaneously generates two distinct classes of emergent polar texture that are ubiquitous across the freestanding membrane. Using correlative microscopy from mesoscale electron channelling contrast imaging (ECCI) to atomic resolution scanning transmission electron microscopy (STEM), we demonstrate that electric polarisation emerges selectively at translation-inequivalent antiphase boundaries (APBs). At these boundaries multicomponent aac tilt field undergoes Neel-like interpolation that preserves the in-phase tilt component and amplifies roto flexoelectric coupling, while translation-equivalent boundaries remain nonpolar. The Neel like interpolation at hard APBs and Ising like collapse of all tilt components at easy APBs is corroborated with ab initio calculations. While embedded 90 ferroelastic walls provide an additional mechanistically distinct source of electric polarisation resulting in polar nanoclusters (4 nm). These distinct nanotextures at 90 walls from via elastic accommodation of strain mismatch between variants and rotostriction as the tilt field interpolates across the boundaries. These findings show that, in a membrane form, metal oxides provide a robust platform for hosting nanoscale ferroelastic domains that generate polar textures.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The manuscript claims that releasing epitaxial SrRuO3 films from their substrates induces a hierarchy of ferroelastic domain refinement from micrometre to nanometre scales. This structural reorganisation spontaneously generates two distinct classes of emergent polar textures across the freestanding membrane: Néel-like polar textures at translation-inequivalent antiphase boundaries (APBs) arising from multicomponent aac tilt-field interpolation that preserves the in-phase component and amplifies rotoflexoelectric coupling, and polar nanoclusters (∼4 nm) at embedded 90° ferroelastic walls arising from elastic accommodation of strain mismatch and rotostriction. These are demonstrated via correlative mesoscale ECCI to atomic-resolution STEM imaging, with the tilt interpolation behaviours at hard and easy APBs corroborated by ab initio calculations.

Significance. If the central claims hold, the work is significant as it provides a substrate-release route to engineer polar textures in a conducting ferroelastic oxide, addressing the rarity of polar metals where itinerant electrons typically screen dipoles. The distinction between translation-inequivalent (polar) and translation-equivalent (nonpolar) APBs, plus the mechanistically distinct 90°-wall nanoclusters, offers a platform for reconfigurable spin-orbit and magnetoelectric functionality in membrane form. Credit is due for the direct correlative ECCI-to-STEM approach providing multi-scale evidence and for the use of standard first-principles calculations as independent corroboration of the boundary tilt behaviours, rather than any fitted-parameter derivation.

major comments (3)
  1. [Results (Atomic resolution STEM imaging of APBs and 90° walls)] § Results (Atomic resolution STEM imaging of APBs and 90° walls): The claim that the observed cation shifts and polar textures arise purely from intrinsic tilt interpolation and rotostriction upon substrate release is load-bearing for the central assertion of 'spontaneously generated' polar textures. However, the manuscript does not report pre- vs. post-release STEM imaging on identical regions, nor does it quantify defect densities or surface reconstruction (e.g., via EELS or XPS depth profiling). This leaves open the possibility that preparation-induced defects or residual strain gradients contribute to or mimic the polarisation signal.
  2. [Results (ECCI and STEM correlative analysis)] § Results (ECCI and STEM correlative analysis): No quantitative error bars, raw data statistics, or explicit exclusion criteria are provided for the atomic displacement measurements used to assign polarity at APBs and to identify the 4 nm polar nanoclusters at 90° walls. Without these, the robustness of distinguishing the two classes of polar textures and their ubiquity across the membrane cannot be fully assessed.
  3. [Methods (ab initio calculations)] § Methods (ab initio calculations): The DFT modelling of hard (Néel-like) vs. easy (Ising-like) APB tilt interpolations should specify supercell sizes, boundary conditions, and convergence criteria for the rotoflexoelectric coupling terms. These details are necessary to reproduce the claimed preservation of the in-phase tilt component and to confirm that the polar assignment is not an artifact of the computational setup.
minor comments (3)
  1. [Abstract] Abstract: Minor grammatical issues, e.g., 'These distinct nanotextures at 90 walls from via elastic accommodation' should read 'arise via elastic accommodation'.
  2. [Figure captions] Figure captions (ECCI and STEM panels): Ensure all scale bars, tilt-component labels (aac), and domain-variant notations are legible and consistently defined across panels to aid reader interpretation of the hierarchy of refinement.
  3. [Main text (Introduction/Results)] Notation: The distinction between 'hard' and 'easy' APBs is introduced without an explicit definition in the main text; a brief parenthetical or footnote clarifying the translation equivalence criterion would improve clarity.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for their careful review and constructive feedback on our manuscript. We appreciate the recognition of the significance of our findings regarding emergent polar textures in freestanding SrRuO3 membranes. Below, we provide point-by-point responses to the major comments. We have revised the manuscript where possible to address the concerns raised.

read point-by-point responses

  1. Referee: The claim that the observed cation shifts and polar textures arise purely from intrinsic tilt interpolation and rotostriction upon substrate release is load-bearing for the central assertion of 'spontaneously generated' polar textures. However, the manuscript does not report pre- vs. post-release STEM imaging on identical regions, nor does it quantify defect densities or surface reconstruction (e.g., via EELS or XPS depth profiling). This leaves open the possibility that preparation-induced defects or residual strain gradients contribute to or mimic the polarisation signal.

    Authors: We agree that direct pre- and post-release imaging of identical regions would provide compelling evidence against preparation artifacts. Unfortunately, the membrane release and transfer procedure makes it impossible to locate and image the exact same nanoscale regions pre- and post-release. To mitigate this, our study includes comparative STEM analysis of substrate-supported films, which lack the reported polar textures at APBs and 90° walls. In the revised manuscript, we have added a discussion section addressing potential contributions from preparation-induced defects and surface reconstructions. We explain that the systematic nature of the observed tilt interpolations, their specificity to translation-inequivalent APBs, and agreement with ab initio calculations make extrinsic defect contributions unlikely. We also note the low residual strain in freestanding membranes as evidenced by the domain refinement. revision: partial

  2. Referee: No quantitative error bars, raw data statistics, or explicit exclusion criteria are provided for the atomic displacement measurements used to assign polarity at APBs and to identify the 4 nm polar nanoclusters at 90° walls. Without these, the robustness of distinguishing the two classes of polar textures and their ubiquity across the membrane cannot be fully assessed.

    Authors: We concur that providing quantitative error bars, statistics, and exclusion criteria is important for demonstrating the robustness of our measurements. Accordingly, we have revised the manuscript to include error bars on the atomic displacement data, derived from averaging over multiple independent measurements. We now report the number of APBs (over 15) and nanoclusters (over 30) analyzed, along with standard deviations. Explicit exclusion criteria for data analysis, such as minimum contrast thresholds in STEM images and criteria for tilt component identification, have been added to the Methods section. revision: yes

  3. Referee: The DFT modelling of hard (Néel-like) vs. easy (Ising-like) APB tilt interpolations should specify supercell sizes, boundary conditions, and convergence criteria for the rotoflexoelectric coupling terms. These details are necessary to reproduce the claimed preservation of the in-phase tilt component and to confirm that the polar assignment is not an artifact of the computational setup.

    Authors: We have updated the Methods section to provide the requested details on the ab initio calculations. This includes the supercell sizes used to model the APBs, the boundary conditions (periodic in the directions parallel to the boundary plane), and the convergence criteria applied during structural optimization and for computing the rotoflexoelectric effects. These specifications confirm that the preservation of the in-phase tilt component at hard APBs is a robust feature of the calculations and not dependent on specific setup choices. revision: yes

standing simulated objections not resolved
  • Direct pre- vs. post-release STEM imaging on identical regions, which is precluded by the membrane preparation and transfer process.

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper's central claims rest on direct experimental mapping via ECCI and atomic-resolution STEM of domain refinement and boundary displacements, combined with independent ab initio DFT calculations that corroborate the observed Néel-like tilt interpolation and rotostriction at APBs and 90° walls. No steps reduce by construction to fitted parameters renamed as predictions, self-definitional loops, or load-bearing self-citations whose validity depends on the present work. The attribution of emergent polar textures to intrinsic ferroelastic reorganisation upon release is supported by empirical data and external computational verification rather than tautological equivalence to inputs. Potential gaps in experimental controls (e.g., pre/post-release comparisons) concern falsifiability and alternative explanations, not circularity in the logical chain.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on established perovskite tilt patterns in SrRuO3 and standard density-functional approximations for boundary calculations; no new free parameters are introduced to fit the polar textures, and no new particles or forces are postulated.

axioms (2)
  • domain assumption SrRuO3 adopts an aac-type oxygen-octahedra tilt pattern in its bulk and epitaxial forms.
    Invoked to interpret the Neel-like interpolation at antiphase boundaries and the collapse at easy boundaries.
  • standard math Density-functional theory with standard exchange-correlation functionals can qualitatively capture roto-flexoelectric coupling at domain boundaries.
    Used to corroborate the observed tilt-field behaviour without additional fitting.

pith-pipeline@v0.9.0 · 5634 in / 1550 out tokens · 54690 ms · 2026-05-07T04:59:17.844362+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

1 extracted references

  1. [1]

    K.Annual Review of Materials Research2013,43, 387–421

    (1) Zubko, P.; Catalan, G.; Tagantsev, A. K.Annual Review of Materials Research2013,43, 387–421. (2) Tagantsev, A. K.Physical Review B1986,34, 5883–5889. (3) Morozovska, A. N.; Eliseev, E. A.; Glinchuk, M. D.; Chen, L.-Q.; Gopalan, V.Physical Review B 2012,85, 094107. (4) Khachaturyan,A.G.,Theory of Structural Transformations in Solids,Comprehensivetheory...

    2012
