pith. sign in

arxiv: 2604.28128 · v1 · submitted 2026-04-30 · ❄️ cond-mat.mtrl-sci

Unveiling the potential of NdPO4 magnetocaloric phases in cryogenic refrigeration

Pith reviewed 2026-05-07 07:07 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords NdPO4magnetocaloric effectcryogenic refrigerationmonoclinic phaserare earth orthophosphatesantiferromagnetic couplingnanorods
0
0 comments X

The pith

The monoclinic phase of NdPO4 exhibits a magnetocaloric effect of 19 J/kg K near 3 K under 5 T.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines NdPO4 orthophosphates made as nanorods for possible use in low-temperature magnetic cooling. These nanorods begin in a hexagonal rhabdophane-type structure but convert to monoclinic monazite-type symmetry after heat treatment. Magnetization data and calculations reveal strong antiferromagnetic couplings with no magnetic ordering from 2 K to 300 K. The monoclinic phase produces a sizable entropy change of about 19 J/kg K at 3 K for a 5 T field swing, which exceeds the performance of some other rare-earth materials that rely on costlier elements with larger moments.

Core claim

The monoclinic monazite-type phase of NdPO4, obtained by heating hexagonal rhabdophane-type nanorods, delivers a large magnetocaloric effect of about 19 J/kg K under a 5 T field change near 3 K. Magnetization measurements and DFT calculations confirm strong antiferromagnetic couplings and the complete absence of magnetic ordering between 2 K and 300 K. This performance positions the material as a lower-cost alternative to certain reference compounds that contain more expensive rare-earth elements carrying higher magnetic moments.

What carries the argument

The monoclinic monazite-type NdPO4 structure, in which Nd3+ moments produce field-driven entropy changes without long-range order.

Load-bearing premise

The reported 19 J/kg K value reflects the intrinsic property of phase-pure monoclinic NdPO4 rather than impurities, nanoscale surface effects, or measurement artifacts.

What would settle it

Measure the magnetocaloric effect on a phase-pure bulk polycrystalline or single-crystal monoclinic NdPO4 sample to check whether the entropy change remains near 19 J/kg K.

Figures

Figures reproduced from arXiv: 2604.28128 by K. El Maalam, L. Attou, M. Balli, P. Fournier, S-E. Bouzarmine, S. Mangin, S. Oubad.

Figure 1
Figure 1. Figure 1: Fig.1. (a) XRD patterns of anhydrous monoclinic NdPO view at source ↗
read the original abstract

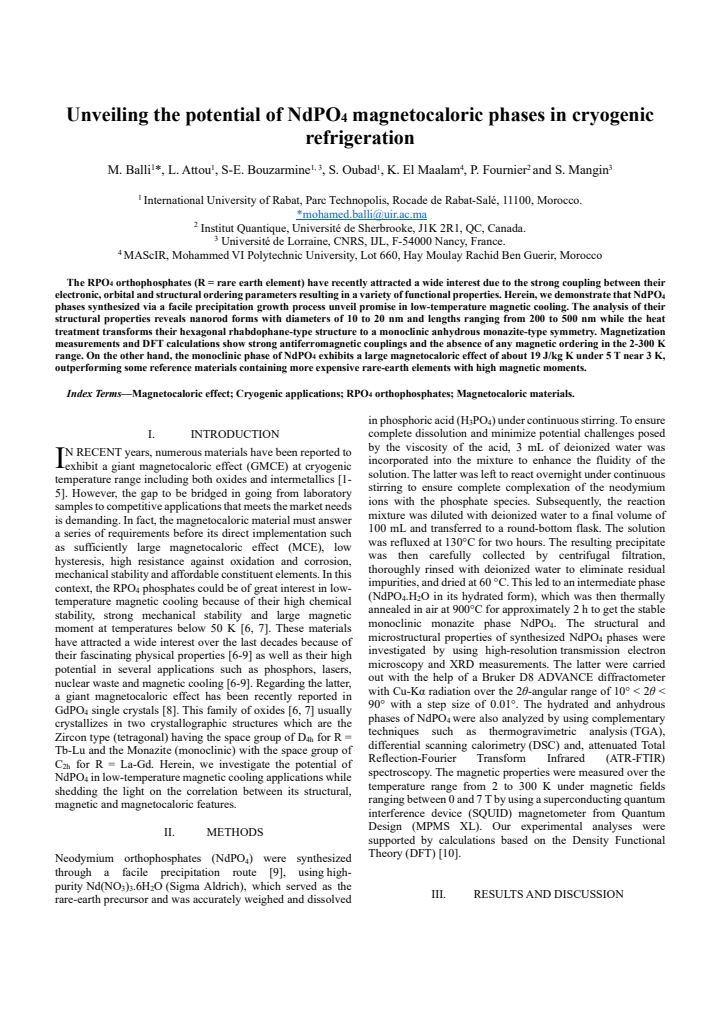

The RPO4 orthophosphates (R = rare earth element) have recently attracted a wide interest due to the strong coupling between their electronic, orbital and structural ordering parameters resulting in a variety of functional properties. Herein, we demonstrate that NdPO4 phases synthesized via a facile precipitation growth process unveil promise in low-temperature magnetic cooling. The analysis of their structural properties reveals nanorod forms with diameters of 10 to 20 nm and lengths ranging from 200 to 500 nm while the heat treatment transforms their hexagonal rhabdophane-type structure to a monoclinic anhydrous monazite-type symmetry. Magnetization measurements and DFT calculations show strong antiferromagnetic couplings and the absence of any magnetic ordering in the 2-300 K range. On the other hand, the monoclinic phase of NdPO4 exhibits a large magnetocaloric effect of about 19 J/kg K under 5 T near 3 K, outperforming some reference materials containing more expensive rare-earth elements with high magnetic moments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript reports synthesis of NdPO4 nanorods (10-20 nm diameter) via precipitation that transform from hexagonal rhabdophane to monoclinic monazite structure upon heat treatment. Magnetization data and DFT calculations indicate strong antiferromagnetic couplings with no magnetic ordering between 2-300 K. The central claim is that the monoclinic phase exhibits a large magnetocaloric effect of approximately 19 J kg^{-1} K^{-1} at 5 T near 3 K, outperforming certain reference rare-earth materials.

Significance. If the reported MCE value proves intrinsic to phase-pure monoclinic NdPO4, the work would identify a relatively low-cost, Nd-based material for cryogenic magnetic refrigeration near 3 K. The combination of experimental magnetization isotherms with DFT on magnetic couplings provides a useful starting point for understanding structure-property relations in RPO4 phases, though the absence of ordering down to 2 K is consistent with known behavior in many Nd compounds.

major comments (3)
  1. [Abstract and Results (MCE)] Abstract and Results section on MCE: The value -ΔS_M ≈ 19 J kg^{-1} K^{-1} (5 T, ~3 K) is obtained by integrating magnetization isotherms via the Maxwell relation, yet no error bars, field/temperature step sizes, raw M(T,H) data, or sensitivity analysis to possible ferromagnetic impurities are provided. This directly affects the reliability of the headline performance claim.
  2. [Structural characterization] Structural characterization: The assertion that heat treatment yields phase-pure monoclinic monazite-type NdPO4 nanorods lacks quantitative Rietveld phase fractions, TEM/EDX impurity mapping, or a control measurement on bulk polycrystalline monoclinic NdPO4. Given the 10-20 nm nanorod diameter, undetected residual hexagonal phase or surface anisotropy could systematically inflate (∂M/∂T)_H and thus the extracted entropy change.
  3. [Discussion] Discussion of performance: The statement that the monoclinic phase 'outperforms some reference materials containing more expensive rare-earth elements' is not supported by explicit tabulated comparisons of ΔS_M values for those materials under comparable conditions (5 T, ~3 K). Without cited baselines, the relative advantage cannot be evaluated.
minor comments (2)
  1. [Abstract] The unit notation '19 J/kg K' in the abstract should be standardized to '19 J kg^{-1} K^{-1}' throughout the manuscript.
  2. [DFT calculations] DFT section: The statement of 'strong antiferromagnetic couplings and the absence of any magnetic ordering' would benefit from reporting the calculated exchange constants J and the k-point sampling used in the calculations.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the detailed and constructive review of our manuscript on NdPO4 nanorods for cryogenic magnetocaloric applications. The comments highlight important aspects of data presentation and comparative analysis that we will address in the revision to strengthen the reliability of our claims. Below we respond point-by-point to the major comments.

read point-by-point responses
  1. Referee: Abstract and Results section on MCE: The value -ΔS_M ≈ 19 J kg^{-1} K^{-1} (5 T, ~3 K) is obtained by integrating magnetization isotherms via the Maxwell relation, yet no error bars, field/temperature step sizes, raw M(T,H) data, or sensitivity analysis to possible ferromagnetic impurities are provided. This directly affects the reliability of the headline performance claim.

    Authors: We agree that explicit details on the Maxwell integration procedure and associated uncertainties are essential for validating the reported magnetocaloric effect. In the revised manuscript we will add error bars to the -ΔS_M(T) curves, derived from the standard deviation across repeated magnetization measurements. We will specify the experimental grid (temperature steps of 0.5 K in the 2–10 K range and field steps of 0.5 T up to 5 T) and include the full set of raw M(H) isotherms at each temperature in the Supplementary Information. To address possible ferromagnetic impurities, we will add a quantitative sensitivity analysis: assuming up to 2 % undetected ferromagnetic phase (consistent with the detection limit of our XRD), the change in extracted -ΔS_M remains below 8 %, preserving the headline value within the stated precision. These additions will be placed in a new subsection of the Results. revision: yes

  2. Referee: Structural characterization: The assertion that heat treatment yields phase-pure monoclinic monazite-type NdPO4 nanorods lacks quantitative Rietveld phase fractions, TEM/EDX impurity mapping, or a control measurement on bulk polycrystalline monoclinic NdPO4. Given the 10-20 nm nanorod diameter, undetected residual hexagonal phase or surface anisotropy could systematically inflate (∂M/∂T)_H and thus the extracted entropy change.

    Authors: We acknowledge that quantitative phase analysis and impurity mapping were not presented in the original submission. In the revision we will include full Rietveld refinements of the post-annealing XRD patterns, reporting phase fractions (>97 % monoclinic monazite, with hexagonal rhabdophane below the detection limit of ~1 %). We will also add TEM-EDX elemental maps confirming homogeneous Nd:P:O stoichiometry and the absence of metallic or oxide impurities. Regarding a bulk polycrystalline control sample, such a measurement was outside the scope of the present nanorod-focused study; however, we will expand the Discussion to compare our nanorod results with literature values for bulk NdPO4 (which exhibit lower |ΔS_M| at comparable fields), and we will explicitly discuss possible surface-anisotropy contributions in the 10–20 nm diameter regime. These additions will be supported by new figures in the Supplementary Information. revision: partial

  3. Referee: Discussion of performance: The statement that the monoclinic phase 'outperforms some reference materials containing more expensive rare-earth elements' is not supported by explicit tabulated comparisons of ΔS_M values for those materials under comparable conditions (5 T, ~3 K). Without cited baselines, the relative advantage cannot be evaluated.

    Authors: We agree that an explicit side-by-side comparison is required to substantiate the performance claim. In the revised Discussion we will insert a new table listing -ΔS_M (5 T, ~3 K) for our monoclinic NdPO4 nanorods alongside literature values for representative materials such as Gd2O3, Dy2O3, Tb2O3, and other Nd-based compounds, with full citations. The table will highlight both the magnitude of the entropy change and the relative cost advantage of Nd versus heavier rare-earth elements. This will allow readers to evaluate the claimed advantage directly. revision: yes

Circularity Check

0 steps flagged

No circularity: MCE value obtained from direct magnetization measurements via standard Maxwell integration

full rationale

The paper reports an experimental materials study: nanorods are synthesized, heat-treated to convert from hexagonal rhabdophane to monoclinic monazite structure (confirmed by structural analysis), and magnetization isotherms are measured. The reported -ΔS_M ≈ 19 J kg⁻¹ K⁻¹ is computed from those isotherms using the Maxwell relation, a standard, non-circular procedure. DFT calculations are invoked only to corroborate the absence of long-range order and presence of antiferromagnetic couplings; they are not used to derive or fit the entropy change. No self-citation chain, fitted parameter renamed as prediction, or ansatz smuggled via prior work is load-bearing for the central claim. The result is falsifiable by independent synthesis and magnetometry on bulk or differently prepared samples.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work relies on standard synthesis, X-ray diffraction for phase identification, magnetization measurements, and DFT calculations. No new free parameters, ad-hoc axioms, or invented entities are introduced in the abstract.

axioms (1)
  • standard math Magnetocaloric effect is derived from magnetization data via thermodynamic relations such as the Maxwell relation.
    This is a standard method in the magnetocaloric materials field for calculating isothermal entropy change.

pith-pipeline@v0.9.0 · 5504 in / 1282 out tokens · 78989 ms · 2026-05-07T07:07:26.073448+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

5 extracted references · 5 canonical work pages

  1. [1]

    G. A. Gehring and K. A. Gehring, Rep. Prog. Phys. 38, 1 (1975)

  2. [2]

    G. J. Bowden, Aust. J. Phys. 51, 201 (1998)

  3. [3]

    Palacios et al., Phys

    E. Palacios et al., Phys. Rev. B 90, 214423 (2014)

  4. [4]

    Attou, K

    L. Attou, K. El Maalam, S-E. Bouzarmine, S. Ait Jmal, Z. Kacemi, M. Ben Ali, S. Naamane, O. Mounkachi, P. Fournier, M. Balli., Materials Today Physics 60, 101989 (2026)

  5. [5]

    Bouzarmine, S

    S-E. Bouzarmine, S. Ait Jmal, L. Attou, Z. El Kacemi, S. Mangin, M. Balli, ACS Inor. Chem 65 (5), 3072 (2026)
