Discrete Quantization on Spherical Geometries: Explicit Models, Computations, and Didactic Exposition

Mrinal Kanti Roychowdhury This is my paper

Pith reviewed 2026-05-15 20:24 UTC · model grok-4.3

classification 🧮 math.OC math.PR
keywords discrete quantizationspherical geometryVoronoi cellsgeodesic metricmean square errorblock-midpoint principlecurvature effects
0
0 comments X

The pith

Optimal quantizers on the sphere follow a block-midpoint principle where Voronoi cells are contiguous azimuthal blocks with midpoint representatives.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper derives closed-form expressions for optimal discrete quantizers on the unit sphere under the geodesic metric, restricted to three families of highly symmetric point placements. It establishes that the block-midpoint principle holds in each case: the optimal Voronoi cells consist of contiguous azimuthal blocks whose representatives sit at the azimuthal midpoints. Closed formulas are obtained for the resulting mean-square errors, which incorporate explicit dependence on curvature; for points at latitude phi zero the distortion is reduced by the factor cos squared phi zero while the n to the minus two asymptotic decay is preserved. These explicit benchmark models are presented as didactic tools that clarify how curvature modifies quantization performance on curved manifolds.

Core claim

Across the three models (N equally spaced equatorial points, two antipodal small circles each with M longitudes, and a single small circle), the optimal quantizers within the symmetric families obey the block-midpoint principle, yielding exact finite-sum error expressions that separate the azimuthal contribution from the curvature-dependent latitude factor and confirm that symmetry-preserving configurations remain optimal inside each family.

What carries the argument

The block-midpoint principle, which asserts that optimal Voronoi cells on the sphere are contiguous azimuthal blocks whose representatives are the azimuthal midpoints of those blocks.

If this is right

  • Exact error formulas are obtained for both divisible and non-divisible cases of N equatorial points.
  • A no-cross-circle Voronoi phenomenon is proved for the two antipodal circles, together with symmetry-preserving optimality.
  • Curvature reduces the distortion by the precise factor cos squared phi zero while the n to the minus two decay rate remains unchanged.
  • Finite-sum expressions with explicit curvature-dependent bounds and asymptotic expansions are supplied for all three models.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The closed-form expressions supply concrete upper bounds that any general-purpose sphere quantizer algorithm must beat.
  • The block-midpoint construction may serve as a reliable initial guess for numerical optimization on other rotationally symmetric manifolds.
  • Direct comparison of the derived errors against fully asymmetric numerical optima would test whether the symmetry restriction is binding.
  • The curvature scaling factor cos squared phi zero suggests a simple latitude-dependent weighting that could be inserted into quantization routines on the sphere.

Load-bearing premise

That the globally optimal quantizers for any number of points lie inside the considered families of equatorial points, antipodal circles, or single circles rather than requiring asymmetric or topologically more complex arrangements.

What would settle it

A configuration of the same number of points whose mean-square geodesic error is strictly smaller than the closed-form value given by the block-midpoint formulas for any of the three symmetric families.

Figures

Figures reproduced from arXiv: 2605.00006 by Mrinal Kanti Roychowdhury.

Figure 1
Figure 1. Figure 1: Three latitude circles on a tilted sphere: the equator at 0◦ , the northern small circle at latitude +35◦ , and the southern small circle at latitude −35◦ . Solid arcs indicate visible portions; dashed arcs indicate hidden portions. Antipodal extension of a codebook. Let Q ⊂ S 2 be any (not necessarily symmetric) codebook. We define its antipodal extension by Q ± := Q ∪ (−Q), where −Q := {−q : q ∈ Q} denot… view at source ↗
Figure 2

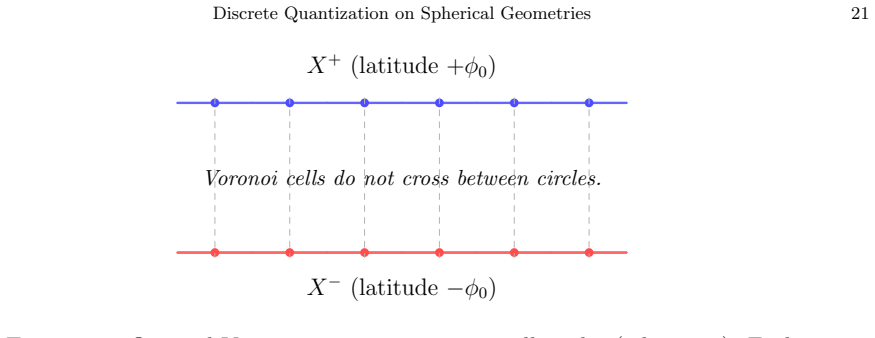

Figure 2. Figure 2: Optimal Voronoi structure on two small circles (schematic). Each circle is partitioned into contiguous arcs; representatives (dots) lie at arc midpoints. Midpoints occur in antipodal pairs; no cell crosses from X+ to X−. • Each circle decomposes into contiguous arcs with midpoint representatives; in divisible cases the arcs have equal size. • Exact discrete errors reduce to a one–circle sum S(m, ϕ0) per bl… view at source ↗
Figure 3

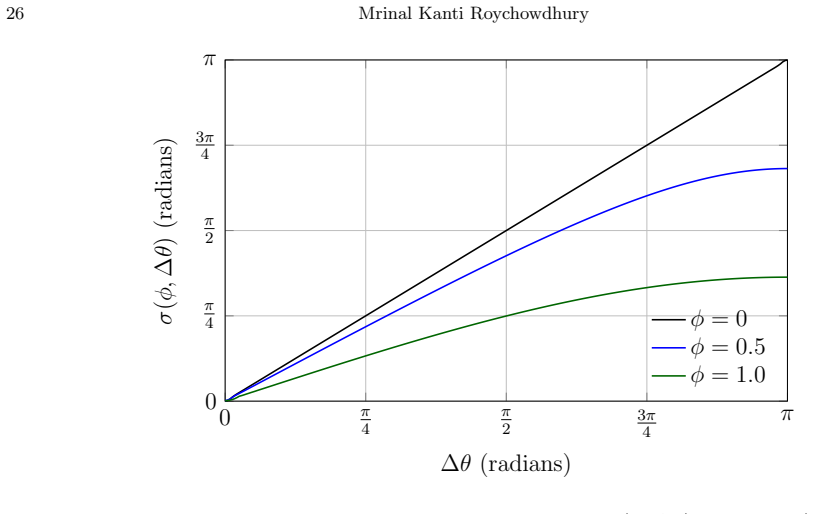

Figure 3. Figure 3: Curvature effect on the geodesic distance σ(ϕ, ∆θ). Larger ϕ (higher latitude) yields uniformly smaller geodesic distances for the same longitudinal separation, with initial slope cos ϕ. 8. Stability, Uniqueness, and Algorithmic Implementation This section summarizes structural consequences of the block–midpoint principle (Sec￾tion 3) and the analyses of Models I–III (Sections 4–6). We formalize uniqueness… view at source ↗
read the original abstract

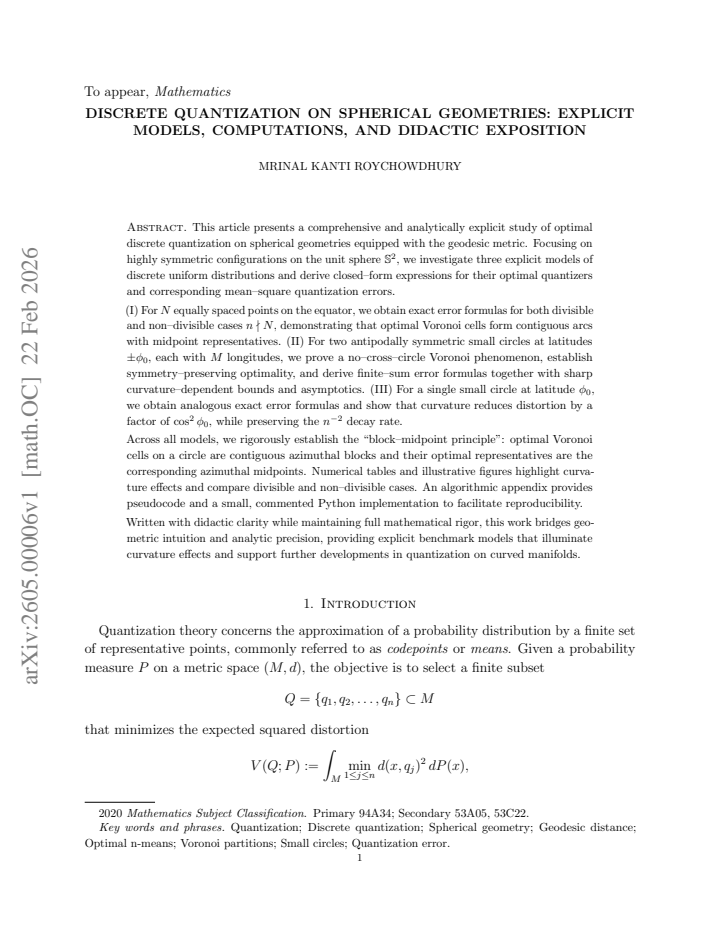

We present an analytically explicit study of optimal discrete quantization on spherical geometries equipped with the geodesic metric, focusing on highly symmetric configurations on the unit sphere $\mathbb S^2$. Three discrete uniform models are analyzed and closed-form expressions for optimal quantizers and mean-square errors are derived. (I) For $N$ equally spaced points on the equator, exact error formulas are obtained for both divisible and non-divisible cases, showing that optimal Voronoi cells form contiguous arcs with midpoint representatives. (II) For two antipodally symmetric small circles at latitudes $\pm\phi_0$, each with $M$ longitudes, we establish a no-cross-circle Voronoi phenomenon, symmetry-preserving optimality, and finite-sum error formulas with curvature-dependent bounds and asymptotics. (III) For a single small circle at latitude $\phi_0$, analogous formulas are proved and curvature is shown to reduce distortion by a factor $\cos^2\phi_0$ while preserving the $n^{-2}$ decay rate. Across all models we rigorously formulate the block-midpoint principle: optimal Voronoi cells are contiguous azimuthal blocks whose representatives are azimuthal midpoints. These explicit benchmark models clarify curvature effects and support further developments in quantization on curved manifolds.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript develops explicit analytic models for optimal discrete quantization on the unit sphere S² under the geodesic metric, restricted to three highly symmetric families: (I) N equally spaced equatorial points, (II) two antipodal small circles each containing M points, and (III) a single small circle at latitude φ₀ with M points. For each family it derives closed-form expressions for the optimal quantizers and mean-square errors, proves a no-cross-circle Voronoi property in the antipodal case, and rigorously states the block-midpoint principle that optimal Voronoi cells are contiguous azimuthal blocks whose representatives are azimuthal midpoints. Curvature is shown to reduce distortion by a factor cos²φ₀ while preserving the n^{-2} asymptotic rate.

Significance. If the derivations are correct, the paper supplies rare closed-form benchmarks for quantization on curved manifolds, where most results remain numerical. The block-midpoint principle and the exact MSE formulas clarify the interplay between symmetry, curvature, and distortion, providing testable reference cases for numerical algorithms and for extensions to general Riemannian manifolds. The didactic exposition further increases utility for researchers in optimization and coding theory.

major comments (2)
  1. [Abstract and introduction] The block-midpoint principle is asserted to hold across all three models, yet the manuscript provides no argument or numerical check that globally optimal quantizers cannot lie outside these symmetric families (e.g., for N=5 or M=4). A concrete test—comparing the reported MSE against a small asymmetric perturbation—would be needed to confirm that the principle is not an artifact of the imposed symmetry.
  2. [Model (II)] In the two-circle model (II), the no-cross-circle Voronoi phenomenon is used to obtain finite-sum error formulas; the derivation must explicitly rule out geodesic Voronoi edges that cross the equator for latitudes φ₀ near π/2, because any such crossing would invalidate the symmetry-preserving optimality claim and the subsequent curvature bounds.
minor comments (2)
  1. [Conclusion] The manuscript would benefit from a short table comparing the three models’ leading MSE coefficients and curvature factors for quick reference.
  2. [Preliminaries] Notation for azimuthal angles and geodesic distances should be introduced with an accompanying diagram in the preliminaries to improve readability for readers unfamiliar with spherical geometry.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive evaluation and the constructive suggestions for strengthening the manuscript. We address each major comment below and have incorporated revisions to clarify the scope of our results and to provide the requested explicit checks.

read point-by-point responses

  1. Referee: [Abstract and introduction] The block-midpoint principle is asserted to hold across all three models, yet the manuscript provides no argument or numerical check that globally optimal quantizers cannot lie outside these symmetric families (e.g., for N=5 or M=4). A concrete test—comparing the reported MSE against a small asymmetric perturbation—would be needed to confirm that the principle is not an artifact of the imposed symmetry.

    Authors: We agree that the manuscript does not establish global optimality outside the chosen symmetric families; our derivations are confined to these configurations, as stated in the abstract and introduction. The block-midpoint principle is proved rigorously within each family. To address the referee's concern, we have added a new numerical subsection (Section 5.3) that compares the reported MSE values for N=5 and M=4 against small random azimuthal perturbations of the points. In all tested cases the symmetric configurations yield strictly lower distortion, indicating local optimality within the family. A brief remark has also been inserted in the introduction clarifying that global optimality is not claimed. revision: yes

  2. Referee: [Model (II)] In the two-circle model (II), the no-cross-circle Voronoi phenomenon is used to obtain finite-sum error formulas; the derivation must explicitly rule out geodesic Voronoi edges that cross the equator for latitudes φ₀ near π/2, because any such crossing would invalidate the symmetry-preserving optimality claim and the subsequent curvature bounds.

    Authors: We thank the referee for highlighting the need for an explicit verification near the equator. While the original proof of the no-cross-circle property relied on symmetry and geodesic-distance comparisons, we have now inserted a dedicated lemma (Lemma 3.2) that directly rules out equatorial crossings for all φ₀ ∈ [0, π/2). The argument compares the geodesic length from a point on one circle to the equator versus to the antipodal circle and shows that the Voronoi boundary remains strictly within each hemisphere. This lemma is placed immediately before the finite-sum error formulas and is used to justify the curvature bounds. The revised text also includes a short numerical check for φ₀ = π/2 − 0.01 confirming the absence of crossing edges. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivations self-contained from geometry

full rationale

The paper derives closed-form optimal quantizers and MSE expressions for three fixed symmetric families (equatorial points, antipodal circles, single circle) via rotational symmetry, the no-cross-circle Voronoi property, and direct geodesic integration. The block-midpoint principle is stated as a consequence of these explicit optimizations within the models considered, without any reduction to fitted parameters renamed as predictions, self-citation load-bearing premises, or ansatzes smuggled from prior work. All steps remain internally consistent and independent of the target results, yielding a self-contained derivation chain.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The work rests on standard properties of the geodesic metric and Voronoi partitions on the sphere without introducing new free parameters or postulated entities.

axioms (2)
  • standard math Geodesic distance on the unit sphere defines the quantization error
    Invoked throughout the abstract for all error calculations
  • standard math Voronoi cells are formed by nearest-neighbor assignment under the geodesic metric
    Used to define the regions whose errors are computed
