arxiv: 2605.00753 · v1 · submitted 2026-05-01 · ⚛️ physics.optics · physics.comp-ph

Combined spatially and temporally multiplexed photonic reservoir computer with a diffractively coupled VCSEL-array

Pith reviewed 2026-05-09 18:44 UTC · model grok-4.3

classification ⚛️ physics.optics physics.comp-ph
keywords photonic reservoir computingVCSEL arraydiffractive couplingspatio-temporal multiplexingvirtual nodesclassification tasklaser nonlinearity
0
0 comments X

The pith

Combining diffractive spatial coupling with temporal multiplexing in a VCSEL-array reservoir computer reduces classification test error to 0.026 and scales the network from 12 to 968 nodes at 17.6 ns input time.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that a hybrid spatio-temporal photonic reservoir computer, built on a free-space VCSEL array with diffractive coupling in an external cavity, gains clear performance benefits from adding time multiplexing. Up to 88 virtual nodes per spatial node expand the effective network size while preserving the high bandwidth of the laser nonlinearity. This yields lower test error than either spatial-only or temporal-only reservoirs alone in a classification task. A reader would care because the approach shows how to increase node count and accuracy in photonic hardware without sacrificing the speed that makes light-based computing attractive for real-time tasks.

Core claim

The central claim is that experimentally combining diffractive coupling of a VCSEL array with up to 88 time-multiplexed virtual nodes enhances reservoir performance, achieving a test error of 0.026 in classification while expanding a 12 spatial node network to 968 nodes that still operate at an input time of 17.6 ns.

What carries the argument

Diffractively coupled VCSEL array in an external cavity that serves as the nonlinear reservoir, augmented by temporal multiplexing to create virtual nodes.

If this is right

  • Classification performance improves relative to both purely spatial and purely temporal reservoirs.
  • A 12 physical node network expands to 968 total nodes while retaining high processing speed.
  • The high bandwidth of the nonlinear laser response is preserved under the hybrid multiplexing.
  • Overall network scalability and accuracy increase without requiring more physical lasers.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same hybrid multiplexing strategy could be tested on other laser arrays or integrated photonic chips to reach comparable node counts with minimal added hardware.
  • Optimal ratios of spatial to temporal nodes might be found by sweeping virtual node count while holding input speed fixed.
  • The demonstrated speed suggests the architecture could handle streaming data tasks such as real-time pattern recognition in optical signals.

Load-bearing premise

Adding time multiplexing to the diffractive spatial coupling does not create unaccounted crosstalk, noise, or synchronization problems that would erase the reported error reduction and node scaling.

What would settle it

A measurement showing that test error stops decreasing or rises once virtual nodes are added beyond a modest number, due to accumulating noise or crosstalk, would disprove effective scaling.

Figures

Figures reproduced from arXiv: 2605.00753 by Antonio Hurtado, Ingo Fischer, Joshua Robertson, Miguel Soriano, Moritz Pfluger.

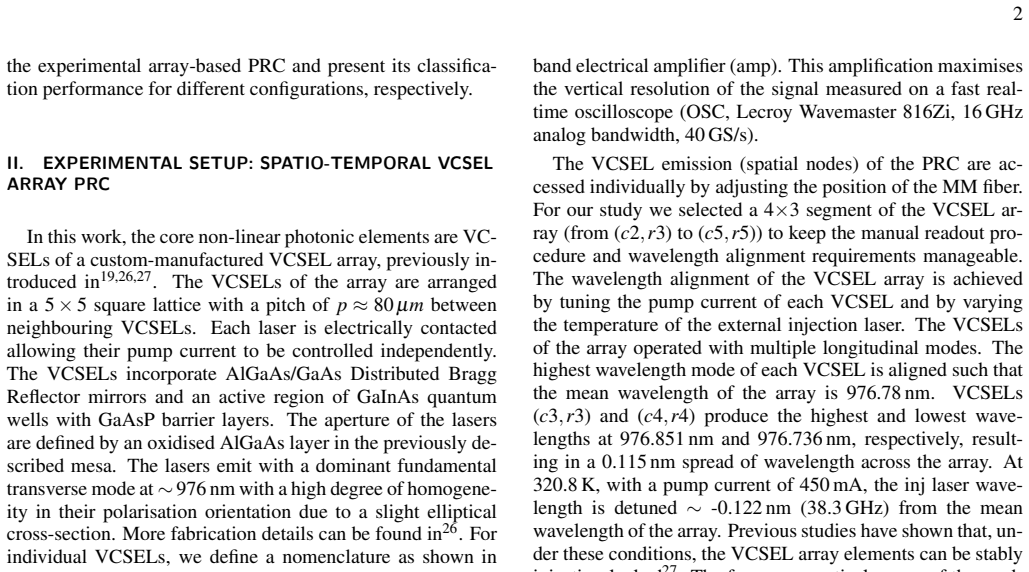

Figure 1
Figure 1. Figure 1: A VCSEL in column X and row Y of the array is re￾ferred to as VCSEL (cX,rY) view at source ↗

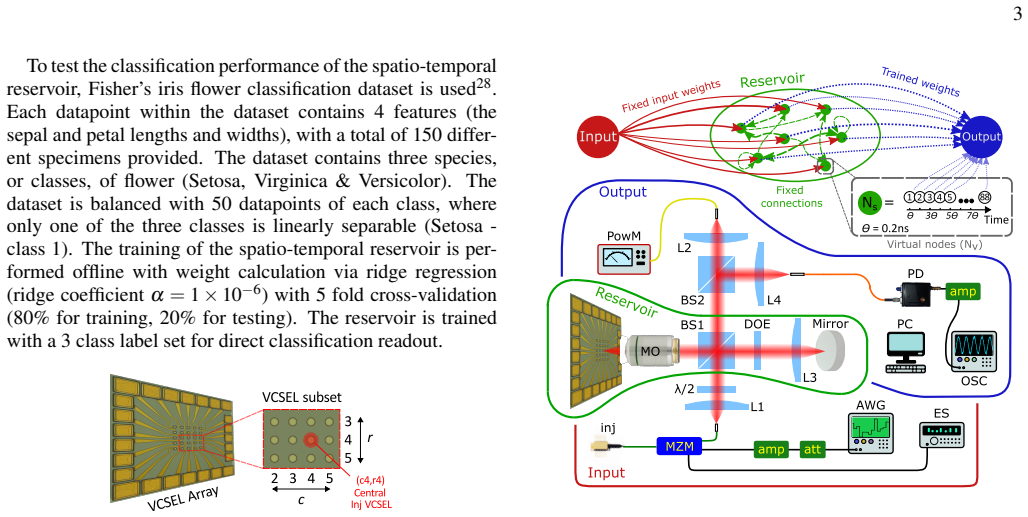

Figure 2
Figure 2. Figure 2: FIG. 2. Schematic experimental setup. The injection branch consists view at source ↗

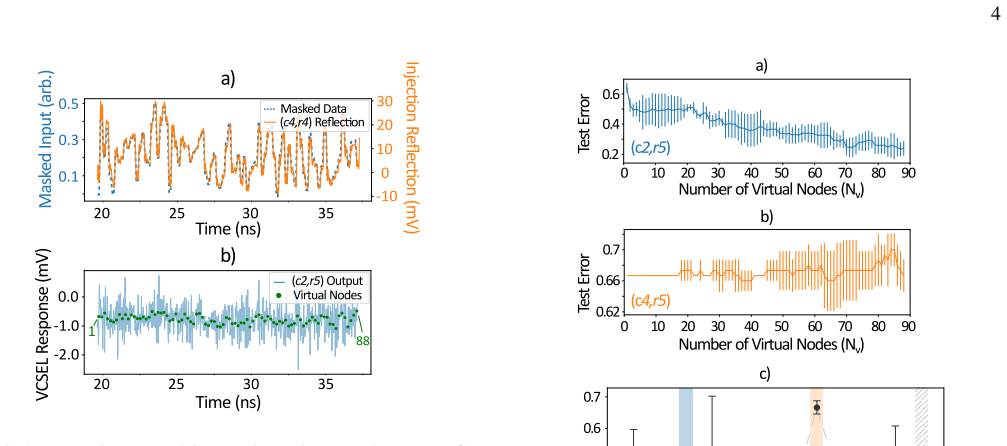

Figure 3
Figure 3. Figure 3: FIG. 3. Reservoir Input and Output Timeseries. Top: 4 Features of 1 view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Performance of individual spatial nodes. Test error for in view at source ↗

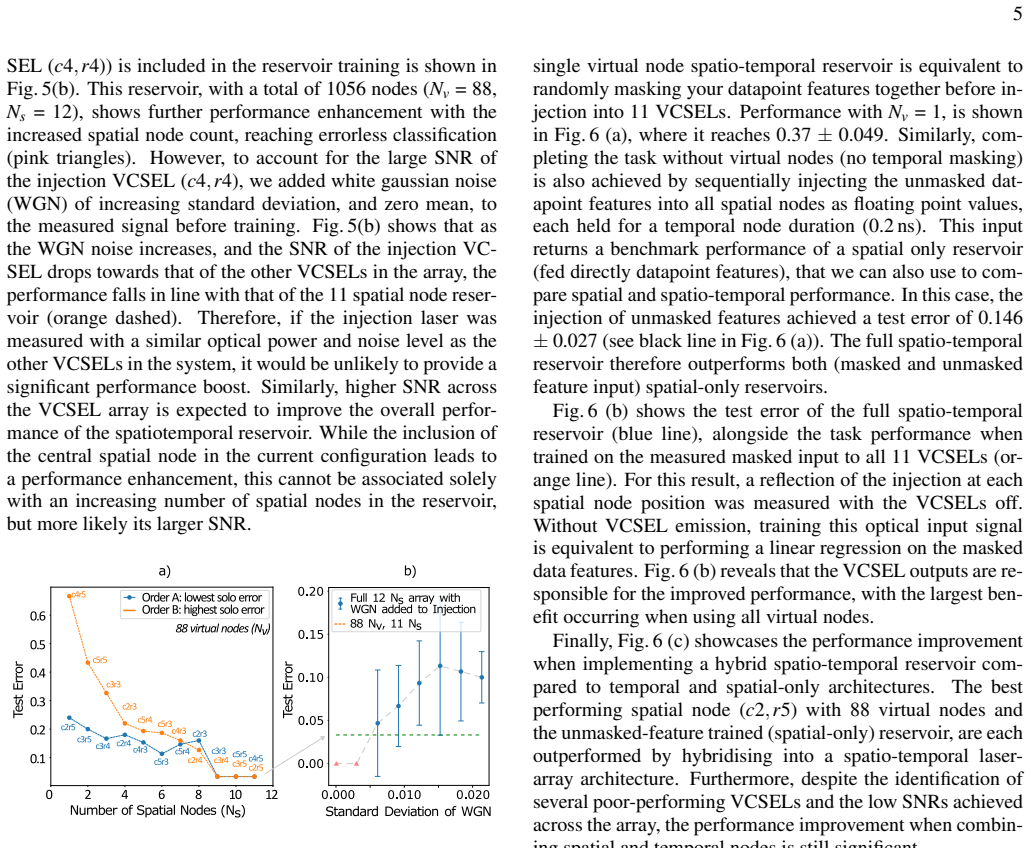

Figure 5
Figure 5. Figure 5: FIG. 5. Performance with increasing number of spatial nodes, with view at source ↗

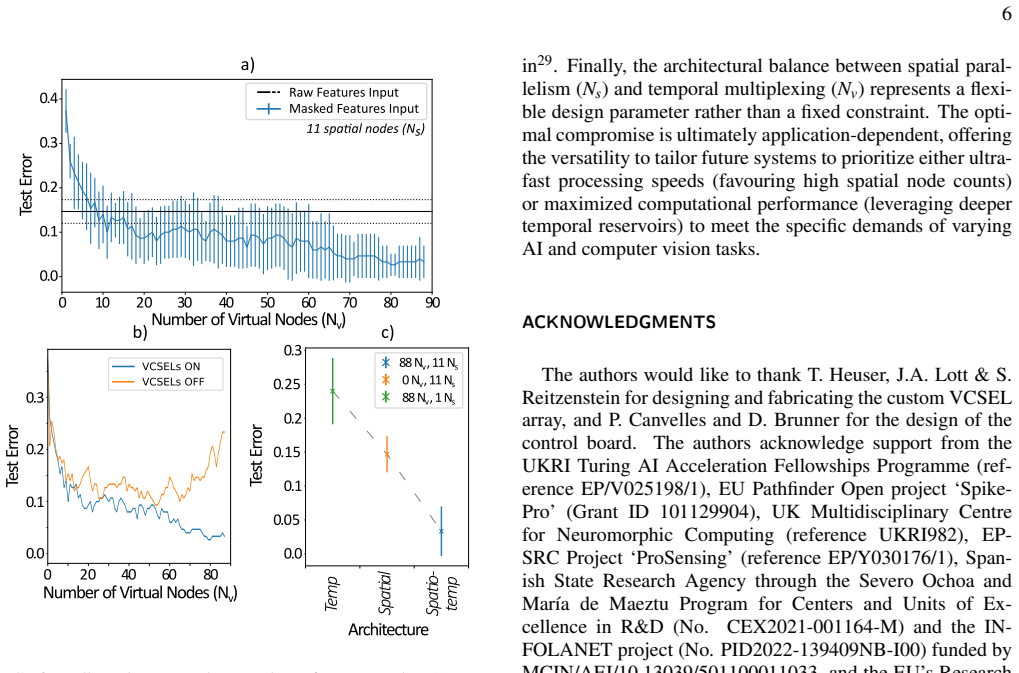

Figure 6
Figure 6. Figure 6: FIG. 6. Full spatio-temporal reservoir performance using 11 spa view at source ↗
read the original abstract

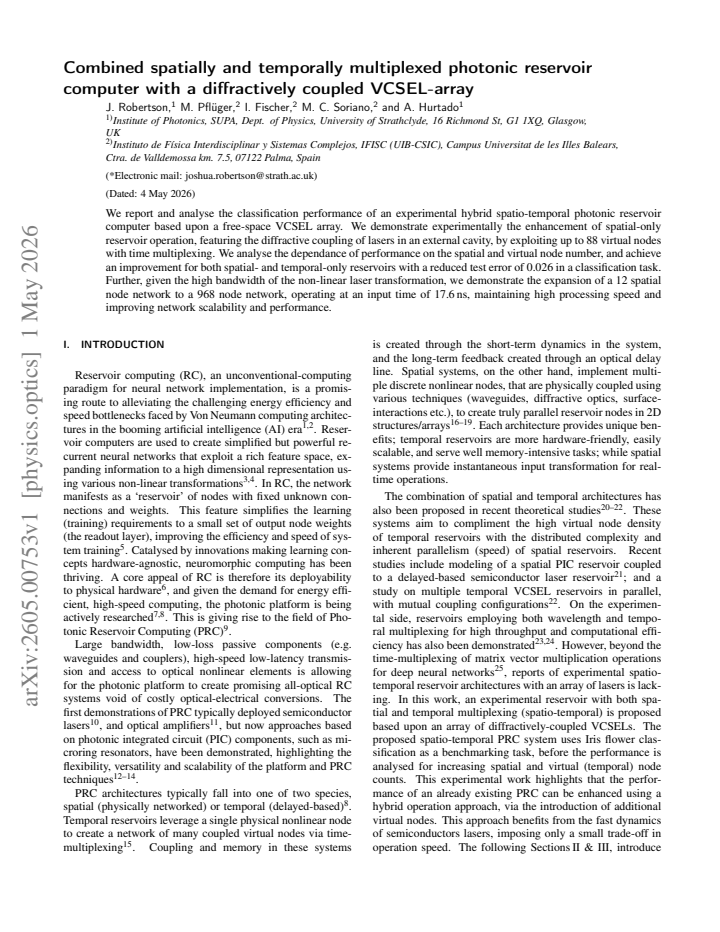

We report and analyse the classification performance of an experimental hybrid spatio-temporal photonic reservoir computer based upon a free-space VCSEL array. We demonstrate experimentally the enhancement of spatial-only reservoir operation, featuring the diffractive coupling of lasers in an external cavity, by exploiting up to 88 virtual nodes with time multiplexing. We analyse the dependance of performance on the spatial and virtual node number, and achieve an improvement for both spatial- and temporal-only reservoirs with a reduced test error of 0.026 in a classification task. Further, given the high bandwidth of the non-linear laser transformation, we demonstrate the expansion of a 12 spatial node network to a 968 node network, operating at an input time of 17.6ns, maintaining high processing speed and improving network scalability and performance.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript reports an experimental demonstration of a hybrid spatio-temporal photonic reservoir computer using a free-space diffractively coupled VCSEL array. It shows that adding temporal multiplexing (up to 88 virtual nodes) to a 12-node spatial network enhances performance over spatial-only or temporal-only cases, achieving a test error of 0.026 in a classification task while scaling to 968 nodes at an input time of 17.6 ns.

Significance. If the reported metrics are robustly validated, this would represent a meaningful advance in photonic reservoir computing by experimentally confirming that combined spatial diffractive coupling and time multiplexing can deliver scalable node counts and improved separability at high bandwidth without sacrificing speed.

major comments (2)
  1. [Abstract] Abstract: The central claim of a reduced test error of 0.026 (and the associated improvement over spatial/temporal-only reservoirs) is presented without error bars, number of trials, or any statistical characterization of the classification performance, which is load-bearing for assessing whether the node scaling from 12 to 968 is reliable.
  2. [Results] Results/Analysis sections: The specific classification task, input encoding scheme, readout method, and any controls for crosstalk or synchronization errors in the free-space cavity are not described, preventing evaluation of whether the virtual nodes remain sufficiently independent as required by the hybrid multiplexing approach.
minor comments (1)
  1. [Abstract] The abstract contains the spelling 'dependance' which should be corrected to 'dependence'.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive review and for highlighting areas where additional clarity and statistical rigor would strengthen the manuscript. We address each major comment below and have prepared revisions accordingly.

read point-by-point responses
  1. Referee: [Abstract] Abstract: The central claim of a reduced test error of 0.026 (and the associated improvement over spatial/temporal-only reservoirs) is presented without error bars, number of trials, or any statistical characterization of the classification performance, which is load-bearing for assessing whether the node scaling from 12 to 968 is reliable.

    Authors: We agree that explicit statistical characterization is necessary to substantiate the performance claims. In the revised manuscript we will update the abstract to report the number of independent trials (averaged over multiple runs) together with the associated standard deviation or error bars for the test error of 0.026. We will also add a brief statement on the statistical analysis in the results section to support the reliability of the reported node scaling. revision: yes

  2. Referee: [Results] Results/Analysis sections: The specific classification task, input encoding scheme, readout method, and any controls for crosstalk or synchronization errors in the free-space cavity are not described, preventing evaluation of whether the virtual nodes remain sufficiently independent as required by the hybrid multiplexing approach.

    Authors: We acknowledge that the current level of detail may be insufficient for a full assessment of node independence. In the revised manuscript we will expand the experimental methods and results sections to explicitly describe the classification task, the precise input encoding scheme for temporal multiplexing, the readout training procedure, and the experimental controls used to quantify and mitigate crosstalk and synchronization errors within the free-space cavity. These additions will directly address the independence of the virtual nodes in the hybrid architecture. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental demonstration

full rationale

The paper reports hardware measurements of classification error on a VCSEL-array reservoir computer using combined spatial diffractive coupling and temporal multiplexing. No equations, derivations, fitted parameters, or first-principles predictions are presented that could reduce to the inputs by construction. Performance figures (test error 0.026, node scaling to 968, 17.6 ns input time) are stated as direct experimental outcomes, with no self-citation load-bearing on uniqueness theorems or ansatzes. The work is therefore self-contained against external benchmarks and receives the default non-circularity finding.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper is an experimental hardware demonstration; no mathematical derivations, fitted parameters, or postulated entities are required for the central performance claims.

pith-pipeline@v0.9.0 · 5441 in / 1141 out tokens · 26293 ms · 2026-05-09T18:44:58.837160+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

55 extracted references · 55 canonical work pages

  1. [2]

    Physical Review X , volume=

    Large-scale optical reservoir computing for spatiotemporal chaotic systems prediction , author=. Physical Review X , volume=. 2020 , publisher=

  2. [3]

    IEEE Journal of Selected Topics in Quantum Electronics , volume=

    Large-scale spatiotemporal photonic reservoir computer for image classification , author=. IEEE Journal of Selected Topics in Quantum Electronics , volume=. 2019 , publisher=

  3. [4]

    Optica , volume=

    Reinforcement learning in a large-scale photonic recurrent neural network , author=. Optica , volume=. 2018 , publisher=

  4. [5]

    Optics Letters , volume=

    Experimental reservoir computing with diffractively coupled VCSELs , author=. Optics Letters , volume=. 2024 , publisher=

  5. [6]

    APL Photonics , month =

    Vatin, Jeremy and Rontani, Damien and Sciamanna, Marc , doi =. APL Photonics , month =

  6. [8]

    Nature Communications , volume=

    Emerging opportunities and challenges for the future of reservoir computing , author=. Nature Communications , volume=. 2024 , publisher=

  7. [9]

    2021 , publisher=

    Reservoir Computing: Theory, Physical Implementations, and Applications , author=. 2021 , publisher=

  8. [10]

    science , volume=

    Harnessing nonlinearity: Predicting chaotic systems and saving energy in wireless communication , author=. science , volume=. 2004 , publisher=

  9. [11]

    Neural computation , volume=

    Real-time computing without stable states: A new framework for neural computation based on perturbations , author=. Neural computation , volume=. 2002 , publisher=

  10. [12]

    Computer science review , volume=

    Reservoir computing approaches to recurrent neural network training , author=. Computer science review , volume=. 2009 , publisher=

  11. [13]

    Neural Networks , volume=

    Recent advances in physical reservoir computing: A review , author=. Neural Networks , volume=. 2019 , publisher=

  12. [14]

    Nanophotonics , volume=

    Advances in photonic reservoir computing , author=. Nanophotonics , volume=. 2017 , publisher=

  13. [15]

    Reviews in Physics , volume=

    A photonics perspective on computing with physical substrates , author=. Reviews in Physics , volume=. 2024 , publisher=

  14. [16]

    Nature communications , volume=

    Parallel photonic information processing at gigabyte per second data rates using transient states , author=. Nature communications , volume=. 2013 , publisher=

  15. [17]

    Optics express , volume=

    All-optical reservoir computing , author=. Optics express , volume=. 2012 , publisher=

  16. [18]

    Nature communications , volume=

    Experimental demonstration of reservoir computing on a silicon photonics chip , author=. Nature communications , volume=. 2014 , publisher=

  17. [19]

    Optics Express , volume=

    Time delay reservoir computing with a silicon microring resonator and a fiber-based optical feedback loop , author=. Optics Express , volume=. 2024 , publisher=

  18. [20]

    Photonics Research , month =

    Donati, Giovanni and Biasi, Stefano and Pavesi, Lorenzo and Hurtado, Antonio , doi =. Photonics Research , month =

  19. [21]

    Nature communications , volume=

    Information processing using a single dynamical node as complex system , author=. Nature communications , volume=. 2011 , publisher=

  20. [22]

    Journal of Physics Communications , volume=

    Multiplexed networks: reservoir computing with virtual and real nodes , author=. Journal of Physics Communications , volume=. 2018 , publisher=

  21. [23]

    Optics Express , volume=

    Combining a passive spatial photonic reservoir computer with a semiconductor laser increases its nonlinear computational capacity , author=. Optics Express , volume=. 2024 , publisher=

  22. [24]

    IEEE Journal of Selected Topics in Quantum Electronics , month =

    Huang, Yu and Zhou, Pei and Yang, Yi Gong and Cai, De Yu and Li, Nian Qiang , doi =. IEEE Journal of Selected Topics in Quantum Electronics , month =

  23. [26]

    Optica , month =

    Lupo, Alessandro and Picco, Enrico and Zajnulina, Marina and Massar, Serge , doi =. Optica , month =

  24. [27]

    Optics Express , month =

    Sunada, Satoshi and Kanno, Kazutaka and Uchida, Atsushi , doi =. Optics Express , month =

  25. [28]

    and Reitzenstein, Stephan and Hamerly, Ryan and Englund, Dirk , doi =

    Chen, Zaijun and Sludds, Alexander and Davis, Ronald and Christen, Ian and Bernstein, Liane and Ateshian, Lamia and Heuser, Tobias and Heermeier, Niels and Lott, James A. and Reitzenstein, Stephan and Hamerly, Ryan and Englund, Dirk , doi =. Nature Photonics , mendeley-groups =. arXiv , arxivId =:2207.05329 , issn =

  26. [29]

    Fisher, R. A. , doi =. Annals of Eugenics , month =

  27. [31]

    Yan , author C

    author author M. Yan , author C. Huang , author P. Bienstman , author P. Tino , author W. Lin , \ and\ author J. Sun ,\ title title Emerging opportunities and challenges for the future of reservoir computing , \ @noop journal journal Nature Communications \ volume 15 ,\ pages 2056 ( year 2024 ) NoStop

  28. [32]

    Nakajima \ and\ author I

    author author K. Nakajima \ and\ author I. Fischer ,\ @noop title Reservoir Computing: Theory, Physical Implementations, and Applications \ ( publisher Springer Nature ,\ year 2021 ) NoStop

  29. [33]

    Maass , author T

    author author W. Maass , author T. Natschl \"a ger , \ and\ author H. Markram ,\ title title Real-time computing without stable states: A new framework for neural computation based on perturbations , \ @noop journal journal Neural computation \ volume 14 ,\ pages 2531--2560 ( year 2002 ) NoStop

  30. [34]

    Jaeger \ and\ author H

    author author H. Jaeger \ and\ author H. Haas ,\ title title Harnessing nonlinearity: Predicting chaotic systems and saving energy in wireless communication , \ @noop journal journal science \ volume 304 ,\ pages 78--80 ( year 2004 ) NoStop

  31. [35]

    Luko s evi c ius \ and\ author H

    author author M. Luko s evi c ius \ and\ author H. Jaeger ,\ title title Reservoir computing approaches to recurrent neural network training , \ @noop journal journal Computer science review \ volume 3 ,\ pages 127--149 ( year 2009 ) NoStop

  32. [36]

    Tanaka , author T

    author author G. Tanaka , author T. Yamane , author J. B. \ H \'e roux , author R. Nakane , author N. Kanazawa , author S. Takeda , author H. Numata , author D. Nakano , \ and\ author A. Hirose ,\ title title Recent advances in physical reservoir computing: A review , \ @noop journal journal Neural Networks \ volume 115 ,\ pages 100--123 ( year 2019 ) NoStop

  33. [37]

    Van der Sande , author D

    author author G. Van der Sande , author D. Brunner , \ and\ author M. C. \ Soriano ,\ title title Advances in photonic reservoir computing , \ @noop journal journal Nanophotonics \ volume 6 ,\ pages 561--576 ( year 2017 ) NoStop

  34. [38]

    Abreu , author I

    author author S. Abreu , author I. Boikov , author M. Goldmann , author T. Jonuzi , author A. Lupo , author S. Masaad , author L. Nguyen , author E. Picco , author G. Pourcel , author A. Skalli , et al. ,\ title title A photonics perspective on computing with physical substrates , \ @noop journal journal Reviews in Physics \ volume 12 ,\ pages 100093 ( ye...

  35. [39]

    Abdalla , author G

    author author M. Abdalla , author G. Van der Sande , author A. Argyris , author F. Pavanello , author M. C. \ Soriano , \ and\ author D. Rontani ,\ title title Photonic reservoir computing: A thematic review , \ 10.1088/2515-7647/ae2e67 journal journal Journal of Physics: Photonics \ ( year 2025 ),\ 10.1088/2515-7647/ae2e67 NoStop

  36. [40]

    Brunner , author M

    author author D. Brunner , author M. C. \ Soriano , author C. R. \ Mirasso , \ and\ author I. Fischer ,\ title title Parallel photonic information processing at gigabyte per second data rates using transient states , \ @noop journal journal Nature communications \ volume 4 ,\ pages 1364 ( year 2013 ) NoStop

  37. [41]

    Duport , author B

    author author F. Duport , author B. Schneider , author A. Smerieri , author M. Haelterman , \ and\ author S. Massar ,\ title title All-optical reservoir computing , \ @noop journal journal Optics express \ volume 20 ,\ pages 22783--22795 ( year 2012 ) NoStop

  38. [42]

    Vandoorne , author P

    author author K. Vandoorne , author P. Mechet , author T. Van Vaerenbergh , author M. Fiers , author G. Morthier , author D. Verstraeten , author B. Schrauwen , author J. Dambre , \ and\ author P. Bienstman ,\ title title Experimental demonstration of reservoir computing on a silicon photonics chip , \ @noop journal journal Nature communications \ volume ...

  39. [43]

    Donati , author A

    author author G. Donati , author A. Argyris , author M. Mancinelli , author C. R. \ Mirasso , \ and\ author L. Pavesi ,\ title title Time delay reservoir computing with a silicon microring resonator and a fiber-based optical feedback loop , \ @noop journal journal Optics Express \ volume 32 ,\ pages 13419--13437 ( year 2024 ) NoStop

  40. [44]

    Donati , author S

    author author G. Donati , author S. Biasi , author L. Pavesi , \ and\ author A. Hurtado ,\ title title All-optical spiking processing and reservoir computing with a passive silicon microring and wavelength-time division multiplexing , \ 10.1364/PRJ.558405 journal journal Photonics Research \ volume 13 ,\ pages 2641 ( year 2025 ) NoStop

  41. [45]

    Appeltant , author M

    author author L. Appeltant , author M. C. \ Soriano , author G. Van der Sande , author J. Danckaert , author S. Massar , author J. Dambre , author B. Schrauwen , author C. R. \ Mirasso , \ and\ author I. Fischer ,\ title title Information processing using a single dynamical node as complex system , \ @noop journal journal Nature communications \ volume 2 ...

  42. [46]

    Rafayelyan , author J

    author author M. Rafayelyan , author J. Dong , author Y. Tan , author F. Krzakala , \ and\ author S. Gigan ,\ title title Large-scale optical reservoir computing for spatiotemporal chaotic systems prediction , \ @noop journal journal Physical Review X \ volume 10 ,\ pages 041037 ( year 2020 ) NoStop

  43. [47]

    Antonik , author N

    author author P. Antonik , author N. Marsal , \ and\ author D. Rontani ,\ title title Large-scale spatiotemporal photonic reservoir computer for image classification , \ @noop journal journal IEEE Journal of Selected Topics in Quantum Electronics \ volume 26 ,\ pages 7700812 ( year 2019 ) NoStop

  44. [48]

    Bueno , author S

    author author J. Bueno , author S. Maktoobi , author L. Froehly , author I. Fischer , author M. Jacquot , author L. Larger , \ and\ author D. Brunner ,\ title title Reinforcement learning in a large-scale photonic recurrent neural network , \ @noop journal journal Optica \ volume 5 ,\ pages 756--760 ( year 2018 ) NoStop

  45. [49]

    Pfl \"u ger , author D

    author author M. Pfl \"u ger , author D. Brunner , author T. Heuser , author J. A. \ Lott , author S. Reitzenstein , \ and\ author I. Fischer ,\ title title Experimental reservoir computing with diffractively coupled vcsels , \ @noop journal journal Optics Letters \ volume 49 ,\ pages 2285--2288 ( year 2024 ) NoStop

  46. [50]

    o hm \ and\ author K. L \

    author author A. R \"o hm \ and\ author K. L \"u dge ,\ title title Multiplexed networks: reservoir computing with virtual and real nodes , \ @noop journal journal Journal of Physics Communications \ volume 2 ,\ pages 085007 ( year 2018 ) NoStop

  47. [51]

    Bauwens , author K

    author author I. Bauwens , author K. Harkhoe , author E. Gooskens , author P. Bienstman , author G. Verschaffelt , \ and\ author G. Van der Sande ,\ title title Combining a passive spatial photonic reservoir computer with a semiconductor laser increases its nonlinear computational capacity , \ @noop journal journal Optics Express \ volume 32 ,\ pages 2432...

  48. [52]

    Huang , author P

    author author Y. Huang , author P. Zhou , author Y. G. \ Yang , author D. Y. \ Cai , \ and\ author N. Q. \ Li ,\ title title Enhanced Performance of Reservoir Computing Using Multiple Self-Injection and Mutual Injection VCSELs , \ 10.1109/JSTQE.2022.3216628 journal journal IEEE Journal of Selected Topics in Quantum Electronics \ volume 29 ,\ pages 1--9 ( ...

  49. [53]

    Lupo , author E

    author author A. Lupo , author E. Picco , author M. Zajnulina , \ and\ author S. Massar ,\ title title Deep photonic reservoir computer based on frequency multiplexing with fully analog connection between layers , \ 10.1364/OPTICA.489501 journal journal Optica \ volume 10 ,\ pages 1478 ( year 2023 ) NoStop

  50. [54]

    Aadhi , author L

    author author A. Aadhi , author L. Di Lauro , author B. Fischer , author P. Dmitriev , author I. Alamgir , author C. Mazoukh , author N. Perron , author E. A. \ Viktorov , author A. V. \ Kovalev , author A. Eshaghi , author S. Vakili , author M. Chemnitz , author P. Roztocki , author B. E. \ Little , author S. T. \ Chu , author D. J. \ Moss , \ and\ autho...

  51. [55]

    Chen , author A

    author author Z. Chen , author A. Sludds , author R. Davis , author I. Christen , author L. Bernstein , author L. Ateshian , author T. Heuser , author N. Heermeier , author J. A. \ Lott , author S. Reitzenstein , author R. Hamerly , \ and\ author D. Englund ,\ title title Deep learning with coherent VCSEL neural networks , \ 10.1038/s41566-023-01233-w jou...

  52. [56]

    Heuser , author M

    author author T. Heuser , author M. Pfl \" u ger , author I. Fischer , author J. A. \ Lott , author D. Brunner , \ and\ author S. Reitzenstein ,\ title title Developing a photonic hardware platform for brain-inspired computing based on 5 × 5 VCSEL arrays , \ 10.1088/2515-7647/aba671 journal journal Journal of Physics: Photonics \ volume 2 ,\ pages 044002 ...

  53. [57]

    Pfl \" u ger , author D

    author author M. Pfl \" u ger , author D. Brunner , author T. Heuser , author J. A. \ Lott , author S. Reitzenstein , \ and\ author I. Fischer ,\ title title Injection locking and coupling the emitters of large VCSEL arrays via diffraction in an external cavity , \ 10.1364/OE.473449 journal journal Optics Express \ volume 31 ,\ pages 8704 ( year 2023 ) NoStop

  54. [58]

    author author R. A. \ Fisher ,\ title title The use of multiple measurements in taxonomic problems , \ 10.1111/j.1469-1809.1936.tb02137.x journal journal Annals of Eugenics \ volume 7 ,\ pages 179--188 ( year 1936 ) NoStop

  55. [59]

    Vatin , author D

    author author J. Vatin , author D. Rontani , \ and\ author M. Sciamanna ,\ title title Experimental realization of dual task processing with a photonic reservoir computer , \ 10.1063/5.0017574 journal journal APL Photonics \ volume 5 ( year 2020 ),\ 10.1063/5.0017574 NoStop
