arxiv: 2605.01084 · v1 · submitted 2026-05-01 · 💻 cs.CV

Patient-Specific Optimization for Mandibular Reconstruction Planning with Enhanced Bone Union

Hamidreza Aftabi , John E. Lloyd , Amanda Ding , Benedikt Sagl , Eitan Prisman , Antony Hodgson , Sidney Fels This is my paper

Pith reviewed 2026-05-09 19:04 UTC · model grok-4.3

classification 💻 cs.CV
keywords mandibular reconstructionvascularized bone graftbone unionvirtual surgical planningBayesian optimizationpatient-specific modelingdigital twinapposition
0
0 comments X

The pith

Patient-specific digital twins and Bayesian optimization increase donor-mandible apposition by up to 29 percentage points in mandibular reconstruction planning.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a workflow that converts a pre-operative CT into a patient-specific digital twin by registering templates and updating muscle and joint parameters from imaging. Bayesian optimization then searches six cut-plane and donor-position variables to maximize an objective based on cycle-averaged bone apposition under a safety constraint. This produces plans that raise apposition by up to 29 percentage points over standard approaches in generic defects and 26 points over actual post-operative configurations in patient cases. A reader would care because nonunion after vascularized bone grafting remains a frequent problem, and existing virtual planning tools focus on geometry rather than mechanical conditions that support healing.

Core claim

OsteoOpt++ converts pre-operative CT data into a personalized digital twin through template-to-patient registration and CT-derived muscle and temporomandibular-joint updates, then applies Bayesian optimization with an expected-improvement-plus acquisition function to search six clinically controllable variables under an apposition-driven objective, achieving cycle-averaged donor-mandible apposition gains of up to 29 percentage points against common surgical approaches in generic cases and up to 26 percentage points against surgeon-implemented day-5 configurations in patient-specific cases.

What carries the argument

OsteoOpt++, an image-to-decision planning loop that builds a patient-specific digital twin via template registration and CT-derived tissue updates, then uses Bayesian optimization to maximize an apposition objective over six cut-plane and donor-positioning variables.

If this is right

  • Surgeons obtain pre-operative, image-driven recommendations for cut-plane orientation and donor placement that are predicted to improve union conditions over configurations delivered in the operating room.
  • The method delivers measurable apposition increases in both generic defect models and real patient-specific cases with low sensitivity to eleven modeling parameters.
  • In one longitudinal validation case the predicted apposition maps show Dice overlap of 0.70 and 0.76 with year-1 bone formation observed on follow-up imaging.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same digital-twin and optimization loop could be applied to other vascularized bone graft sites where nonunion rates are also high.
  • Real-time surgical navigation systems might incorporate the apposition objective to allow intra-operative fine-tuning of cut angles or graft seating.
  • Larger multi-center cohorts could test whether the reported apposition gains correspond to fewer secondary interventions for nonunion.

Load-bearing premise

The apposition-driven objective computed from the digital twin accurately predicts improved clinical bone union, and the template-to-patient registration together with CT-derived muscle and TMJ updates produce a sufficiently faithful biomechanical model.

What would settle it

A prospective clinical comparison of one-year radiographic bone union rates between patients whose reconstructions used the optimized cut-plane and donor-position plans versus matched patients whose plans used standard geometric virtual surgical planning.

Figures

Figures reproduced from arXiv: 2605.01084 by Amanda Ding, Antony Hodgson, Benedikt Sagl, Eitan Prisman, Hamidreza Aftabi, John E. Lloyd, Sidney Fels.

Figure 1

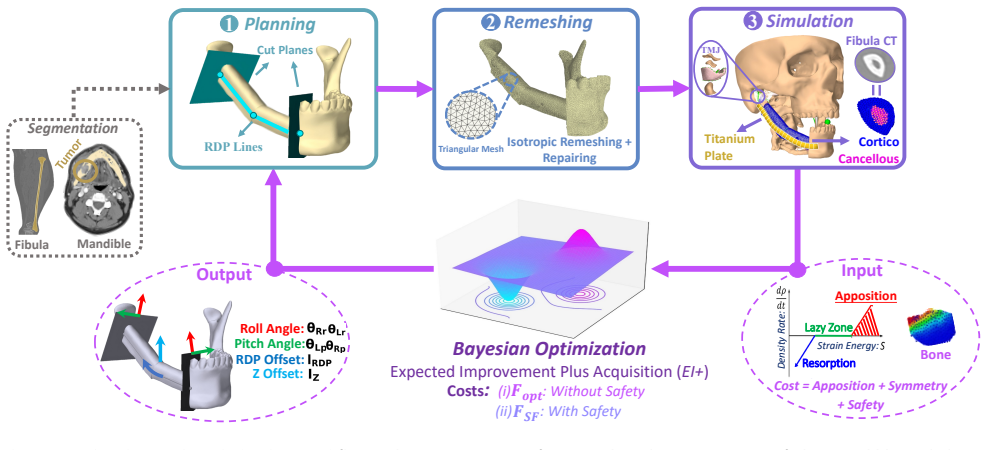

Figure 1. Figure 1: Planning and optimization workflow. The process starts from CT-based segmentation of the mandible and donor fibula, followed by construction of the corresponding 3D surface models and definition of the tumor or resection region. For each candidate design, the virtual-planning stage generates the defect-specific resection geometry, donor-segment configuration, and fixation-plate layout. The arrowheads indic… view at source ↗
Figure 2

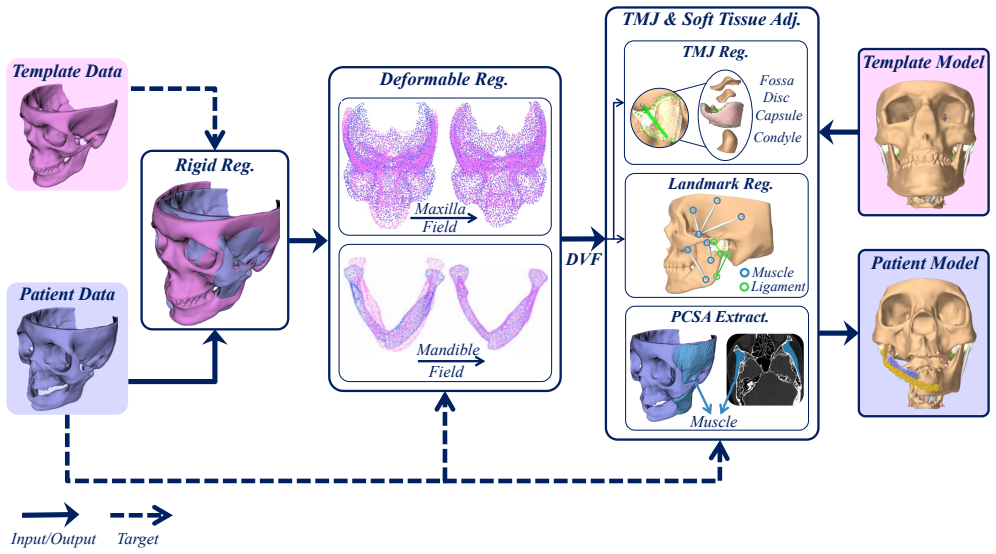

Figure 2. Figure 2: Overview of the automated patient-specific workflow. The diagram summarizes the template-to-patient pipeline described in Algorithm 1. A healthy generic craniofacial model provides the anatomical prior, while patient CT provides the patient-specific skeletal geometry and muscle information used for personalization. These two streams are coupled through maxilla-based rigid initialization, coherent point dri… view at source ↗
Figure 3

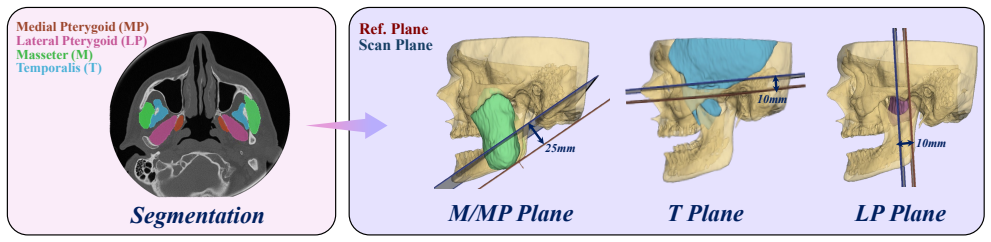

Figure 3. Figure 3: Muscle segmentation and scan cross-section plane definition for PCSA estimation. TotalSegmentator Wasserthal et al. (2023) is used to segment the principal masticatory muscles from patient CT. Landmark-defined reference planes and neighboring parallel planes are then used to extract scan cross sections (SCSs) for the PCSA update. detailed muscle fiber orientation information, which cannot be obtained from … view at source ↗
Figure 4

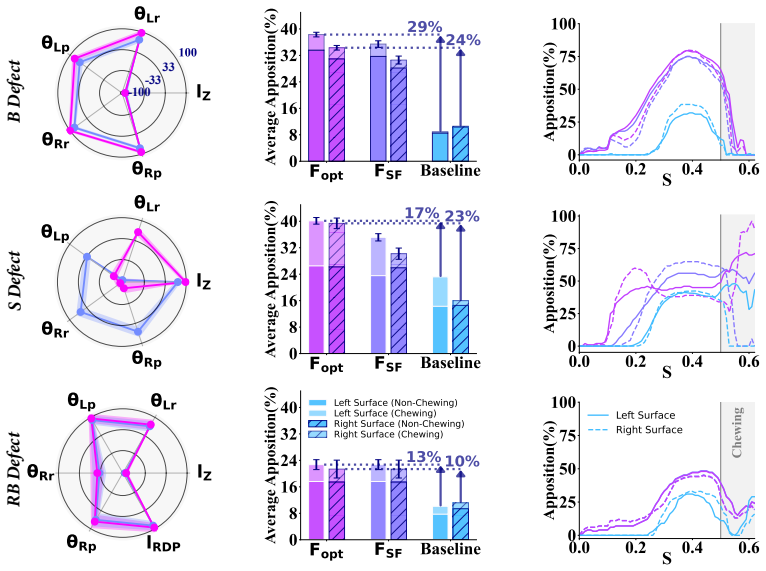

Figure 4. Figure 4: Optimization outcomes for the generic defect cases. Rows show B, S, and RB defects; columns show optimized design parameters mapped to [−100, 100], mean donor-mandible apposition over one chewing cycle, and the corresponding apposition trajectory. The gray interval marks bolus engagement. Results are shown for baseline reconstructions, representing common surgical practice with zero design-variable offsets… view at source ↗
Figure 5

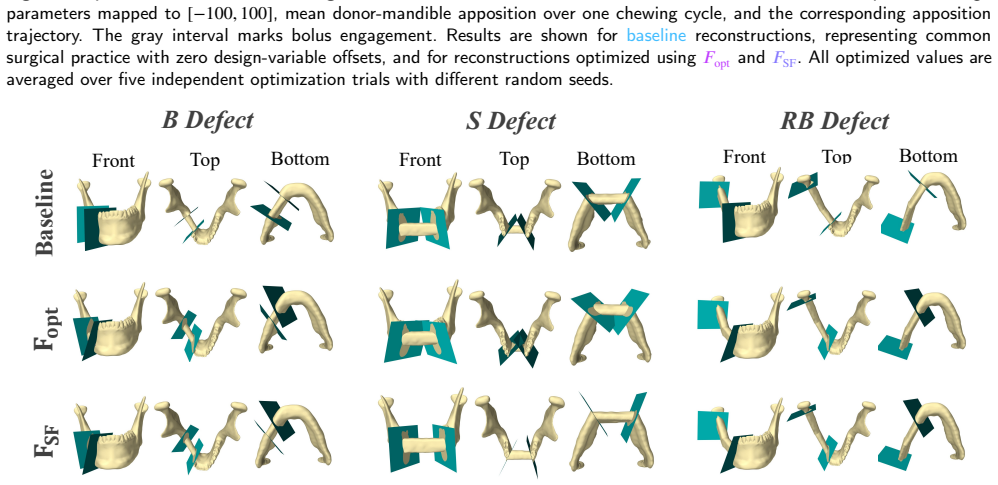

Figure 5. Figure 5: Generic reconstruction configurations. Baseline reconstructions, representing common surgical practice, and the optimized 𝐹opt and 𝐹SF reconstructions are shown for the B, S, and RB defect cases from front, top, and bottom views. Taken together, the generic-model results indicate that the proposed cost functions are well posed, that mean￾ingful improvements over common-practice baselines are recoverable in… view at source ↗
Figure 6

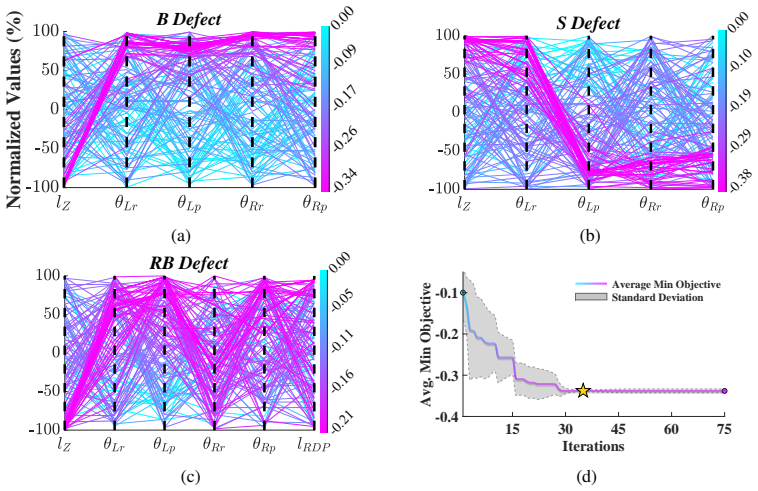

Figure 6. Figure 6: Optimization behavior for the 𝐹opt objective. Panels (a)–(c) show 150-iteration parallel-coordinate analyses relating normalized design parameters to the objective value for the B, S, and RB defects, respectively. Parameters are normalized to [−100, 100], and magenta highlights the optimal region. Panel (d) shows an example convergence profile for the B defect over 75 iterations across five optimization tr… view at source ↗
Figure 7

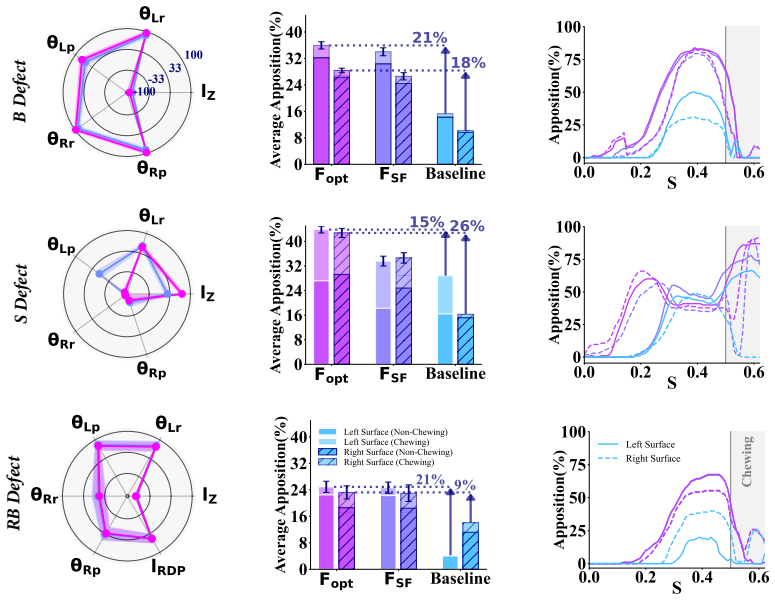

Figure 7. Figure 7: Optimization outcomes for the patient-specific cases. Rows show the patient-specific B, S, and RB cases; columns show optimized design parameters mapped to [−100, 100], mean donor-mandible apposition over one chewing cycle, and the corresponding apposition trajectory. The gray interval marks bolus engagement. Results are shown for baseline reconstructions, defined by the surgeon-implemented day-5 post-op C… view at source ↗
Figure 8

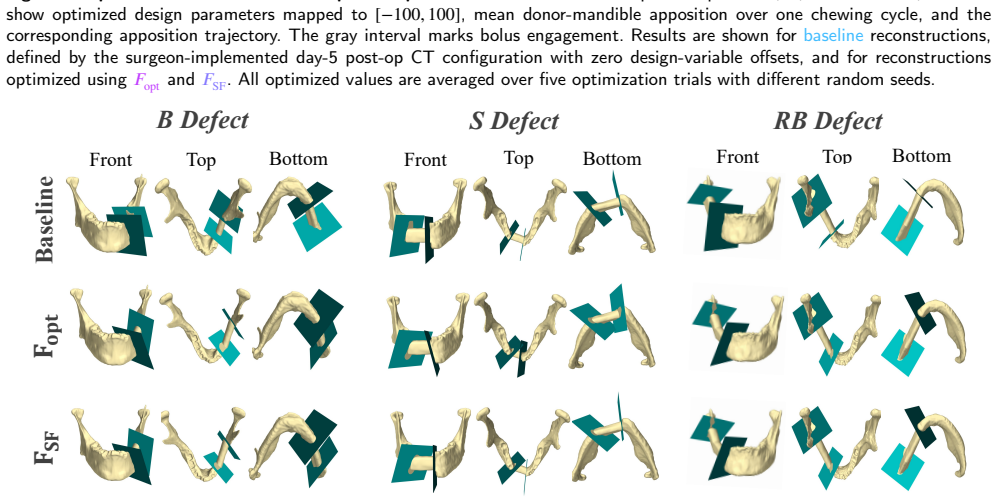

Figure 8. Figure 8: Patient-specific reconstruction configurations. Baseline reconstructions, corresponding to the surgeon-implemented configuration recovered from day-5 post-op CT, and the optimized 𝐹opt and 𝐹SF reconstructions are shown for the patient-specific B, S, and RB cases from front, top, and bottom views. while the underlying configurations differ in their worst￾case principal stresses on cortical and cancellous bo… view at source ↗
Figure 9

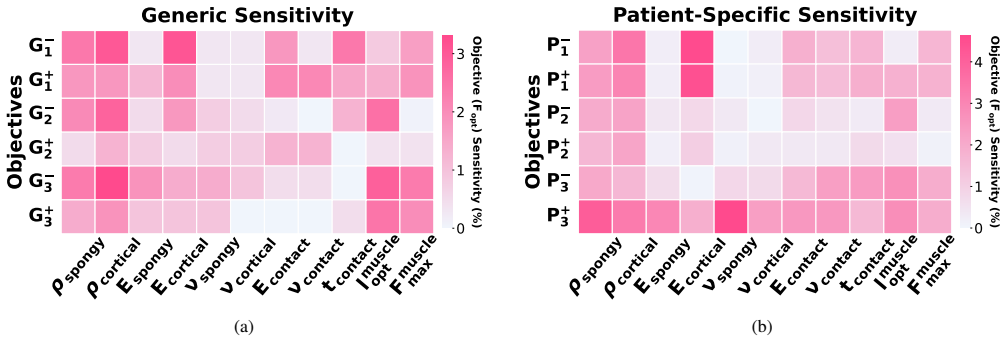

Figure 9. Figure 9: Sensitivity analysis of model parameters. Average effect, over five runs, of −10% and +10% perturbations in 11 modeling parameters on the 𝐹opt objective for (a) the generic B, S, and RB defect models and (b) the patient-specific models with similar defect types. G denotes the generic model, P denotes the patient-specific model, and superscripts − and + indicate −10% and +10% perturbations, respectively. Ac… view at source ↗
Figure 10

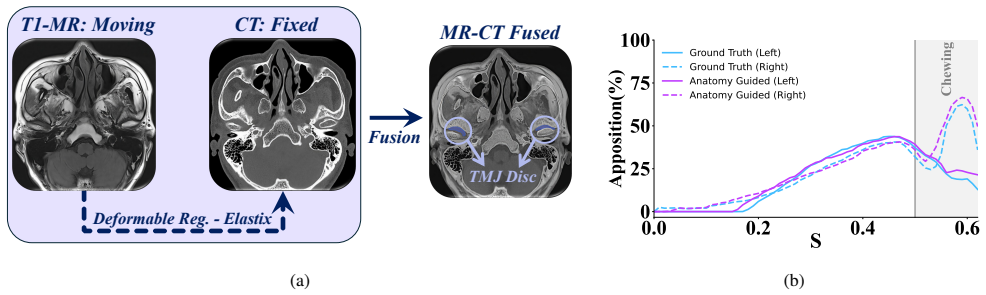

Figure 10. Figure 10: TMJ-disc sensitivity analysis. (a) T1-weighted MRI was registered to the CT image using Elastix, and the fused image was used to guide temporomandibular joint disc segmentation. (b) Donor-mandible apposition trajectories over one chewing cycle are compared between the real segmented disc and the anatomy-guided disc approximation used in the patient-specific model. The gray interval marks bolus engagement.… view at source ↗
Figure 11
Figure 11. Figure 11: Longitudinal validation of predicted bone-union apposition. The patient-specific model was constructed from day-5 post-op CT and used to predict donor-mandible apposition near the resection interfaces. The predicted apposition pattern was compared with bone formation observed on year-1 post-op CT, yielding Dice scores of 0.70 and 0.76 at the left and right resection interfaces, respectively. This study sh… view at source ↗
read the original abstract

Mandibular reconstruction with vascularized bone grafts is complicated by donor-host nonunion, and current virtual surgical planning produces a geometric plan rather than a configuration that explicitly promotes bone union. We present OsteoOpt++, an image-to-decision planning loop for patient-specific mandibular reconstruction. A pre-operative computed tomography (CT) is converted into a personalized digital twin through template-to-patient registration and CT-derived updates of the muscle and temporomandibular-joint parameters. Bayesian optimization with an expected-improvement-plus acquisition rule then searches six clinically controllable cut-plane and donor-positioning variables under an apposition-driven objective and a safety-factor-regularized variant. The workflow was evaluated on three generic defects (body, symphysis, and ramus-body) and a total of 3+1 patient-specific cases, with 3 used for optimization and 1 for validation. In the generic cases, against a common surgical approach, cycle-averaged donor-mandible apposition increased by up to 29 percentage points (329% relative); in the patient-specific cases, against the surgeon-implemented day-5 post-operative configuration, by up to 26 percentage points. A 10% sensitivity analysis over eleven modeling parameters capped the change in the apposition-driven objective at 3% for generic cases and 4% for patient-specific cases, and the longitudinal case showed Dice overlap of 0.70 and 0.76 between predicted apposition and year-1 bone formation. Clinically, this provides surgeons with a pre-operative, image-driven recommendation for cut-plane orientation and donor placement that is predicted to improve union conditions over the configurations currently delivered in the operating room. The optimization and patient-specific modeling code is open source at https://github.com/hamidreza-aftabi/OsteoOpt.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The manuscript introduces OsteoOpt++, a patient-specific planning framework that converts preoperative CT into a digital twin via template registration and CT-derived muscle/TMJ updates, then applies Bayesian optimization (expected-improvement-plus) over six cut-plane and donor-positioning variables to maximize a cycle-averaged apposition objective (with a safety-factor variant). It reports quantitative gains versus standard approaches on three generic defects (up to 29 pp / 329% relative) and four patient cases (up to 26 pp versus day-5 postoperative configuration), supported by a 10% sensitivity sweep over eleven parameters and one longitudinal validation case (Dice 0.70/0.76 at year 1).

Significance. If the apposition surrogate proves reliable, the work offers a reproducible, image-driven method to optimize biomechanical conditions for bone union beyond pure geometry, with open-source code as a clear strength for verification. The small sample and single-case validation, however, constrain immediate clinical translation and generalizability.

major comments (3)
  1. [Longitudinal validation and patient-specific results] The central clinical claim—that optimized apposition improves bone union—rests on a surrogate whose validity is demonstrated in only one longitudinal patient case (Dice overlap 0.70–0.76 between predicted apposition and year-1 formation). No multi-patient statistical correlation, no direct union-rate comparison between optimized and actual OR configurations, and no external validation of the CT-derived muscle/TMJ force model are reported; this single-case evidence is load-bearing for interpreting the 29 pp and 26 pp gains as clinically meaningful.
  2. [Evaluation on generic defects and patient cases] The generic-defect and patient-specific improvements (up to 29 pp and 26 pp) are presented as point estimates without statistical tests, confidence intervals, or explicit definition of the baseline 'common surgical approach' configuration; this weakens the quantitative claims in the absence of variability measures or hypothesis testing.
  3. [Sensitivity analysis] The sensitivity analysis caps objective change at 3–4% under 10% parameter perturbation, yet the manuscript does not specify how the eleven modeling parameters were selected or whether they encompass all sources of CT segmentation and registration uncertainty; without this, the robustness statement cannot be fully assessed.
minor comments (3)
  1. [Abstract] The abstract phrasing 'a total of 3+1 patient-specific cases, with 3 used for optimization and 1 for validation' is ambiguous; state the exact total and assignment clearly.
  2. [Figures] Figure legends and axis labels should explicitly indicate whether apposition values are cycle-averaged and whether error bars represent sensitivity bounds or inter-case variability.
  3. [Code availability] The open-source repository link is provided; confirm that the released code includes the exact Bayesian optimization implementation and digital-twin construction routines used for the reported results.

Simulated Author's Rebuttal

3 responses · 2 unresolved

We thank the referee for their constructive and detailed review. The comments have helped us clarify the scope of our claims and strengthen the presentation of limitations. We respond point-by-point below and indicate the revisions made.

read point-by-point responses

  1. Referee: [Longitudinal validation and patient-specific results] The central clinical claim—that optimized apposition improves bone union—rests on a surrogate whose validity is demonstrated in only one longitudinal patient case (Dice overlap 0.70–0.76 between predicted apposition and year-1 formation). No multi-patient statistical correlation, no direct union-rate comparison between optimized and actual OR configurations, and no external validation of the CT-derived muscle/TMJ force model are reported; this single-case evidence is load-bearing for interpreting the 29 pp and 26 pp gains as clinically meaningful.

    Authors: We agree that the surrogate validation rests on a single longitudinal case, which is a genuine limitation given the scarcity of complete pre- and post-operative imaging series with long-term follow-up in mandibular reconstruction. We have added a dedicated Limitations section that explicitly states the single-case nature of the Dice validation (0.70/0.76), clarifies that the 29 pp and 26 pp figures represent improvements in the apposition surrogate rather than measured union rates, and calls for future multi-center studies to obtain statistical correlations. The muscle/TMJ parameters follow established CT-derived methods from prior literature (now cited); no separate external validation cohort was available for this study, and this is now noted as a limitation. revision: partial

  2. Referee: [Evaluation on generic defects and patient cases] The generic-defect and patient-specific improvements (up to 29 pp and 26 pp) are presented as point estimates without statistical tests, confidence intervals, or explicit definition of the baseline 'common surgical approach' configuration; this weakens the quantitative claims in the absence of variability measures or hypothesis testing.

    Authors: We have revised the Methods and Results sections to explicitly define the baseline 'common surgical approach' as the standard virtual surgical planning configuration that aligns osteotomy planes to anatomical landmarks without optimization. With only three generic defects and four patient cases and deterministic optimization per case, formal hypothesis testing or confidence intervals would be underpowered; we therefore present the gains as observed point estimates and have added a sentence noting the absence of variability measures across repeated configurations. revision: partial

  3. Referee: [Sensitivity analysis] The sensitivity analysis caps objective change at 3–4% under 10% parameter perturbation, yet the manuscript does not specify how the eleven modeling parameters were selected or whether they encompass all sources of CT segmentation and registration uncertainty; without this, the robustness statement cannot be fully assessed.

    Authors: We have expanded the Methods section to describe the selection of the eleven parameters: they were chosen from the set of biomechanical and registration variables shown to be most influential in our prior mandibular modeling work and in the broader literature on CT-based force estimation. We now state that the 10 % perturbation provides an initial robustness check rather than exhaustive coverage of all uncertainties (e.g., inter-observer CT segmentation variability). A fuller uncertainty quantification is identified as future work. revision: yes

standing simulated objections not resolved
  • Multi-patient statistical correlation or direct union-rate comparison between optimized and actual OR configurations, as these require additional longitudinal clinical datasets that are not available in the current study.
  • External validation of the CT-derived muscle/TMJ force model on an independent cohort.

Circularity Check

0 steps flagged

No circularity: optimization outputs are empirical deltas in the modeled objective, not tautological redefinitions

full rationale

The paper constructs a digital twin from CT via registration and parameter updates, then applies Bayesian optimization over six cut-plane and positioning variables to maximize an apposition-driven objective (with a safety-regularized variant). Reported improvements are measured post-optimization as differences in this objective versus baseline configurations (common surgical approach or day-5 post-op). No equation defines the objective in terms of the reported deltas or vice versa; the deltas are search outcomes, not inputs. The single-case Dice validation (0.70/0.76) and 10%-parameter sensitivity sweep are independent checks outside the optimization loop. No self-citations, uniqueness theorems, or ansatzes are invoked to force the result. The chain is therefore self-contained against its external benchmarks.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 1 invented entities

The central claim depends on the unproven premise that increased modeled apposition will translate to better clinical union rates and that the digital twin faithfully captures the relevant anatomy and mechanics for optimization purposes.

free parameters (2)
  • six clinically controllable cut-plane and donor-positioning variables
    Decision variables searched by Bayesian optimization; their values are chosen to maximize the objective rather than fitted to outcome data.
  • eleven modeling parameters
    Subjected to 10% sensitivity analysis; changes affect the apposition objective by at most 4%.
axioms (2)
  • domain assumption Donor-mandible apposition promotes bone union
    This premise directly defines the optimization objective and the claimed clinical benefit.
  • domain assumption Template-to-patient registration and CT-derived muscle/TMJ updates produce an accurate biomechanical digital twin
    Required for the patient-specific modeling step to be valid.
invented entities (1)
  • personalized digital twin no independent evidence
    purpose: To represent patient-specific anatomy, muscles, and temporomandibular joint for optimization
    Constructed via registration and CT updates; no independent falsifiable evidence provided beyond the sensitivity check.
