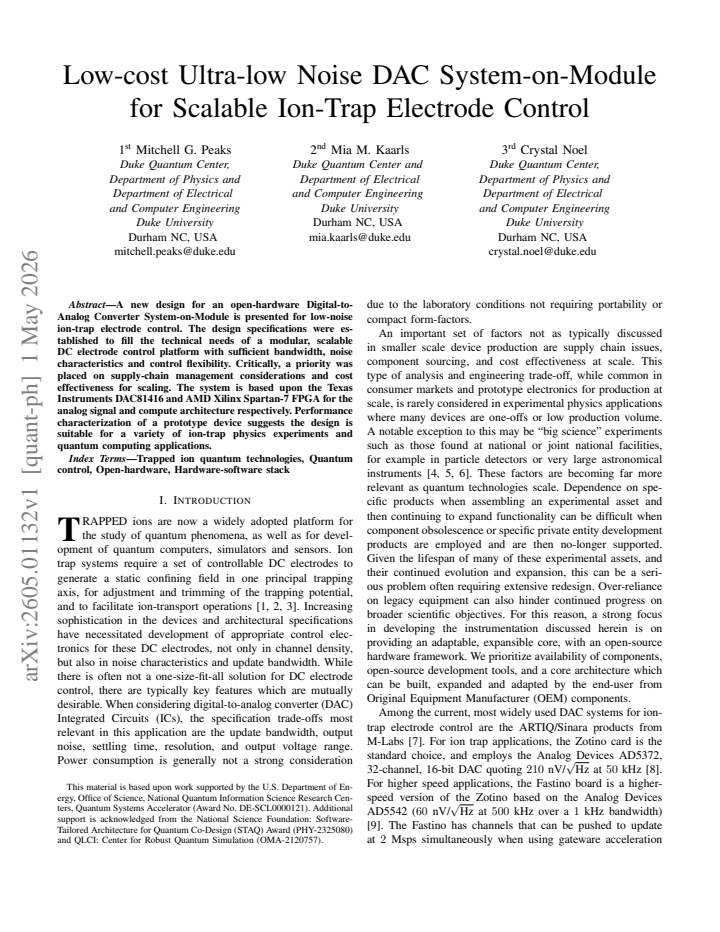

Low-cost Ultra-low Noise DAC System-on-Module for Scalable Ion-Trap Electrode Control

Mitchell G. Peaks , Mia M. Kaarls , Crystal Noel This is my paper

Pith reviewed 2026-05-09 18:50 UTC · model grok-4.3

classification 🪐 quant-ph physics.ins-det
keywords ion trapDACelectrode controllow noisescalable hardwarequantum computingopen hardwaresystem-on-module
0
0 comments X

The pith

A low-cost DAC system-on-module delivers ultra-low noise for scalable ion-trap electrode control.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes an open-hardware design for a digital-to-analog converter system-on-module built specifically to drive the many electrodes needed to trap and manipulate ions. Specifications were set to balance low noise, adequate bandwidth, control flexibility, and especially low cost plus reliable component availability so that systems can grow larger without becoming impractical. A working prototype was assembled around standard parts and then characterized, showing noise and performance levels that appear adequate for ion-trap physics experiments and quantum-computing setups.

Core claim

The authors have produced and tested a modular DAC platform whose noise, bandwidth, and cost characteristics satisfy the requirements for controlling ion-trap electrodes at scale. By treating supply-chain robustness and affordability as primary constraints alongside technical performance, the design yields a platform whose prototype measurements indicate suitability for a range of ion-trap experiments and quantum information applications.

What carries the argument

The DAC system-on-module architecture that pairs a high-resolution multi-channel converter with an FPGA to generate precise, low-noise analog voltages on demand.

If this is right

  • Larger electrode arrays become feasible without a proportional rise in hardware cost or complexity.
  • Noise-induced heating and decoherence of trapped ions can be kept low enough for extended quantum coherence times.
  • Dynamic voltage waveforms can be updated at rates sufficient for real-time trap potential shaping.
  • Other laboratories can replicate and modify the design without proprietary barriers.
  • The same module can serve both small proof-of-principle setups and larger multi-ion processors.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same low-cost, low-noise voltage control approach could be repurposed for precision analog biasing in other quantum hardware platforms that require many independent channels.
  • Wider availability of this class of controller may shorten the time from design to experiment for groups building ion-trap systems.
  • Integration with existing open-source control software could further reduce the engineering overhead of scaling to dozens of electrodes.

Load-bearing premise

The selected commercial converter and logic components will retain their advertised noise and bandwidth performance once installed in a real ion-trap vacuum chamber under full experimental conditions.

What would settle it

A direct spectrum measurement of the voltage noise appearing on the trap electrodes while the module is actively driving a trapped ion, compared against the threshold needed for coherent quantum operations.

Figures

Figures reproduced from arXiv: 2605.01132 by Crystal Noel, Mia M. Kaarls, Mitchell G. Peaks.

Figure 1
Figure 1. Figure 1: System design requirements specification. view at source ↗

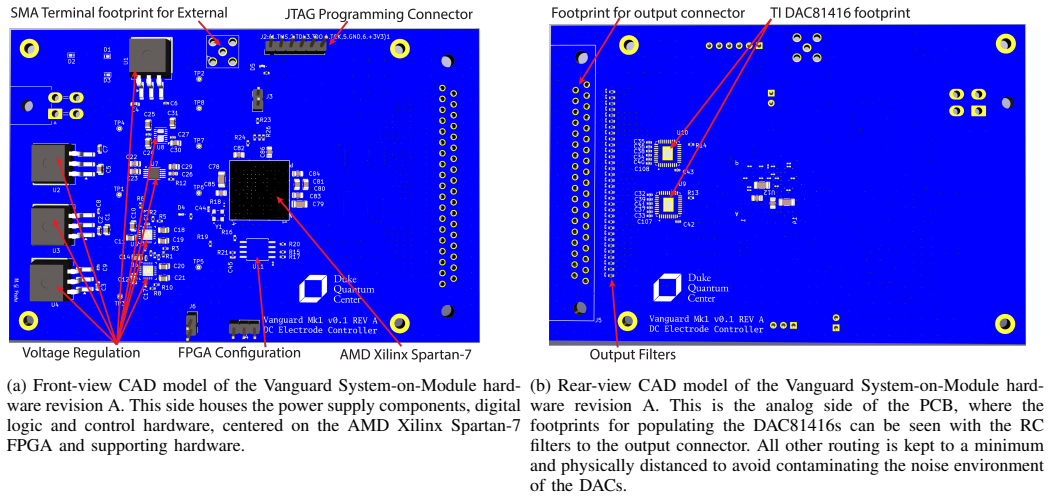

Figure 2
Figure 2. Figure 2: CAD model of the PCB design for v0.1 Revision A Mk1 Vanguard System-on-Module. view at source ↗
Figure 3
Figure 3. Figure 3: Close-up of the PCB design showing the TI DAC81416 view at source ↗

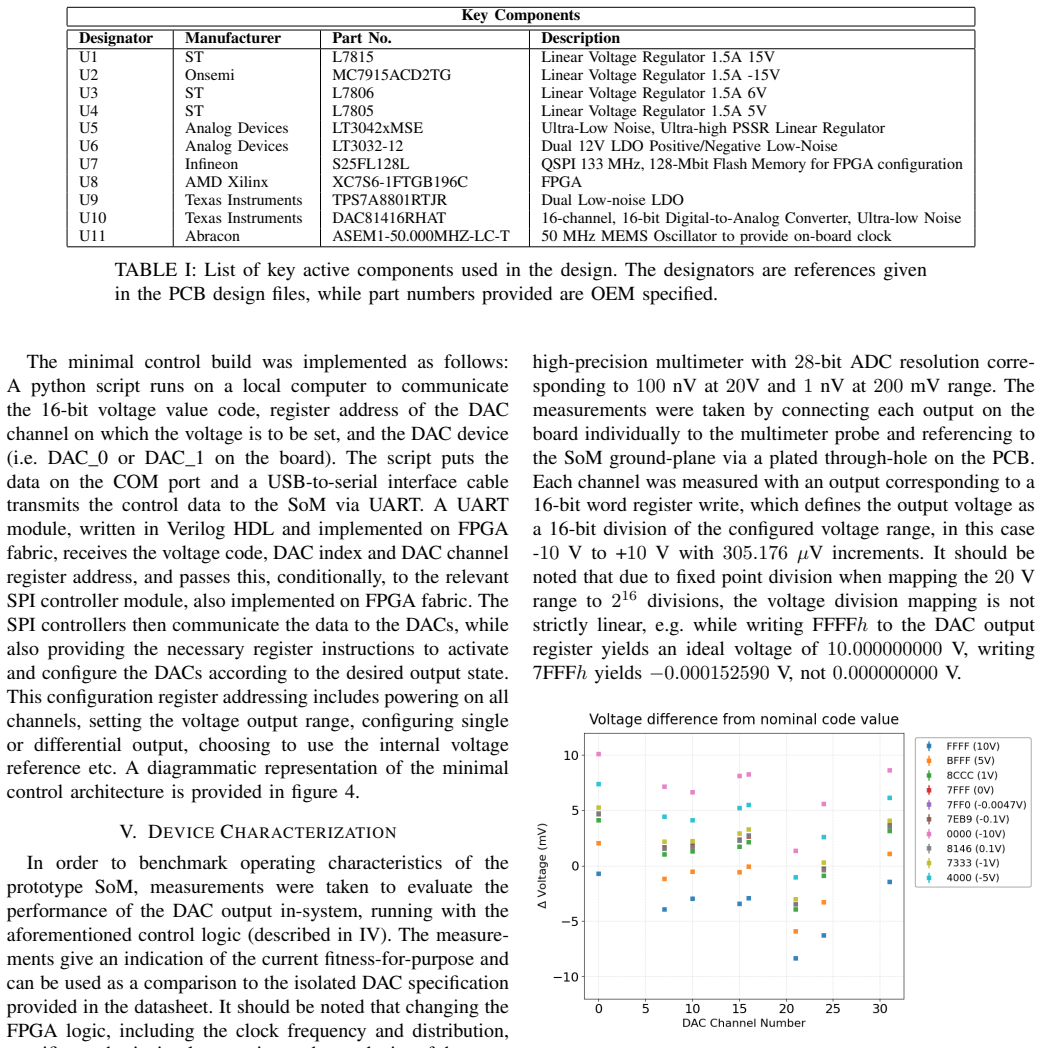

Figure 5
Figure 5. Figure 5: Measurements taken at a sample of the output channels view at source ↗
Figure 7
Figure 7. Figure 7: shows the output spectra in a band from 2 Hz to 750 MHz with a 10 Hz resolution bandwidth. The bandwidth is limited by the minimum value read by the spectrum analyzer, and the maximum bandwidth of the probe tool. The figure shows that only noise present on the ground is discernibly measured on the channel output, with the maximum contribu￾tions reaching only −70 dBm. The test setup is likely limited by the… view at source ↗
Figure 6
Figure 6. Figure 6: Output voltage measured on on each of the two DACs view at source ↗

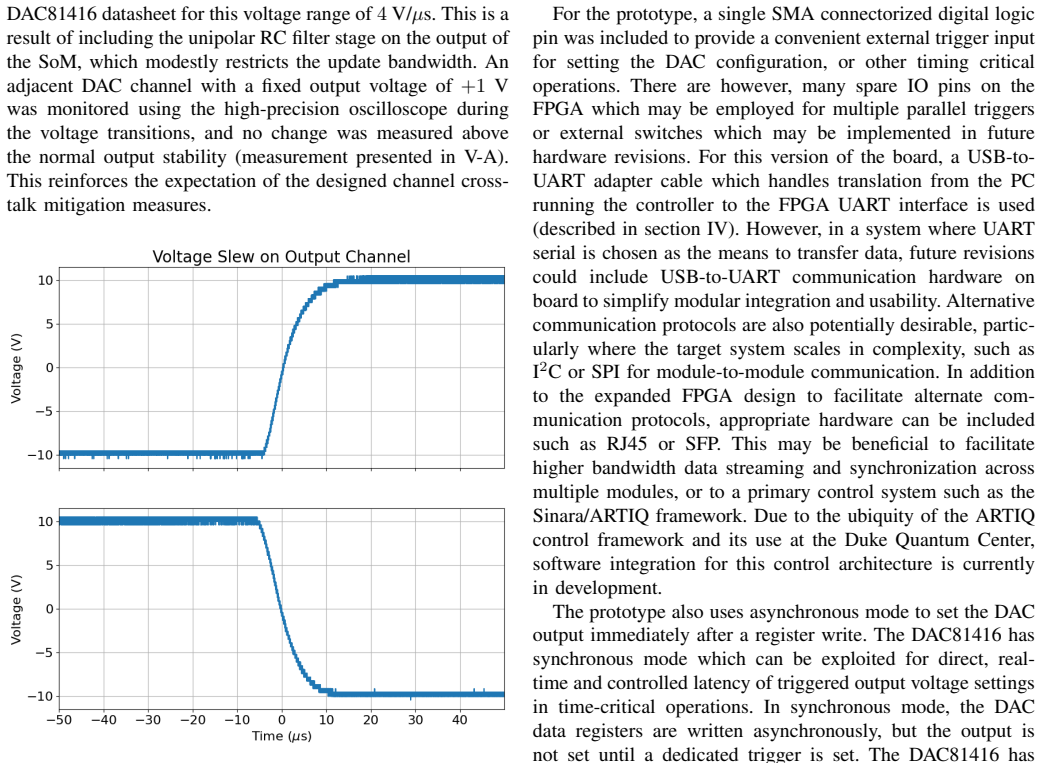

Figure 8
Figure 8. Figure 8: Positive (top) and negative (bottom) full range voltage view at source ↗
read the original abstract

A new design for an open-hardware Digital-to-Analog Converter System-on-Module is presented for low-noise ion-trap electrode control. The design specifications were established to fill the technical needs of a modular, scalable DC electrode control platform with sufficient bandwidth, noise characteristics and control flexibility. Critically, a priority was placed on supply-chain management considerations and cost effectiveness for scaling. The system is based upon the Texas Instruments DAC81416 and AMD Xilinx Spartan-7 FPGA for the analog signal and compute architecture respectively. Performance characterization of a prototype device suggests the design is suitable for a variety of ion-trap physics experiments and quantum computing applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript presents an open-hardware DAC System-on-Module design based on the Texas Instruments DAC81416 and AMD Xilinx Spartan-7 FPGA for low-noise, scalable control of ion-trap electrodes. Design priorities include cost-effectiveness and supply-chain considerations. The authors state that prototype characterization indicates the system is suitable for a variety of ion-trap physics experiments and quantum computing applications.

Significance. If the prototype data were to demonstrate the targeted noise and bandwidth performance under realistic electrode loads, this open-hardware platform could lower barriers to scaling ion-trap systems by providing a modular, affordable alternative to commercial solutions. The emphasis on supply-chain resilience is a practical strength for experimental groups.

major comments (1)
  1. [Abstract and Performance Characterization section] Abstract and Performance Characterization section: The central suitability claim rests on prototype characterization, yet no quantitative noise spectra, bandwidth measurements, error bars, or comparisons against ion-trap requirements (such as driving 10-100 pF electrode capacitances while coexisting with RF drive) are supplied. This absence leaves the load-bearing claim without verifiable support.
minor comments (1)
  1. [Abstract] The phrasing 'Critically, a priority was placed on supply-chain management considerations and cost effectiveness for scaling' in the abstract is slightly awkward and could be clarified for readability.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive review and positive assessment of the work's significance. We agree that the performance characterization section requires additional quantitative detail to robustly support the suitability claims, and we will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract and Performance Characterization section] Abstract and Performance Characterization section: The central suitability claim rests on prototype characterization, yet no quantitative noise spectra, bandwidth measurements, error bars, or comparisons against ion-trap requirements (such as driving 10-100 pF electrode capacitances while coexisting with RF drive) are supplied. This absence leaves the load-bearing claim without verifiable support.

    Authors: We acknowledge this observation and agree that the current manuscript does not provide sufficient quantitative data to fully substantiate the claims. In the revised version, we will expand the Performance Characterization section to include measured noise spectra (with error bars from repeated measurements), bandwidth data under representative loads, and explicit comparisons to ion-trap requirements such as driving 10-100 pF electrode capacitances. We will also add a discussion of design features enabling coexistence with RF drives, including output filtering and isolation strategies. These additions will directly address the gap and strengthen the support for suitability in ion-trap experiments. revision: yes

Circularity Check

0 steps flagged

No circularity: hardware design and empirical characterization paper

full rationale

The paper describes a DAC System-on-Module architecture using commercial components (TI DAC81416 and Spartan-7 FPGA), establishes design specifications from ion-trap needs, and reports prototype performance measurements. No mathematical derivations, equations, fitted parameters presented as predictions, or self-citation chains appear in the provided text. The central suitability claim rests on direct bench characterization rather than any reduction to prior inputs by construction. This is a standard hardware report with independent empirical content and no load-bearing circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper is an applied engineering design rather than a theoretical derivation. The central claim rests on the assumption that commercial components can meet ion-trap noise and control specifications when integrated as described.

axioms (1)
  • domain assumption The Texas Instruments DAC81416 and Xilinx Spartan-7 FPGA, when combined in the described architecture, can achieve the bandwidth, noise, and flexibility needed for ion-trap electrode control.
    This assumption underpins the choice of components and the claim of suitability; it is not independently verified in the abstract.
