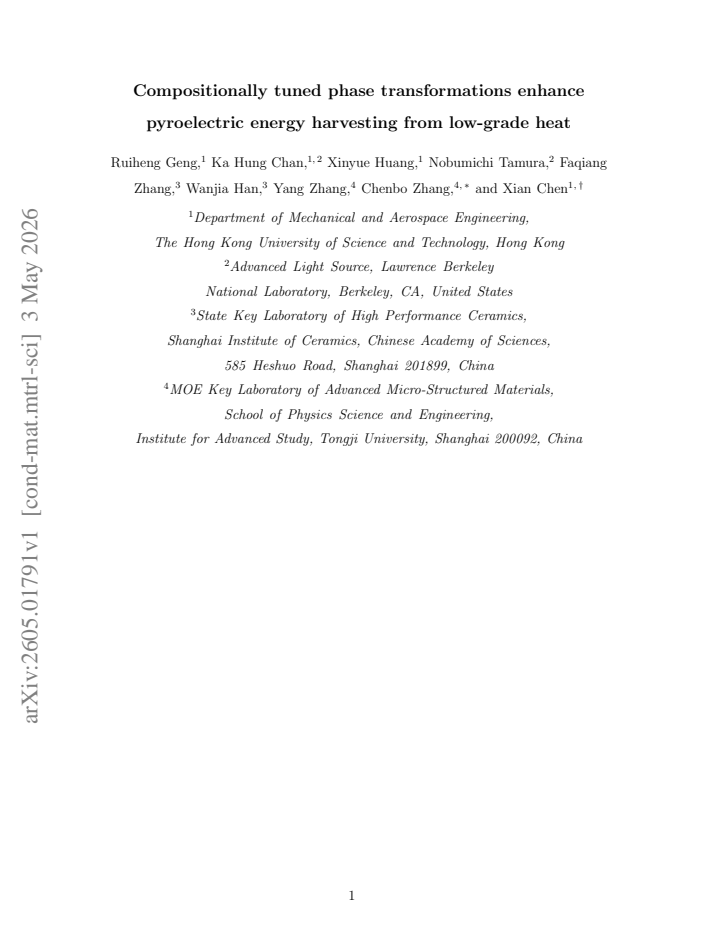

Compositionally tuned phase transformations enhance pyroelectric energy harvesting from low-grade heat

Ruiheng Geng , Ka Hung Chan , Xinyue Huang , Nobumichi Tamura , Faqiang Zhang , Wanjia Han , Yang Zhang , Chenbo Zhang
show 1 more author
Xian Chen
This is my paper

Pith reviewed 2026-05-09 17:14 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci physics.app-ph
keywords barium strontium titanatepyroelectric energy harvestingphase transformationstransitional regimelow-grade heatleakage suppressionenergy densitycycle stability
0
0 comments X

The pith

A transitional composition at Sr0.19 in Ba1-xSrxTiO3 suppresses leakage by over two orders of magnitude while retaining polarization for stable pyroelectric energy harvesting from low-grade heat.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tracks how strontium substitution in barium strontium titanate changes the character of its phase transformation from first-order to second-order. It locates a transitional window between 15 and 22 percent strontium where the shift in mechanism produces better lattice compatibility. At 19 percent strontium the material cuts electrical leakage sharply yet keeps enough polarization to convert temperature swings into electricity. This combination supports a device that produces 1.6 mJ per cubic centimeter per cycle at 5.5 percent efficiency and runs for 10,000 cycles without any external bias field. A reader would care because low-grade heat sources such as waste streams or environmental temperature changes could then power small devices without added power supplies or frequent maintenance.

Core claim

The authors identify a transitional regime in Ba1-xSrxTiO3 (x between 0.15 and 0.22) where the phase transformation evolves from first-order to second-order character. At x = 0.19 this regime yields optimal lattice compatibility, which suppresses electrical leakage by more than two orders of magnitude while preserving substantial polarization response. The resulting multilayer device produces a pyroelectric current of about 1.6 μA at 64 °C, an energy density of 1.6 mJ/cm³ per cycle, and 5.5 percent conversion efficiency, all while operating stably over 10,000 full cycles without external bias or recharging.

What carries the argument

The transitional regime between first-order and second-order phase transformations in compositionally tuned Ba1-xSrxTiO3, which optimizes lattice compatibility to reduce leakage while maintaining polarization.

Load-bearing premise

The observed peak performance at the Sr0.19 composition is assumed to be the inherent optimum rather than the result of post-hoc selection among tested samples or unstated measurement conditions that favored this particular point.

What would settle it

A systematic measurement of energy density, efficiency, and cycle stability for compositions spaced at 0.01 intervals from Sr0.18 to Sr0.20 under identical temperature cycling and electrode conditions would show whether 0.19 is uniquely optimal or lies on a broader performance plateau.

Figures

Figures reproduced from arXiv: 2605.01791 by Chenbo Zhang, Faqiang Zhang, Ka Hung Chan, Nobumichi Tamura, Ruiheng Geng, Wanjia Han, Xian Chen, Xinyue Huang, Yang Zhang.

Figure 1
Figure 1. Figure 1: FIG. 1. DSC heat flow curves for (a) Sr view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. (a) Laue diffraction patterns of specific crystal planes at different temperatures in Sr view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. (a) P-E characteristics for typical first-order Sr view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. (a) Polarization response of Sr view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. (a) Schematic of the Sr view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Leakage versus figure of merit in Sr doped barium titanate systems and similar systems view at source ↗
read the original abstract

Phase-transforming pyroelectric materials have emerged as promising candidates for low-grade thermal energy harvesting. However, whether first-order transformations with large pyroelectric coefficient or second-order transformations with better reversibility are preferable remains unclear. Here we report compositionally tunable phase transformations in Ba$_{1-x}$Sr$_x$TiO$_3$ ($x \in [0, 0.3]$), revealing evolution from first-order to second-order character. We identify a transitional regime between Sr$_{0.15}$ and Sr$_{0.22}$ where transformation mechanism fundamentally changes. Within this regime, Sr$_{0.19}$ achieves optimal lattice compatibility, exhibiting electrical leakage suppressed by over two orders of magnitude while retaining substantial polarization response. Energy conversion demonstrations show the multilayer Sr$_{0.19}$ device delivers pyroelectric current of $\sim$1.6 $\mu$A at 64$~^\circ$C with an energy density of 1.6 mJ/cm$^3$ per cycle and 5.5\% conversion efficiency. Remarkably, this composition operates stably over 10,000 full energy conversion cycles without external bias field or recharging, demonstrating that transitional regime compositions provide the optimal balance between energy density and operational durability for practical low-grade heat harvesting.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript reports compositionally tunable phase transformations in Ba_{1-x}Sr_xTiO_3 (x = 0 to 0.3), identifying a transitional regime (x = 0.15–0.22) where the transformation evolves from first-order to second-order character. Within this regime, the composition x = 0.19 is highlighted for optimal lattice compatibility, yielding leakage suppression by over two orders of magnitude while retaining polarization, and delivering 1.6 mJ/cm³ per cycle at 5.5% efficiency in a multilayer device with stable operation over 10,000 cycles without external bias.

Significance. If the central claims hold after addressing measurement details and selection criteria, the work would be significant for pyroelectric energy harvesting. It offers a concrete materials-design principle—tuning through the transitional regime to balance energy density against leakage and durability—that could inform practical low-grade heat recovery devices. The reported cycle stability without bias is a notable practical strength.

major comments (3)
  1. [Abstract and Results] Abstract and Results sections: The performance metrics (1.6 mJ/cm³ energy density, 5.5% efficiency, >2 orders leakage suppression) are stated without error bars, raw data traces, or statistical analysis. This directly affects assessment of whether the Sr0.19 values represent a robust optimum or could be influenced by measurement variability.
  2. [Results] Results (transitional regime and Sr0.19 identification): The claim that the regime 'fundamentally changes' the mechanism and that x=0.19 supplies the optimal balance via lattice compatibility requires explicit evidence that all compositions (x=0.15–0.22) were processed and measured under identical conditions before selecting the reported optimum. Without this, the narrative that the regime itself—not post-hoc choice—delivers the balance remains unanchored.
  3. [Methods] Methods: The description of how leakage current, polarization loops, pyroelectric current (~1.6 μA at 64°C), and cycle efficiency were quantified is insufficient. Reproducibility of the 10,000-cycle stability claim without bias cannot be evaluated without these protocols and any preconditioning details.
minor comments (1)
  1. [Abstract] Abstract: Subscript formatting for Ba_{1-x}Sr_xTiO_3 is inconsistent across the text; standardize LaTeX rendering for clarity.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive feedback, which has helped us strengthen the manuscript. We address each major comment below and have revised the manuscript to incorporate additional data, expanded methods, and clarifications.

read point-by-point responses

  1. Referee: [Abstract and Results] Abstract and Results sections: The performance metrics (1.6 mJ/cm³ energy density, 5.5% efficiency, >2 orders leakage suppression) are stated without error bars, raw data traces, or statistical analysis. This directly affects assessment of whether the Sr0.19 values represent a robust optimum or could be influenced by measurement variability.

    Authors: We agree that the absence of error bars and supporting data limits evaluation of robustness. In the revised manuscript, we have added error bars (standard deviation from n=5 devices) to the energy density, efficiency, and leakage suppression values in the abstract and results. Representative raw pyroelectric current traces and cycle data are now included in the supplementary information, along with a statistical analysis confirming that x=0.19 remains the optimum within the measured variability. revision: yes

  2. Referee: [Results] Results (transitional regime and Sr0.19 identification): The claim that the regime 'fundamentally changes' the mechanism and that x=0.19 supplies the optimal balance via lattice compatibility requires explicit evidence that all compositions (x=0.15–0.22) were processed and measured under identical conditions before selecting the reported optimum. Without this, the narrative that the regime itself—not post-hoc choice—delivers the balance remains unanchored.

    Authors: We have clarified this in the revision by adding a supplementary table that lists identical processing parameters (sintering temperature, atmosphere, electrode deposition) applied to all compositions x=0.15 to 0.22. Additional XRD and electrical data for x=0.15, 0.18, 0.20, and 0.22 are now shown to demonstrate the systematic evolution of lattice compatibility and leakage within the transitional regime. The optimum at x=0.19 is tied directly to the peak in the calculated compatibility factor, supporting that the regime enables the observed balance. revision: yes

  3. Referee: [Methods] Methods: The description of how leakage current, polarization loops, pyroelectric current (~1.6 μA at 64°C), and cycle efficiency were quantified is insufficient. Reproducibility of the 10,000-cycle stability claim without bias cannot be evaluated without these protocols and any preconditioning details.

    Authors: We acknowledge the methods were insufficiently detailed. The revised Methods section now specifies: leakage current via Keithley 6517B with 0.1 V/s ramp; polarization loops at 1 Hz using Precision LC; pyroelectric current via direct method with 0.05 Hz temperature oscillation between 25–64°C; efficiency from integrated P-V cycle work. The 10,000-cycle protocol is described in full, including no preconditioning, exact cycling rate (0.1 Hz), temperature limits, and confirmation of zero external bias throughout. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental composition study with direct measurements

full rationale

The paper is an experimental materials investigation of Ba1-xSrxTiO3 compositions. It reports synthesis, structural characterization, leakage currents, polarization, and energy harvesting cycles across x values, identifying a transitional regime (Sr0.15–0.22) and performance at Sr0.19 from measured data. No mathematical derivation, fitted model, or prediction is claimed that reduces by construction to its inputs. No self-citations, uniqueness theorems, or ansatzes are invoked as load-bearing steps in the abstract or described claims. The central results (leakage suppression, 1.6 mJ/cm³ density, 10,000-cycle stability) are presented as direct experimental outcomes, not as outputs of a self-referential chain. This matches the default case of an honest experimental report with no circularity burden.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard assumptions of materials characterization (accurate temperature control, proper electrode contact, and representative sampling) rather than new postulates. No free parameters are fitted in a derivation sense; the x values are chosen experimentally. No new entities are invented.

axioms (1)
  • domain assumption Standard assumptions of X-ray diffraction and electrical characterization accurately reflect bulk material behavior
    Invoked implicitly when reporting phase transformation character and leakage suppression
