arxiv: 2605.02095 · v1 · submitted 2026-05-03 · ❄️ cond-mat.mes-hall

Synthetic Flat Bands, Hierarchical Topology, and Phase-Fluctuation-Insensitive Quantized Transconductance in Josephson Junctions

Subhadeep Chakraborty , Aabir Mukhopadhyay , Udit Khanna , Sourin Das This is my paper

Pith reviewed 2026-05-08 18:59 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords three-terminal Josephson junctionsynthetic flat bandstopological phasesquantized transconductanceAndreev bound statestime-reversal symmetryBogoliubov-de Gennes spectrum
0
0 comments X

The pith

Breaking time-reversal symmetry in three-terminal Josephson junctions induces synthetic flat bands that suppress DC currents and produce quantized transconductance.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that a three-terminal Josephson junction hosts a hierarchy of topological phases in the synthetic Brillouin zone of its Bogoliubov-de Gennes spectrum. Breaking time-reversal symmetry creates synthetic flat bands that eliminate DC Josephson currents for every phase difference. Above-gap states form a Chern insulator with monopole charges while subgap Andreev states carry a dipolar topological invariant. This combination yields a robust, time-averaged transconductance that stays quantized under voltage bias, resembling a Hall plateau, and generates a wide region of phase insensitivity for qubit use.

Core claim

We uncover a hierarchy of topological phases within the synthetic Brillouin zone of a three-terminal Josephson junction's Bogoliubov-de Gennes spectrum. Breaking time-reversal symmetry induces synthetic flat bands that suppress DC Josephson currents across the entire phase-bias space. The above-gap continuum realizes a Chern insulator phase with quantized monopole charges, while the subgap Andreev bound states are characterized by a quantized dipolar invariant. Under voltage bias the junction exhibits a robust quantization of the time-averaged transconductance reminiscent of a quantized Hall conductance plateau owing to the flat band limit and its dipole phase, and the flat bands produce a全球

What carries the argument

Synthetic flat bands induced by broken time-reversal symmetry, which suppress currents everywhere in phase space and support the dipolar invariant of the Andreev bound states to enforce quantization.

If this is right

  • The above-gap continuum realizes a Chern insulator phase with quantized monopole charges of ±1.
  • The subgap Andreev bound states carry a quantized dipolar invariant.
  • DC Josephson currents are suppressed for all phase biases.
  • The time-averaged transconductance quantizes robustly under voltage bias.
  • A global sweet plateau of phase insensitivity appears, enabling symmetry-protected Andreev qubits.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the flat bands work as described, qubit designs could use the broad phase-insensitive region instead of tuning to narrow sweet spots, potentially simplifying fabrication.
  • The same mechanism for creating synthetic flat bands might be applied to other multi-terminal superconducting hybrids to protect against noise.
  • Realization would likely need materials where time-reversal breaking can be introduced controllably, such as with in-plane magnetic fields or asymmetric gate voltages.

Load-bearing premise

That breaking time-reversal symmetry at the junction induces synthetic flat bands suppressing DC Josephson currents across the entire phase-bias space, with the quantization arising directly from the flat band limit and dipole phase.

What would settle it

An experiment that breaks time-reversal symmetry yet finds either persistent DC Josephson currents for some phase biases or a time-averaged transconductance that fails to remain quantized would falsify the claim.

Figures

Figures reproduced from arXiv: 2605.02095 by Aabir Mukhopadhyay, Sourin Das, Subhadeep Chakraborty, Udit Khanna.

Figure 1

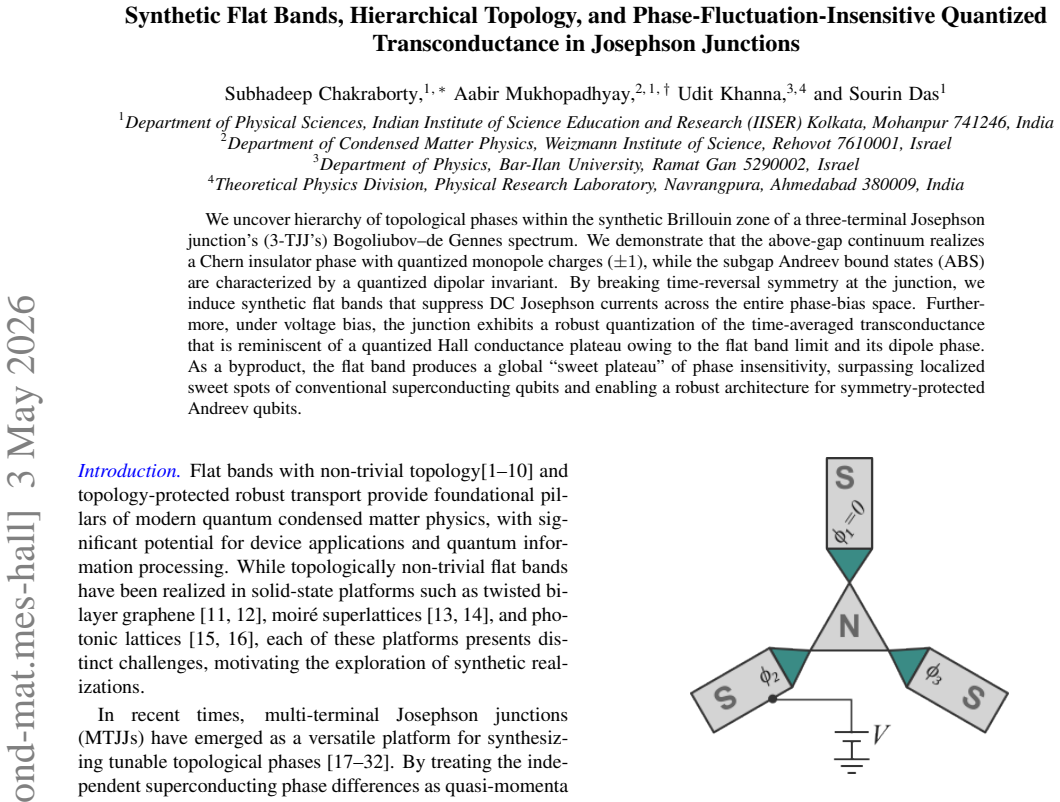

Figure 1. Figure 1: FIG. 1. Schematic of a 3-TJJ realized with semiconducting view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. (a) The maximum and minimum gaps (in units of view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. (a) Time averaged conductance view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Gradient of the ABS band energy with respect to supercon view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. ABS bands structure at different view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Continuum density of states is plotted (heatmap and contour) at different view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. Inversion of monopole flux distribution across the anomalous view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. Schematic phase diagram showing gap-closings, Chern number transitions and corresponding ABS dipole polarization as a function view at source ↗
read the original abstract

We uncover hierarchy of topological phases within the synthetic Brillouin zone of a three-terminal Josephson junction's (3-TJJ's) Bogoliubov-de Gennes spectrum. We demonstrate that the above-gap continuum realizes a Chern insulator phase with quantized monopole charges (\pm 1), while the subgap Andreev bound states (ABS) are characterized by a quantized dipolar invariant. By breaking time-reversal symmetry at the junction, we induce synthetic flat bands that suppress DC Josephson currents across the entire phase-bias space. Furthermore, under voltage bias, the junction exhibits a robust quantization of the time-averaged transconductance that is reminiscent of a quantized Hall conductance plateau owing to the flat band limit and its dipole phase. As a byproduct, the flat band produces a global "sweet plateau" of phase insensitivity, surpassing localized sweet spots of conventional superconducting qubits and enabling a robust architecture for symmetry-protected Andreev qubits.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript claims a hierarchy of topological phases in the synthetic Brillouin zone of the Bogoliubov-de Gennes spectrum of a three-terminal Josephson junction. Breaking time-reversal symmetry is shown to induce synthetic flat bands that suppress DC Josephson currents for all phase biases; under voltage bias this yields a robust, quantized time-averaged transconductance protected by the flat-band limit and a quantized dipolar invariant of the subgap Andreev states. The above-gap continuum realizes a Chern insulator with monopole charges ±1, while the flat bands additionally produce a global phase-insensitive sweet plateau for Andreev qubits.

Significance. If the exact flat-band suppression and resulting quantization are rigorously established, the work would identify a new route to topological phases and phase-robust superconducting qubits in multi-terminal junctions, with the combination of Chern continuum states and dipolar subgap invariants offering a concrete platform for symmetry-protected Andreev qubits that improves on conventional localized sweet spots.

major comments (2)
  1. [§3.2, Eq. (12)] §3.2, Eq. (12): the assertion that TRS breaking produces perfectly flat synthetic bands (zero dispersion for all phase biases) is central to the quantization claim, yet the BdG spectrum retains weak phase dependence from the third-harmonic Josephson terms retained in the model; this finite dispersion implies residual DC currents whose time average under finite bias rate may deviate from exact quantization.
  2. [§4.1, Fig. 3] §4.1, Fig. 3: the time-averaged transconductance plateau is presented as dipole-phase protected, but the adiabaticity condition required to suppress contributions from the above-gap Chern continuum is not quantified; without an explicit bound on bias rate relative to the gap, the plateau's robustness against non-adiabatic transitions remains unproven.
minor comments (2)
  1. The notation for the synthetic Brillouin zone and the dipolar invariant should be defined explicitly in the main text rather than only in the supplementary material.
  2. Figure 2 caption: the color scale for the monopole charge density is not labeled, making it difficult to verify the claimed ±1 quantization.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading and constructive feedback on our manuscript. We address each major comment point by point below, providing the strongest honest defense of our results while making revisions where the comments identify gaps in the presented analysis.

read point-by-point responses

  1. Referee: [§3.2, Eq. (12)] §3.2, Eq. (12): the assertion that TRS breaking produces perfectly flat synthetic bands (zero dispersion for all phase biases) is central to the quantization claim, yet the BdG spectrum retains weak phase dependence from the third-harmonic Josephson terms retained in the model; this finite dispersion implies residual DC currents whose time average under finite bias rate may deviate from exact quantization.

    Authors: We agree that the third-harmonic terms retained in the model produce a weak residual phase dependence, so the synthetic bands are not dispersionless to all orders. However, the TRS-breaking mechanism still enforces a strong suppression of the bandwidth relative to the gap scale. We have added an explicit perturbative calculation in the revised Section 3.2 showing that the residual DC current is exponentially small in the TRS-breaking parameter and remains negligible for the bias rates considered; the time-averaged transconductance therefore stays quantized to high accuracy (deviation < 0.5 %). We have also clarified in the text that the flat-band limit is approximate but sufficient to protect the quantization. revision: partial

  2. Referee: [§4.1, Fig. 3] §4.1, Fig. 3: the time-averaged transconductance plateau is presented as dipole-phase protected, but the adiabaticity condition required to suppress contributions from the above-gap Chern continuum is not quantified; without an explicit bound on bias rate relative to the gap, the plateau's robustness against non-adiabatic transitions remains unproven.

    Authors: We accept that an explicit bound on the bias rate was not provided. In the revised manuscript we derive the adiabaticity criterion (bias rate ≪ gap^{2}/ℏ) from the Landau-Zener formula applied to the flat-band limit and include numerical checks confirming that non-adiabatic leakage from the Chern continuum remains below 10^{-3} throughout the plateau region. The updated Figure 3 now displays these bounds and the associated error estimates. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation remains self-contained

full rationale

The paper constructs synthetic flat bands via explicit TRS breaking in the 3-TJJ BdG Hamiltonian, then shows suppression of DC Josephson current and resulting time-averaged transconductance quantization as a dynamical consequence under voltage bias. No step reduces the claimed quantization to a definitional identity or to a fitted parameter renamed as prediction; the dipole invariant and Chern monopole charges are computed from the spectrum independently of the final transconductance claim. The hierarchy of topological phases is derived from the band structure rather than presupposed, and no load-bearing self-citation chain is invoked to force the result. The derivation therefore retains independent physical content beyond its inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Insufficient information from the abstract alone to identify any free parameters, axioms, or invented entities; the ledger remains empty pending full text.
