Frequency locking in lasing ZnO nanowire pairs

Ann-Kathrin Kollak (1 , 3) , Lukas R. J\"ager (1) , Hark Hoe Tan (2) , Carsten Ronning (1) ((1) Friedrich Schiller University Jena , (2) Australian National University , (3) Paderborn University) This is my paper

Pith reviewed 2026-05-08 18:50 UTC · model grok-4.3

classification ⚛️ physics.optics cond-mat.mes-hall
keywords ZnO nanowiresfrequency lockingnanolasersnear-field couplingoptical couplingsingle-mode lasingnanophotonicscoupled lasers
0
0 comments X

The pith

ZnO nanowire lasers separated by less than 10 nm can lock their lasing frequencies through active near-field coupling.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that two ZnO nanowires placed with gaps under 10 nanometers exhibit optical coupling that leads to frequency locking of their lasing modes. By changing the position of the optical excitation, researchers can achieve full alignment of all modes or partial alignment of a subset. In some configurations the coupled pair produces single-mode output even though each nanowire alone lases in multiple modes. This dynamic locking is presented as distinct from static filtering effects, providing a controllable way to stabilize nanoscale coherent emission.

Core claim

Frequency locking between coupled laser systems provides a powerful mechanism for stabilizing and controlling coherent emission, yet its implementation and applicability down to the nanoscale remains unknown and unexplored. Here, we demonstrate optical coupling and frequency locking in closely spaced ZnO nanowire lasers operating in the extreme near field (gap < 10 nm). We observe both full and partial frequency locking, manifested as the alignment of all or a subset of the lasing modes, by spatially controlling the optical excitation. We also observe single-mode lasing in a coupled nanowire pair where the multi-mode lasing of individual nanowires is suppressed. In contrast to previously 0.1

What carries the argument

Active near-field optical coupling between the lasing modes of paired ZnO nanowires that produces dynamic frequency locking when the gap is below 10 nm.

If this is right

  • Spatially selective optical excitation can switch the system between full frequency locking, partial locking, and single-mode operation.
  • The coupled nanowire pair suppresses multi-mode lasing that occurs in isolated nanowires, yielding cleaner single-mode output.
  • Frequency locking provides a tunable, dynamically established spectral control that does not rely on fixed cavity filtering such as the Vernier effect.
  • The mechanism opens routes to stabilized and controllable nanoscale light sources for integrated nanophotonic systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Arrays of multiple closely spaced nanowires might achieve collective synchronization for brighter or narrower-linewidth emission.
  • The dependence on excitation position suggests the locking could be modulated at high speed for optical switching or logic at the nanoscale.
  • Similar dynamic coupling may appear in other high-index nanowire lasers or in hybrid material systems, extending the approach beyond ZnO.

Load-bearing premise

The observed alignment of lasing modes arises specifically from dynamic frequency locking due to active near-field coupling rather than static structural effects, fabrication variations, or measurement artifacts, and the nanowire separation is verifiably below 10 nm.

What would settle it

Demonstrating identical mode alignment when the nanowires are separated by more than 10 nm or when only one nanowire is optically excited would show that the effect does not require active near-field coupling between two lasing nanowires.

Figures

Figures reproduced from arXiv: 2605.02445 by (2) Australian National University, 3), (3) Paderborn University), Ann-Kathrin Kollak (1, Carsten Ronning (1) ((1) Friedrich Schiller University Jena, Hark Hoe Tan (2), Lukas R. J\"ager (1).

Figure 1

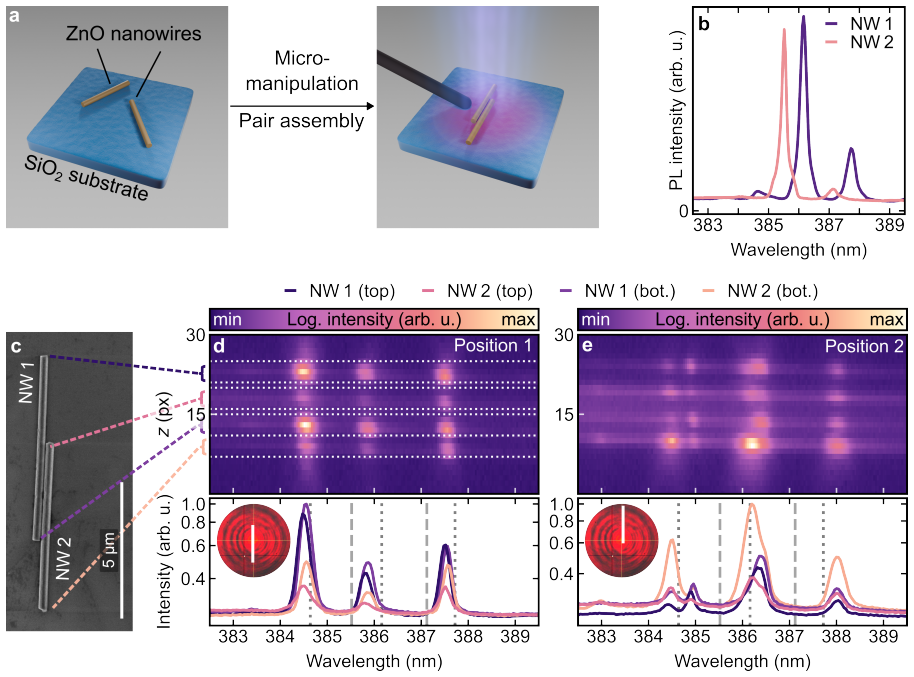

Figure 1. Figure 1: a Schematic depiction of the nanowire pair preparation. b Lasing photoluminescence spectra of individual nanowires 1 and 2 (before pair assembly). c SEM image of nanowire pair 1-2. Dashed lines indicate which emission track in the CCD image originates from which end facet. d Spatially resolved lasing spectra of nanowire pair 1-2 excited at position 1 in the inhomogeneous pump spot. Both NWs emit peaks at i… view at source ↗
Figure 2

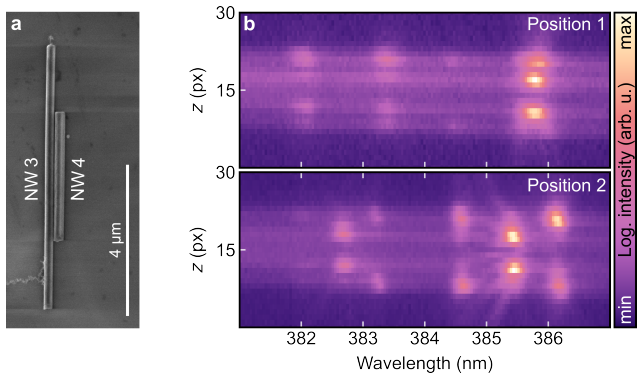

Figure 2. Figure 2: a SEM image of nanowire pair 3-4. b Spatially resolved lasing spectra of nanowire pair 3-4 for two different positions in the inhomogeneous pump spot. Frequency locking can be observed for position 1. For position 2, the frequency locking breaks down and the nanowires emit spectra with an individual mode spacing that fits their respective cavity length. Both ends of NW 3 protrude beyond the shorter nanowir… view at source ↗
Figure 3

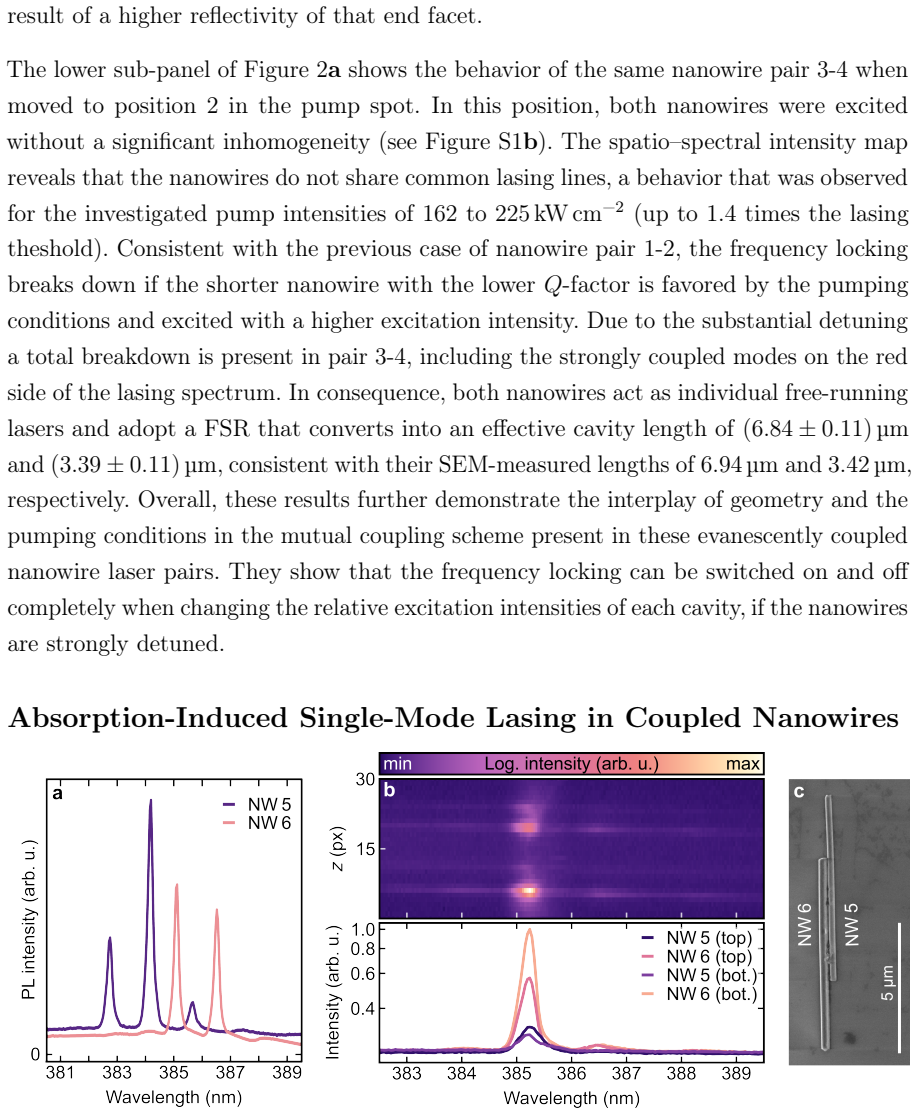

Figure 3. Figure 3: a Lasing photoluminescence spectra of nanowires 5 and 6 before pair assembly. b Spatially resolved lasing spectra of nanowire pair 5-6 at position 1 in the pump spot. c SEM image of nanowire pair 5-6 view at source ↗
read the original abstract

Frequency locking between coupled laser systems provides a powerful mechanism for stabilizing and controlling coherent emission, yet its implementation and applicability down to the nanoscale remains unknown and unexplored. Here, we demonstrate optical coupling and frequency locking in closely spaced ZnO nanowire lasers operating in the extreme near field (gap < 10 nm). We observe both full and partial frequency locking, manifested as the alignment of all or a subset of the lasing modes, by spatially controlling the optical excitation. We also observe single-mode lasing in a coupled nanowire pair where the multi-mode lasing of individual nanowires is suppressed. In contrast to previously reported coupled-cavity nanowire lasers, where spectral control arises from static filtering mechanisms such as the Vernier effect, our results indicate a dynamically established relationship between actively lasing nanowires. These findings establish frequency locking as a robust and tunable mechanism in nanowire lasers, opening new routes toward stabilized and controllable nanoscale light sources for integrated nanophotonic systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript reports experimental observations of optical coupling and frequency locking in pairs of ZnO nanowire lasers with gaps below 10 nm. By spatially controlling the optical excitation, the authors demonstrate full and partial alignment of lasing modes as well as suppression of multi-mode lasing to achieve single-mode operation in the coupled pair. They interpret these effects as arising from dynamic near-field coupling between actively lasing nanowires, in contrast to static mechanisms such as the Vernier effect in prior coupled-cavity nanowire reports.

Significance. If the dynamic nature of the locking is confirmed through appropriate controls, the work would establish frequency locking as a tunable mechanism for mode control and stabilization in nanoscale lasers. This could open pathways for integrated nanophotonic devices relying on active coupling rather than passive filtering, extending concepts from macroscopic laser systems to the extreme near-field regime.

major comments (2)
  1. [Abstract] The central distinction between dynamic frequency locking and static effects (Vernier filtering, fabrication variations) rests on spatial excitation control, but the abstract provides no details on key falsifying experiments such as pumping only one nanowire while monitoring the partner or quantifying how mode alignment changes with excitation position relative to threshold. Without these, the observations remain compatible with static interpretations.
  2. [Abstract] The claim of gaps <10 nm is load-bearing for the 'extreme near field' regime but lacks any description of measurement method, uncertainty, or verification (e.g., SEM/TEM statistics across samples). This directly affects whether the coupling can be attributed to active near-field interaction.
minor comments (1)
  1. [Abstract] The abstract states clear observations but supplies no spectra, error bars, sample statistics, or detailed controls; inclusion of representative raw data and quantitative metrics would strengthen the presentation.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments and positive assessment of the potential significance of our work. We address each major comment below and have revised the abstract to provide greater clarity on the experimental controls and gap characterization, as requested.

read point-by-point responses

  1. Referee: [Abstract] The central distinction between dynamic frequency locking and static effects (Vernier filtering, fabrication variations) rests on spatial excitation control, but the abstract provides no details on key falsifying experiments such as pumping only one nanowire while monitoring the partner or quantifying how mode alignment changes with excitation position relative to threshold. Without these, the observations remain compatible with static interpretations.

    Authors: We agree that the abstract should more explicitly reference the key controls that support the dynamic interpretation. The full manuscript details experiments in which only one nanowire is pumped while the emission spectrum of the partner is monitored, as well as systematic scans of excitation position and power relative to threshold. These show that mode alignment requires both nanowires to be above threshold and depends on spatial overlap of the pump with the pair, which is inconsistent with purely static mechanisms. We have revised the abstract to include a concise summary of these controls. revision: yes

  2. Referee: [Abstract] The claim of gaps <10 nm is load-bearing for the 'extreme near field' regime but lacks any description of measurement method, uncertainty, or verification (e.g., SEM/TEM statistics across samples). This directly affects whether the coupling can be attributed to active near-field interaction.

    Authors: We acknowledge that the abstract does not specify the gap measurement protocol. Gap sizes were extracted from calibrated high-resolution SEM images acquired on multiple nanowire pairs, with the sub-10 nm values confirmed by repeated measurements on the same and different samples. We have added a brief clause to the revised abstract noting that the gaps were verified by SEM imaging; full details, including measurement statistics and uncertainty estimates, appear in the methods and supplementary information. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental observations with no derivation chain

full rationale

The paper reports experimental observations of mode alignment in ZnO nanowire pairs under controlled optical excitation, with no equations, derivations, fitted parameters, or mathematical predictions. Claims rest on direct spectral measurements and spatial control, independent of any self-referential fitting or ansatz. The contrast with prior Vernier-effect reports is interpretive framing, not a load-bearing derivation that reduces to the paper's own inputs by construction. No self-citation chain or uniqueness theorem is invoked to force the central result. This is the standard case of an honest non-finding for an experimental report.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an observational experimental paper. No free parameters, axioms, or invented entities are introduced; the claim rests on standard assumptions of optical near-field coupling and laser physics.
