arxiv: 2605.02535 · v1 · submitted 2026-05-04 · ⚛️ physics.optics · cond-mat.mes-hall

Strong enhancement of Er3+ emission at room temperature in Si3N4 metasurfaces

Fengkai Wei , Xinru Ji , Tobias J. Kippenberg , Duk-Yong Choi , Carsten Ronning This is my paper

Pith reviewed 2026-05-08 18:19 UTC · model grok-4.3

classification ⚛️ physics.optics cond-mat.mes-hall
keywords erbiumsilicon nitridemetasurfaceMie resonancePurcell effectphotoluminescenceion implantationCMOS photonics
0
0 comments X

The pith

Periodic arrays of silicon nitride nanocylinders enhance erbium ion photoluminescence by a factor of 18 at room temperature through Mie resonances.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that metasurfaces consisting of periodic nanocylinder arrays in erbium-doped silicon nitride can produce much stronger room-temperature emission at telecommunication wavelengths. By choosing cylinder radii that support Mie resonances, the structures increase the local density of optical states, which amplifies the emission. Simulations match the measured enhancement of roughly 18 times, and lifetime measurements show the emission decays nearly ten times faster, pointing to the Purcell effect as the main driver. The results also indicate that placing the erbium ions deeper in the material increases output. This approach is presented as a practical route to add efficient light sources to standard silicon-based photonic chips.

Core claim

Optimizing the radii of the nanocylinders in the metasurface yields a photoluminescence enhancement factor of about 18 at a radius of 390 nm following thermal annealing, in agreement with simulations. Time-resolved measurements indicate a nearly tenfold decrease in luminescence lifetime, establishing that the primary mechanism is the Purcell effect arising from the engineered local density of optical states. The emission intensity also increases fourfold when the erbium implantation depth increases from 20 nm to 80 nm.

What carries the argument

Mie-type resonances supported by the periodic nanocylinder arrays that tailor the local density of optical states at the erbium emission wavelength.

Load-bearing premise

The increase in photoluminescence intensity and reduction in lifetime result mainly from the designed Mie resonances changing the local density of optical states, not from annealing-induced material improvements or better light collection efficiency.

What would settle it

Fabricating and measuring a control sample with identical erbium implantation and annealing but without the nanocylinder patterning would show whether the 18-fold intensity gain requires the resonant structure.

Figures

Figures reproduced from arXiv: 2605.02535 by Carsten Ronning, Duk-Yong Choi, Fengkai Wei, Tobias J. Kippenberg, Xinru Ji.

Figure 1
Figure 1. Figure 1: FIG. 1. Ion implantaion profile of Er in Si view at source ↗
Figure 2

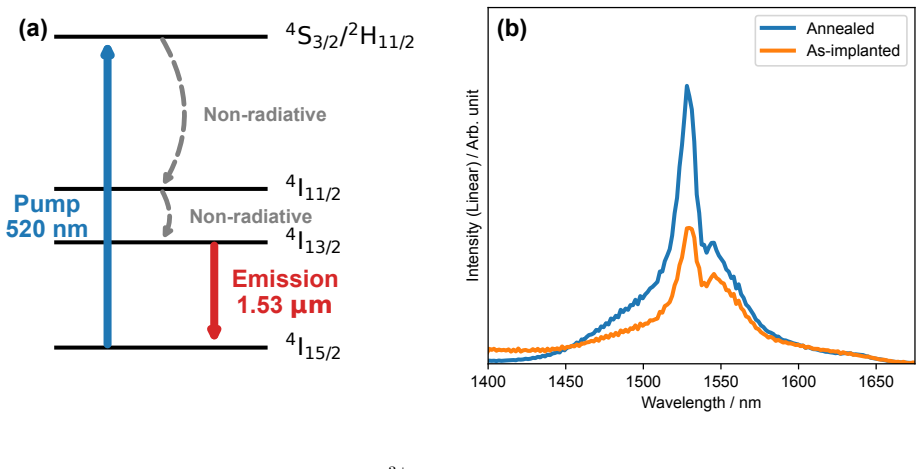

Figure 2. Figure 2: FIG. 2. (a) Energy level diagram of Er view at source ↗
Figure 3

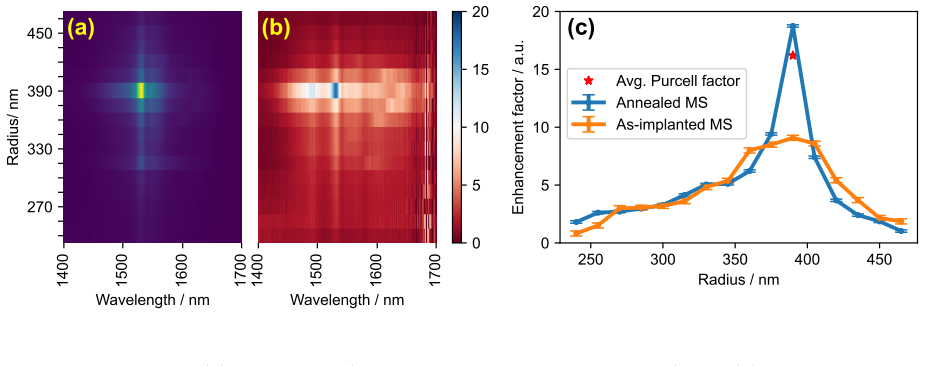

Figure 3. Figure 3: FIG. 3. Heatmaps of (a) PL spectra (normalized to maximum intensity) and (b) relative enhance view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. (a) FDTD simulated Purcell factor as a function of site. SRIM simulated Er view at source ↗
Figure 5

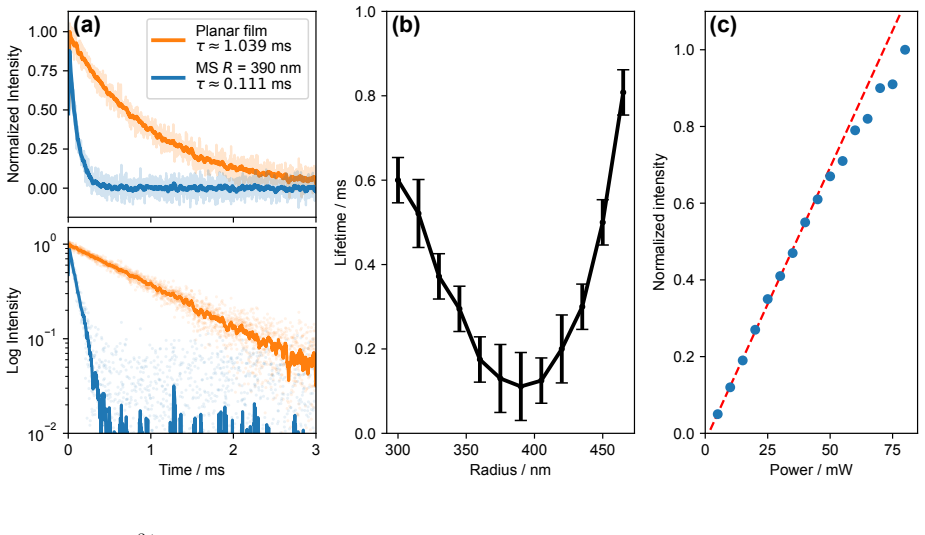

Figure 5. Figure 5: FIG. 5. (a) Er view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. PL of depth-dependent Er view at source ↗

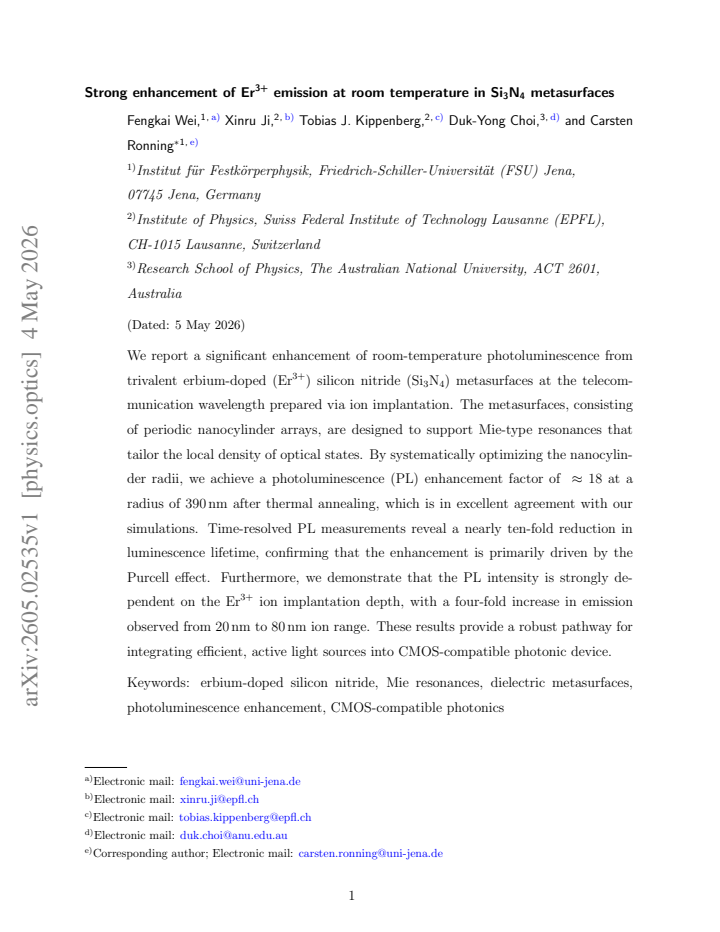

read the original abstract

We report a significant enhancement of room-temperature photoluminescence from trivalent erbium-doped (Er3+) silicon nitride (Si3N4) metasurfaces at the telecommunication wavelength prepared via ion implantation. The metasurfaces, consisting of periodic nanocylinder arrays, are designed to support Mie-type resonances that tailor the local density of optical states. By systematically optimizing the nanocylinder radii, we achieve a photoluminescence (PL) enhancement factor of ~18 at a radius of 390 nm after thermal annealing, which is in excellent agreement with our simulations. Time-resolved PL measurements reveal a nearly ten-fold reduction in luminescence lifetime, confirming that the enhancement is primarily driven by the Purcell effect. Furthermore, we demonstrate that the PL intensity is strongly dependent on the Er3+ ion implantation depth, with a four-fold increase in emission observed from 20 nm to 80 nm ion range. These results provide a robust pathway for integrating efficient, active light sources into CMOS-compatible photonic device.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The manuscript reports strong room-temperature photoluminescence enhancement from Er3+-doped Si3N4 metasurfaces consisting of periodic nanocylinder arrays. By optimizing nanocylinder radii to support Mie resonances, the authors achieve a PL enhancement factor of ~18 at 390 nm radius after thermal annealing, in quantitative agreement with electromagnetic simulations of the local density of states. Time-resolved measurements show a nearly ten-fold lifetime reduction, which they attribute to the Purcell effect; they further report a four-fold increase in emission intensity with increasing Er3+ implantation depth from 20 nm to 80 nm.

Significance. If the observed enhancement and lifetime shortening can be unambiguously attributed to resonance-induced modification of the LDOS rather than annealing-driven material changes, the work would offer a practical, CMOS-compatible route to enhance rare-earth emitters for integrated telecom sources. The systematic radius optimization and reported simulation-experiment agreement are positive features that could support device integration if controls are added.

major comments (3)
  1. [Results (PL enhancement measurements)] Results section on PL intensity vs. radius: the ~18x enhancement and its agreement with simulations are reported only for annealed metasurface samples of different radii. No data from an identically implanted and annealed unpatterned flat Si3N4 film are presented, preventing separation of resonance-driven LDOS effects from annealing-induced improvements in Er3+ quantum efficiency or defect passivation.
  2. [Time-resolved PL measurements] Time-resolved PL subsection: the nearly ten-fold lifetime reduction is presented as direct confirmation that the enhancement is 'primarily driven by the Purcell effect.' Without lifetime data from the flat annealed reference, changes in non-radiative rates due to annealing cannot be excluded as a contributing factor.
  3. [Simulation comparison] Simulation-experiment comparison paragraph: the manuscript states 'excellent agreement' but does not detail how the simulated LDOS is mapped to expected PL enhancement (e.g., assumptions on quantum efficiency, collection solid angle, or normalization to the flat film). This mapping is load-bearing for the central claim of resonance-driven enhancement.
minor comments (3)
  1. [Abstract and Figures] Abstract and figure captions: no error bars, standard deviations, or number of measured devices are mentioned for the reported enhancement factors or lifetimes.
  2. [Methods] Methods: implantation parameters, annealing conditions, and PL collection geometry should be described with sufficient detail for reproducibility, including any post-processing normalization steps.
  3. [Figures] Figure clarity: ensure experimental spectra and lifetime curves are overlaid with simulation results using consistent normalization and that all panels include scale bars or legends.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which identify key areas where additional controls and clarifications will strengthen the manuscript. We address each major comment below and commit to revisions that directly respond to the concerns raised.

read point-by-point responses

  1. Referee: Results section on PL intensity vs. radius: the ~18x enhancement and its agreement with simulations are reported only for annealed metasurface samples of different radii. No data from an identically implanted and annealed unpatterned flat Si3N4 film are presented, preventing separation of resonance-driven LDOS effects from annealing-induced improvements in Er3+ quantum efficiency or defect passivation.

    Authors: We agree that presenting data from an identically implanted and annealed flat Si3N4 film is necessary to fully isolate resonance effects from any uniform changes induced by annealing. While the pronounced radius dependence of the PL intensity—with a clear maximum at the radius supporting the Mie resonance—already argues against a purely annealing-driven origin, we will add the missing flat-film reference data to the revised manuscript. This will allow direct subtraction of any annealing contributions and provide a quantitative baseline for the LDOS-driven enhancement. revision: yes

  2. Referee: Time-resolved PL subsection: the nearly ten-fold lifetime reduction is presented as direct confirmation that the enhancement is 'primarily driven by the Purcell effect.' Without lifetime data from the flat annealed reference, changes in non-radiative rates due to annealing cannot be excluded as a contributing factor.

    Authors: The referee correctly identifies that lifetime data on the annealed flat reference are required to exclude annealing-induced changes in non-radiative decay rates. Although the observed lifetime shortening tracks the radius-dependent PL enhancement and the simulated LDOS variations, we will include time-resolved measurements on the flat annealed film in the revision. This will confirm that the dominant lifetime reduction occurs only under resonant conditions. revision: yes

  3. Referee: Simulation comparison paragraph: the manuscript states 'excellent agreement' but does not detail how the simulated LDOS is mapped to expected PL enhancement (e.g., assumptions on quantum efficiency, collection solid angle, or normalization to the flat film). This mapping is load-bearing for the central claim of resonance-driven enhancement.

    Authors: We will expand the manuscript to provide a detailed account of the LDOS-to-PL mapping. The simulated LDOS is normalized to the flat-film value, and the PL enhancement is computed as the LDOS ratio under the assumptions of constant quantum efficiency and identical collection efficiency for all samples. These assumptions, together with the normalization procedure and any associated limitations, will be stated explicitly in the revised text, either in the main body or in an expanded Methods section. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental enhancement factors validated against independent simulations

full rationale

The manuscript presents direct experimental measurements of photoluminescence enhancement (~18x) and lifetime reduction (~10x) in annealed Er3+-doped Si3N4 nanocylinder arrays, with the observed values stated to agree with separate electromagnetic simulations of Mie resonances and LDOS. No equations, fitted parameters, or derivations are shown that reduce the reported enhancement factor or Purcell attribution to a self-referential definition, a fitted input renamed as prediction, or a load-bearing self-citation chain. The central claims rest on empirical data collection and comparison to external modeling rather than tautological construction, rendering the derivation chain self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard electromagnetic theory and the Purcell effect; no new free parameters, ad-hoc axioms, or invented entities are introduced in the reported results.

axioms (2)
  • standard math Maxwell's equations and Mie scattering theory accurately predict the local density of optical states in periodic nanocylinder arrays.
    Invoked to design resonances and compare with measured enhancement.
  • domain assumption A reduction in measured luminescence lifetime directly indicates an increase in the spontaneous emission rate due to the Purcell effect.
    Used to attribute the intensity boost to modified density of states rather than collection efficiency.
