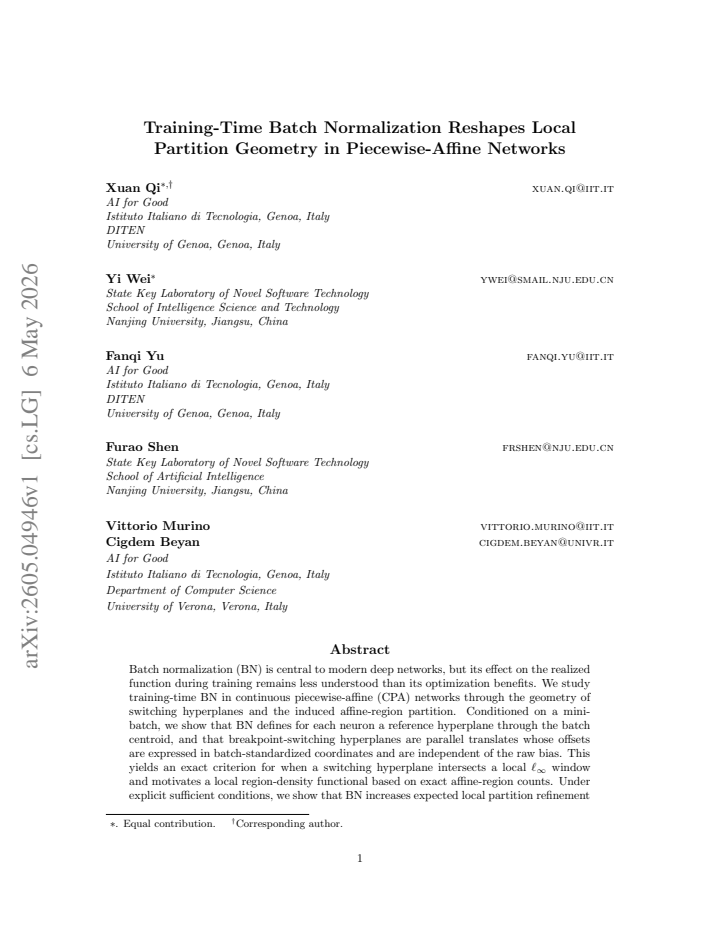

Training-Time Batch Normalization Reshapes Local Partition Geometry in Piecewise-Affine Networks

Pith reviewed 2026-05-13 06:44 UTC · model grok-4.3

classification 💻 cs.LG stat.ML
keywords batch normalizationpiecewise-affine networksswitching hyperplanesaffine regionslocal partitionReLUtraining-time normalization
0
0 comments X

The pith

Batch normalization during training increases expected local partition refinement in piecewise-affine networks by recentering switching hyperplanes on the batch centroid.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines how batch normalization affects the actual function computed by continuous piecewise-affine networks, rather than just training dynamics. It models the division of input space into affine regions separated by switching hyperplanes and shows that BN ties the positions of these hyperplanes to the centroid and statistics of each training batch. Under sufficient conditions on batch statistics and layer maps, this leads to more refined partitions locally, with the refinement carrying forward through layers when prior maps act as affine embeddings. A reader would care because it supplies a geometric explanation for why BN changes the expressivity and behavior of networks at the function level.

Core claim

Conditioned on a mini-batch, BN defines for each neuron a reference hyperplane through the batch centroid, with breakpoint-switching hyperplanes as parallel translates whose offsets are in batch-standardized coordinates and independent of the raw bias. This yields an exact criterion for hyperplane intersection with local windows and a local region-density functional. Under explicit sufficient conditions, BN increases expected local partition refinement in ReLU and more general piecewise-affine networks, and the mechanism transfers locally through depth inside parent affine regions where the upstream representation map is an affine embedding.

What carries the argument

Batch-conditional reference hyperplanes through the batch centroid that determine offsets for switching hyperplanes independent of bias, enabling a local region-density functional based on affine-region counts.

Load-bearing premise

The network is continuous piecewise-affine and the upstream representation maps satisfy the affine-embedding condition along with the stated conditions on batch statistics.

What would settle it

A direct count of affine regions intersecting a local window in a trained ReLU network showing no increase in refinement when BN is used compared to the no-BN case under the same batch conditions.

Figures

Figures reproduced from arXiv: 2605.04946 by Cigdem Beyan, Fanqi Yu, Furao Shen, Vittorio Murino, Xuan Qi, Yi Wei.

Figure 1

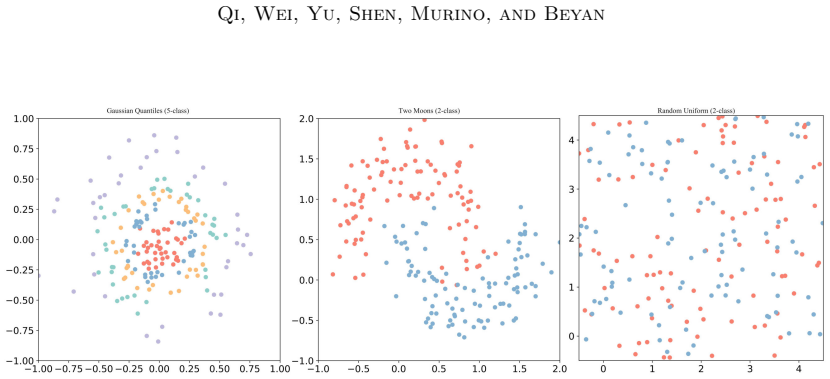

Figure 1. Figure 1: The three two-dimensional datasets used in the local-region experiments: Gaus view at source ↗
Figure 2
Figure 2. Figure 2: Training dynamics of exact local region counts in single-layer networks. We plot view at source ↗
Figure 3
Figure 3. Figure 3: Representative single-layer partition visualization on a two-dimensional task. The view at source ↗
Figure 4
Figure 4. Figure 4: Bias-decoupling diagnostic under fixed reference batches. We plot layerwise Pear view at source ↗
Figure 5
Figure 5. Figure 5: Explicit bias-shift invariance under fixed reference batches. After applying view at source ↗
Figure 6

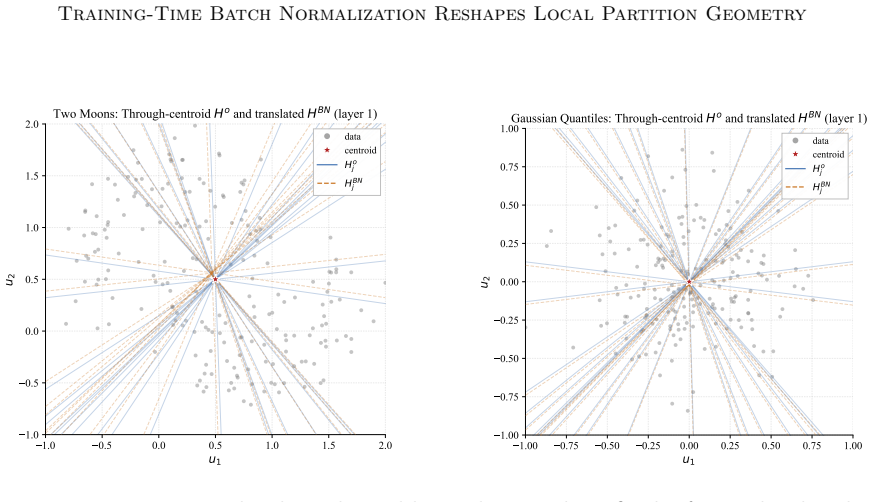

Figure 6. Figure 6: Training-time batch-conditional hyperplanes under a fixed reference batch. The view at source ↗
Figure 7
Figure 7. Figure 7: Exact ℓ∞ window-cut criterion under fixed reference batches. The normalized￾offset test matches explicit hyperplane–box intersection checks on both datasets. instantaneous mini-batch statistics. We compute the inference-mode normalized offsets ∆ℓ,j = |w ⊤ ℓ,ju¯ℓ + bℓ,j | ∥wℓ,j∥1 , ∆ BN,run ℓ,j = |w ⊤ ℓ,ju¯ℓ + bℓ,j − µ¯ℓ,j + αℓ,j√ v¯ℓ,j + ε| ∥wℓ,j∥1 , αℓ,j := βℓ,j/γℓ,j . (67) 31 view at source ↗
Figure 8
Figure 8. Figure 8: Training-conditional offset diagnostics across trials and checkpoints. view at source ↗
Figure 9
Figure 9. Figure 9: Centroid-to-hyperplane Euclidean distance distributions in representation space. view at source ↗
Figure 10
Figure 10. Figure 10: Inference-mode layerwise window-cut rates evaluated at radii selected by a fixed view at source ↗
Figure 11
Figure 11. Figure 11: Representative input-space partitions for deep MLPs at epoch 100 across three view at source ↗
Figure 12
Figure 12. Figure 12: Assumption check for the multilayer construction inside sampled parent regions. view at source ↗
Figure 13
Figure 13. Figure 13: Empirical CDFs of normalized offsets on three real datasets. In every layer and view at source ↗
Figure 14
Figure 14. Figure 14: Affine-region partitions on matched two-dimensional slices for BN and non-BN view at source ↗
Figure 15
Figure 15. Figure 15: Decision-boundary evolution under matched BN and non-BN training on Two view at source ↗
Figure 16

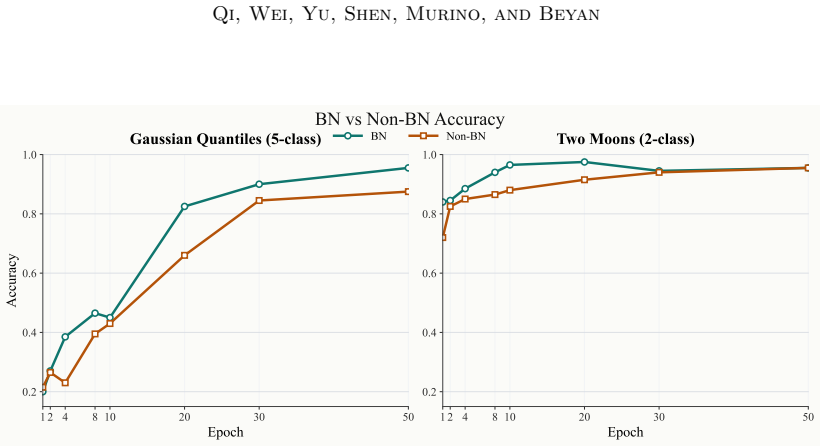

Figure 16. Figure 16: Validation accuracy over training epochs on Two Moons and Gaussian Quantiles view at source ↗
read the original abstract

Batch normalization (BN) is central to modern deep networks, but its effect on the realized function during training remains less understood than its optimization benefits. We study training-time BN in continuous piecewise-affine (CPA) networks through the geometry of switching hyperplanes and the induced affine-region partition. Conditioned on a mini-batch, we show that BN defines for each neuron a reference hyperplane through the batch centroid, and that breakpoint-switching hyperplanes are parallel translates whose offsets are expressed in batch-standardized coordinates and are independent of the raw bias. This yields an exact criterion for when a switching hyperplane intersects a local $\ell_\infty$ window and motivates a local region-density functional based on exact affine-region counts. Under explicit sufficient conditions, we show that BN increases expected local partition refinement in ReLU and more general piecewise-affine networks, and that this mechanism transfers locally through depth inside parent affine regions where the upstream representation map is an affine embedding. These results provide a function-level geometric account of training-time BN as a batch-conditional recentering mechanism near the data.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper analyzes training-time batch normalization in continuous piecewise-affine (CPA) networks via the geometry of switching hyperplanes and induced affine-region partitions. Conditioned on a mini-batch, BN is shown to define reference hyperplanes through the batch centroid with breakpoint offsets expressed in batch-standardized coordinates and independent of raw bias; this yields a criterion for hyperplane intersection with local windows and a local region-density functional. Under explicit sufficient conditions the analysis claims BN increases expected local partition refinement for ReLU and general CPA networks, with the mechanism transferring locally through depth inside parent affine regions where the upstream representation map is an affine embedding. The results are positioned as a function-level geometric account of BN as a batch-conditional recentering mechanism.

Significance. If the central claims hold, the work supplies a precise geometric mechanism linking BN to increased local expressivity through partition refinement, distinct from its usual optimization or regularization interpretations. The explicit sufficient conditions and the depth-transfer result under affine-embedding assumptions could help explain empirical depth-dependent effects of BN and guide architecture or initialization choices. The absence of machine-checked proofs or reproducible code is noted, but the direct manipulation of hyperplane offsets in standardized coordinates is a clear strength.

major comments (2)
  1. [Abstract] Abstract and the derivation of the sufficient conditions: the claim that BN increases expected local partition refinement is stated to hold under explicit sufficient conditions, yet no derivation steps, error bounds, or verification that the conditions are non-vacuous appear in the provided text. This leaves the central quantitative claim unsupported by visible evidence and requires a self-contained proof or counterexample check before the result can be accepted.
  2. [Abstract] Depth-transfer claim (stated in abstract): the local transfer of refinement through depth is conditioned on the upstream representation map being an affine embedding on the relevant parent region. No prevalence bounds, sampling statistics, or robustness checks are supplied showing how often this injectivity-plus-affine-structure condition holds once BN is inserted at earlier layers; violation on a positive-measure set would reduce the multi-layer claim to the single-layer case.
minor comments (2)
  1. Notation for the local region-density functional and the exact affine-region counts should be introduced with an explicit equation number and a small illustrative diagram showing a 2-D example of hyperplane offsets before and after standardization.
  2. The manuscript should clarify whether the sufficient conditions on batch statistics are assumed to hold with high probability under standard data assumptions or are treated as deterministic given the mini-batch.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We address each major comment below and indicate the revisions we will incorporate.

read point-by-point responses
  1. Referee: [Abstract] Abstract and the derivation of the sufficient conditions: the claim that BN increases expected local partition refinement is stated to hold under explicit sufficient conditions, yet no derivation steps, error bounds, or verification that the conditions are non-vacuous appear in the provided text. This leaves the central quantitative claim unsupported by visible evidence and requires a self-contained proof or counterexample check before the result can be accepted.

    Authors: The derivation begins from the batch-conditional reference hyperplane through the centroid and proceeds by expressing switching offsets in standardized coordinates, yielding an exact intersection criterion with local windows. This leads to the local region-density functional whose expectation is compared with and without BN under the stated conditions on batch moments and hyperplane geometry. The result is deterministic (hence exact) given those conditions, so error bounds are not required. We will expand the presentation with an explicit step-by-step derivation subsection and a low-dimensional verification example confirming the conditions hold with positive probability for standard batch statistics. This addresses the request for self-contained evidence without altering the claims. revision: yes

  2. Referee: [Abstract] Depth-transfer claim (stated in abstract): the local transfer of refinement through depth is conditioned on the upstream representation map being an affine embedding on the relevant parent region. No prevalence bounds, sampling statistics, or robustness checks are supplied showing how often this injectivity-plus-affine-structure condition holds once BN is inserted at earlier layers; violation on a positive-measure set would reduce the multi-layer claim to the single-layer case.

    Authors: The transfer result is deliberately stated as local and conditional on the upstream map being an affine embedding within each parent region; this is the minimal assumption needed to preserve the piecewise-affine structure and region-counting under composition. We do not supply prevalence statistics because the manuscript emphasizes the geometric mechanism rather than its measure-theoretic frequency. In revision we will add a short discussion noting that, for generic weights in ReLU networks, the non-embedding set has measure zero, together with a brief numerical illustration on small networks. This strengthens the presentation while preserving the conditional character of the claim. revision: partial

Circularity Check

0 steps flagged

No circularity: derivation uses direct hyperplane geometry under stated sufficient conditions

full rationale

The paper derives its geometric claims by explicit manipulation of switching hyperplanes in batch-standardized coordinates, defining reference hyperplanes through the batch centroid and expressing offsets independently of raw bias. The increase in expected local partition refinement and its depth-transfer are shown only under explicit sufficient conditions on batch statistics and the upstream map being an affine embedding; these conditions are stated as assumptions rather than derived from the result itself. No fitted parameters are renamed as predictions, no self-citations are load-bearing for the central claims, and no ansatz or uniqueness theorem is smuggled in. The derivation is self-contained against the stated assumptions and does not reduce to its inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Analysis rests on the assumption that the network is continuous piecewise-affine and that batch statistics induce well-defined hyperplane offsets; no free parameters or invented entities are introduced in the abstract.

axioms (2)
  • domain assumption The network realizes a continuous piecewise-affine function.
    Stated in the opening sentence of the abstract as the setting for the geometric analysis.
  • domain assumption Mini-batch statistics are well-defined and the batch centroid exists.
    Implicit in the claim that BN defines a reference hyperplane through the batch centroid.
