arxiv: 2605.09416 · v1 · submitted 2026-05-10 · 💻 cs.LG

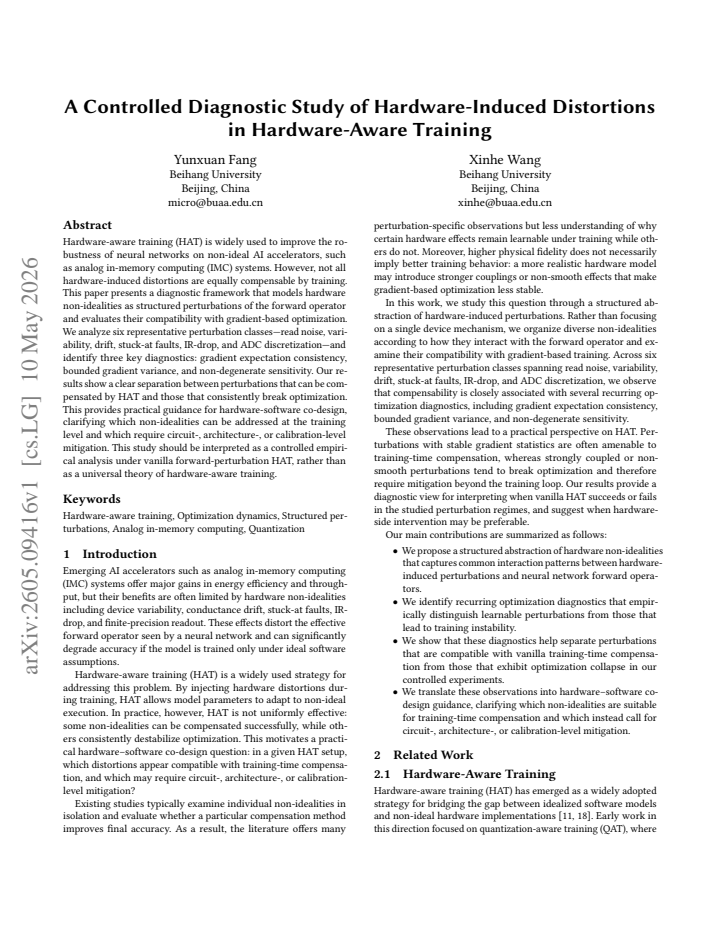

A Controlled Diagnostic Study of Hardware-Induced Distortions in Hardware-Aware Training

Yunxuan Fang , Xinhe Wang This is my paper

Pith reviewed 2026-05-12 02:23 UTC · model grok-4.3

classification 💻 cs.LG
keywords hardware-aware traininganalog in-memory computinghardware non-idealitiesgradient diagnosticsneural network robustnessperturbation analysisAI accelerators
0
0 comments X

The pith

Hardware-aware training compensates some but not all hardware distortions in AI accelerators.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a diagnostic framework to determine which hardware non-idealities can be mitigated by hardware-aware training (HAT) and which cannot. It models these non-idealities as structured perturbations to the forward computation in neural networks and evaluates them using three specific checks on the gradients: consistency of their expectation, bounded variance, and non-degenerate sensitivity. By applying this to six common issues such as read noise, variability, drift, stuck-at faults, IR-drop, and ADC discretization, the study finds a clear distinction between those that training can handle and those that break the optimization process. This distinction offers practical advice for co-designing hardware and software, indicating when to rely on training adjustments versus hardware fixes or calibration. The analysis is based on controlled experiments with standard HAT approaches.

Core claim

Modeling hardware non-idealities as structured perturbations of the forward operator and assessing them with the diagnostics of gradient expectation consistency, bounded gradient variance, and non-degenerate sensitivity reveals a clear separation: some perturbations are compensable by HAT while others consistently break gradient-based optimization.

What carries the argument

The diagnostic framework consisting of three gradient conditions (expectation consistency, bounded variance, non-degenerate sensitivity) applied to structured perturbations of the forward operator.

If this is right

  • Some hardware distortions can be addressed through training adjustments rather than hardware redesign.
  • Distortions that fail the diagnostics require circuit-level, architectural, or calibration-based solutions instead of training.
  • Hardware-software co-design can use these diagnostics to prioritize mitigation strategies effectively.
  • The results guide selection of which non-idealities to model in HAT for better robustness.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The framework might be extended to test other types of hardware or training methods beyond the vanilla forward-perturbation HAT studied here.
  • These diagnostics could help explain varying success rates of HAT across different accelerator implementations.
  • Integrating the diagnostics into hardware design tools could automate decisions on where to apply mitigation.

Load-bearing premise

That evaluating hardware non-idealities via the three gradient diagnostics on structured perturbations of the forward operator accurately predicts their compatibility with gradient-based optimization.

What would settle it

An observation that a perturbation classified as compensable by the diagnostics fails to yield improved network robustness when HAT is applied, or that one classified as breaking optimization allows successful training.

Figures

Figures reproduced from arXiv: 2605.09416 by Xinhe Wang, Yunxuan Fang.

Figure 1
Figure 1. Figure 1: Accuracy under six perturbation classes. (a) Additive read noise [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

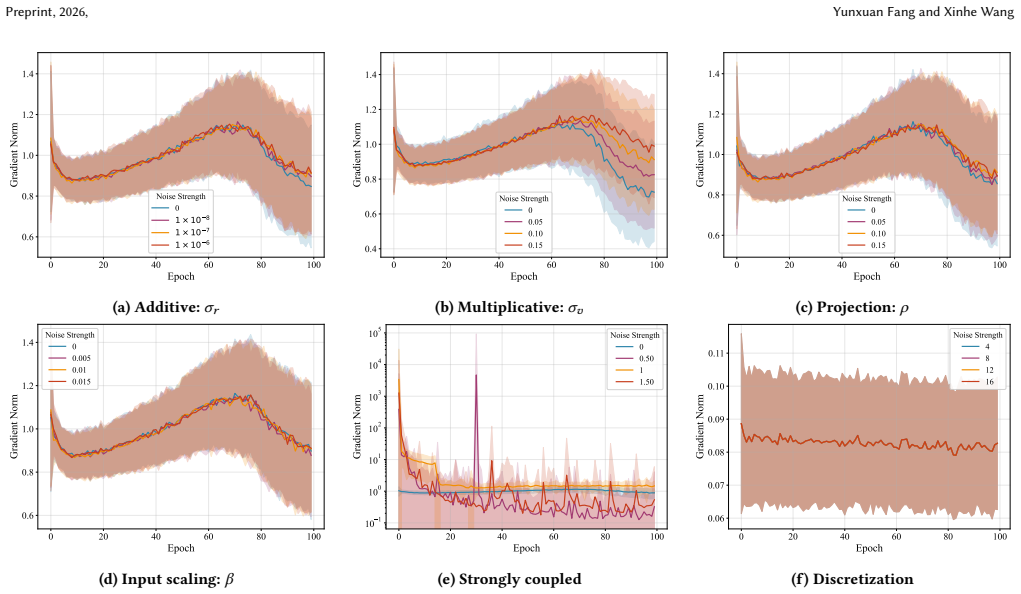

Figure 2. Figure 2: Gradient norm dynamics under six perturbation classes. Learnable perturbations maintain stable gradient norms, [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

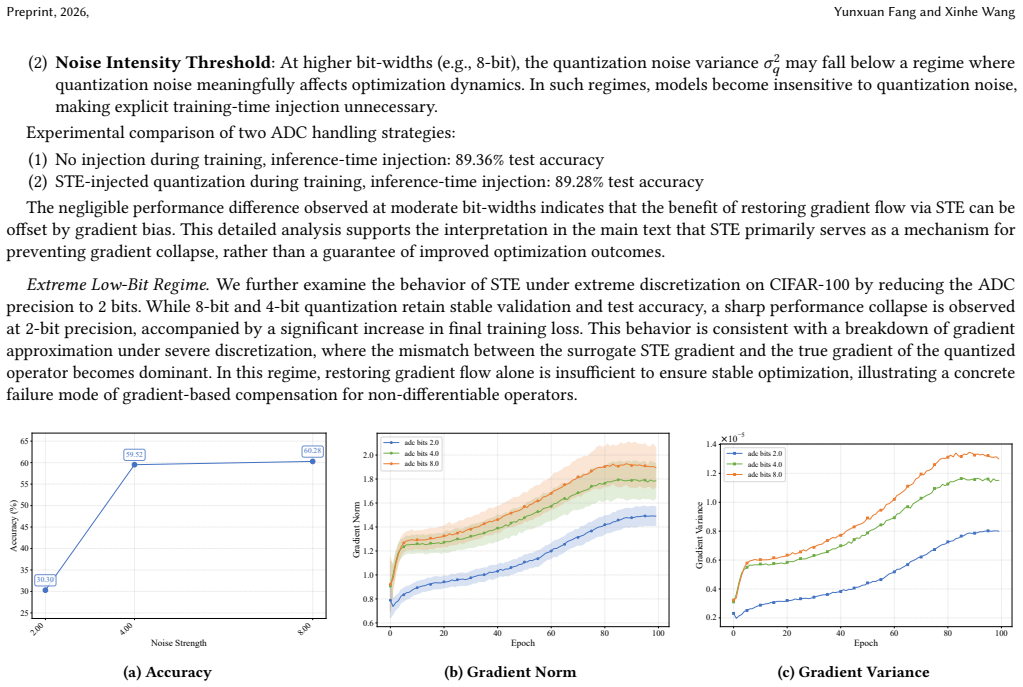

Figure 3. Figure 3: Accuracy, gradient norm and gradient variance of STE-based ADC quantization on CIFAR-100 under different bit [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figure 4

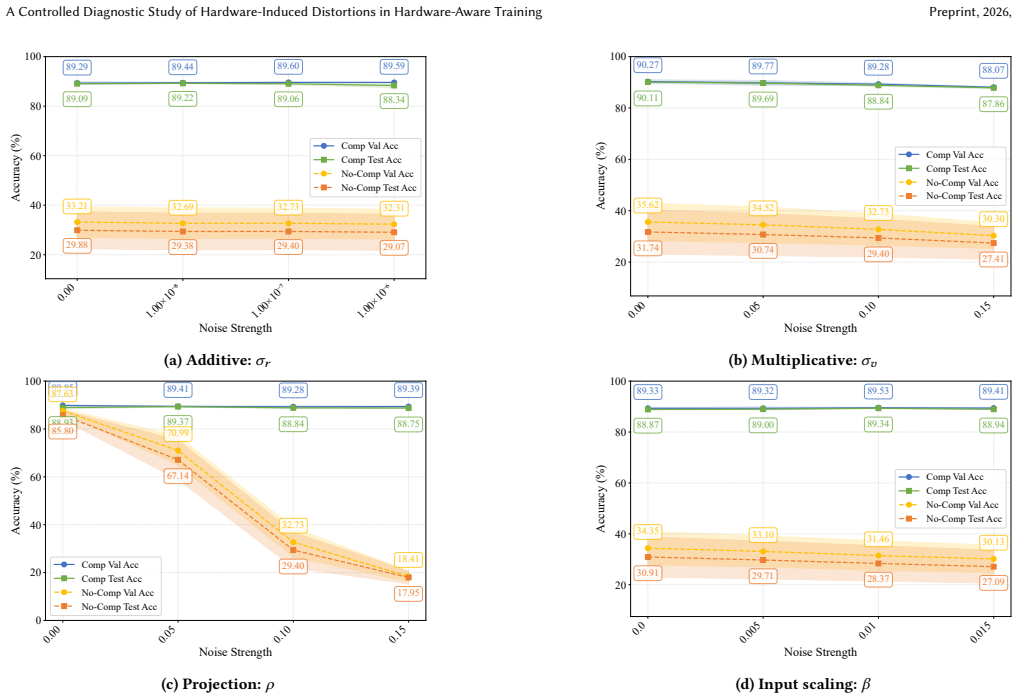

Figure 4. Figure 4: Validation and test accuracy statistics under hardware-aware training across learnable perturbation classes. (a) Additive [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
Figure 5

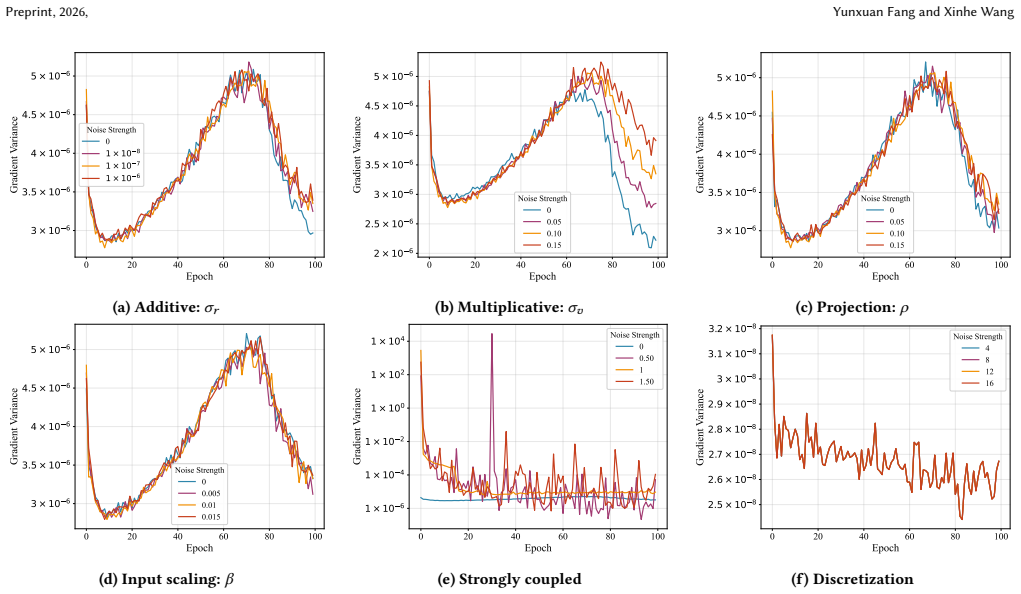

Figure 5. Figure 5: Gradient variance across perturbation classes with varying strengths. (a) Additive perturbations (read noise [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
Figure 6

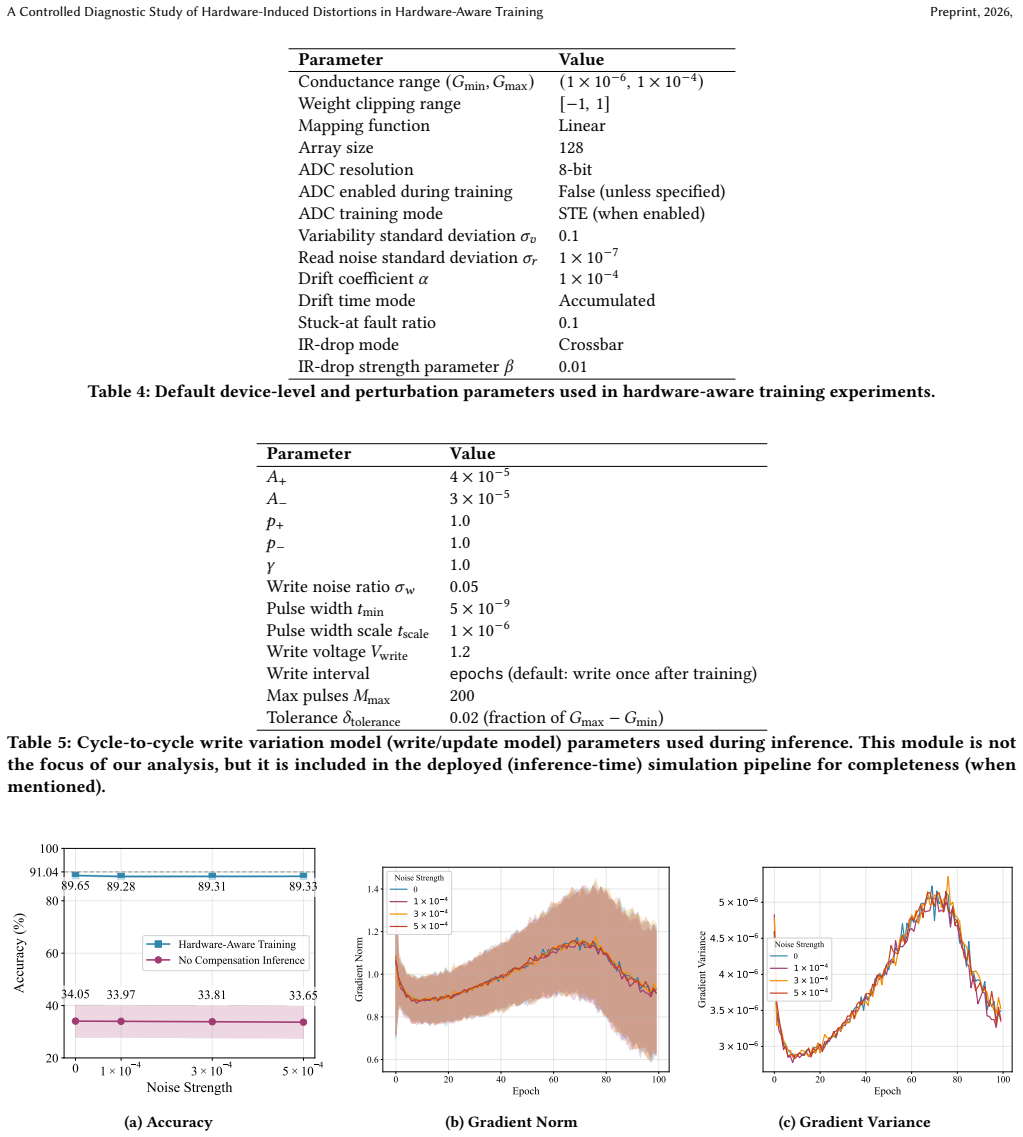

Figure 6. Figure 6: Accuracy, gradient norm and gradient variance under deterministic conductance drift for different attenuation rates [PITH_FULL_IMAGE:figures/full_fig_p015_6.png] view at source ↗
Figure 7

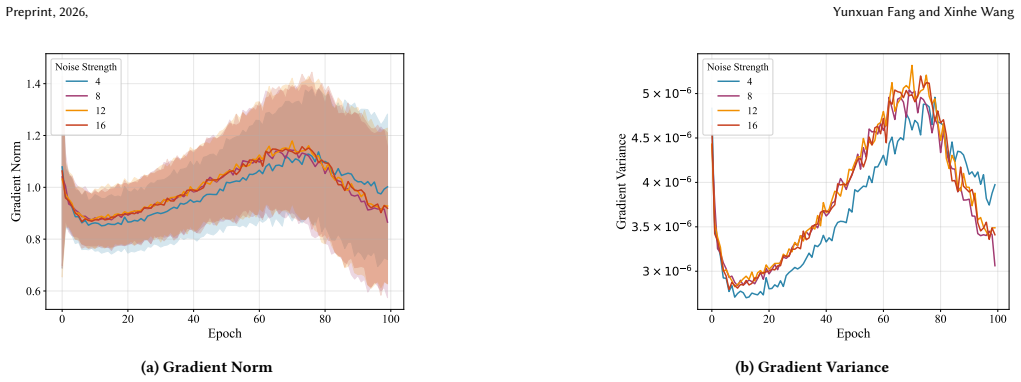

Figure 7. Figure 7: The restoration of gradient flow via STE demonstrates that gradient accessibility, not bit-width, dictates learnability. [PITH_FULL_IMAGE:figures/full_fig_p016_7.png] view at source ↗
Figure 8

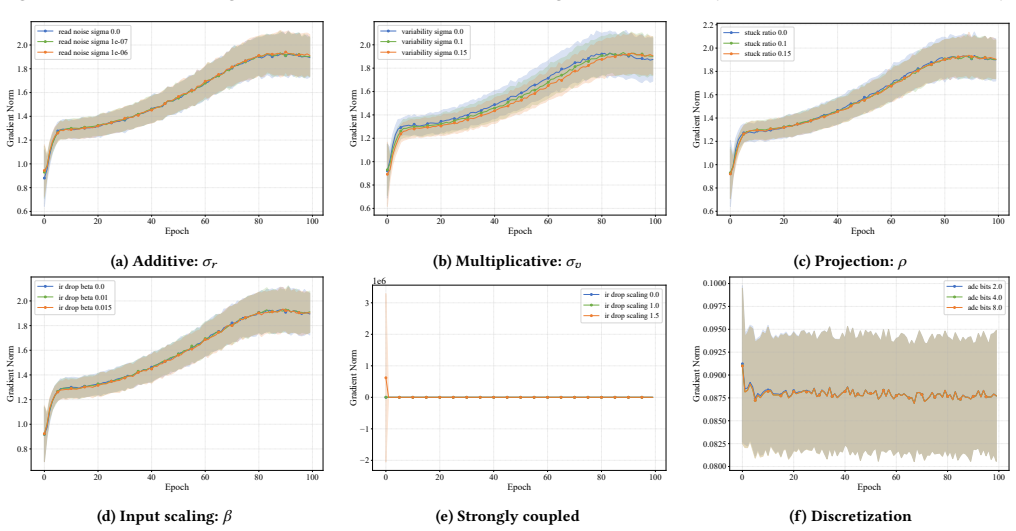

Figure 8. Figure 8: Gradient norm dynamics across perturbation classes with varying strengths on CIFAR-100. (a) Additive perturbations [PITH_FULL_IMAGE:figures/full_fig_p016_8.png] view at source ↗
Figure 9

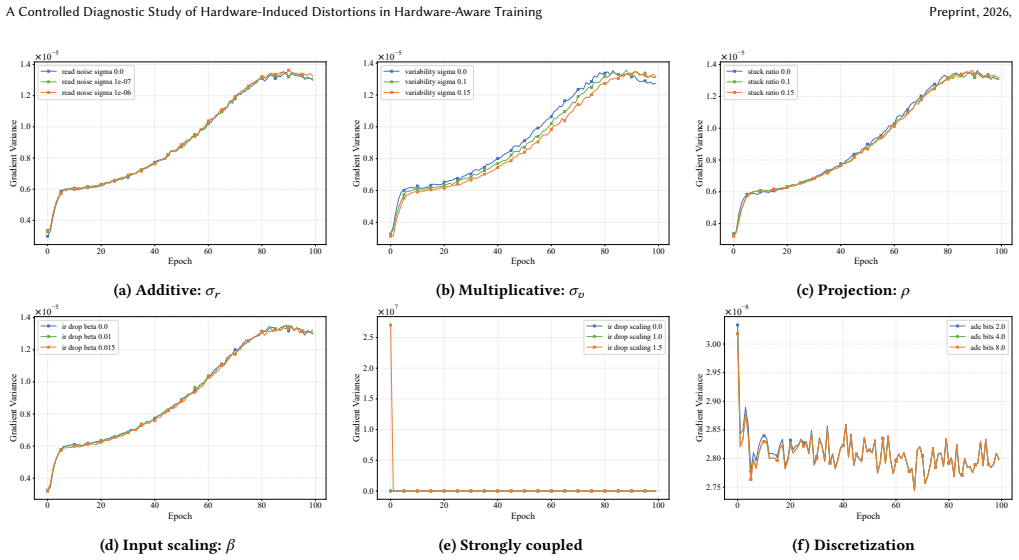

Figure 9. Figure 9: Gradient variance across perturbation classes with varying strengths on CIFAR-100. (a) Additive perturbations (read [PITH_FULL_IMAGE:figures/full_fig_p017_9.png] view at source ↗
read the original abstract

Hardware-aware training (HAT) is widely used to improve the robustness of neural networks on non-ideal AI accelerators, such as analog in-memory computing (IMC) systems. However, not all hardware-induced distortions are equally compensable by training. This paper presents a diagnostic framework that models hardware non-idealities as structured perturbations of the forward operator and evaluates their compatibility with gradient-based optimization. We analyze six representative perturbation classes--read noise, variability, drift, stuck-at faults, IR-drop, and ADC discretization--and identify three key diagnostics: gradient expectation consistency, bounded gradient variance, and non-degenerate sensitivity. Our results show a clear separation between perturbations that can be compensated by HAT and those that consistently break optimization. This provides practical guidance for hardware-software co-design, clarifying which non-idealities can be addressed at the training level and which require circuit-, architecture-, or calibration-level mitigation. This study should be interpreted as a controlled empirical analysis under vanilla forward-perturbation HAT, rather than as a universal theory of hardware-aware training.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript introduces a diagnostic framework for hardware-aware training (HAT) that models hardware non-idealities as structured perturbations of the forward operator. It evaluates six representative perturbation classes (read noise, variability, drift, stuck-at faults, IR-drop, and ADC discretization) against three gradient-based diagnostics: expectation consistency, bounded variance, and non-degenerate sensitivity. The central empirical finding is a clear separation between perturbations that can be compensated via vanilla forward-perturbation HAT and those that consistently break gradient-based optimization, with the work explicitly scoped as a controlled study rather than a universal theory.

Significance. If the reported separation is supported by the experiments, the work supplies actionable guidance for hardware-software co-design in analog in-memory computing by clarifying which non-idealities are addressable at the training level versus those requiring circuit, architecture, or calibration interventions. The explicit methodological choices (structured forward-operator perturbations and the three diagnostics motivated by optimization requirements) and self-imposed scope limitations are strengths that make the contribution focused and falsifiable.

minor comments (3)
  1. Abstract: while the summary is clear, adding one sentence identifying which of the six classes fall into the compensable versus non-compensable groups would immediately convey the key empirical outcome to readers.
  2. The manuscript would benefit from a summary table (perhaps in §4 or §5) listing each perturbation class, the three diagnostic outcomes, and the final classification; this would make the separation claim easier to verify at a glance.
  3. Notation: the distinction between 'structured perturbations of the forward operator' and the specific perturbation models should be defined once in §2 or §3 with a short equation or diagram to avoid any ambiguity when the diagnostics are applied.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive and accurate summary of our work, the assessment of its significance for hardware-software co-design, and the recommendation of minor revision. No major comments appear in the report, so we have no specific points requiring rebuttal or clarification at this stage. We will address any minor issues identified during the revision process while preserving the controlled scope of the study.

Circularity Check

0 steps flagged

No significant circularity in empirical diagnostic study

full rationale

The manuscript is a controlled empirical analysis that models hardware non-idealities as explicit structured perturbations of the forward operator and evaluates compatibility with gradient-based optimization via three directly motivated diagnostics (expectation consistency, bounded variance, non-degenerate sensitivity). No derivation chain, fitted parameters renamed as predictions, or load-bearing self-citations appear; the separation result follows from direct evaluation under the stated vanilla forward-perturbation HAT setup with explicit scope caveats. The framework is self-contained against external benchmarks and does not reduce any claim to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Central claim rests on domain assumptions about perturbation modeling and gradient diagnostics; no free parameters or invented entities visible in abstract.

axioms (2)
  • domain assumption Hardware non-idealities can be modeled as structured perturbations of the forward operator
    Explicitly stated as the modeling basis for the diagnostic framework.
  • domain assumption Gradient expectation consistency, bounded gradient variance, and non-degenerate sensitivity are sufficient diagnostics for optimization compatibility
    Identified as the three key diagnostics used to separate compensable from non-compensable perturbations.
