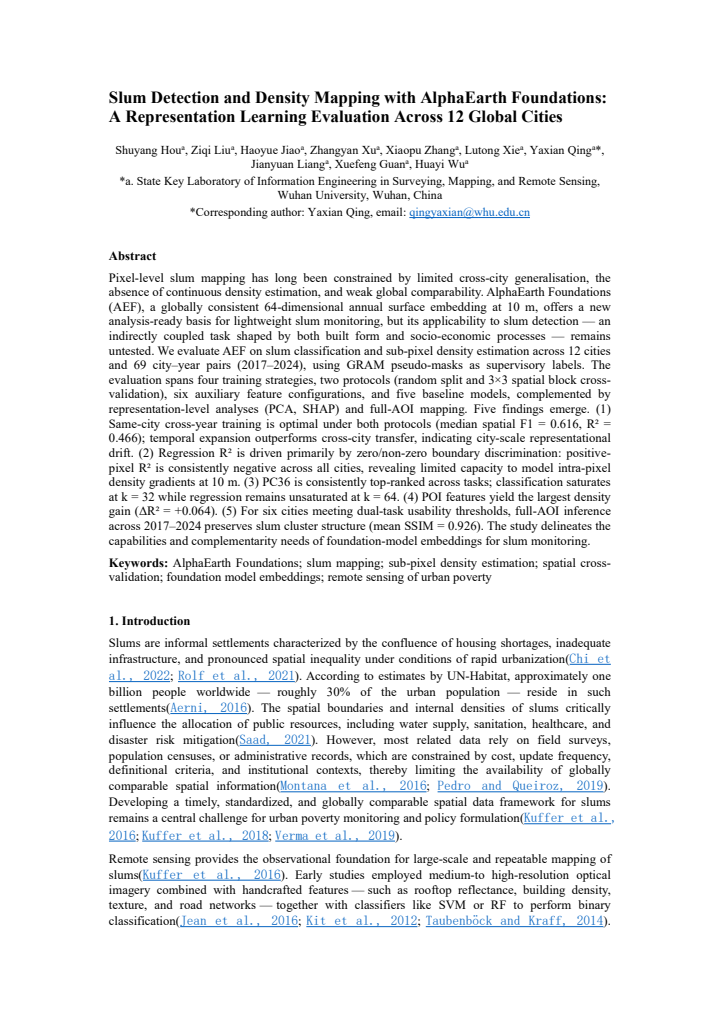

Slum Detection and Density Mapping with AlphaEarth Foundations: A Representation Learning Evaluation Across 12 Global Cities
Pith reviewed 2026-05-12 03:20 UTC · model grok-4.3
The pith
Globally consistent surface embeddings classify slum areas best when trained on multiple years from the same city but cannot distinguish density levels inside slum pixels.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The evaluation shows that training the embeddings on same-city cross-year data produces the strongest results for both slum classification and density regression, that regression performance is driven almost entirely by the ability to separate zero-density from positive-density pixels, and that one particular principal component of the embeddings is consistently the most informative across tasks.
What carries the argument
The 64-dimensional annual surface embeddings at 10 m resolution used as input features for classification and regression models with pseudo-masks as supervisory labels.
If this is right
- Same-city multi-year training is preferable to cross-city transfer for both classification and density tasks.
- Density regression succeeds only at the zero versus positive boundary and does not model intra-pixel gradients.
- Adding point-of-interest features produces the largest improvement in density estimation.
- For cities that meet usability thresholds, full-area predictions preserve slum cluster structure across years.
Where Pith is reading between the lines
- Higher spatial resolution embeddings would be needed to overcome the observed limit on intra-pixel density modeling.
- Periodic local recalibration may be required to handle city-scale representational drift over time.
- The same embedding approach could be tested on other urban features that combine built form with socio-economic signals.
Load-bearing premise
The pseudo-masks generated for training accurately and unbiasedly represent true slum locations and densities in every city and year studied.
What would settle it
Independent high-resolution ground-truth slum maps for at least one of the twelve cities that allow direct measurement of whether predicted densities on positive pixels correlate positively or negatively with actual densities.
read the original abstract
Pixel-level slum mapping has long been constrained by limited cross-city generalisation, the absence of continuous density estimation, and weak global comparability. AlphaEarth Foundations (AEF), a globally consistent 64-dimensional annual surface embedding at 10 m, offers a new analysis-ready basis for lightweight slum monitoring, but its applicability to slum detection - an indirectly coupled task shaped by both built form and socio-economic processes - remains untested. We evaluate AEF on slum classification and sub-pixel density estimation across 12 cities and 69 city-year pairs (2017-2024), using GRAM pseudo-masks as supervisory labels. The evaluation spans four training strategies, two protocols (random split and 3x3 spatial block cross-validation), six auxiliary feature configurations, and five baseline models, complemented by representation-level analyses (PCA, SHAP) and full-AOI mapping. Five findings emerge. (1) Same-city cross-year training is optimal under both protocols (median spatial F1 = 0.616, R^2 = 0.466); temporal expansion outperforms cross-city transfer, indicating city-scale representational drift. (2) Regression R^2 is driven primarily by zero/non-zero boundary discrimination: positive-pixel R^2 is consistently negative across all cities, revealing limited capacity to model intra-pixel density gradients at 10 m. (3) PC36 is consistently top-ranked across tasks; classification saturates at k = 32 while regression remains unsaturated at k = 64. (4) POI features yield the largest density gain (Delta R^2 = +0.064). (5) For six cities meeting dual-task usability thresholds, full-AOI inference across 2017-2024 preserves slum cluster structure (mean SSIM = 0.926). The study delineates the capabilities and complementarity needs of foundation-model embeddings for slum monitoring.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper evaluates AlphaEarth Foundations (AEF) 64-dimensional 10 m embeddings for slum classification and sub-pixel density regression across 12 cities and 69 city-year pairs (2017-2024). Using GRAM pseudo-masks as labels, it compares four training strategies under random-split and 3x3 spatial-block cross-validation protocols, six auxiliary feature sets, and five baselines. Key results include optimality of same-city cross-year training (median spatial F1 0.616, R² 0.466), regression R² driven only by zero/non-zero boundaries (positive-pixel R² negative), saturation at k=32 for classification, POI features adding +0.064 to R², and preserved cluster structure (SSIM 0.926) in full-AOI maps for six cities. Analyses include PCA, SHAP, and representation-level diagnostics.
Significance. If the GRAM labels prove reliable, the work offers a useful empirical benchmark on the capabilities of globally consistent foundation embeddings for indirectly coupled tasks like slum mapping. Strengths include the multi-protocol design, explicit self-critique of R² drivers, identification of PC36 and temporal transfer, and full-AOI inference results. The negative intra-pixel R² finding, if robust, would usefully bound expectations for 10 m embeddings in density tasks and motivate auxiliary data or higher-resolution approaches.
major comments (2)
- [Abstract / Evaluation protocol] Abstract and evaluation setup: All headline metrics and optimality conclusions (same-city cross-year superiority, regression limited to boundary discrimination) are computed against GRAM pseudo-masks treated as ground truth for both binary classification and density regression. No independent validation (IoU against official maps, correlation with census data, or expert annotation) is described; if GRAM exhibits city-specific boundary or density biases, the training-strategy rankings, k=32 saturation claim, and intra-pixel limitation conclusion become artifacts of label noise rather than properties of the AEF embeddings.
- [Results (regression R² decomposition)] Regression results (positive-pixel R² analysis): The claim that R² is driven primarily by zero/non-zero discrimination with consistently negative positive-pixel R² is load-bearing for the conclusion on limited intra-pixel gradient modeling at 10 m. This interpretation assumes GRAM density assignments within slum pixels are accurate and unbiased; without label validation or sensitivity tests (e.g., perturbing positive-pixel labels), the finding cannot be distinguished from label noise.
minor comments (3)
- [Methods / Results] The manuscript should report per-city error bars or inter-quartile ranges on the median F1 and R² values and clarify the exact spatial-block cross-validation implementation (block size, overlap handling).
- [Abstract / Metrics] Define 'spatial F1' and 'positive-pixel R²' explicitly, including how positive pixels are thresholded and whether they are computed only on pixels labeled positive by GRAM.
- [Reproducibility] Code and data splits should be released to allow reproduction of the 69 city-year pairs and the six-city full-AOI SSIM computation.
Simulated Author's Rebuttal
We thank the referee for the detailed and constructive report. We address each major comment below. The manuscript is framed as an evaluation of AlphaEarth Foundations embeddings using the most consistent available pseudo-labels across 12 cities; we agree that greater emphasis on label limitations is warranted and will revise accordingly.
read point-by-point responses
-
Referee: [Abstract / Evaluation protocol] Abstract and evaluation setup: All headline metrics and optimality conclusions (same-city cross-year superiority, regression limited to boundary discrimination) are computed against GRAM pseudo-masks treated as ground truth for both binary classification and density regression. No independent validation (IoU against official maps, correlation with census data, or expert annotation) is described; if GRAM exhibits city-specific boundary or density biases, the training-strategy rankings, k=32 saturation claim, and intra-pixel limitation conclusion become artifacts of label noise rather than properties of the AEF embeddings.
Authors: We acknowledge that GRAM pseudo-masks are used without independent validation such as census correlations or expert annotations, and that this is a genuine limitation for absolute claims. The study is explicitly positioned as a benchmark of AEF representation utility under consistent (if imperfect) global pseudo-labeling rather than a validated mapping product. The manuscript already qualifies the labels as 'pseudo-masks' and highlights the indirect coupling of slum detection to built-form and socio-economic factors. Relative comparisons (training strategies, k saturation) remain informative under fixed labeling. We will add a dedicated limitations paragraph in the Discussion that discusses potential city-specific GRAM biases and their possible effects on the reported rankings and conclusions. revision: partial
-
Referee: [Results (regression R² decomposition)] Regression results (positive-pixel R² analysis): The claim that R² is driven primarily by zero/non-zero discrimination with consistently negative positive-pixel R² is load-bearing for the conclusion on limited intra-pixel gradient modeling at 10 m. This interpretation assumes GRAM density assignments within slum pixels are accurate and unbiased; without label validation or sensitivity tests (e.g., perturbing positive-pixel labels), the finding cannot be distinguished from label noise.
Authors: The positive-pixel R² analysis was designed to isolate whether the embeddings capture intra-slum density variation beyond binary presence/absence, and the consistently negative values support the stated limitation at 10 m resolution. The referee is correct that this interpretation is conditional on GRAM density fidelity within positive pixels. The manuscript already includes self-critique of R² drivers and reports the negative intra-pixel result as a key finding. We will add explicit sensitivity discussion and a brief perturbation experiment in the revised results section to clarify that the conclusion holds relative to the pseudo-labels, while noting that auxiliary features or higher-resolution data would be needed to overcome this bound. revision: yes
Circularity Check
No circularity: purely empirical evaluation with independent metrics
full rationale
The paper reports an empirical evaluation of AEF embeddings across 12 cities using four training strategies, random and spatial-block cross-validation protocols, baselines, PCA/SHAP analyses, and GRAM pseudo-masks solely as external supervisory labels. No derivation chain, equations, or first-principles predictions are presented; all quantitative claims (median F1 0.616, R^2 0.466, saturation at k=32/64, etc.) are computed directly from held-out test splits and therefore cannot reduce to quantities defined by the paper's own fitted parameters or self-citations. The analysis is self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption GRAM pseudo-masks are reliable supervisory labels for slum classification and density estimation
