MicroViTv2: Beyond the FLOPS for Edge Energy-Friendly Vision Transformers

Novendra Setyawan , Chi-Chia Sun , Mao-Hsiu Hsu , Wen-Kai Kuo , Jun-Wei Hsieh
Authors on Pith no claims yet

Pith reviewed 2026-05-12 03:24 UTC · model grok-4.3

classification 💻 cs.CV
keywords vision transformersedge computingreparameterizationenergy efficiencylightweight modelsimage classificationobject detectionhardware-aware design
0
0 comments X

The pith

MicroViTv2 uses reparameterized blocks and new attention to gain accuracy and energy efficiency on edge devices despite higher FLOPs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents MicroViTv2 as an update to an earlier lightweight vision transformer for deployment on power-constrained edge hardware. It introduces reparameterized patch embedding and depth-wise convolution layers that simplify at inference time, along with single depth-wise transposed attention to capture distant relations efficiently. On ImageNet-1K and COCO the new model reaches up to 0.5 percent higher accuracy than its predecessor and outperforms several recent lightweight transformers while drawing less energy on a Jetson device. The results indicate that hardware measurements provide a more reliable guide to real efficiency than operation counts alone.

Core claim

MicroViTv2 demonstrates that structural re-parameterization through RepEmbed and RepDW combined with SDTA enables a lightweight vision transformer to achieve up to 0.5% higher accuracy than its predecessor and better performance than MobileViTv2, EdgeNeXt, and EfficientViT, all while delivering fast inference and reduced energy consumption on the Jetson AGX Orin platform.

What carries the argument

Reparameterized Patch Embedding (RepEmbed), Reparameterized Depth-Wise convolution mixer (RepDW), and Single Depth-Wise Transposed Attention (SDTA) that together provide hardware-efficient inference and dependency modeling.

If this is right

  • Accuracy on image classification and object detection improves without increasing energy draw on target hardware.
  • Future edge models should prioritize reparameterization to close the gap between FLOPs and real performance.
  • Evaluation protocols for efficient vision models need to include direct device energy and latency measurements.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same reparameterization patterns could be applied to other transformer variants to test whether efficiency gains generalize beyond this specific architecture.
  • Incorporating device energy feedback during architecture search might produce models that are even more tightly matched to particular hardware platforms.
  • The shift toward measuring real-device cost rather than theoretical operations could influence design choices for related tasks such as video recognition.

Load-bearing premise

The reported gains in accuracy and energy efficiency stem primarily from the introduction of RepEmbed, RepDW, and SDTA rather than from differences in training data, augmentations, or optimization settings.

What would settle it

Re-training both the original MicroViT and MicroViTv2 from scratch using identical procedures and measuring accuracy on ImageNet-1K together with energy usage on the Jetson AGX Orin.

Figures

Figures reproduced from arXiv: 2605.10148 by Chi-Chia Sun, Jun-Wei Hsieh, Mao-Hsiu Hsu, Novendra Setyawan, Wen-Kai Kuo.

Figure 1
Figure 1. Figure 1: Comparison of our proposed MicroViTv2 model with [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

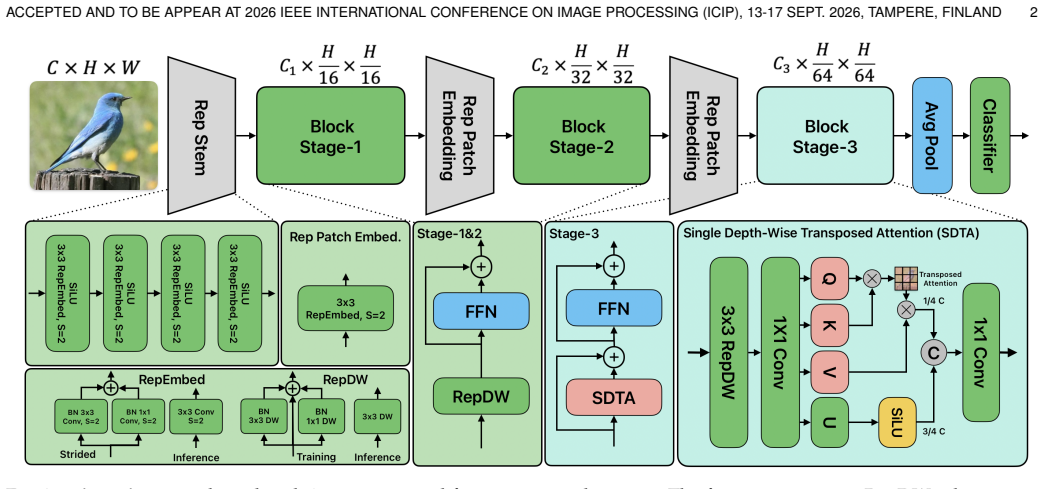

Figure 2. Figure 2: MicroViTv2 conducted with 3 stage pyramid feature map architecture. The first two stage use RepDW token mixer and the last stage use Single Dept-Wise Transpose Attention (SDTA). equate low FLOPs with efficiency, MicroViTv2 demonstrates that a carefully designed architecture with slightly higher FLOPs can still be faster and more energy-efficient in prac￾tice, as shown in [PITH_FULL_IMAGE:figures/full_fig_… view at source ↗
Figure 3

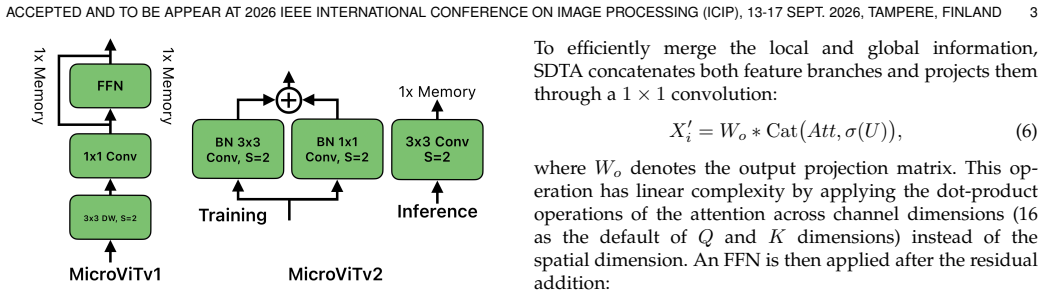

Figure 3. Figure 3: Patch Embedding of MicroViTv1 vs Rep Patch Em [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
read the original abstract

The Vision Transformer (ViT) achieves remarkable accuracy across visual tasks but remains computationally expensive for edge deployment. This paper presents MicroViTv2, a lightweight Vision Transformer optimized for real-device efficiency. Built upon the original MicroViT, the proposed model is designed based on reparameterized design, specifically Reparameterized Patch Embedding (RepEmbed) and Reparameterized Depth-Wise convolution mixer (RepDW) for faster inference, and introduces the Single Depth-Wise Transposed Attention (SDTA) to capture long-range dependencies with minimal redundancy. Despite slightly higher FLOPs, MicroViTv2 improves accuracy up to 0.5% compared to its predecessor and surpassing MobileViTv2, EdgeNeXt, and EfficientViT while maintaining fast inference and high energy efficiency on Jetson AGX Orin. Experiments on ImageNet-1K and COCO demonstrate that hardware-aware design and structural re-parameterization are key to achieving high accuracy and low energy consumption, validating the need to evaluate efficiency beyond FLOPs. Code is available at https://github.com/novendrastywn/MicroViT.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper introduces MicroViTv2, a lightweight Vision Transformer extending MicroViT for edge deployment. It incorporates Reparameterized Patch Embedding (RepEmbed), Reparameterized Depth-Wise convolution mixer (RepDW), and Single Depth-Wise Transposed Attention (SDTA) to improve inference speed and capture long-range dependencies with low redundancy. The central claims are that, despite modestly higher FLOPs, MicroViTv2 achieves up to 0.5% higher accuracy than its predecessor while outperforming MobileViTv2, EdgeNeXt, and EfficientViT, with strong energy efficiency on Jetson AGX Orin; experiments on ImageNet-1K and COCO are said to demonstrate that hardware-aware reparameterization is key to accuracy-energy trade-offs beyond FLOPs. Code is released.

Significance. If the empirical claims are substantiated with proper controls, the work would be significant for practical edge AI: it provides concrete evidence that structural reparameterization and device-specific design can yield measurable accuracy and energy gains on real hardware (Jetson AGX Orin) where FLOPs alone are insufficient. The availability of code strengthens reproducibility and enables follow-up work on reparameterized ViT variants for resource-constrained settings.

major comments (2)
  1. [Experiments / Results] Experiments (implicit in abstract and results): The central attribution that accuracy gains (up to 0.5%) and energy improvements stem from RepEmbed, RepDW, and SDTA rather than training differences is not yet secure. The manuscript does not state whether the predecessor MicroViT and the listed baselines (MobileViTv2, EdgeNeXt, EfficientViT) were retrained under identical data augmentation, optimizer schedule, regularization, and hyperparameter protocols as MicroViTv2. Without such controls or an explicit ablation isolating the architectural changes, the causal claim that 'hardware-aware design and structural re-parameterization are key' cannot be isolated from potential confounds.
  2. [Results] Results section: The abstract reports concrete accuracy and energy numbers without accompanying error bars, standard deviations across runs, or statistical significance tests. This weakens the claim of consistent outperformance, especially for the modest 0.5% accuracy lift, and makes it difficult to assess whether the gains are robust or within measurement noise on ImageNet-1K and COCO.
minor comments (1)
  1. [Abstract / Introduction] The abstract and introduction would benefit from a brief table or bullet list explicitly contrasting the new components (RepEmbed, RepDW, SDTA) against their non-reparameterized counterparts in MicroViT to clarify the incremental changes.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which help improve the clarity and rigor of our work. We address each major comment below and will revise the manuscript to incorporate the suggested changes.

read point-by-point responses

  1. Referee: [Experiments / Results] Experiments (implicit in abstract and results): The central attribution that accuracy gains (up to 0.5%) and energy improvements stem from RepEmbed, RepDW, and SDTA rather than training differences is not yet secure. The manuscript does not state whether the predecessor MicroViT and the listed baselines (MobileViTv2, EdgeNeXt, EfficientViT) were retrained under identical data augmentation, optimizer schedule, regularization, and hyperparameter protocols as MicroViTv2. Without such controls or an explicit ablation isolating the architectural changes, the causal claim that 'hardware-aware design and structural re-parameterization are key' cannot be isolated from potential confounds.

    Authors: We agree that the manuscript should explicitly document the experimental controls to support the attribution of gains. All models, including the predecessor MicroViT and the listed baselines, were retrained from scratch using identical data augmentation, optimizer schedules, regularization, and hyperparameter settings as MicroViTv2 to enable fair comparison. We will revise the Experiments section to describe the shared training protocol in detail and add an ablation study that incrementally introduces RepEmbed, RepDW, and SDTA to isolate their individual contributions to accuracy and efficiency. revision: yes

  2. Referee: [Results] Results section: The abstract reports concrete accuracy and energy numbers without accompanying error bars, standard deviations across runs, or statistical significance tests. This weakens the claim of consistent outperformance, especially for the modest 0.5% accuracy lift, and makes it difficult to assess whether the gains are robust or within measurement noise on ImageNet-1K and COCO.

    Authors: We acknowledge that reporting variability strengthens the claims, particularly for modest improvements. In the revised manuscript we will report mean accuracy and energy values with standard deviations computed over multiple independent runs (different random seeds) for the key comparisons on ImageNet-1K and COCO. We will also add statistical significance tests (e.g., paired t-tests) between MicroViTv2 and the baselines to confirm that the observed gains exceed measurement noise. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation or claims

full rationale

The paper presents an empirical architecture improvement (RepEmbed, RepDW, SDTA) over a predecessor model, with performance gains demonstrated via standard ImageNet-1K and COCO benchmarks against external baselines. No equations, first-principles derivations, or predictions are present that reduce to fitted parameters or self-referential definitions by construction. Claims rest on experimental comparisons rather than any load-bearing self-citation chain or ansatz smuggling. The central attribution to hardware-aware design is supported by reported results and is not forced by internal definitions or prior self-work.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available, so the ledger reflects high-level design choices. The work relies on standard deep-learning assumptions about reparameterization converting training-time complexity into inference-time speed and on the premise that SDTA captures long-range dependencies with low redundancy.
