Cometary Plasma Science -- A White Paper in response to the Voyage 2050 Call by the European Space Agency

T0 review · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A multi-spacecraft comet rendezvous mission is proposed to resolve open questions in cometary plasma physics that single-spacecraft missions like Rosetta could not answer.

arxiv 1908.00377 v1 pith:2CDF7LKZ submitted 2019-08-01 astro-ph.EP

Charlotte Götz , Herber Gunell , Martin Volwerk , Arnaud Beth , Anders Eriksson , Marina Galand , Pierre Henri , Hans Nilsson
show 22 more authors
Cyril Simon Wedlund Markku Alho Laila Andersson Nicolas Andre Johan De Keyser Jan Deca Yasong Ge Karl-Heinz Gla{ss}meier Rajkumar Hajra Tomas Karlsson Satoshi Kasahara Ivana Kolmasova Kristie LLera Hadi Madanian Ingrid Mann Christian Mazelle Elias Odelstad Ferdinand Plaschke Martin Rubin Beatriz Sanchez-Cano Colin Snodgrass Erik Vigren
This is my paper · ORCID
classification astro-ph.EP
keywords cometplasmaprocessessolarstructurescometarycometslarge-scale
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Comets release gas that becomes ionized and forms a plasma around the nucleus. The solar wind flows into this plasma, creating boundaries like a bow shock, a region where solar wind ions disappear, and a magnetic-field-free cavity. Previous missions, Giotto and Rosetta, measured these regions at single points. Rosetta orbited comet 67P for two years and saw these structures form, disappear and reform, but one spacecraft cannot tell whether changes are spatial or temporal.

This white paper, written for ESA's Voyage 2050 planning, reviews these results and lists the open questions: the shape of the bow shock, the mechanism that forms the diamagnetic cavity, the cause of tail disconnections, the role of electrons in carrying magnetic field, and the behavior of dust in the plasma. The authors argue that the only way to answer them is a mission with at least four spacecraft in formation around a comet, so the same boundary can be sampled at multiple points at once. They propose three profiles: a full multi-spacecraft rendezvous, sub-spacecraft added to a nucleus mission, and an artificial comet experiment near Earth.

The paper is not a research result; it is a mission proposal and literature review. Its value depends on ESA selecting such a mission and on the technical assumption that spacecraft can measure low-energy ions despite charging problems that limited Rosetta.

Extended reading notes

Core claim

The paper concludes that 'the multi-point rendezvous mission (A) is needed to answer many of the questions that still remain' (Conclusions, Table 4.1). If correct, a comet rendezvous with a multi-spacecraft formation would be the decisive next step in cometary plasma physics and would yield the first time-resolved 3D measurements of a comet-solar wind interaction.

Load-bearing premise

The proposal assumes that active spacecraft potential control can be made effective in the warm, dense plasma of a comet's inner coma so that low-energy ions and electrons can be measured accurately. Section 2.1.3 states that Rosetta could not measure low-energy ion distribution functions 'due to a very negative spacecraft potential,' and Section 3 acknowledges that keeping spacecraft potential close to zero 'is challenging in a plasma that is warm and dense.' The whole science case for profile A depends on this technical capability, together with the assumption that four spacecraft can be operated in formation around a low-gravity comet.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Assumptions & free parameters 0 free parameters · 3 assumptions · 0 invented entities

The paper introduces no new physical quantities, particles, or forces. Its central content is a review of existing observations and a mission architecture, so the only load-bearing inputs are domain assumptions about feasibility and scientific priority.

assumptions (3)
  • domain assumption The open questions listed in Section 2 are genuinely unanswered by prior missions and are answerable by in situ multi-point measurements.
    Section 2 frames a set of 'main questions' without a quantitative analysis showing that the proposed measurements will resolve them.
  • domain assumption Active spacecraft potential control can be made effective in the warm, dense cometary plasma, where Rosetta's potential was too negative to measure low-energy ions.
    Section 2.1.3 reports the Rosetta limitation; Section 3 assumes new development will solve it.
  • standard math The curlometer technique, used with Cluster and MMS, yields valid 3D current estimates at comet spatial scales.
    Section 3 invokes it without derivation; it is an established multi-spacecraft analysis method from prior missions.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Cometary Plasma Science -- A White Paper in response to the Voyage 2050 Call by the European Space Agency." pith.science (2026). https://pith.science/paper/2CDF7LKZ

@misc{pith2026190800377,
  author       = {Pith},
  title        = {Pith review of: Cometary Plasma Science -- A White Paper in response to the Voyage 2050 Call by the European Space Agency},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/2CDF7LKZ}},
  note         = {Machine review of arXiv:1908.00377}
}
read the original abstract

Comets hold the key to the understanding of our solar system, its formation and its evolution, and to the fundamental plasma processes at work both in it and beyond it. A comet nucleus emits gas as it is heated by the sunlight. The gas forms the coma, where it is ionised, becomes a plasma and eventually interacts with the solar wind. Besides these neutral and ionised gases, the coma also contains dust grains, released from the comet nucleus. As a cometary atmosphere develops when the comet travels through the solar system, large-scale structures, such as the plasma boundaries, develop and disappear, while at planets such large-scale structures are only accessible in their fully grown, quasi-steady state. In situ measurements at comets enable us to learn both how such large-scale structures are formed or reformed and how small-scale processes in the plasma affect the formation and properties of these large scale structures. Furthermore, a comet goes through a wide range of parameter regimes during its life cycle, where either collisional processes, involving neutrals and charged particles, or collisionless processes are at play, and might even compete in complicated transitional regimes. Thus a comet presents a unique opportunity to study this parameter space, from an asteroid-like to a Mars- and Venus-like interaction. Fast flybys of comets have made many new discoveries, setting the stage for a multi-spacecraft mission to accompany a comet on its journey through the solar system. This white paper reviews the present-day knowledge of cometary plasmas, discusses the many questions that remain unanswered, and outlines a multi-spacecraft ESA mission to accompany a comet that will answer these questions by combining both multi-spacecraft observations and a rendezvous mission, and at the same time advance our understanding of fundamental plasma physics and its role in planetary systems.

Figures

Figures reproduced from arXiv: 1908.00377 by the authors.

Figure 1.1
Figure 1.1. A sketch of the cometary plasma environment in the plane containing the magnetic field and the solar wind flow. The three panels show different stages, left: weak activity, middle: intermediate activity, right: high activity. Boundaries and regions are labelled: bow wave (BW), solar wind ion cavity (SC), and diamagnetic cavity (MC). Adapted from Götz (2019). At a comet there are two plasma types: (1) the light solar… view at source ↗
Figure 1.2
Figure 1.2. Energy spectrogram of the solar wind ions summed over all viewing directions and integrated over 1 hour for the entire Rosetta comet phase. One can see clearly that the spacecraft was located in a solar wind ion free region during the months around comet 67P perihelion (August 2015), when the gas production rate was highest. Adapted from Nilsson et al. (2017). A multitude of upstream wave phenomena have been observe… view at source ↗

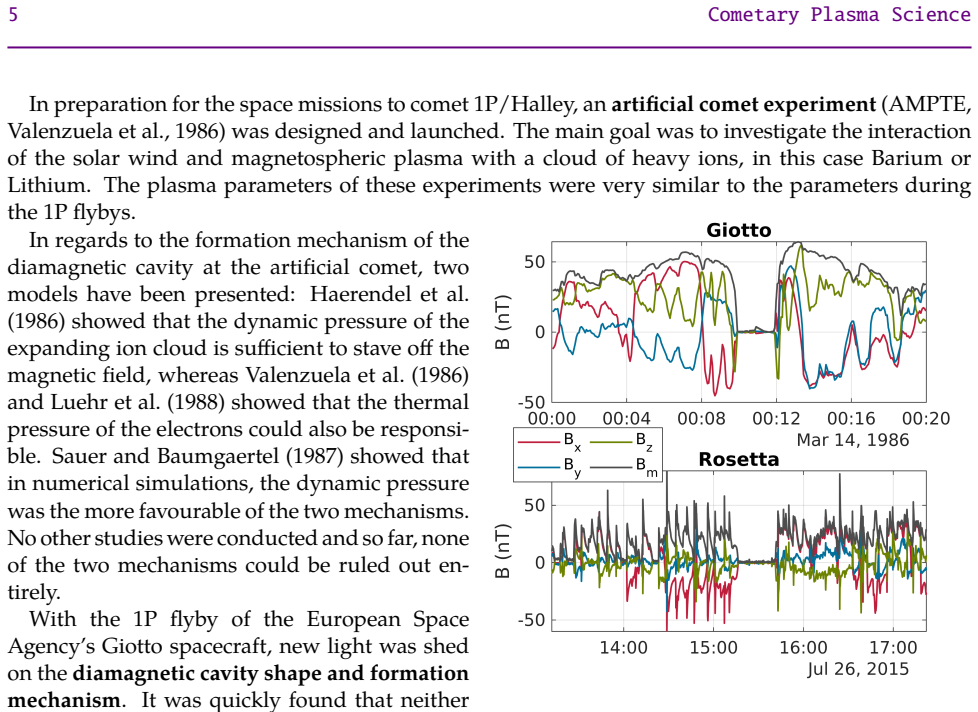

Figure 1.3
Figure 1.3. Magnetic field observations of cavities at 1P (measured by Giotto’s magnetometer) and 67P (measured by the magnetometer onboard Rosetta). In regards to the formation mechanism of the diamagnetic cavity at the artificial comet, two models have been presented: Haerendel et al. (1986) showed that the dynamic pressure of the expanding ion cloud is sufficient to stave off the magnetic field, whereas Valenzuela et al. (19… view at source ↗
Figures from the paper (4 more)
Figure 1.4
Figure 1.4. Figure 1.4: Photograph of Comet Morehouse, (Rahe and Donn, 1969). Comets can have more than one tail. In addition to the most clearly visible dust tail there is an ion or plasma tail. While the dust grains in the dust tail are pushed away from the Sun by the photon pressure, the…
Figure 1.5
Figure 1.5. Figure 1.5: Solar wind charge-exchange interactions at comet 67P (Simon Wedlund et al., 2019b). Solar wind ion interaction with the neutral coma In a charge exchange reaction, one or several elec￾trons are semi-resonantly transferred between a neutral particle (atom or molecule)…
Figure 1.6
Figure 1.6. Figure 1.6: ENA emissions from the subso￾lar magnetopause of Earth (Fuselier et al., 2010). No ENA instrument has been flown to a comet yet. Ekenbäck et al. (2008) conducted MHD simulations of a comet and found that remote observations at large dis￾tances should be feasible. A c…
Figure 1.7
Figure 1.7. Figure 1.7: Dust acoustic waves (Heinrich et al., 2009). Large dust grains break up into smaller fragments due to electric forces, stemming from the electric charge of the grain (Hilchenbach et al., 2017). Thus, not only does the size dis￾tribution influence the grain charge as …
