FlowSense: A Natural Language Interface for Visual Data Exploration within a Dataflow System

T0 review · 2 major / 7 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read FlowSense enables natural language construction and editing of dataflow diagrams in VisFlow, covering most diagram-editing operations for visual data exploration.

desk verdict A genuinely new NLI design for dataflow systems with an honest but uncontrolled evaluation; the causal usability claim overreaches the experiment. read the letter →

arxiv 1908.00681 v2 pith:R3IMINZK submitted 2019-08-02 cs.HC cs.LG

Bowen Yu , Claudio T. Silva This is my paper · ORCID
classification cs.HCcs.LG
keywords naturallanguageinterfacedataflowvisualizationsemanticparsingspecialutterancesVisFlowvisualdataexplorationuserstudymulti-viewlinked
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper proposes FlowSense, a natural language interface for the VisFlow dataflow visualization system, and claims it lets users construct and modify multi-view linked visualizations by typing or speaking plain-English queries. It argues that this lowers the learning overhead of dataflow diagrams, which typically require users to know the underlying modules and drag-and-drop interactions. The key idea is a grammar-based semantic parser that tags dataset and diagram entities in real time and uses special utterance placeholders so the grammar generalizes across datasets and diagrams. Evidence comes from a domain-expert case study on New York City traffic speed data and a 17-participant user study, which the paper reports as showing improved usability and simplified diagram construction.

What carries the argument

The central mechanism is the semantic parser with special utterance tagging and special utterance placeholders. Special utterances—column names, node labels, node types, and dataset names—are recognized on the fly, highlighted with consistent colors in the input box, and represented in grammar rules by generic placeholders such as ⟨column⟩. This lets the roughly 500-rule grammar work across datasets and diagrams without new rules. A query-pattern completion step fills missing source nodes, target nodes, and port specifications using default values and a focus-score heuristic based on click activeness and mouse distance, and the parser resolves syntactic ambiguity by learning a small weight vector over derivation rules.

What would settle it

Conduct a controlled experiment in which two matched groups perform the same three analytical tasks after identical tutorials, one group using only VisFlow and the other using VisFlow with FlowSense. If the FlowSense group shows no meaningful advantage in completion time, answer accuracy, or perceived usability, the paper's usability claim would be contradicted.

Watch

Extended reading notes

Core claim

The paper's central claim is that a natural language interface can support the majority of dataflow diagram editing operations in VisFlow. FlowSense maps English queries onto six categories of VisFlow functions—visualizing, visual encoding, filtering and extremum finding, subset manipulation, highlighting, and linking—using a grammar-based semantic parser. The parser tags special utterances (column names, node labels, node types, dataset names) in real time and replaces them with placeholders in grammar rules, which makes the grammar independent of the loaded dataset and the current diagram. The paper reports a 68.5% raw query acceptance rate (76.9% after fixing implementation bugs) from a 17-participant user study, and presents this, together with a domain-expert case study on NYC traffic speed data, as evidence that FlowSense improves VisFlow's usability and simplifies diagram construction.

Load-bearing premise

The load-bearing premise is that participants' success and positive ratings in the user study come from FlowSense itself, rather than from the tutorials they completed first or from the simplicity of the tasks, yet no control condition used VisFlow alone on the same tasks.

Editorial extensions

If this is right

  • Users with no prior VisFlow experience can build sophisticated linked visualizations, such as comparing two neighborhoods' traffic-speed changes, using plain-English commands.
  • A single natural language query can trigger multiple VisFlow functions at once, so actions that previously required a sequence of drag-and-drop steps become batch operations.
  • The special-utterance-placeholder design means the grammar can be ported to a new dataset or dataflow diagram without writing new rules, as long as the system's underlying modules remain the same.
  • Real-time tagging and auto-completion give users a live view of what the parser understands, which helps prevent and correct misinterpretations before a query is executed.
  • The same architecture could be applied to other dataflow systems whose components can be identified as modular data- or diagram-dependent entities.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The six-way function taxonomy (visualize, encode, filter/extremum, manipulate subsets, highlight, link) could serve as a reusable task model for natural language interfaces in other visualization workbenches, beyond dataflow systems.
  • The focus-score heuristic for implicit query completion could be adapted to predict the user's intended target node in any diagram-editing interface, not just for natural language input.
  • The failure analysis suggests that adding a query-repair component—one that proposes minimal edits to rejected utterances—would directly improve the acceptance rate; the query log categories 'rephrased' and 'composite' are the most promising targets.
  • The reported 76.9% improved acceptance ceiling indicates that grammar-based approaches may plateau without an external knowledge base for concept equivalence (e.g., 'degree' = 'HighestLevelOfEducation'), so future systems might combine placeholder-based grammars with learned synonym or entailment models.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 7 minor

Summary. The paper proposes FlowSense, a natural language interface for the VisFlow dataflow visualization system. FlowSense uses a semantic parser with a grammar of roughly 500 rules, runtime special-utterance placeholders for dataset and diagram entities, real-time tagging feedback, query and token auto-completion, and a focus-score heuristic for implicit query completion. The authors evaluate the system with a case study on a traffic speed analysis task and a user study with 17 participants who completed three analytical tasks; they also analyze 649 logged NL queries, reporting acceptance rates and a breakdown of failure categories. The central claims are that FlowSense supports NL queries for the majority of VisFlow diagram editing operations and that it improves DFVS usability and simplifies diagram construction (Sections 1 and 7).

Significance. If the claims are valid, the paper is a useful contribution to natural language interfaces for visual data exploration. It is among the first to address a dataflow context, and the special-utterance placeholder design is a pragmatic way to keep the grammar independent of datasets and diagrams. The evaluation is transparent: the authors provide an open-source repository, a detailed query log analysis with failure categories, and an honest discussion of limitations. The machine-checked grammar tests and the clear reporting of acceptance rates before and after retrospective fixes are also strengths. However, the causal usability claim is weakened by the absence of a VisFlow-only control condition and by the encouraged-but-not-enforced use of FlowSense in the task phase. The paper therefore needs a revised framing of its contributions and, ideally, additional evidence to support the causal attribution.

major comments (2)
  1. [Section 5.2.1 and Section 5.2.4] The experimental design does not support the causal claim that FlowSense "improves the DFVS usability and simplifies diagram construction" (Sections 1 and 7). All 17 participants completed a VisFlow tutorial and then a FlowSense tutorial before the task phase, and the task phase allowed mixed usage of VisFlow and FlowSense, with FlowSense usage "encouraged" but "not enforced." There was no control condition in which participants used only VisFlow for the same tasks. Consequently, task completion success, completion times, and the Likert feedback in Table 2 (which asked users to compare FlowSense-assisted usage against their earlier tutorial-phase experience) are all confounded with tutorial exposure, practice, and novelty effects. To support the causal attribution, the authors need either a between-subjects or counterbalanced design with a VisFlow-only condition, or at minimum a logging analysis showing the extent of FlowSense usage and an association between usage and outcomes.
  2. [Section 5.2.5] The reported "improved acceptance rate" of 76.911% is a post-hoc projection based on retrospectively resolving 34 "not implemented" queries and 18 software bugs during analysis, not a rate observed with actual users in the study. The paper should present this value clearly as an estimate of potential performance after unshipped fixes, and should place the observed acceptance rate (68.455% after excluding invalid/mistyped queries) as the primary quantitative result for the system as evaluated. As written, the juxtaposition of the two rates may overstate the performance of the prototype that participants actually used.
minor comments (7)
  1. [Section 3.3.2] The ambiguity-resolution training uses fewer than twenty examples, but the paper does not report how well this training disambiguates the parser in practice. Consider adding a small evaluation or at least a qualitative indication of the reduction in parser ambiguity.
  2. [Section 4.3.2] The focus score parameters (α=2, β=5, γ=500) are asserted to "achieve good result" without a sensitivity analysis or a justification of the chosen values. Since these are hand-set thresholds, a brief robustness discussion would strengthen the reproducibility of the system.
  3. [Section 5.2.5] The acceptance rate calculation is presented in a way that may confuse readers: 421 accepted out of 649 total queries becomes 68.455% after excluding 34 invalid/mistyped queries. Please state the denominators explicitly in one formula or table.
  4. [Table 2] The Likert-scale results are given only as count distributions. Adding means and standard deviations (or another summary statistic) would help readers interpret the results, and the absence of significance testing should be acknowledged in the text.
  5. [Section 5.2.2] The three analytical tasks are described only briefly in the main text; more complete task statements (e.g., exact questions asked of participants) would improve reproducibility. Some details appear in the appendix, but the main text does not point to them.
  6. [Section 3.1] The claim that FlowSense supports "the majority of dataflow diagram editing operations" is not quantified against a defined universe of operations. The six function categories are derived from 60 sample diagrams, but the paper does not report what fraction of possible VisFlow operations these categories cover. Please define the scope more precisely.
  7. [Appendix C] The sentence "3 participants have prior experience with VisFlow, who may yet formally evaluate it through task completion" is unclear and should be rephrased.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: FlowSense's grammar, parser tuning, and user-study evaluation are independent of the claims; the usability conclusion is an empirical inference, not a construction.

full rationale

I walked the paper's derivation chain and found no step in which a claimed result is equivalent by construction to its inputs, or in which a fitted parameter is renamed as a prediction. The grammar is hand-designed by the authors, but the central usability claims are evaluated with participant-generated queries in a formal user study, not with the authors' own examples or with the small ambiguity-training set (fewer than twenty examples). The training set is explicitly used only to disambiguate derivations, and the user study uses a different dataset (SDE Test) and tasks, so the evaluation data are not the training data. The hand-set parameters mentioned in the paper (k=2 or 3, Levenshtein ratio threshold 0.2, and α=2, β=5, γ=500 for the focus score) are implementation choices that are not used to derive the paper's main contributions; they are reported as design decisions and are not presented as validated predictions. The VisFlow functions in Table 1 are derived from an empirical sample of 60 recorded VisFlow diagrams, and FlowSense then implements those functions; this is a requirements-driven engineering process, not a self-definitional reduction. The claim that FlowSense supports 'the majority of dataflow diagram editing operations in VisFlow' is supported by this sample plus the user study's query log (421 of 649 queries accepted), so it is an empirical assertion rather than a tautology. The self-citations to the authors' prior VisFlow work are used to describe the host system and data source, not to justify the novelty or correctness of FlowSense's grammar, parser, or evaluation. The user study lacks a VisFlow-only control condition, which weakens the causal attribution of the usability improvement, but this is a study-design validity concern, not a circularity of the kind enumerated in the review criteria. No uniqueness theorem is imported from the authors, no known result is merely renamed, and no ansatz is smuggled in via citation. Therefore, the paper is not circular.

Assumptions & free parameters 3 free parameters · 3 assumptions · 0 invented entities

The numeric free parameters are hand-set system constants, not fitted to the evaluation outcome. The main load-bearing assumptions are about the representativeness of the function taxonomy and the generalizability of the placeholder grammar; these are stated but not independently verified.

free parameters (3)
  • Levenshtein distance ratio threshold = 0.2
    Used in Section 4.1 for approximate special-utterance matching; chosen to "work well in practice" without a systematic sweep.
  • k-gram length = 2 or 3
    Used in Section 4.1 for approximate matching of special utterances; selected by hand.
  • Focus score parameters = alpha=2, beta=5, gamma=500
    Used in Section 4.3.2 for implicit diagram-editing focus; authors state these "achieve good result" without a rigorous tuning procedure.
assumptions (3)
  • domain assumption The six VisFlow function categories (visualizing, encoding, filtering, subset manipulation, highlighting, linking) cover the fundamental low-level visual analysis activities.
    Assumed in Section 3.1 based on a sample of 60 diagrams from 16 users and task taxonomies; if the sample or taxonomy is unrepresentative, FlowSense coverage is incomplete.
  • domain assumption Special utterance placeholders make the parsing grammar independent of datasets, diagrams, and analytical tasks.
    Core design assumption in Section 3.3.1; it is argued from the grammar structure but not formally proven.
  • domain assumption The sample diagram set of 60 diagrams by 16 VisFlow users is representative of VisFlow usage scenarios.
    Used in Section 3.1 to derive the function categories; no sampling details are given.

how reviews work

0 comments
Cite this review

Pith. "Pith review of FlowSense: A Natural Language Interface for Visual Data Exploration within a Dataflow System." pith.science (2026). https://pith.science/paper/R3IMINZK

@misc{pith2026190800681,
  author       = {Pith},
  title        = {Pith review of: FlowSense: A Natural Language Interface for Visual Data Exploration within a Dataflow System},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/R3IMINZK}},
  note         = {Machine review of arXiv:1908.00681}
}
read the original abstract

Dataflow visualization systems enable flexible visual data exploration by allowing the user to construct a dataflow diagram that composes query and visualization modules to specify system functionality. However learning dataflow diagram usage presents overhead that often discourages the user. In this work we design FlowSense, a natural language interface for dataflow visualization systems that utilizes state-of-the-art natural language processing techniques to assist dataflow diagram construction. FlowSense employs a semantic parser with special utterance tagging and special utterance placeholders to generalize to different datasets and dataflow diagrams. It explicitly presents recognized dataset and diagram special utterances to the user for dataflow context awareness. With FlowSense the user can expand and adjust dataflow diagrams more conveniently via plain English. We apply FlowSense to the VisFlow subset-flow visualization system to enhance its usability. We evaluate FlowSense by one case study with domain experts on a real-world data analysis problem and a formal user study.

Figures

Figures reproduced from arXiv: 1908.00681 by the authors.

Figure 1
Figure 1. Using FlowSense for a comparative study on the street speed changes between two slow zones: West Village (blue) and [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. An example FlowSense query and its execution over the Auto MPG dataset. The derivation of the query is shown as a parse tree in the [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

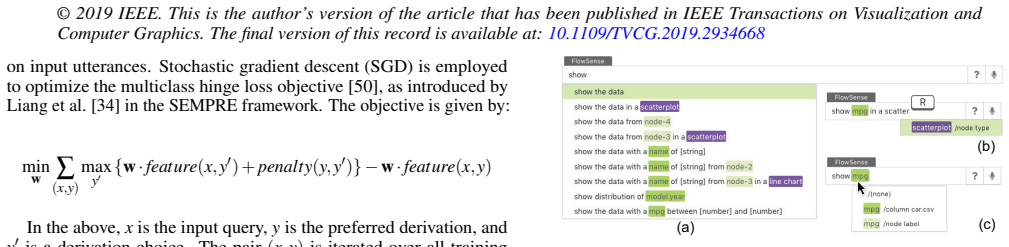

Figure 3
Figure 3. The FlowSense input box and its query and token auto-completion. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (4 more)

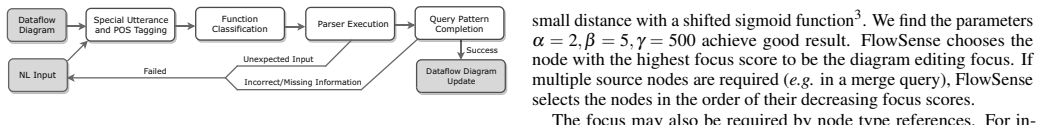

Figure 4
Figure 4. Figure 4: FlowSense query execution workflow. In case the grammar [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5
Figure 5. Figure 5: Using FlowSense to study the aggregated monthly average vehicle speed on NYC streets with different speed limits. The queries are applied [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 6
Figure 6. Figure 6: (a) Verdict distribution of participant answers to each of the user [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]

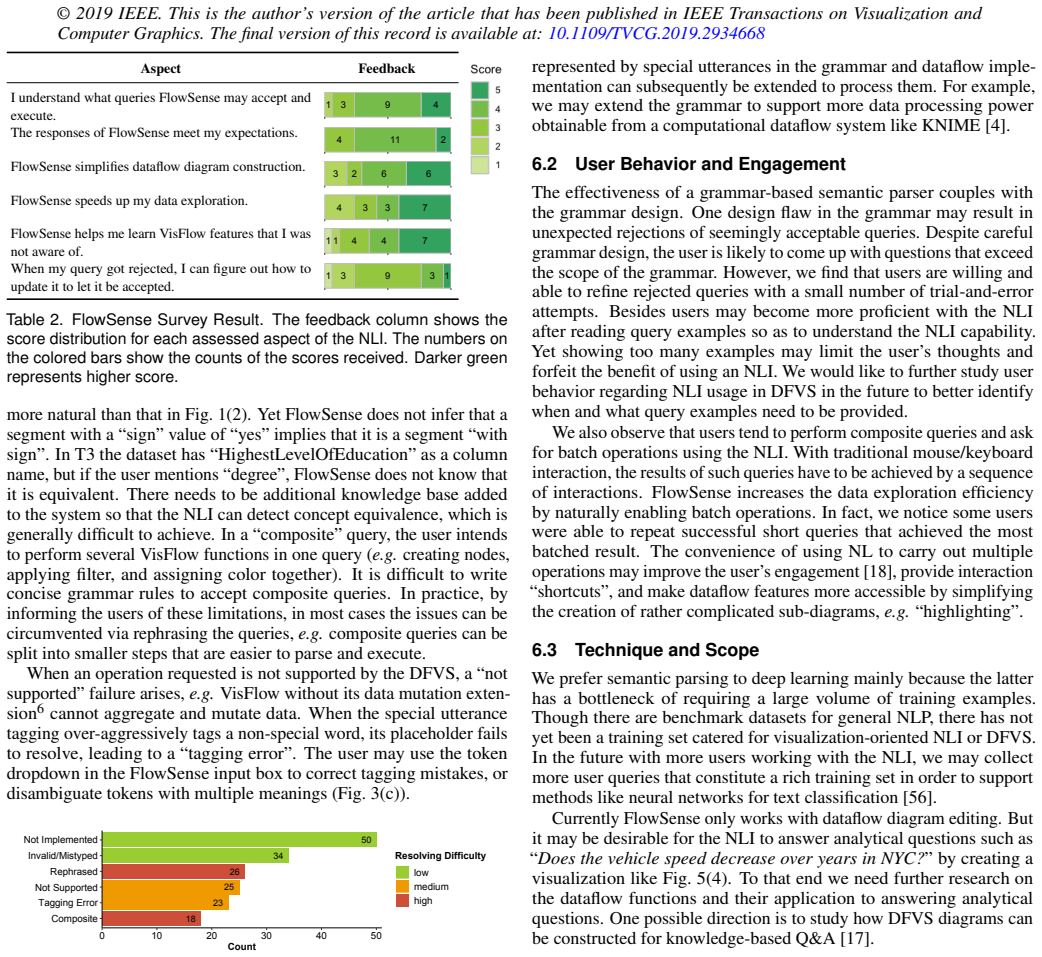

Figure 7
Figure 7. Figure 7: Number of failed queries grouped by the reasons of their failures. [PITH_FULL_IMAGE:figures/full_fig_p009_7.png]
