Pith's one-line read Adding quadratic strain terms lets 8-band k.p reproduce atomistic tight-binding results for InAs/GaAs nanostructures

desk verdict A careful, honest calibration of second-order strain terms for 8-band k.p against tight-binding; the electron-state improvement is large and usable, though external validity remains tied to the Jancu TB reference. read the letter →

arxiv 1908.01237 v1 pith:DJ7HL6DZ submitted 2019-08-03 cond-mat.mes-hall

Krzysztof Gawarecki , Micha{l} Zieliński This is my paper · ORCID

classification cond-mat.mes-hall

keywords 8-bandk.psecond-orderdeformationpotentialsnonlinearstrainInAs/GaAsquantumdotswellssp3d5s*tight-bindingeffectseffectivemassapproximation

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper argues that the well-known failure of 8-band k.p calculations to match atomistic tight-binding results for strained InAs/GaAs nanostructures comes mostly from keeping only linear strain terms. By adding quadratic, second-order strain terms to the Bir-Pikus Hamiltonian and fitting six new deformation potentials to sp3d5s* tight-binding band edges, the authors bring k.p electron ground-state energies for quantum wells within about 10 meV of tight-binding, and reduce the single-particle gap error for disk-shaped quantum dots from roughly 100 meV to about 15 meV. They provide ready-to-use parameter sets for InAs and GaAs and an effective biaxial-strain term for effective-mass models. If this holds, fast continuum calculations can substitute for atomistic tight-binding for electron states in this material system, while hole states, especially under shear strain in curved dots, remain the known limitation.

What carries the argument

The load-bearing object is the second-order strain Hamiltonian appended to the 8-band k.p model, introducing six deformation potentials fitted to sp3d5s* tight-binding bulk band edges under hydrostatic, uniaxial, and biaxial strain. It corrects the curvature of the conduction and valence band edges as a function of strain, which the linear Bir-Pikus theory gets wrong at large lattice mismatch. The paper also derives a single effective parameter for a biaxial-strain term in one-band effective-mass calculations. Quadratic shear-strain terms are omitted because of uncertainty in the internal sublattice displacement parameter and because the reference tight-binding model has limited accuracy for shear strains.

What would settle it

Compute the InAs and GaAs bulk band-edge shifts under biaxial strain with an independent method not used in the fitting, for example density-functional theory or a direct experimental determination of hydrostatic and biaxial deformation potentials. If the resulting curvatures disagree with the fitted second-order deformation potentials by more than the quoted few-meV target, the nanostructure agreement reported here is largely a consequence of fitting to the same reference model rather than a physically independent validation.

Watch

Extended reading notes

Core claim

The paper's central claim is that 8-band k.p with quadratic strain terms reproduces the sp3d5s* tight-binding single-particle spectrum for InAs/GaAs structures across geometries. For quantum wells of 3 to 15 nm thickness, the electron ground state agrees to at most about 10 meV; for disk-shaped dots the e1-h1 gap error drops from about 100 meV with linear k.p to about 15 meV with the nonlinear scheme, and electron s-p shell spacings match within a few meV. The improvement is traced to the strongly nonlinear response of band edges to biaxial strain at the roughly 7 percent lattice mismatch. The authors are careful that the agreement is best for electron states and flat geometries; hole states in lens-shaped dots remain off by 20 to 30 meV, which they attribute to shear-strain sensitivity and to limitations of the tight-binding reference for shear strain.

Load-bearing premise

The whole calculation assumes that the atomistic tight-binding model is the correct ground truth for how the material's electronic levels shift under strain, and the paper itself notes that this reference is least reliable for exactly the shear strains that cause the largest remaining discrepancies.

Editorial extensions

If this is right

For InAs/GaAs quantum wells and flat disk-shaped quantum dots, nonlinear 8-band k.p can replace sp3d5s* tight-binding for electron ground-state energies and s-p shell spacings, at a fraction of the computational cost.
The single-particle gap in disk-shaped dots is predicted with a residual error of about 15 meV instead of about 100 meV, making computed excitonic and optical transition energies in this material system more reliable for device modeling.
The published parameter sets for InAs and GaAs allow other groups to include second-order strain effects without refitting.
Hole states and curved lens-shaped dots remain the known weak spot, with 20 to 30 meV errors that the paper ties to shear strain; improving shear-related deformation potentials is the next step.
The effective-mass parameterization provides a quick way to incorporate strain nonlinearity into large-scale or few-band device simulations.
Going beyond the paper: the same fitting pipeline could be transferred to other lattice-mismatched III-V systems, since the linear Bir-Pikus failure under biaxial strain is a general feature and the paper's parameter sets cover only InAs and GaAs.
Going beyond the paper: the residual hole-state errors being concentrated in shear strain suggests a testable shape dependence, namely that lens-shaped dots, with stronger shear, should show larger k.p-versus-tight-binding gap discrepancies than disk-shaped dots of comparable size.
Going beyond the paper: if the fitted second-order potentials are physically correct, they should also modify strained-dot quantities the paper does not report, such as spin-orbit splittings and effective g-factors, so measuring those would provide an independent check.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

The thing you should know: this is a usable engineering contribution, not a conceptual breakthrough. The quadratic strain Hamiltonian goes back to Suzuki and Hensel (1974); what's new here is the first systematic fit of the six second-order deformation potentials for InAs and GaAs to a specific tight-binding model, plus a demonstration that including them knocks ~100 meV off the electron-energy error in quantum wells and disk-shaped dots. That is genuinely useful for people who do 8-band k.p for InAs/GaAs photonic devices.

The paper does well on its own terms. The parameter tables are explicit, the comparisons against linear k.p are clean, and the authors are candid about where the improvement fails: hole states in lens-shaped dots still miss by 20–30 meV, and they attribute that to shear strain, which they explicitly decline to fit. Appendix A spells out which second-order shear terms are omitted and why (Kleinman parameter uncertainty). That is honest accounting.

Soft spots, in proportion. The central concern — parameters fitted to Jancu's sp3d5s* TB, then validated against the same TB — is real, but I think the stress-test note slightly overstates it. The fit is to bulk homogeneous band edges; the validation is on inhomogeneously strained confined states with different mode content. That transfer is not automatic, so the electron-state agreement (10 meV in wells, few meV in dots) is a substantive consistency check. What it is not is an independent test of the underlying TB model. The authors themselves flag that Jancu has limited accuracy for shear strain, so anyone using these potentials outside biaxial-dominated geometries should be cautious. No code or data are shipped, which limits reproducibility but is normal for k.p parameter papers. The hole-state story is honestly weaker; the paper does not oversell it.

Who this is for: anyone doing 8-band or effective-mass modeling of InAs/GaAs nanostructures who wants to reduce error against an atomistic reference without paying the atomistic cost. It is a calibration study, and a fairly careful one. I would not take the absolute energies as ground truth, but the parameter set and the error analysis are a solid basis for practical work.

Recommendation: send it to peer review. The referee should push for a statement about external benchmarks (e.g., experiments or DFT) and for shipping the fitting procedure, but the core contribution is real and the text is unusually clear about its limitations.

Referee Report

2 major / 6 minor

Summary. This manuscript extends the 8-band k.p Hamiltonian for InAs/GaAs by adding terms quadratic in strain (second-order deformation potentials), with parameters fitted to bulk band edges from the Jancu sp3d5s* empirical tight-binding model. It then compares linear and nonlinear k.p results for electron and hole states in InAs/GaAs quantum wells and in disk- and lens-shaped quantum dots against the same TB model. The authors find that linear k.p overestimates electron confinement energies by about 100 meV in quantum wells and disk-shaped dots, while the nonlinear model reduces the discrepancy to roughly 10 meV for quantum-well electrons and to about 15 meV for the single-particle gap in disk-shaped dots; hole states in lens-shaped dots remain 20-30 meV off. Parameter tables and an effective-mass parameterization are provided.

Significance. The paper's contribution is a parameterized, computationally cheap k.p scheme that reproduces a widely used atomistic TB model for electron states in biaxial-strain-dominated InAs/GaAs nanostructures, together with an honest assessment of where it fails (holes, shear strain, curved dots). The out-of-sample transfer from bulk homogeneous strain fitting to inhomogeneously strained confined states is nontrivial and gives the comparison real content. The full parameter sets and the explicit discussion of omitted second-order shear terms are valuable for practitioners. The main limitation is that the reference model is also the fitting target, so the physical accuracy of the second-order potentials for real materials is not independently established.

major comments (2)

[Sec. II (Table I) and Sec. III (Figs. 2-4)] All six second-order deformation potentials in Table I are fitted to the Jancu sp3d5s* TB model (Ref. 79), and the nanostructure benchmark in Figs. 2-4 uses that same model. The nanostructure comparison is therefore a consistency check of transferability from homogeneous bulk strain to confined nanostructures, not an independent validation of the potentials. Since the authors themselves note in Sec. II that the Jancu parameterization 'has limited accuracy for representing shear strains,' any bias in the reference is inherited by the fitted potentials. For quantum wells, the agreement is to a large extent a consequence of the bulk fit, because the strain is essentially homogeneous and biaxial; the out-of-sample content is mostly the confinement kinetic energy. The excellent electron agreement in biaxial-dominated QWs and disks does not, by itself, establish that the second-order terms describe real InAs/GaAs nanostructures. Please reword the abstract and conclusions to state that the results demonstrate consistency with the Jancu TB model, or add an independent benchmark (experiment, DFT, or a different TB parametrization).
[Sec. III B, Fig. 4] The claim of 'good agreement' is not supported for hole states in lens-shaped quantum dots. Both linear and nonlinear k.p underestimate the hole ground state by 20-30 meV (Fig. 4(b)), and both overestimate the h1-h2 spacing by about 4 meV (Fig. 4(d)); the nonlinear corrections do not materially improve these quantities. This is consistent with the omission of second-order shear terms, but it means the central claim must be scoped to electron states in biaxial-dominated geometries. Please add a quantitative error table per state and geometry, and adjust the abstract's blanket 'good agreement' statement to match the scope demonstrated by the data.

minor comments (6)

[Abstract and Conclusions] The abstract states that the nonlinear k.p scheme demonstrates 'a good agreement' with tight-binding without specifying that this is primarily for electron states in quantum wells and flat quantum dots; the Conclusions already contain the needed qualification, so the abstract should be aligned with it.
[Fig. 1(d) and Appendix A] Because all retained quadratic strain terms vanish for purely shear strain (diagonal strain components equal to zero), the 'k.p nonlinear' curve in Fig. 1(d) should coincide with the 'k.p linear' curve, unless some other second-order term contributes; the text and caption should state this explicitly to avoid implying that the second-order scheme was tested for shear strain.
[Sec. II, fitting procedure] The fitting procedure for the deformation potentials in Table I is not described in detail; please specify the objective function, the strain ranges used, any weighting of bands, and the residuals obtained, so that the parameter set can be reproduced and its sensitivity assessed.
[Sec. III A, Fig. 2] The sentence reporting 'at most approximately 10 meV difference between both methods' should state separately the electron and hole errors, since the hole panel in Fig. 2(b) is not otherwise quantified in the text.
[Sec. II, operator ordering] The treatment of operator ordering for position-dependent parameters is delegated to Ref. 31; a one-sentence summary of the ordering convention would make the present paper more self-contained.
[References] In the Introduction, 'sp3d5s* tight-binding model78' should cite Jancu et al. (Ref. 79) directly, while Ref. 78 is the Slater-Koster formalism; additionally, the text contains several typos, including 'compontents' in Appendix A, 'a such may not be' in Sec. II, and 'tract' in the Conclusions.

Circularity Check

1 steps flagged · score 5.0 of 10

Bulk-fitted second-order deformation potentials are then used to 'verify' k.p against the same sp3d5s* tight-binding model in biaxially strained nanostructures, so part of the reported agreement is inherited from the fit.

fitted input called prediction [Sec. II (Bulk Material) and Sec. III A (Quantum Wells); Table I; H^(2)_str,6c6c; Figs. 1(c), 2(a)]
"We calculated band edges of the InAs and GaAs bulk materials using the tight-binding method. Then, the deformation potentials of 8-band k·p model are fitted to the TB data (see Table I for values). ... This is however expected since the quantum well is under high biaxial strain ... which according to Fig. 1(c) has strongly non-linear character and is not well reproduced by linear k·p approach already at the bulk level. ... we obtain an excellent agreement between the 8-band k·p and the tight-binding method, if the terms second order in strain are taken into account."

The six second-order deformation potentials (Table I) are fitted so that the k.p band edges reproduce the Jancu sp3d5s* tight-binding band edges under hydrostatic, uniaxial and biaxial strain. The quantum-well electron ground state is dominated by the conduction-band edge shift under the same biaxial strain mode, via the fitted a_c^(2a) and a_c^(2b) terms in H^(2)_str,6c6c. The paper itself explains the linear-k.p error as a bulk-level biaxial-strain failure (Fig. 1c), meaning the nonlinear correction that produces the ≈10 meV agreement in Fig. 2(a) was already fixed by the bulk fit. Thus the nanostructure comparison partly restates the fit in a new geometry rather than independently confirming the model.

full rationale

The paper is an explicit calibration-and-transfer study: k.p parameters are fitted to Jancu et al. sp3d5s* tight-binding bulk band edges, and the same tight-binding model is then used as the reference for nanostructure calculations. For biaxially strained quantum wells and disk-shaped dots, the electron-state agreement is substantially inherited from the fitted second-order deformation potentials, so the central 'agreement' is partly a consistency check. This is the main circular element and is scored as a fitted input presented as a nanostructure verification. However, the transfer to confined geometries, thickness/height dependence, s-p splittings, and the strain distributions obtained from the valence-force-field model are not direct fits, so the claim is not merely definitional. The documented omission of second-order shear terms and the statement that the Jancu parameterization 'has limited accuracy for representing shear strains' are external-validity limitations rather than circularity; they weaken the physical generality of the conclusion but do not by themselves make the derivation circular. No load-bearing self-citation chain or imported uniqueness theorem is present: self-citations are methodological (implementation, previous TB codes) or provide a C2 value taken from experiment, not the central result. Overall score 5 reflects a substantial fit/validate loop without full reduction by construction.

Assumptions & free parameters 27 free parameters · 7 assumptions · 0 invented entities

The central claim rests on a set of deformation potentials fitted to a tight-binding reference rather than derived from first principles or measured independently. The number of fitted parameter values is large, approximately 27, and the comparison benchmark is the same tight-binding model used for the fit. The group-theoretic strain Hamiltonian is standard, but the shear second-order terms are omitted by choice.

free parameters (27)

a_c^(1) (GaAs) = -6.79 eV
First-order conduction deformation potential fitted to TB bulk hydrostatic strain.
a_v^(1) (GaAs) = 1.84 eV
First-order valence deformation potential fitted to TB bulk hydrostatic strain.
b_v^(1) (GaAs) = -1.85 eV
First-order valence biaxial deformation potential fitted to TB bulk strain.
a_c^(2a) (GaAs) = -2.71 eV
Second-order hydrostatic conduction deformation potential fitted to TB bulk nonlinear strain.
a_c^(2b) (GaAs) = 24.6 eV
Second-order conduction deformation potential fitted to TB bulk nonlinear strain.
a_v^(2a) (GaAs) = -3.56 eV
Second-order valence deformation potential fitted to TB bulk nonlinear strain.
a_v^(2b) (GaAs) = 4.81 eV
Second-order valence deformation potential fitted to TB bulk nonlinear strain.
b_v^(2a) (GaAs) = -6.38 eV
Second-order valence biaxial deformation potential fitted to TB bulk nonlinear strain.
b_v^(2b) (GaAs) = -9.23 eV
Second-order valence biaxial deformation potential fitted to TB bulk nonlinear strain.
~a_c^(2) (GaAs) = -3.8 eV
Effective second-order biaxial parameter for one-band effective mass model, fitted to TB with optimization for negative biaxial strain.
a_c^(1) (InAs) = -4.78 eV
First-order conduction deformation potential fitted to TB bulk hydrostatic strain.
a_v^(1) (InAs) = 1.24 eV
First-order valence deformation potential fitted to TB bulk hydrostatic strain.
b_v^(1) (InAs) = -1.77 eV
First-order valence biaxial deformation potential fitted to TB bulk strain.
a_c^(2a) (InAs) = -3.40 eV
Second-order hydrostatic conduction deformation potential fitted to TB bulk nonlinear strain.
a_c^(2b) (InAs) = 18.1 eV
Second-order conduction deformation potential fitted to TB bulk nonlinear strain.
a_v^(2a) (InAs) = -1.56 eV
Second-order valence deformation potential fitted to TB bulk nonlinear strain.
a_v^(2b) (InAs) = 1.07 eV
Second-order valence deformation potential fitted to TB bulk nonlinear strain.
b_v^(2a) (InAs) = -5.95 eV
Second-order valence biaxial deformation potential fitted to TB bulk nonlinear strain.
b_v^(2b) (InAs) = -6.64 eV
Second-order valence biaxial deformation potential fitted to TB bulk nonlinear strain.
~a_c^(2) (InAs) = -3.2 eV
Effective second-order biaxial parameter for one-band effective mass model, fitted to TB with optimization for negative biaxial strain.
InAs Eg = 0.418 eV
Unstrained band gap fitted to TB band structure.
InAs Ep = 19.5 eV
Interband momentum parameter fitted to TB with A'_c set to 1 to avoid spurious solutions.
InAs gamma'_1 = 2.15
Reduced Luttinger parameter fitted to TB band structure.
InAs gamma'_2 = -0.325
Reduced Luttinger parameter fitted to TB band structure.
InAs gamma'_3 = 0.542
Reduced Luttinger parameter fitted to TB band structure.
InAs Delta_0 = 0.38 eV
Spin-orbit splitting fitted to TB band structure.
C2 (InAs) = 6.0 eV
Inversion-asymmetry parameter fitted to TB shear strain band structure.

assumptions (7)

domain assumption The sp3d5s* tight-binding model with Jancu parameters is an accurate reference for strain-dependent band edges in InAs and GaAs.
All deformation potentials are fitted to this model and all nanostructure comparisons use it as ground truth; the authors note its limited accuracy for shear strains in Sec. II.
domain assumption The Keating valence force field with parameters from Ref. 86 accurately predicts strain distributions in the nanostructures.
Strain fields are computed with Keating VFF and then used in both k.p and tight-binding calculations.
domain assumption The Kleinman parameter can be approximated by a constant value zeta = (alpha - beta)/(alpha + beta).
Used to place sublattice displacements under shear strain; the authors acknowledge the value actually depends on strain.
ad hoc to paper Second-order shear strain terms in the k.p Hamiltonian can be neglected for the studied nanostructures.
The authors skipped fitting these terms because of uncertainty in zeta and the number of free parameters; they later attribute hole discrepancies in lens-shaped dots to shear strain.
standard math The invariant expansion of the quadratic strain Hamiltonian is complete for the blocks considered under the Td point group.
The Appendix uses group theory from Refs. 73, 82, and 83 to enumerate the second-order strain Hamiltonian terms.
ad hoc to paper Setting A'_c = 1 and rescaling Ep avoids spurious solutions without changing the physics of the fitted band structure.
This follows Ref. 95 and is a standard pragmatic choice in k.p nanostructure calculations.
domain assumption The operator ordering and grid averaging used in the k.p implementation introduce errors smaller than the reported agreement.
The implementation follows Ref. 31, but no convergence analysis is provided in this paper.

how reviews work

0 comments

Cite this review

Pith. "Pith review of The importance of second order deformation potentials in modeling of InAs/GaAs nanostructures." pith.science (2026). https://pith.science/paper/DJ7HL6DZ

@misc{pith2026190801237,
  author       = {Pith},
  title        = {Pith review of: The importance of second order deformation potentials in modeling of InAs/GaAs nanostructures},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/DJ7HL6DZ}},
  note         = {Machine review of arXiv:1908.01237}
}

read the original abstract

Accurate modeling of electronic properties of nanostructures is a challenging theoretical problem. Methods making use of continuous media approximation, such as k.p, sometimes struggle to reproduce results obtained with more accurate atomistic approaches. On the contrary, atomistic schemes generally come with a substantially larger cost of computation. Here, we bridge between these two approaches by taking 8-band k.p method augmented with non-linear strain terms fit to reproduce sp3d5s* tight-binding results. We illustrate this method on the example of electron and hole states confined in quantum wells and quantum dots of photonics applications relevant InAs/GaAs material system, and demonstrate a good agreement of a non-linear k.p scheme with empirical tight-binding method. We discuss limits of our procedure as well as provide non-linear 8-band k.p parameter sets for InAs and GaAs. Finally, we propose a parameterization for effective term used to improve the accuracy of the standard effective mass method.

Figures

Figures reproduced from arXiv: 1908.01237 by the authors.

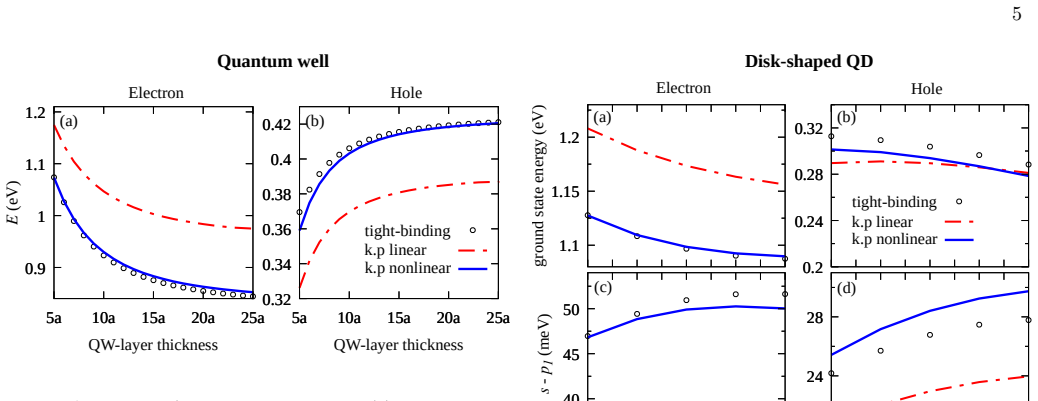

**Figure 2.** FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

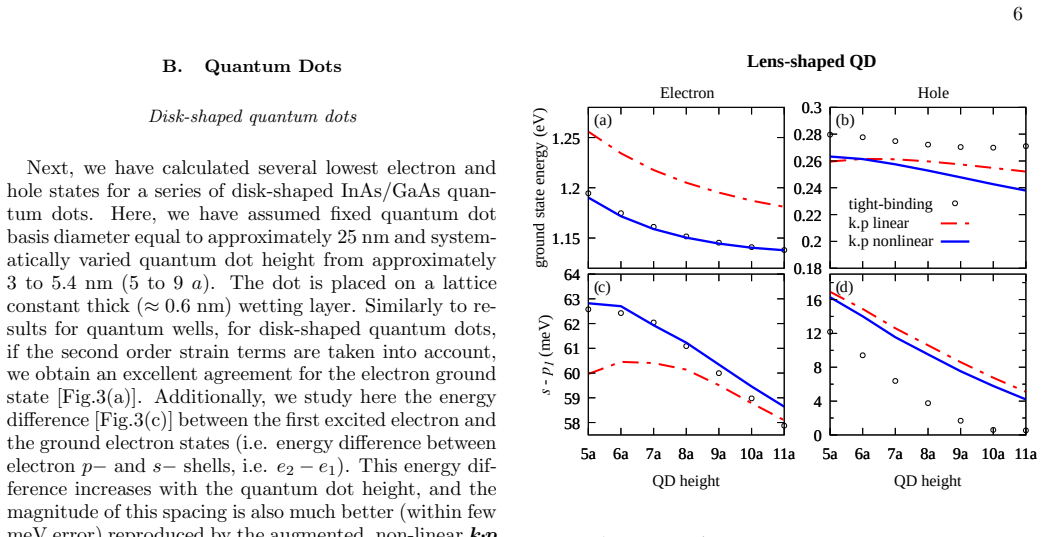

**Figure 4.** FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

Figures from the paper (2 more)

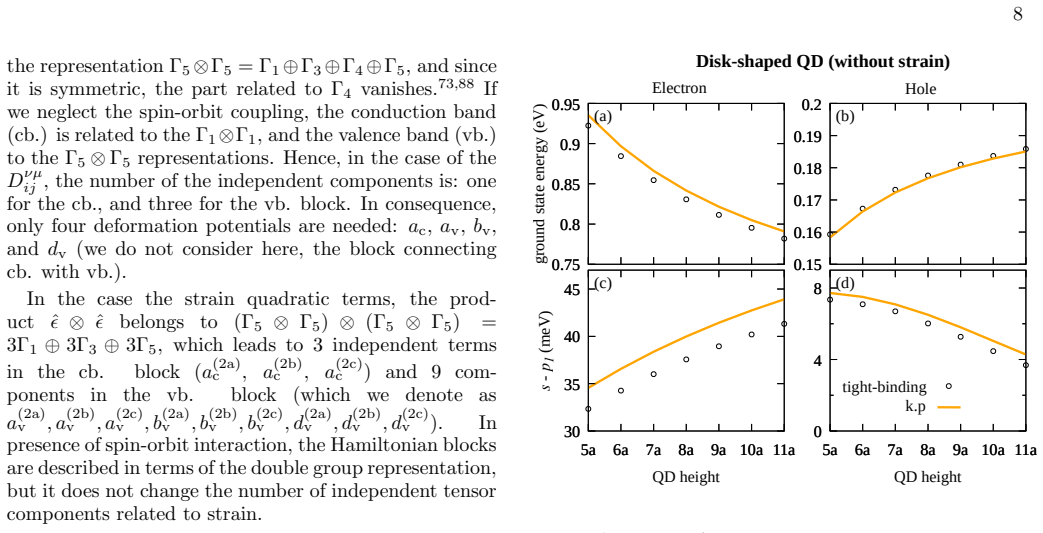

**Figure 5.** Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]

**Figure 6.** Figure 6: FIG. 6 [PITH_FULL_IMAGE:figures/full_fig_p009_6.png]
