Pixel2Mesh++: Multi-View 3D Mesh Generation via Deformation

Chao Wen; Yanwei Fu; Yinda Zhang; Zhuwen Li

REVIEW 4 major objections 7 minor 54 references

Pixel2Mesh++: Multi-View 3D Mesh Generation via Deformation

T0 review · 4 major / 7 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read The paper claims that multi-view 3D shape generation improves when a graph network deforms a coarse mesh by scoring local candidate vertex moves with cross-view feature statistics, and that this beats prior multi-view methods on ShapeNet.

desk verdict Solid, well-executed extension of Pixel2Mesh with a genuine multi-view gain, but the fixed 0.02 deformation step makes the robustness-to-initialization claims the weak spot that should be pinned down before the paper is taken at face value. read the letter →

arxiv 1908.01491 v2 pith:25RF5YOP submitted 2019-08-05 cs.CV

Chao Wen , Yinda Zhang , Zhuwen Li , Yanwei Fu This is my paper · ORCID

classification cs.CV

keywords 3Dshapegenerationmulti-viewreconstructionmeshdeformationgraphconvolutionalnetworksoft-argmaxcross-viewfeaturepoolingChamferdistanceNet

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that the best way to generate a 3D mesh from a few color images with known camera poses is not to learn a direct pixels-to-shape mapping, but to start from a rough mesh and refine it by repeatedly deciding, for each vertex, which nearby location best agrees with evidence pooled from all views. The central claim is that a graph network can make this decision as a differentiable search: it samples candidate positions around each vertex, scores them with features gathered from the input images, and moves the vertex to the weighted average of the candidates. If true, this matters because the same mechanism generalizes where direct mapping does not: it lifts F-score on ShapeNet from 61.05 to 66.48, keeps improving when more views are supplied than were seen in training, and refines coarse meshes produced by very different generators. A sympathetic reader would take the paper as showing that multi-view shape reasoning can be encoded as a local, physically inspired deformation step rather than as a learned prior.

What carries the argument

The load-bearing object is the Multi-View Deformation Network (MDN), a per-vertex local graph of 43 hypothesis nodes: the current vertex plus the 42 points of a level-1 icosahedron at scale $0.02$. Each node carries a $1347$-dimensional feature built from the 3D vertex coordinate and the mean, max, and standard deviation of early-layer perceptual features pooled from all views at that node's projected location; six shared graph-residual layers score every hypothesis, softmax normalizes the scores, and the updated vertex is the weighted sum of all hypothesis positions. This turns a multi-view-geometry-style correspondence search into a trainable layer that is invariant to the number and order of input views. A secondary mechanism, a re-sampled Chamfer loss that uniformly samples predicted mesh faces by area, suppresses flying-vertex artifacts and is reported to be necessary for the full gain.

What would settle it

A decisive test is to feed the trained model a coarse mesh whose vertices are systematically translated by, say, $0.1$ (five times the $0.02$ hypothesis radius) and compare the output with ground truth; if the model cannot recover the shift within its three iterations, the bounded local search is the limiting factor. A complementary check is to measure the distribution of distances from MVP2M coarse vertices to the nearest ground-truth surface: if a large fraction of vertices are farther than $0.06$ (three iterations times the per-step radius), the reported gains cannot be fully explained by the deformation search alone and must rely on priors or on re-sampling luck.

Watch

Extended reading notes

Core claim

On its own terms, the paper claims that the Multi-View Deformation Network (MDN) is a better multi-view shape generator than previous direct-prediction models because it treats shape generation as iterative local refinement instead of hallucination. For every vertex of a coarse mesh, the network places 42 candidate locations on a level-1 icosahedron of radius $0.02$ around the vertex, pools early-layer VGG features at each candidate from all input views through bilinear interpolation, compresses the pooled features into order-invariant statistics (mean, max, and standard deviation), and scores the candidates with a shared graph convolutional network. Softmax turns the scores into weights and the vertex moves to their weighted sum, a differentiable 3D soft-argmax that can be trained end-to-end. The paper reports that on the ShapeNet benchmark this refinement raises F-score from 61.05 for the multi-view Pixel2Mesh baseline to 66.48 and lowers Chamfer distance from 0.541 to 0.486, while also improving results when the coarse mesh is noisy, translated, or taken from a voxel-based reconstruction.

Load-bearing premise

The argument rests on every required vertex correction being reachable by repeated small jumps of at most $0.02$ per iteration from the current mesh, because the network can only move a vertex inside the convex hull of its 42 local candidate positions.

Editorial extensions

If this is right

Multi-view mesh generation can be structured as a refinement module on top of any coarse shape generator, rather than as a single learned mapping from pixels to mesh.
A network trained with three views can accept two, four, or five views at test time and keeps improving as views are added, because statistics pooling keeps the feature dimension fixed.
The same refinement network repairs coarse meshes from other systems, including voxel reconstructions converted by marching cubes, so the method is not tied to its own initialization.
More refinement iterations continue to improve accuracy until roughly three iterations, after which gains saturate.
Replacing the vertex-only Chamfer loss with an area-uniform re-sampled version removes flying-vertex spikes and is required for the reported gains.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

Editorial inference: the fixed $0.02$ hypothesis radius makes MDN a local refinement operator; an adaptive or scheduled radius across iterations could extend it to correct large global misalignments such as an off-center or wrongly scaled object.
Editorial inference: because the scoring network is shared across vertices and categories, the learned operator may approximate a generic photo-consistency measure on early visual features; if so, it should transfer to novel categories beyond the 13-class ShapeNet set, a claim the paper does not test.
Editorial inference: the hypothesis-scoring plus statistics pattern could be applied to other per-vertex mesh attributes, such as per-face texture or part labels, wherever cross-view consistency is a useful signal.
Editorial inference: feeding deliberately conflicting views (for example, views of two different object instances) would separate genuine geometric reasoning from category-level shape priors; the paper's framing predicts the statistics pooling should favor geometrically consistent evidence.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

The short version: this is a competent, well-run extension of the authors' own Pixel2Mesh, and it delivers a genuine empirical improvement for multi-view mesh generation. The headline result is believable: on the standard ShapeNet split, their Multi-View Deformation Network with cross-view feature statistics and a soft-argmax over local deformation hypotheses beats prior multi-view methods and their own baselines by a solid margin, and the improvement holds across categories, view counts, and initializations.

What's new is mostly architectural. The deformation-hypothesis soft-argmax is a clean, differentiable way to move vertices using multi-view pooled features, and the mean/max/std statistics are a sensible trick to keep the feature dimension invariant to the number of input views. The iterative refinement is a natural extension, and the re-sampled Chamfer loss is a useful detail that visibly removes spikes. The ablations are honest: removing the statistics or the re-sampled loss makes things worse, and the category and view-count generalization studies are well done.

The weak part is the robustness-to-initialization story. The hypothesis grid is a level-1 icosahedron at scale 0.02, so one deformation step can move a vertex at most 0.02, and with three iterations the hard reachability bound is 0.06 in the normalized coordinate frame. The paper claims generalization to quality of mesh initialization, but it never measures the per-vertex displacement errors of its coarse meshes, never ablates the 0.02 scale, and the one quantitative non-ellipsoid test (3DR2N2 initialization) shows CD improving from 2.438 to 1.418 while remaining about three times worse than the ellipsoid-initialized 0.486. That pattern is consistent with local polishing, not global correction. The 'physically driven' framing also oversells it; this is a learned soft-argmax, not multi-view geometry.

There are no error bars or significance tests anywhere. The improvements are consistent, so this is a minor point, but it would take little effort. Loss weights are not given, so reproduction is harder than it should be.

Bottom line: the central claim about state-of-the-art multi-view mesh accuracy on ShapeNet is defensible; the generalization-to-initialization claim is not established. This paper deserves a serious referee, who should ask for displacement analysis, a scale/iteration ablation, and error bars. I would not desk-reject it.

Referee Report

4 major / 7 minor

Summary. The paper proposes Pixel2Mesh++, a method for generating 3D meshes from a few color images with known camera poses. The pipeline first produces a coarse mesh using a multi-view extension of Pixel2Mesh (MVP2M), then iteratively refines it with a Multi-View Deformation Network (MDN). MDN samples deformation hypotheses from a level-1 icosahedron of scale 0.02 around each vertex, pools perceptual features from the input views via mean/max/std statistics, and uses a graph convolutional scoring network with a soft-argmax to update vertex positions. The model is trained end-to-end with a re-sampled Chamfer loss. On ShapeNet, the authors report state-of-the-art F-score and Chamfer distance against 3DR2N2 and LSM, and they provide ablations on feature statistics, the re-sampled loss, number of views, iterations, and initialization robustness.

Significance. If the results hold, the paper presents a solid engineering contribution: an iterative, view-count-invariant deformation network that improves mesh quality over strong baselines, together with a re-sampled Chamfer loss that reduces surface artifacts. The feature-statistics pooling is a clean solution for variable numbers of views, and the experiments span multiple categories, view counts, ablations, and initialization sources. The main weaknesses are that the empirical claims lack statistical validation and that the generalization-to-initialization claim is not supported by displacement analysis or an ablation of the fixed hypothesis scale.

major comments (4)

[Section 3.1.1 and Section 4.3.3] The deformation hypothesis scale is fixed at 0.02 in a level-1 icosahedron, which bounds the per-iteration vertex displacement; with the three inference iterations used in Section 4.4.3, any vertex can move at most ~0.06 in normalized coordinates. The paper claims generalization to 'quality of mesh initialization' (abstract, Section 1, and Section 4.3.3) but never measures the actual per-vertex displacement errors of the coarse initializations, never specifies the translation/noise magnitudes in Fig. 6, and never ablates the hypothesis scale. The only quantitative non-ellipsoid experiment (3DR2N2 initialization on chair, Supp. C.2.3) shows CD improving from 2.438 to 1.418, still about three times worse than the ellipsoid-initialized result (0.486), which is consistent with a local-refinement bound. Please add an ablation over the hypothesis scale (e.g., 0.01, 0.02, 0.04), report the displacement error distributions of the coarse meshes used, and either provide evidence of correcting larger global errors or temper the generalization claim.
[Section 4.1, Tables 1-3 and 5] No error bars or statistical significance tests are reported for any of the metrics. The improvement of the full model over the MVP2M baseline (e.g., F-score(τ) 66.48 vs 61.05; CD 0.486 vs 0.541) is presented as 'significantly further improves', but with single runs the reader cannot distinguish a real effect from run-to-run variance. Please report means and standard deviations over at least three independent runs or bootstrap resamples, and run a paired significance test for the key comparisons (Ours vs MVP2M and Ours vs P2M-M).
[Section 3.3 and Section 4.4.3] The paper does not specify whether MDN is trained with a single deformation iteration or with multiple unrolled iterations. The text states that inference uses three iterations and that performance improves with more iterations (Fig. 12), but if the network was trained for only one iteration, then the second and third test-time iterations operate on inputs outside the training distribution. This is a train-test mismatch that should be addressed: either unroll K iterations during training (and report K) or analyze and justify the distribution shift. This point is essential for the iterative-refinement claim and for reproducibility.
[Section 1 and Section 4.3] The 'physically driven' characterization overstates the method. MDN samples local hypotheses around each vertex and uses a learned scoring function on pooled CNN features; it does not enforce multi-view geometry constraints such as epipolar consistency, photo-consistency, or triangulation. Claims that the model 'imitates correspondences search' and 'reasons shapes according to correlations across different views' (Section 1) should be softened to describe a learned local search with aggregated perceptual features, which is still valuable but not physically grounded in the traditional sense.

minor comments (7)

[Section 3.2, Eq. (2)] In the re-sampled Chamfer loss formula, the third term is written as √r1 r2 v1; it should be √r1 r2 v3. As written, the interpolation is incorrect.
[Section 4.1] The threshold τ used for F-score is never defined. Please state its value (and units) in the evaluation setup.
[Section 4.3.2] The text says 'we train five MDNs with the input view number fixed at 2 to 5 respectively', but the listed numbers 2, 3, 4, 5 are four settings; 'five' should be 'four'.
[Section 2] The name 'Kuryenkov et al.' is a misspelling of 'Kurenkov et al.' (reference [24]).
[Section 4.2 and Table 1] The text refers to 'Tab. 5' for the F-score comparison, but the table is labeled 'Table 1'. Internal cross-references should be corrected throughout (e.g., 'Tab. 2' vs 'Table 2', 'Fig. 13' vs the supplementary figure numbering).
[Figure 5 caption] The caption for Figure 5 is confusing: it lists (a) and (b) but the table layout is not described, and the table contains a typo 'ﬁrarm' for 'firearm'.
[Section 4.3.3, Figure 6] The robustness experiments to translation and noise are presented only qualitatively; no magnitudes or quantitative metrics are given for these perturbations. Reporting the perturbation amounts and the resulting F-score/CD would make the experiment reproducible.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the reported gains are evaluated on held-out ShapeNet test data against independent baselines, and the self-cited Pixel2Mesh component is an initialization module rather than a premise that forces the improvements.

full rationale

This paper is an empirical supervised learning system, not a derivation that reduces to its own assumptions. The Multi-View Deformation Network samples 42 deformation hypotheses from a level-1 icosahedron at a fixed scale of 0.02 around each vertex (Section 3.1.1), and updates the vertex as a weighted sum of hypotheses via a learned soft-argmax (Section 3.1.3); none of these quantities is a fitted parameter that is later renamed as a prediction. The central comparisons are made against independent external baselines (3DR2N2 and LSM) and against controlled Pixel2Mesh-derived baselines, using held-out ShapeNet test data with standard CD and F-score metrics. The only self-cited component, Pixel2Mesh, is used both as the coarse initialization and as a baseline; this overlap is not load-bearing because the reported improvements are measured empirically and the generalization experiments fix the coarse stage and vary category, view count, or initialization, so the results are not forced by construction. The fixed 0.02 deformation scale is a legitimate design parameter that bounds per-iteration movement and may be a limitation or correctness risk, but it is not circularity. No circular step was found.

Assumptions & free parameters 4 free parameters · 5 assumptions · 0 invented entities

The central claim rests on supervised training data and a set of hand-chosen hyperparameters, particularly the local deformation hypothesis scale. No new physical entities are introduced; the method is a learned architecture with standard neural network components.

free parameters (4)

Deformation hypothesis scale = 0.02
Chosen by hand in Section 3.1.1; determines the maximum vertex displacement per iteration and is never ablated.
Icosahedron subdivision level for hypotheses = level-1 (42 hypotheses)
Determines the density of candidate deformations; no ablation is performed on this choice.
Number of deformation iterations at inference = 3
Selected because performance saturates at three iterations (Section 4.4.3), a choice fit to observed validation behavior.
Training view count = 3
Randomly chosen during training for efficiency; generalization to other counts is tested, but the training distribution is fixed at three views.

assumptions (5)

domain assumption Camera intrinsics and extrinsics are known and accurate for every input image.
Used in all feature pooling projections (Section 3.1.2 and supplementary Eq. 3).
domain assumption VGG-16 features, especially early layers, encode geometry-relevant appearance information sufficient to score deformations.
Borrowed from Pixel2Mesh; no analysis of feature-layer choice is given beyond a small baseline comparison.
ad hoc to paper Mean, max, and standard deviation statistics across views preserve the cross-view information needed to infer deformations.
Central design choice in Section 3.1.2; the paper argues it helps but provides only one ablation against concatenation.
domain assumption ShapeNet rendered images and CAD models are a representative training and evaluation domain for general 3D shape generation.
All experiments use this dataset; no real-image or out-of-distribution evaluation is performed.
standard math The graph-convolution soft-argmax formulation is a valid differentiable approximation of the desired vertex selection.
Based on Kendall et al. and standard GCN machinery; the relaxation is not formally proven but is a well-known technique.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Pixel2Mesh++: Multi-View 3D Mesh Generation via Deformation." pith.science (2026). https://pith.science/paper/25RF5YOP

@misc{pith2026190801491,
  author       = {Pith},
  title        = {Pith review of: Pixel2Mesh++: Multi-View 3D Mesh Generation via Deformation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/25RF5YOP}},
  note         = {Machine review of arXiv:1908.01491}
}

read the original abstract

We study the problem of shape generation in 3D mesh representation from a few color images with known camera poses. While many previous works learn to hallucinate the shape directly from priors, we resort to further improving the shape quality by leveraging cross-view information with a graph convolutional network. Instead of building a direct mapping function from images to 3D shape, our model learns to predict series of deformations to improve a coarse shape iteratively. Inspired by traditional multiple view geometry methods, our network samples nearby area around the initial mesh's vertex locations and reasons an optimal deformation using perceptual feature statistics built from multiple input images. Extensive experiments show that our model produces accurate 3D shape that are not only visually plausible from the input perspectives, but also well aligned to arbitrary viewpoints. With the help of physically driven architecture, our model also exhibits generalization capability across different semantic categories, number of input images, and quality of mesh initialization.

Figures

Figures reproduced from arXiv: 1908.01491 by the authors.

**Figure 1.** Multi-View Shape Generation. From multiple input images, we produce shapes aligning well to input (c and d) and arbitrary random (e) camera viewpoint. Single view based approach, e.g. Pixel2Mesh (P2M) [45], usually generates shape looking good from the input viewpoint (c) but significantly worse from others. Naive extension with multiple views (MVP2M, Sec. 4.2) does not effectively improve the quality. ometry metho… view at source ↗

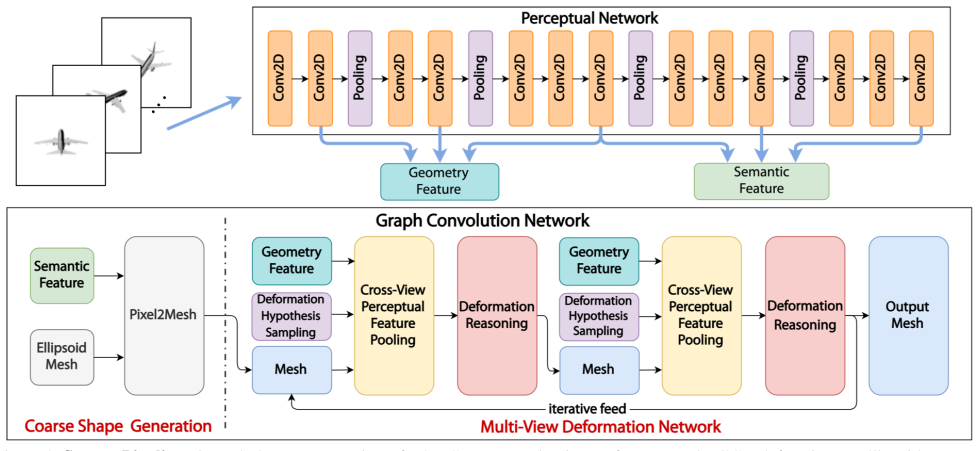

**Figure 2.** System Pipeline. Our whole system consists of a 2D CNN extracting image features and a GCN deforming an ellipsoid to target shape. A coarse shape is generated from Pixel2Mesh and refined iteratively in Multi-View Deformation Network. To leverage cross-view information, our network pools perceptual features from multiple input images for hypothesis locations in the area around each vertex and predicts the optimal def… view at source ↗

**Figure 3.** Deformation Hypothesis and Perceptual Feature Pooling. (a) Deformation Hypothesis Sampling. We sample 42 deformation hypotheses from a level-1 icosahedron and build a GCN among hypotheses and the vertex. (b) Cross-View Perceptual Feature Pooling. The 3D vertex coordinates are projected to multiple 2D image planes using camera intrinsics and extrinsics. Perceptual features are pooled using bilinear interpolation, a… view at source ↗

Figures from the paper (13 more)

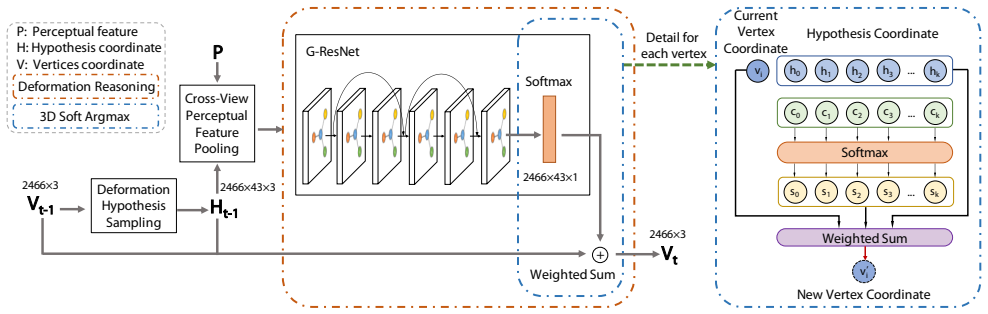

**Figure 4.** Figure 4: Deformation Reasoning. The goal is to reason a good deformation from the hypotheses and pooled features. We first estimate a weight (green circle) for each hypothesis using a GCN. The weights are normalized by a softmax layer (yellow circle), and the output deformation…

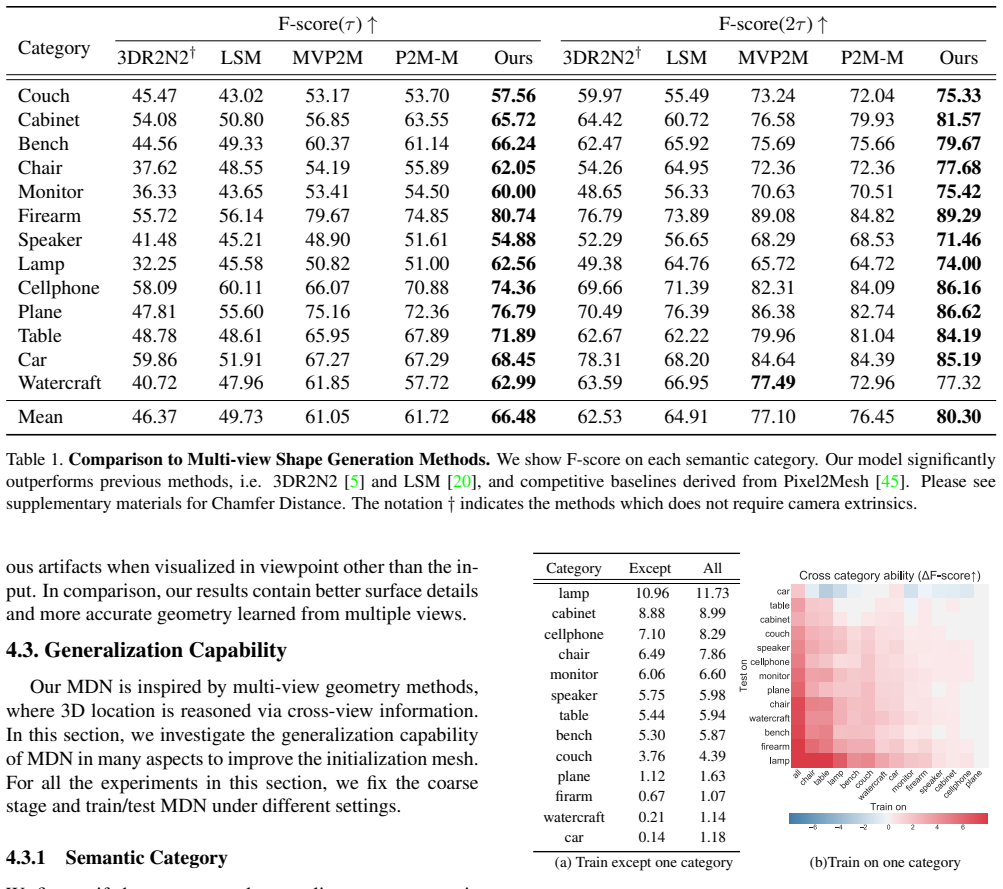

**Figure 5.** Figure 5: Cross-Category Generalization. (a) MDN trained on 12 out of 13 categories and tested on the one left. (b) MDN trained on 1 category and tested on the other. Each block represents the experiment with MDN trained on horizontal category and tested on vertical category. Bo…

**Figure 6.** Figure 6: Robustness to Initialization. Our model is robust to added noise, shift, and input mesh from other sources. fixed at 2 to 5 respectively. As shown in Tab. 2 “Resp.”, the 3-view MDN performs very close to models trained with more views (e.g. 4 and 5), which shows the mo…

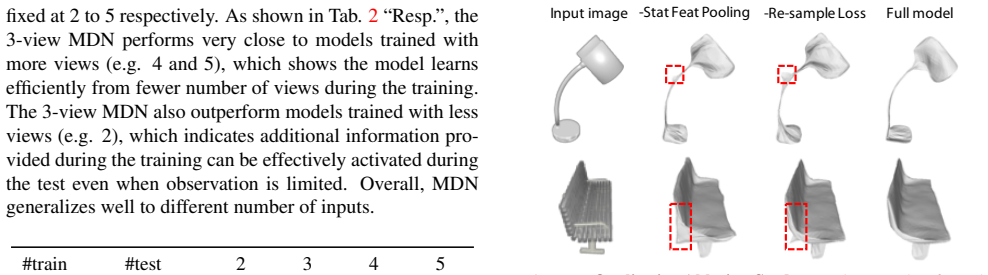

**Figure 7.** Figure 7: Qualitative Ablation Study. We show meshes from the MDN with statistics feature or re-sampling loss disabled. Metrics F-score(τ ) ↑ F-score(2τ ) ↑ CD ↓ -Feat Stat 65.26 79.13 0.511 -Re-sample Loss 66.26 80.04 0.496 Full Model 66.48 80.30 0.486 [PITH_FULL_IMAGE:figures…

**Figure 8.** Figure 8: Qualitative Evaluation. From top to bottom, we show in each row: two camera views, results of 3DR2N2, LSM, multi-view Pixel2Mesh, ours, and the ground truth. Our predicts maintain good details and align well with different camera views. Please see supplementary materia…

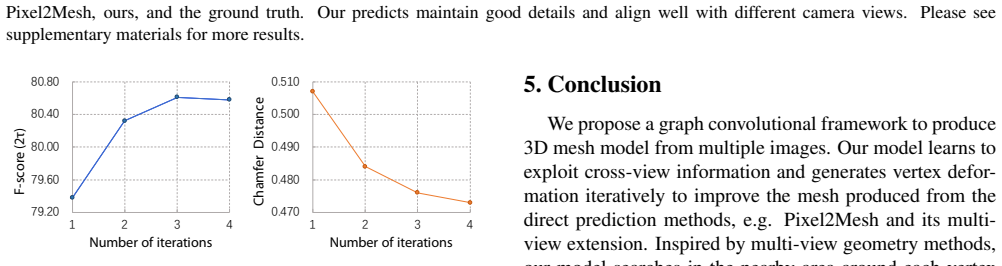

**Figure 9.** Figure 9: Performance with Different Iterations. The performance keeps improving with more iterations and saturate at three. prevents big mistakes from happening on a single vertex, e.g. the spike on bench, where our loss penalizes a lot of sampled points on wrong faces caused …

**Figure 10.** Figure 10: Results of baselines. ‘conv3 3’, ‘conv4 3’, and ‘conv5 3’ from the VGG-16 network, and feature statistics (Sec. 3.1.2 in the main submission) are calculated and concatenated, which ends up with a 1280 dimension feature vector. In practice, we also tried to pool geom…

**Figure 11.** Figure 11: Effect of Re-sampled Loss. We show more qualitative comparison between model trained with original Chamfer loss and our re-sampled version. The re-sampled loss (Full model) helps to prevent the flying pixel and spike artifacts. also slightly better than P2M-M+MDN as t…

**Figure 12.** Figure 12: Effect of Iterations. We show the output of our system after each iterations. Thin structures and geometry details are recovered in the later iterations. (a) Example mesh result. Metrics w/o MDN w/ MDN CD 2.438 1.418 F-score(τ ) 20.24 36.81 F-score(2τ ) 31.62 52.45 (b…

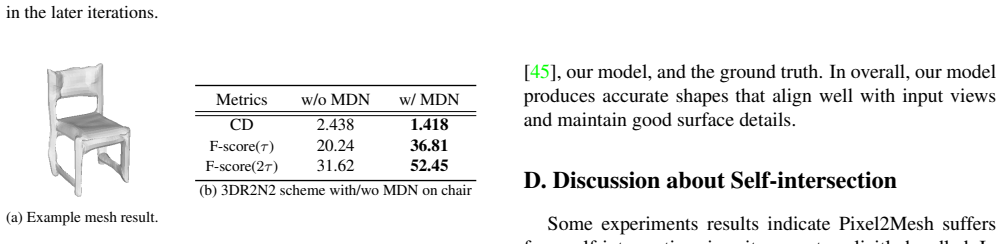

**Figure 13.** Figure 13: Experiments results using non-ellipsoid initial. [PITH_FULL_IMAGE:figures/full_fig_p014_13.png]

**Figure 14.** Figure 14: More Qualitative Results. From top to bottom, we show for each example: two camera views, results of 3DR2N2, LSM, Pixel2Mesh, ours, and the ground truth. 15 [PITH_FULL_IMAGE:figures/full_fig_p015_14.png]

**Figure 15.** Figure 15: More Qualitative Results. From top to bottom, we show for each example: two camera views, results of 3DR2N2, LSM, Pixel2Mesh, ours, and the ground truth. 16 [PITH_FULL_IMAGE:figures/full_fig_p016_15.png]

**Figure 16.** Figure 16: More Qualitative Results. From top to bottom, we show for each example: two camera views, results of 3DR2N2, LSM, Pixel2Mesh, ours, and the ground truth. 17 [PITH_FULL_IMAGE:figures/full_fig_p017_16.png]
