Flexible Cloud/User-Centric Entanglement and Photon Pair Distribution with Synthesizable Optical Router

T0 review · 3 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read This paper reports an experimental quantum network whose remote branching node, built from an 8×8 space switch in loopback, can reallocate photon pairs and polarization entanglement among five users on demand, with six demonstrated…

desk verdict A credible experimental demonstration of reconfigurable quantum resource distribution, with the entanglement visibility reporting too thin and one abstract overclaim that needs tightening. read the letter →

arxiv 1908.01673 v2 pith:YPG6DQMQ submitted 2019-08-05 quant-ph

Fabian Laudenbach , Bernhard Schrenk , Martin Achleitner , Nemanja Vokić , Dinka Milovančev , Hannes Hübel This is my paper · ORCID
classification quant-ph
keywords quantumcommunicationentanglementdistributionphotonpairsopticalnetworksspaceswitchwavelengthdivisionmultiplexingreconfigurablenetworknodepolarization
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper reports an experimental quantum network in which a reconfigurable optical node, rather than a fixed passive splitter, decides which users receive photon pairs and entanglement. The node combines spectral resources from two spontaneous parametric down-conversion sources—spanning short-wavelength, O-, C-, and L-bands—with an 8×8 space switch in a loopback configuration that synthesizes a distribution map on demand. Six mapping scenarios are demonstrated among five network locations, covering both user-centric pair sharing and cloud-centric entanglement links to a central office, over a 17-km tree-shaped fiber network. Dynamic reconfiguration changes one user's delivered photon rate by a factor of 3.2, and polarization-entanglement visibility above the classical $1/\sqrt{2}$ limit is measured for three user–Emma pairs. The authors argue this flexibility is what practical quantum communication roll-out needs, because resources can scale and be reallocated without placing active components under user control.

What carries the argument

The central object is the synthesizable branching node: an 8×8 optical space switch operated in loopback configuration, surrounded by waveband splitters and combiners that separate the O-, C-, and L-band quantum channels. The loopback ports let the node internally re-circulate and recombine wavelength bands, so the node's effective architecture—which user gets which band, and whether the central office is included—is composed on demand rather than fixed in hardware. This is the mechanism that turns a static passive tree into a reconfigurable distribution map, and it is what allows dynamic bandwidth allocation (up to 3.2× for one user) and simultaneous service to multiple users with insertion losses of 2.2 dB in the O-band and 2.8–3.8 dB in the C/L-bands.

What would settle it

Re-analyze the same eight-setting correlation data with accidental coincidences subtracted and compute the CHSH parameter: if any of the three E-X pairs yields $S \leq 2$, or its corrected visibility falls below $1/\sqrt{2}$, the entanglement-distribution claim for that pair is refuted.

Watch

Extended reading notes

Core claim

The central claim is that a quantum access network need not be frozen by passive wavelength multiplexing: a branching node built from an 8×8 space switch in loopback configuration, together with C/L waveband splitters, can synthesize different connectivity maps and thereby allocate quantum bandwidth flexibly. The authors demonstrate simultaneous photon-pair distribution to multiple users in six mappings, plus asymmetric EPR entanglement from the central office to remote users in three of those mappings. Measured coincidence rates range from about 1 to 16 counts/s depending on the mapping, and the EPR source shows back-to-back visibility $0.955 \pm 0.033$; after 17 km transmission, the three entanglement-sharing pairs still show visibilities of $0.841$–$0.886$, above the classical threshold $1/\sqrt{2} \approx 0.707$. Reconfiguration is quasi-hitless, a user's pair rate can be adjusted by a factor of 3.2 (5.1 dB), and an in-band classical control channel at 1490 nm can co-exist without penalty. The authors present this as a step from static, passive entanglement distribution toward agile, service-oriented quantum networks.

Load-bearing premise

The entanglement-distribution result stands on the assumption that the quoted visibility values ($0.841$–$0.886$), measured with eight polarizer settings and not corrected for accidental coincidences, genuinely certify entanglement, so if the true visibilities are lower than reported the three-user entanglement claim weakens.

Editorial extensions

If this is right

  • If the scheme works as demonstrated, quantum network operators can offer entanglement as an on-demand service: the same physical tree can switch between pair sharing among end users, concentration of bandwidth on one user, and cloud-centric links to a central hub.
  • Dynamic bandwidth allocation becomes available at the quantum layer: a single user's delivered photon rate can be changed by 3.2× (5.1 dB) by switching the node, which could be used for service-level differentiation or load balancing.
  • A classical control channel can travel alongside quantum channels on the same feeder fiber without observable penalty, because it is temporally gated during reconfiguration and spectrally rejected at users; this removes a practical obstacle to managing remote quantum nodes.
  • Because the node is built from standard telecom switch and multiplexer components and can in principle be powered by optical energy harvesting, it can remain a passive element of the optical distribution network while still being reconfigurable.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same loopback-switch design could be reprogrammed to implement other logical topologies beyond the six shown—for example, a quantum key distribution star or a relay chain—since the routing is defined by configuration rather than the fiber plant.
  • The architecture's flexibility suggests heterogeneous services could share the same infrastructure: entanglement for some users and single-photon quantum key distribution for others, delivered simultaneously through different spectral allocations.
  • The entanglement witness could be strengthened to a CHSH-Bell test; if the same three links violate a Bell inequality, the distribution claim would not rely on the $1/\sqrt{2}$ visibility threshold alone.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The manuscript reports an experimental optical network node built from an 8x8 space switch in a loopback configuration together with C/L waveband splitters. A central office hosts two SPDC sources: a symmetric LiNbO3 source (PP1) emitting C- and L-band photon pairs and an asymmetric ppKTP source (EPR2) emitting polarization-entangled 904/1294 nm pairs. The node connects four remote users (Alice, Bob, Charlie, Diana) and a local hub (Emma) through a 17-km tree-shaped fiber network. Six static distribution mappings (I-VI) are demonstrated for single-photon pair distribution, with coincidence rates in Table I; entanglement distribution from EPR2 is characterized in three of these mappings via polarization visibility measurements reported in Table II. The paper also demonstrates dynamic cycling through all six configurations, reports a 3.2x rate adjustment for one user after dark-count subtraction, and claims penalty-free co-existence of a 1490-nm auxiliary management and control (AMC) channel.

Significance. The architecture is a useful step toward reconfigurable quantum distribution networks: it combines active spatial switching with spectral slicing over the O, C, and L bands, supports both user-centric and cloud-centric allocations, and demonstrates simultaneous multi-user distribution with dynamic bandwidth changes. Strengths of the paper include its forward loss-budget reasoning (the expected remote rate is a calculation, not a fit), the reporting of 60-s integration means with 1-sigma standard deviations, independent back-to-back characterization of the EPR source (V = 0.955 +/- 0.033), and explicit discussion of detector and source limitations. If the per-basis visibility data confirm the entanglement witness and the penalty-free claim is backed by a quantitative comparison, this will be a solid systems demonstration; without those additions, the paper's central claims currently exceed the evidence presented.

major comments (3)
  1. [V.B, Table II] The visibility estimator is never defined, and the per-basis results behind Table II are not reported. The text says that a visibility measurement was performed for the eight polarizer settings HH, HV, VH, VV, AD, AA, DA, and DD, but it does not state whether the quoted V is the H/V visibility, the D/A visibility, their average, or another combination. This matters because the 1/sqrt(2) threshold is not a valid entanglement witness in a single basis: a separable state can have unit visibility in one basis and zero in the other. Please provide the raw coincidence counts (or at least V_HV and V_DA with uncertainties) for mappings III, IV, and VI, and state the exact formula used. This is load-bearing for the central entanglement-distribution claim; the weakest entry, V = 0.842 +/- 0.109, has a 1-sigma lower bound only 0.026 above the threshold, so per-basis confirmation is essential.
  2. [Abstract, Section VI] The abstract's claim that 'penalty-free operation is confirmed' for the co-existing 1490-nm classical control channel is not supported by the quantitative data presented. Section VI states that 'no impact is observed at the switching transients' and shows detector-event traces for an electrical versus an optical AMC channel, but there is no statistical comparison of delivered rates, coincidence rates, or entanglement visibility with the AMC channel on and off. Please either report such a comparison (for example, mean and standard deviation of the relevant rate or visibility in the same mapping with and without the optical AMC channel) or weaken the claim to say that no penalty was observed within the time resolution and statistics of the dynamic-switching measurement.
  3. [V.A, Table I] The coincidence window and accidental-coincidence treatment are not specified for Table I. The quoted pair rates are 1.2 to 8.8 cc/s, while the InGaAs dark-count rates are 520 to 670 c/s, and the temporal-correlation plots in Fig. 7 show nonzero backgrounds. Without stating the coincidence window and whether accidental coincidences were subtracted, the reported rates and the 'factor of 3.2' dynamic rate adjustment in Section VI are not fully reproducible. Please specify the window and either subtract accidentals or quantify their contribution.
minor comments (4)
  1. [V.B] The phrase 'entanglement shared between three users' (also used in the abstract) is ambiguous: Table II shows Emma paired with Bob, Diana, and Alice in three separate mappings, not simultaneous three-party entanglement. Please rephrase to say 'between Emma and three different remote users in different mappings.'
  2. [Fig. 8] The label 'Dianna' in Fig. 8 should be 'Diana' to match the text.
  3. [IV] Please state the coincidence window used by the time-tagging module, since it is needed to interpret the rates in Tables I and II.
  4. [V.B] Please provide a reference or derivation for the statement that visibility exceeding 1/sqrt(2) witnesses entanglement for the two-basis measurement; as written, the threshold appears basis-specific rather than universally applicable.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the central claims are direct experimental measurements, and self-citations are not load-bearing.

full rationale

The paper's core claims—six static distribution mappings, a dynamic rate-adjustment factor of 3.2, and entanglement visibility above 1/√2 for three user–Emma pairs—are presented as direct measurements (Tables I and II, Fig. 8), not as outputs of a fitted model or of a self-referential derivation. The EPR2 source is based on the authors' prior work [25,26], but its entanglement is re-characterized independently in this paper by a back-to-back visibility measurement (V = 0.955 ± 0.033), so the network-level entanglement claim does not rest on an unverified self-citation. The branching-node concept is attributed to the authors' earlier work [23], but that citation is contextual; the node's insertion losses and transmission spectra are measured here. The only numerical consistency statement, that the E-X rate 'agrees well with the expected rate due to transmission loss at feeder fiber, branching node and drop fiber,' is a loss-budget sanity check rather than a fitted parameter renamed as a prediction. No equation in the paper defines a target quantity in terms of the same target quantity, and none of the reported visibilities are used as inputs to construct the mappings. The under-specification of the visibility formula and the thin margin above 1/√2 are reporting and correctness concerns, not circularity. No circular step can be exhibited, so the circularity score is 0.

Assumptions & free parameters 0 free parameters · 4 assumptions · 0 invented entities

This is an experimental systems paper with no fitted theoretical parameters. The claims rest on standard quantum optics assumptions (SPDC pair generation, coincidence detection, visibility as an entanglement witness) and on the unmeasured assumption that the co-existing classical channel does not perturb quantum channels. The 'synthesizable' node is a combination of existing components, not a new physical entity.

assumptions (4)
  • domain assumption SPDC sources produce photon pairs with Poisson statistics; coincidence peaks correspond to paired photons.
    Standard quantum optics model used to interpret time-correlation measurements in Section V and Fig. 7.
  • domain assumption Polarization visibility above 1/√2 with the eight measured settings witnesses polarization entanglement.
    The paper cites the classical limit threshold without deriving it or defining the visibility formula; the entanglement claim depends on this witness.
  • domain assumption The 1490 nm AMC channel, active only during reconfiguration, is temporally gated and spectrally filtered so it does not add noise to quantum channels.
    Stated in Section IV but not directly measured against a no-AMC baseline.
  • domain assumption The birefringence-induced polarization rotation in the fibers can be compensated such that the remaining visibility reduction is only an experimental imperfection.
    Used in Section V.B to explain the drop from 0.955 (back-to-back) to about 0.85 (network); no independent verification of full compensation.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Flexible Cloud/User-Centric Entanglement and Photon Pair Distribution with Synthesizable Optical Router." pith.science (2026). https://pith.science/paper/YPG6DQMQ

@misc{pith2026190801673,
  author       = {Pith},
  title        = {Pith review of: Flexible Cloud/User-Centric Entanglement and Photon Pair Distribution with Synthesizable Optical Router},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/YPG6DQMQ}},
  note         = {Machine review of arXiv:1908.01673}
}
read the original abstract

The practical roll-out of quantum communication technologies in optical networks and the adoption of novel quantum applications demand the distribution of single or entangled photons. Flexibility and dynamicity are paramount for the provision of quantum resources, in order to scale with the number of users and to meet the demand of complex network architectures. We present a quantum network architecture that features this degree of reconfigurability, without being restricted to a rigid physical-layer network based on purely passive multiplexing componentry. We leverage spectral assets of photon-pair sources, from the short-wavelength band to the L-band, and agile spatial switching at a remote optical network node, in order to realize a flexible distribution map that features different flavors, reaching from cloud-centric to user-centric quantum connectivity. Photon pair distribution is experimentally demonstrated between five users in a 17-km reach, tree-shaped optical network, with high visibility entanglement shared between three users of the network. Simultaneous distribution of photons to more than one user is enabled and the delivered photon rate can be dynamically adjusted. Penalty-free operation is confirmed for integrating a co-existing classical control channel within the quantum.

Figures

Figures reproduced from arXiv: 1908.01673 by the authors.

Figure 1
Figure 1. Dynamic allocation of quantum bandwidth wi [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

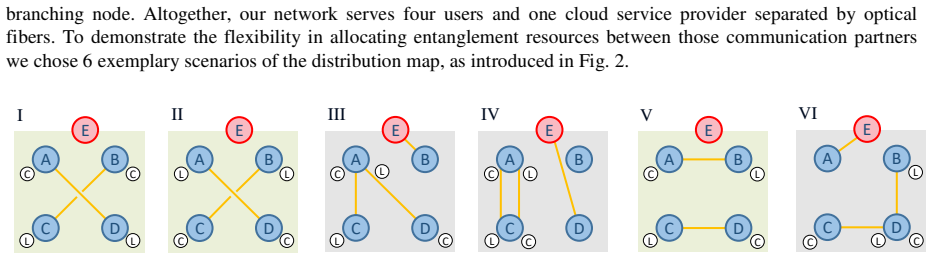

Figure 2
Figure 2. Distribution map for user- and cloud-centr [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

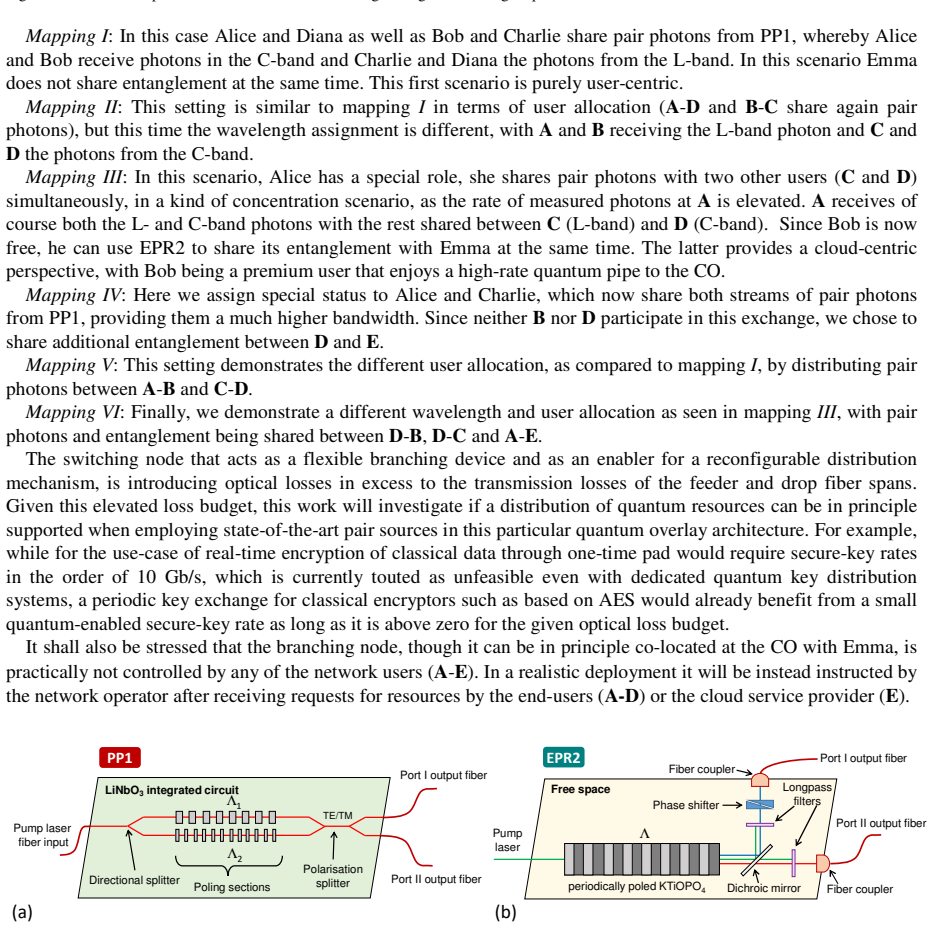

Figure 3
Figure 3. Employed pair sources. (a) Symmetric sourc [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figures from the paper (5 more)
Figure 4
Figure 4. Figure 4: Emission spectra for both sources. (a) Sho [PITH_FULL_IMAGE:figures/full_fig_p004_4.png]
Figure 5

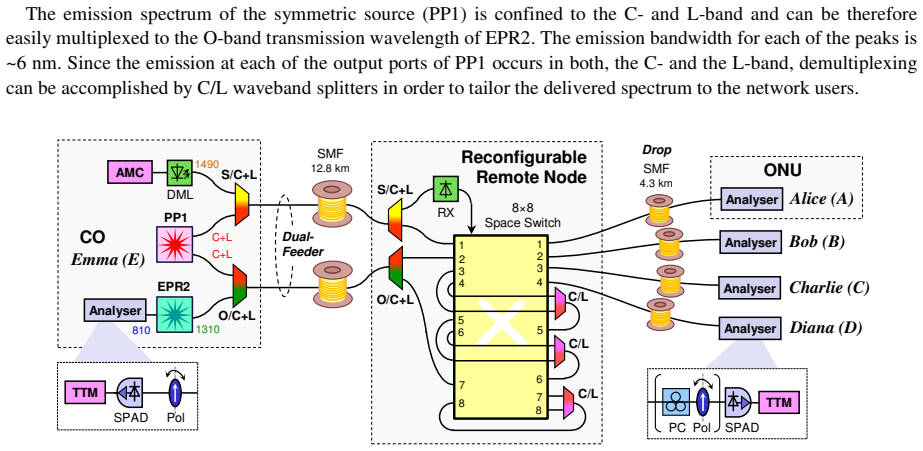

Figure 5. Figure 5: Experimental setup for entanglement distri [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
Figure 6

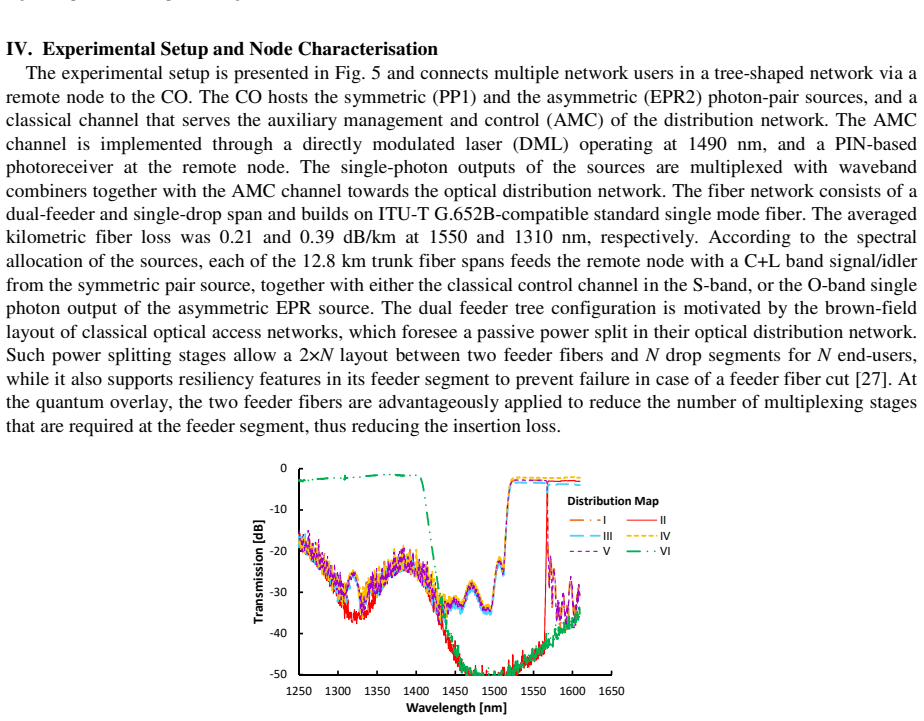

Figure 6. Figure 6: Optical transmission spectra for the remot [PITH_FULL_IMAGE:figures/full_fig_p005_6.png]
Figure 7

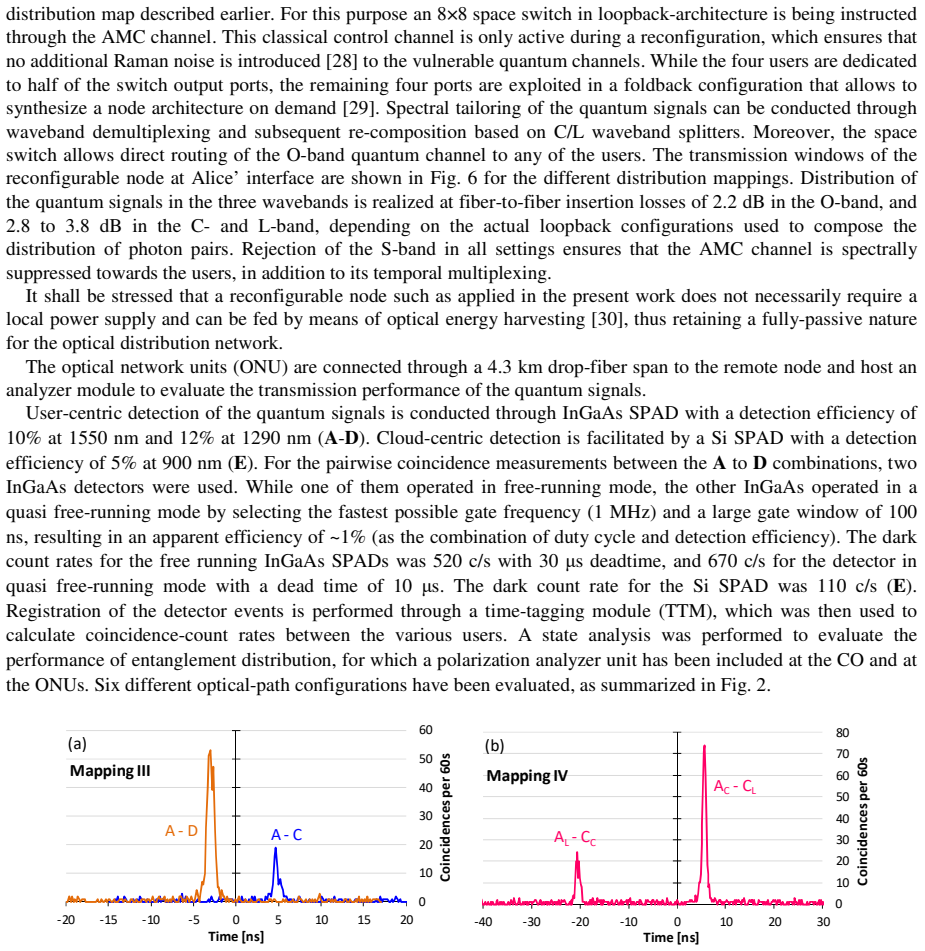

Figure 7. Figure 7: Time-correlation measurements for mappings [PITH_FULL_IMAGE:figures/full_fig_p006_7.png]
Figure 8
Figure 8. Figure 8: Dynamic switching of the remote node confi [PITH_FULL_IMAGE:figures/full_fig_p009_8.png]
