Ethane in Titan's Stratosphere from Cassini CIRS Far- and Mid-Infrared Spectra

T0 review · 3 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Using ethane's ν4 torsional band, this paper retrieves (1.0 ± 0.4) × 10^-5 ethane at 88 km on Titan, the deepest such measurement and a value at odds with photochemical model predictions of depletion.

desk verdict A genuinely new ν4-band retrieval that probes deeper, but the 88 km ethane abundance is prior-dependent because the continuum correction can absorb the band, so the photochemical comparison is not yet robust. read the letter →

arxiv 1908.01926 v1 pith:SVE45T43 submitted 2019-08-06 astro-ph.EP physics.ao-ph

Nicholas A Lombardo , Conor A Nixon , Melody Sylvestre , Donald E Jennings , Nicholas Teanby , Patrick G J Irwin , F Michael Flasar This is my paper · ORCID
classification astro-ph.EPphysics.ao-ph
keywords Titanethanefar-infraredspectroscopyν4torsionalbandstratosphericretrievalCassiniCIRSphotochemicalmodelsnadirsounding
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper reports the first use of ethane's far-infrared torsional band, the ν4 band at 289 $cm^{-1}$, to measure ethane in a planetary atmosphere. Using nadir spectra from Cassini's CIRS instrument, the authors retrieve an equatorial ethane mixing ratio of (1.0 ± 0.4) × $10^{-5}$ at 88 km in Titan's stratosphere, the deepest such measurement on Titan. Because the band is optically thin, the measurement probes below 100 km, a region previously inaccessible to ethane retrievals. The value matches ethane abundances measured higher in the stratosphere, whereas most photochemical models predict a sharp depletion at these depths. The paper also shows that the mid-infrared ν8 band retrieves abundances comparable to the standard ν12 band, suggesting new spectral windows for future observations.

What carries the argument

The load-bearing object is the ν4 torsional band of ethane, the molecule's only far-infrared vibrational mode (the internal twisting of its two methyl groups), centered at 289 $cm^{-1}$. Because it is optically thin, nadir CIRS FP1 spectra remain unsaturated down to about 88 km, and the contribution function peaks at 13.1 mbar. The other half of the machinery is the treatment of the unidentified broad residual between 270 and 290 $cm^{-1}$: the authors mask wavenumbers where gas lines contribute, smooth the observed-minus-model continuum difference, and assign that smoothed curve to a second aerosol haze, following the approach of a cited earlier study. This keeps the ethane retrieval from being contaminated by the continuum feature, and it is the assumption on which the depth and the measured abundance depend.

What would settle it

Run the FP1 retrieval with the 270-290 $cm^{-1}$ residual modeled as additional ethane line opacity rather than as a smoothed haze continuum: if the retrieved 88 km mixing ratio falls toward $10^{-6}$ or tracks the a priori, the claim of no low-stratosphere depletion is falsified. A high-resolution far-infrared spectrum that resolves the ν4 band structure from the continuum would also settle the attribution directly.

Watch

Extended reading notes

Core claim

The paper's central claim is that nadir observations of ethane's ν4 torsional band at 289 $cm^{-1}$ probe the low stratosphere on Titan, reaching a peak contribution at 13.1 mbar (about 88 km), and that the equatorial mixing ratio there is (1.0 ± 0.4) × $10^{-5}$. This is the first planetary retrieval of ethane from the ν4 band, and it reaches about 50 km deeper than the deepest previous nadir soundings. The retrieved value overlaps the lower-altitude edge of the ν12-band limb profile, showing that ethane is roughly as abundant at 88 km as it is above 100 km. The authors contrast this with photochemical models from several independent groups that predict an order-of-magnitude depletion in the same region, and they also show that the ν8 band at 1468 $cm^{-1}$ yields abundances comparable to the ν12 band.

Load-bearing premise

The retrieval assumes that the broad unexplained emission between 270 and 290 $cm^{-1}$ is aerosol haze, not ethane (or another gas); if any of that residual is truly ethane, the 88 km abundance is dragged toward the assumed starting value and the disagreement with photochemical models may be an artifact.

Editorial extensions

If this is right

  • Titan's ethane is not depleted between 88 km and the stratospheric region above 100 km; photochemical models that predict a sharp low-stratosphere depletion need revision in their production, loss, or eddy-diffusion terms.
  • The ν4 band provides a new remote-sensing window for ethane in planetary atmospheres, reaching altitudes roughly 50-120 km deeper than the ν12 and ν8 bands in the same CIRS dataset.
  • The ν8 band at 1468 cm^-1 retrieves ethane abundances comparable to the standard ν12 band, supporting its use in future observations, especially alongside the methane ν4 thermometer band.
  • Measurements from the ν12 and ν8 bands confirm a gradual increase in ethane mixing ratio with altitude from 150 km to 400 km, consistent with earlier CIRS limb retrievals.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the continuum attribution holds, the same masking-and-smoothing treatment could be applied to other optically thin far-infrared bands, potentially pushing retrievals of trace gases like H2O and C2N2 deeper in Titan's stratosphere than the ν12 band allows.
  • A direct test of the paper's conclusion would be to re-run the FP1 retrieval treating the 270-290 cm^-1 residual as ethane opacity rather than haze; a large drop in the retrieved 88 km value would indicate the 'no depletion' result is an artifact of the continuum assumption.
  • The prior-sensitivity check (1.2 × 10^-5 for a high prior, 5.6 × 10^-6 for a low prior) implies that the quoted uncertainty does not fully capture the effect of the continuum choice; a retrieval with a parameterized aerosol shape would bound this source of error.
  • Observing the ν8 band of ethane together with the ν4 band of methane in a single spectral window, as the paper suggests, could let future missions measure ethane abundance and temperature from the same spectrum, simplifying the retrieval.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. This paper presents retrievals of C2H6 on Titan from three CIRS spectral regions: the ν4 torsional band near 289 cm-1 in FP1 nadir spectra, the ν12 band near 822 cm-1 in FP3 limb spectra, and the ν8 band near 1468 cm-1 in FP4 limb spectra. The central new result is the first planetary retrieval using the ν4 band, which the contribution function places at about 88 km, yielding an equatorial VMR of (1.0 ± 0.4) × 10^-5 averaged over 2007-2017. The authors argue that this deep value is consistent with higher-altitude measurements, in contrast to photochemical model predictions of depletion. The FP3 and FP4 limb retrievals are consistent with earlier work, and the paper suggests future observations of the ν8 band as a useful ethane probe.

Significance. If the 88 km result is robust, it would be the deepest stratospheric ethane measurement on Titan from CIRS and a meaningful constraint for photochemical-transport models, plus the first demonstration of ν4 and a new validation of ν8 for ethane retrievals. The paper is careful to include an a priori sensitivity test and a Δχ2 analysis, and the FP3/FP4 results agree with previous literature. However, the central claim is not fully secured: the continuum correction for the unidentified 270-290 cm-1 feature overlaps the ν4 band, and the prior sensitivity test shows the retrieved value moves with the prior across non-overlapping 1σ intervals. The result's consistency with higher-altitude measurements is therefore partly built into the choice of a priori.

major comments (3)
  1. [§2.4.1 and §3.1] The continuum feature between 270 and 290 cm-1 is fitted by smoothing the masked residual between the observed and line-free modeled spectra and assigning it to an aerosol haze. This interval contains the entire ν4 band (centered at 289 cm-1), so the procedure can absorb broad ethane emission if the forward-model line strength, shape, or temperature profile is slightly inaccurate. The a priori sensitivity test in §3.1 shows this is not a purely hypothetical concern: with a high a priori of (3.0 ± 1.5) × 10^-5 the retrieval returns (1.2 ± 0.4) × 10^-5, while with a low a priori of (5.0 ± 2.5) × 10^-6 it returns (5.6 ± 1.4) × 10^-6. The stated 1σ intervals [0.8,1.6] × 10^-5 and [4.2,7.0] × 10^-6 do not overlap, so the statement that these results are 'within the model uncertainties' is unsupported. Because the chosen a priori of 1.0 × 10^-5 is close to the final result, the claimed consistency with higher-altitude measurements is not yet established.
  2. [§3.1.1] The Δχ2 analysis does not provide an independent confirmation of the 88 km abundance. The forward models in this analysis use the same continuum extinction curve derived in §2.4.1 from the residual of a retrieval that included ethane. If that curve has absorbed part of the ν4 band, the Δχ2 minimum near 1.1 × 10^-5 is biased and cannot resolve the degeneracy. I recommend adding a synthetic retrieval test: build a spectrum with a known ethane VMR and the adopted gas and haze model, apply the §2.4.1 continuum-fitting procedure, and check that the retrieval recovers the input VMR. This test would directly address whether the masked-residual continuum correction can separate a gas feature at the band center from the unidentified continuum.
  3. [§4.3] The comparison to photochemical models is the headline of the paper, but it inherits the degeneracy described above. If the true 88 km VMR is closer to the low-prior retrieval of 5.6 × 10^-6, the disagreement with the models' depletion predictions is much weaker. The paper should present the model comparison for both the high- and low-prior retrieval solutions, or with the synthetic-recovery-based uncertainty, before drawing the conclusion that ethane is nearly as abundant at 88 km as aloft.
minor comments (5)
  1. [Abstract] The abstract contains duplicated words 'of of' and a typo 'centered ay 1468 cm−1'; these should be corrected.
  2. [§2.1 / Table 2] The text states the FP1 average includes 6624 spectra, while Table 2 lists 6684 spectra for FP1; please reconcile the discrepancy.
  3. [Fig. 1 / §3.1] Figure 1 and its caption refer to temperatures at 15 mbar (about 88 km), while §3.1 states the contribution function for ν4 peaks at 13.1 mbar (85.7–87.5 km). Clarify which pressure level corresponds to the reported 88 km altitude.
  4. [Fig. 9 / Table 2 caption] The ν8 band is described as centered at 1468 cm−1 in Table 1 and the text, but Figure 9 and the Table 2 caption refer to it at 1458 cm−1; this is inconsistent and should be fixed.
  5. [Fig. 7] The ordinate label 'Pressue' in Figure 7 should be 'Pressure' (typo).

Circularity Check

1 steps flagged · score 6.0 of 10

The 88 km ethane abundance is partly defined by the same residual used to construct the second haze continuum, and the retrieved value tracks the selected a priori.

  1. fitted input called prediction [Section 2.4.1, 'Unidentified Far-Infrared Continuum Feature' (Figs. 3C/D) and Section 3.1 (FP1 prior sensitivity)]
    "While only including spectral characteristics of H2O, C2N2, C2H6, H2, and a gray aerosol, we noticed a prominent emission feature in the residual... The feature is broad, spanning the region between 270 and 290 cm−1... The difference between the masked retrieved and masked forward modeled residuals is then smoothed and set as the extinction cross section for the haze representing the unidentified feature."

    The second haze extinction is constructed as the smoothed residual of the same 240-300 cm−1 window in which the ethane ν4 band at 289 cm−1 is retrieved. Because this residual is formed by removing the ethane line list from a forward model, any weak ν4 emission that does not exceed the 0.1 nW mask threshold is absorbed into the haze. The subsequent retrieval then fits ethane only to the spectrum left after that haze is removed, so the reported 88 km volume mixing ratio is structurally tied to a continuum fitted from the same data. The paper's own prior test confirms the low information content: the retrieved value equals the 1.0e-5 a priori, while the high and low priors return 1.2e-5 and 5.6e-6, values whose stated 1σ ranges do not overlap.

full rationale

The paper is not circular in the sense of renaming a known result or importing a uniqueness theorem from the authors' prior work; the line lists are external laboratory data and the FP3/FP4 retrievals agree with independent earlier measurements. However, the central 88 km ν4 measurement contains a construction-level circularity: the unidentified far-infrared continuum is defined by smoothing the residual of the same spectral window used to retrieve ethane, and the retrieved mixing ratio is very close to the assumed a priori, with the stated prior-sensitivity intervals non-overlapping. The Δχ2 analysis provides some independent support, but its continuum is fixed by the same residual-fitting procedure, so it does not fully break the circularity. The headline claim that ethane at 88 km is consistent with higher altitudes, in contrast to photochemical models, therefore rests on a partially circular separation of the ν4 band from the continuum. Score 6 reflects partial, not total, circularity: the FP3/FP4 analyses and external consistency checks are independent, and the ν4 retrieval does retain some data content.

Assumptions & free parameters 5 free parameters · 6 assumptions · 0 invented entities

The reader pays for the prior literature (HITRAN line lists, NEMESIS, temperature profiles) plus the ad hoc continuum shape. The list below captures everything the 88 km claim rests on. The most fragile item is the unidentified FIR continuum feature, which sits on top of the ν4 band.

free parameters (5)
  • A priori ethane volume mixing ratio profile = 1.0e-5 with 1-sigma uncertainty 0.5e-5
    The retrieval uses this as the central prior; varying it to 3.0e-5 and 5.0e-6 gives retrieved values of 1.2e-5 and 5.6e-6, so the result is not fully prior-independent.
  • Unidentified FIR continuum haze extinction curve = Smoothed residual shape between 240 and 300 cm-1
    Derived by subtracting the continuum model from the observed spectrum after masking gas lines (Section 2.4.1); overlaps the ν4 band and could absorb ethane signal.
  • FP4 haze spectral response = Adopted from Vinatier et al. (2012)
    Used to model the continuum in the 1440-1480 cm-1 region; uncertainties in this response affect ν8 retrievals.
  • FP3 non-gray haze slope = Linear increase with wavenumber over 800-860 cm-1
    A functional form chosen to fit the continuum in the ν12 region; contributes to retrieved ethane uncertainties.
  • H2 abundance profile = Retrieved constant-with-altitude value
    H2 collision-induced absorption is retrieved simultaneously and changes the continuum in the FIR window.
assumptions (6)
  • domain assumption HITRAN 2016 line lists for ethane ν4, ν12, and ν8 and for CH4 and H2O are accurate.
    Line positions and strengths set the band opacities; the authors rely on lab work by Moazzen-Ahmadi et al. (2015) and di Lauro et al. (2012) without independent validation.
  • domain assumption The temperature profiles used (Sylvestre et al., in press for FP1; Achterberg et al., 2014 for MIR) are accurate.
    Temperature appears as a state vector component; an error at 88 km propagates directly into the retrieved VMR.
  • domain assumption NEMESIS with the correlated-k approximation and optimal estimation reproduces CIRS spectra.
    All retrievals use this forward model; approximation errors from correlated-k and instrument line shape are not independently estimated.
  • ad hoc to paper The broad 270-290 cm-1 residual feature is aerosol continuum rather than gas emission.
    Assigned in Section 2.4.1 and used to define a second haze layer; if wrong, ethane at 88 km is biased.
  • ad hoc to paper Aerosol haze is gray (spectrally flat) in the FIR window and follows the Vinatier et al. (2012) response in FP4.
    Modeling choices for the continuum; deviations affect the retrieved gas abundances.
  • domain assumption Ethane follows the saturation vapor pressure curve below condensation in the forward models.
    Used in the delta-chi2 forward model runs; if condensation behavior differs, the 88 km abundance estimate could shift.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Ethane in Titan's Stratosphere from Cassini CIRS Far- and Mid-Infrared Spectra." pith.science (2026). https://pith.science/paper/SVE45T43

@misc{pith2026190801926,
  author       = {Pith},
  title        = {Pith review of: Ethane in Titan's Stratosphere from Cassini CIRS Far- and Mid-Infrared Spectra},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/SVE45T43}},
  note         = {Machine review of arXiv:1908.01926}
}
abstract

The Cassini Composite Infrared Spectrometer (CIRS) observed thermal emission in the far- and mid-infrared (from 10 cm$^{-1}$ to 1500 cm$^{-1}$), enabling spatiotemporal studies of ethane on Titan across the span of the Cassini mission from 2004 through 2017. Many previous measurements of ethane on Titan have relied on modeling the molecule's mid-infrared $\nu_{12}$ band, centered on 822 cm$^{-1}$. Other bands of ethane at shorter and longer wavelengths were seen, but have not been modeled to measure ethane abundance. Spectral line lists of the far-infrared $\nu_{4}$ torsional band at 289 cm$^{-1}$ and the mid-infrared $\nu_{8}$ band centered ay 1468 cm$^{-1}$ have recently been studied in the laboratory. We model CIRS observations of each of these bands (along with the $\nu_{12}$ band) separately and compare retrieved mixing ratios from each spectral region. Nadir observations of of the $\nu_{4}$ band probe the low stratosphere below 100 km. Our equatorial measurements at 289 cm$^{-1}$ show an abundance of (1.0$\pm$0.4) $\times$10$^{-5}$ at 88 km, from 2007 to 2017. This mixing ratio is consistent with measurements at higher altitudes, in contrast to the depletion that many photochemical models predict. Measurements from the $\nu_{12}$ and $\nu_{8}$ bands are comparable to each other, with the $\nu_{12}$ band probing an altitude range that extends deeper in the atmosphere. We suggest future studies of planetary atmospheres may observe the $\nu_{8}$ band, enabling shorter wavelength studies of ethane. There may also be an advantage to observing both the ethane $\nu_{8}$ band and nearby methane $\nu_{4}$ band in the same spectral window.

Figures

Figures reproduced from arXiv: 1908.01926 by the authors.

Figure 1
Figure 1. Temperatures at 15 mbar derived from Sylvestre, et al., submitted. Black dots are FP1 nadir observations used to extract temperature. The color map is interpolated from temperatures of individual observations. The boundary of the averaging bin is shown as the black box. 2.2. MIR Dataset FP3 and FP4 were both linear arrays of 10 detectors, with a field-of-view of about 0.27 mrad per detector. The smaller field-of-vie… view at source ↗
Figure 2

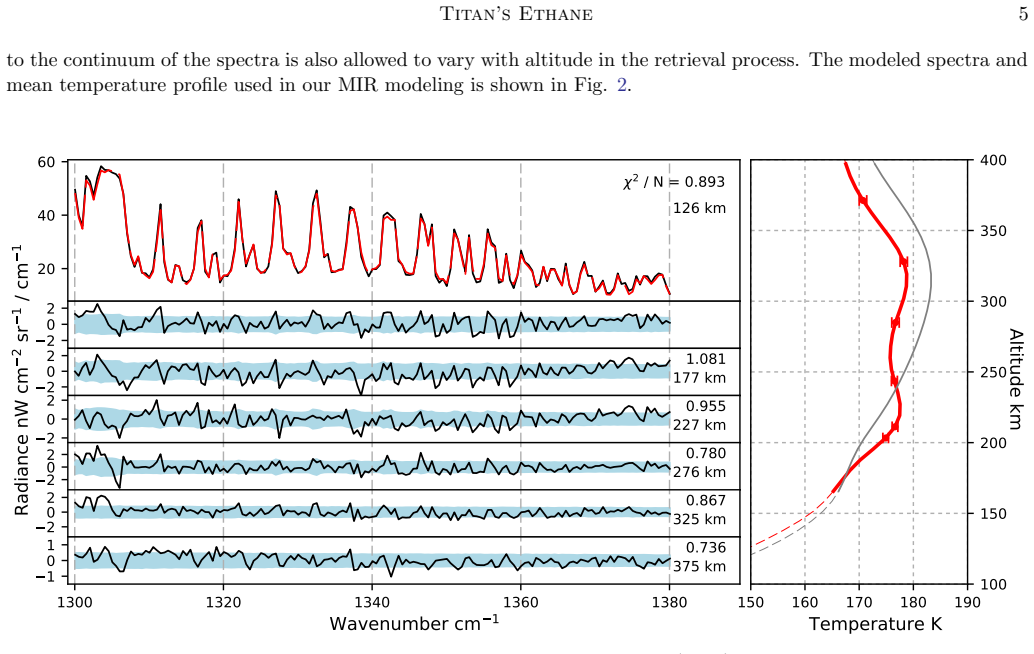

Figure 2. Model fits for the FP4 temperatures retrievals. Left: The original data (black) compared to the synthetic spectrum (red dashed) for the lowest altitude bin (topmost plot). The residuals (observed data minus synthetic spectra) are shown for all modeled spectra below. Blue envelopes are the model error. The values labeled on each spectrum are the modified χ 2 value (top) and center altitude of each bin (bottom). Right… view at source ↗
Figure 3

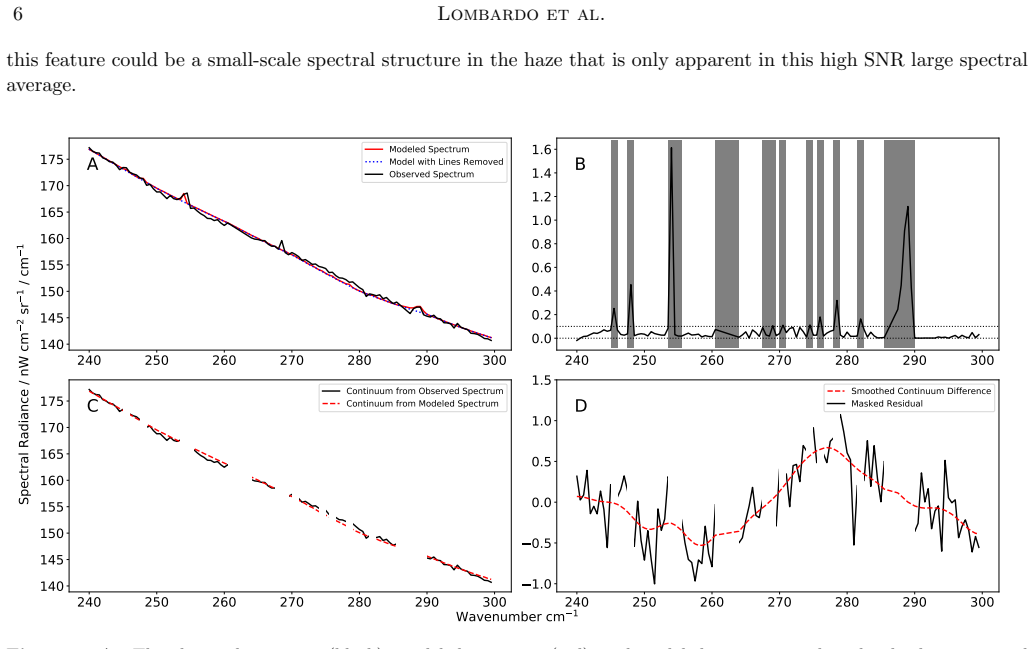

Figure 3. A - The observed spectrum (black), modeled spectrum (red), and modeled spectrum with molecular lines removed (black dotted). The unmodelled continuum variation can be seen roughly between 270 cm−1 and 290 cm−1 . B - The contribution from molecular lines, calculated by subtracting the model calculated with no molecular lines from the modeled spectrum. Wavenumbers where the gas contribution is above 0.1 nW are masked … view at source ↗
Figures from the paper (8 more)
Figure 4
Figure 4. Figure 4: Upper panel: Synthetic spectrum (red) compared with the observed spectrum (black) of the ν4 band. Lower panel: The residual of the fit (black), or the synthetic spectrum minus the observed spectrum, and 1 - σ error envelope (light blue). Where the residual is positive,…
Figure 5
Figure 5. Figure 5: The ∆χ 2 values plotted against ethane abundance in the forward model. The ∆χ 2 value achieves a minimum of -25 at 1.1×10−5 , consistent with the retrieved measurement. 3.2. FP3 The fit of the model to the data for FP3 is shown in [PITH_FULL_IMAGE:figures/full_fig_p00…
Figure 6
Figure 6. Figure 6: The same layout at as [PITH_FULL_IMAGE:figures/full_fig_p009_6.png]
Figure 7
Figure 7. Figure 7: Normalized contribution functions at 289 cm for FP1 (dot-dashed) and 822 cm for FP3 (solid). The contribution function from FP1 clearly peaks more than 60 km deeper in the atmosphere than the altitude bin centered at 125 km. The contribution function can achieve a maxi…
Figure 8
Figure 8. Figure 8: The same layout as [PITH_FULL_IMAGE:figures/full_fig_p011_8.png]
Figure 9
Figure 9. Figure 9: The contribution functions from the ν8 band at 1458 cm−1 achieve maxima very high in the stratosphere due to the high opacity of the molecule at these wavelengths. This is especially noticeable in the contribution function for the altitude bin (shown as dot-dashed for …
Figure 10
Figure 10. Figure 10: The abundance measured from our FP1 analysis (black), compared to profiles measured from FP3 (blue) and FP4 (green) analyses. Our vertically resolved profiles are comparable to measurements made in Vinatier et al. (2007, 2015), V07 and V15 in the figure. Nadir measure…
Figure 11
Figure 11. Figure 11: Our measurements at 88 km made from FP1 data and above 100 km for FP3 and FP4 are compared with the predictions from photochemical models. H13 is from H´ebrard et al. (2013), K14 is from Krasnopolsky (2014), L15 is from Loison et al. (2015), D16 is from Dobrijevic et …
