Vulnerable Window of Yield Strength for Swelling-Driven Fracture of Phase-Transforming Battery Materials

T0 review · 2 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Lithiating silicon nanopillars fracture only inside a 'vulnerable window' of yield strength, with two distinct crack modes, and the window narrows as fracture energy rises.

desk verdict A serious computational study with a novel coupled framework and a plausible vulnerable-window mechanism, but its quantitative yield-strength predictions hinge on the unconstrained process-zone ratio ξ/R. read the letter →

arxiv 1908.02175 v2 pith:P426CGOQ submitted 2019-08-06 physics.app-ph cond-mat.mtrl-sci

Ataollah Mesgarnejad , Alain Karma This is my paper · ORCID
classification physics.app-phcond-mat.mtrl-sci PACS 62.20.mm82.47.Aa
keywords siliconnanopillarslithiationswelling-drivenfracturephase-fieldyieldstrengthvulnerablewindowelasto-plasticitylithium-ionbatteryanodes
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper claims that silicon nanopillars fracture during lithiation only when the yield strength of the lithiated phase falls inside an intermediate 'vulnerable window,' and that inside that window fracture takes two distinct modes. The mechanical reason is a knock-on effect: compressive plastic flow during anisotropic swelling later reverses into tensile hoop stresses on the surface, and those tensile stresses reach a maximum at a critical yield strength, so the stress available for fracture is a hat-shaped function of $\sigma_y$. The simulations then show that Griffith-based predictions made with axisymmetric stresses alone overestimate the safe pillar radius, and that the plastic localization producing V-shaped surface notches is essential to predicting crack initiation. If correct, the window quantitatively reproduces the experimentally observed safe pillar radius near 120 nm while yielding a Si yield-strength estimate of roughly 0.5–2 GPa, and it explains the added robustness of hollow nanopillars as a geometry-driven shrinking of the window.

What carries the argument

The load-bearing machinery is a multi-physics phase-field framework uniting three fields: a non-conserved phase field $\psi$ that tracks the c-Si/a-Li$_x$Si interface with anisotropic reaction-limited mobility; a fracture phase field $\varphi$ with a process zone size $\xi$ in the variational (Griffith-type) sense, which lets cracks nucleate from an instability of the pristine state rather than from a pre-seeded flaw; and a decomposition of the deformation gradient into swelling, elastic, and plastic parts through the multiplicative form $F = \sqrt{J_\psi}F^eF^p$ with neo-Hookean elasticity and J2 plasticity. The argument is carried by the hat-shaped curve of the maximum hoop stress versus yield strength: for $\sigma_y$ below the critical value the maximum hoop stress rises linearly as $2\sigma_y/\sqrt{3}$, while above it the stress falls because less volumetric expansion remains available during the shrinking of the crystalline core, and the peak of that curve defines the center of the vulnerable window.

What would settle it

Count fracture events in lithiated silicon nanopillars whose yield strength is deliberately varied across the predicted range (for example by lithiation rate, temperature, or doping): if fracture probability increases monotonically with $\sigma_y$ instead of rising and then falling, the vulnerable-window claim fails. A complementary check is in-situ transmission electron microscopy of crack initiation to measure the process zone size $\xi$ directly; that value of $\xi/R$ decides whether the operative fracture range is the 1.5–2 GPa estimate or the lower 0.5–1 GPa one.

Watch

Extended reading notes

Core claim

Within a single multi-physics phase-field model that evolves the anisotropic c-Si/a-Li$_x$Si interface, large-deformation J2 elastoplasticity, and the fracture phase field together, the paper discovers that swelling-driven fracture of Si nanopillars is confined to a vulnerable window of yield strength: below the window the material is too soft to build up the tensile stresses needed for crack initiation, and above it compressive yielding is too limited to generate them. Inside the window, two fracture modes appear—at lower $\sigma_y$, shear localization first carves V-shaped notches on the surface that concentrate stress and seed cracks, and at higher $\sigma_y$, cracks nucleate later in charging without such prior localization, with one crack pair arresting and the other propagating by symmetry breaking. The paper further establishes that substituting axisymmetric stresses into the Griffith criterion underestimates the fracture energy required and therefore overestimates the safe radius, while stresses from two-dimensional simulations that include notch localization bracket the fracture boundary. Matching the experimentally observed 120 nm safe radius with measured fracture energies yields a yield-strength range of about 1.5–2 GPa at $\xi/R = 0.02$, broadly consistent with the experimental and theoretical range of 0.5–2 GPa.

Load-bearing premise

The quantitative boundaries of the window rest on the process-zone-to-radius ratio $\xi/R$, which the paper states is not precisely known and spans a 20-fold range (0.01–0.2); at $G_c/(\mu_a R) = 0.01$ the predicted fracture range shifts from about $\sigma_y = 1.5$\u20132 GPa down to 0.5\u20131 GPa as $\xi/R$ rises, so the specific yield-strength numbers and safe radii move even though the existence of a window in the model does not.

Editorial extensions

If this is right

  • Yield strength becomes a design variable with a non-monotonic effect: pillars made of either very soft or very stiff lithiated material should both survive complete lithiation, whereas intermediate materials crack.
  • Safe-radius estimates built from axisymmetric stresses plus the Griffith criterion are too optimistic; accounting for plastic localization at V-shaped notch-like corners is needed to place the crack-initiation threshold.
  • The stress-to-yield-strength relation is universal when stresses are scaled by $\mu_a\beta$, so materials with smaller volume changes, such as Ge, have their vulnerable window shifted to lower yield strengths rather than removed.
  • Hollow nanopillars resist fracture mainly at moderately high yield strength; at low yield strength (about 1 GPa in the simulations) the hollow geometry's protective effect disappears.
  • Fitting the window to the observed 120 nm safe radius and measured fracture energies of 5–7 J m$^{-2}$ gives a Si yield strength near the experimental range, and analogous fits for amorphous Si and Ge predict 0.4–1.2 GPa and 1.5–4.6 GPa.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A direct experiment that varies yield strength deliberately—via lithiation rate, temperature, or pre-straining of identically sized nanopillars—should show fracture incidence peaking at intermediate $\sigma_y$; a monotonic response would contradict the window.
  • The window concept suggests that fracture in other large-volume-change anodes (germanium, tin, alloy particles) is controlled by the ratio $\sigma_y/(\mu_a\beta)$, so materials data of this kind would let the model predict safe sizes without new fracture simulations.
  • Because the model nucleates cracks without pre-existing flaws, the effective process zone $\xi$ plays the role of a dominant flaw; measuring $\xi$ in situ during crack initiation would resolve the 20-fold quantitative spread of the predicted window and sharpen the yield-strength estimate.
  • Surface engineering that suppresses V-notch formation—smoother pillars, coatings, or graded lithiation—should inflate the safe radius more than bulk toughening, since the lower-$\sigma_y$ fracture mode feeds on those notches.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. This paper uses a multi-physics phase-field approach to simulate anisotropic phase transformation, finite-strain J2 plasticity, and phase-field fracture during lithiation of Si nanopillars. The central claim is that fracture occurs only within a two-dimensional 'vulnerable window' in yield strength and dimensionless fracture energy, with two distinct crack modes depending on whether plastic localization creates V-shaped notches prior to fracture. The authors build the argument in three stages: 1D axisymmetric no-fracture simulations show a non-monotonic maximum hoop stress versus yield strength; 2D anisotropic no-fracture simulations show stress amplification by plastic localization and V-notch formation; and full 2D fracture simulations confirm that cracking occurs over an intermediate range of yield strength. They compare the fracture boundary with a Griffith-theory estimate based on no-fracture stresses, and use experimental safe-radius data for c-Si and a-Si to estimate the yield strength range. They also study hollow nanopillars and find that increased slenderness suppresses fracture for higher yield strength but not for lower yield strength.

Significance. The vulnerable-window concept is a potentially important design principle for phase-transforming battery materials: it predicts that both very low and very high yield strengths can suppress swelling-driven fracture, and that plastic localization can promote fracture by creating stress-concentrating notches. The three-stage computational strategy is a strength, and the fracture boundary is genuinely generated by full simulations rather than by inserting fitted stresses into a fracture criterion. If the quantitative claims held, the comparison with experimental safe radii would provide a useful validation. However, the quantitative location of the window is strongly conditioned on an uncalibrated process-zone-size ratio, and the paper's validation claim is not sharply discriminating. The central qualitative result appears robust, but the quantitative yield-strength inference needs to be re-evaluated or reframed.

major comments (2)
  1. [Size effects, Fig. 4b] The paper states that ξ/R is not precisely known and investigates the range 0.01–0.2. Figure 4b shows that at Gc/(µaR)=0.01 the fracture boundary shifts from approximately 1.5–2 GPa at ξ/R=0.02 to 0.5–1 GPa at ξ/R=0.2, a factor of 2–4 that spans nearly the whole experimentally reported yield-stress range. The subsequent claim that the results are consistent with the estimated σy range 0.5–2 GPa is therefore not discriminating. Furthermore, no single ξ/R is shown to reproduce both the c-Si safe radius of 120 nm and the a-Si safe radius of 1 µm; the isotropic a-Si analysis gives σy≈0.4–1.2 GPa over the same ξ/R range, so a consistent pair exists only near ξ/R≈0.2 and σy≈0.5–1 GPa, whereas the main simulations use ξ/R=0.02. The authors should either calibrate ξ/R independently, demonstrate a single consistent (ξ/R, σy) pair, or revise the quantitative validation claim to be explicitly conditional on ξ/R.
  2. [Model / Results (Vulnerable window)] The introduction states that the 2D simulations are plane-strain (∂z≡0) while also specifying an unconstrained nanopillar with τzz=0. These two conditions are incompatible: plane strain with εzz=0 gives a nonzero τzz in general, whereas τzz=0 defines plane stress. The surface yield relation max(τθθ)=2σy/√3 quoted in the Results corresponds to plane-strain, incompressible behavior, not to plane stress (where max(τθθ)=σy at a traction-free surface). The authors should state the out-of-plane boundary condition actually used in the finite-element implementation and justify the relation used in Eq. (9); the current text does not allow the stress calculation to be reproduced.
minor comments (4)
  1. [Results, 'Vulnerable window of yield strength'] The text 'see Figure ??' is an unresolved placeholder; the claimed universal scaling of max(τθθ)/(µaβ) versus σy/(µaβ) should be displayed in a figure or the claim should be removed.
  2. [Figure 4 captions] The captions of Figure 4a and 4b reference 'Eq. (1)' for the stress-based boundary, but the relevant closed-form expression is Eq. (9).
  3. [Throughout] There are multiple typos, including 'dimensionelss' and 'red ciricles' in Figure 4a; the manuscript should be proofread.
  4. [Abstract] The abstract refers to a two-dimensional parameter space of yield strength and fracture energy, while the phase diagram in Figure 4a uses the dimensionless fracture energy Gc/(µaR); this should be stated consistently.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the vulnerable-window result is generated by direct phase-field fracture simulations, and the Griffith-theory comparisons are checks, not inputs.

full rationale

The central claim, the existence of a vulnerable window of yield strength for swelling-driven fracture, is produced by full two-dimensional phase-field simulations that couple anisotropic phase transformation, finite-strain J2 plasticity, and fracture. Fracture is not inferred by inserting fitted stresses into a crack criterion; it is simulated directly, and the phase diagram in Figure 4a is a scan over yield strength and dimensionless fracture energy. The Griffith-theory expression, Eq. (9), is explicitly used as a post-hoc comparison: the authors show that a 1D-based line underestimates the boundary, while using 2D no-fracture stresses brackets it. Thus the comparison is not the generator of the reported fracture boundary. The prefactor C = 4/3 is taken from the external stability analysis of Pham and Marigo [49], not from the authors' own prior work, and the self-citations present ([26], [28], [30], [36]) are methodological and non-load-bearing. The paper's acknowledged uncertainty in the process-zone-size-to-radius ratio xi/R (Section 'Size effects', Figure 4b: 'While the precise value of xi/R is not known') shifts the inferred yield-strength range and weakens quantitative validation against the 120 nm safe-radius experiment, but this is parameter uncertainty and incomplete identifiability, not circularity: xi/R is not fitted to the target experimental observation and then renamed as a prediction. The qualitative vulnerable window is a direct simulation result, so no circular step can be exhibited from the paper's own equations or argument chain.

Assumptions & free parameters 2 free parameters · 5 assumptions · 0 invented entities

The model imports most material parameters from prior silicon literature: elastic moduli, fracture energy, expansion coefficient, and hardening modulus. The genuinely adjustable inputs are the process zone size ratio and the anisotropic mobility parameters. No new physical entity, particle, force, or conserved quantity is postulated.

free parameters (2)
  • Process zone size to radius ratio ξ/R = Main runs use 0.02; varied from 0.01 to 0.2
    The paper states the precise value of ξ/R is not known. Changing it shifts the inferred yield strength range from roughly 1.5-2 GPa to 0.5-1 GPa, so the quantitative fracture window depends on this hand-chosen length scale.
  • Anisotropic interface mobility parameters = Not reported in the paper
    The text says the same anisotropic mobility form as An et al. [23] is used, but the function and parameter values are not given. These parameters control the sharp corners of the crystalline core and the V-shaped notches that amplify stresses.
assumptions (5)
  • domain assumption Multiplicative decomposition of deformation gradient with phase-dependent volumetric swelling, F = sqrt(J_psi) F^e F^p
    Equation (1) assumes swelling enters only through a scalar phase-dependent volume factor while plastic flow is handled with a multiplicative J2 framework. This is a standard finite-strain plasticity assumption but is not independently validated for lithiated silicon here.
  • domain assumption J2 yield criterion with linear isotropic hardening, tau_eq <= sigma_y + K alpha
    Equation (5) treats the lithiated silicon alloy as a pressure-insensitive, rate-independent metal-like solid. The cap imposed by sigma_y is the central mechanism that creates the tensile stress peak and hence the vulnerable window.
  • domain assumption Variational phase-field fracture with isochoric-volumetric split and no direct plastic-fracture coupling
    Equation (2) uses the Bourdin-Francfort-Marigo type fracture phase field with a diffuse process zone. The splitting prevents interpenetration, but assumes fracture is driven by elastic energy alone without a separate plastic work fracture mechanism.
  • domain assumption Crack nucleation occurs through phase-field instability with critical stress tau_c ~ sqrt(Gc mu / xi) and prefactor C = 4/3 imported from Pham and Marigo [49]
    Used in the Size effects section to map the phase-field process zone to an effective flaw size and to build Eq. (9). The prefactor is not rederived for the nanopillar geometry.
  • domain assumption Two-dimensional cross-section model with vanishing z-derivatives while also enforcing tau_zz = 0
    The computational setup describes 2D plane-strain simulations but also requires zero axial stress for an unconstrained nanopillar. This is an unusual combined constraint that should be justified, since the key hoop-stress bound max(tau_theta theta) = 2 sigma_y / sqrt(3) is a plane-strain result.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Vulnerable Window of Yield Strength for Swelling-Driven Fracture of Phase-Transforming Battery Materials." pith.science (2026). https://pith.science/paper/P426CGOQ

@misc{pith2026190802175,
  author       = {Pith},
  title        = {Pith review of: Vulnerable Window of Yield Strength for Swelling-Driven Fracture of Phase-Transforming Battery Materials},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/P426CGOQ}},
  note         = {Machine review of arXiv:1908.02175}
}
read the original abstract

Despite numerous experimental and theoretical investigations of the mechanical behavior of high-capacity Si and Ge Li-ion battery anodes, our basic understanding of swelling-driven fracture in these materials remains limited. Existing theoretical studies have provided insights into elasto-plastic deformations caused by large volume change phase transformations, but have not modeled fracture explicitly beyond Griffith's criterion. Here we use a multi-physics phase-field approach to model self-consistently anisotropic phase transformation, elasto-plastic deformation, and crack initiation and propagation during lithiation of Si nanopillars. Our results reveal the existence of a vulnerable window of yield strength inside which pillars fracture during lithiation. They identify two different modes of fracture inside that window with and without surface localization of plastic deformation prior to fracture for lower and higher yield strength, respectively, and highlight the importance of taking into account this localization to accurately predict the onset of fracture within Griffith theory. The results further demonstrate how the increased robustness of hollow nanopillars can be understood as a direct effect of anode geometry on the size of this vulnerable window. Those insights provide an improved theoretical basis for designing mechanically stable phase-transforming battery materials undergoing large volume changes.

Figures

Figures reproduced from arXiv: 1908.02175 by the authors.

Figure 1
Figure 1. Results of axisymmetric simulations of lithiation of hollow cylindrical [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2

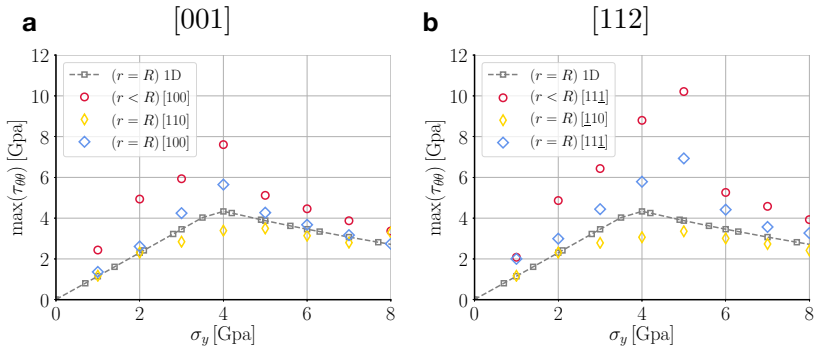

Figure 2. Comparison of 2D and 1D axisymmetric simulations of lithiation of [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3

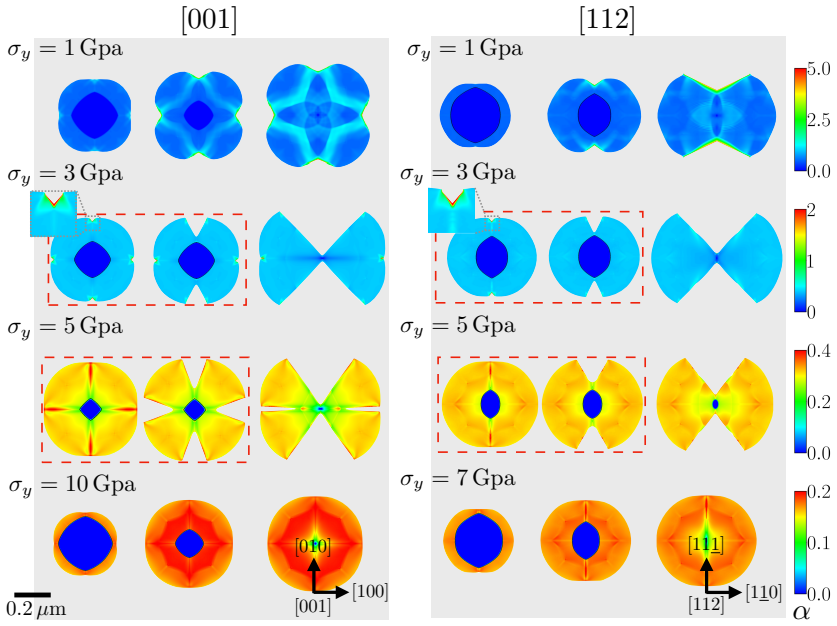

Figure 3. Phase-field simulation of fracture during the lithiation of [001] [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figures from the paper (2 more)
Figure 4
Figure 4. Figure 4: a that falls significantly below the boundary, comprised between red cir￾cles and blue crosses, corresponding to the onset of fracture in 2D simulations with fracture. Consequently, Griffith theory with axisymmetric tensile stresses underestimates the critical value of…
Figure 5
Figure 5. Figure 5: Final cross section and fracture pattern as a function of dimension [PITH_FULL_IMAGE:figures/full_fig_p015_5.png]
