Review of the AC Loss Computation for HTS using the H-formulation

T0 review · 2 major / 3 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read This review establishes that the H-formulation finite-element model, which solves Maxwell's equations using the magnetic field as state variables, has become the de facto standard for calculating AC losses in high-temperature…

desk verdict A useful review of the H-formulation for HTS AC losses; the 10-50% accuracy claim needs qualification and Eq. (14) has a typo, but it deserves peer review. read the letter →

arxiv 1908.02176 v3 pith:I5DSNYFE submitted 2019-08-06 cond-mat.supr-con

Boyang Shen , Francesco Grilli , Tim Coombs This is my paper · ORCID
classification cond-mat.supr-con
keywords H-formulationAClosseshigh-temperaturesuperconductorsfiniteelementmethodpower-lawresistivityhomogenizationmulti-scalemodelingT-Aformulation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This review argues that the H-formulation finite-element model—solving Maxwell's equations with the magnetic field as the state variable—has become the de facto standard for calculating AC losses in high-temperature superconductors. Its central quantitative claim is that computed losses typically agree with measurements to within 10-50%, which the paper presents as satisfactory given uncertainties in tape characterization, assumed uniformity, and measurement noise. The review documents the governing equations, extensions from 2D cross-sections to axisymmetric and 3D geometries, and techniques such as homogenization and multi-scale modeling that make large coils and magnets computable. It also identifies a genuine limitation: for DC-biased conductors with AC ripple, the power-law resistivity model predicts a slow relaxation of current profiles, so loss values depend on when in the cycle they are evaluated. A reader should care because AC losses set the cryogenic burden of every HTS power device, and this method is what practitioners actually use to estimate them before building hardware.

What carries the argument

The load-bearing object is the H formulation: Faraday's law rewritten as $\nabla\times(\rho\nabla\times\mathbf{H}) = -\partial(\mu\mathbf{H})/\partial t$, with the magnetic field components as the state variables. The superconductor enters through a power-law resistivity $\rho(J) = \frac{E_c}{J_c(B)}\left(\frac{J}{J_c(B)}\right)^{n(B)-1}$, which captures the nonlinear E-J characteristic, field-dependent critical current density, and flux creep. The divergence-free condition on $\mathbf{B}$ is enforced by choosing divergence-free initial conditions, and transport currents are imposed via integral constraints on each conductor. This machinery is what lets a single formulation handle tapes, cables, coils, and magnets in 2D, axisymmetric, and 3D geometries, with AC losses computed as the cycle-averaged integral of $\mathbf{J}\cdot\mathbf{E}$ over the superconducting domain.

What would settle it

Measure the electric-field-versus-current-density curve of an HTS coated conductor under DC bias with a small AC ripple, at low electric fields, and compute the cyclic AC loss at two different moments during the slow relaxation that the power-law predicts; if the measured field is systematically below the power-law curve (as the experiments cited in the review suggest) or the loss depends strongly on the evaluation time, the central 10-50% accuracy claim fails.

Watch

Extended reading notes

Core claim

The paper's central claim is that the H formulation, implemented in finite elements with a nonlinear power-law resistivity, has become the community's default tool for AC-loss estimation in HTS, and that this status is justified by its accuracy and flexibility. Across the reviewed studies, calculated losses match experiments within 10-50%, and the model has been extended from a single tape to stacks, Roebel and CORC cables, pancake and racetrack coils, fault current limiters, transformers, and multi-thousand-turn magnets. The formulation is invariant to coordinate system, so the same equations serve 2D longitudinal, axisymmetric, and full 3D problems, with integral current constraints imposing transport currents in individual conductors. The review's own evidence, however, shows that the power-law E-J relation produces a slow relaxation of current profiles after transients, and that for DC-biased conductors experiments suggest a critical-state-like behavior at low electric fields, which makes the accuracy claim regime-dependent.

Load-bearing premise

The accuracy estimate of 10-50% rests on the power-law resistivity model—with field-dependent $J_c(B)$ and $n(B)$—faithfully describing HTS dissipation in the simulated regimes; if that constitutive law is wrong, for example under DC bias with small AC ripple, the stated accuracy band does not hold.

Editorial extensions

If this is right

  • Engineers can use the H formulation to estimate AC losses in HTS tapes, cables, coils, and magnets with a stated accuracy of 10-50% against measurements, which is sufficient for many design choices.
  • Homogenization and multi-scale methods reduce simulation time by factors of 50-60 for large coils while keeping loss differences below about 1% in the cases reviewed.
  • Full 3D models are needed for twisted conductors, racetrack coils at medium and high currents, and end effects, because 2D planar models can miss these contributions.
  • For DC-biased conductors with AC ripples, cyclic loss values should be interpreted with caution, because the power-law model predicts a slow relaxation of current profiles and a critical-state-like E-J may be more appropriate at low electric fields.
  • The H formulation's leading role is not guaranteed: the T-A formulation is faster for thin coated conductors, but H retains an edge in flexibility for other geometries and materials.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the 10-50% band is taken as a community benchmark, a natural next step is a systematic comparison of the H formulation and the T-A formulation on the same set of coil and cable geometries, reporting both accuracy against experiment and compute time; the review's evidence suggests H will remain more flexible for cases with magnetic materials and 3D effects.
  • The cited experiments on DC-biased conductors point to a possible refinement: a hybrid E-J law that behaves like the power law during large transients but approaches critical-state-like behavior at low electric fields would likely remove the relaxation ambiguity and extend the formulation's validity.
  • The review implies that the main source of the 10-50% uncertainty is not the solver but the input data, primarily characterization of Jc(B) anisotropy and tape-to-tape variation; a set of fully characterized reference tapes would let model error be separated from data error.
  • Because the paper does not quantify how the 10-50% band is distributed across geometries, one could test whether accuracy is systematically worse for 3D twisted cables than for 2D stacks; the review's examples suggest such a gradient but do not state it.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 3 minor

Summary. This review article surveys the H-formulation finite-element method for computing AC losses in high-temperature superconductors. It presents the governing equations (Faraday's law with a nonlinear power-law resistivity), the 2D longitudinal and axisymmetric reductions, 3D extensions, and homogenized/multi-scale modeling strategies. It then reviews applications to tapes, coils, cables, magnets, electrical machines, fault current limiters, transformers, and SMES, and concludes with a discussion of popularity, ease of implementation, computational efficiency, and typical accuracy. The central claims are that the H formulation has become the de facto standard for AC-loss simulation and that calculated losses generally agree with experiment to within 10-50%.

Significance. If the central claims are properly qualified, this is a useful reference review for the applied superconductivity community. Its strengths are the broad literature coverage, the clear presentation of the formulation in different geometries, the practical implementation hints (structured meshes, current constraints, air-domain resistivity), and the honest enumeration of drawbacks (large air-domain cost, limited parallelization in COMSOL, black-box code). It also points to publicly available model files, which is valuable for reproducibility. The main weakness is that the headline accuracy statement is asserted rather than derived from a systematic synthesis of the reviewed papers, and the paper itself contains evidence of regimes where that accuracy band does not hold.

major comments (2)
  1. [Section 2.2, Eqs. (13)-(14)] The axisymmetric governing equations as printed are not the equations that follow from Eqs. (10)-(12). With Er=Ez=0 and Bθ=0, Faraday's law gives ∂Eθ/∂z = ∂(µHr)/∂t and Eθ/r + ∂Eθ/∂r = -∂(µHz)/∂t. Equation (13) instead has a negative left-hand side matched to a positive right-hand side, and Eq. (14) repeats Hr on the right-hand side instead of Hz. Because this section is the implementation reference for axisymmetric coils and windings, these sign and subscript errors should be corrected or explicitly explained before publication.
  2. [Section 4, accuracy paragraph] The statement that 'the accuracy can be quantified as varying between 10% and 50%' is presented without a methodological basis or qualification. The paper's own Section 3.1 (refs [65], [66], [69]) documents a DC-bias/AC-ripple regime in which the power-law E-J law causes loss values to depend on where on a slowly descending relaxation curve they are evaluated, and ref [69] states that neither the power-law nor the critical-state model captures the observed behavior. Several cited validations are also conditional: Section 3.2.1 (ref [76]) matches experiment only after separately adding copper-lead losses computed with a 3D model, Section 3.3.3 (ref [94]) reports good agreement only above 50% of Ic, and Section 2.4 (ref [46]) reports errors up to 20% for the multi-scale method under a uniform-current starting assumption. The 10-50% range should therefore be presented as regime-dependent, with a short description of how it was compiled and which exceptions apply.
minor comments (3)
  1. [Section 2.1, Eq. (4)] Equation (4) is displayed in a garbled form on the right-hand side; it should express that the divergence of ∂(µH)/∂t is zero once the curl term is removed. Please correct the typesetting so the equation reads ∇·[∂(µH)/∂t] = 0 (up to sign).
  2. [Section 2.1, Eq. (7)] The field dependence notation is inconsistent: the prefactor is written as Ec/Jc while the power-law factor uses Jc(B) and n(B). The prefactor should use Jc(B) as well, or the notation should be defined once to avoid ambiguity in implementation.
  3. [Section 4, implementation paragraph] Matlab is not a finite-element software package per se; if the authors mean the PDE Toolbox or a code written in MATLAB, the sentence should say so explicitly for clarity.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the H-formulation review is a self-contained survey whose claims rest on Maxwell's equations, a stated constitutive law, and literature validation, not on conclusions identical to their inputs.

full rationale

This is a review paper with no new derivation chain, so the main circularity patterns (fitted input called prediction, uniqueness imported from authors, ansatz smuggled via citation) do not arise. The H-formulation equations (1)-(2) are Faraday's law rewritten with a stated power-law resistivity (7); AC losses are computed by integrating the physical dissipation J·E over the superconductor domain (8), with currents imposed through the integral constraint (6). No parameter is fitted to the AC-loss values that are then called predictions, and no target result is assumed through its definition. The accuracy band of 10-50% in Section 4 is presented as an empirical literature summary, not as a consequence of the model equations; Section 3.1 explicitly documents regimes, such as DC-bias with AC ripples (references [65]-[69]), where the power-law model is unreliable, which is a limitation rather than a circular step. The paper's self-citations, including [22], [25], [26], [30], [36], [37], [46], and [77], supply historical context, tutorial material, and examples of validation, but none is load-bearing in the sense of being the only support for a claim that reduces to itself; the 'de facto standard' statement is supported by an external citation-counting observation about 45 research groups. Because the central content is a review of externally published and experimentally benchmarked implementations, the derivation is self-contained and no circularity is found.

Assumptions & free parameters 0 free parameters · 5 assumptions · 0 invented entities

The paper is a review, so it introduces no new free parameters and no new postulated entities. The central claims depend on standard Maxwellian physics and on the empirical power-law model for HTS resistivity, plus common modeling simplifications such as high-resistivity air and geometric symmetry reductions.

assumptions (5)
  • standard math Maxwell's equations, in particular Faraday's law ∇×E = -∂B/∂t, govern the electromagnetic behavior of the superconductor.
    Section 2.1 builds the model directly on Faraday's equation. This is standard physical law, not derived in the paper.
  • domain assumption For type-II superconductors in power applications, the relative permeability µr is 1 and the E-J relationship is a power law with parameters Ec, Jc(B), and n(B).
    Section 2.1, Eq. (7). The power-law resistivity is an empirical characterization of HTS tapes. The accuracy of the reviewed AC loss predictions depends on this constitutive law.
  • standard math The divergence-free condition ∇·B = 0 is preserved in time if it holds initially, because the divergence of a curl is zero.
    Section 2.1, Eqs. (4)-(5). This is a mathematical identity given sufficient smoothness of the solution.
  • domain assumption The air domain can be represented as a high-resistivity material so that no current flows outside the conductors.
    Section 2.1, paragraph on the space around conductors. This approximation is practical but can cause current leakage in 3D models when resistivity is too low, as noted in Section 3.1 (Stenvall et al.).
  • domain assumption Axisymmetric and 2D models assume translational or rotational symmetry, so that material properties are constant along the conductor length and the current has only one component.
    Section 2.2. These reductions are valid only for long, straight conductors or perfectly axisymmetric coils, which is an idealization of real devices.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Review of the AC Loss Computation for HTS using the H-formulation." pith.science (2026). https://pith.science/paper/I5DSNYFE

@misc{pith2026190802176,
  author       = {Pith},
  title        = {Pith review of: Review of the AC Loss Computation for HTS using the H-formulation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/I5DSNYFE}},
  note         = {Machine review of arXiv:1908.02176}
}
abstract

This article presents a review of the finite element method (FEM) model based on the $H$ formulation of Maxwell's equations used to calculate AC losses in high temperature superconductor (HTS) tapes, cables and windings for different applications. This model, which uses the components of the magnetic field as state variables, has been gaining a great popularity and has been in use in tens of research groups around the world. This contribution first reviews the equations on which the model is based and their implementation in finite element method programs for different cases, such 2D longitudinal and axis-symmetric geometries, 3D geometries. Modeling strategies to tackle large number of HTS tapes, such as multi-scale and homogenization methods, are also introduced. Then, the second part of the article reviews the applications for which the $H$ formulations has been used to calculate AC losses, ranging from individual tapes, to complex cables and large magnet windings. Afterwards, a section is dedicated to the discussion of the $H$ formulation in terms of computational efficiency and easiness of implementation. Its pros and cons are listed. Finally, the last section draws the main conclusions.

Figures

Figures reproduced from arXiv: 1908.02176 by the authors.

Figure 1
Figure 1. Transport AC losses of an HTS double pancake coil (2 [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

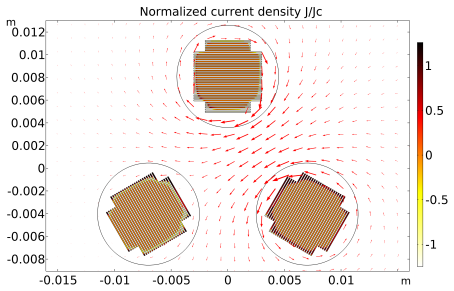

Figure 2. Normalized current density distribution of a three-phase Cross [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

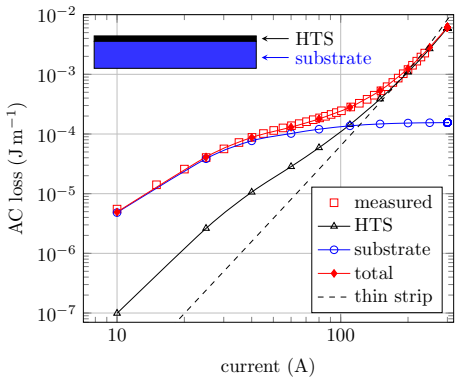

Figure 3. Transport losses in an HTS tape with magnetic substrate calculated [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figures from the paper (2 more)
Figure 4
Figure 4. Figure 4: 3D simulations of two twisted superconducting filaments carrying [PITH_FULL_IMAGE:figures/full_fig_p015_4.png]
Figure 5

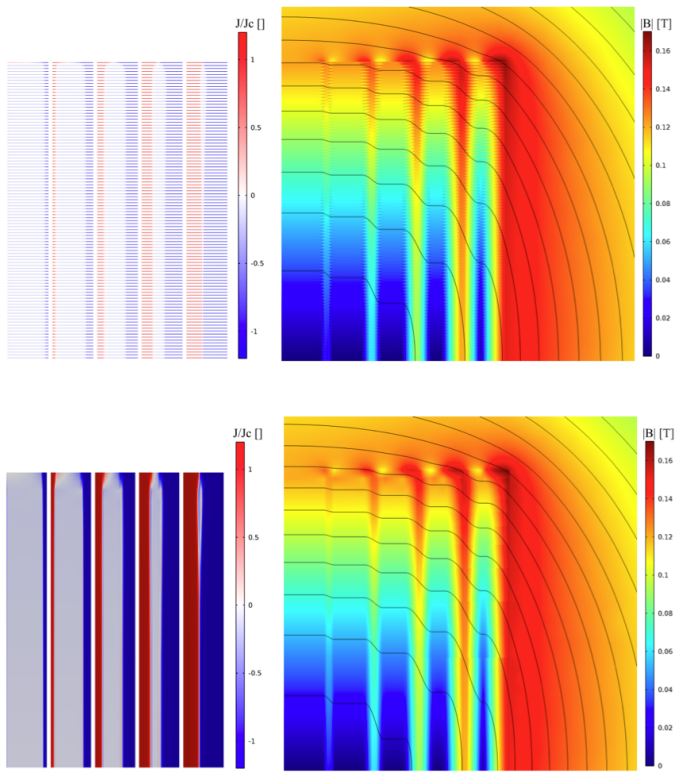

Figure 5. Figure 5: Simulation of a matrix of 10×200 tapes, representative of the turns in the cross section of a high-field magnet. Due to the symmetry of the prob￾lem, only 5×100 tapes are simulated. The top figures represent the current density and magnetic flux density distributions o…
