Relighting Humans: Occlusion-Aware Inverse Rendering for Full-Body Human Images

T0 review · 2 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Occlusion-aware relighting of full-body humans from one masked image is achievable by learning per-pixel SH light transport vectors with a CNN.

desk verdict A solid, novel TOG contribution on occlusion-aware relighting of full-body humans, but the quantitative transport claim is entangled with contaminated albedo ground truth. read the letter →

arxiv 1908.02714 v1 pith:3Y6O37GE submitted 2019-08-07 cs.GR cs.CV

Yoshihiro Kanamori , Yuki Endo This is my paper · ORCID
classification cs.GRcs.CV
keywords relightinginverserenderinglighttransportsphericalharmonicsocclusionconvolutionalneuralnetworkfull-bodyhumanimagesself-shadow
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper tries to establish that occlusion-aware relighting of full-body human photos can be done from a single masked image by learning a per-pixel light transport vector, nine spherical-harmonics coefficients per pixel, together with diffuse albedo and illumination. This matters because previous single-image relighting was built for faces and used SH lighting that ignores visibility, so concave body regions like armpits, crotches, and garment wrinkles were rendered too bright. The authors train convolutional networks on a small set of aligned synthetic scans of clothed 3D humans and show that the inferred transport maps reproduce those occluded shadows, giving relit images that are quantitatively closer to ground truth and visually more plausible than the occlusion-ignored formulation. The surprising finding is that a few hundred training figures suffice, apparently because the aligned silhouettes carry a strong geometric prior.

What carries the argument

The central object is the per-pixel light transport vector $\mathbf{T}$, a nine-coefficient spherical-harmonics vector that encodes the compound signal $V(\omega_i)\max(\mathbf{n}\cdot\omega_i,0)$ — visibility times cosine decay — following the precomputed-radiance-transfer formulation. Shading is then the dot product $E = \mathbf{T}\cdot\mathbf{L}$, where $\mathbf{L}$ contains the SH coefficients of the illumination. This object carries the argument because the convolutional network can learn $\mathbf{T}$ directly from appearance and silhouette, so self-occlusion is incorporated into relighting without reconstructing geometry or tracing visibility rays. The paper's demonstration that plausible $\mathbf{T}$ maps are inferable from a few hundred aligned scans is the core discovery.

What would settle it

Render a known 3D human scan with a measured HDR environment map using path tracing, then run the network on that single rendered image and compare the predicted light transport map, term by term, against the path-traced visibility-weighted transport. If the predicted transport reproduces the direction-dependent shadow structure under several rotated lighting environments, the occlusion claim is confirmed; if the transport only scales down concavities in a view-stationary way, the network has learned an ambient-occlusion-like heuristic, and relighting under a different light direction will fail.

Watch

Extended reading notes

Core claim

From a masked RGB portrait of a standing person, the method infers three things at once: a diffuse albedo map, a nine-coefficient spherical-harmonics description of the illumination, and a nine-channel light transport map. The transport map stores, for each pixel, the product of visibility and cosine falloff projected onto second-order spherical harmonics, so shading is a single dot product between the transport vector and the lighting vector, and occlusion is built into rendering rather than approximated afterward. The network is trained with fifteen L1 losses that constrain every combination of inferred and ground-truth albedo, transport, light, shading, and reconstructed image. On synthetic test figures and on real photographs, the inferred transport maps darken hollowed regions and capture details such as wrinkles, and the paper reports consistently lower RMSE and higher SSIM than the normal-based SH baseline and an ambient-occlusion-augmented baseline, except for one albedo SSIM number, where the full model's output is more distant from ground truth because it cancels the self-shadows baked into the ground-truth albedo.

Load-bearing premise

The load-bearing premise is that the synthetic albedo maps used as ground truth are clean surface color; in fact some of them still contain self-shadows from the scanning process, so the network may be learning to treat those baked-in shadows as color, and the reported error improvements may largely reflect better matching of contaminated labels rather than physically correct separation of albedo from shading.

Editorial extensions

If this is right

  • Relighting a full-body photograph becomes a tiny per-pixel computation: dot product of the inferred transport vector with SH illumination, then multiply by albedo, so interactive relighting is possible after an inference step that takes about 0.43 seconds at 1024x1024 pixels.
  • Self-shadowing appears where it belongs physically, in armpits, crotches, under the chin, and inside garment wrinkles, instead of a uniform brightness that makes concave regions look flat and washed out.
  • Light can be transferred between two portraits by swapping their inferred SH illumination, giving a quick way to harmonize lighting across composited people.
  • The method extends occlusion-aware inverse rendering from faces to clothed whole bodies without fitting a body model, so garment geometry and posture are captured through appearance and silhouette priors.
  • Because masks alone yield plausible transport maps, the approach inherits a useful property: binary silhouette input is enough to recover rough concave structure even in the absence of texture cues.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the silhouette prior is as strong as the paper suggests, the same small-aligned-dataset recipe could be retargeted to other articulated categories with available 3D models, such as animals or robots; the main requirement would be a consistent canonical alignment rather than dataset size.
  • The method's handling of unusual lights (nearest-neighbor illumination and albedo absorbing the error) implies a testable degradation curve: as the input environment moves further from the training light distribution, transport accuracy should fall first and albedo error should rise, a pattern the paper reports qualitatively but does not measure.
  • A natural extension the authors do not run is to constrain the nine-channel transport output with a low-dimensional occlusion prior during self-supervised fine-tuning; their collapse result suggests the constraint would need to be stronger than a simple reconstruction loss.
  • The contaminated ground-truth albedo means the reported quantitative gains may overstate physical correctness; a controlled capture with known lighting and multi-view geometry could separate learned occlusion from a heuristic darkening of concavities.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. The manuscript proposes a CNN-based inverse rendering method for full-body human images. Given a masked RGB image, the network predicts a diffuse albedo map, second-order spherical-harmonics (SH) illumination, and a per-pixel nine-channel light transport map that encodes light occlusion, following the precomputed radiance transfer formulation of Sloan et al. (2002). Training uses a small synthetic dataset of rendered scanned 3D human figures (345 models) and an illumination dataset derived from the Laval Indoor HDR set, with fifteen L1 losses on the inferred albedo, transport, light, and various products thereof. The authors compare against SfSNet and SfSNet-AO, reporting quantitative RMSE/SSIM on a held-out synthetic test set and qualitative relighting results on real photographs. They also present ablations, a shape-from-mask experiment, and discussions of self-supervised learning failure and limitations such as diffuse-only albedo and sensitivity to unusual illuminations.

Significance. If the inferred nine-channel light transport maps genuinely encode per-pixel occlusion, the paper makes a useful contribution: it extends SH-based inverse rendering from faces to full human bodies with garments, and offers a fast relighting pipeline operating at 0.43 s per 1024x1024 image. The dataset curation, the multi-loss training setup, and the honest treatment of failure modes (self-supervised collapse, unusual lights) are strengths. However, the validation is currently insufficient to support the central claim. The ground-truth albedo is contaminated by residual self-shadows (stated in Section 6), and the quantitative evaluation is entirely in-distribution with no error bars or statistical tests. The paper does contain an ablation study and a shape-from-mask experiment, which are commendable, but the key evidence for occlusion-aware transport remains ambiguous.

major comments (2)
  1. [Section 6 and Section 7.1, Table 1] The ground-truth albedo contamination undermines the quantitative basis for the occlusion-aware transport claim. Section 6 states that 'some albedo maps contain self-shadows because shading was not completely removed during the scanning process,' and Section 7.1 explains the lower albedo SSIM of Ours(full) by saying that it 'better cancels the baked-in shadings.' In the synthetic image formation I = albedo * (transport * light), a baked-in shadow is multiplicatively indistinguishable from an occlusion-induced transport effect under a single training light. The network may therefore fold residual shadows into the inferred transport or light, and the transport RMSE improvement (0.393 vs. 0.529 for SfSNet-AO in Table 1) could improve coincidentally without corresponding to physically correct occlusion. This is an interpretation, not a measurement. Please provide a controlled test: either re-render the 3D models with known clean albedo and path-traced visibility to obtain clean ground-truth transport, or include a quantitative path-traced relighting comparison under held-out illuminations. Without such evidence, Table 1 does not establish the central claim.
  2. [Section 7.1, Table 1, Figures 5-8] The quantitative evaluation is in-distribution only and lacks error bars or significance tests. The test set is generated by the same renderer, the same 3D model sources, and the same illumination preprocessing as the training set, so the reported RMSE/SSIM values reflect within-distribution performance. The gains over SfSNet-AO are modest (shading RMSE 0.219 vs. 0.293; albedo SSIM for Ours(full) is lower than for SfSNet), and the claim that the method 'accomplishes more realistic relighting' is supported mainly by qualitative real-photo comparisons. Please report variance across training runs or bootstrap confidence intervals, and include a quantitative cross-domain evaluation (e.g., a different synthetic human dataset or a controlled real-image test with known geometry/illumination). The path-traced comparisons mentioned in Section 7.2 as available in the supplemental material should be quantified in the main paper.
minor comments (5)
  1. [Section 3.1] The text 'where Yl,m are SH with l ≥ 0,−l ≤ m ≤ l, and m ≤ 2' contains a typo: the final condition should be 'l ≤ 2', not 'm ≤ 2'.
  2. [Section 7.1] The description of the evaluation metrics could be clearer: the paper states that RMSE is computed within binary masks while SSIM is computed within bounding boxes of masks. Please explain the rationale for using different regions for the two metrics.
  3. [Section 7.2] The path-traced reference comparison is only mentioned as being in the supplemental material. At least one quantitative path-traced metric (e.g., RMSE or SSIM under relighting) should appear in the main text to support the qualitative relighting claims.
  4. [Section 8] The sitting-pose evaluation states that the results are 'unexpectedly well' and bases this on visual inspection. A quantitative evaluation on sitting-pose data, even if small, would strengthen this claim.
  5. [Section 8, Self-supervised learning] The explanation for the self-supervised fine-tuning collapse ('This is probably because our light transport maps have much larger degrees of freedom...') is plausible but speculative. Consider supporting it with an experiment that varies the output dimensionality or regularization.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: the method is supervised regression against independently rendered synthetic ground truth, and the acknowledged albedo contamination is a data-quality limitation rather than a circular step.

full rationale

The paper's derivation chain is a standard supervised-learning pipeline. Synthetic inputs are generated as I = albedo * (transport * light) from scanned 3D models (Sections 4 and 6), and the CNNs are trained with 15 L1 losses comparing inferred albedo, light transport, light, shading, and reconstructed images to those independent ground-truth renderings. No predicted quantity is defined in terms of itself: the light transport maps are not derived from the network's own albedo or light outputs, nor are the evaluation metrics computed from the fitted training targets. The SH/PRT formulation is explicitly attributed to external works (Basri and Jacobs 2003; Ramamoorthi and Hanrahan 2001; Sloan et al. 2002), and the only self-citation (Endo et al. 2017) is a non-load-bearing suggestion for future training-light enrichment. The acknowledged residual self-shadows in scanned albedo maps (Section 6) and the interpretive explanation for the lower albedo SSIM of Ours(full) (Section 7.1) are validation-quality concerns, not circular reasoning: the network is neither fitting a parameter that is then renamed as a prediction nor relying on a self-citation chain to justify its central claim. The central claim is empirically testable against held-out synthetic ground truth and qualitative real-photo comparisons, so no step reduces by construction to its own inputs.

Assumptions & free parameters 4 free parameters · 4 assumptions · 0 invented entities

The method's core contribution is a learned mapping, so the free parameters are the network weights plus hand-set dataset and loss choices. The mathematical axioms are standard SH and PRT results. The key domain assumption is that synthetic scanned ground truth, including contaminated albedo, transfers to real photos.

free parameters (4)
  • CNN weights (all encoder/decoder parameters) = trained on 276 synthetic images for 60 epochs
    These are the fitted mapping from image to albedo, light transport, and light; central to the method.
  • Loss weights for 15 L1 losses = all set to 1
    Hand-chosen in Section 4; no sensitivity analysis reported.
  • Illumination dataset curation = 50 clusters from 2,144 HDR maps; 40 train / 10 test
    Section 6: k-means reduction plus manual removal of unusual lights biases the lighting distribution seen by the network.
  • Training pose alignment = standing figures, centered, same vertical size, 5% padding
    Section 6: manual curation to exploit data coherency; limits pose generalization and is a hand-set design choice.
assumptions (4)
  • standard math Second-order spherical harmonics capture most irradiance on convex surfaces
    Cited Basri and Jacobs 2003; justifies using nine SH coefficients per pixel.
  • standard math Visibility times cosine can be precomputed as SH and applied as a dot product with SH illumination
    PRT from Sloan et al. 2002; the basis for the light transport map formulation in Section 3.2.
  • domain assumption Rendered images from scanned 3D human models are a valid proxy for real full-body photographs
    Training and quantitative evaluation use only synthetic data; real-photo validation is qualitative in Section 7.
  • domain assumption Albedo ground truth from 3D scans is free of shading
    Section 6 admits self-shadows remain; if false, supervision is biased.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Relighting Humans: Occlusion-Aware Inverse Rendering for Full-Body Human Images." pith.science (2026). https://pith.science/paper/3Y6O37GE

@misc{pith2026190802714,
  author       = {Pith},
  title        = {Pith review of: Relighting Humans: Occlusion-Aware Inverse Rendering for Full-Body Human Images},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/3Y6O37GE}},
  note         = {Machine review of arXiv:1908.02714}
}
read the original abstract

Relighting of human images has various applications in image synthesis. For relighting, we must infer albedo, shape, and illumination from a human portrait. Previous techniques rely on human faces for this inference, based on spherical harmonics (SH) lighting. However, because they often ignore light occlusion, inferred shapes are biased and relit images are unnaturally bright particularly at hollowed regions such as armpits, crotches, or garment wrinkles. This paper introduces the first attempt to infer light occlusion in the SH formulation directly. Based on supervised learning using convolutional neural networks (CNNs), we infer not only an albedo map, illumination but also a light transport map that encodes occlusion as nine SH coefficients per pixel. The main difficulty in this inference is the lack of training datasets compared to unlimited variations of human portraits. Surprisingly, geometric information including occlusion can be inferred plausibly even with a small dataset of synthesized human figures, by carefully preparing the dataset so that the CNNs can exploit the data coherency. Our method accomplishes more realistic relighting than the occlusion-ignored formulation.

Figures

Figures reproduced from arXiv: 1908.02714 by the authors.

Figure 1
Figure 1. Given a single human image and its mask, our method infers a [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

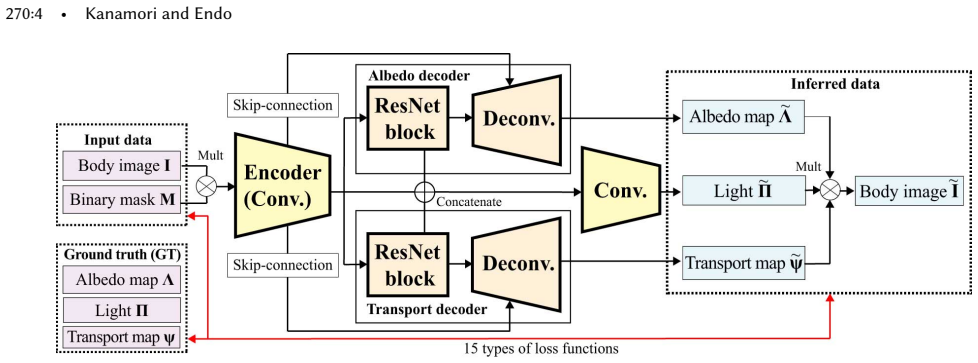

Figure 2. Our network architecture. The input image (multiplied with the binary mask) is fed to the encoder, and the output feature vector is then fed to the [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

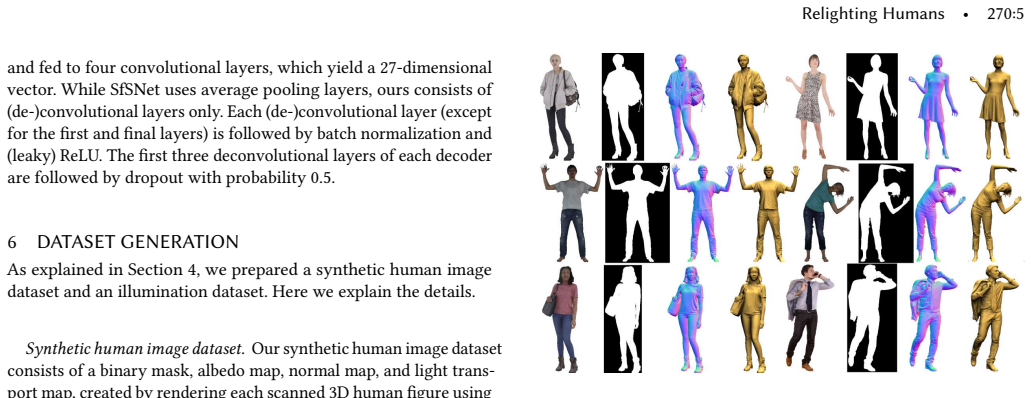

Figure 3. Examples from our synthetic human image dataset. For each human [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (9 more)
Figure 4

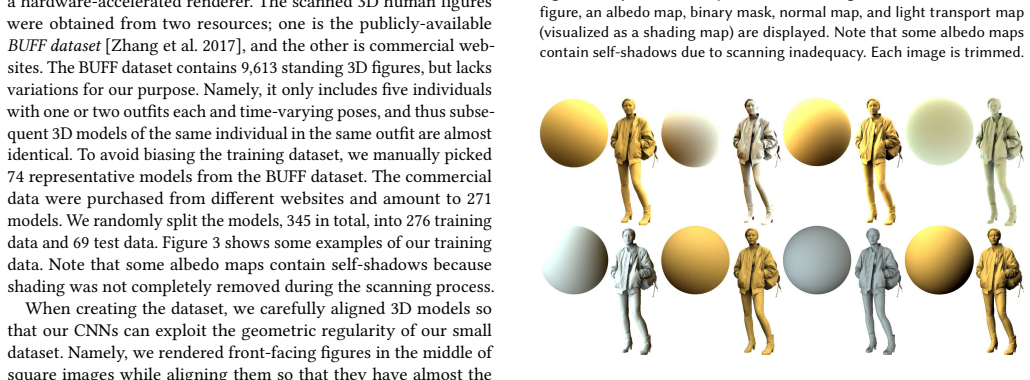

Figure 4. Figure 4: Examples from our illumination dataset. SH illumination coefficients [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5

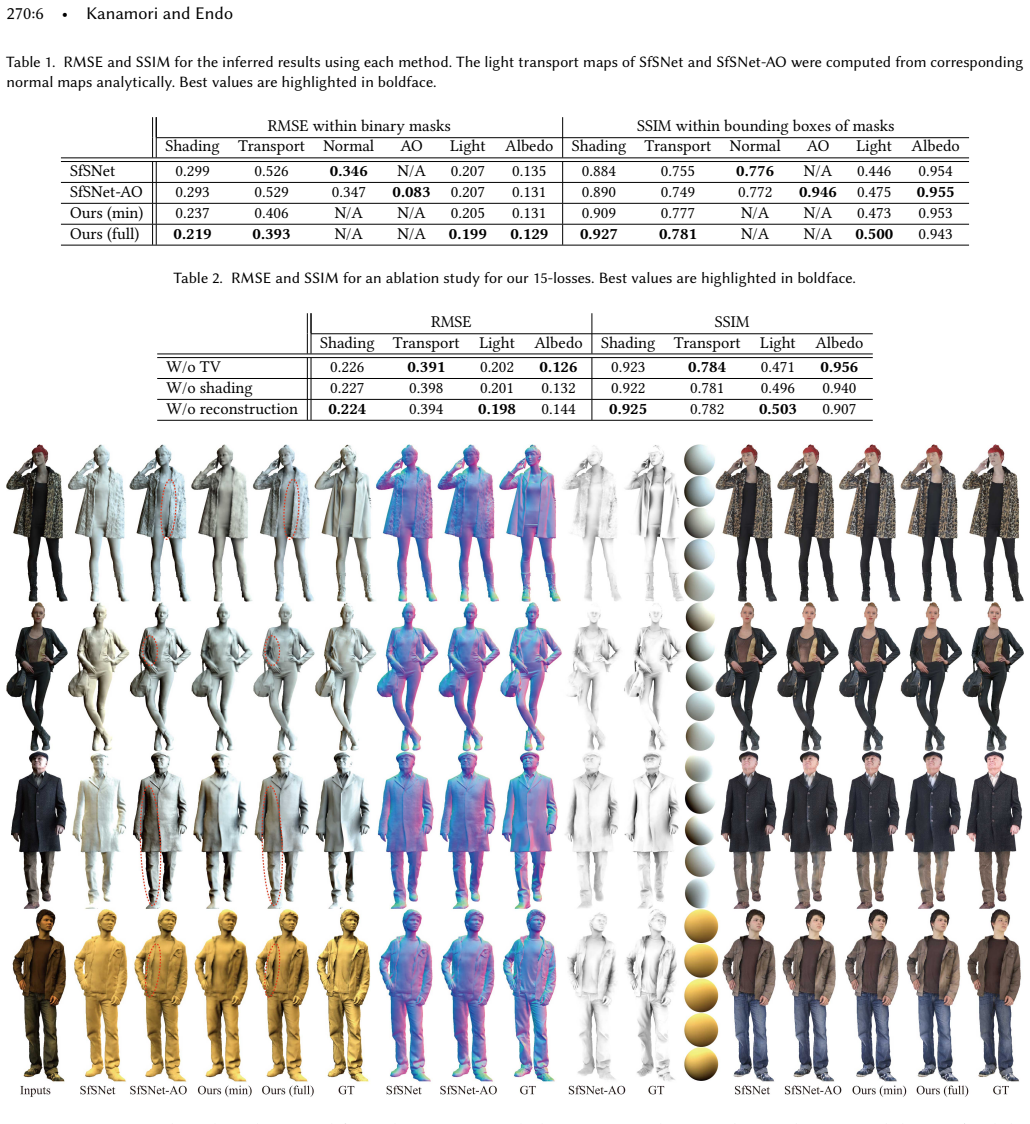

Figure 5. Figure 5: Comparisons with synthetic data. From left to right, input images, shading maps, normal maps, ambient occlusion maps, light maps (i.e., light [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]
Figure 6
Figure 6. Figure 6: Comparisons with real photographs. The red ovals in inferred shading maps highlight differences between SfSNet-AO and “Ours (full).” Input images [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]
Figure 7
Figure 7. Figure 7: Relighting comparison using synthetic data. The red ovals highlight differences between SfSNet-AO and “Ours (full).” [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]
Figure 8
Figure 8. Figure 8: Relighting comparison using real photographs. The red ovals high [PITH_FULL_IMAGE:figures/full_fig_p009_8.png]
Figure 9
Figure 9. Figure 9: Light transfer. By performing inference for two images and swapping [PITH_FULL_IMAGE:figures/full_fig_p009_9.png]
Figure 11
Figure 11. Figure 11: Comparison to self-supervised learning. By fine-tuning network [PITH_FULL_IMAGE:figures/full_fig_p009_11.png]
Figure 12
Figure 12. Figure 12: Inferred results with sitting poses. Our network can handle sitting [PITH_FULL_IMAGE:figures/full_fig_p010_12.png]
Figure 13
Figure 13. Figure 13: Failure examples with unusual lights. Our network suffers from [PITH_FULL_IMAGE:figures/full_fig_p010_13.png]
