The assembly of freely moving rigid fibers measures the flow gradient tensor

T0 review · 2 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Rigid fibers can reconstruct the whole flow gradient tensor

desk verdict The 2D fiber-assembly gradient measurement is a solid numerical proof-of-concept, but the 3D claim in the title and abstract is both unverified and, with the stated projection, mathematically impossible. read the letter →

arxiv 1908.04072 v2 pith:VWUCXTBW submitted 2019-08-12 physics.flu-dyn cond-mat.soft

M. Cavaiola , S. Olivieri , A. Mazzino This is my paper · ORCID
classification physics.flu-dyncond-mat.soft
keywords rigidfibersvelocitygradienttensorfibertrackingvelocimetrytwo-pointflowmeasurementsStokesnumbercellularflowsLagrangianimmersedboundarymethod
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper proposes that rigid fibers, freely advected by a fluid and tracked from outside, can act as two-point velocity probes. Its central claim is that at small Stokes numbers the component of the fiber's end-to-end velocity difference perpendicular to the fiber reproduces the same component of the unperturbed fluid velocity difference, so that an assembly of fibers gives enough independent measurements to solve for the full velocity gradient tensor at each instant. The authors demonstrate this in two- and three-dimensional closed-streamline cellular flows, both steady and time-periodic, with reconstructed gradients matching the true ones to about 1% at the lowest Stokes numbers tested. If the claim holds, cheap passive fibers become a “Fiber Tracking Velocimetry” tool for estimating vorticity, strain, and dissipation without high-resolution multi-point probes.

What carries the argument

The load-bearing object is the normal-projected end-to-end velocity difference of a single fiber. Writing $\hat{\mathbf r}$ for the fiber orientation and $\hat{\mathbf r}_\perp$ for a normal direction, the paper defines $\delta V_\perp = \delta\mathbf V\cdot\hat{\mathbf r}_\perp$ and $\delta u_\perp = \delta\mathbf u\cdot\hat{\mathbf r}_\perp$, and shows numerically that $\delta V_\perp \approx \delta u_\perp$ at small Stokes number. The tangential component is killed by inextensibility, so the usable signal lives in the normal direction. For short fibers, $\delta u_\perp \approx D = \partial_j u_i\,\hat r_j\,\hat r_{\perp i}$, so each fiber provides one linear equation in the unknown gradient. An assembly of $N_f$ fibers with distinct orientations forms the linear system (Eq. 3.9) that is solved for $\partial_j u_i$; the two-dimensional incompressible case requires three fibers, and the three-dimensional case requires eight.

What would settle it

Place a rigid fiber with rotational Stokes number $St \ll 1$ and length much smaller than the flow's variation scale in a known laminar shear flow, track its ends, and compare the measured $\delta V_\perp$ with the analytic $\delta u_\perp$ of the unperturbed flow; if the normalized difference does not vanish as $St \to 0$ but instead saturates at a few percent or more, the central equality fails and the reconstruction scheme collapses.

Watch

Extended reading notes

Core claim

On the paper's own terms, the discovery is that the inextensibility constraint of a rigid fiber, which corrupts single-point velocity measurements, leaves the normal projection of the end-to-end velocity difference clean: $\delta V_\perp = (\mathbf V_B - \mathbf V_A)\cdot \hat{\mathbf r}_\perp$ tracks $\delta u_\perp$, the corresponding unperturbed fluid velocity difference, with deviations below 1% when the rotational Stokes number is $\lesssim 0.1$. For a fiber short compared with the flow's variation scale, $\delta u_\perp$ is well approximated by the tangential-normal projection of the gradient, $D = \partial_j u_i\, \hat r_j\, \hat r_{\perp i}$. With $N_f$ fibers of distinct orientations, equating each measured $\delta V_\perp$ to $D$ yields a linear system (three equations in two-dimensional incompressible flow, eight in three-dimensional flow) whose unknowns are the independent components of $\partial_j u_i$; solving it at each time step reconstructs the gradient tensor. The paper verifies the reconstruction in a steady two-dimensional cellular flow, a steady three-dimensional cellular flow, and a time-periodic two-dimensional flow with chaotic trajectories, using both a fully coupled immersed-boundary simulation and a passive slender-body model.

Load-bearing premise

The whole reconstruction rests on the assumption that a sufficiently light rigid fiber, pulled by the flow, has its two ends move apart in the direction normal to the fiber at the same rate the fluid would, even though the fiber cannot stretch; the paper relies on this $\delta V_\perp \approx \delta u_\perp$ equality without deriving it analytically.

Editorial extensions

If this is right

  • A three-fiber assembly yields the full two-dimensional incompressible velocity gradient tensor at every tracked time; an eight-fiber assembly covers three dimensions.
  • At rotational Stokes numbers at or below 0.1, the reconstructed gradients match the unperturbed flow to about 1% in the tested steady and time-periodic cellular flows.
  • Accuracy degrades as fiber inertia grows, with deviations reaching tens of percent by Stokes numbers of order 0.5–1 and above, so the method has an intrinsic low-inertia operating range.
  • The measurement is local and passive, so the same tracked fibers can deliver vorticity, strain rate, and dissipation estimates without resolving the flow at the fiber scale.
  • The equality holds for both a fully coupled fiber (including feedback to the flow) and a passive one-way coupled fiber, meaning the hydrodynamic coupling can be neglected in the low-Stokes regime.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the normal-projection equality persists in turbulence at small Stokes number, a single fiber sampled over many orientations could accumulate gradient information over time, potentially reducing the number of fibers needed below the static assembly count.
  • Using two independent normal projections per fiber in three dimensions would overdetermine the system and could improve robustness to measurement noise, an option the paper does not explore.
  • The same end-point velocity-difference principle could measure two-point structure functions directly, without first reconstructing the gradient, by comparing normal-projected increments for fibers of different lengths.
  • A laboratory test with millimetric rigid fibers in a water tunnel, checked against PIV-derived gradients, would settle whether the 1% numerical accuracy survives optical tracking noise and finite-size effects; the paper stops short of such an experiment.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. The paper proposes a method, termed 'Fiber Tracking Velocimetry', by which the full velocity gradient tensor of a fluid flow can be reconstructed from the Lagrangian tracking of a rigid-fiber assembly. The method relies on the transverse velocity difference between the two ends of each fiber, projected on the direction normal to the fiber, and equates this measured quantity to the corresponding projection of the unperturbed fluid velocity difference. The authors test this idea in two-dimensional steady BC flow, two-dimensional time-periodic oscillating flow, and three-dimensional ABC flow, using both a fully-resolved immersed-boundary (active) model and a passive slender-body model. They report that for Stokes numbers St <= 0.1 the transverse velocity difference measured by the fiber matches the fluid quantity with less than 1% normalized RMS deviation, and that in the two-dimensional cases an assembly of three fibers reconstructs the gradient components with roughly 1% error. The paper claims this capability extends to three dimensions with an eight-fiber assembly.

Significance. If the central equality between fiber-transverse velocity increments and fluid-transverse velocity increments holds, the paper introduces a conceptually novel measurement paradigm that could provide multi-point flow statistics in laboratory and field settings, complementing PIV/PTV. The numerical methodology is thorough: both active and passive fiber models are used, resolution convergence is assessed, and quantitative error metrics are reported for a range of Stokes numbers. The two-dimensional reconstruction results are internally consistent and the comparison between active and passive models for small St is a useful practical insight. However, the theoretical basis of the key equality is heuristic, and, as detailed below, the three-dimensional claim is not supported by the presented evidence and appears mathematically impossible with the chosen projection.

major comments (2)
  1. [§3.2 and §3.3] The three-dimensional claim of reconstructing the whole gradient tensor is unsupported and, with the stated projection r̂⊥=(r̂2,−r̂1,0), mathematically impossible. In 3D, the quantity D=∂jui r̂j r̂⊥i involves only the six components in the first two rows of ∂jui, namely ∂x u, ∂y u, ∂z u, ∂x v, ∂y v, ∂z v; the components ∂x w and ∂y w never appear, and incompressibility only relates ∂z w to −(∂x u+∂y v). Consequently, the linear system (3.9) formed from any number of fibers using this projection has rank at most six (actually six independent columns, with possible additional degeneracies from fiber alignment), so the full 3×3 gradient cannot be recovered. The paper does not simulate an eight-fiber 3D assembly; §3.2 only demonstrates single-fiber agreement of δV⊥ vs δu⊥ in ABC flow, which does not establish observability of the missing components. Please either restrict the central claim and title to two dimensions, or provide a projection/geometry in 3D that actually probes the third row of the gradient.
  2. [§3.1.2, Eqs. (3.4)–(3.6)] The load-bearing premise δV⊥≈δu⊥ is asserted with the heuristic that the inextensibility constraint is 'washed out' in the normal direction, and it is validated numerically for specific flows and parameters, but it is not derived. Since Eq. (3.9) inherits this premise, the reconstruction's validity outside the tested cases is an unquantified risk. Please provide a derivation from the fiber equation of motion (e.g., from Eq. (2.1) with the limits St→0 and c/L→0) showing that δV⊥−δu⊥ scales as O(St) plus O((c/L)^2) or similar, with explicit error bounds. This would also clarify why the agreement degrades as observed in Figures 4 and 6.
minor comments (5)
  1. [Eq. (3.9)] The linear system is presented as a list of equations; please write it explicitly in matrix form Ax=b and state whether the solution is obtained by direct inversion or least squares, especially for the overdetermined cases mentioned in §3.3.
  2. [Figure 4 caption] There is a typographical error in the caption: 'St /greaterorequalslant1' should read 'St ≥ 1'.
  3. [§3.2] The statement 'results do not change for a different choice of r̂⊥' in three dimensions is made without quantitative support. Since the choice of projection is crucial to the method, please show at least one comparison for an alternative normal vector, or clarify that this claim refers only to the plotted single-fiber time series.
  4. [§3.3] The symbol L is used for the domain size in §2 but is not explicitly defined in the assembly section; please define it at first use when referring to c/L.
  5. [§3.3] The claim that the assembly Stokes time equals that of a single fiber is based on the exponential fitting procedure of §3.1.1; please report the fitted values and their uncertainty for the assembly case.

Circularity Check

0 steps flagged · score 1.0 of 10

No significant circularity: the gradient reconstruction is benchmarked against analytic flows, with only a calibration parameter and motivational self-citations.

full rationale

The paper's derivation chain is not circular. The central claim is a numerical validation: fiber end velocity differences projected normal to the fiber, δV⊥, are compared with the unperturbed analytic flow's δu⊥ in BC, ABC, and oscillating cellular flows (Figures 4 and 6), and the gradient reconstruction in §3.3 solves the linear system (3.9) whose coefficients r̂_j r̂⊥_i and data δV⊥ come from tracking the fibers. The reconstructed ∂jui is then compared against the analytic flow gradients (Figures 8–10), which is an external benchmark rather than a fitted output. The only fitted quantity, the rotational Stokes time α from the exponential fit (3.3) in §3.1.1, calibrates the passive model's Stokes time and characterizes inertia; it is not one of the target gradient components and does not appear as a predicted quantity in the reconstruction. Self-citations, notably Rosti et al. (2018a, 2019), motivate the fiber-proxy idea but are not used to justify the BC/ABC/oscillating-flow checks, which are self-contained against analytic expressions. The heuristic assumption in §3.1.2 that δV⊥ ≈ δu⊥ is an unproved modeling ansatz, but it is tested rather than derived from or identified with the target result; a heuristic assumption is a correctness risk, not circularity. The concern that the chosen r̂⊥ makes the full 3D gradient unobservable is likewise an evidence/correctness issue for the 3D claim, not a case of the reconstruction reducing to its own inputs. Score 1 reflects only the presence of non-load-bearing self-citations and the calibration step, without any circular reduction.

Assumptions & free parameters 2 free parameters · 4 assumptions · 0 invented entities

The method depends on two calibration parameters (the rotational Stokes time fit and the artificial centroid separation) and on two modeling assumptions (the normal-projection equality and the small-fiber scale separation). No new physical entities or forces are hypothesized.

free parameters (2)
  • Rotational Stokes time scaling α = α ≈ 0.04 (St = α ρ1)
    The Stokes time τs is extracted from an exponential fit (Eq. 3.3) to the fiber-end velocity magnitude in the active model (Fig. 2, inset), and the resulting linear scaling St = α ρ1 is used to set the relaxation time in the passive model. The accuracy thresholds quoted in the paper (St ≤ 0.1 for <1% error) depend on this calibration.
  • Fiber centroid separation in assembly = Δs (the Lagrangian mesh spacing)
    To avoid degeneracy or alignment of the fibers in the assembly, a small displacement of size Δs is imposed between the centroids (§3.3, 'simple recipe ... small displacement (of Δs, the size of the Lagrangian mesh)'). This is an ad hoc numerical choice that conditions the linear system (3.9), though the authors state it prevents breakdown.
assumptions (4)
  • domain assumption Fiber dynamics follows the Euler-Bernoulli beam equation (Eq. 2.1) with local drag forcing (Eq. 2.7).
    The fiber is modeled as an inextensible, one-dimensional beam with isotropic drag. This is the standard slender-body framework for viscous flows, valid at low Reynolds numbers, but it is an assumed model rather than a first-principles derivation for the specific flows.
  • domain assumption The test flows (BC, ABC, and time-periodic flow) are prescribed solutions of the incompressible flow equations (Eqs. 3.1, 3.7, 3.8).
    The technique is only demonstrated for these closed-streamline flows. The extension to general turbulent flows is conjectural and not established by the paper.
  • ad hoc to paper For small Stokes number, the normal projection of the fiber end-to-end velocity difference equals the normal projection of the undisturbed fluid velocity difference (δV⊥ ≈ δu⊥).
    Introduced in §3.1.2 as a heuristic, 'the effect of the inextensibility constraint should be washed out', and confirmed numerically. It is the load-bearing premise of the measurement method and is never proven analytically.
  • domain assumption The fiber length is small enough that the two-point velocity difference can be replaced by the local velocity gradient at the fiber center (Eq. 3.6).
    The paper shows accuracy degrades when fiber length is doubled, so the method relies on the fiber being small compared to flow structures. This scale-separation assumption is reasonable but restricts applicability.

how reviews work

0 comments
Cite this review

Pith. "Pith review of The assembly of freely moving rigid fibers measures the flow gradient tensor." pith.science (2026). https://pith.science/paper/VWUCXTBW

@misc{pith2026190804072,
  author       = {Pith},
  title        = {Pith review of: The assembly of freely moving rigid fibers measures the flow gradient tensor},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/VWUCXTBW}},
  note         = {Machine review of arXiv:1908.04072}
}
read the original abstract

The motion of an assembly of rigid fibers is investigated for different classes of closed streamline flows, steady or time dependent, two dimensional or three dimensional. In our study, the dynamics of the fiber assembly is fully-coupled to the flow field by means of a state-of-the-art immersed boundary method. We show that, for sufficiently small Stokes times of the assembly, the whole flow gradient tensor can be accurately reconstructed by simply tracking the fiber assembly and measuring suitable fiber velocity differences evaluated at the fiber ends. Our results strongly suggest the possibility of using rigid fibers (or assemblies of them) to perform multi-point flow measures, either in laboratory or in field: future experiments are therefore mandatory to inquire the feasibility of a new `Fiber Tracking Velocimetry' technique.

Figures

Figures reproduced from arXiv: 1908.04072 by the authors.

Figure 1
Figure 1. (a) The so-called BC cellular flow (the colormap showing the stream function given by (3.1) along with the corresponding velocity vectors); (b) sketch of a generic fiber configuration (the characteristic quantities here indicated are introduced in the text). Hoyer et al. 2005; Schanz et al. 2016), by single fibers (or assemblies of them) in order to access two-point (or multi-point) properties. To this aim, we will … view at source ↗
Figure 2

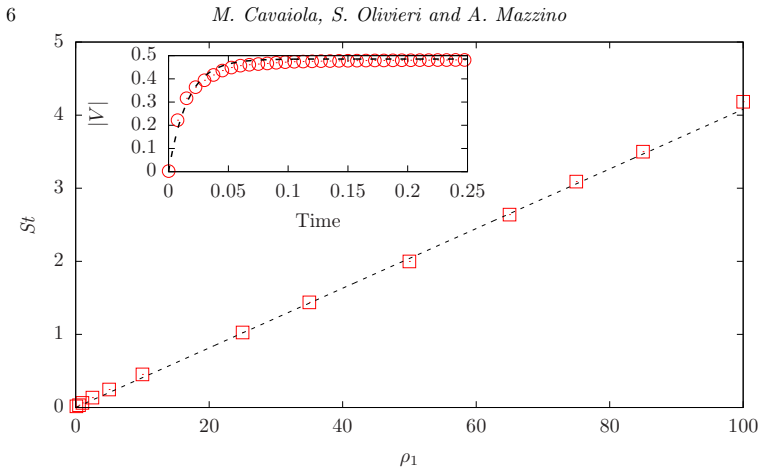

Figure 2. figure 2. From the best fit we obtain the Stokes time and thus the St [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

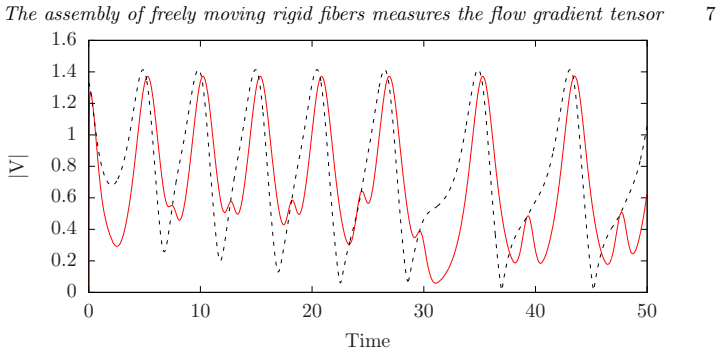

Figure 3. Velocity time series at one fiber end for the fiber (red solid lin [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figures from the paper (8 more)
Figure 4

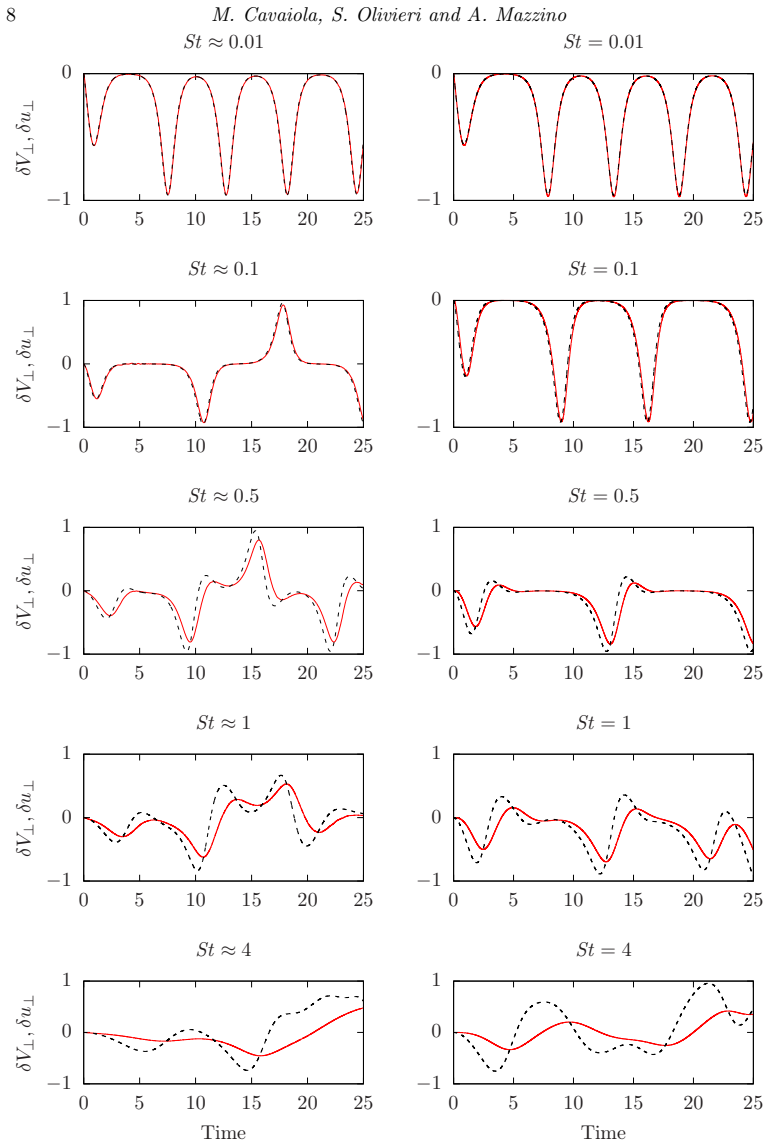

Figure 4. Figure 4: Transverse velocity differences of fiber [PITH_FULL_IMAGE:figures/full_fig_p008_4.png]
Figure 5

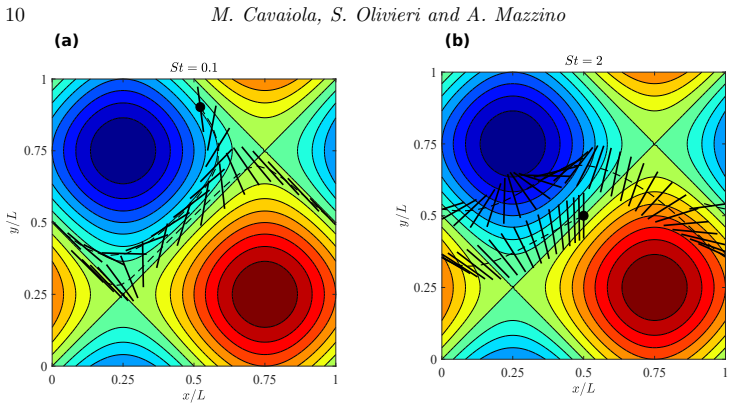

Figure 5. Figure 5: Superposition of fiber positions at different instants within [PITH_FULL_IMAGE:figures/full_fig_p010_5.png]
Figure 6

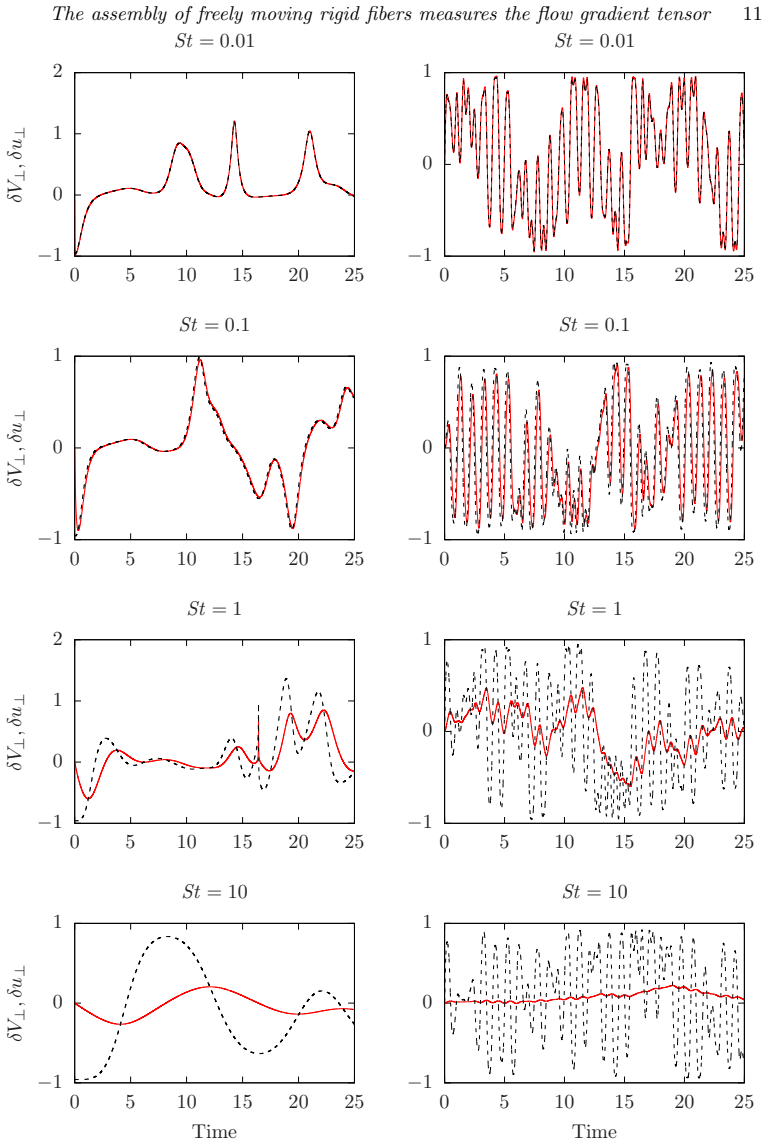

Figure 6. Figure 6: Transverse velocity differences of fiber [PITH_FULL_IMAGE:figures/full_fig_p011_6.png]
Figure 7

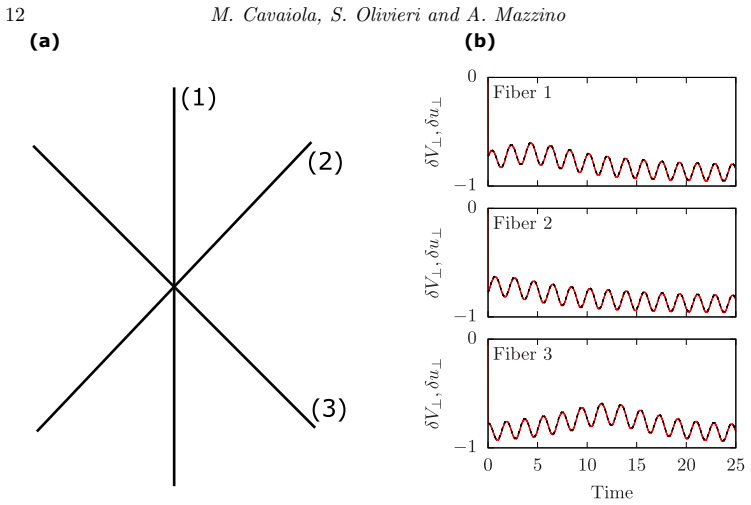

Figure 7. Figure 7: (a) Sketch of fiber assembly; (b) transverse velocity diffe [PITH_FULL_IMAGE:figures/full_fig_p012_7.png]
Figure 8

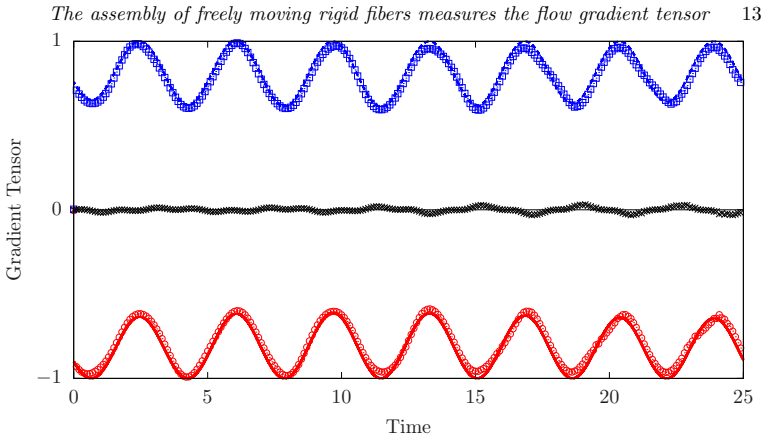

Figure 8. Figure 8: Velocity gradient tensor components in the BC flow (3.2) re [PITH_FULL_IMAGE:figures/full_fig_p013_8.png]
Figure 9

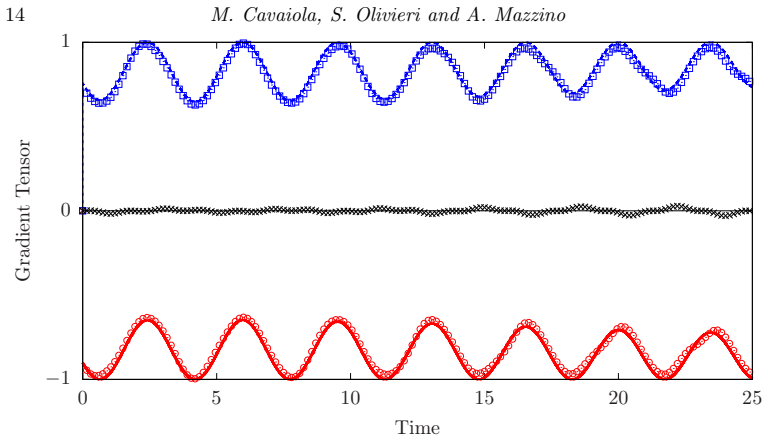

Figure 9. Figure 9: As in figure 8 but for assembly of passive fibers. The norma [PITH_FULL_IMAGE:figures/full_fig_p014_9.png]
Figure 10
Figure 10. Figure 10: As in figure 9 but for the oscillating two dimensional flow (3.8 [PITH_FULL_IMAGE:figures/full_fig_p015_10.png]
Figure 11
Figure 11. Figure 11: Time history of the angles (rad) of the three fibers comp [PITH_FULL_IMAGE:figures/full_fig_p016_11.png]
