Jointly Aligning Millions of Images with Deep Penalised Reconstruction Congealing

T0 review · 5 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read An unsupervised deep network can jointly align one million images with high accuracy.

desk verdict A plausible scaling trick for unsupervised alignment, but the reconstruction-proxy assumption is asserted rather than shown, and the experiments don't fully support the headline claim. read the letter →

arxiv 1908.04130 v2 pith:QDWYUV5B submitted 2019-08-12 cs.CV

Roberto Annunziata , Christos Sagonas , Jacques Cali This is my paper · ORCID
classification cs.CV
keywords congealingjointimagealignmentspatialtransformernetworkauto-encoderunsupervisedlearningregistrationlow-rankreconstructionrobust
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Joint image alignment, or congealing, is the task of finding a global warp for every image in an ensemble so that they become pixel-consistent. The paper proposes a fully unsupervised method that treats alignment as a differentiable optimisation over warp parameters, driven by two losses: an ℓ1 similarity to a reference image and the reconstruction error of a deliberately low-capacity auto-encoder. The core idea is that a well-aligned stack is more redundant, so a constrained auto-encoder can reconstruct it more accurately; minimising reconstruction error therefore pushes warps toward alignment. The authors report successful alignment on up to one million images at a time, across digits and faces, with robustness to initialisation and to affine and non-linear perturbations.

What carries the argument

The load-bearing mechanism is the penalised reconstruction auto-encoder used as an auxiliary alignment signal. The encoder $E_\theta$ maps an aligned image to a non-negative code $z$, the decoder $D_\varphi$ reconstructs the image, and the penalty $f(z)=w^\top z$ with $w_l = l^k/\sum_{l=1}^{b} l^k$ forces the code to concentrate its capacity on early components, so the auto-encoder's representational power is fixed and small. At parity of that capacity, a well-aligned stack contains more inter-image redundancy, so better alignment yields lower reconstruction error; back-propagating that error through the warping module updates the warp parameters. The warping module is the densely fused spatial transformer network, which predicts a global transformation per image and is differentiable, letting the whole pipeline be trained end-to-end by SGD.

What would settle it

A direct test is to take a stack with known ground-truth warps and compare the proposed total loss at the true alignment with the loss at a deliberately degenerate alignment, such as shifting every image onto a uniform background. If any wrong alignment attains a lower objective value, the reconstruction proxy is not monotone in alignment quality and the method's central premise fails on that data.

Watch

Extended reading notes

Core claim

The discovery is a way to make congealing scalable and robust by combining a direct similarity measure with an indirect complexity measure in one differentiable loss. The proposed objective is $\sum_{i\ne j} \|I_i\circ p_i - I_j\|_1 + \lambda \sum_i \left(\|D_\varphi(E_\theta(I_i\circ p_i)) - I_i\circ p_i\|_1 + \gamma f(E_\theta(I_i\circ p_i))\right)$, where $p_i$ are warp parameters estimated by a densely fused spatial transformer network, $E_\theta$ and $D_\varphi$ form a low-capacity auto-encoder, and $f(z)=w^\top z$ is a positional weighting penalty that pushes the code to use its first components. Minimising the second term rewards warps that make the image stack easier to reconstruct, the same redundancy principle behind low-rank congealing, while the first term anchors the ensemble to a reference and prevents the whole stack from collapsing. The authors show this objective can be optimised end-to-end with stochastic gradient descent and, in their experiments, aligns millions of digits and thousands of faces more sharply than existing rank-based and deep baselines.

Load-bearing premise

The load-bearing premise is that the reconstruction error of a small auto-encoder, penalised to use little capacity, is a trustworthy and monotone proxy for alignment quality; if the auto-encoder instead learns to discard discriminative detail, minimising this loss will not move the images toward correct alignment.

Editorial extensions

If this is right

  • Joint alignment can be applied to ensembles of a million images in a single optimisation, something rank-based methods cannot reach because of repeated SVD computations.
  • The same objective can be trained end-to-end on a GPU with standard SGD, so adding new images only requires a forward-backward pass rather than a fresh low-rank optimisation.
  • Alignment accuracy remains high under random perspective warps up to 30% displacement and under highly non-linear deformations as in infiMNIST, where baselines degrade.
  • On faces, the method keeps facial landmarks accurate even when the initial bounding box is enlarged by 30%, where rank-based methods blur.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • One implication not spelled out in the paper is that the complexity loss could be reused as an unsupervised convergence check, stopping optimisation when reconstruction error plateaus.
  • Varying the penalty exponent $k$ or weight $\gamma$ should interpolate between reference-anchored alignment and pure compression alignment, and could be tuned per dataset as a testable extension.
  • A natural extension is to replace the fixed reference $I_j$ with a learned template or batch mean, which would remove the need to select a reference image and might improve robustness to a bad initial reference.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 5 minor

Summary. The paper proposes an unsupervised joint image alignment (congealing) method that combines a spatial transformer network (DeSTNet) with a low-capacity auto-encoder. The total loss (Eq. 8) is a weighted sum of an l1 similarity term D against a reference image and a complexity term C that penalizes reconstruction error plus a positional penalty on the latent code. The method is trained end-to-end with SGD. Experiments on MNIST subsets, affNIST, infiMNIST, and LFW report APSNR and landmark errors, and claim robustness to perturbations and initialization as well as scalability to one million images per class, outperforming RASL, t-GRASTA, PSSV, and Deep Congealing.

Significance. If the central claim holds, the paper offers a practically scalable, fully differentiable congealing method that can handle far larger ensembles than existing low-rank or entropy-based approaches. The conceptual idea of using a learned, capacity-controlled auto-encoder as a differentiable proxy for stack complexity is appealing and could be reused in other alignment and co-processing tasks. The experimental scope is unusually large (up to 1M images per digit on infiMNIST), and the paper explicitly investigates robustness to initialization and perturbation type, which is a strength. However, the key theoretical premise—that the reconstruction loss C in Eq. (7) is a faithful and monotone proxy for alignment quality at fixed capacity—is asserted rather than validated, and several experimental comparisons are incomplete or confounded. The paper would be strengthened by directly measuring transformation-parameter accuracy on datasets with known ground-truth warp parameters and by controlling for hardware in the scaling comparison.

major comments (5)
  1. [Sec. 2.1, Eq. (7); Sec. 3.2] The complexity term C is proposed as a proxy for joint alignment quality, but the auto-encoder E_theta and D_phi are co-trained with the warps, so the capacity is not actually held fixed during optimization. The paper's own ablation (Sec. 3.2, footnote 4) shows that C alone causes shrinking, and the authors rely on the reference term D to prevent collapse. No experiment verifies that minimizing D+C recovers correct warps rather than merely making images more similar to the reference. On affNIST, where ground-truth affine transformation parameters are known by construction, the paper reports only APSNR and visual results, no parameter error; the same holds for infiMNIST. Because all reported metrics measure appearance similarity, and the auxiliary loss could in principle inflate APSNR by collapsing appearance toward a template, the claimed 'high accuracy' lacks a direct test of alignment correctness. I request a parameter-error evaluation on datasets with known transformations, or at least a quantitative comparison against the reference-only loss D on a held-out warp-parameter benchmark.
  2. [Sec. 3.1, Fig. 3] The scalability comparison is confounded by hardware: the baselines (RASL, t-GRASTA) run on CPUs while the proposed method runs on a GPU, and the authors normalize processing times relative to the 1,000-image run for each method. This normalization removes only the constant factor at the reference size, not the hardware-dependent scaling in per-iteration cost, parallel efficiency, or implementation. Therefore, the conclusion 'the proposed method scales better than the baselines' is not established by Fig. 3. A same-hardware comparison, or a careful analysis of per-iteration complexity with controlled implementations, is needed to support the scalability claim.
  3. [Sec. 3.2, Fig. 6] The ablation study is qualitative only; no APSNR values are reported for the D-only, C-only, and combined conditions. Given the paper's central claim that C refines the alignment (digits '6' and '9') and acts as a regularizer (digit '3'), quantitative results with variance over runs are necessary. In addition, the hyperparameters lambda, gamma, k, and the latent code dimension b are set to single values (lambda=1, gamma=1, k=1) with no sensitivity analysis. Since the method's premise is that C is a faithful alignment surrogate at controlled capacity, the dependence on gamma (the capacity penalty) is load-bearing and should be studied explicitly.
  4. [Sec. 3.3 and Sec. 3.4] The affNIST and infiMNIST experiments present results for the proposed method only, with no comparison to any baseline. The abstract and conclusion claim that the method 'outperforms state-of-the-art approaches,' but at these scales no competing method is evaluated. Even if existing methods cannot scale to 100k-1M images, a subsampled comparison or a comparison at the largest scale that baselines can handle would be needed to substantiate the claimed advantage.
  5. [Sec. 2.1, Eq. (8)] The choice of the reference image I_j is not described. The formulation in Eq. (8) aligns all images to a single reference, and the reported APSNR and landmark errors could be sensitive to which image is chosen as the reference. The score in Eq. (9) uses the average image after alignment, so a poor reference could bias the entire optimization and inflate or deflate the reported metrics. The paper should state how I_j is selected and test robustness to this choice.
minor comments (5)
  1. [Sec. 3.4] The word 'tickening' appears in the description of infiMNIST deformations; this is a typo for 'thickening'.
  2. [Table 1] The latent code dimensionality b is denoted '|z|' but its actual value is never specified, which impedes reproducibility.
  3. [Sec. 3.1] The DeSTNet expansion rate kF=32 is used without definition; readers must consult reference [3] to interpret it. A one-sentence explanation would improve clarity.
  4. [Eq. (8)] The notation in Eq. (8) is ambiguous: the sum over i includes the reference itself in the complexity term but the similarity term is written as I_{i≠j} ∘ p_{i≠j} − I_j. Clarify the index ranges and whether the reference image is also passed through the auto-encoder.
  5. [Figs. 4-10] No confidence intervals or multiple-run statistics are reported for any of the APSNR or landmark-error numbers; given the stochastic optimization procedure, at least a few runs with means and standard deviations should be provided for the main comparisons.

Circularity Check

0 steps flagged · score 2.0 of 10

No significant circularity; the penalised-reconstruction objective is a stated assumption rather than a derived prediction, and the only self-citation (DeSTNet) is a component choice, not a load-bearing proof.

full rationale

The central formulation, Eq. (8), is a weighted sum of an L1 similarity-to-reference term D (Eq. 5) and a penalised auto-encoder reconstruction term C (Eq. 7). The claim that minimising C at fixed capacity improves alignment is explicitly motivated as an observation ('we observe that when a set of images are well-aligned, they form a sequence that contains a significant level of redundant information'), not as a quantity defined in terms of the evaluation metric, so it is not self-definitional. No parameter is fitted to a subset of data and then reported as a prediction; the auto-encoder and aligner are co-trained on the same batches, and the paper's own ablation (Section 3.2, footnote 4) concedes that C alone produces a shrinking effect and that D is needed to prevent it, which is a limitation statement rather than a circular derivation. The only self-citation used as a module, DeSTNet [3], supplies the differentiable warping network; it is a design choice, and the paper does not import a uniqueness or correctness theorem from it, so it does not make the derivation circular. The APSNR metric (Eq. 9) is close in spirit to the optimised objective, so the large-scale accuracy claims would be stronger with ground-truth warp-parameter errors on affNIST and infiMNIST; however, the LFW landmark errors provide an external, non-objective evaluation, and metric overlap is an evaluation concern rather than a derivation-level circularity under the stated criteria.

Assumptions & free parameters 6 free parameters · 5 assumptions · 0 invented entities

The central claim rests on the assumption that compressibility, measured by a co-trained auto-encoder, reflects alignment quality. This is a domain assumption and is not independently verified. Hyper-parameters such as lambda, gamma, and k are hand-picked, and the latent code dimension is only partially specified. No new physical entities are introduced.

free parameters (6)
  • lambda = 1
    Trade-off weight between the similarity loss D and the complexity loss C in Eq. (8). Chosen by hand, no ablation reported.
  • gamma = 1
    Trade-off between reconstruction error and the positional capacity penalty in Eq. (7). Chosen by hand.
  • k = 1
    Exponent in the positional weighting w_l = l^k / sum; controls how strongly later latent components are penalised. Chosen by hand.
  • learning rate = 1e-5
    Adam learning rate used for end-to-end optimisation. No schedule or sensitivity analysis reported.
  • latent code dimension b
    Dimensionality of the encoder output z, determined by the architecture in Table 1 but its value is not explicitly stated.
  • DeSTNet expansion rate kF = 32
    Expansion rate for DeSTNet-4, a design choice from the authors' prior work [3].
assumptions (5)
  • domain assumption Well-aligned images require less modelling capacity to be reconstructed well.
    Central motivation for the complexity loss C in Section 2.1 (Eq. 6-7). This is asserted, not proven, and is the basis for using the auto-encoder reconstruction error as an alignment quality signal.
  • ad hoc to paper A low-capacity auto-encoder with a positional weighting penalty is a valid differentiable proxy for rank-based complexity.
    The penalty f(z) = w^T z with w_l = l^k / sum and the constraint in Eq. (6) are introduced specifically for this method; no theoretical guarantee is given that minimising this penalty aligns images.
  • domain assumption DeSTNet can parameterise the full range of required transformations.
    Assumed from prior work [3] (self-cited); the paper does not analyse the expressiveness of the transformation space needed for the perturbations considered.
  • standard math The L1 norm as distortion measure is robust to occlusions and outliers.
    Standard in the congealing literature; used in Eq. (5).
  • domain assumption The reference image Ij is fixed and provides a non-degenerate target.
    The paper notes that using a reference avoids the shrinking effect of complexity-only losses (Section 3.2), but it does not specify how Ij is selected or prove that the optimisation cannot warp the reference itself.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Jointly Aligning Millions of Images with Deep Penalised Reconstruction Congealing." pith.science (2026). https://pith.science/paper/QDWYUV5B

@misc{pith2026190804130,
  author       = {Pith},
  title        = {Pith review of: Jointly Aligning Millions of Images with Deep Penalised Reconstruction Congealing},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/QDWYUV5B}},
  note         = {Machine review of arXiv:1908.04130}
}
read the original abstract

Extrapolating fine-grained pixel-level correspondences in a fully unsupervised manner from a large set of misaligned images can benefit several computer vision and graphics problems, e.g. co-segmentation, super-resolution, image edit propagation, structure-from-motion, and 3D reconstruction. Several joint image alignment and congealing techniques have been proposed to tackle this problem, but robustness to initialisation, ability to scale to large datasets, and alignment accuracy seem to hamper their wide applicability. To overcome these limitations, we propose an unsupervised joint alignment method leveraging a densely fused spatial transformer network to estimate the warping parameters for each image and a low-capacity auto-encoder whose reconstruction error is used as an auxiliary measure of joint alignment. Experimental results on digits from multiple versions of MNIST (i.e., original, perturbed, affNIST and infiMNIST) and faces from LFW, show that our approach is capable of aligning millions of images with high accuracy and robustness to different levels and types of perturbation. Moreover, qualitative and quantitative results suggest that the proposed method outperforms state-of-the-art approaches both in terms of alignment quality and robustness to initialisation.

Figures

Figures reproduced from arXiv: 1908.04130 by the authors.

Figure 1

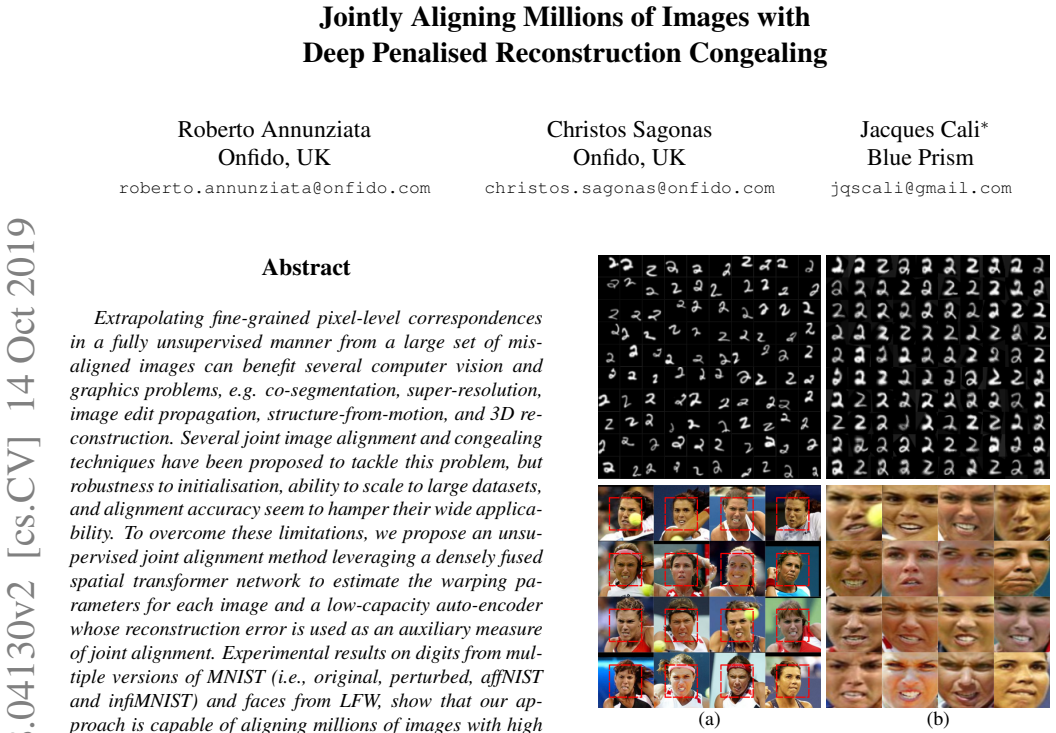

Figure 1. Unsupervised joint alignment (a.k.a. congealing) results obtained by the proposed method on digit ‘2’ from affNIST [43] and Jennifer Capriati from LFW [18]. (a) input images before alignment (initialisation in red), (b) output images aligned with the proposed method. then matching the extracted descriptors, and finally prun￾ing mismatches based on geometric constraints. Although this approach has been applied succes… view at source ↗
Figure 2

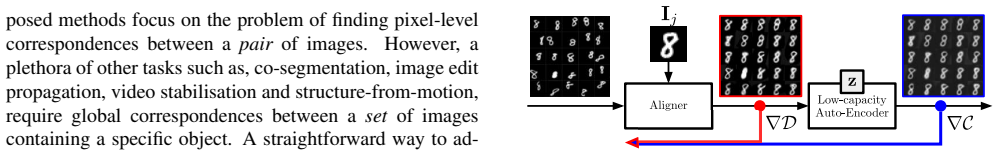

Figure 2. Block diagram of the proposed method. Black ar [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

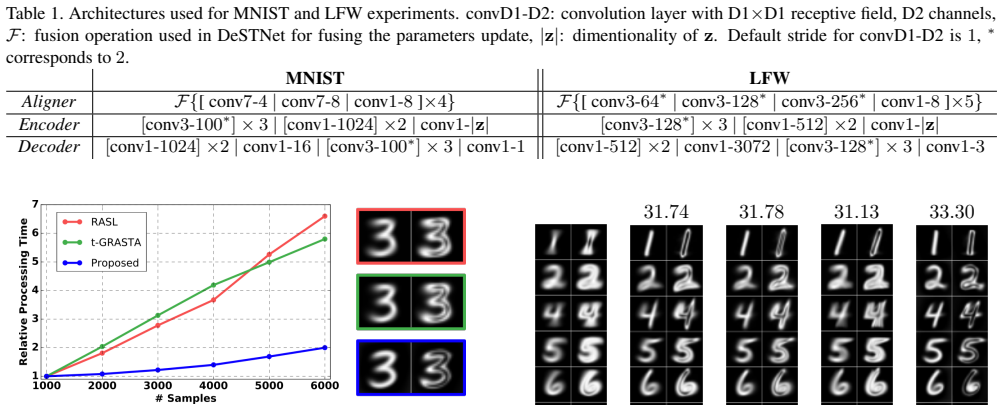

Figure 3. Relative processing time for RASL [35], t [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (4 more)
Figure 6
Figure 6. Figure 6: Ablation study: disentangling the impact of the [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]
Figure 5
Figure 5. Figure 5: Robustness of congealing methods to random perspec [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]
Figure 8
Figure 8. Figure 8: Congealing results of the proposed method on [PITH_FULL_IMAGE:figures/full_fig_p007_8.png]
Figure 10
Figure 10. Figure 10: Robustness of congealing methods to initialisation, i.e. [PITH_FULL_IMAGE:figures/full_fig_p008_10.png]
