Blockchain Tree for eHealth
T0 review · 3 major / 3 minor · reviewed 2026-08-14 · deepseek-v4-flash
Pith's one-line read This paper claims that a Blockchain Tree of three cross-linked chains makes patient records and their access logs impossible to alter or delete.
desk verdict The tree-of-subchains composition is a fresh idea, but the paper's 'impossible to change' claim is undone by its own 51% replacement rule in a permissioned network of the very insiders it is supposed to police. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The load-bearing mechanism is the cross-hash that links the three chains. In the paper's design, every block of the log subchain contains the hash of the corresponding main identity block, the hash of the newest block of the medical subchain, and the hash of the previous log block, so the chains cannot be modified independently without visible inconsistency. The design is completed by Proof of Authority consensus on a fixed list of verified network nodes, which keeps block creation cheap and transactions free, and by the standard Merkle-tree hashing used to build block hashes.
What would settle it
Deploy the proposed three-chain structure on a permissioned network of, say, nine nodes; have five of them collude to delete one access-log block and rewrite the corresponding medical and main blocks, then check whether the remaining four honest nodes detect and revert the change. If the rewritten chain is accepted as canonical, the immutability claim fails.
Extended reading notes
Core claim

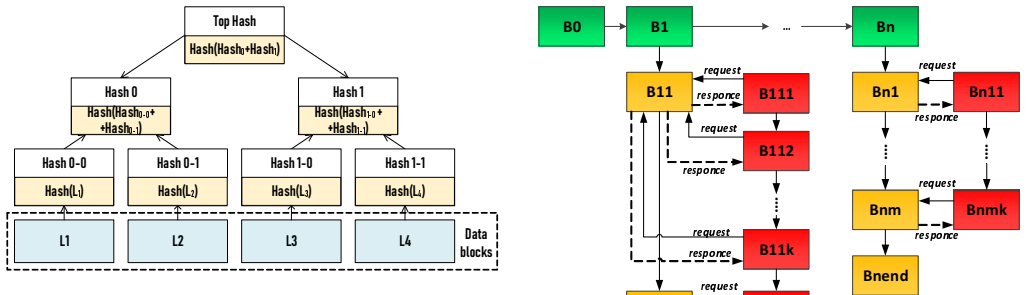

The core proposal is structural: use one block per patient in a main chain and make that block the genesis of two per-patient subchains, one for the clinical record and one for the audit log. When a medical professional writes a new diagnosis, test result, or prescription, a block is appended to the clinical subchain, and simultaneously a block is appended to the audit subchain; that audit block carries three hashes: the hash of the patient's main block, the hash of the new clinical block, and the hash of the previous audit block. The authors claim this triple cross-reference binds the three chains together so that changing or deleting any record would require rewriting several chains at once, which they argue is detectable and uneconomical. They also propose closing the clinical subchain after death or loss of citizenship while letting the audit subchain continue to record access attempts.
Load-bearing premise
The entire tamper-resistance guarantee rests on the assumption that no group of node operators controlling more than half of the approved permissioned network will collude to rewrite the chains, and those operators are the same hospital insiders the audit logs are meant to police.
Editorial extensions
If this is right
- Every successful or failed access attempt to a patient's records automatically creates a log block, yielding a non-repudiable audit trail for investigations.
- Hiding an access event or changing a diagnosis would require rewriting the log block, the linked medical block, and the patient's main block together, and getting the rewritten version confirmed by more than 51% of the verified nodes.
- Closing the medical subchain after death or loss of citizenship prevents retrospective additions of diagnoses while the audit subchain still logs all future access attempts.
- The same three-chain structure can be applied to other identity-linked documents such as ID cards, driver's licenses, diplomas, and insurance records, as the paper notes.
Reading between the lines
- The paper leaves the tamper-resistance property unproven; a natural extension is to formulate the cross-hash invariant and verify by model checking that modifying any one chain is detected unless all three linked chains are rewritten consistently.
- Because the node operators are the hospitals and medical staff being audited, the 51% threshold is effectively an assumption that insiders will not collude; adding independent external auditors as nodes would strengthen the guarantee.
- Regulatory rights such as erasure under data-protection law conflict with on-chain immutability, so a deployable system would likely store raw medical data off-chain and keep only hashes and access logs on-chain.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes a "Blockchain Tree" architecture for eHealth: a main blockchain with one block per patient serves as the anchor for two subchains, one holding medical history (diagnoses, prescriptions, test results) and one holding access logs. The authors argue that the tree structure, combined with cross-hashes among the three chains and a permissioned Proof of Authority consensus, prevents insiders from altering PHRs or access logs after the fact. The manuscript describes the intended workflow (patient onboarding, writing and reading health data), discusses edge cases such as fiscal-code changes and closing a patient's subchain, and compares the proposal with several commercial healthcare-blockchain projects. It contains no formal security model, no implementation, and no experimental evaluation; the security argument rests on informal statements about hash chaining and the consensus rule that a block must be confirmed by more than 51% of verified nodes.
Significance. If the central security claim were established, the paper would address a real and well-documented problem: insider abuse of access to healthcare records. The proposed design has some merits: it separates patient-identity data, clinical data, and audit logs into distinct chains; it uses cross-hash references to couple those chains; and it explicitly targets the insider threat, which is a sensible motivation. The paper also gives credit for adopting a permissioned model with free transactions, appropriate for healthcare deployments. However, the contribution as presented is not yet a security result. The claims that logs and PHRs are "impossible to change or delete" are asserted rather than proven, and, more seriously, the stated majority-replacement rule appears to contradict the claimed guarantee in the very permissioned setting the paper assumes. The cross-chain structure is an interesting design intuition, but no formal adversary model, no rigorous integrity argument, and no implementation evidence are supplied, so the paper currently does not meet the evidentiary bar for a security venue.
major comments (3)
- [Section II (confirmation rule) vs. Section III.A (permissioned network)] The paper's own replacement rule undermines the stated immutability guarantee. Section II says that if a change is detected in an existing block, that block is "automatically replaced by the 'right' that exists on at least 51% other nodes network." The network described in Section III.A consists of approved nodes operated by hospitals, ambulatories, and other medical organizations, and Section I identifies insiders as the primary threat. A coalition of more than 51% of these approved nodes can rewrite a block in Subchain 1, the corresponding log block in Subchain 2, and all descendant blocks, rebroadcast the rewritten tree, and the remaining nodes are instructed by the Section II rule to accept the majority version. The cross-hash tree structure forces the coalition to recompute a larger set of hashes, but this adds no cryptographic difficulty for a coalition that already controls the consensus majority. The manuscript needs either an explicit adversarial threshold with a mechanism that prevents majority collusion (for example, accountable admission and slashing), or a carefully qualified statement of what property is actually guaranteed.
- [Section III.A and Section IV] The central claims that logs and stored PHR data will be "impossible to change or delete" are absolute, but the paper provides no formal threat model or security proof. It does not define the adversary's capabilities, the precise security properties to be established (e.g., persistence, liveness, or auditability), or the cryptographic assumptions (e.g., collision resistance of the hash function, authenticity of the approved-node list). The argument that triple hash cross-referencing "significantly complicates the possibility of tampering" is a heuristic, not a security analysis. A rigorous treatment would define the hash-chain invariants connecting blocks across the three chains and prove that any modification is detected unless the adversary controls more than a stated fraction of the consensus participants. Without such a model, the paper's main contribution is not established.
- [Sections II–IV (protocol specification and evaluation)] The manuscript lacks a complete protocol specification and any implementation or measurement. There is no block format, no description of how blocks are proposed and ordered under Proof of Authority, no fork-resolution policy beyond the 51% rule, no identification of cryptographic primitives, and no analysis of communication or storage overhead. For a claim about deployability in healthcare and about deterring insider abuse, experimental validation or at least a detailed protocol-level design is necessary. The paper's own Section IV concedes that this is "only the first step" and that network delays and legal compliance are deferred, but the missing specification directly affects the credibility of the security and usability claims made earlier.
minor comments (3)
- [Section I and Section II] The acronym POA is used inconsistently: Section I introduces "Proof of Authority (POA)," while Section II lists "Proof of Activity (POA)" among consensus algorithms. Please disambiguate these as distinct mechanisms and avoid reusing the abbreviation.
- [Section II and Section III] The threshold wording is inconsistent: "more than 51%" and "at least 51%" are used interchangeably. The exact quorum condition should be stated precisely and used consistently.
- [Throughout] There are several typographical and wording errors, including "Blokchein" in Section I-A, "Sabchain 1 Closing" in the numbered workflow, and "tamping" instead of "tampering" near the end of Section III.A. These should be corrected.
Circularity Check
No circular derivation: the security claims rest on standard blockchain properties, not on fitted inputs or self-citations.
full rationale
This is a design and proposal paper, not a derivation with fitted parameters or predicted quantities. The central claim that access logs and PHR data cannot be changed or deleted is justified by invoking standard blockchain properties: hash-linked blocks, the Merkle-tree construction, the 51% confirmation and replacement rule in Section II, and the private permissioned blockchain assumption in Section III. None of these steps is defined in terms of the conclusion, and no quantity is fitted to data and then renamed as a prediction. The paper's own caveat that the work is 'only the first step' and that real-network issues and legal compliance are left for future work is an admitted assumption gap, not a circular reduction. The self-citations are background references on blockchain applications and do not carry the load-bearing security argument. There is therefore no circularity in the claimed derivation chain.
Assumptions & free parameters
assumptions (3)
- domain assumption Blockchain immutability holds when no party controls more than 51% of block creation.
- domain assumption The permissioned network nodes are approved and verified, and all nodes store the complete blockchain.
- domain assumption GDPR compliance is achievable despite immutable records.
Cite this review
Pith. "Pith review of Blockchain Tree for eHealth." pith.science (2026). https://pith.science/paper/62PXF632
@misc{pith2026190804613,
author = {Pith},
title = {Pith review of: Blockchain Tree for eHealth},
year = {2026},
howpublished = {\url{https://pith.science/paper/62PXF632}},
note = {Machine review of arXiv:1908.04613}
}
read the original abstract
The design of access control mechanisms for healthcare systems is challenging: it must strike the right balance between permissions and restrictions. In this work, we propose a novel approach that is based on the Blockchain technology for storage patient medical data and create an audit logging system able to protect health data from unauthorized modification and access. The proposed method consists of a tree structure: a main chain linked with the patient's identity and one or several Subchains which are used for storing additional critical data (e.g., medical diagnoses or access logs).
