Topological numbers of Happer model with "puzzling" degeneracy in periodic magnetic field

Li-Wei Yu; Yifei Liu; Yingkai Liu

REVIEW 3 major objections 3 minor 35 references

Topological numbers of Happer model with "puzzling" degeneracy in periodic magnetic field

T0 review · 3 major / 3 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read In the Happer model, each band's Chern number is the negative of its conserved total angular momentum projection, and the 2L+1-fold degeneracy carries a unit topological charge for every nuclear spin L.

desk verdict The L=1,2 Chern-number results are solid, but the all-L universal claim and the semimetal analogy outrun the evidence. read the letter →

arxiv 1908.04726 v2 pith:CNDJIGHJ submitted 2019-08-13 quant-ph cond-mat.str-el

Yingkai Liu , Yifei Liu , Li-Wei Yu This is my paper · ORCID

classification quant-phcond-mat.str-el

keywords HappermodelChernnumberWilczek-Zeecurvatureperiodicmagneticfielddegeneracytotalangularmomentumtopologicalsemimetalspin-axisinteraction

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper aims to show that the long-known 'puzzling' degeneracy of the Happer model—a spin-1 electron dimer coupled to a nuclear spin $L$—carries a topological meaning once the electron spin is placed in a magnetic field whose direction is periodically varied over a sphere. It claims that each non-degenerate energy level's Chern number equals the negative of its conserved total angular momentum projection, $J_{\hat n_B} = \hat n_B\cdot(S+L)$, so band topology is fixed by total angular momentum rather than by the electron spin alone. At the critical coupling $x=2/(2L+1)$ where $2L+1$ levels cross, the Wilczek-Zee Chern number of the degenerate subspace equals the sum of the individual level Chern numbers and, the paper claims, is always $1$ regardless of $L$. The authors further show that the spin-axis interaction lifts the degeneracy into anti-crossings and changes Chern numbers, and they compare the projected model in momentum space with a topological semimetal, identifying a 'Weyl sphere' degeneracy and a 'magnetostatic shielding'-like flux behavior. If correct, the results convert an old molecular degeneracy problem into a statement about topological charges in parameter space, and they tie the degeneracy's exceptional value of $x$ to a unit charge.

What carries the argument

The central object is the conserved total angular momentum projection $J_{\hat n_B} = \hat n_B\cdot(S+L)$, which commutes with the unperturbed Happer Hamiltonian; the paper's central claim is that the Chern number of each non-degenerate band is exactly its negative. For the degenerate subspaces the machinery is the Wilczek-Zee connection, a matrix-valued generalization of the Berry connection, whose curvature is traced and integrated over the $(\theta,\varphi)$ parameter sphere to produce the degenerate subspace Chern number. In the momentum-space comparison, the machinery is the substitution $\hat n_B/x \to \mathbf{k}$, which converts the projected Happer Hamiltonian into a $\mathbf{k}$-dependent model and turns the crossing point into a critical sphere at $|\mathbf{k}| = 3/2$, a 'Weyl sphere' replacing the usual Weyl point.

What would settle it

Compute the Wilczek-Zee Chern number of the $2L+1$-fold degenerate subspace at $x=2/(2L+1)$ for $L=3$ on a sufficiently fine $(\theta,\varphi)$ grid: the paper's claim predicts exactly $1$, so any stable deviation falsifies the general-$L$ statement; independently, checking $\mathrm{Ch} = -J_{\hat n_B}$ level by level for non-degenerate $L=3$ bands would test the conservation-topology identity beyond the two cases reported.

Watch

Extended reading notes

Core claim

On the paper's own terms, the central claim is a conservation-topology tie: for $H = \hat n_B\cdot S + x\, S\cdot L$ with $S=1$ and $L=1$ or $L=2$, every non-degenerate eigenstate satisfies $\mathrm{Ch} = -J_{\hat n_B}$, where $J_{\hat n_B}$ is the eigenvalue of the conserved operator $\hat n_B \cdot (S+L)$. At the degeneracy point $x=2/(2L+1)$, the non-Abelian Wilczek-Zee curvature integrated over the $(\theta,\varphi)$ sphere gives $\mathrm{Ch}_{\rm deg} = 1$, equal to the sum of the Chern numbers of the crossing levels (2+0−1 for $L=1$; 3−2−1−0+1 for $L=2$); the paper states this unit value holds for all $L$. With a non-zero spin-axis coupling the conserved value is destroyed except when the field and internuclear axis are parallel or anti-parallel, and the level crossings become anti-crossings in which individual Chern numbers change across the gap, attributed to Landau-Zener transitions. In the projected subspace, changing variables from field direction to a momentum vector yields a degeneracy sphere at $|\mathbf{k}|=3/2$; the lowest band's Chern number jumps there, which the paper calls a 'Weyl sphere' with 'magnetostatic shielding' in momentum space.

Load-bearing premise

The load-bearing premise is that the substitution $\hat n_B/x \to \mathbf{k}$ turns the projected Happer Hamiltonian into a genuine momentum-space model, a step whose physical basis the paper itself concedes is missing (footnote 21); without it the Weyl-sphere and magnetostatic-shielding conclusions would not follow, though the $L=1,2$ Chern-number results in Sec. II would stand.

Editorial extensions

If this is right

Every non-degenerate band's Chern number is fixed by the conserved total angular momentum projection $J_{\hat n_B}$ alone, so the Happer model's band topology is independent of the electron spin's own orientation.
At the degeneracy point $x=2/(2L+1)$, the degenerate subspace carries a Wilczek-Zee Chern number equal to the sum of the crossing levels' Chern numbers, which the paper states is $1$ for every $L$; the puzzling degeneracy therefore acts as a unit topological charge in parameter space.
Turning on the spin-axis term breaks the conservation law for generic field directions, converts the crossings into anti-crossings, and changes the Chern numbers of nearby levels in the way expected from Landau-Zener transitions.
In the projected momentum-space picture the degeneracy is a sphere rather than a point, so the lowest band's Chern number changes across the 'Weyl sphere' at $|\mathbf{k}|=3/2$, making the model a semimetal analogue with a critical surface instead of a critical point.
Unlike the usual higher-spin semimetal where Chern numbers over all bands sum to zero, the projected Happer model has the sum of the $2L+1$ band Chern numbers equal to $1$.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

Beyond the paper: the claimed $L$-independence of the degenerate Chern number is immediately testable at $L=3$ or $L=4$, so a short numerical computation would settle whether the unit monopole is universal or an accident of $L=1,2$.
Beyond the paper: the 'magnetostatic shielding' analogy suggests that, if a physical momentum-space realization were found, the projected Happer model would describe a nodal-surface (spherical) semimetal in a synthetic dimension, with a quantized flux through any enclosing surface.
Beyond the paper: the role of $x$ as a control parameter that switches Chern numbers hints that tuning the ratio of the electron-nuclear spin coupling to external field strength in cold-molecule settings could drive topological transitions, though the paper does not address dynamics or many-body effects.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

Colleague,

The one thing to know: the L=1,2 Chern-number calculations are credible and the connection to the conserved J_nB is a genuine observation, but the paper's headline generalization to all L is asserted rather than shown, and the momentum-space 'Weyl sphere' comparison is explicitly under-motivated. Treat the core numbers as reliable; treat the universal claims with caution.

What's new: this is the first topological characterization of the Happer model under a rotating field. Equation (8) — Chern number equals minus the conserved J_nB eigenvalue — is cleanly demonstrated for L=1 and L=2 with exact diagonalization, and the degenerate-subspace Wilczek-Zee numbers summing to 1 for the 3- and 5-fold degenerate points are consistent. Appendix C gives explicit analytic eigenstates for the degenerate subspaces, which is the kind of reproducible detail that makes the L=1,2 results checkable. The observation that the magnetic field couples only to S while the topology tracks S+L is the paper's best point.

Soft spots, in increasing order.

First, the universal claim — Ch_deg = 1 for all L — has no proof in the manuscript. The text says 'from the calculations of eigenstates for general L, we deduce...' but no general-L calculation is shown, and the Sec. IV reference to the exact solution [14] does not cover topology; [14] is about Yangian symmetry and contains no Chern-number argument. The missing step is a sum rule over the degenerate subspace: the sum of J_nB eigenvalues over the 2L+1 crossing states must equal -1. That is an algebraic statement that might be provable from the known spectrum, but it is not proven here. As it stands, the universal result rests on L=1,2 numerics and a citation that cannot support it.

Second, the normalization convention is never discussed. Under the paper's 1/(4π) formula, half-integer L would give half-integer Chern numbers — e.g., for L=3/2 in Fig. 1c. The paper compares to topological semimetals, where the band Chern numbers are integers, but never addresses how the half-integer case fits the integer picture. This needs at least a remark, if not a dedicated treatment.

Third, the 'Weyl sphere' and 'magnetostatic shielding' analogy in Sec. IV is speculative. The authors openly admit in footnote 21 that there is no physical interpretation of the momentum-space basis in the projected subspace. That is honest but means the semimetal comparison is an analogy, not a result. It can stay in a revised version if clearly labeled as heuristic.

The L=1,2 findings deserve peer review; the paper should be refereed, not desk-rejected. A referee should push for a proof or a clearer derivation of the general-L sum rule, a statement about half-integer L, and a downgrading of the Sec. IV claims. If that happens, the core becomes a useful addition to the small literature on topology in spin models with conserved total angular momentum.

For my own work, I wouldn't cite it in the next year, but I'd send it to a colleague working on spin-model topology.

Referee Report

3 major / 3 minor

Summary. The manuscript studies the topological properties of the Happer model H = nB·S + xS·L under a periodic magnetic-field direction nB(θ,φ), with and without the spin-axis perturbation yS·(3âa−1)·S. For L=1 and L=2 the authors compute Berry phases and Chern numbers of the non-degenerate levels and report Ch = −J_nB, where J_nB = nB·(S+L) is the conserved total-angular-momentum projection (Eq. (8), Figs. 3 and 7). At the degenerate point x = 2/(2L+1), they compute the Wilczek-Zee Chern number of the degenerate subspace and find Ch_deg = 1 for L=1 and L=2 (Eqs. (15) and (19)), claiming this value is independent of L. They then study the removal of degeneracy by the spin-axis perturbation and finally replace nB/x by a momentum vector k, comparing the projected model with a spin-1 topological semimetal and introducing a 'Weyl sphere' and a 'magnetostatic shielding' analogy.

Significance. If the universal claims hold, the paper gives a clean and surprising result: the topology of every level of the driven Happer model is fixed by the total angular momentum quantum number J_nB, and the puzzling 2L+1-fold degeneracy carries topological charge 1 for all L. The L=1 and L=2 sections are the strongest part: the Chern numbers are computed directly from the Hamiltonian with no fitted parameters, the conservation-law relation is simple and convincing, and the explicit degenerate eigenstates in Appendix C are a useful check that can be reproduced independently. The general-L statement and the momentum-space interpretation in Sec. IV are, however, not supported at the same standard, and they are exactly the claims that appear in the abstract and conclusion.

major comments (3)

[II.B.2 and Sec. IV] The universal statement Ch_deg = 1 for all L is load-bearing but unsupported. Sec. II.B.2 says 'from the calculations of eigenstates for general L, we deduce that the Chern number at the degenerate point is always 1' without showing any general-L calculation, and Sec. IV says the sum rule 'can be checked from the exact solution of the Happer model [14]'. However, reference [14] is a Yangian-symmetry paper that predates and does not contain any topological-invariant argument. The missing step is an algebraic sum rule: at x = 2/(2L+1), the trace of J_nB over the 2L+1-dimensional degenerate eigenspace must equal −1, so that the sum of the individual level Chern numbers is 1. This rule is neither stated nor proved, and without it the claimed L-independence goes beyond the L=1,2 numerics.
[Sec. IV, Eq. (23)] The identification of the parameter nB/x with momentum k is a relabeling of the two-sphere, not a construction of a physical momentum-space Hamiltonian. Footnote 21 concedes that the basis has no physical interpretation in momentum space, especially for the projected subspace. Consequently, the 'Weyl sphere' at |k| = 3/2, the statement that the lowest-band Chern number jumps across it, and the 'magnetostatic shielding' analogy are analogies between parameter-space topology and semimetal physics rather than established momentum-space phenomena. The authors should either supply a genuine momentum-space realization with a valid physical basis or explicitly restrict Sec. IV to a mathematical analogy; as written, the abstract and conclusion present the momentum-space comparison as a result.
[Sec. II, Eq. (8)] Equation (8) would give half-integer values for half-integer L, since J_nB eigenvalues are half-integers, while the Chern number defined in Eq. (6) is normally an integer. The paper itself displays L = 3/2 in Fig. 1(c) and claims the result holds 'in spite of the L values', but no normalization or separate treatment is given for half-integer total angular momentum. If the Happer model is intended only for integer nuclear spin, this restriction should be stated; otherwise the half-integer case needs a quantitative discussion.

minor comments (3)

[Sec. II.B.1] In the L=2 subsection, the sentence about Berry phases 'at x ≠ 2/3' should read x ≠ 2/5 for consistency with the degeneracy point of L=2.
[Throughout] There are several typographical errors that should be corrected: 'resent years', 'Wilzeck-Zee', 'calcualtions', and reference [6] with 'V olovik'.
[Appendix B] The discretized connection in Eq. (B1) appears to omit the lattice-spacing factors 1/Δθ and 1/Δφ; the authors should clarify how A^{kl} in Eq. (B1) is related dimensionally to the continuum connection A^{kl}_λ in Eq. (7), since Eqs. (B2) and (B3) combine these objects.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: the L=1,2 Chern numbers are direct numerical outputs of the Hamiltonian; the universal-L claim is an unsupported extrapolation, not a self-referential reduction.

full rationale

The paper's demonstrated central results are obtained by numerically integrating Berry and Wilczek-Zee curvatures over the (theta, phi) parameter sphere for the explicit Hamiltonian in Eq. (3) (L=1) and its L=2 analogue, with no fitted parameters and no prediction that is renamed from an input. The identity Ch = -J_nB (Eqs. 8 and 17) is verified independently for every non-degenerate level against the conserved total-angular-momentum quantum number; although it is consistent with the spin-monopole structure of the conserved quantity, the paper does not define the Chern number in terms of J_nB, and the verification is not a fit. The degenerate-point equalities Ch_deg = sum Ch_n (Eqs. 15 and 19) are likewise computed from the Hamiltonian. The only fragile step, namely the assertion that Ch_deg = 1 for all L (Sec. II.B.2) and the related sum-rule statement justified by citation [14] in Sec. IV, is an unproved generalization rather than a circular one: [14] is not used as if it established the Chern number from this paper's own definition, and no equation of this paper reduces the target claim to its inputs. The footnote-21 caveat about the momentum-space interpretation is a stated limitation, not a disguised circularity. Thus no circular step is present; the unsupported general-L claim is a correctness and completeness concern, not a circularity concern.

Assumptions & free parameters 0 free parameters · 5 assumptions · 2 invented entities

The paper adds no free parameters or invented physical forces. The topological numbers are computed directly from the given Hamiltonian. The only invented constructs are interpretive geometric analogies (Weyl sphere, magnetostatic shielding) with no independent evidence.

assumptions (5)

standard math Berry phase and Chern number formalism, including the Wilczek-Zee non-abelian generalization for degenerate subspaces
Used throughout Sec. II to define and compute the topological numbers (Eqs. 5-14).
domain assumption The Happer Hamiltonian (Eq. 1) and the rotating-field coupling nB·S (Eq. 2) are the physical starting point, with the 2L+1-fold degeneracy at x=2/(2L+1) taken as established by prior work (refs [12, 14, 15, 16])
The paper does not re-derive the degeneracy or the model's validity from the Rb dimer context; it builds on them.
ad hoc to paper The substitution nB/x -> k in Sec. IV converts the parameter-space Hamiltonian into a momentum-space Hamiltonian H'p
Footnote 21 admits the projected basis has no physical momentum-space interpretation; the Weyl-sphere comparison depends entirely on this substitution.
ad hoc to paper The degenerate-state basis in Appendix C is smooth on the sphere after orthogonalization and normalization
The explicit expressions contain factors like csc(θ) diverging at θ=0,π; smoothness is asserted but not proved.
ad hoc to paper The general-L result Ch_deg=1 follows from the exact solution of the Happer model in ref [14]
The paper cites [14] for the general-L sum rule rather than presenting a derivation, so the generality claim is borrowed.

invented entities (2)

Weyl sphere S2 at radius |k|=3/2
purpose: Locus of the threefold degeneracy of the projected Happer model in the substituted momentum space; acts as a critical surface where the lowest-band Chern number jumps.
It is an interpretation of parameter-space geometry after the ad hoc k-substitution; no independent experimental or observable signature is given.
Magnetostatic shielding-like phenomenon
purpose: Analogizes the vanishing of the total Chern number inside the Weyl sphere to electrostatic shielding of a point charge.
A conceptual analogy used to describe the model's band structure; it introduces no new measurable entity.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Topological numbers of Happer model with "puzzling" degeneracy in periodic magnetic field." pith.science (2026). https://pith.science/paper/CNDJIGHJ

@misc{pith2026190804726,
  author       = {Pith},
  title        = {Pith review of: Topological numbers of Happer model with "puzzling" degeneracy in periodic magnetic field},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/CNDJIGHJ}},
  note         = {Machine review of arXiv:1908.04726}
}

abstract

The Happer model, as the variation of Rabi-Breit model, describes the interactions between the total nuclear spin and the total electron spin-1 of the triplet dimer molecules of ${}^{87}\text{Rb}$. One interesting physical consequence of the Happer model is its puzzling degeneracy. In this paper, under the periodic driven magnetic field on total electron spin, the topological properties of the Happer model are present. Specifically, we calculate the Chern number of the system, both for the non-degenerate and degenerate cases. We show that the Chern number is closely related to the total angular momentum of the system, instead of the electron spin. Furthermore, the perturbing spin-axis interaction term is also introduced for detecting the influence on the corresponding topological Chern number. At last, in momentum space, we compare the Happer model with the topological semimetal in the sense of topological numbers. In such model, a "magnetostatic shielding" --like phenomena occurs.

Figures

Figures reproduced from arXiv: 1908.04726 by the authors.

**Figure 1.** Energy levels of the Happer model(y = 0) for different L. Later we will label the energy levels by n from low to high at x > 2 2l+1 . on the level is proportional to the total angular momentum quantum number n · (S + L), instead of the electron spin operator n · S. We then obtain the Chern number for (2L+1)- fold degenerate levels at x = 2 2L+1 by defining the WilczekZee curvature[18] and making integration over t… view at source ↗

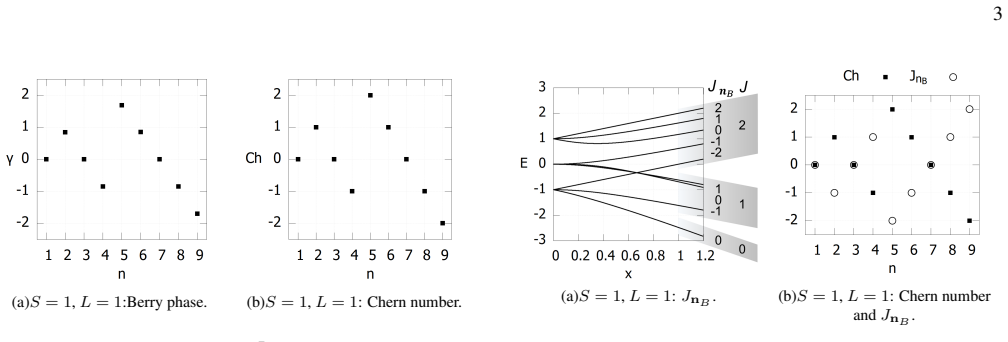

**Figure 2.** Berry phase of the loop (θ = π 6 , ϕ = ωt) and Chern number at x 6= 2 3 . each non-degenerate eigenstate |ψii (i=1,2,6,7,8,9), the Berry phase γ (i) and Chern number Ch(i) are defined as follows γ (i) = I ` A (i) λ dλ, (5) Ch(i) = 1 4π Z M F (i) θϕ d θ ∧ d ϕ, (6) where F (i) θϕ = (∂θA (i) ϕ − ∂ϕA (i) θ ), A (i) λ = ihψi |∂λ|ψii, (λ ∈ {θ, ϕ}) (7) represents the Berry curvature and connection of the evolving system u… view at source ↗

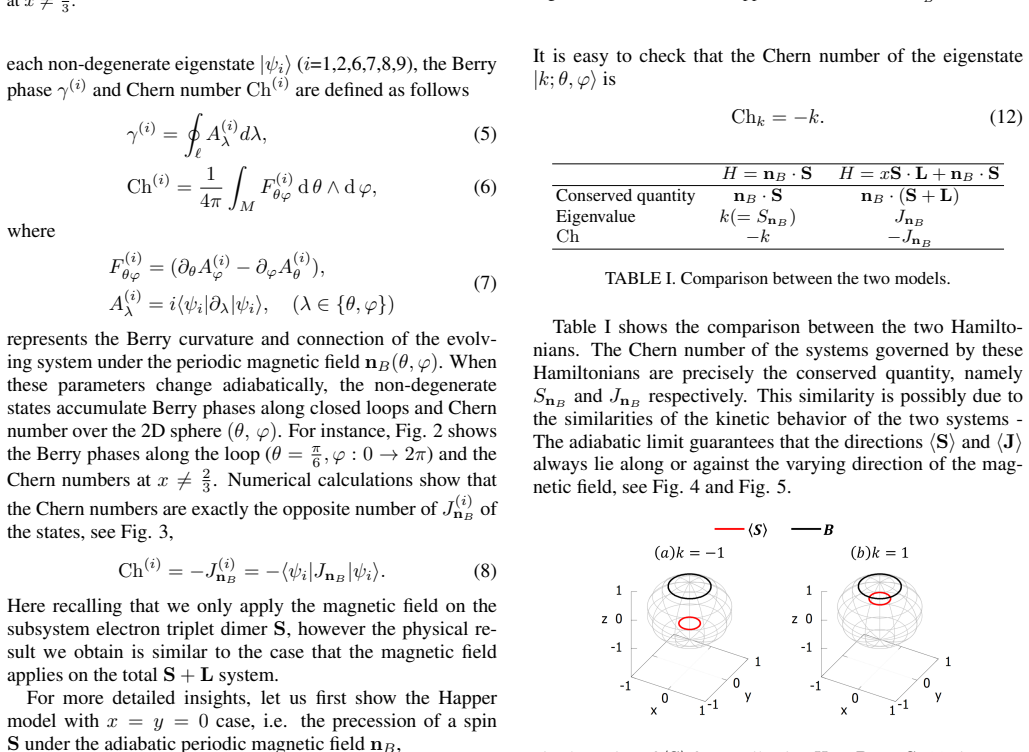

**Figure 4.** Motion of hSi for Hamiltonian H = BnB · S. (a) eigenstate k = −1; (b) eigenstate k = 1. In analogy to the case of H = nB · S, the absolute value of Berry phase is the oriented solid angle spanned by the corresponding trajectory of hJi. 2. Degenerate states The three energy levels n = 3, 4, 5 cross and form a 3- fold degeneracy at the value x = 2 3 , L = 1. Here we deal [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗

Figures from the paper (8 more)

**Figure 5.** Figure 5: Motion of hSi and hLi for Hamiltonian H = xS·L+nB ·S. with these three energy levels. When x 6= 2 3 , the three states are non-degenerate and only accumulate Berry phases, similar to the previous subsection. The interesting phenomena occurs at the degenerate point x =…

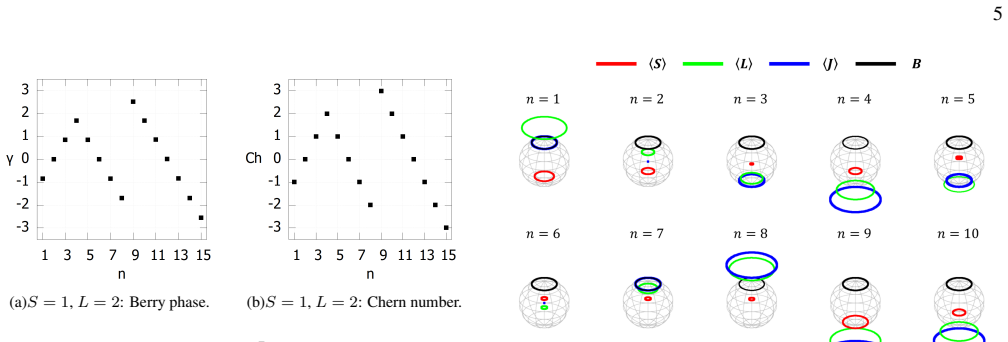

**Figure 6.** Figure 6: Berry phase of the loop (θ = π 6 , ϕ = ωt) and Chern number at x 6= 2 5 . (a)S = 1, L = 2: JnB . (b)S = 1, L = 2: Chern number and JnB [PITH_FULL_IMAGE:figures/full_fig_p005_6.png]

**Figure 8.** Figure 8: Motion of hSi and hLi for Hamiltonian H = xS·L+nB ·S. By numerical calculations of integrating Wilczek-Zee curvature over the space (θ, ϕ), the Chern number Chdeg = 1 at x = 2 5 . Similar to the L = 1 case, it shows that for degenerate states n = 5, 6, 7, 8, 9 the Che…

**Figure 10.** Figure 10: Chern numbers of different energy levels for spin-axis per [PITH_FULL_IMAGE:figures/full_fig_p006_10.png]

**Figure 9.** Figure 9: When y=0, the Hamiltonian has a 2L + 1 fold degeneracy. When y 6= 0, the crossing turns into the anti-crossing. Without loss of generality, here we mainly focus on L = 1. In the case of L = 1 with the spin-axis interaction for nˆB 6= ±aˆ, numerical calculations show th…

**Figure 12.** Figure 12: When y=0, the Hamiltonian has a 2L + 1 fold degeneracy. When y 6= 0, the crossing turns into anti-crossing. IV. COMPARISON WITH THE TOPOLOGICAL SEMIMETAL MODEL In the simplest topological semimetal model, the Hamiltonian near the degenerate point in momentum space ta…

**Figure 13.** Figure 13: Chern numbers of different energy levels for spin-axis per [PITH_FULL_IMAGE:figures/full_fig_p007_13.png]

**Figure 14.** Figure 14: Grid of the parameter space. In (a), we divide the [PITH_FULL_IMAGE:figures/full_fig_p010_14.png]

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

35 extracted references · 29 canonical work pages

[14]

J. E. Moore, Nature 464, 194 (2010)

2010
[1]

For 3 (a)S = 1, L = 1:Berry phase

Non-degenerate states Here for completeness, we ﬁrst present the topologi- cal Chern numbers of the six non-degenerate levels. For 3 (a)S = 1, L = 1:Berry phase. (b)S = 1, L = 1: Chern number. Fig. 2. Berry phase of the loop (θ = π 6,ϕ =ωt) and Chern number atx⁄= 2 3 . each non-degenerate eigenstate|ψi⟩ (i=1,2,6,7,8,9), the Berry phaseγ(i) and Chern numbe...

work page
[2]

phase transition

Degenerate states The three energy levels n = 3, 4, 5 cross and form a 3- fold degeneracy at the value x = 2 3, L = 1 . Here we deal 4 Fig. 5. Motion of⟨S⟩ and⟨L⟩ for HamiltonianH =xS· L+ nB· S. with these three energy levels. When x⁄= 2 3, the three states are non-degenerate and only accumulate Berry phases, sim- ilar to the previous subsection. The inte...

work page
[3]

3, Ch(i) =−J(i) nB =−⟨ψi|JnB|ψi⟩

Numerical calculations show that the Chern numbers are exactly the opposite number ofJ(i) nB of the states, see Fig. 3, Ch(i) =−J(i) nB =−⟨ψi|JnB|ψi⟩. (8) Here recalling that we only apply the magnetic ﬁeld on the subsystem electron triplet dimer S, however the physical re- sult we obtain is similar to the case that the magnetic ﬁeld applies on the total ...

work page
[4]

M. Z. Hasan and C. L. Kane, Rev. Mod. Phys. 82, 3045 (2010)

2010
[5]

The states labeled by n = 1, 2, 3, 4, 10, 11, 12, 13, 14, 15 are non-degenerate states, while the other statesn = 5, 6, 7, 8, 9 have degenerate energy level atx = 2 5

The states are numbered according to their energy from low to high atx→∞ byn. The states labeled by n = 1, 2, 3, 4, 10, 11, 12, 13, 14, 15 are non-degenerate states, while the other statesn = 5, 6, 7, 8, 9 have degenerate energy level atx = 2 5

work page
[6]

7(a) shows the energy levels of our model for L = 2

Non-degenerate states Fig. 7(a) shows the energy levels of our model for L = 2. Here we focus on the ten energy levels without level cross- ing. The Hamiltonian is parametrized by the direction of the magnetic ﬁeld, namely θ andφ in nB. When these parame- ters change adiabatically, non-degenerate states will accumu- late Berry phases as well as Chern numb...

work page
[7]

Degenerate states The states n = 5, 6, 7, 8, 9 forms ﬁve-fold degeneracy at x = 2

work page

Show all 35 references

[8]

Here we discuss the topological behavior of the ﬁve states for both x⁄= 2 5 andx = 2
[9]

when the parameter x⁄= 2 5, each state holds U(1) gauged Berry curvature in periodic (θ,ϕ )-space, and the Chern number is connected to the JnB eigenvalue. When the parameterx approaches the degenerate pointx = 2 5 either from the left or from right, the degenerate states form...
[10]

Weyl point

Similar to theL = 1 case, it shows that for degenerate statesn = 5, 6, 7, 8, 9 the Chern number Chdeg at the degen- erate pointx = 2 5 is exactly the sum of the Chern numbers of these states at non-degeneratex values, i.e. Chdeg ( x = 2 5 ) = 9∑ n=5 Chn ( x⁄= 2 5 ) = 3−2−1−0+1...
[11]

Weyl sphere

In the modelH′ p, when|⃗k| =√ k2x +k2y +k2z = 1/x > 3 2, the lowest energy band Chern number is 2, while for|⃗k| = √ k2x +k2y +k2z = 1/x< 3 2, the Chern number is 0. Hence the “Weyl sphere” in H′ p acts as 8 the role of critical sphere describing the jump between Chern numbers...
[12]

Zhu, Phys

S.-L. Zhu, Phys. Rev. Lett. 96, 077206 (2006)

2006
[13]

M. M. Wolf, G. Ortiz, F. Verstraete, and J. I. Cirac, Phys. Rev. Lett. 97, 110403 (2006)

2006
[15]

Qi and S.-C

X.-L. Qi and S.-C. Zhang, Rev. Mod. Phys. 83, 1057 (2011)

2011
[16]

G. E. V olovik, The universe in a helium droplet , V ol. 117 (Ox- ford University Press, 2003)

2003
[17]

Armitage, E

N. Armitage, E. Mele, and A. Vishwanath, Rev. Mod. Phys.90, 015001 (2018)

2018
[18]

Bradlyn, J

B. Bradlyn, J. Cano, Z. Wang, M. Vergniory, C. Felser, R. J. Cava, and B. A. Bernevig, Science 353, aaf5037 (2016)

2016
[19]

Z. Zhu, G. W. Winkler, Q. Wu, J. Li, and A. A. Soluyanov, Phys. Rev. X 6, 031003 (2016)

2016
[20]

Lv, Z.-L

B. Lv, Z.-L. Feng, Q.-N. Xu, X. Gao, J.-Z. Ma, L.-Y . Kong, P. Richard, Y .-B. Huang, V . Strocov, C. Fang, et al. , Nature 546, 627 (2017)

2017
[21]

H. Hu, J. Hou, F. Zhang, and C. Zhang, Phys. Rev. Lett. 120, 240401 (2018)

2018
[22]

Erickson, D

C. Erickson, D. Levron, W. Happer, S. Kadlecek, B. Chann, L. Anderson, and T. Walker, Phys. Rev. Lett. 85, 4237 (2000)

2000
[23]

Breit and I

G. Breit and I. Rabi, Phys. Rev. 38, 2082 (1931)

1931
[24]

Bai, M.-L

C.-M. Bai, M.-L. Ge, and K. Xue, in Lattice Statistics and Mathematical Physics (2002) pp. 15–21, arXiv:cond- mat/0105610 [cond-mat]

2002
[25]

E. A. Yuzbashyan, W. Happer, B. L. Altshuler, and S. B. Shas- try, J. Phys. A: Math. Gen. 36, 2577 (2003)

2003
[26]

S. S. Gubser, R. K. Bradley, et al., Adv. Theor. Math. Phys. 9, 593 (2005)

2005
[27]

M. V . Berry, Proc. Roy. Soc. London. A. Math. Phys. Sci.392, 45 (1984)

1984
[28]

Wilczek and A

F. Wilczek and A. Zee, Phys. Rev. Lett. 52, 2111 (1984)

1984
[29]

L. D. Landau, Phys. Z. Sowjetunion 2, 19 (1932)

1932
[30]

Zener, Proc

C. Zener, Proc. Roy. Soc. London. A. Math. Phys. Sci.137, 696 (1932)

1932
[31]

In topological semimetal, the bases are usually{a† k, ak}, where a† k(ak) rep- resents the fermionic operator in momentum space

Here we only compare the topological numbers of the Hap- per model and the topological semimetal model. In topological semimetal, the bases are usually{a† k, ak}, where a† k(ak) rep- resents the fermionic operator in momentum space. However in the Happer model, we are not able...
[32]

sec5(θ 2) 625ei5ϕ 8 √ 6 csc2(θ)(−6 csc2(θ)+6 cot(θ) csc(θ)+5) 125ei4ϕ − (5 cos(θ)+1) csc(θ
[33]

sec3(θ 2) 25ei3ϕ −2 csc2(θ)+2 cot(θ) csc(θ)+5 5ei2ϕ − 384 √ 2(cos(θ)−1) csc5(θ) 625ei5ϕ 96 √ 2(cos(θ)−1) csc4(θ) 125ei4ϕ − 16 √ 3(cos(θ)−1) csc3(θ) 25ei3ϕ 4 √ 2(cos(θ)−1) csc2(θ) 5ei2ϕ√ 2e−iϕ tan (θ 2 ) 0 0 0 0 −1   , (C7) ψdeg2 =  ...
[34]

sec5(θ 2) 625ei5ϕ − 24(3−5 cos(θ))2 csc4(θ) 625ei4ϕ√ 6(−40 cos(θ)+25 cos(2θ)+31) csc3(θ) 125ei3ϕ −22 csc2(θ)+10 cot(θ) csc(θ)+25 25ei2ϕ 4 5 csc(θ)e−iϕ 96 √ 2(5 cos(θ)−3) csc4(θ) 625ei4ϕ − 24 √ 2(5 cos(θ)−3) csc3(θ) 125ei3ϕ 4 √ 3(5 cos(θ)−3) csc2(θ) 25ei2ϕ − 1 5 √ 2(5 cos(θ)− 3...
[35]

(C11) These are the bases in the 5-dimension degenerate state space and they are smooth in the parameter space

sec3(θ 2) 25ei3ϕ −22 csc2(θ)+10 cot(θ) csc(θ)+25 25ei2ϕ 2 5 √ 6 csc(θ)e−iϕ 0 0 4 √ 2(5 cos(θ)+1) csc2(θ) 25ei2ϕ − 1 5 √ 2(5 cos(θ) + 1) csc(θ)e−iϕ 0 0 0 0 −1 0 0 0   , (C10) ψdeg5 =   −2 csc2(θ)+2 cot(θ) csc(θ)+5 5ei2ϕ 4 5 cs...
