Exploring Solar-Terrestrial Interactions via Multiple Observers (A White Paper for the Voyage 2050 long-term plan in the ESA Science Programme)

T0 review · 3 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read The paper proposes that a two-spacecraft mission using tomographic imaging can close the question of how solar wind energy flows through Earth's magnetosphere, be converted, and be distributed through geospace.

desk verdict A credible two-spacecraft mission concept whose core tomographic feasibility claim is asserted rather than demonstrated; the paper is a strong programmatic pitch but not a technical proof. read the letter →

arxiv 1908.04730 v1 pith:ETM7GNSD submitted 2019-08-13 physics.space-ph

G. Branduardi-Raymont , M. Berthomier , Y. Bogdanova , J. C. Carter , M. Collier , A. Dimmock , M. Dunlop , R. Fear
show 19 more authors
C. Forsyth B. Hubert E. Kronberg K. M. Laundal M. Lester S. Milan K. Oksavik N. {O}stgaard M. Palmroth F. Plaschke F. S. Porter I. J. Rae A. Read A. Samsonov S. Sembay Y. Shprits D. G. Sibeck B. Walsh M. Yamauchi
This is my paper · ORCID
classification physics.space-ph
keywords solar-terrestrialinteractionsmagnetosphericimagingspaceweathertomographicreconstructionenergeticneutralatomssoftX-rayauroralconjugacyplasmasphere
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This white paper argues that the next step in understanding solar-terrestrial interactions is not another single global imager but two spacecraft that see the magnetosphere from two directions at once. From two vantage points, line-of-sight images of the magnetopause, cusps, auroral ovals, ring current, and plasmasphere can be turned into three-dimensional reconstructions, including the first true 3-D picture of the ring current. The paper claims this fits within an M-class mission using instruments already flown or at high readiness, and that even one functioning spacecraft would still deliver substantial science. If the two-spacecraft case holds, space-weather research would gain the global, simultaneous, conjugate view it currently lacks.

What carries the argument

The load-bearing mechanism is tomographic imaging from two separated viewpoints, which the paper calls stereo vision. Each instrument class targets one region: solar wind charge exchange produces soft X-rays that map the magnetopause and cusps; FUV emissions trace both auroral ovals; charge-exchange-produced energetic neutral atoms carry ring-current ion distributions out of the magnetosphere; and resonantly scattered helium-ion emission at 30.4 nm maps the plasmasphere. The 90-degree phasing of two 9.65-day, 30 Earth-radius polar orbits is chosen so the pair can point at both aurorae for long intervals and provides the two lines of sight needed to invert 2-D images into 3-D structure without assuming simple analytic shapes.

What would settle it

A mission design study that simulates the two 9.65-day, 30-Earth-radius orbits with and without lunar assist, or a numerical experiment that forward-projects a known magnetopause and ring current into images from two 90-degree-phased viewpoints and then attempts the inversion, would settle whether the claimed 3-D reconstructions are actually recoverable.

Watch

Extended reading notes

Core claim

On the paper's own terms, the central claim is that a two-spacecraft mission with identical payloads—soft X-ray, FUV auroral, ENA, and EUV imagers plus an in situ package—can image the key magnetospheric regions simultaneously from different vantage points and thereby achieve scientific closure on how solar wind energy flows through, is converted, and is distributed in geospace. The new capability is stereo vision: soft X-ray imaging of the dayside magnetopause and cusps, FUV imaging of both aurorae, ENA imaging of the ring current, and EUV imaging of the plasmasphere, all taken at once from two spacecraft in circular, highly inclined 30 Earth-radius orbits phased 90 degrees apart. The paper asserts that ENA imaging from at least two spacecraft would for the first time supply the missing data for 3-D ring current reconstruction, and that global imaging is the affordable way to validate and build the next generation of magnetospheric models.

Load-bearing premise

The central premise, asserted in Section 4 on the basis of an unpublished orbit study, is that two spacecraft can fly circular, highly inclined 30 Earth-radius orbits phased 90 degrees apart and that this geometry actually gives enough simultaneous views to reconstruct the magnetosphere in 3-D rather than just two flat images; the same sentence concedes that auroral monitoring at nadir is possible only twice per orbit.

Editorial extensions

If this is right

  • Two viewpoints turn line-of-sight integrated images into 3-D shapes of the magnetopause, ring current, and plasmasphere, so boundaries no longer have to be approximated by simple mathematical functions.
  • Continuous conjugate FUV monitoring would reveal interhemispheric auroral asymmetries and the conjugate behavior of cusp spots for the first time.
  • Simultaneous ENA ring-current imaging and magnetopause imaging would directly quantify losses such as magnetopause shadowing and charge exchange during storms.
  • The same mission data could validate global MHD-kinetic geospace models, replacing sparse point measurements and long-term statistics with global observational constraints.
  • Because the two spacecraft spend much of their time in the solar wind and magnetosheath, the mission would double as a plasma laboratory and a solar-wind monitor without relying solely on upstream L1 data.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A natural extension the paper leaves implicit is that the two-view geometry could be combined with time-dependent MHD models in a data-assimilation loop, potentially recovering four-dimensional evolution rather than only static 3-D shapes.
  • The same payload concept could be pointed outward to image solar wind charge exchange beyond the magnetosphere, making the pair an Earth-node contribution to a broader heliospheric observatory.
  • A decisive test of the claimed tomography, not reported in the paper, would be a numerical experiment that forward-projects known magnetopause and ring-current structures through the two 90-degree-phased lines of sight and then attempts the inversion; if that inversion is ambiguous, the mission case weakens.
  • The paper does not discuss a third imaging platform, but a small additional imager would make the tomography overdetermined and could break degeneracies inherent in two-view reconstructions.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. This white paper proposes a two-spacecraft mission concept for the ESA Voyage 2050 programme, aimed at answering the question of how solar wind energy flows through Earth's magnetosphere and is converted, distributed, and dissipated. The proposed payload includes soft X-ray imagers for magnetopause and cusp imaging, FUV imagers for conjugate auroral monitoring, an ENA imager for the ring current, an EUV imager for the plasmasphere, and an in situ plasma package. The central claim is that two spacecraft in highly inclined, circular 30 RE polar orbits phased 90 degrees apart will enable, for the first time, tomographic 3-D reconstruction of the magnetopause, ring current, and plasmasphere, together with continuous conjugate auroral imaging, validated against global MHD and kinetic models. The paper reviews the relevant open science questions, describes the observing methods and instrument requirements, and outlines the mission orbit.

Significance. The scientific goals are well chosen and timely. The paper convincingly argues that past and current missions have not provided simultaneous global images of multiple magnetospheric regions, continuous conjugate auroral coverage, or 3-D views of the ring current, plasmasphere, and magnetopause. If the proposed mission were realized, it would represent a genuine step forward in space-weather research and magnetospheric physics. The manuscript is strongest in its literature synthesis and identification of observational gaps, and it draws on credible simulation tools (e.g., BATSRUS) and instrument heritage (SMILE SXI, IMAGE FUV/EUV/HENA). However, the key novelty—tomographic reconstruction from two spacecraft—is asserted rather than demonstrated. The paper relies on an unpublished NASA GSFC feasibility study for the load-bearing orbit design, and it does not provide any coverage analysis, synthetic reconstruction, or data-completeness argument. This gap is significant because the mission's scientific case rests on achieving true 3-D tomography, not merely stereo imaging.

major comments (3)
  1. [Section 4, Orbit(s)] The claim that 'two circular, highly inclined, polar orbits, with a 9.65 day period and phased 90° away from each other' will 'achieve the goals of tomography' and enable 'significantly better reconstruction of the 3-D shape of the magnetopause, ring current and plasmasphere' is unsupported. No coverage analysis, synthetic reconstruction experiment, or data-completeness condition is presented. If 'phased 90°' means two spacecraft in the same orbital plane separated by 90° in true anomaly, the projection source trajectory is a planar circle. For cone-beam tomography, a planar source trajectory fails the Tuy-Smith data-completeness condition because planes parallel to the orbital plane (but offset from it) intersect no source points, so the 3-D reconstruction of a general object is not unique. The authors should either provide a tomographic reconstruction simulation from this specific geometry, specify a non-planar source trajectory (e.g., two orbital planes with different right ascension of ascending node), or moderate the claim from 'tomography' to 'stereo vision with limited 3-D constraint.' This is a load-bearing point for the science case.
  2. [Section 4, Orbit(s)] The sentence 'The 90° phasing, unlike 180°, allows simultaneous continuous monitoring of both aurorae, although only twice an orbit at nadir' is internally contradictory and in need of clarification. If monitoring is continuous, what does 'only twice an orbit at nadir' refer to? If it refers to nadir-pointing opportunities, then the off-nadir viewing geometry and its effect on image quality, FOV coverage, and dayglow suppression must be quantified over the full 9.65-day orbit. The paper should specify the instrument pointing strategy, the fraction of the orbit during which each auroral oval is actually in the FOV, and the angular resolution at the extreme off-nadir angles.
  3. [Sections 4 and 5] The feasibility of the central mission design rests on unpublished internal work: Section 4 states that 'a study by our NASA GSFC Core Proposing Team members has shown that a 30 RE circular polar orbit can be reached with lunar assist,' and Section 5 says that the two-spacecraft configuration is 'estimated to be within the envelope of an ESA M-class mission on the basis of resource studies carried out by our NASA GSFC Core Proposing Team members.' These studies are not referenced, summarized, or independently verifiable, yet the entire orbit and resource feasibility argument depends on them. The authors should cite a public report, include an appendix with the study's assumptions and results, or remove the specific quantitative claims (e.g., '9.65-day period,' '30 RE') until they are backed by published data.
minor comments (5)
  1. [Title page / header] In the contact scientist block, the text 'Pollock et al. 2003' appears without context and is not cited anywhere in the manuscript; it should be removed or replaced with a proper reference.
  2. [Section 4, Plasmasphere EUV imager] There is a typographical error: 'photcathode' should read 'photocathode'.
  3. [Figure 7] The caption 'Fig. 7 – MHD simulations of the plasma conditions and viewing from a 30 RE polar orbit' appears twice in the text; the duplicate should be deleted.
  4. [Section 1, Storms paragraph] The citation 'McPherron1995' is missing a space between the author name and the year.
  5. [References] In the reference list, entries such as 'Samsonov et al.' and 'Takahashi et al.' are missing author initials; the reference format should be made consistent with the other entries.

Circularity Check

1 steps flagged · score 4.0 of 10

No fitted prediction or definitional circularity; one load-bearing orbit-feasibility claim rests on the proposing team's own unpublished study.

  1. self citation load bearing [Section 4, 'Orbit(s)' paragraph (arXiv p. 14).]
    "Two circular, highly inclined, polar orbits, with a 9.65 day period and phased 90o away from each other, would allow observations of magnetospheric plasma structures and the solar wind input from both polar and equatorial vantage points and achieve the goals of tomography and conjugate auroral monitoring discussed above. ..."

    The central mission claim—that two spacecraft in these specific orbits deliver conjugate auroral monitoring and tomographic reconstruction—is supported only by an unpublished feasibility study by the authors' own NASA GSFC team. No orbital-mechanics derivation, coverage analysis, or tomographic reconstruction demonstration is given in the paper, so the enabling premise reduces to a self-referential assertion rather than to an externally checkable result. This is not a fitted-input or definitional circularity, but it is a load-bearing self-citation in the proposal.

full rationale

The white paper contains no equations, fitted parameters, or numerical predictions, so the usual circularity patterns (self-definition, fitted input called prediction, ansatz smuggled via citation, renaming) do not apply. The science case is built on independent prior work and mission heritage (Dungey 1961; Mitchell et al. 2001; Sandel et al. 2003; Sibeck et al. 2018; IMAGE and SMILE), and the proposed instruments are described as existing or high-TRL designs. The only self-referential element is the orbit and phasing feasibility statement in Section 4, which is justified solely by an unpublished study by the proposing team; that step is load-bearing for the mission concept but does not make the science goals equivalent to their inputs. The same paragraph also contains an internal tension—90-degree phasing 'allows simultaneous continuous monitoring of both aurorae, although only twice an orbit at nadir'—which is a feasibility concern rather than circularity. Overall score 4 reflects the one load-bearing self-citation while acknowledging that the rest of the proposal is independently grounded.

Assumptions & free parameters 3 free parameters · 5 assumptions · 0 invented entities

The proposal depends on established space-physics knowledge as axioms, which is appropriate for a mission concept: the Dungey cycle, solar wind charge exchange soft X-ray emission, ENA imaging of ring current ions, and optically thin He+ EUV emission from the plasmasphere. The only ad hoc assumption is the specific two-spacecraft, 90-degree-phased, 30 RE orbit geometry, justified by an unpublished internal study rather than an independent reproducible analysis. No new physical entities are introduced.

free parameters (3)
  • Orbital radius = 30 RE
    Chosen to fit the whole dayside magnetopause in a 30x30 degree FOV and enable high-resolution auroral imaging; set by hand, not derived from a science optimization.
  • Spacecraft phasing = 90 degrees
    Selected to enable simultaneous two-spacecraft viewing; the paper notes 180-degree phasing would not allow conjugate auroral monitoring, but provides no quantitative trade study.
  • Imaging cadences = FUV 2 min, ENA 30 min, EUV 10 min
    Taken from instrument heritage (IMAGE/Polar/SMILE) and stated as requirements; not derived from the science objectives in the paper.
assumptions (5)
  • domain assumption The Dungey cycle with dayside and nightside magnetic reconnection is the organizing framework for solar wind-magnetosphere coupling.
    Invoked throughout Section 1 to define the energy flow and open science questions; it is established literature (Dungey 1961), not derived in the paper.
  • domain assumption Solar wind charge exchange produces soft X-rays in the magnetosheath and cusps that can be imaged to map these regions globally.
    Section 2 states this as the basis for the soft X-ray imager; it is the established principle behind SMILE/LEXI, not demonstrated in this paper.
  • domain assumption Energetic neutral atoms (ENAs) from charge exchange can be imaged to reconstruct ring current ion distributions, energy, and species.
    Section 2 relies on IMAGE HENA heritage; the white paper assumes the technique yields quantitative ring current information.
  • domain assumption He+ 30.4 nm EUV emission from the plasmasphere is optically thin and directly proportional to He+ column abundance.
    Section 2 states this to justify plasmasphere imaging; it follows from Sandel et al. 2000 and is not re-derived.
  • ad hoc to paper Two spacecraft in 30 RE circular polar orbits phased 90 degrees apart provide sufficient viewing geometry for tomographic 3-D reconstruction and simultaneous conjugate auroral imaging.
    Section 4 asserts this as the central design assumption, supported only by an unpublished NASA GSFC study; no quantitative coverage or reconstruction analysis is included.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Exploring Solar-Terrestrial Interactions via Multiple Observers (A White Paper for the Voyage 2050 long-term plan in the ESA Science Programme)." pith.science (2026). https://pith.science/paper/ETM7GNSD

@misc{pith2026190804730,
  author       = {Pith},
  title        = {Pith review of: Exploring Solar-Terrestrial Interactions via Multiple Observers (A White Paper for the Voyage 2050 long-term plan in the ESA Science Programme)},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/ETM7GNSD}},
  note         = {Machine review of arXiv:1908.04730}
}
read the original abstract

This paper addresses the fundamental science question: "How does solar wind energy flow through the Earth's magnetosphere, how is it converted and distributed?". We need to understand how the Sun creates the heliosphere, and how the planets interact with the solar wind and its magnetic field, not just as a matter of scientific curiosity, but to address a clear and pressing practical problem: space weather, which can influence the performance and reliability of our technological systems, in space and on the ground, and can endanger human life and health. Much knowledge has already been acquired over the past decades, but the infant stage of space weather forecasting demonstrates that we still have a vast amount of learning to do. We can tackle this issue in two ways: 1) By using multiple spacecraft measuring conditions in situ in the magnetosphere in order to make sense of the fundamental small scale processes that enable transport and coupling, or 2) By taking a global approach to observations of the conditions that prevail throughout geospace in order to quantify the global effects of external drivers. A global approach is now being taken by a number of space missions under development and the first tantalising results of their exploration will be available in the next decade. Here we propose the next step-up in the quest for a complete understanding of how the Sun gives rise to and controls the Earth's plasma environment: a tomographic imaging approach comprising two spacecraft which enable global imaging of magnetopause and cusps, auroral regions, plasmasphere and ring current, alongside in situ measurements. Such a mission is going to be crucial on the way to achieve scientific closure on the question of solar-terrestrial interactions.

Figures

Figures reproduced from arXiv: 1908.04730 by the authors.

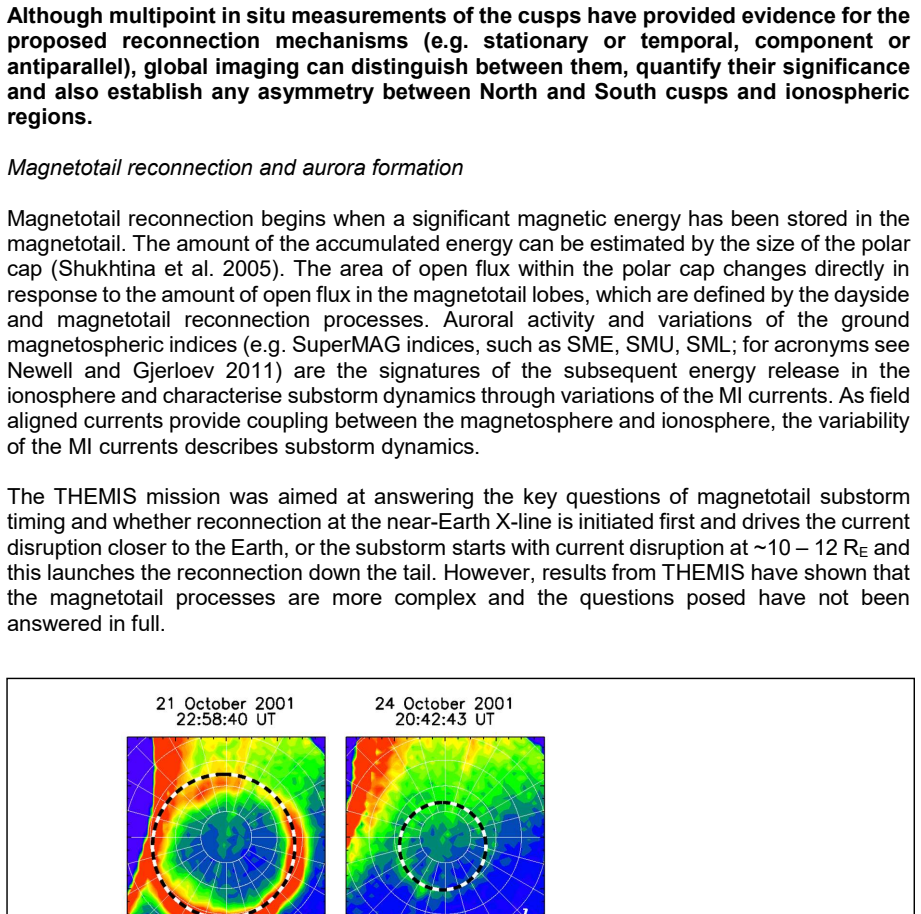

Figure 3
Figure 3. (a and b) The size of the polar cap is estimated from the radius of the auroral oval; (c, d, and e) Time￾series of the radius of the auroral oval, the Sym-H index measure of ring current intensity, and a proxy for the dayside reconnection rate derived from upstream solar wind conditions. (From Milan 2009) [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

Discussion (0). Continue with ORCID to comment.
