RTF-steered binaural MVDR beamforming incorporating multiple external microphones

T0 review · 3 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Combining per-microphone RTF estimates via the output-SNR-maximizing eigenvector gives the best binaural MVDR beamformer and beats covariance whitening in a moving-speaker experiment.

desk verdict A clean, small extension of SC-based RTF estimation to multiple external microphones; the mSNR derivation is correct, but the experimental support is a single recording with no held-out evaluation. read the letter →

arxiv 1908.04848 v1 pith:UZ3GNK3B submitted 2019-08-13 eess.AS cs.SD

Nico Gö{ss}ling , Wiebke Middelberg , Simon Doclo This is my paper · ORCID
classification eess.AScs.SD
keywords binauralMVDRbeamformingrelativetransferfunctionexternalmicrophonesspatialcoherencemethoddiffusenoisefieldinputSNRselectionsignal-to-noiseratiomaximizationcovariancewhitening
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper asks how to use several external microphones to steer a binaural MVDR beamformer when each microphone yields a different estimate of the desired speech source's relative transfer functions. It proposes three ways to combine these estimates per frequency: select the microphone with the highest input SNR, average all estimates, or choose the combination that maximizes the beamformer's output SNR. The last procedure, mSNR, reduces to a small eigenvalue problem and, in the reported moving-speaker diffuse-noise experiment, gives the largest binaural SNR improvement, 10.7 dB, outperforming the covariance whitening method's 10.4 dB. The practical payoff is a computationally cheaper route to better noise reduction in head-mounted listening devices.

What carries the argument

The central object is the normalized linear combination $\mathbf{a}_L^{\mathrm{SC-C}} = \mathbf{A}_L^{\mathrm{SC}}\mathbf{c} / (\mathbf{e}_L^T \mathbf{A}_L^{\mathrm{SC}}\mathbf{c})$, where $\mathbf{A}_L^{\mathrm{SC}}$ stacks the per-external-microphone spatial-coherence RTF estimates and $\mathbf{c}$ is a per-frequency combination vector. The paper expresses the BMVDR output SNR as the generalized Rayleigh quotient $\mathrm{SNR}_{\mathrm{out}} = \mathbf{c}^H\Lambda_1\mathbf{c}/(\mathbf{c}^H\Lambda_2\mathbf{c}-1)$ and shows that maximizing it is achieved by the principal eigenvector of $\Lambda_2^{-1}\Lambda_1$. This identity turns the practical question of how to combine RTF estimates into a small eigenvalue problem, with dimension equal to the number of external microphones rather than the full microphone count.

What would settle it

Place the external microphones close together or use directional noise so their noise components become correlated, then rerun the moving-speaker experiment; if the mSNR combination no longer outperforms covariance whitening, the uncorrelated-noise assumption is the load-bearing premise.

Watch

Extended reading notes

Core claim

On the paper's own terms, the central claim is that linearly combining several spatial-coherence RTF estimates so as to maximize the narrowband output SNR of the BMVDR yields a better beamformer than either selecting a single external-microphone estimate, averaging all estimates, or applying the covariance whitening method. Per frequency, the maximizing combination vector is the principal eigenvector of $\Lambda_2^{-1}\Lambda_1$, where $\Lambda_1$ and $\Lambda_2$ are built from the stacked RTF estimates, the noise covariance matrix, and the noisy input covariance matrix. In the reported dynamic scenario—moving speaker, roughly 400 ms reverberation, pseudo-diffuse noise, and three external microphones—this mSNR combination reaches an average binaural SNR improvement of 10.7 dB, against 10.4 dB for covariance whitening, 10.3 dB for input-SNR selection, and 8.9 dB for averaging. The claim includes a complexity benefit: the needed eigenvalue decomposition has dimension $M_E$ (here 3) rather than the full $M=7$ dimension of the covariance whitening method.

Load-bearing premise

The load-bearing premise is that noise in each external microphone is uncorrelated with noise in every other microphone, which holds only approximately for diffuse noise with well-separated microphones.

Editorial extensions

If this is right

  • mSNR gives the largest binaural SNR improvement (10.7 dB) among all compared methods, beating covariance whitening by 0.3 dB.
  • The iSNR combination nearly ties covariance whitening (10.3 dB) while requiring no eigenvalue decomposition at all.
  • Averaging the estimates is the worst procedure (8.9 dB), consistent with non-uniform estimation errors across external microphones.
  • The mSNR combination is computationally lighter than covariance whitening: a 3×3 eigenvalue decomposition instead of a 7×7 one.
  • The mSNR advantage holds across most time instances of the 30-second moving-speaker recording, not only on average.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The mSNR construction does not depend on how the RTF estimates were obtained; the same generalized-Rayleigh-quotient combination should maximize output SNR for any collection of RTF estimates, so it could be reused with other estimators.
  • Since each frequency is combined independently, a smoothness constraint across frequency might prevent discontinuities and could improve broadband speech quality beyond the reported SNR metric.
  • The comparison rests on a single acoustic scenario; repeating it with different talkers, reverberation times, and external-microphone placements would determine how general the 0.3 dB advantage is.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper considers a binaural MVDR beamformer for a hearing-device configuration with multiple external microphones, where the desired-speech RTF vector is estimated per external microphone using the spatial-coherence (SC) method. Three combination procedures are proposed: selection of the estimate with the highest input SNR (iSNR), simple averaging (AV), and a per-frequency linear combination that maximizes the narrowband output SNR of the BMVDR (mSNR). The mSNR combination is derived in closed form as the principal eigenvector of the matrix Λ2^{-1}Λ1 of the generalized Rayleigh quotient for the BMVDR output SNR. An experimental evaluation in a single dynamic scenario with a moving speaker and pseudo-diffuse noise shows that mSNR yields the largest average binaural SNR improvement (10.7 dB), slightly outperforming the covariance-whitening method (10.4 dB).

Significance. If the reported comparative advantage were validated, the mSNR combination would be a useful, low-complexity alternative to covariance whitening for binaural beamforming with multiple external microphones. The derivation in Eqs. (20)–(23) is clean and correct, and it introduces no new free parameters: the combination vector is obtained directly from the estimated covariance matrices. The paper also demonstrates a computational advantage (a 3×3 EVD instead of a 7×7 EVD) and provides online audio demonstrations. The main weakness is experimental: the evaluation rests on a single recording, the mSNR combination is optimized on the same data used to measure its performance, and no uncertainty quantification is provided. These limitations leave the central claim of superiority over the state of the art insufficiently supported.

major comments (3)
  1. [Section 6, Eq. (23), Fig. 3] The mSNR combination vector is defined per frequency as the principal eigenvector of Λ2^{-1}Λ1, which maximizes the plug-in output SNR in Eq. (20) computed from covariance estimates on the test recording. The reported ΔBSNR in Fig. 3 is therefore an in-sample quantity for mSNR, and the 0.3 dB margin over the CW method is not evidence of generalization to new recordings. Please add a held-out evaluation, for example by cross-validating the combination vector across time segments, using multiple speaker trajectories or noise realizations, or reporting performance on a separate test recording, along with error bars or confidence intervals.
  2. [Section 6.1 and 6.2] Only one acoustic scenario is evaluated: one moving speaker, one pseudo-diffuse noise field, and one reverberation time. Figure 4 shows time traces for a single run, and no error bars or statistical tests are provided to support the claim that mSNR outperforms iSNR and AV 'for almost all time instances' or that the average differences are significant. Additional independent trials or a statistical analysis are needed to support the comparative conclusions.
  3. [Section 5, Eq. (15)] The SC estimator in Eq. (15) assumes that the noise component in each external microphone is uncorrelated with the noise components in all other microphones. In the pseudo-diffuse field generated by four loudspeakers, this assumption holds only approximately, and the bias is acknowledged in [12] to be real-valued and input-SNR-dependent. The magnitude of this bias in the present setup is not quantified. A sensitivity analysis or an evaluation in a more truly diffuse field would help establish the robustness of the proposed combination procedures.
minor comments (5)
  1. [Figure 3] The y-axis spans only 6–11 dB, which visually amplifies differences of about 0.3 dB; please consider starting the axis at 0 dB or adding error bars to provide an honest visual scale.
  2. [Notation] The abbreviation 'A V' appears with a space in several places (e.g., Eqs. (19), Fig. 4); please use the consistent notation 'AV'.
  3. [Eq. (18)] The iSNR selection rule in Eq. (18) requires both R_y and R_n; the sentence 'this only requires an estimate of R_y (and not R_x)' is misleading because R_n is also needed, although it is already available for the BMVDR.
  4. [Section 5.1] The statement about the bias in the SC estimator is brief; a short sentence giving the bias expression or its dependence on input SNR would help the reader assess the approximation.
  5. [Reproducibility] The audio demo link is a good resource; making the processing scripts available would further improve reproducibility.

Circularity Check

1 steps flagged · score 6.0 of 10

mSNR combination is fit to maximize output SNR and then evaluated by the same output-SNR metric on the same recording, making the headline ranking partly in-sample.

  1. fitted input called prediction [Section 5.2, Eqs. (20) and (23); Section 6, Eq. (24) and Fig. 3.]
    "As a more sophisticated procedure, denoted as mSNR, we propose to combine the SC-based RTF vector estimates (per frequency) such that the narrowband output SNR of the BMVDR is maximized. ... cmSNR = arg maxc SNRout BMVDR,L =P{Λ−1 2 Λ1} ... The SNR-maximizing combination (mSNR) yields an average ∆BSNR of 10.7 dB, hence outperforming all other combination procedures and RTF vector estimation methods."

    The mSNR combination vector is estimated per frequency from the same recording's estimated covariance matrices Ry and Rn to maximize the narrowband output SNR of the BMVDR (Eq. 20/23). The reported performance metric, ∆BSNR in Eq. (24), is the same output-SNR quantity (averaged binaurally over time and frequency) computed on that same recording. Thus the ranking mSNR > iSNR/AV is not an independent experimental finding: c_mSNR is by construction the maximizer of the very objective being reported, so the in-sample comparison against the other proposed combinations is statistically forced.

full rationale

The paper's genuine contribution is the combination framework for multiple SC-based RTF estimates (iSNR, AV, mSNR), and the SC estimator itself is taken from the authors' prior work [11,12] with an explicitly stated noise-uncorrelatedness assumption. That self-citation is a normal building block rather than a circular load-bearing argument, because the current paper does not derive its result from the truth of the SC estimator alone; the combination strategies are the novel part. However, the experimental validation of mSNR is partially circular: mSNR is defined as the combination maximizing narrowband output SNR (Eq. 23), and the evaluation metric ∆BSNR (Eq. 24) is an output-SNR measure computed on the same single dynamic recording used to fit c_mSNR. Therefore the claimed superiority of mSNR over iSNR and AV is largely a restatement of the optimization objective, not an independent empirical confirmation. The comparison with the covariance-whitening method provides some external grounding, but it is still in-sample and lacks held-out evaluation or error bars. This warrants a moderate circularity score rather than a higher one: the paper is not a purely self-referential derivation, but a key reported 'prediction' reduces to the fitting criterion on the test recording.

Assumptions & free parameters 2 free parameters · 4 assumptions · 0 invented entities

The central claim rests on the SC method's assumption of uncorrelated noise between external microphones and head-mounted microphones in a diffuse noise field, and on an in-sample evaluation protocol where the mSNR combiner is optimized and evaluated on the same recording. No invented entities are introduced.

free parameters (2)
  • Recursive estimation time constants = 250 ms (Ry), 1.5 s (Rn)
    Hand-chosen smoothing constants for recursive covariance matrix estimation during speech and noise bins; affect RTF estimates and hence output SNR, but not tuned systematically.
  • Speech presence probability threshold = Not specified in the paper
    The threshold for distinguishing speech-plus-noise from noise-only bins is not given, so the exact implementation detail is missing and can affect covariance estimates.
assumptions (4)
  • domain assumption Single desired speech source
    Equation (5) writes the speech vector as a scalar times an RTF vector, requiring one active talker.
  • domain assumption Statistical independence between speech and noise
    Equation (6) sets Ry = Rx + Rn, which requires uncorrelated speech and noise components.
  • domain assumption Diffuse noise field with uncorrelated noise between external and other microphones
    Section 5 states the SC method assumes the noise in each external microphone is uncorrelated with noise in all other microphones, enabling Eq. 15.
  • domain assumption Separately recorded speech and noise enable oracle covariance computation for evaluation
    Section 6.1 reports mixing separately recorded speech and noise, which allows computing true Rx and Rn for the shadow filter evaluation.

how reviews work

0 comments
Cite this review

Pith. "Pith review of RTF-steered binaural MVDR beamforming incorporating multiple external microphones." pith.science (2026). https://pith.science/paper/UZ3GNK3B

@misc{pith2026190804848,
  author       = {Pith},
  title        = {Pith review of: RTF-steered binaural MVDR beamforming incorporating multiple external microphones},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/UZ3GNK3B}},
  note         = {Machine review of arXiv:1908.04848}
}
read the original abstract

The binaural minimum-variance distortionless-response (BMVDR) beamformer is a well-known noise reduction algorithm that can be steered using the relative transfer function (RTF) vector of the desired speech source. Exploiting the availability of an external microphone that is spatially separated from the head-mounted microphones, an efficient method has been recently proposed to estimate the RTF vector in a diffuse noise field. When multiple external microphones are available, different RTF vector estimates can be obtained by using this method for each external microphone. In this paper, we propose several procedures to combine these RTF vector estimates, either by selecting the estimate corresponding to the highest input SNR, by averaging the estimates or by combining the estimates in order to maximize the output SNR of the BMVDR beamformer. Experimental results for a moving speaker and diffuse noise in a reverberant environment show that the output SNR-maximizing combination yields the largest binaural SNR improvement and also outperforms the state-of-the art covariance whitening method.

Figures

Figures reproduced from arXiv: 1908.04848 by the authors.

Figure 1
Figure 1. Binaural hearing device configuration incorporating [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3

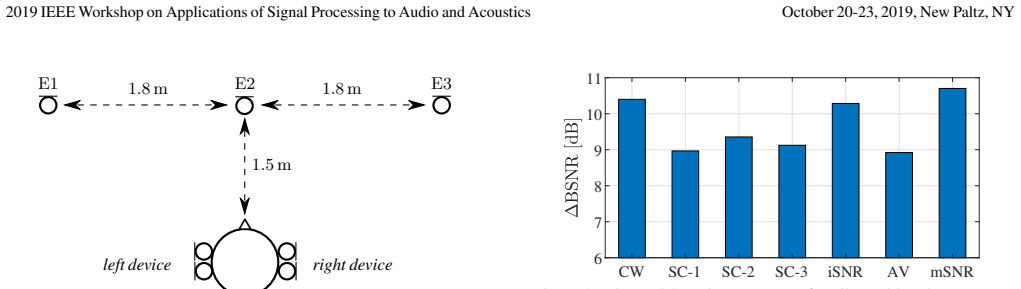

Figure 3. Binaural SNR improvement for all considered RTF vector [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

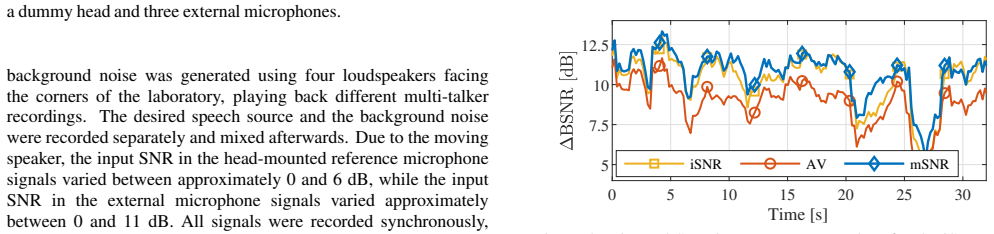

Figure 4. Binaural SNR improvement over time for the iSNR, AV [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
