A Single-Shot Arbitrarily-Shaped Text Detector based on Context Attended Multi-Task Learning

T0 review · 3 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read SAST detects arbitrarily-shaped scene text in a single forward pass by predicting four geometric maps and clustering text-center pixels through point-to-quad assignment.

desk verdict SAST is a competent engineering integration for real-time arbitrary-shape text detection; its central speed-accuracy claim holds, but a few overstated comparisons and a genuine clustering edge case need attention. read the letter →

arxiv 1908.05498 v1 pith:U7IHKF7V submitted 2019-08-15 cs.CV

Pengfei Wang , Chengquan Zhang , Fei Qi , Zuming Huang , Mengyi En , Junyu Han , Jingtuo Liu , Errui Ding
show 1 more author
Guangming Shi
This is my paper · ORCID
classification cs.CV
keywords scenetextdetectionarbitrarily-shapedreal-timesegmentationmulti-tasklearningcontextattentionblockpoint-to-quadassignmentcurvedfullyconvolutionalnetwork
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper proposes SAST, a text detector that locates curved, multi-oriented, and multilingual scene text in a single forward pass of a fully convolutional network. The aim is to show that segmentation-based text detection can be both accurate on arbitrarily-shaped text and fast enough for real-time use, without the slow multi-stage post-processing typical of prior methods. SAST predicts four geometric maps at once—text center line, border offsets, center offsets, and vertex offsets—then reconstructs each text instance as a polygon. On SCUT-CTW1500 it reports an Hmean of 80.97% at 27.63 FPS on a single GPU, and comparable or better accuracy on ICDAR2015, ICDAR2017-MLT, and Total-Text.

What carries the argument

The load-bearing mechanism is point-to-quad assignment, a post-processing step that replaces connected-component analysis. It works in two stages: first, the TCL and TVO maps are thresholded to form candidate bounding quadrangles of text; second, each TCL pixel uses its TCO offset vector to point to a low-level center, and the pixel is assigned to the candidate quadrangle whose center is nearest. The geometric identity behind the TBO label is the proportional relation $(P_0-P_1)/(P_2-P_1)=(P_u-V_1)/(V_2-V_1)=(P_l-V_4)/(V_3-V_4)$, which locates the paired upper and lower border points for a center-line pixel. The Context Attention Block—a self-attention module that aggregates context along horizontal and vertical columns—supports the mechanism by giving each pixel long-range context; two stacked blocks let every pixel see the whole feature map.

What would settle it

Take a curved text image with a strong U- or S-shaped instance and compute, for every TCL pixel, the endpoint of its TCO vector; if those endpoints cluster into two or more distinct quadrangle centers within one annotated instance, the point-to-quad assignment will split it, and counting such splits across SCUT-CTW1500 or Total-Text would settle whether the assumption holds.

Watch

Extended reading notes

Core claim

The central claim is that four jointly learned geometric properties—text center line (TCL), text border offset (TBO), text center offset (TCO), and text vertex offset (TVO)—are sufficient to detect arbitrarily-shaped text in one shot, provided the network sees long-range context and the post-processor uses high-level object knowledge. The paper argues that the Context Attention Block, which gathers horizontal and vertical context through a self-attention mechanism, gives more reliable segmentation of long or closely spaced text lines. The point-to-quad assignment then clusters TCL pixels by assigning each pixel to a quadrangle candidate: the TVO map produces candidate quadrangles, the TCO map points each pixel toward a center, and pixels are grouped by proximity to the corresponding quadrangle center. The final polygon is rebuilt from the TBO map by sampling center-line points and reading off paired border points. The reported results are Hmean 80.97% at 27.63 FPS on SCUT-CTW1500, 80.17% on Total-Text (81.45% and 80.21% with multi-scale testing), 86.91% on ICDAR2015, and 68.76% on ICDAR2017-MLT.

Load-bearing premise

The method leans on the assumption that all pixels of one text instance point, via the TCO map, to the same center of that instance's minimum enclosing quadrangle; if a curved text line bends far enough that pixels point to different centers, the clustering step can split one instance into pieces.

Editorial extensions

If this is right

  • Text of arbitrary shapes can be detected in real time: 27.63 FPS on SCUT-CTW1500 at 81.0% Hmean on a single Titan Xp, which the paper reports as surpassing most segmentation-based detectors.
  • Closely spaced text instances are separable without connected-component analysis, because pixel assignment uses object-level quadrangle centers rather than local connectivity.
  • Long text lines resist fragmentation: context aggregation plus object-level assignment can hold a fragmented center-line response together.
  • The same geometric-map scheme generalizes to multi-oriented and multilingual text, as shown by results on ICDAR2015 and ICDAR2017-MLT.
  • Polygon vertices are chosen adaptively from center-line length, avoiding a fixed vertex count for curved text.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editor's inference: the same two-map assignment (pixels point to a learned center, then nearest-candidate matching) could apply to general instance segmentation of elongated objects such as roads, blood vessels, or wires, where connected-component analysis fails on nearby instances.
  • Editor's inference: because TCL and the geometric maps are produced at 1/4 input resolution, the reported small-text failure implies a measurable height cutoff; below roughly that text height, recall should drop sharply, which would bound the detector's usefulness for far-away or dense small text.
  • Editor's inference: the 27.63 FPS figure covers detection only; a full text-reading pipeline that adds recognition would run slower, so the real-time claim should not be read as end-to-end reading speed.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper proposes SAST, a segmentation-based single-shot detector for arbitrarily-shaped scene text. The network uses a ResNet-50/FPN stem with two serially stacked Context Attention Blocks and four parallel prediction heads for text center line (TCL), center offset (TCO), vertex offset (TVO), and border offset (TBO). Instance segmentation is obtained by a point-to-quad assignment that groups TCL pixels according to their TCO vectors relative to quadrangle candidates recovered from TVO, and final polygons are reconstructed from the TBO maps. The method is evaluated on ICDAR2015, ICDAR2017-MLT, SCUT-CTW1500, and Total-Text, with a reported runtime of 27.63 FPS at 80.97 Hmean on SCUT-CTW1500 using a single Titan Xp.

Significance. If the reported numbers are reproducible, the paper makes a useful engineering contribution: it demonstrates that a segmentation-based arbitrary-shape text detector can run at near-real-time speed while remaining competitive with TextSnake, TextField, and PSENet. The ablations in Tables 1-3 are well designed and individually test the three claimed components (TBO reconstruction, point-to-quad assignment, and CAB), and the evaluation covers the standard public benchmarks. The work is less strong on the conceptual side: the point-to-quad assignment rests on an assumption that is not discussed, and one explicit comparison claim in Section 4.5 is contradicted by the paper's own Table 6. Since no code or trained models are released and no error bars are reported, the empirical claims should be treated as preliminary until reproduced.

major comments (3)
  1. [§4.5 / Table 6] The text states that 'SAST achieves a better performance in a much faster speed' than previous arbitrarily-shaped text detectors, but Table 6 lists PSENet-1s (87.08) and PSENet-2s (87.21) above SAST (86.91) on ICDAR2015. Because PSENet is a segmentation-based arbitrary-shape detector appearing in the same table, the stated comparison is not supported by the reported numbers; please revise the claim to 'comparable' and specify the detectors for which SAST is actually faster.
  2. [§3.4 / §3.5] The TCO supervision defines the target center as the center of the minimum enclosing quadrangle of the annotation polygon, and point-to-quad assignment clusters all TCL pixels by nearest such object-level center. For two distinct curved instances whose minimum-enclosing-quadrangle centers coincide, for example two concentric curved text lines, all pixels from both instances produce the same low-level center, so no nearest-center rule can separate the instances even with perfect TCL/TCO/TVO predictions. This is a structural limitation of the clustering mechanism, not a tuning issue; the paper should either discuss it explicitly, add a fallback such as direction-aware or per-pixel embedding, or restrict the claim to configurations where centers are separated. The ablation in Table 1 shows only a 1.46 Hmean improvement over connected-component plus TBO, so the current evidence does not show that the assignment is robust to this failure mode.
  3. [§4.7 / Table 4] The real-time claim is central to the abstract, but the FPS column in Table 4 appears to mix numbers obtained on different hardware, and the footnote states that speed 'might be evaluated with different hardware environments.' For example, PSENet's 8.4 FPS in Table 4 is not measured on the same Titan Xp used for SAST. Since the title and abstract highlight speed, a controlled runtime comparison, or at least a clear per-method hardware table, is needed before 'surpassing most existing segmentation-based methods' can be properly evaluated.
minor comments (5)
  1. [§4.2 / §4.4] Section 4.2 states that the longer side is set to 1536 for single-scale testing unless otherwise stated, while Section 4.4 says the longer side is set to 512 for single-scale testing on SCUT-CTW1500 and Total-Text; the two statements should be reconciled or the difference explained.
  2. [§4.4 / Table 5] The text reports a Total-Text Hmean of 78.08%, but Table 5 lists SAST with Hmean 80.17%; these numbers should be made consistent.
  3. [Table 1] The first ablation row reports no runtime, although the text says point-to-quad assignment 'cost almost the same time' as connected component analysis; please add the missing timing or state explicitly that it was not measured.
  4. [Various] There are small typos: 'expending' should be 'expanding' in Section 4.3, and 'visualizatio n' should be 'visualization' in Section 4.6.
  5. [All experiments] All benchmark numbers are reported as point estimates from a single run; given the small test sets and typical run-to-run variance in text detection, Hmean differences of less than about one point should be interpreted cautiously.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity; SAST is an empirical systems paper evaluated on external public benchmarks, with no load-bearing derivation that reduces to its own inputs.

full rationale

The paper's central claim is that the proposed SAST architecture detects arbitrarily-shaped text accurately at real-time speed. This is supported by direct experiments on external public benchmarks (ICDAR2015, ICDAR2017-MLT, SCUT-CTW1500, Total-Text), with quantitative comparisons against prior methods. The proposed components—the Context Attention Block, the multi-task geometric maps, and the point-to-quad assignment—are described algorithmically and evaluated through ablations on SCUT-CTW1500. No result is derived from a fitted parameter renamed as a prediction: the loss weights are tuned during training and reported as implementation details, not as predicted outcomes. The point-to-quad assignment does rely on an explicit modeling assumption in Section 3.4 that pixels in the same TCL instance point to the same object-level center, but this is a stated architectural assumption about how the TCO supervision is defined, not a circular reduction of the claimed result to its inputs. The paper cites prior works by some of its own authors (WordSup and Look More Than Once), but these citations are contextual related-work references and are not load-bearing for the proposed method's derivation or for its benchmark evaluation. The method is self-contained against external benchmarks, and there is no equation or construction in the paper that makes the claimed accuracy or speed equivalent to its training data, label generation, or fitted parameters by definition. Therefore the circularity score is 0.

Assumptions & free parameters 5 free parameters · 4 assumptions · 0 invented entities

The central contribution rests on domain assumptions about text geometry (quadrangle-based center and border representations), several hand-set hyperparameters, and standard transfer-learning practices. No invented physical entities are introduced.

free parameters (5)
  • Loss weights λ1..λ4 = 1.0, 0.5, 0.5, 1.0
    Section 3.5: chosen by balancing gradient norms across tasks during training; they are hand-set hyperparameters, not derived from theory.
  • TCL binarization threshold
    Section 3.4: a threshold splits the TCL probability map into text pixels, but its value is not reported.
  • NMS threshold for quadrangle candidates
    Section 3.4: NMS is applied to suppress overlapping candidate quads; the IoU threshold is unspecified.
  • Test input scale = 512 or 1536 (longer side)
    Section 4.2: single-scale testing uses longer side 1536 for ICDAR2015 and 512 for CTW1500/Total-Text; results depend on this choice.
  • Multi-scale test set = 512, 768, 1536, 2048
    Section 4.2: multi-scale testing combines detections from these scales, contributing to the reported gains.
assumptions (4)
  • domain assumption Text regions can be represented by TCL, TBO, TCO, and TVO maps derived from polygon annotations.
    Sections 3.1 and 3.5: the label generation assumes these four maps fully describe arbitrary text shape and that polygon reconstruction from them is valid.
  • domain assumption Pixels belonging to the same text instance share a common object-level center, namely the center of the minimum enclosing quadrangle.
    Section 3.4: the authors call this a 'strong assumption' and it is the basis for the point-to-quad clustering.
  • domain assumption The TBO geometric construction using a line with average slope of upper and lower boundaries yields correct boundary point pairs.
    Section 3.5: for complex curved polygons, especially S-curves, this linear-interpolation construction may not correspond to the true boundary correspondence.
  • domain assumption Transfer learning from ImageNet-pretrained ResNet-50 and the SynthText pretraining step improve or at least do not hurt final accuracy.
    Section 4.2: the training pipeline relies on standard practice; the paper provides no control experiment measuring the contribution of pretraining.

how reviews work

0 comments
Cite this review

Pith. "Pith review of A Single-Shot Arbitrarily-Shaped Text Detector based on Context Attended Multi-Task Learning." pith.science (2026). https://pith.science/paper/U7IHKF7V

@misc{pith2026190805498,
  author       = {Pith},
  title        = {Pith review of: A Single-Shot Arbitrarily-Shaped Text Detector based on Context Attended Multi-Task Learning},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/U7IHKF7V}},
  note         = {Machine review of arXiv:1908.05498}
}
read the original abstract

Detecting scene text of arbitrary shapes has been a challenging task over the past years. In this paper, we propose a novel segmentation-based text detector, namely SAST, which employs a context attended multi-task learning framework based on a Fully Convolutional Network (FCN) to learn various geometric properties for the reconstruction of polygonal representation of text regions. Taking sequential characteristics of text into consideration, a Context Attention Block is introduced to capture long-range dependencies of pixel information to obtain a more reliable segmentation. In post-processing, a Point-to-Quad assignment method is proposed to cluster pixels into text instances by integrating both high-level object knowledge and low-level pixel information in a single shot. Moreover, the polygonal representation of arbitrarily-shaped text can be extracted with the proposed geometric properties much more effectively. Experiments on several benchmarks, including ICDAR2015, ICDAR2017-MLT, SCUT-CTW1500, and Total-Text, demonstrate that SAST achieves better or comparable performance in terms of accuracy. Furthermore, the proposed algorithm runs at 27.63 FPS on SCUT-CTW1500 with a Hmean of 81.0% on a single NVIDIA Titan Xp graphics card, surpassing most of the existing segmentation-based methods.

Figures

Figures reproduced from arXiv: 1908.05498 by the authors.

Figure 1
Figure 1. Two common challenges for segmentation-based [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

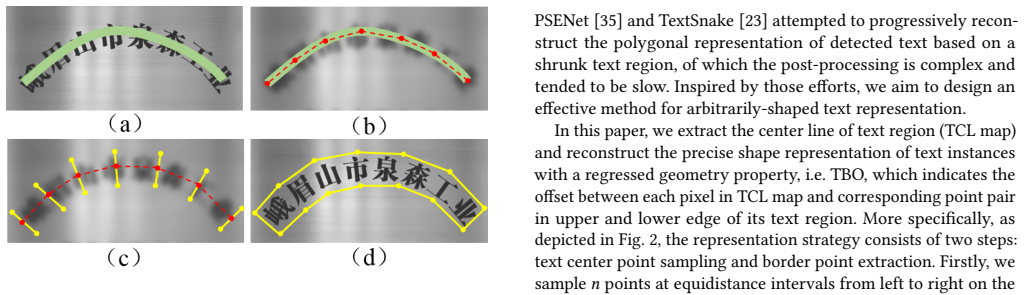

Figure 2. Arbitrary Shape Representation: a) The text line in [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. The pipeline of proposed method: 1) Extract feature from input image, and learn TCL, TBO, TCO, TVO maps as a [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (2 more)
Figure 5
Figure 5. Figure 5: Label Generation: (a) Text center region of a curved [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
Figure 6
Figure 6. Figure 6: Some qualitative results by the proposed method. From left to right: ICDAR2015, SCUT-CTW1500, Total-Text, and [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]
