Phase field crystal model for heterostructures

T0 review · 3 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read The paper claims that adding a smoothed-density coupling term to the phase-field crystal free energy gives controlled phase separation and independent control of elastic and lattice properties in multicomponent heterostructures…

desk verdict Sound PFC extension for heterostructures with honest binary benchmarks; the graphene–hBN zigzag preference is a demonstration under trial-and-error parameters, not a robust prediction. read the letter →

arxiv 1908.05564 v1 pith:KYLOW3AL submitted 2019-08-15 cond-mat.mes-hall

Petri Hirvonen , Vili Heinonen , Haikuan Dong , Zheyong Fan , Ken R. Elder , Tapio Ala-Nissila This is my paper · ORCID
classification cond-mat.mes-hall
keywords phase-fieldcrystalheterostructuressmootheddensityfieldsphaseseparationelasticpropertiesinterfaceformationenergygraphene-hexagonalboronnitridemesoscalesimulation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper introduces a phase-field crystal model for heterostructures in which each atomic species is represented by a smooth density field, and phase separation is driven by a coupling between spatially smoothed versions of those fields. The claim is that the sign and strength of that coupling control whether crystalline phases repel or mix, while separate parameters set the elastic moduli and lattice constants of each phase independently. If true, the model gives a mesoscale simulation route, with atomic resolution but diffusive time scales, for exploring two-dimensional lateral heterostructures and composite materials. The paper benchmarks the model on binary crystals and a graphene–hexagonal boron nitride system, reproducing relative elastic constants and lattice constants and finding zigzag interfaces to be the lowest-energy boundaries.

What carries the argument

The load-bearing object is the smoothed density field $\eta_i = G * n_i$, obtained by convolving each atomic density field with a Gaussian kernel with spectral width $\sigma = 0.2$, and the free-energy coupling $\int \epsilon_{ij}\eta_i\eta_j\,dr$ that it enables. This coupling drives phase separation through a nonlocal repulsion or attraction between crystalline phases, while local couplings such as $\alpha_{ij}$ align the lattices at interfaces and the parameters $\beta_i$ and $\nu_i$ separately set elastic moduli and lattice constants. Appendix A proves that for $\epsilon_{ij}>0$ the ground state minimizes overlap of the two crystalline phases, and Appendix B estimates that the smoothed coupling contributes negligibly to elastic energies, keeping the elastic benchmarks clean.

What would settle it

Run direct large-system phase-field crystal simulations of graphene–h-BN interfaces for many misorientation angles without assuming the linear segment decomposition of Eq. (13), extract the full angular formation-energy curve, and check whether zigzag remains the global minimum and whether intermediate angles stay bounded by the pure-segment energies; any reversal of the ordering would falsify the stability conclusion.

Watch

Extended reading notes

Core claim

The central discovery is that adding the term $\int \epsilon_{ij}\eta_i\eta_j\,dr$, where $\eta_i = G * n_i$ is a Gaussian-smoothed density field, to the standard phase-field crystal free energy makes multicomponent phase separation controllable. With positive $\epsilon_{ij}$, crystalline regions of different species repel and form separate phases; with negative $\epsilon_{ij}$, they attract and form mixed or coherent structures. The paper shows analytically that this coupling drives ordered and disordered regions of different components to coincide, and numerically that the remaining parameters can be varied one by one to adjust lattice mismatch and stiffness independently. For graphene–hexagonal boron nitride, the model produces continuous, faceted interfaces and predicts that zigzag-oriented interfaces have the lowest formation energy, consistent with experiments and with density functional calculations.

Load-bearing premise

The paper treats a stepped interface as a simple sum of independent zigzag and armchair segment energies, ignoring interactions between neighboring segments; if those interactions are significant, the interface-energy ordering it reports may not hold.

Editorial extensions

If this is right

  • Two-dimensional binary heterostructures with lattice mismatch can be simulated in both strained and unstrained modes, with mismatch accommodated by elastic deformation or by periodic misfit dislocations.
  • The elastic stiffness of each phase can be tuned almost independently through its gradient coefficient, so model parameters can be matched to specific material pairs.
  • Lattice constants can be set independently through the wavenumbers, enabling controlled studies of commensurate and incommensurate interfaces.
  • For graphene–hexagonal boron nitride, the model reproduces the measured relative Young’s modulus and lattice constant to within a few percent and predicts zigzag interfaces as lowest-energy, matching faceted experimental shapes.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A direct test the paper leaves implicit is whether the phase-separation mechanism survives in three dimensions, since the analytic argument in Appendix A is not dimension-specific; a 3D binary benchmark would settle that.
  • The nearly vanishing elastic contribution of the smoothed fields suggests the model could be used to measure grain-boundary and interface mechanics without correcting for the phase-separation term, a convenience the paper notes but does not exploit quantitatively.
  • Because the vertex energy in the interface fits is slightly negative, the model implies that interfaces with more vertices are favored in small systems; whether that preference reverses at macroscopic segment lengths is a testable prediction.
  • A quantitative version of the model would require fitting the coupling coefficients to atomistic formation energies; until then, the reported ordering of interface stabilities is best read as a qualitative prediction.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The paper introduces a phase-field crystal (PFC) model for heterostructures, based on the free energy in Eq. (1), in which smoothed density fields η_i = G ∗ n_i are coupled through a term ∫ϵijηiηj dr. The authors argue that this coupling enables well-controlled phase separation while allowing independent control of the lattice constants and elastic moduli of coexisting phases. Section III benchmarks the model on binary systems: the influence of ϵ12 on phase separation, of α12 on interface continuity, of βi on elastic moduli, and of νi on lattice mismatch. The numerical elastic moduli are compared with an analytical PFC expression and found to agree. Section IV applies the three-component version to lateral graphene–hexagonal boron nitride (G–h-BN) heterostructures. A parameter set is constructed by trial and error (Table III) to reproduce the relative Young's modulus and lattice-constant ratio, and the model is shown to produce sharp, faceted, continuous interfaces. The paper finally reports the angular dependence of the G–h-BN interface formation energy and concludes that zigzag-oriented interfaces have the lowest energy. Appendices A and B contain an analytical phase-separation argument and an estimate showing that the smoothed-density coupling contributes negligibly to elastic energy.

Significance. If the central claims hold, the model provides a useful mesoscale tool for simulating heterostructures and multiphase polycrystalline materials over diffusive time scales, which is a genuine gap between atomistic methods and continuum models. The binary-system benchmarks are a strength: the numerical elastic response is checked against an analytical PFC prediction, the parameter study is systematic, and the lattice-mismatch structures with misfit dislocations are plausible. The paper also makes contact with experimental and DFT results on G–h-BN interface orientation, which is valuable context. The main advertised result, however, the zigzag-interface energy minimum in G–h-BN, rests on a manually tuned parameter set and on a simplified coherent-interface calculation, so the strength of the evidence is weaker than the abstract suggests. The analytical phase-separation proof in Appendix A also does not cover the sign pattern used in the G–h-BN demonstration. These issues are fixable and do not undermine the core binary-model benchmarks.

major comments (3)
  1. [Sec. IV A / Sec. IV C / Table III] The headline result that zigzag G–h-BN interfaces have the lowest formation energy is obtained with a parameter set (Table III) that was selected by trial and error to match only the relative Young's modulus and lattice-constant ratios and qualitative interface criteria. Because the interface energies were not used in the fitting, the result is not circular, but it is a prediction of an underconstrained parameter set; a modest change in ϵ12, α12, or the average densities could reverse γ(30°) < γ(0°). I ask for a sensitivity analysis (e.g., vary these parameters by ±10–20% and report whether the ordering persists) or a fit to interfacial formation energies before the abstract-level claim is retained. The paper's own Sec. V defers such fitting to future work, so the current wording overstates the strength of the evidence.
  2. [Appendix A] The analytic phase-separation argument assumes that the smoothed densities of both components have the same ordering between crystalline and disordered phases, i.e., (η(c)_A − η(d)_A) and (η(c)_B − η(d)_B) have the same sign. The G–h-BN parameter set in Table III violates this: n̄(c)_1 = 0.31 < n̄(d)_1 = 0.66, while n̄(c)_2 = −0.32 > n̄(d)_2 = −0.65. The actual condition for the coupling term to penalize overlap of the two crystalline phases is sign(ϵAB) (η(c)_A − η(d)_A)(η(c)_B − η(d)_B) > 0, which does hold for the G–h-BN set (negative ϵ with opposite-signed density jumps). The proof should be generalized to this condition; as written, the appendix does not cover the paper's main demonstration.
  3. [Sec. IV C / Eq. (13)] The interface-energy extraction is restricted to strained bicrystals with perfect honeycomb order and no misfit dislocations. For the target lattice mismatch (ah-BN/aG ≈ 1.018), Sec. III D shows that unstrained interfaces contain dislocation arrays; dislocation core energies are orientation-dependent and are not included in the γ reported here. The agreement between the numerical γ and Eq. (13) supports additivity of segment energies in the long-segment limit, but the conclusion that zigzag interfaces have the lowest formation energy should be qualified as applying to coherent strained interfaces, or the analysis should be repeated for the relaxed, dislocation-containing interfaces.
minor comments (4)
  1. [Abstract / Introduction / figure captions] There are several typographical errors: 'possiblity' in the abstract, 'introducespatially' in Sec. I, 'coindicental' in the Fig. 1 caption, and 'representedy' in the Fig. 8 caption. These should be corrected.
  2. [Sec. III D] The sentence defining the tilt angle as '2θ = θ − (−θ)' is tautological; it should be written as a symmetric tilt ±θ or 2θ = θ1 − θ2 to avoid confusion.
  3. [Fig. 11 caption] The caption uses n both as an integer multiple of L⊥ (with m for L‖) and as the density-field symbol used throughout the paper; renaming the integer variable (e.g., k) would remove ambiguity.
  4. [Sec. IV A / Abstract] The abstract states that the model reproduces consistent relative elastic moduli and lattice constants, but these quantities were used as fitting targets for the G–h-BN parameter set; the wording should acknowledge that these were matched by construction for that demonstration.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the elastic benchmarks, phase-separation proof, and G–hBN interface-energy results are not constructed from their own outputs; parameter matching is openly acknowledged rather than presented as prediction.

full rationale

The derivation chain is self-contained. The phase-separation claim is supported by an analytic argument (Appendix A) that starts from the free-energy expression and the sign of ϵAB; it does not assume the phase-separated state. The elastic-modulus benchmark compares full numerical strain simulations to the one-mode analytical formula C11 = 9 Σ βi φi² (Eqs. 8–10, cited to Ref. 30); the formula is an independent closed-form result and the comparison is a consistency check, not a fit. The G–hBN parameters in Table III are explicitly chosen to match target values of Yh-BN/YG and ah-BN/aG ('The other parameters were chosen by trial and error' and 'this choice of parameters yielded ... in fair agreement with the target values'); the paper does not present those reproduced ratios as predictions. The zigzag-lowest-energy conclusion comes from interface-energy simulations (Sec. IV C) and is not a fit target; the paper explicitly defers 'fitting to interfacial formation energies' to future work. Self-citations (Refs. 26, 30, 33, 59) provide model parameters and standard PFC elasticity results, but none of these citations assumes the paper's central claim; therefore they do not constitute circularity.

Assumptions & free parameters 5 free parameters · 5 assumptions · 1 invented entities

The model introduces one new auxiliary field, η_i, and relies on a large set of hand-chosen parameters. The G-hBN validation specifically depends on trial-and-error fitting of Table III to the experimental ratios, so the ledger reflects that the empirical content of the G-hBN section is partly calibration.

free parameters (5)
  • ϵ12 (smoothed-density coupling) = -0.2 to 2.0; -0.8 in G-hBN
    Controls phase separation via smoothed densities. Chosen by hand or adjusted to retain stability; the G-hBN value comes from trial-and-error matching, not from a derivation.
  • α12 (quadratic inter-density coupling) = -0.03 (binary), -0.04 (G-hBN)
    Optimized by direct testing: larger magnitude destabilizes the heterostructure, smaller gives weaker lattice continuity. Introduces weak oscillations.
  • σ (Gaussian smoothing width) = 0.2
    Chosen so smoothing is about five lattice constants and atomic oscillations are sufficiently filtered; values below 0.2 were not considered.
  • G-hBN parameter set (Table III) = α11=-1.4, β11=2.25, δ11=2.25, γ23=0.3, β23=0.02, ϵ12=ϵ13=-0.8, λ2=λ3=1.018, average densities in Table III
    Selected by trial and error to match target Yh-BN/YG and ah-BN/aG and to give faceted, sharp interfaces. These fitted parameters carry the graphene-hBN validation.
  • Average densities n̄_i(c), n̄_i(d) = e.g., 0.12/0.58, 0.31/0.66, and negative values in G-hBN
    Chosen to position the phase coexistence regions and to set the area fractions of phases. Not derived from a free energy minimization.
assumptions (5)
  • domain assumption The PFC free energy functional form of Eq. (1) is an appropriate thermodynamic model for crystalline phases.
    This is the standard PFC ansatz taken from Refs. 18,30-32; the paper does not derive it from a more microscopic theory.
  • ad hoc to paper Gaussian smoothing with σ=0.2 sufficiently removes atomic-scale oscillations without disturbing the physics.
    Set by intuition and stability checks in Sec. II; no convergence study over σ is provided.
  • ad hoc to paper In Appendix A, the smoothed densities of both components have the same ordering between crystalline and disordered phases, η(c)>η(d) or η(c)<η(d) for both.
    This ordering is needed to conclude that the cross term is positive, forcing V(Ac∩Bc)=0. The paper states it follows from a similar phase diagram but does not prove it for the full model.
  • ad hoc to paper Boron and nitrogen are interchangeable in the G-hBN model, F(n1,n2,n3)=F(n1,n3,n2).
    Imposed in Sec. IV A as a simplifying assumption. It discards the chemical difference between B and N at the level of the model parameters.
  • ad hoc to paper The interface energy of a stepped interface is the linear sum of independent zigzag and armchair segment energies.
    Used in Eq. (13) to obtain γ(θ) from γZZ and γAC. Assumes no interaction between adjacent segments and no curvature energy.
invented entities (1)
  • Smoothed density field η_i = G ∗ n_i
    purpose: Filter atomic-scale oscillations so the coupling term ∫ϵijηiηj can drive long-range phase separation without the lattices directly interacting.
    A new auxiliary field introduced in Eq. (1). It is a modeling construct with no independent observable; its only handle is through simulated phase distributions and interface structures.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Phase field crystal model for heterostructures." pith.science (2026). https://pith.science/paper/KYLOW3AL

@misc{pith2026190805564,
  author       = {Pith},
  title        = {Pith review of: Phase field crystal model for heterostructures},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/KYLOW3AL}},
  note         = {Machine review of arXiv:1908.05564}
}
read the original abstract

Atomically thin 2-dimensional heterostructures are a promising, novel class of materials with groundbreaking properties. The possiblity of choosing the many constituent components and their proportions allows optimizing these materials to specific requirements. The wide adaptability comes with a cost of large parameter space making it hard to experimentally test all the possibilities. Instead, efficient computational modelling is needed. However, large range of relevant time and length scales related to physics of polycrystalline materials poses a challenge for computational studies. To this end, we present an efficient and flexible phase-field crystal model to describe the atomic configurations of multiple atomic species and phases coexisting in the same physical domain. We extensively benchmark the model for two-dimensional binary systems in terms of their elastic properties and phase boundary configurations and their energetics. As a concrete example, we demonstrate modelling lateral heterostructures of graphene and hexagonal boron nitride. We consider both idealized bicrystals and large-scale systems with random phase distributions. We find consistent relative elastic moduli and lattice constants, as well as realistic continuous interfaces and faceted crystal shapes. Zigzag-oriented interfaces are observed to display the lowest formation energy.

Figures

Figures reproduced from arXiv: 1908.05564 by the authors.

Figure 1
Figure 1. FIG. 1. Influence of the coupling parameter [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. FIG. 2. Influence of [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

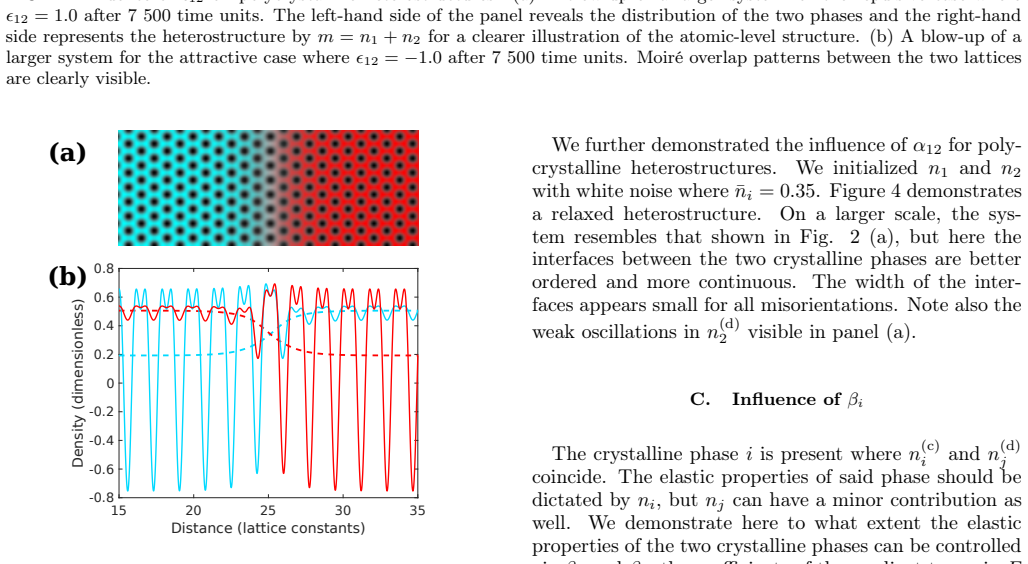

Figure 3. FIG. 3. Influence of [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (10 more)
Figure 4
Figure 4. Figure 4: FIG. 4. Influence of [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5
Figure 5. Figure 5: FIG. 5. Two-dimensional Young’s modulus [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 6
Figure 6. Figure 6: FIG. 6. Collage of interface structures for different lattice mismatches, strains and misorientations. The left hand side of [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]
Figure 7
Figure 7. Figure 7: FIG. 7. Lattice-mismatched polycrystalline heterostructures. The panels offer blow-ups of larger systems after a relaxation of [PITH_FULL_IMAGE:figures/full_fig_p009_7.png]
Figure 8
Figure 8. Figure 8: FIG. 8. Zigzag interface from a bicrystalline G–h-BN lateral [PITH_FULL_IMAGE:figures/full_fig_p010_8.png]
Figure 9
Figure 9. Figure 9: FIG. 9. Large random polycrystalline graphene–h-BN lateral heterostructure relaxed from white noise for [PITH_FULL_IMAGE:figures/full_fig_p011_9.png]
Figure 10
Figure 10. Figure 10: FIG. 10. Large random polycrystalline graphene–h-BN lateral heterostructure from a random Voronoi grain structure. A side [PITH_FULL_IMAGE:figures/full_fig_p011_10.png]
Figure 11
Figure 11. Figure 11: FIG. 11. Examples of strained bicrystalline heterostructures [PITH_FULL_IMAGE:figures/full_fig_p012_11.png]
Figure 12

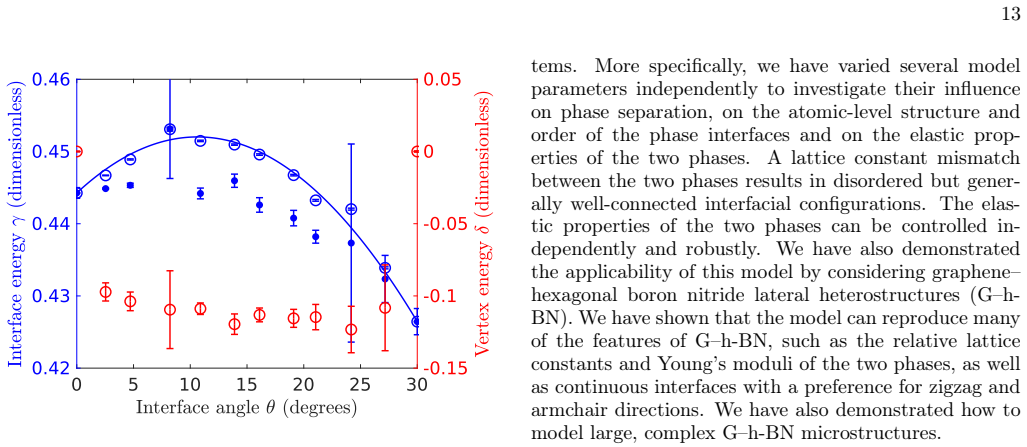

Figure 12. Figure 12: also shows that the vertex energy δ is zero for both zigzag and armchair directions where there are no vertices. For the intermediate directions, δ is found slightly negative and roughly constant. This explains why the formation energy is generally lower for interface…
Figure 13
Figure 13. Figure 13: FIG. 13. A pictorial showing an example of disordered and [PITH_FULL_IMAGE:figures/full_fig_p015_13.png]
