Switchable phonon diodes using nonlinear topological Maxwell lattices

T0 review · 2 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Topological Maxwell lattices can act as switchable phonon diodes: nonlinear second-harmonic transmission is strongly one-way when linear modes are blocked by pinning, and directionality switches off via a Guest-mode lattice deformation.

desk verdict Solid analytics and a clever pinned-diode design, but the abstract overstates topology and the unpinned results ignore a DC zero-mode coupling that needs a real answer. read the letter →

arxiv 1908.05716 v1 pith:UOQ2GWEO submitted 2019-08-15 cond-mat.soft

Di Zhou , Jihong Ma , Kai Sun , Stefano Gonella , Xiaoming Mao This is my paper · ORCID
classification cond-mat.soft
keywords topologicalmechanicsMaxwelllatticesphonondiodenonreciprocalwavetransmissionsecondharmonicgenerationfloppyedgemodeskagomelatticeGuestmode
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Maxwell lattices sit exactly at the threshold of mechanical stability, so some edges host topologically protected “floppy” modes that move easily while the opposite edge stays rigid. This paper argues that driving such a lattice hard enough to excite geometric nonlinearity makes the floppy edge’s large deformation generate a second-harmonic wave whose transmission is strongly one-way, even though same-frequency linear transmission is perfectly reciprocal. Adding a weak on-site pinning potential opens a frequency gap that blocks the linear wave, so the frequency-doubled wave alone carries the signal and the lattice becomes a phonon diode. A uniform soft deformation of the lattice, the Guest mode, can switch the system between the topological (strongly nonreciprocal) and non-topological (nearly reciprocal) phases, giving a reversible on/off switch for one-way sound transmission.

What carries the argument

The load-bearing construction is the compatibility matrix $C(k_1)$ of a supercell strip, whose winding number sets the topological polarization and therefore which edge hosts the zero-frequency floppy modes. Nonlinearity enters through the geometric second-order bond tension $f^{(2)}(u^{(1)})$, quadratic in the linear displacement and acting as an effective driving force at $2\omega$. The on-site potential $V_i = \frac{1}{2}K' u_i^2$ shifts the band structure up by $\Delta'=\sqrt{K'/m}$, creating the window $\frac{1}{2}\Delta'<\omega<\Delta'$ in which linear modes are edge-localized while second harmonics are bulk-propagating. The Guest mode, a uniform soft strain with all bond lengths unchanged, rotates the lattice between topological and non-topological phases and thereby turns the nonreciprocity on and off.

What would settle it

A concrete test would be a molecular-dynamics simulation or tabletop experiment on the pinned $40\times39$ kagome lattice ($K'=K/100$): drive a single C-site on the soft edge with $F=10^{-4}$ at a frequency $\omega$ inside $(\frac{1}{2}\Delta',\Delta')$, wait for steady state, and measure the $2\omega$ displacement at the opposite edge; repeat driving the hard edge. The claim fails if the soft-to-hard $2\omega$ susceptibility is not clearly larger than the hard-to-soft one.

Watch

Extended reading notes

Core claim

The paper establishes that in a topological Maxwell lattice the second-harmonic response generated by a linear edge mode is strongly nonreciprocal: driving the soft (floppy) edge produces a much larger frequency-doubled bulk wave at the opposite edge than driving the hard edge does, even though first-harmonic transmission is exactly reciprocal by Maxwell-Betti symmetry. The mechanism is asymmetric boundary stiffness: the floppy edge deforms far more under the same force, its geometric nonlinear terms act as a much stronger effective drive at $2\omega$, and because $2\omega$ falls in the bulk band this second-harmonic wave propagates across the lattice. With a weak on-site pinning that opens a full low-frequency gap while preserving the stiffness contrast, the fundamental is blocked, and the soft-to-hard transmission at $2\omega$ exceeds both the reverse-direction transmission and the residual linear transmission, making the lattice a switchable phonon diode.

Load-bearing premise

The load-bearing premise is that second-order perturbation theory in the driving amplitude remains accurate while the nonlinear term is large enough to dominate: all displacements must stay small ($\delta\theta \ll 1$, $|u| \ll l_0$), yet at the chosen amplitude $F=10^{-4}$ the second-harmonic output scaling as $F^2$ must exceed the linear output scaling as $F$; the transfer-matrix solution also assumes a finite number of evanescent modes with open boundaries captures propagation across a finite lattice.

Editorial extensions

If this is right

  • A pinned topological kagome lattice with $K'=K/100$ transmits a frequency-doubled wave mainly from the soft edge to the hard edge for point-like excitation, not only for special boundary wavenumbers.
  • Because the fundamental is gap-blocked, the diode's output is not masked by reciprocal same-frequency transmission; the $2\omega$ signal is the leading transmitted channel.
  • Switching is reversible and requires no disassembly: rotating the isosceles triangles by $30^\circ$ via the Guest mode restores near-reciprocal transmission, and rotating back restores diodicity.
  • The same mechanism extends to higher harmonics: a linear edge mode at $\omega$ generates a bulk mode at $n\omega$ that transmits one way whenever $\frac{1}{n}\Delta<\omega<\frac{1}{n-1}\Delta$.
  • The effect survives finite bending stiffness at the hinges and Gaussian tone-burst excitation, so it is a plausible basis for a passive elastic diode.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • I infer that the diode contrast should be amplitude-tunable: since the second-harmonic output scales as $F^2$ and the linear leakage as $F$, an optimal driving window should exist near the top of the pinning gap; the paper does not optimize this trade-off.
  • I infer the recipe is general: any Maxwell lattice whose polarization concentrates floppy modes on one edge, not just kagome, should show nonreciprocal second-harmonic transmission after pinning, since the paper itself notes that only asymmetric boundary stiffness plus nonlinear elasticity is needed.
  • I infer that weak disorder preserving the bulk gap should leave the diode direction intact because the edge-mode localization is topological, while strong disorder that closes the gap or couples edge modes to bulk channels at $2\omega$ would erode the contrast; the paper does not compute this robustness explicitly.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. This manuscript proposes a mechanism for nonreciprocal elastic-wave transmission in topological Maxwell lattices. In a 1D topological chain and a 2D kagome lattice with topologically polarized floppy edge modes, the soft edge responds much more strongly to a low-frequency drive than the hard edge. The authors show analytically and by molecular dynamics that the second harmonic generated by this linear edge response is much larger when the drive is applied at the soft edge, so that the 2ω transmission is strongly directional. Because the linear response is reciprocal and dominates the total signal, they add a weak on-site pinning potential, which opens a low-frequency gap; in this pinned configuration the forward 2ω signal exceeds the linear signal, yielding a phonon diode. They further show that a Guest-mode deformation can switch the lattice between the topological (nonreciprocal) and non-topological (nearly reciprocal) states.

Significance. If the reported effects are correct, the paper offers a new, topologically protected route to switchable phonon diodes, with the important feature that the nonreciprocity is realized by geometric nonlinearity rather than by breaking time-reversal symmetry. The evidence is unusually strong for a theory paper: the analytic transfer-matrix calculation is carried through for both the linear and second-harmonic modes, and the results are checked against direct molecular-dynamics simulations for the 2D kagome lattice, including tone-burst and bending-stiffness variants. The switchability via the Guest mode is a clean prediction. The unresolved issue described below concerns the consistency of the second-order perturbation calculation for the unpinned lattices and should be addressed before the central claims can be accepted in full.

major comments (2)
  1. [§II, Eq. (2.2); Appendices B–C] The second-order calculation solves only for the 2ω component of u^(2), via u^(2)(2ω) = G(2ω) f^(2)(2ω). The quadratic nonlinearity f^(2)(u^(1)) also contains a DC component, and the corresponding static response u^(0) = G(0) f^(0) is not computed. For the unpinned Maxwell lattices of Sections II and III, D has zero eigenvalues (the topological floppy mode in the 1D chain, and the floppy/translational nullspace in the 2D strip), so G(0) is singular. Unless f^(0) has zero projection on that nullspace, the static response is not of order F^2 and the perturbation expansion u = u^(1) + u^(2) is uncontrolled. The paper contains no argument that the projection vanishes. This affects the unpinned nonreciprocity claims in Figs. 1(e) and 2(e). The pinned lattice of Section IV, with K' = K/100, regularizes G(0) and is less exposed, but the authors should either prove the orthogonality condition or explicitly bound the DC deformation in the simulations.
  2. [§II and §III, Figs. 1–3] The paper does not provide a quantitative check that the perturbation parameter is small in the same regime where the second harmonic dominates the linear transmission. The analytic results rely on |δθ_n| ≪ 1 and |u| ≪ l0, while the diode condition requires the 2ω output, which scales as F^2, to exceed the linear output, which scales as F. The chosen amplitudes F = 10^-5 and F = 10^-4 are stated, but the resulting maximal strain is not reported. A brief estimate using χ_in, or a supplemental figure showing the strain amplitude, would be needed to confirm that the perturbation expansion and the strong-nonlinearity requirement are simultaneously satisfied.
minor comments (4)
  1. [§III, definitions of χ_out±] The definitions of χ^(1)out− and χ^(2)out− are printed identically to the χ^(1)out+ and χ^(2)out+ expressions: both use |u_y,N2|/F_y1. The negative-direction susceptibilities should involve the displacement at the top boundary when driving at the bottom boundary, i.e., |u_y,1|/F_yN2. This typo obscures the reciprocity statement that follows.
  2. [§II, Eq. (2.2)] The sentence 'f^(2)(u^(1)_g) is the second harmonic effective driving force generated by the linear displacement u^(1)_g, as defined in Eq.(2.1)' is misleading, since Eq. (2.1) is the linear equation of motion; the definition of f^(2) is given only later in Appendix B.
  3. [§II, robustness claim] The paper asserts that topological protection makes the nonreciprocal effect robust against disorder, but no disorder-averaged simulation or analytic argument is presented. This is a motivation-level claim and should either be supported or softened.
  4. [Appendix D and Fig. 3] The simulation parameters are not fully specified in the main text: the damping coefficient η, spring constant K, mass m, and lattice length scale l0 are not given, although the analytic formulas depend on them. Reporting these values, or a reference to the SI, would improve reproducibility.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the second-harmonic diode response is computed from Green's functions and checked by simulations, not fitted or defined into existence.

full rationale

The paper's central claim is that second-harmonic modes generated in topological Maxwell lattices inherit a strong left-right asymmetry from the linear edge response. The derivation chain is explicit and self-contained: the linear response is solved from Newton's equation, Eq. (2.1), via the frequency-response function G(omega) = [D + (-m omega^2 + i eta omega)I]^{-1} in Appendix B and its kagome analogue in Appendix C. The second-harmonic source f^(2)(u^(1)) is computed as the quadratic term in the bond-tension expansion, Eqs. (B3)-(B5) and (C4)-(C5), and the second-harmonic field is then obtained as u^(2)(2 omega) = G(2 omega) f^(2)(u^(1)), Eqs. (B9), (B16) and (C8), (C13). The nonreciprocal output susceptibilities chi_out+^(2) and chi_out-^(2) are evaluated from these solutions, not imposed or fitted. The asymmetry enters because the quadratic source is larger when the topological floppy edge is driven, but this is a calculated consequence of the linear Green's function, not a restatement of the target result. The linear-response reciprocity chi_out+^(1) = chi_out-^(1), Eq. (B15) and Fig. 2(d), is derived and used as a contrast, showing that the second-harmonic nonreciprocity is a genuinely nonlinear prediction rather than a re-labeling of the reciprocal linear transmission. The claims are additionally checked against direct Newtonian-mechanics simulations in Figs. 1-3, which makes the derivation externally anchored rather than circular. The paper does cite prior work by overlapping authors, notably Refs. [13], [17] and [51], for the kagome polarization, the Guest-mode transformation, and asymmetric edge-wave response. These are published external inputs with independent content; they do not state or assume the current paper's second-harmonic diode result, and they are not invoked as uniqueness theorems or as a substitute for the present calculation. The switching claim in Section V relies on the Guest-mode result of Ref. [13], but that is a parameter-free geometric fact about kagome lattices, not a fitted or self-referential premise of the nonreciprocity mechanism. The reviewer-identified omission of the zero-frequency (DC) component of f^(2), and the possible singular G(0) in unpinned lattices, is a perturbation-theory validity concern rather than a circularity: even if the DC response were uncontrolled, that would not make the second-harmonic output equal to the input by construction.

Assumptions & free parameters 3 free parameters · 4 assumptions · 0 invented entities

The paper introduces no new physical entity. Its central claim rests on standard linear response theory, second-order perturbation theory, prior topological classification, and prior Guest-mode results. The main free design parameters are the pinning strength, driving amplitude, and damping; these are chosen for the numerical demonstration rather than fitted to external data.

free parameters (3)
  • on-site pinning strength K' = K/100
    Chosen in Sec. IV to fully gap the low-frequency spectrum while preserving the soft-edge response; the phonon diode operates for 1/2 Δ' < ω < Δ', but the exact value is a design choice rather than a quantity fit to data.
  • driving force amplitude F = 10^-4 (nonlinear), 10^-8 (linear)
    The second-harmonic transmission susceptibility χ_out^(2) scales linearly with F, so the claim that the second harmonic exceeds the fundamental depends on choosing a sufficiently large F; the ratio between the two directions is F-independent.
  • damping coefficient η = not specified in text
    Damping appears in Eq. (2.1) and in the simulations, but no numerical value is reported; it affects resonance amplification and absolute transmission magnitudes, though not the sign of the asymmetry.
assumptions (4)
  • standard math Linear response of a time-reversal symmetric elastic lattice is reciprocal (Maxwell-Betti theorem).
    Used in Sec. II and Appendix A to prove linear transmission reciprocity, isolating nonlinearity as the source of nonreciprocity.
  • domain assumption Perturbation expansion of displacement in powers of the driving force F is convergent, with the quadratic term dominating third and higher terms.
    Used in Eq. (2.2) and Appendices B and C to compute second-harmonic generation; the paper assumes F small while still large enough for the second harmonic to dominate the linear response in the pinned diode.
  • domain assumption Topological polarization and floppy-mode localization of the 1D chain and kagome lattice are as characterized by Kane-Lubensky and the authors' prior work.
    The design inherits the existence of a soft edge and the polarization vector from prior results; they are not re-derived in this paper.
  • domain assumption The Guest mode deformation connects the topological and non-topological kagome phases without stretching bonds and preserves the number of floppy modes.
    Invoked in Sec. V to claim reversible switching between nonreciprocal and near-reciprocal states.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Switchable phonon diodes using nonlinear topological Maxwell lattices." pith.science (2026). https://pith.science/paper/UOQ2GWEO

@misc{pith2026190805716,
  author       = {Pith},
  title        = {Pith review of: Switchable phonon diodes using nonlinear topological Maxwell lattices},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/UOQ2GWEO}},
  note         = {Machine review of arXiv:1908.05716}
}
read the original abstract

Recent progress in topological mechanics have revealed a family of Maxwell lattices that exhibit topologically protected floppy edge modes. These modes lead to a strongly asymmetric elastic wave response. In this paper, we show how topological Maxwell lattices can be used to realize non-reciprocal transmission of elastic waves. Our design leverages the asymmetry associated with the availability of topological floppy edge modes and the geometric nonlinearity built in the mechanical systems response to achieve the desired non-reciprocal behavior, which can be further turned into strongly one-way phonon transport via the addition of on-site pinning potentials. Moreover, we show that the non-reciprocal wave transmission can be switched on and off via topological phase transitions, paving the way to the design of cellular metamaterials that can serve as tunable topologically protected phonon diodes.

Figures

Figures reproduced from arXiv: 1908.05716 by the authors.

Figure 1
Figure 1. FIG. 1. Nonreciprocal wave propagation in a 1D nonlinear topological chain. (a) 1D topological mechanical chain[2] subjected [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. FIG. 2. Nonreciprocal wave propagation in a 2D nonlinear topological kagome lattice. (a) Topological kagome lattice, with unit [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

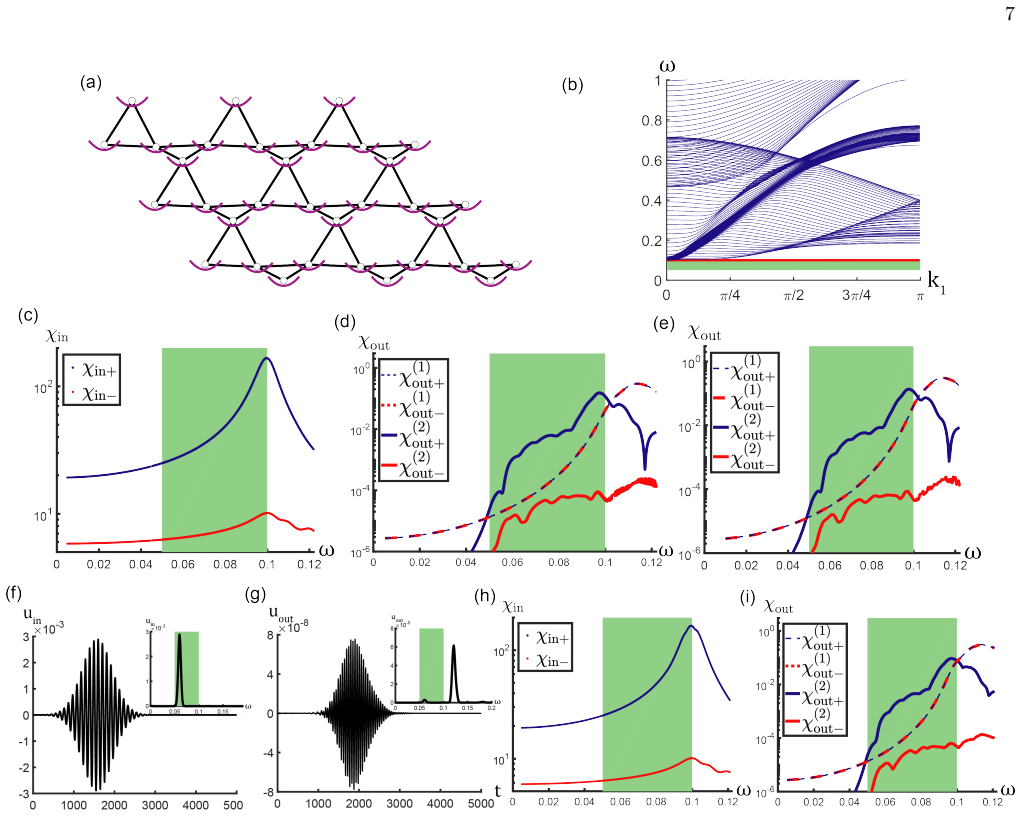

Figure 3. FIG. 3. One-way propagation of second harmonic waves in a topological kagome lattices with on-site pinning potentials. [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figures from the paper (1 more)
Figure 4
Figure 4. Figure 4: FIG. 4. Near-reciprocal wave propagation in non-topological kagome lattice, which is related to the topological kagome lattice [PITH_FULL_IMAGE:figures/full_fig_p008_4.png]
