Orbital dynamics of circumbinary planets

T0 review · 2 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read For massive circumbinary planets, stationary tilt and libration are set by binary eccentricity and angular momentum ratio alone.

desk verdict Solid numerical extension of circumbinary planet dynamics to nonzero planet masses, broadly confirming the self-authored analytic model, with a real caveat about using initial eb and j in the high-mass comparisons. read the letter →

arxiv 1908.06331 v1 pith:L4X7DONH submitted 2019-08-17 astro-ph.EP

Cheng Chen , Alessia Franchini , Stephen H. Lubow , Rebecca G. Martin This is my paper · ORCID
classification astro-ph.EP
keywords circumbinaryplanetsseculardynamicsorbitalinclinationlibrationthree-bodysimulationsbinaryeccentricityangularmomentumratioquadrupoleapproximation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper asks what determines the tilt of a massive planet orbiting an eccentric binary star on a circular, misaligned path. Through three-body simulations, it argues that two dimensionless numbers — the binary eccentricity $e_b$ and the ratio $j$ of planet-to-binary angular momentum — completely set the stationary tilt and the critical tilt separating libration from circulation. The simulations reproduce the analytic secular quadrupole formulas of Farago & Laskar (2010) and Martin & Lubow (2019) across a wide grid of masses, separations, and binary mass fractions. A sympathetic reader cares because observed circumbinary planets are nearly coplanar only by selection bias, and these formulas predict where tilted, librating planets should live.

What carries the argument

The argument is carried by the secular quadrupole approximation for the binary potential, which reduces the three-body secular problem to equations for the planet's inclination $i$ and nodal phase $\varphi$ relative to the binary's eccentricity and angular-momentum vectors. Within this model, the load-bearing formulas are Eq. (5) for the stationary tilt $\cos i_s$, Eq. (9) defining the branch parameter $\chi$, and Eqs. (10)–(11) for the minimum libration tilt $\cos i_{\rm min}$. The comparison is made by plotting phase-space trajectories in the $i\cos\varphi$–$i\sin\varphi$ plane and reading off the centers and boundaries of libration islands.

What would settle it

Run direct three-body integrations at a planet separation of $2.0\,a_b$ (inside the unstable boundary but where quadrupole error should be larger) or at angular momentum ratios $j > 2$, measuring $i_s$ and $i_{\rm min}$ and comparing to Eqs. (5), (10), and (11). A systematic offset larger than the scatter in Figs. 6–10, or a measurable dependence of these angles on binary mass fraction at fixed $e_b$ and $j$, would falsify the claim that $e_b$ and $j$ are the only controlling parameters.

Watch

Extended reading notes

Core claim

The paper's central claim is that for a nonzero-mass planet on an initially circular circumbinary orbit, the stationary planet-to-binary tilt $i_s$ and the minimum libration tilt $i_{\rm min}$ depend only on the binary eccentricity $e_b$ and the planet-to-binary angular momentum ratio $j = |\mathbf{l}_p|/|\mathbf{l}_b|$; binary mass fraction and planet mass enter only through $j$. Direct N-body integrations spanning $e_b = 0.2, 0.5, 0.8$, binary mass fractions $f_b = 0.1$ and $0.5$, planet masses $m_p = 0.001\,m_b$ to $0.116\,m_b$, and separations $5\,a_b$ to $20\,a_b$ agree quantitatively with Eqs. (5) and (9)–(11). The paper also maps a previously unexplored regime: for $j$ below $j_{\rm cr} = (1+4e_b^2)/(2+3e_b^2)$, no noncoplanar retrograde stationary state exists, and instead retrograde orbits librate in crescent-shaped paths of nonzero phase extent.

Load-bearing premise

The load-bearing premise is that the quadrupole truncation of the binary potential is accurate enough in the tested region that Eqs. (5), (10), and (11) serve as a faithful benchmark; the paper acknowledges the approximation degrades close to the binary, where it already sees deviations.

Editorial extensions

If this is right

  • A measured circumbinary planet tilt, combined with known binary eccentricity, fixes the angular momentum ratio $j$ and thereby constrains the planet's mass and semi-major axis.
  • The analytic boundary between circulating and librating orbits lets observers predict which systems should show tilted, precessing planets rather than coplanar ones.
  • For retrograde planets with $j < j_{\rm cr}$, the absence of a stationary state implies crescent-shaped librations with nonzero phase extent; such orbits may have distinct stability and observational signatures.
  • Because the same quadrupole formulas describe massive discs, the verified scalings transfer to circumbinary disc alignment, predicting the final tilt of debris discs and planets formed in them.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the quadrupole map holds beyond the tested grid, the near-coplanarity of all Kepler-detected circumbinary planets is likely a transit selection effect; wide-orbit binaries should host planets with a continuum of tilts up to and including polar orbits.
  • The crescent retrograde orbits found for $j < j_{\rm cr}$ suggest a dynamical boundary that could mark a zone of instability or bifurcation; a dedicated long-time stability map in that region would test this extension.
  • The same ratio-symmetric structure might extend to eccentric planet orbits or octupole-order terms, where the stationary tilt would acquire additional dependence on the planet's eccentricity and the binary mass ratio.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. The paper studies the three-body dynamics of a nonzero-mass, initially circular circumbinary planet around an eccentric binary using REBOUND N-body simulations. It maps prograde and retrograde circulating and librating orbits, determines the stationary inclination and the critical minimum (and maximum) libration angles, and compares the results with the analytic secular quadrupole formulas of Martin & Lubow (2019), namely Eq. (5) for the stationary tilt and Eqs. (10) and (11) for the minimum libration tilt. A broad parameter grid is covered, including binary eccentricities eb = 0.2, 0.5, 0.8, mass fractions fb = 0.5, 0.1, planet masses up to ~0.1 mb, and orbital radii 5 ab and 20 ab. The paper reports very good quantitative agreement with the analytic predictions and highlights new crescent-shaped retrograde librating orbits for high-angular-momentum planets. It closes with an application to the HD 106906 system.

Significance. If the claimed agreement holds, the paper provides a valuable numerical validation of the secular quadrupole framework for massive circumbinary planets and shows that the key angles depend only on eb and the angular momentum ratio j, rather than on the binary mass fraction or other parameters. The comparison is a genuine prediction test: the analytic formulas are evaluated without any fitted parameters, and the N-body integrations are independent of the analytic model. The paper also documents a new morphology of retrograde librating orbits and connects the results to circumbinary disc evolution and to a concrete observed system. The strengths are the breadth of the parameter survey, the parameter-free nature of the comparison, and the identification of qualitative features (crescent orbits, the jcr threshold, and the crossing of retrograde stationary curves) that are directly testable.

major comments (2)
  1. [§3.1, Fig. 6 and Fig. 2] The analytic formulas (5), (10), and (11) treat eb and j as fixed parameters of a secular Hamiltonian. In the massive-planet simulations used for the comparison, however, eb evolves strongly: Fig. 2 shows eb approaching 1 for Models D2, F2, and related high-j cases, and j = Lp/Lb then changes because Lb is proportional to sqrt(1 - eb^2). The paper does not state whether the dots in Fig. 6 and Fig. 10 were placed using the initial, instantaneous, or cycle-averaged values of eb and j, nor does it justify why the chosen convention is the correct one. Since the central claim of "very good quantitative agreement" is a test of Eqs. (5), (10), and (11), this is load-bearing. Please specify the definition of j used for each dot and either provide a comparison using cycle-averaged values of eb and j or give an explicit argument for why the initial values are the exact parameters of the comparison.
  2. [§3.1 and §3.2, Figs. 6-10] The numerical extraction of is, imin, and imax is not reproducible from the text. The paper states that these angles were determined from the simulations, but it does not describe the algorithm: how the libration center is identified in the i-phi plane, how the separatrix boundary is interpolated from the finite grid of initial inclinations, or how the green/blue/magenta boundaries are assigned. Without this information, the reader cannot judge whether the quoted agreement is within the numerical uncertainty of the phase-plane classification. Please describe the extraction procedure and provide at least a grid-resolution uncertainty estimate for the plotted numerical points.
minor comments (4)
  1. [§3.2, text after Eq. (11)] The sentence describing the green and red curves in Figs. 8 and 9 is inconsistent with the definitions of Eqs. (10) and (11): the text labels Eq. (10) as green for chi < 0 and Eq. (11) as red for chi > 0, whereas the preceding paragraph defines Eq. (10) for chi > 0 and Eq. (11) for chi < 0. The figure captions use the correct assignment; please fix the text.
  2. [§2.1 and §3.1] The ratio j is central to the comparison, but the paper never explicitly defines it in terms of the model parameters. Please give the formula for j, for example j = (mp/mb) sqrt(a/ab) with the appropriate reduced-mass factors, so that the reader can reproduce the values used in Figs. 6 and 10.
  3. [§2.1, initial conditions] All simulations start with the same initial phase angle phi = 90 deg. Because the libration/circulation separatrix is classified along this single line in phase space, a short convergence test with a different initial phase angle would help confirm that the reported critical angles are independent of the initial phase, especially for the non-nested crescent orbits.
  4. [Figs. 6, 7, and 10] The simulation-derived points are shown without error bars or point-size information. Given the finite inclination grid used to classify orbits, an uncertainty estimate on each numerical angle would make the claimed "very good quantitative agreement" more quantitative.

Circularity Check

0 steps flagged · score 1.0 of 10

No circularity: analytic formulas are self-cited but independently tested with N-body simulations; no fitted parameter is renamed as a prediction.

full rationale

The paper's central claim is that its three-body simulations agree with the analytic stationary and critical tilt formulas, Eqs. (5), (10), and (11), taken from Martin & Lubow (2019). That is a genuine prediction test: the analytic formulas are derived from the secular quadrupole Hamiltonian (rooted in Farago & Laskar 2010) with no free parameters fitted to the N-body results, and the simulations are independent integrations using REBOUND. The self-citation is disclosed and appropriate: the current paper does not re-derive the formulas, but the formulas do not encode the simulation output. The j and eb entering the comparison are set by the initial conditions, not by the measured stationary/critical angles; the paper reports agreement across a grid of eb, fb, mp, and a, including regions where it explicitly documents quadrupole breakdown at small a (Fig. 7). The only caveats are methodological rather than circular: the extraction of numerical stationary/critical angles from phase-plane plots is not fully specified, and the formulas are evaluated at initial eb and j while those quantities evolve in the massive-planet runs. These concerns bear on reproducibility and on whether initial or cycle-averaged parameters should be used, but they do not make the prediction equivalent to the input by construction. No step in the derivation chain reduces Eq. (5) or Eqs. (10)-(11) to the simulation data, and no fitted parameter is renamed as a prediction.

Assumptions & free parameters 0 free parameters · 3 assumptions · 0 invented entities

No parameters are fitted to simulation outcomes. The analytic formulas are parameter-free given eb and j, and the simulations scan a fixed grid of input physical parameters (Table 1). The paper introduces no new physical entities; it uses standard three-body gravitational dynamics. The axioms above are the main unproved assumptions the central agreement claim rests on.

assumptions (3)
  • domain assumption The secular quadrupole approximation for the binary potential is sufficiently accurate for the parameter range considered.
    Equations (5), (9)-(11) are derived under this approximation (cited to Farago & Laskar 2010 and Martin & Lubow 2019). The paper tests it and reports deviations at small a (Fig. 7), showing the assumption is load-bearing.
  • domain assumption The WHfast symplectic integrator in REBOUND accurately solves the three-body equations over the integration timescales (up to 10^5 binary periods).
    The paper relies on this standard integrator without reporting convergence tests or conservation checks, which are common for N-body codes but not described here.
  • domain assumption The initial condition with longitude of ascending node phi = 90 degrees and true anomaly nu = 0 is sufficient to map the orbit families for each parameter set.
    A single initial phase is used for all runs; if the phase portrait depended on this initial angle, the classification could be incomplete. The phase plane coordinates are referenced to the binary eccentricity vector, so the choice may be representative, but this is not demonstrated.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Orbital dynamics of circumbinary planets." pith.science (2026). https://pith.science/paper/L4X7DONH

@misc{pith2026190806331,
  author       = {Pith},
  title        = {Pith review of: Orbital dynamics of circumbinary planets},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/L4X7DONH}},
  note         = {Machine review of arXiv:1908.06331}
}

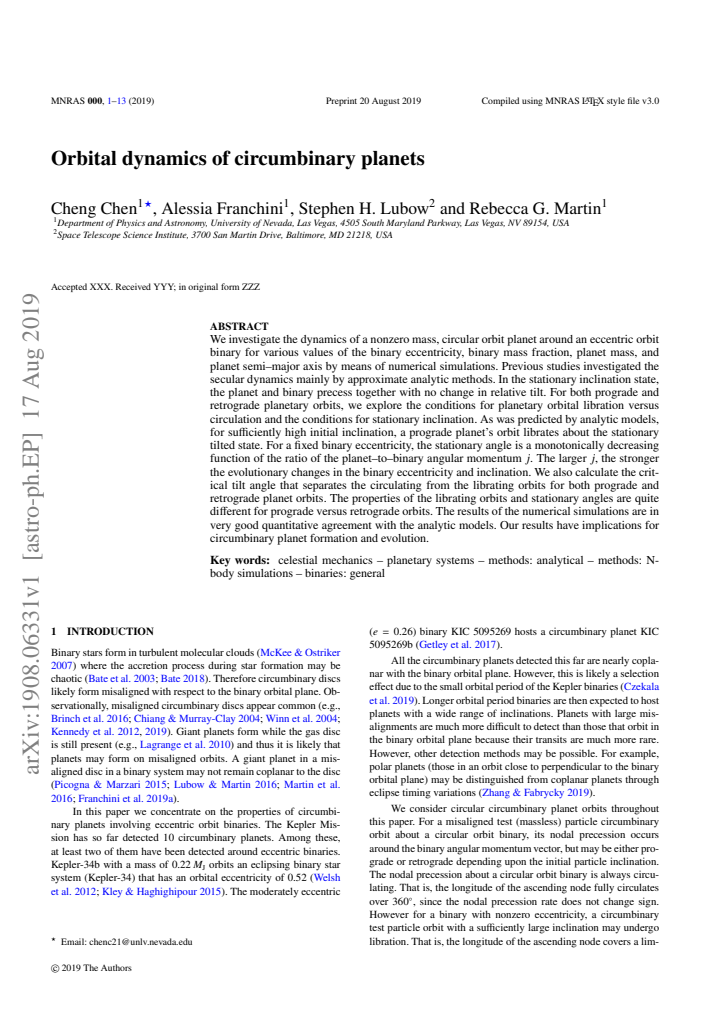

abstract

We investigate the dynamics of a nonzero mass, circular orbit planet around an eccentric orbit binary for various values of the binary eccentricity, binary mass fraction, planet mass, and planet semi--major axis by means of numerical simulations. Previous studies investigated the secular dynamics mainly by approximate analytic methods. In the stationary inclination state, the planet and binary precess together with no change in relative tilt. For both prograde and retrograde planetary orbits, we explore the conditions for planetary orbital libration versus circulation and the conditions for stationary inclination. As was predicted by analytic models, for sufficiently high initial inclination, a prograde planet's orbit librates about the stationary tilted state. For a fixed binary eccentricity, the stationary angle is a monotonically decreasing function of the ratio of the planet--to--binary angular momentum $j$. The larger $j$, the stronger the evolutionary changes in the binary eccentricity and inclination. We also calculate the critical tilt angle that separates the circulating from the librating orbits for both prograde and retrograde planet orbits. The properties of the librating orbits and stationary angles are quite different for prograde versus retrograde orbits. The results of the numerical simulations are in very good quantitative agreement with the analytic models. Our results have implications for circumbinary planet formation and evolution.

Figures

Figures reproduced from arXiv: 1908.06331 by the authors.

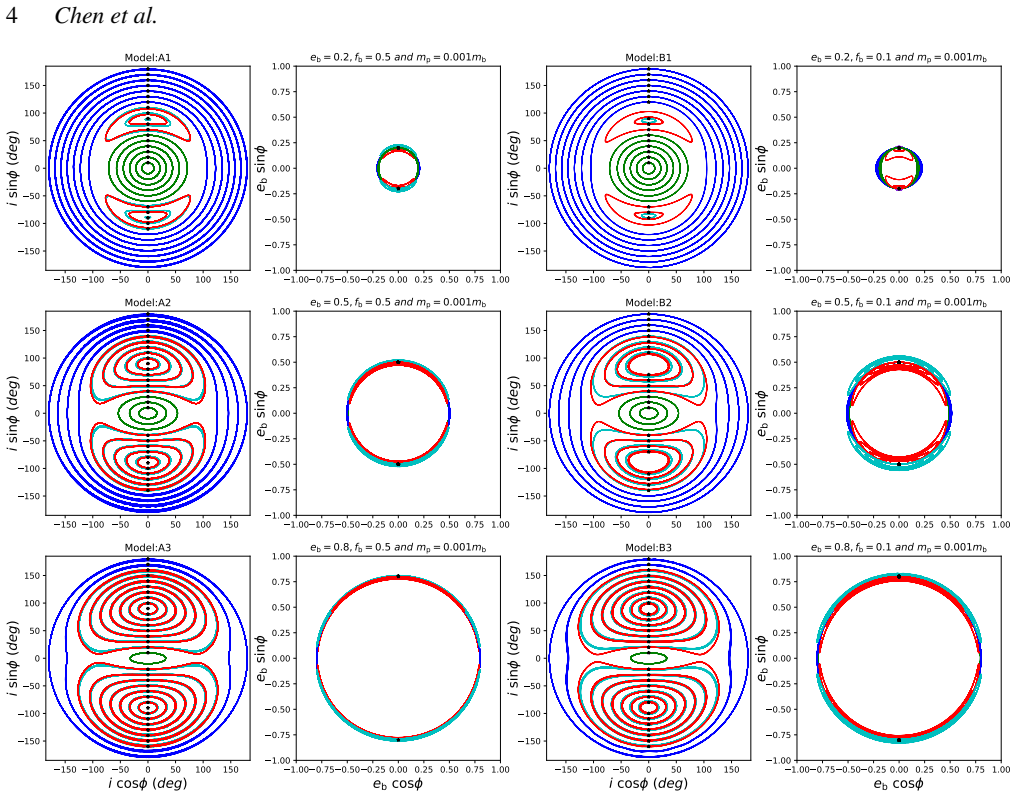

Figure 1
Figure 1. The i cos φ − isin φ plane (first and third columns) and eb cos φ − eb sin φ plane (second and fourth columns) for orbits with different values of initial inclination and longitude of the ascending node. The planet has mass mp = 0.001 mb, and orbital radius 5 ab. The binary eccentricity is eb = 0.2, 0.5 , 0.8 in the upper, middle and lower panels respectively. The mass fraction of the binary is fb = 0.5 in the first… view at source ↗

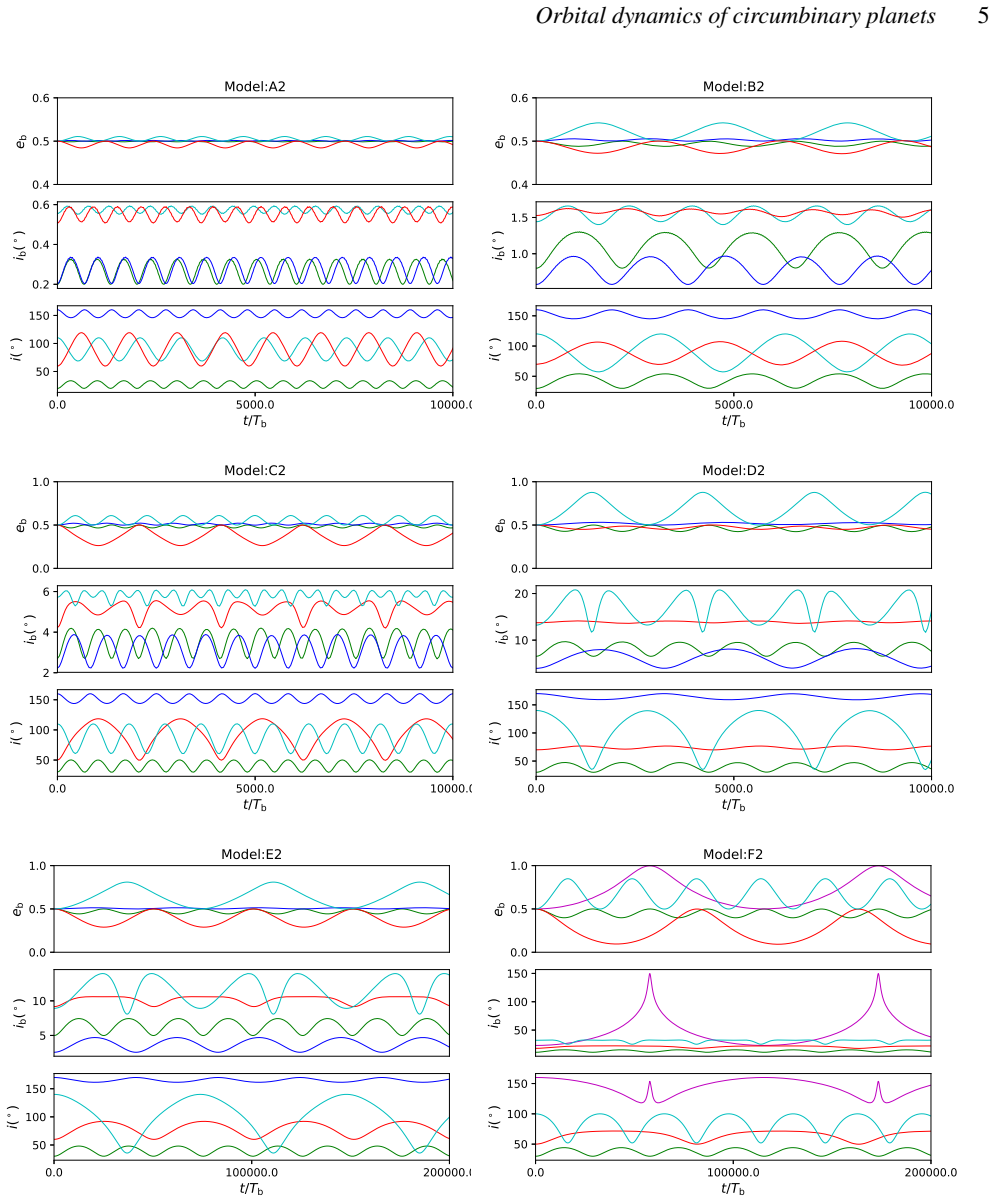

Figure 2
Figure 2. Time evolution of the binary eccentricity, eb, the inclination of the binary ib with respect to the vector of the total angular momentum, and the inclination of the planet with respect to the vector of the binary angular momentum,i, for Models A2, B2, C2 D2, E2 and F2. Each panel contains one line for each different type of orbit with the difference being the initial inclination which is shown in the bottom panel. T… view at source ↗

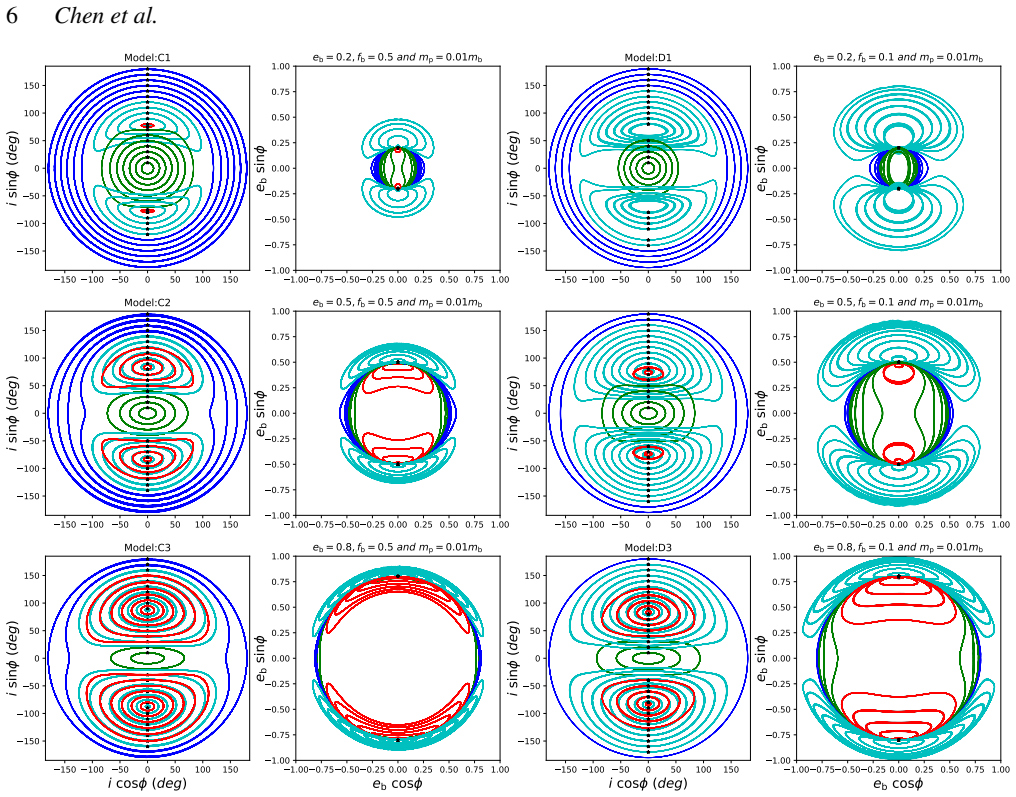

Figure 3
Figure 3. Same as [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (7 more)
Figure 4

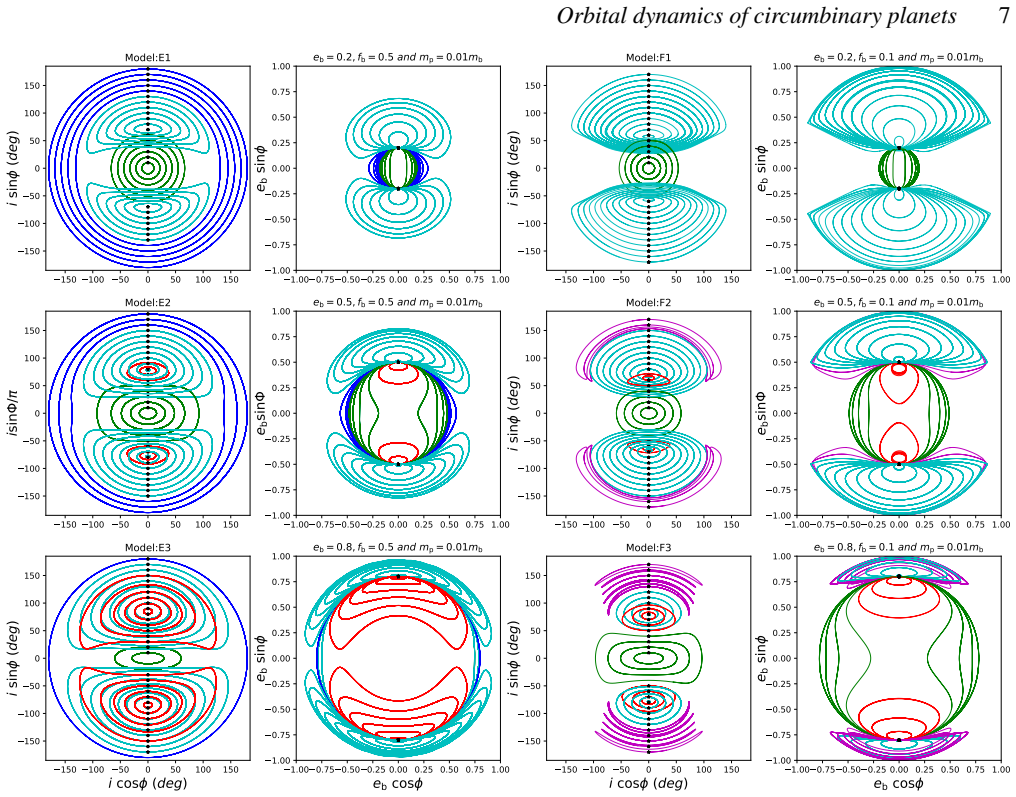

Figure 4. Figure 4: Same as [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 5

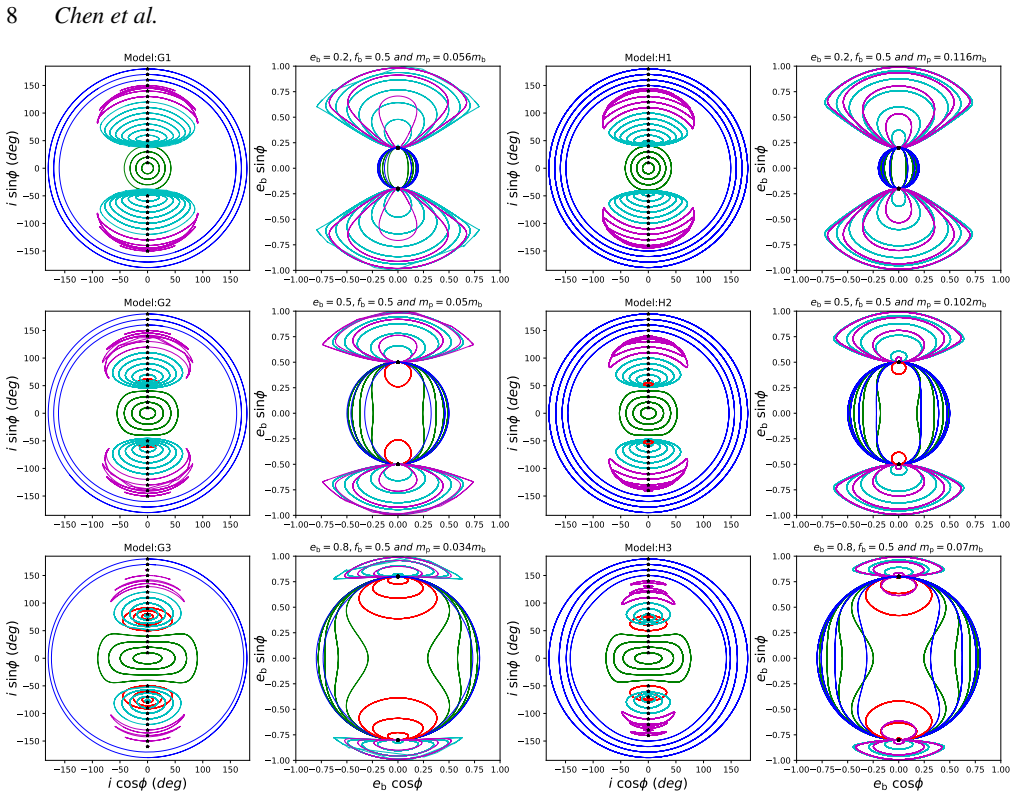

Figure 5. Figure 5: Same as [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]

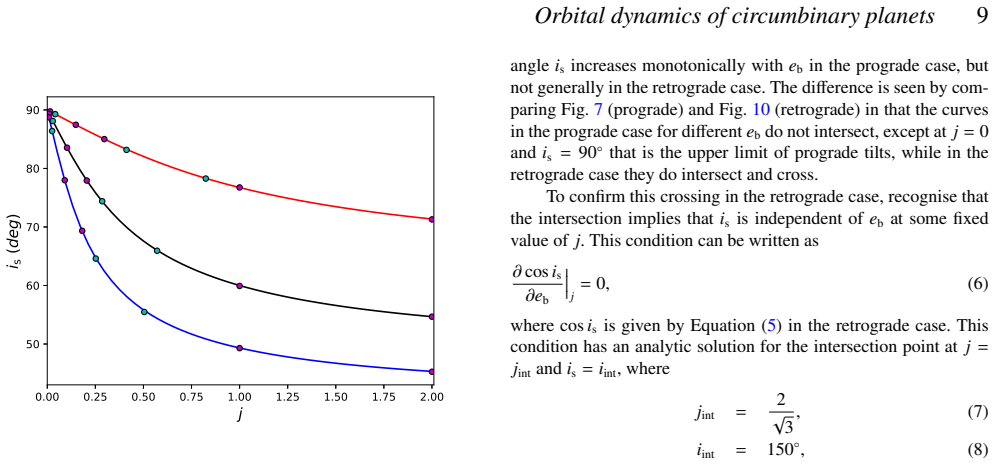

Figure 6
Figure 6. Figure 6: Comparison of the analytic solution given by Equation (5) in the prograde case (solid lines) with simulation results (dots) for the stationary tilt is of the planet relative to the binary as a function of planet-to-binary angular momentum ratio j. The solid curves have…

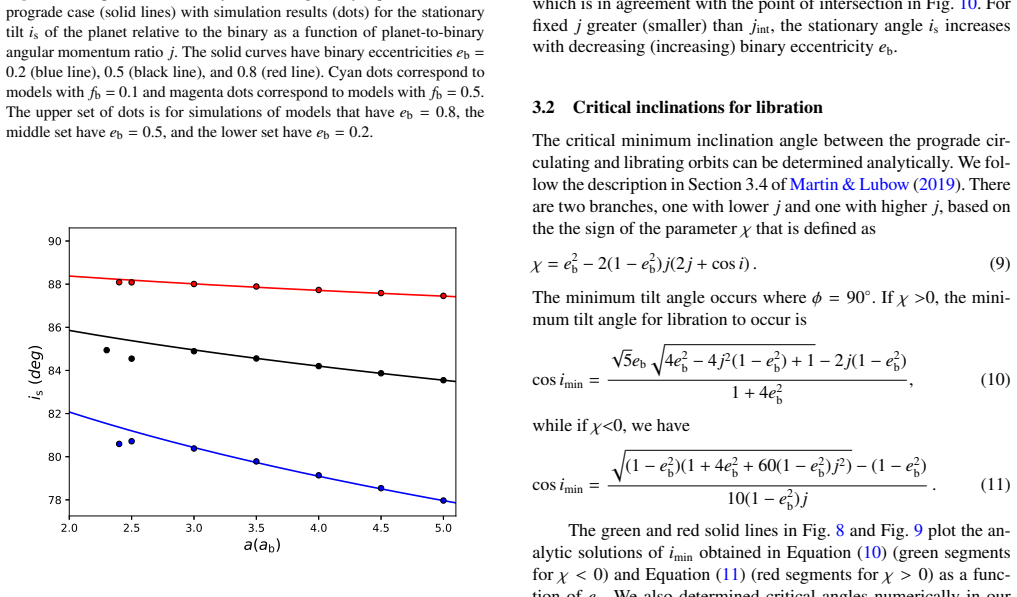

Figure 7
Figure 7. Figure 7: Comparison of the analytic solution given by Equation (5) in the prograde case (solid lines) with simulation results (dots) for the stationary tilt is of the planet relative to the binary as a function of the semi-major axis of the planet a. The solid lines have eb = 0…

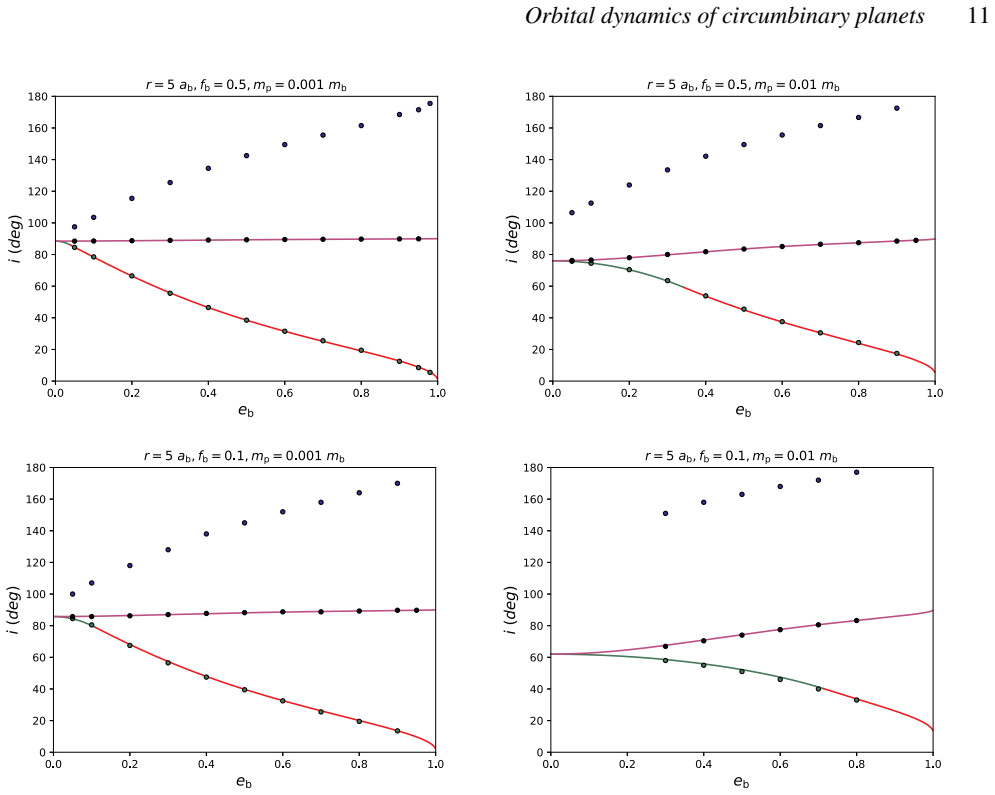

Figure 8
Figure 8. Figure 8: Stationary inclination (is), critical minimum inclination (imin) for libration, and critical maximal inclination for libration as a function of the binary eccentricity with the planet orbiting at r = 5ab with different binary mass fractions fb =0.5 (upper panels) and 0…

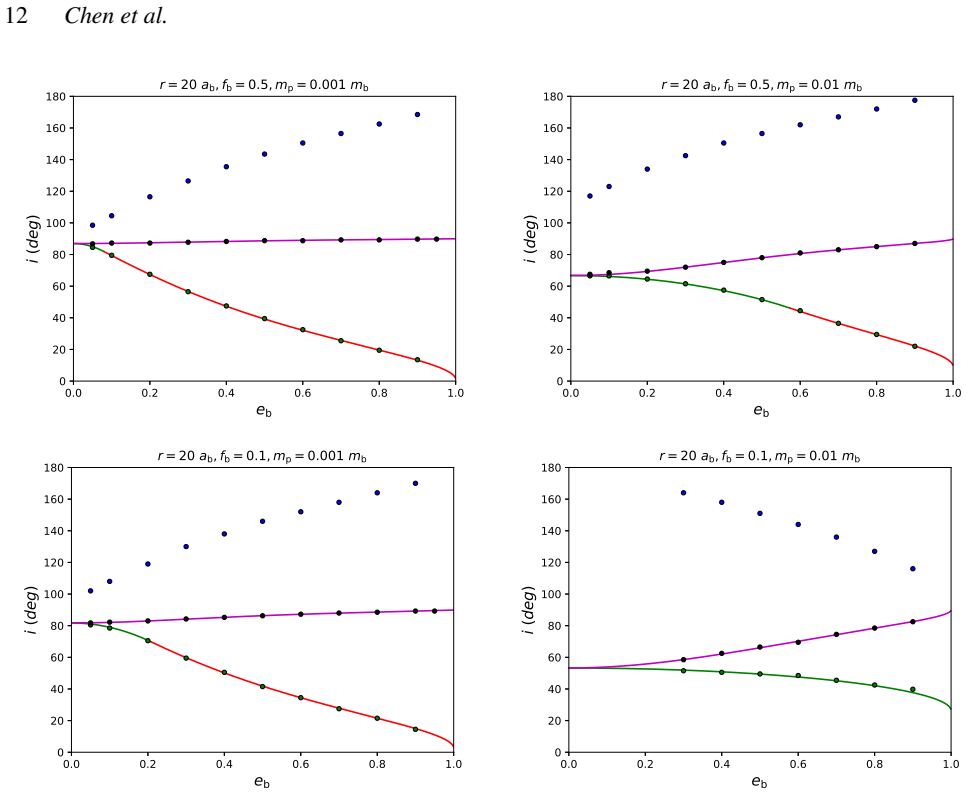

Figure 9
Figure 9. Figure 9: Same as [PITH_FULL_IMAGE:figures/full_fig_p012_9.png]
Figure 10

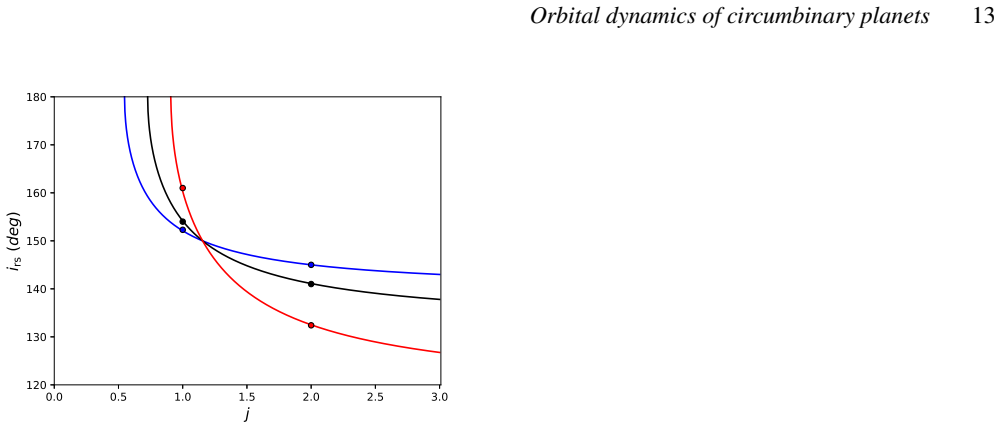

Figure 10. Figure 10: Comparison of the retrograde analytic solution given by Equa￾tion (5) with simulation results of Models G1 to H3 for the retrograde sta￾tionary tilt is of the planet relative to the binary as a function of planet-to￾binary angular momentum ratio j with binary eccentri…
