Near Data Acceleration with Concurrent Host Access

T0 review · 2 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read By letting host CPUs and near-data accelerators interleave fine-grained requests to the same DDR4 ranks, Chopim captures up to 97% of otherwise idle rank bandwidth while holding host performance steady, and speeds up SVRG logistic…

desk verdict Chopim's fine-grain host/NDA sharing mechanisms are original and well evaluated, but the headline results rest on an unvalidated replicated-FSM synchronization assumption that needs explicit handling of refresh and error cases. read the letter →

arxiv 1908.06362 v2 pith:RPQA5ZMS submitted 2019-08-18 cs.AR

Benjamin Y. Cho , Yongkee Kwon , Sangkug Lym , Mattan Erez This is my paper · ORCID
classification cs.AR
keywords near-dataprocessingprocessing-in-memoryDDR4bankpartitioningread/writeturnarounddatalayoutSVRGconcurrentaccess
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper argues that near-data accelerators (NDAs) inside main memory need not be confined to their own ranks or time slices. It presents Chopim, a combined software/hardware proposal that lets the host CPU and NDAs interleave requests to the same DDR4 banks and ranks at fine granularity, capturing up to 97% of rank bandwidth the host is not using while host instructions-per-cycle stays effectively unchanged. Four mechanisms carry the result: bank partitioning that isolates host-only banks from shared banks, throttling of NDA writes to avoid read/write-turnaround penalties, a data layout that aligns NDA operands across ranks using coarse-grain allocation and OS page coloring, and replicated memory-controller state machines that keep the host and NDA controllers synchronized without explicit signaling. In an SVRG logistic-regression case study, concurrent host-NDA execution trains 2x faster than host-only execution and 1.6x faster than serialized host-NDA execution, with no data copies.

What carries the argument

The central mechanism is a bank-partitioning address remap combined with replicated memory-controller FSMs. In the remap, the most-significant physical address bits and bank bits are swapped when an address would otherwise fall into a bank reserved for shared data, so host-only addresses are always steered to host-only banks and aliasing is avoided; this works with huge pages and modern XOR-based interleaving. The replicated FSMs, synchronized by the DDR interface clock, let the host track NDA memory transactions from a deterministic access pattern, enabling non-packetized DDR4 operation without NDA-to-host signaling. Supporting these are a data layout that aligns operands to the same 'system row' across ranks using coarse-grain allocation and OS page coloring, and two write-throttling policies (next-rank prediction over a dedicated pin, and stochastic issue) that curb the read/write turnaround overhead caused by interleaved NDA writes.

What would settle it

Implement the non-packetized DDR4 mode in a cycle-accurate simulator or prototype and inject a single refresh or timing perturbation during an NDA operation: if the host-side and NDA-side FSMs diverge, transactions are lost or corrupted, refuting the synchronization claim. Alternatively, measure actual NDA bandwidth utilization on a DDR4 module with the dedicated pin wired and compare it with the simulated 97% of idle-rank-bandwidth figure; a large gap would falsify the fine-grain interleaving results.

Watch

Extended reading notes

Core claim

The discovery is that fine-grain temporal interleaving of host and NDA memory requests to the same physical DRAM devices is not only feasible but decisively better than dedicating ranks to each side or coarse time-multiplexing. Chopim achieves this by remapping addresses so that host-only memory never lands in banks reserved for shared data, by issuing NDA commands only into ranks that are momentarily idle while throttling NDA writes (via next-rank prediction or stochastic issue), and by placing all operands of an NDA instruction in the same rank through system-row-aligned allocation and physical-frame coloring. On the non-packetized DDR4 interface, the system replicates the memory-controller finite-state machine on both sides of the channel and synchronizes them with the DDR clock, so the host can predict NDA memory behavior from the (deterministic) NDA access pattern alone, without any NDA-to-host signaling. The paper reports up to 97% of unutilized rank bandwidth used by NDAs with host IPC preserved, and 2x/1.6x speedups for SVRG logistic regression versus host-only and non-concurrent baselines.

Load-bearing premise

The load-bearing premise is that the replicated memory-controller finite-state machines on the host and NDA sides stay perfectly synchronized using the DDR interface clock and deterministic NDA access patterns, with no explicit NDA-to-host signaling; if DRAM refresh, error handling, or timing uncertainty makes the states diverge, the non-packetized DDR4 mode fails, and the results also assume a dedicated pin for next-rank write prediction that is not implemented on real systems.

Editorial extensions

If this is right

  • NDAs can be integrated into commodity DDR4 DIMMs without dedicating ranks, so the full memory capacity stays available to the host even during acceleration.
  • Host and NDAs can collaborate on the same data concurrently without copying, enabling algorithm redesigns such as delayed-update SVRG that overlap phases and cut training time.
  • Write-intensive NDA operations no longer force a severe host slowdown when combined with the throttling mechanisms.
  • Scaling the system with more ranks improves NDA throughput more than rank partitioning does, because idle-rank opportunities grow with rank count.
  • The bank-partitioning and layout techniques are compatible with huge pages and advanced address interleaving, removing a practical obstacle to near-data processing adoption.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The replicated-FSM synchronization idea could generalize to other memory-side engines that have deterministic access patterns, potentially enabling concurrent host access with in-memory processing on future DRAM generations.
  • The OS/compiler interface implied by Chopim—colored allocation and system-row alignment—suggests that memory allocation policies could be exposed to programming models so more applications obtain NDA locality automatically.
  • Because the SVRG result depends on staleness, similar delayed-update variants of other iterative algorithms could benefit from concurrent host-NDA access, but their convergence guarantees would need separate analysis.
  • If the dedicated pin for next-rank prediction is unacceptable, stochastic write throttling provides a fallback but with a performance trade-off; an in-band signaling scheme could eliminate the pin while retaining robustness.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. The paper presents Chopim, a hardware/software co-design that enables concurrent access to main memory by a host CPU and near-data accelerators (NDAs) sharing the same DRAM ranks. The main contributions are: bank partitioning to prevent host accesses from reducing NDA row-buffer locality; mechanisms to throttle NDA writes (next-rank prediction and stochastic issue) to avoid read/write turnaround penalties; a data layout that keeps NDA operands locally aligned while preserving the host's sophisticated address interleaving; and replicated memory-controller FSMs that allow the host and NDA-side controllers to coordinate in a non-packetized DDR4 interface without NDA-to-host signaling. The evaluation, based on gem5+Ramulator simulations with SPEC2006/2017 host workloads and NDA microbenchmarks, reports up to 97% of unutilized rank bandwidth utilization for NDAs with preserved host IPC, and a 2x speedup (host-only baseline) or 1.6x speedup (non-concurrent baseline) for an SVRG logistic-regression case study.

Significance. If the mechanisms work as described, Chopim addresses real and largely unexplored challenges: fine-grain temporal interleaving of host and NDA requests to shared ranks, a bank-partitioning scheme compatible with huge pages and modern address hashing, and a data layout that enables colocated host/NDA collaboration without data copies. The evaluation is reasonably thorough, covering read- and write-intensive extremes, multiple host workload mixes, a scalable rank configuration, and a realistic machine-learning application. The main weakness is that the non-packetized DDR4 mode, which underpins all of the headline results, relies on an unvalidated replicated-FSM synchronization assumption, and the next-rank prediction mechanism depends on a dedicated sideband pin that is assumed but not modeled with physical delays.

major comments (2)
  1. [III-D, VII] The replicated-FSM design is load-bearing for the entire DDR4 evaluation, yet its correctness is only argued informally. Section III-D describes the FSMs staying synchronized via the DDR interface clock and deterministic NDA access patterns, and the text states that 'all our experiments rely on this.' However, deterministic NDA access patterns specify which commands an NDA will eventually issue, not the cycle-level timing of when those commands are issued. Host priority decisions, NDA write-buffer drain thresholds, and especially JEDEC refresh scheduling are controller policies whose outcomes must be identically predicted by both FSMs. The simulator does not model refresh, ECC scrubbing, or error handling, and no re-synchronization or divergence-recovery mechanism is presented. Without a formal argument or a simulated fault-injection/sensitivity study showing that the replicated state cannot diverge under these events, the correctness of concurrent host/NDA access in non-packetized DDR4 is not established, and the claimed 97% bandwidth utilization and SVRG speedups inherit this uncertainty.
  2. [III-B, VII] The next-rank prediction mechanism used for the rest of the paper depends on a dedicated sideband pin for the inhibit signal. Section III-B states, 'For now, we assume that this information is communicated over a dedicated pin and plan to develop other signaling mechanisms that can piggyback on existing host DRAM commands at a later time.' The simulation does not model the pin's propagation delay, the decision logic latency, or the command scheduling overhead of sending the inhibit signal ahead of the host transaction. Since Section VII states that next-rank prediction is used for the rest of the paper, and Figures 12 and 15 report results based on it, the reported host-IPC and SVRG numbers could change materially once this signaling path is modeled with realistic delays. The authors should either implement a delay model for the pin and predictor or provide a sensitivity analysis over the signal latency.
minor comments (5)
  1. [III-A] In the paragraph on data layout across ranks, 'we reply on OS page coloring' should read 'we rely on OS page coloring.'
  2. [VII, Takeaway 6] Takeaway 6 says collaborative SVRG is 'sped up by 50%,' while the abstract and Section IV say 2x over host-only execution, which is a 100% improvement. Please make the reported percentage and the speedup factors consistent.
  3. [III-C] The bank-partitioning scheme's real-system feasibility depends on the OS being able to split the physical address space and enforce page coloring as described. The evaluation appears to assume this OS behavior; a short discussion or simulation of allocator-induced fragmentation or of the cost of clearing memory before repartitioning would strengthen the claim of compatibility with huge pages.
  4. [III-A, V] The paper acknowledges that the proposed per-chip word layout relies on in-DRAM ECC with limited coverage and defers server-grade ECC to future work. Since the target is main memory in a server system, this limitation should at least be stated more prominently in the contributions or in the concluding discussion.
  5. [VI] The results for the nine mixes are presented without any indication of run-to-run variability or statistical significance. Since the same mixes are used across all evaluations, a brief statement about the sensitivity of the conclusions to the specific SimPoint choices would be useful.

Circularity Check

0 steps flagged · score 0.0 of 10

No circular derivation: Chopim's central claims are architectural mechanisms evaluated against independent baselines, with tuning confined to the SVRG case study.

full rationale

This is an engineering systems paper, not a derivation chain, and I find no step in which a claimed prediction or result reduces by construction to its own inputs. The bank-partitioning, write-throttling, replicated-FSM, and data-layout mechanisms are implemented in a gem5/Ramulator simulation and evaluated against concrete baselines: rank partitioning, idealized unutilized-rank-bandwidth, and host-only execution. The 'up to 97% of unutilized bandwidth' claim is a measured ratio against an explicitly idealized model, not a value produced by fitting that model. The SVRG case study uses 'best-tuned' learning rates and epoch sizes, but these hyperparameters tune the algorithm comparison; they are not used to fit or derive the architecture-level bandwidth or IPC results. The paper's self-citations, including the bank-partitioning prior work [36] with an overlapping author, are contextual and contrastive ('existing bank partitioning mechanisms [36], [52], [57] are incompatible...'), not load-bearing evidence for Chopim's correctness. The main caveats are assumptions rather than circularities: Section III-D assumes replicated host- and NDA-side memory-controller FSMs remain synchronized using the DDR interface clock and deterministic NDA access patterns without NDA-to-host signaling, and Section III-B assumes a dedicated pin for next-rank prediction. These are unvalidated implementation assumptions and correctness risks, but they are not reductions of the paper's conclusions to its premises. The paper is self-contained against external benchmarks and simulators, so no equation-level or self-citation-based circularity is present.

Assumptions & free parameters 5 free parameters · 7 assumptions · 2 invented entities

The central claims rest on simulator fidelity, OS page-coloring support, linear address mappings, and the replicated-FSM assumption. The paper does not ship code or hardware, so these are assumptions rather than verified artifacts.

free parameters (5)
  • Number of banks reserved for NDAs = 1 bank per rank in evaluation (2-bank example in Section III-C)
    Bank partitioning strength trades host parallelism against NDA interference; the paper selects one bank per rank without a sensitivity analysis.
  • Stochastic write issue probability = 1/4 and 1/16
    Configurable coin weight; the paper evaluates two fixed values and does not provide a selection rule.
  • Number of OS page colors = 8 colors, 4 GiB shared region each
    Coloring granularity is a design choice; it determines how many operands can share alignment.
  • System-row allocation granularity = 2 MiB for a 1 TiB DDR4 system
    Chosen to match one DRAM row per bank; affects memory fragmentation and OS allocator support.
  • SVRG hyperparameters = lambda=1e-3, momentum=0.9, learning rate 'best-tuned', epochs N, N/2, N/4
    The convergence speedup depends on hyperparameters selected per configuration; the exact best-tuned values are not reported.
assumptions (7)
  • domain assumption Ramulator and gem5 model DRAM timing, scheduling, and CPU behavior faithfully enough for the reported speedups.
    The central results are produced by simulation; first-order accuracy depends on simulator fidelity.
  • domain assumption The Intel Skylake address mapping is representative of modern interleaving, and all address mappings of interest are linear.
    Section III-A uses this mapping for the layout and coloring argument; nonlinear or hashed future mappings may break the alignment guarantee.
  • domain assumption OS page coloring and coarse-grain memory allocation can be implemented with acceptable fragmentation.
    Section III-A states fragmentation is negligible but provides no quantitative evaluation.
  • ad hoc to paper Replicated FSMs remain synchronized using the DDR interface clock and deterministic NDA access patterns, with no NDA-to-host signaling.
    Section III-D; this is the load-bearing premise for the non-packetized DDR4 mode.
  • domain assumption In-DRAM ECC with limited coverage is sufficient for NDA local accesses.
    Section III-A explicitly defers stronger ECC; if DRAM faults are a concern, the single-chip word layout is not fully protected.
  • domain assumption Coherence can be handled by explicit copies and memory fences because shared data is mostly read-only.
    Sections II and IV rely on cache bypassing and fences; a general coherence protocol would be needed for frequently written shared data.
  • domain assumption A rank cannot serve host and NDA requests simultaneously.
    Section I defines the problem this way; if simultaneous access were possible, the entire contention framework would change.
invented entities (2)
  • Replicated host and NDA memory controller FSMs
    purpose: Coordinate bank and timing state in non-packetized DDR4 without NDA-to-host signaling.
    Described in Section III-D and used in all experiments, but only simulated; no independent hardware validation exists.
  • Dedicated sideband pin for next-rank prediction inhibit signal
    purpose: Carry the host-to-NDA stall signal for write throttling.
    Section III-B assumes the pin exists and plans to develop other signaling later; no implementation is demonstrated.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Near Data Acceleration with Concurrent Host Access." pith.science (2026). https://pith.science/paper/RPQA5ZMS

@misc{pith2026190806362,
  author       = {Pith},
  title        = {Pith review of: Near Data Acceleration with Concurrent Host Access},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/RPQA5ZMS}},
  note         = {Machine review of arXiv:1908.06362}
}
read the original abstract

Near-data accelerators (NDAs) that are integrated with main memory have the potential for significant power and performance benefits. Fully realizing these benefits requires the large available memory capacity to be shared between the host and the NDAs in a way that permits both regular memory access by some applications and accelerating others with an NDA, avoids copying data, enables collaborative processing, and simultaneously offers high performance for both host and NDA. We identify and solve new challenges in this context: mitigating row-locality interference from host to NDAs, reducing read/write-turnaround overhead caused by fine-grain interleaving of host and NDA requests, architecting a memory layout that supports the locality required for NDAs and sophisticated address interleaving for host performance, and supporting both packetized and traditional memory interfaces. We demonstrate our approach in a simulated system that consists of a multi-core CPU and NDA-enabled DDR4 memory modules. We show that our mechanisms enable effective and efficient concurrent access using a set of microbenchmarks, and then demonstrate the potential of the system for the important stochastic variance-reduced gradient (SVRG) algorithm.

Figures

Figures reproduced from arXiv: 1908.06362 by the authors.

Figure 1
Figure 1. Exemplary NDA architecture. sulting from NDA writes that mainly interfere with the host. We provide two solutions in this context. First, we develop a new bank-partitioning scheme that limits interference to just those memory regions that are shared by the host and NDAs, thus enabling colocating host-only tasks with tasks that use the NDAs. This new scheme is the first that is compatible with huge pages and also wit… view at source ↗
Figure 2

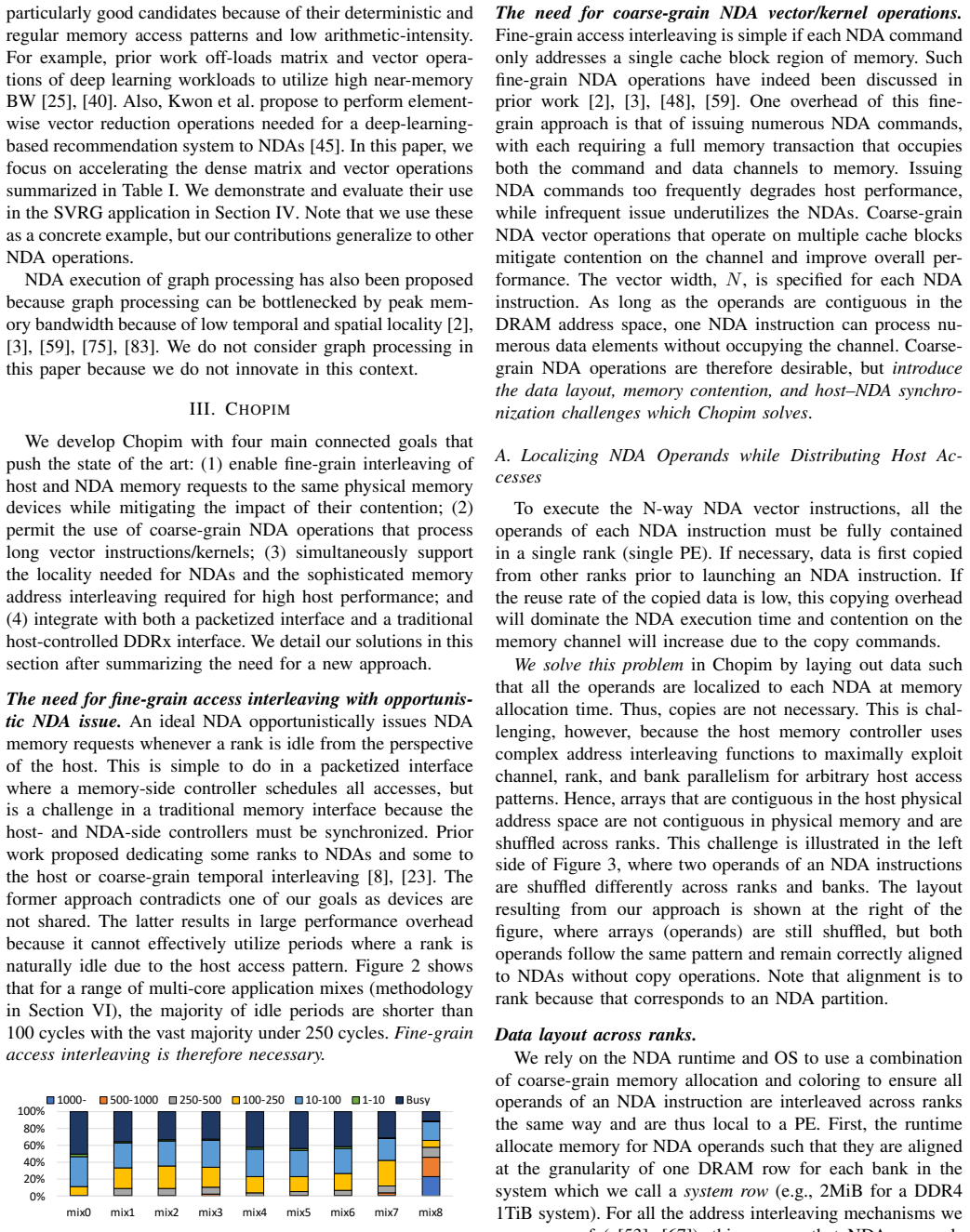

Figure 2. Rank idle-time breakdown vs. idleness granularity. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

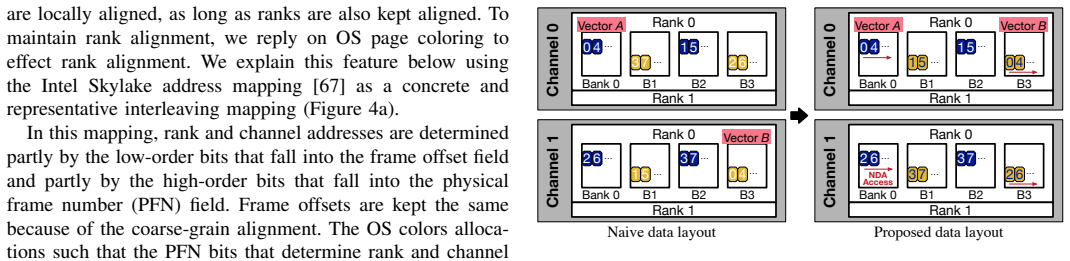

Figure 3. Example data layout across ranks for concurrent access [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (9 more)
Figure 4

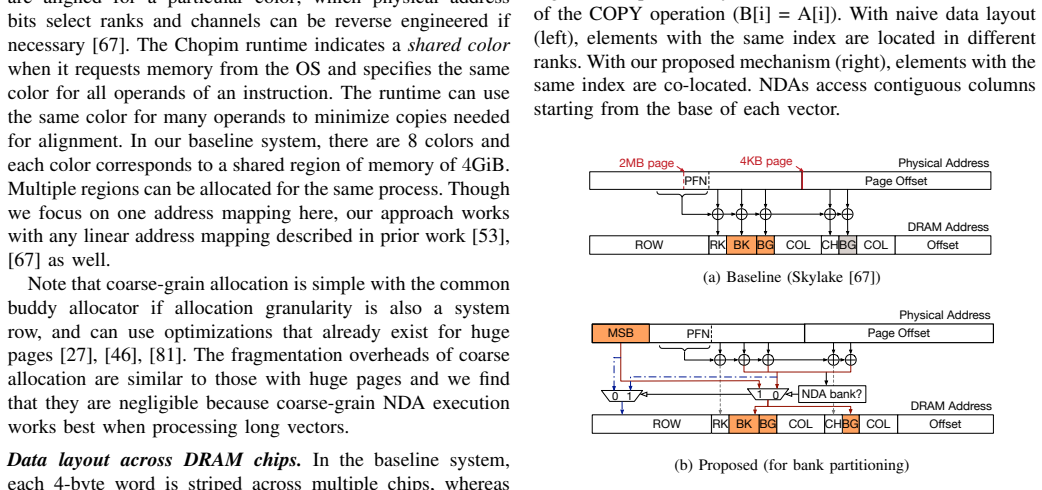

Figure 4. Figure 4: Baseline and proposed host-side address mapping. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5

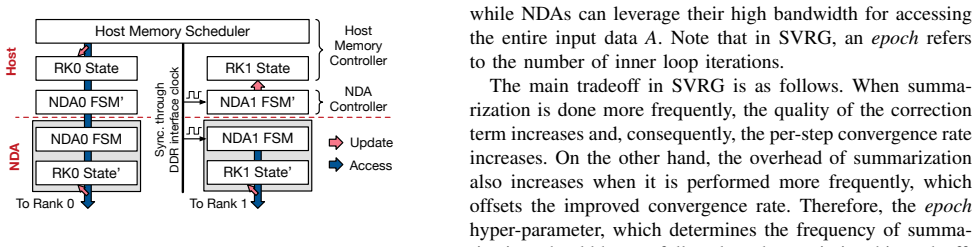

Figure 5. Figure 5: Global MC state tracking when the host (left) and [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 6
Figure 6. Figure 6: Collaboration between host and NDAs in SVRG. [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]
Figure 7

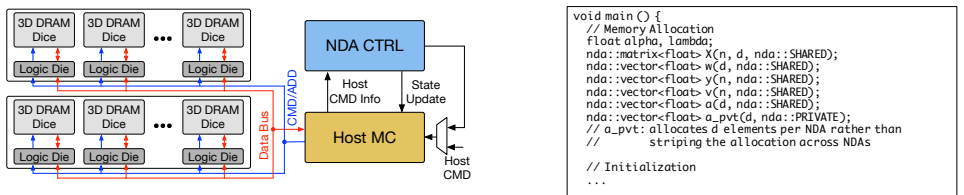

Figure 7. Figure 7: Overview of NDA architecture. identify such cases and more intelligently allocate memory and regions to minimize copies. For this paper, we do not implement such a compiler. Instead, programs are written to directly interact with a runtime system that is implemented wi…
Figure 8
Figure 8. Figure 8: Average gradient example code. This code corresponds [PITH_FULL_IMAGE:figures/full_fig_p008_8.png]
Figure 9
Figure 9. Figure 9: PE architecture and execution flow of AXPY. [PITH_FULL_IMAGE:figures/full_fig_p008_9.png]
Figure 10

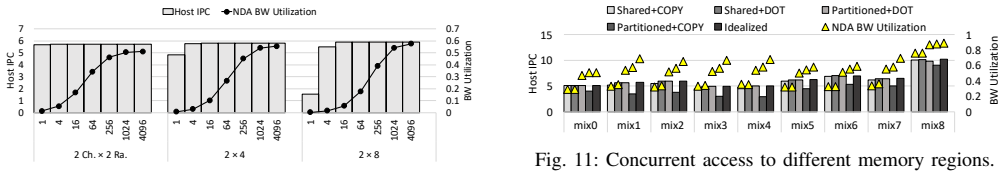

Figure 10. Figure 10: Impact of coarse-grain NDA operations. (X-axis: the [PITH_FULL_IMAGE:figures/full_fig_p010_10.png]
Figure 13

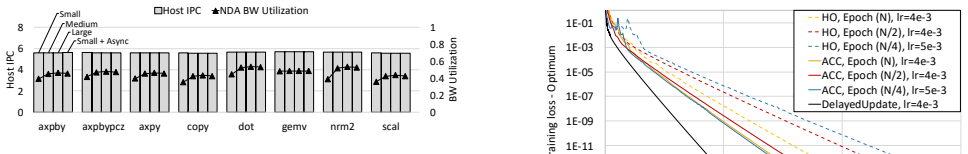

Figure 13. Figure 13: Impact of NDA operations and operand size. [PITH_FULL_IMAGE:figures/full_fig_p011_13.png]
Figure 14
Figure 14. Figure 14: Scalability Chopim vs. rank partitioning. [PITH_FULL_IMAGE:figures/full_fig_p011_14.png]
