REVIEW 3 major objections 5 minor 43 references
RankSRGAN: Generative Adversarial Networks with Ranker for Image Super-Resolution
T0 review · 3 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash
Pith's one-line read A learned Ranker lets super-resolution GANs optimize perceptual scores directly, and the paper reports best NIQE/PI on three benchmarks.
desk verdict A genuine, well-ablated approach to optimizing non-differentiable perceptual metrics in SR; the main gap is how the frozen Ranker behaves on the generator's shifting output distribution. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The Ranker is a Siamese CNN that takes two images and outputs scalar ranking scores, trained with margin-ranking loss to match the pair-wise order of a chosen perceptual metric. It converts an indifferentiable metric into a differentiable objective; the concrete hook is the rank-content loss $L_R = \mathrm{sigmoid}(R(G(x_i)))$, which lets gradients flow from the predicted rank back into the generator. The metric-rank labeling scheme, rather than model classification, is what lets the framework exceed the upper bound of any single SR algorithm.
What would settle it
Take a trained RankSRGAN and compare its Ranker scores against the true perceptual metric on the generator's own outputs: if the Spearman correlation drops well below the reported validation value of 0.88, or if a model trained with the rank-content loss improves its Ranker score without improving the actual metric, the Ranker has stopped tracking the target.
Extended reading notes
Core claim
The central claim is that any non-differentiable perceptual metric can be optimized through a learned ranking surrogate. The Ranker is a Siamese VGG-style network trained to reproduce the pair-wise ordering induced by a metric on outputs of several SR algorithms; training uses margin-ranking loss rather than regression, so the surrogate only needs ordinal agreement. The rank-content loss $L_R = \mathrm{sigmoid}(R(G(x_i)))$ is added to the standard SRGAN objective, and lowering it raises the predicted perceptual rank. Because the rank dataset contains images where SRGAN and ESRGAN each win in mixed order, the generator is guided to adopt the better parts of either algorithm. The reported experiments give the best NIQE and PI among the compared methods on Set14, BSD100, and PIRM-Test, preserve PSNR on PIRM-Test, and user studies prefer RankSRGAN over both baselines.
Load-bearing premise
The Ranker is trained only on super-resolved outputs from SRResNet, SRGAN, and ESRGAN under a fixed perceptual metric, and the method assumes its ranking signal stays valid for the generator's changing output distribution during adversarial training.
Editorial extensions
If this is right
- Swapping the labels in the rank dataset swaps the target metric: RankSRGAN trained with NIQE, Ma, or PI labels improves that metric, so the same framework can chase any pair-wise rankable quality score.
- Because the Ranker learns order rather than absolute values, it separates SR algorithms whose metric values are close (for example SRGAN vs ESRGAN on NIQE), giving the generator a usable gradient where regression would collapse.
- The metric-rank upper bound can exceed every SR algorithm in the rank dataset, so adding better or complementary guiding algorithms, even ground-truth HR, should continue to improve perceptual quality.
- The rank-content loss can be weighted against MSE to navigate the perception-distortion tradeoff, letting practitioners choose a preferred balance between visual quality and fidelity.
- The generator's parameter count and inference cost stay the same as SRGAN; only training time grows by about 1.18 times.
Reading between the lines
- An unstated consequence is that any non-differentiable evaluation score expressible as pair-wise preferences, not just NR-IQA metrics, could be optimized with the same Ranker mechanism, including full-reference quality measures or task-specific scores.
- A risk the paper does not address is reward hacking: the generator may exploit the Ranker's learned scoring function rather than the true metric if training pushes outputs outside the rank dataset's distribution, and the reported validation SROCC of 0.88 does not guarantee the same ordinal accuracy on the generator's own outputs.
- A testable extension is to build rank datasets from more diverse or deliberately adversarial SR models, or to update the Ranker periodically during GAN training, to see whether the ranking signal stays aligned with the target metric under distribution shift.
- The metric-rank versus model-classification comparison suggests an ensemble view: a Ranker over many specialist generators could yield a single model that inherits each specialist's best behavior per image.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. RankSRGAN proposes a super-resolution framework that augments SRGAN with a learned Ranker, a Siamese CNN trained with margin-ranking loss to mimic the ordering behavior of non-differentiable perceptual metrics such as NIQE, PI, and Ma. The Ranker is trained on rank datasets constructed from the outputs of SRResNet, SRGAN, and ESRGAN on DIV2K/Flickr2K. Once trained, the Ranker's scalar output is used to define a rank-content loss, and the generator is optimized by a weighted sum of perceptual, adversarial, and rank-content losses. Experiments on Set14, BSD100, and PIRM-Test report lower NIQE/PI than SRGAN and ESRGAN, with ablations on the rank dataset composition, the choice of perceptual metric, ranking versus regression for the Ranker, and the loss combination.
Significance. If the mechanism is sound, the idea of using a learned ranker as a differentiable surrogate for non-differentiable perceptual quality metrics is a useful addition to perceptual SR, and the paper demonstrates that this can combine the strengths of different SR algorithms. The ablations (rank vs. regression, different metrics, different rank datasets) are thoughtful and provide some evidence that the Ranker is not merely a black-box regularizer. The paper also reports SROCC of the Ranker and includes convergence curves, which is helpful. However, the central claim that the rank-content loss 'optimizes the generator in the direction of perceptual metrics' rests on an unvalidated assumption: that the Ranker's absolute score is a valid loss signal for images that fall outside its training distribution. The empirical gains are small and reported without error bars or significance tests, so the strength of the claim currently exceeds the evidence.
major comments (3)
- [Sec. 3.3, Eq. (9)] The rank-content loss in Eq. (9) is the sigmoid of the Ranker's raw output, but the Ranker is trained with a margin-ranking loss (Eq. (4)) that determines scores only up to an arbitrary monotonic transformation. Without calibration or a mechanism anchoring the absolute scale of R to the target perceptual metric, minimizing sigmoid(R(G(x))) is not theoretically guaranteed to minimize the metric. The paper should provide either a calibration step or empirical evidence that lower R(G(x)) consistently corresponds to better metric values on a validation set of images produced during training.
- [Sec. 4.1-4.2] The Ranker is trained only on outputs of SRResNet, SRGAN, and ESRGAN, and its accuracy is evaluated only via SROCC on a held-out split of that same rank dataset. During adversarial training, the generator's output distribution shifts (as seen in Figure 6), yet the paper does not measure how the Ranker's ranking accuracy behaves on the generator's intermediate or final outputs. Without this distribution-shift analysis, the key claim that the rank-content loss 'optimizes the generator in the direction of perceptual metrics' is not fully supported; it is possible that the Ranker acts as a regularizer that only biases outputs toward the training SR methods. Please evaluate the Ranker on generated images from the trained RankSRGAN and report the correlation between R(G(x)) and the metric.
- [Tables 2-7] All quantitative results are reported as single-run means without error bars or significance tests. Given that the improvements over ESRGAN are often within a few hundredths of a NIQE/PI point (e.g., Table 2, Set14: NIQE 3.28 vs 3.28, PI 2.61 vs 2.61), it is unclear whether the claimed gains are statistically meaningful. I request variance across at least three independent training runs or a statistical significance test on the test datasets.
minor comments (5)
- [Sec. 4.1, Eq. (11)] The SROCC definition is written only for the case of no tied ranks; please clarify how ties are handled or state that the data contain no ties.
- [Sec. 3.4, Eq. (10)] The notation 'PMSR2-L + PMSR2-H' and 'PMSR1-L' is confusing; the subscripts should be defined explicitly.

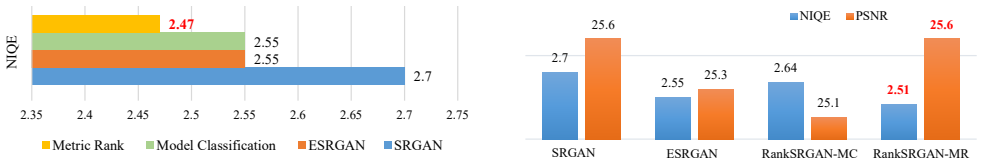

- [Figure 3] The caption does not match the bars; please indicate which bar corresponds to 'Metric Rank', 'Model Classification', 'ESRGAN', and 'SRGAN'.
- [Sec. 4.4, Table 7] The values of alpha_1 and alpha_2 are given as '{1,5}' but it is unclear which alpha corresponds to which row; please label the rows explicitly.
- [Throughout] There are minor typos: 'beheviour' in Section 3.1, 'traning' in Section 4.2, and 'indifferentiable' should likely be 'non-differentiable' in the introduction.
Circularity Check
No significant circularity: the Ranker is a learned surrogate, while final evaluation uses the original metrics on held-out sets.
full rationale
The paper's central claim is that RankSRGAN optimizes a generator in the direction of otherwise non-differentiable perceptual metrics by training a Ranker to imitate metric rankings and then using the Ranker output as a loss. This is a surrogate-optimization procedure, not a circular derivation. The Ranker is trained on outputs of SRResNet, SRGAN, and ESRGAN with labels from NIQE, Ma, or PI, and then the rank-content loss (Eq. 9) minimizes sigmoid of the Ranker score. If the Ranker perfectly mimicked the metric, minimizing it would indeed improve the metric, but the paper does not define the target metric as the Ranker. The final evaluations in Table 2 use the original NIQE and PI values computed directly on Set14, BSD100, and PIRM-Test, which are external to the Ranker training data (DIV2K/Flickr2K). Thus the reported improvements are not forced by construction; they depend on whether the Ranker generalizes. The Ranker's SROCC of 0.88 is reported on a held-out split of the rank dataset, which is evidence of ordering ability but does not by itself guarantee distribution-shift robustness. That is a correctness or generalization concern, not a circularity. The paper also cites ESRGAN, which shares overlapping authors, but ESRGAN is used as an external baseline and data source, not as an unverified premise that carries the argument. No equation in the paper reduces to its own inputs, and no fitted parameter is relabeled as a prediction. The upper-bound analysis in Section 3.4 is descriptive and is separately validated by experiments comparing RankSRGAN-MR and RankSRGAN-MC. Overall, the derivation chain is self-contained with respect to the tested metrics; the main limitations are empirical robustness issues rather than circular reasoning.
Assumptions & free parameters
free parameters (3)
- margin epsilon in margin-ranking loss =
0.5
- adversarial loss weight in Eq. 12 =
0.005
- rank-content loss weight in Eq. 12 =
0.03
assumptions (4)
- domain assumption NIQE, PI and Ma are valid proxies for human perceptual quality.
- domain assumption A Siamese CNN trained with margin-ranking loss can learn the ordering behavior of a non-differentiable perceptual metric.
- domain assumption The rank dataset built from SRResNet, SRGAN and ESRGAN outputs covers the relevant distribution of perceptual quality for training.
- domain assumption The SRGAN base model and adversarial training setup are reliable.
Cite this review
Pith. "Pith review of RankSRGAN: Generative Adversarial Networks with Ranker for Image Super-Resolution." pith.science (2026). https://pith.science/paper/FBWKQTQ7
@misc{pith2026190806382,
author = {Pith},
title = {Pith review of: RankSRGAN: Generative Adversarial Networks with Ranker for Image Super-Resolution},
year = {2026},
howpublished = {\url{https://pith.science/paper/FBWKQTQ7}},
note = {Machine review of arXiv:1908.06382}
}
read the original abstract
Generative Adversarial Networks (GAN) have demonstrated the potential to recover realistic details for single image super-resolution (SISR). To further improve the visual quality of super-resolved results, PIRM2018-SR Challenge employed perceptual metrics to assess the perceptual quality, such as PI, NIQE, and Ma. However, existing methods cannot directly optimize these indifferentiable perceptual metrics, which are shown to be highly correlated with human ratings. To address the problem, we propose Super-Resolution Generative Adversarial Networks with Ranker (RankSRGAN) to optimize generator in the direction of perceptual metrics. Specifically, we first train a Ranker which can learn the behavior of perceptual metrics and then introduce a novel rank-content loss to optimize the perceptual quality. The most appealing part is that the proposed method can combine the strengths of different SR methods to generate better results. Extensive experiments show that RankSRGAN achieves visually pleasing results and reaches state-of-the-art performance in perceptual metrics. Project page: https://wenlongzhang0724.github.io/Projects/RankSRGAN
