The Role of Vacuum Fluctuations and Symmetry in the Hydrogen Atom in Quantum Mechanics and Stochastic Electrodynamics (SED)

T0 review · 4 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Stochastic electrodynamics cannot reproduce the hydrogen atom because its extra forces break the exact O(4) symmetry that fixes quantum levels.

desk verdict A fair, clearly written review of SED's hydrogen-atom problem; the pessimistic conclusion rests on simulation evidence that the paper itself flags as numerically uncertain, so treat it as an informed judgment rather than a theorem. read the letter →

arxiv 1908.07343 v1 pith:R3ZMBIVD submitted 2019-08-19 quant-ph

G. Jordan Maclay This is my paper · ORCID
classification quant-ph PACS 11.1005.2005.3003.65
keywords stochasticelectrodynamicshydrogenatomvacuumfluctuationsAbraham-LorentzequationRunge-LenzvectorO(4)symmetryradiationreactionionization
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper argues that Stochastic Electrodynamics (SED), which treats the electron classically in a real random zero-point field, cannot reproduce the hydrogen atom's stable, quantized ground state. Its review of the available simulations shows that the zero-point field prevents immediate collapse but that the electron orbit eventually ionizes on long time scales. The reason, the paper contends, is structural: the Abraham-Lorentz radiation-reaction force and the stochastic field added to the Coulomb problem break the exact O(4) symmetry of the $1/r$ Hamiltonian, the symmetry that in quantum mechanics fixes the energy levels, degeneracies, and conserved quantities. A reader should care because SED is one of the few classical programs still aiming to derive quantum behavior from classical physics plus vacuum fluctuations, and this paper identifies a roadblock that cannot be patched by more computing alone.

What carries the argument

The central object is the $O(4)$ symmetry group of the hydrogen Hamiltonian, generated by the angular momentum $\mathbf{L}$ and the Runge-Lenz vector $\mathbf{A}$, with the identity $L^2 + A^2 + 1 = n^2$ fixing the $n^2$-fold degenerate levels. In quantum mechanics this symmetry survives because the vacuum and radiation-reaction effects are renormalized away; in SED the opposed machinery is the Abraham-Lorentz equation, $$m\,\frac{$d^{2}$\mathbf{r}}{$dt^{2}$} = -\frac{$Ze^{2}$\mathbf{r}}{$r^{3}$} + \frac{$2e^{2}$}{$3c^{2}$}\frac{$d^{3}$\mathbf{r}}{$dt^{3}$} - e(\mathbf{E}+\mathbf{v}\times\mathbf{B}),$$ a third-order equation whose radiative-reaction term and random field explicitly break the conservation of $\mathbf{L}$ and $\mathbf{A}$ and drive the energy toward zero at long times. The contrast between these two objects carries the whole argument.

What would settle it

Run the 2015 three-dimensional SED simulation beyond $10^7$ Bohr times in double precision with a fixed ultraviolet cutoff and monitor the energy: if the electron remains bound with energy hovering near $-0.5$ Bohr units and the radial density approaches the quantum ground-state distribution, the claim that SED inevitably ionizes is falsified; if ionization persists, the claim survives.

Watch

Extended reading notes

Core claim

The central claim is that the current SED program is unlikely to produce a stable hydrogen ground state, let alone quantized angular momentum, correct degeneracies, or transitions. Earlier simulations and later higher-powered simulations both found that the stochastic zero-point field prevents the classical electron from spiraling into the proton on short time scales, but that on longer time scales the energy rises toward zero and the orbit becomes so eccentric that self-ionization occurs. The paper locates the difficulty in the equations of motion: the Abraham-Lorentz force and the fluctuating field break time-translation, rotational, and Runge-Lenz symmetries of the Coulomb Hamiltonian, so angular momentum, energy, and eccentricity are no longer conserved quantities. In QED these effects are separated and renormalized, preserving the symmetry that determines the spectrum; in SED they are lumped together and overwhelm it. The paper concludes that with the current SED approach it is very difficult to see a path to the quantum ground state, which is spherically symmetric with zero angular momentum, and that achieving such a state would likely push SED toward becoming a reformulation of quantum mechanics.

Load-bearing premise

The argument assumes the long-time ionizations in the simulations reflect genuine SED dynamics and not artifacts of frequency cutoffs, replacement of 3d sums by 1d sums, or numerical integration error; the paper itself flags this as an open question.

Editorial extensions

If this is right

  • If the argument is right, the long-time ionization seen in SED simulations is not a numerical accident but a structural feature of the theory.
  • If the argument is right, adding more plane waves or more computing power will not cure the instability, because the symmetry-breaking terms themselves are responsible.
  • If the argument is right, any viable SED model of hydrogen must either restore the conserved quantities by construction or modify SED until it is essentially a reformulation of quantum mechanics.
  • If the argument is right, the short-time agreement with the quantum radial distribution found in early simulations is a transient, not a convergence to the ground state.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A testable extension would be to run SED simulations with the radiative-reaction term artificially suppressed to see whether the ionization time and eccentricity growth are governed by the Abraham-Lorentz force or by the field statistics; the paper's symmetry argument predicts the former.
  • The same symmetry-breaking diagnosis likely applies beyond hydrogen: any SED attempt to model atoms whose spectra are fixed by an enhanced symmetry group will face the same instability.
  • The low-angular-momentum ionization threshold identified near $0.588\hbar$ suggests a possible analytic target: proving that the SED stochastic process is non-recurrent for the $1/r$ potential would convert the numerical instability into a theorem.
  • If SED were modified to preserve $O(4)$ by construction, it might reproduce the quantum spectrum, but it would then have to explain why the modified dynamics is not simply a hidden-variable rendering of the Schrödinger equation.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 4 minor

Summary. The paper reviews the status of stochastic electrodynamics (SED) as a model of the hydrogen atom. It contrasts the O(4)/Runge-Lenz symmetry of the Coulomb Hamiltonian in quantum mechanics with the symmetry-breaking terms in the Abraham-Lorentz equation used in SED, and summarizes numerical simulations by Cole and Zou and by Nieuwenhuizen and Liska. These simulations show that the stochastic zero-point field can prevent the classical electron from collapsing for tens to hundreds of thousands of orbits, but that the atom eventually ionizes at longer times. The paper concludes that, although SED has had successes elsewhere, the current SED approach faces serious difficulties in producing a stable hydrogen ground state with quantized angular momentum, the correct degeneracy, and transitions. The paper is a critical review rather than a new derivation or simulation.

Significance. If its assessment is correct, the paper is a useful checkpoint for the SED program. It provides a clear inventory of the gap between the symmetry structure of the quantum hydrogen atom and the dynamics of the Abraham-Lorentz equation with a stochastic field, and its summary of the prior simulations appears accurate. The paper is also honest: it explicitly lists the possibility that the long-time ionization may be an artifact of numerical implementation, and it does not claim to have proven a no-go theorem. The symmetry discussion is standard material and independently verifiable, and no new fitted parameters or invented entities are introduced. Its value is therefore primarily as a critical review; it does not supply a quantitative argument, such as an invariant-measure or Fokker-Planck analysis, that would establish the impossibility of a stationary SED hydrogen ground state.

major comments (4)
  1. [Section VI, Sections III-IV] The central conclusion that the 'current SED approach' cannot model the hydrogen atom is broader than the evidence presented. The symmetry analysis shows that L and A are not conserved along individual Abraham-Lorentz trajectories, but a stochastic dissipative system can have a stationary probability distribution even when no single trajectory conserves L or A; the quantum ground state is an ensemble property. The paper itself acknowledges in Section VI that the long-time instability could be due to implementation, could be inherent to SED, or could reflect a more fundamental chaos. Since the conclusion is not a theorem, it should be scoped to the reported simulations, with an explicit statement that no no-go result has been established, unless the author supplies a quantitative argument against a stationary distribution with the correct radial density and zero mean angular momentum.
  2. [Section V, Fig. 6] The decisive empirical evidence for the paper's main claim is the long-time ionization seen in the simulations, but the numerical sensitivity of that result is not resolved. The paper reports that changing to double precision with a fixed cutoff made ionization occur at an earlier time and states that it is not clear why the computational upgrades led to earlier ionization. Since a truncated stochastic spectrum, a finite box, the replacement of the 3D k-sum by a 1D frequency sum, an approximate radiation-reaction term, and a fourth-order Runge-Kutta scheme with interpolation can all introduce long-time drift, the review should either report the convergence and robustness tests that are available in the cited works or explicitly conclude that the long-time fate of SED hydrogen is currently unknown. Without such an assessment, the empirical foundation for the strongest conclusion is missing.
  3. [Section IV, Eq. (19)] There is a dimensional error in the central equation of motion. The Abraham-Lorentz term is written as (2e^2/3c^2) d^3r/dt^3, which in Gaussian units has dimensions of g cm^2/s^3 rather than force; the standard radiation-reaction force is (2e^2/3c^3) d^3r/dt^3. Because Eq. (19) is the equation whose symmetry properties the paper critiques and is quoted as the basis of the SED simulations, the factor should be corrected and checked against the equations actually used in the Cole-Zou and Nieuwenhuizen-Liska simulations.
  4. [Sections I and VI] The paper treats 'SED' as a single approach, but SED contains distinct formulations, including those of de la Peña and Cetto [16], Puthoff [5], and Claverie and Soto [6]. The critique in Section VI is directed at the specific combination of the Abraham-Lorentz equation with a truncated finite-sum stochastic field used in the cited simulations. The conclusion should be scoped to that implementation unless the author explains why the alternative formulations are equivalent for the hydrogen-atom problem; as written, the paper overstates the reach of its analysis.
minor comments (4)
  1. [Section II, Eq. (1)] The quantity in Eq. (1) is labeled E but is described in the text as 'the vector potential'; the notation should be made consistent, and the gradient/sign convention for the fields from the vector potential should be stated correctly, since E = -∂A/∂t - ∇φ is not the same as -∂A/∂r.
  2. [Section III, Eq. (13)] The right-hand side of Eq. (13) has a sign error: L^2 + A^2 is positive, so the expression should be m(Ze^2)^2/(2|E|), not -m(Ze^2)^2/(2|E|). The later equations are consistent with the positive sign.
  3. [Section III, Eq. (7)] The definition of the Runge-Lenz vector in Eq. (7) appears dimensionally inconsistent as printed; if a is defined as (-2mE)^{1/2}, the first term p×L/(2a) has different dimensions from the second term mZe^2 r/r. The standard definition or the chosen units should be stated explicitly.
  4. [Abstract and keywords] There is a misspelling of 'fluctuations' in the abstract, and the keywords line repeats 'Key words'; the PACS codes should be listed as separate items rather than run together.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: the review's symmetry analysis is standard and its critical conclusion rests on external simulations, not on self-defined or fitted inputs.

full rationale

The paper is a critical review that contrasts the O(4) symmetry of the Coulomb Hamiltonian with SED simulations; it does not fit parameters and then rename them as predictions. The symmetry derivation in Section III is a standard textbook treatment (commutators of L and A, O(4) algebra, quantized levels), and the claim that adding the Abraham-Lorentz and stochastic-force terms breaks conservation of L, A, and E follows directly from the form of Eq. (19), not from a circular fit. The main conclusion that current SED approaches are unlikely to yield a stable hydrogen atom is supported by external simulations (Cole-Zou, Nieuwenhuizen-Liska) and is explicitly qualified by the paper's own list of possible causes of the simulated instability. The only self-citation is Ref. [18] for the SO(4,2) enlargement and radiative level-shift calculation; this is a peripheral group-theoretic remark, not load-bearing for the central claim. No equation reduces to its input by construction, and no fitted quantity is presented as an independent prediction. Accordingly, the finding is no significant circularity, with score 0.

Assumptions & free parameters 0 free parameters · 4 assumptions · 0 invented entities

The paper introduces no new parameters or entities. It relies on standard quantum and classical mechanics and on the cited SED simulations. The key unstated assumption is the fidelity of those simulations to the SED model, which the paper itself flags as an open question.

assumptions (4)
  • domain assumption The Abraham-Lorentz equation (Eq. 19) correctly describes the motion of a classical electron in SED, including radiative reaction and the Lorentz force from the stochastic field.
    This equation is the foundational model for SED simulations cited in the paper (Section IV).
  • domain assumption The stochastic zero-point field has the same spectral energy density as the QED vacuum, rho(omega) = hbar omega^3 / (2 pi^2 c^3), and the simulations' finite frequency cutoffs do not alter the essential physics.
    The paper notes that SED simulations use frequency cutoffs (Section V), and the conclusions about ionization depend on this assumption.
  • standard math The Runge-Lenz vector and O(4) symmetry results for the Coulomb Hamiltonian are valid as standard quantum and classical mechanics.
    Used in Section III to derive orbit equations and degeneracy. These are textbook results.
  • domain assumption The cited numerical simulations (Cole & Zou 2003, Nieuwenhuizen & Liska 2015-2016) faithfully represent the behavior of SED equations.
    The central claim of ionization at long times relies entirely on these simulations. The paper itself questions this in Section VI.

how reviews work

0 comments
Cite this review

Pith. "Pith review of The Role of Vacuum Fluctuations and Symmetry in the Hydrogen Atom in Quantum Mechanics and Stochastic Electrodynamics (SED)." pith.science (2026). https://pith.science/paper/R3ZMBIVD

@misc{pith2026190807343,
  author       = {Pith},
  title        = {Pith review of: The Role of Vacuum Fluctuations and Symmetry in the Hydrogen Atom in Quantum Mechanics and Stochastic Electrodynamics (SED)},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/R3ZMBIVD}},
  note         = {Machine review of arXiv:1908.07343}
}
read the original abstract

Stochastic Electrodynamics (SED) has had success modeling black body radiation, the harmonic oscillator, the Casimir effect, van der Waals forces, diamagnetism, and uniform acceleration of electrodynamic systems using the stochastic zero-point fluctuations of the electromagnetic field with classical mechanics. However the hydrogen atom, with its 1/r potential remains a critical challenge. Cole and Zou in 2003 and Nieuwenhuizen and Liska in 2015 found that the SED field prevented the electron orbit from collapsing into the proton but eventually the atom became ionized. We look at the issues of the H atom and SED from the perspective of symmetry of the quantum mechanical Hamiltonian which is used to obtain the quantum mechanical results, and the Abraham-Lorentz equation, which is a force equation that includes the effects of radiation reaction and is used to obtain the SED simulations. We contrast the physical computed effects of the quantized electromagnetic vacuum flucuations with the role of the real stochastic electromagnetic field.

Figures

Figures reproduced from arXiv: 1908.07343 by the authors.

Figure 1

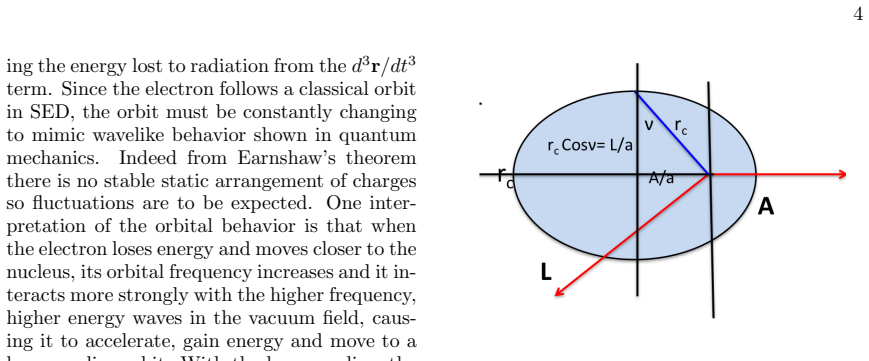

Figure 1. FIG. 1. The classical limit of the orbital is a non [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

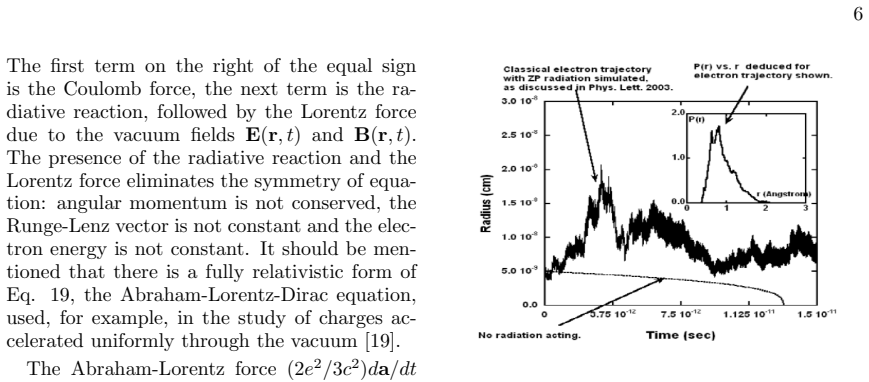

Figure 2. FIG. 2. Typical plot of r vs time for one trajectory. [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. FIG. 3. Plots of the radial probability density [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figures from the paper (3 more)
Figure 5
Figure 5. Figure 5: FIG. 5. Plots of the radius r of the electron orbit [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
Figure 6
Figure 6. Figure 6: FIG. 6. Plots of the energy E (left side) and the [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]
Figure 7

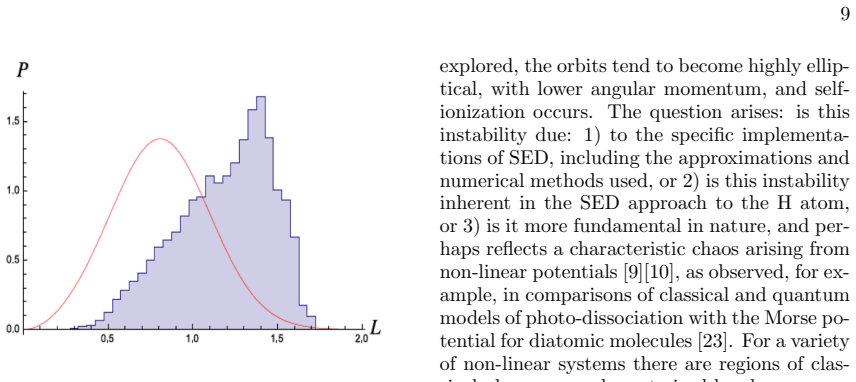

Figure 7. Figure 7: FIG. 7. Distribution of the angular momentum L [PITH_FULL_IMAGE:figures/full_fig_p009_7.png]
